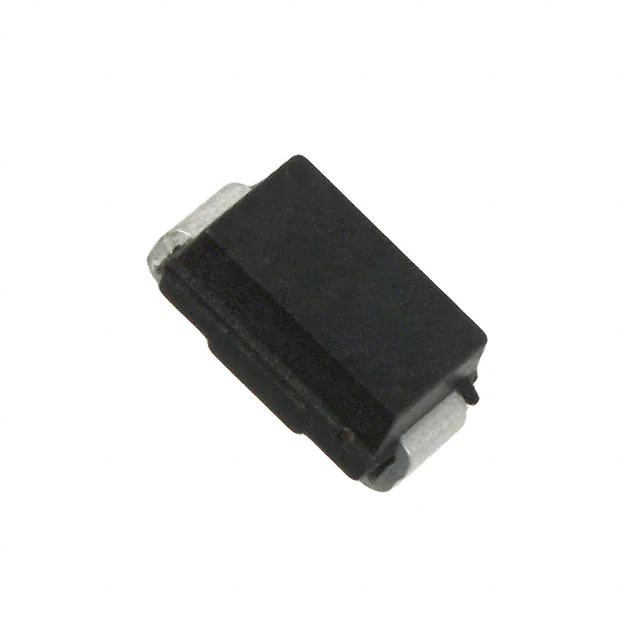

LSP0900AJR-S

PL IA NT CO M *R oH S Features Applications ■ Fast switching ■ LED streetlights ■ Automatic reset ■ LCD backlighting ■ SMA package ■ Display lighting ■ Suitable for industrial lighting environments ■ Intrinsically safe lighting ■ RoHS compliant* LSPxxxxAJR Series LED Shunt Protector General Information Bourns® LSP Series protectors are electronic shunts that provide a current bypass when an LED element in an LED series string fails open circuit. This ensures the remaining string of LEDs will continue to function. There are many cases where high reliability of the LED lighting must be maintained, such as LCD backlighting, transport lighting, avionics, intrinsically safe and low maintenance lighting. Anode LSPxx00 Control Circuit The LSPxxxAJR Series is available in surface mount package DO-214AC (SMA) size format. Cathode Absolute Maximum Ratings (@ TA = 25 °C Unless Otherwise Noted) Rating LSP0600 LSP0900 LSP1300 LSP1800 Repetitive peak off-state voltage Symbol Value Unit VDRM 6 9 13 18 V IT TJ Ts 1 A -40 to +150 °C Average on-state current (Note 1) Operating junction temperature Storage temperature -65 to +150 °C 260 °C Lead temperature, soldering (10 s) Notes: 1. Using 75 mm x 75 mm 4-Layer PCB (EIA/JESD51-7). Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Test Conditions IDRM Repetitive peak off-state current VD = VDRM V(BO) Breakover voltage dv/dt = 750 V/ms, RSOURCE = 300 IH IBO VT Min. LSP0600 LSP0900 LSP1300 LSP1800 Nom. 6 9 13 18 5 Max. Unit 10 μA 16 18 26 33 V Holding current IT = 1 A, di/dt = 30 mA/ms Breakover current di/dt = 0.8 A/ms 30 75 mA mA On-state voltage IT = 1 A 1.2 V Max. Unit Thermal Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Test Conditions Min. Nom. Junction to free air thermal resistance EIA/JESD51-3 PCB, IT= 350 mA, TA= 25 °C 230 °C/W Junction to free air thermal resistance EIA/JESD51-7, 75 mm x 75 mm 4-Layer PCB, IT = 1.0 A, TA= 25 °C 90 °C/W JANUARY 2011 - REVISED September 2019 WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. LSPxxxxAJR Series LED Shunt Protector V-I Characteristic On-state Voltage vs. Junction Temperature 1.05 +i VT 1.00 V(BO) I(BO) IH IDRM ID -v VD VDRM +v On-State Voltage (V) IT 0.95 0.90 0.85 Characteristics not defined in this quadrant. 0.80 25 50 75 100 125 150 TJ - Junction Temperature (°C) -i Normalized Breakover Voltage vs. Junction Temperature Typical Application Normalized Breakover Voltage (V) 1.06 1.05 Current Source 1.04 1.03 LED1 1.02 LSP0600 Control Circuit 1.01 1.00 LED2 0.99 LSP0600 Control Circuit 0.98 25 50 75 100 125 150 TJ - Junction Temperature (°C) LSP0600 Control Circuit LEDn LSP0600 Control Circuit JANUARY 2011 - REVISED SEPTEMBER 2019 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Note: The interaction between the Bourns® LSP device and the power supply for the LED series string dictates the power supply architecture. Proper care must be taken in the design of the power supply architecture to ensure that the Bourns® LSP devices operate as intended and the design maintains integrity. LSPxxxxAJR Series LED Shunt Protector Product Specifications R (B) 1 Typical Part Marking 2 T (A) Top Side Marking LSP0600AJR-S ....................................................................LSP060 LSP0900AJR-S ....................................................................LSP090 LSP1300AJR-S ....................................................................LSP130 LSP1800AJR-S ....................................................................LSP180 MDXXCCE Unit ................................... Epoxy molded SMA DO-214AC package Mold Material .......................................................................UL94V-0 Terminations ..................... 100 % matte tin-plated over copper alloy Unit Weight ...........................................................................102 mg. Packaging Specifications Standard ........................................................................... EIA-481-1 Tape Width.............................................................. 12 mm (.472 in.) Reel Diameter..................................................... 330 mm (12.99 in.) Part Alignment ......................Cathode bar adjacent to sprocket hole Quantity per Reel.......................................................... 5,000 pieces How to Order LSP 0600 AJ R - S Model Series LED Shunt Protector Off-State Voltage 0600 = 6 V 0900 = 9 V 1300 = 13 V 1800 = 18 V Package AJ = SMA DO-214AC Package Standard Packaging R = Tape and Reel Packaging (5,000 pcs./reel) Termination S = RoHS Compliant Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com JANUARY 2011 - REVISED SEPTEMBER 2019 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
