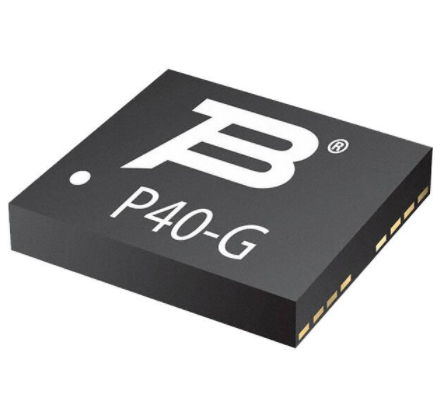

P40-G240-WH

Features ■ ■ ■ ■ ■ ■ ■ Applications Formerly brand Extremely high speed performance Low impedance Two TBU® protectors in one small package Very high bandwidth, GHz compatible Simple, superior circuit protection RoHS compliant*, UL Recognized ■ xDSL (ADSL, VDSL, VDSL2) ■ High Data Rate Interface IC protection (LVDS, HDMI, etc.) ■ Industrial sensors and controls ■ General electronics P40-G Series TBU® High-Speed Protectors Transient Blocking Units - TBU® Devices Additional Information ® Bourns Model P40-G products are high-speed bidirectional protection components, constructed using MOSFET semiconductor technology, designed to protect against faults caused by short circuits, AC power cross, induction and lightning surges. The TBU® high-speed protector, triggering as a function of the MOSFET, blocks surges and provides an effective barrier behind which sensitive electronics are not exposed to large voltages or currents during surge events. The TBU® device is provided in a surface mount DFN package and meets industry standard requirements such as RoHS and Pb Free solder reflow profiles. Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY Agency Approval Industry Standards Description File Number: E315805 UL Description CONTACT Model Environmental Characteristics Telcordia GR-1089 ITU-T K.20, K.20E, K.21, K.21E, K.45 P40-G Moisture Sensitivity Level ..........................1 ESD Classification (HBM)....................... 1C Absolute Maximum Ratings (Tamb = 25 °C) Symbol Parameter Value Unit Vimp Vrms Maximum protection voltage for impulse faults with rise time ≥ 1 μsec 40 V Maximum protection voltage for continuous Vrms faults 28 V Top Operating temperature range -55 to +125 °C Tstg Storage temperature range -65 to +150 °C Tjmax Maximum Junction Temperature +125 °C Electrical Characteristics (Tamb = 25 °C) Symbol Parameter Iop Maximum current through the device that will not cause current blocking Min. Itrigger Typical current for the device to go from normal operating state to protected state Iout Maximum current through the device ® Rdevice Series resistance of the TBU device Rbal Line-to line series resistance difference between two TBU® devices tblock Maximum time for the device to go from normal operating state to protected state Iquiescent Typ. Current through the triggered TBU device with 40 Vdc circuit voltage ® Vreset Voltage below which the triggered TBU device will transition to normal operating state RθJA Junction to air thermal resistance, FR4 PCB. 0.035 sq. in. of copper in addition to solder pads Unit 240 mA 350 3.6 ® Max. mA 480 mA 4.2 Ω 5 % 0.2 μs 0.7 mA 7 V 130 °C/W The P40-G Series TBU® high-speed protector is bidirectional; specifications are valid in both directions. WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. P40-G Series TBU® High-Speed Protectors Typical Performance Characteristics V-I Characteristics Time to Block vs. Fault Current 1 +I Itrigger -Vreset +V Vreset Time to Block (sec) 0.1 0.01 0.001 0.0001 0.00001 0.000001 0.0000001 0.1 1 10 100 1000 Fault Current (A ) -Itrigger Trigger Current vs. Temperature 140 % of Trigger Current 120 100 80 60 40 20 -40 -20 0 20 40 60 80 Temperature (°C) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. P40-G Series TBU® High-Speed Protectors Operational Characteristics The graph below demonstrates the operational characteristics of the TBU® device. In the graph below the fault voltage, protected side voltage, and current is presented. TEST CONFIGURATION DIAGRAM Load V1 Line1 P40-G Line2 P40-G Lightning Protection 40 V 3 10 V/div. 400 mA/div. 1 1 µs/div. Ch1 V1 Ch3 Current Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. P40-G Series TBU® High-Speed Protectors Product Dimensions SEATING PLANE B A J J D E E M A F 4 5 6 A1 G B C XXXXX YWWLL PIN 1 TOP VIEW F 3 1 2 G K H A1 SIDE VIEW H M BOTTOM VIEW 0.90 (.035) E F G H Pad Designation 0.30 +0.05/-0.00 (.012 +.002/-.000) 2.60 (.102) C D Recommended Pad Layout 0.35 (.014) Dim. Pad # Apply 1 In1 2 NC 3 Out1 4 Out2 5 NC 6 In2 1.45 (.057) 0.30 (.012) NC = Solder to PCB; do not make electrical connection, do not connect to ground. TBU® devices have matte-tin termination finish. Suggested layout should use non-solder mask define (NSMD). Recommended stencil thickness is 0.10-0.12 mm (.004-.005 in.) with stencil opening size 0.025 mm (.0010 in.) less than the device pad size. As when heatsinking any power device, it is recommended that, wherever possible, extra PCB copper area is allowed. For minimum parasitic capacitance, do not allow any signal, ground or power signals beneath any of the pads of the device. J K M Min. Typ. Max. 0.80 (.031) 0.00 (.000) 3.90 (.154) 3.90 (.154) 2.55 (.100) 0.20 (.008) 0.75 (.030) 1.40 (.055) 0.10 (.004) 0.25 (.010) 0.55 (.022) 0.20 (.008) 0.90 (.035) 0.025 (.001) 4.00 (.157) 4.00 (.157) 2.60 (.102) 0.25 (.010) 0.80 (.031) 1.45 (.057) 0.15 (.006) 0.30 (.012) 0.60 (.024) 0.25 (.010) 1.00 (.039) 0.05 (.002) 4.10 (.161) 4.10 (.161) 2.65 (.104) 0.30 (.012) 0.85 (.033) 1.50 (.059) 0.20 (.008) 0.35 (.014) 0.65 (.026) 0.30 (.012) DIMENSIONS: MM (INCHES) Block Diagram 6 4 1 3 TBU® Device Thermal Resistances Thermal resistance using minimal pad size, where the power is the total power dissipated in the package. Additional copper pad area to be used for additional heatsinking is also recommended. Symbol Parameter Value Unit Rth(j-a) Junction to Package Pads (1 TBU of Pair) 250 °C/W Rth(j-a) Junction to Package Pads (2 TBUs of Equal Power) 180 °C/W Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. P40-G Series TBU® High-Speed Protectors Reflow Profile Profile Feature Average Ramp-Up Rate (Tsmax to Tp) Preheat - Temperature Min. (Tsmin) - Temperature Max. (Tsmax) - Time (tsmin to tsmax) Time maintained above: - Temperature (TL) - Time (tL) Peak/Classification Temperature (Tp) Time within 5 °C of Actual Peak Temp. (tp) Ramp-Down Rate Time 25 °C to Peak Temperature Pb-Free Assembly 3 °C/sec. max. 150 °C 200 °C 60-180 sec. 217 °C 60-150 sec. 260 °C 20-40 sec. 6 °C/sec. max. 8 min. max. How to Order Typical Part Marking P 40 - G 240 - WH MANUFACTURER’S TRADEMARK Form Factor P = Two TBU® protectors in one device Impulse Voltage Rating 40 = 40 V Directional Indication G = Bidirectional XXXXX YWWLL Iop Indicator 240 = 240 mA 5 DIGIT PRODUCT CODE: • 1ST DIGIT INDICATES PRODUCT FAMILY. 4 = P40-G SERIES • 2ND & 3RD DIGITS INDICATE IMPULSE VOLTAGE. 04 = 40 V • 4TH & 5TH DIGITS INDICATE TRIGGER CURRENT. 24 = 240 mA PIN 1 MANUFACTURING DATE CODE: • 1ST DIGIT INDICATES THE YEAR. • 2ND & 3RD DIGITS INDICATE THE WEEK NUMBER. • 4TH & 5TH DIGITS INDICATE LOT CODE. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. P40-G Series TBU® High-Speed Protectors Packaging Specifications (per EIA468-B) P0 D t B E P2 F A W XXXXX YWWLL N C D B0 R K0 D1 A0 P G (MEASURED AT HUB) EMBOSSMENT The type of corner on carrier will vary at different assembly sites. USER DIRECTION OF FEED QUANTITY: 3000 PIECES PER REEL A Device Min. B Max. 326 330.25 (12.835) (13.002) P40-G240 A0 B0 C D Min. Max. Min. Max. Min. 1.5 (.059) 2.5 (.098) 12.8 (.504) 13.5 (.531) 20.2 (.795) D D1 G N Max. Ref. Ref. — 12.4 (.488) 102 (4.016) E F Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. 4.2 (.165) 4.4 (.173) 4.2 (.165) 4.4 (.173) 1.5 (.059) 1.6 (.063) 1.5 (.059) — 1.65 (.065) 1.85 (.073) 5.45 (.216) 5.55 (.219) K0 P P0 P2 R t Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. 1.05 (.041) 1.25 (.049) 7.9 (.311) 8.1 (.319) 3.9 (.159) 4.1 (.161) 1.9 (.075) 2.1 (.083) 0 (0) 0.5 (.020) 0.25 (.010) 0.35 (.014) W Min. Max. 11.7 (.461) 12.3 (.484) DIMENSIONS: MM (INCHES) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. P40-G Series TBU® High-Speed Protectors Reference Application A cost-effective protection solution combines the Bourns® TBU® protection device with a diode bridge on the driver side of the transformer and GDTs on the line side. The GDT should have a minimum DCBD of 900 V and a maximum sparkover voltage of 1600 V. The diagram below illustrates a common configuration of these components. The graph demonstrates the operational characteristics of the circuit. Ch1 Ch3 V CC P40-G P40 Common Configuration Diagram - xDSL Protection 200 mA/div. 400 V/div. 3 1 1 μs/div. Ch1 V1 Ch3 Current 5000 V Lightning 2/10 μsec, 500 A Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com REV. 04/18 “TBU” is a registered trademark of Bourns, Inc. in the United States and other countries. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
