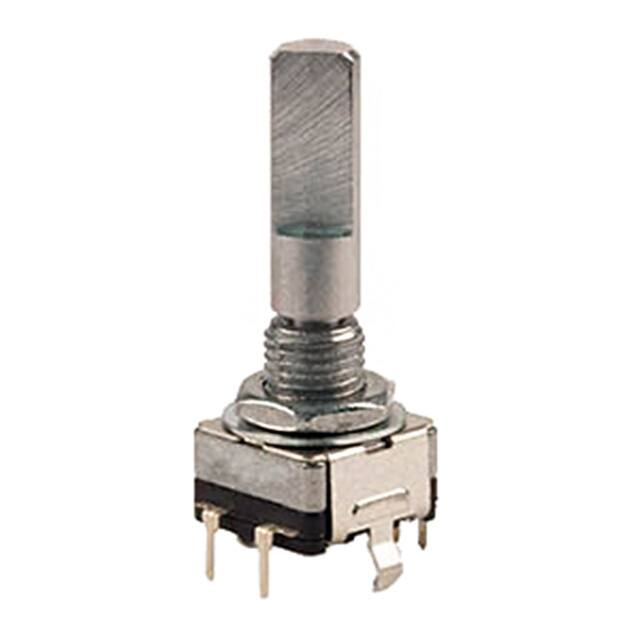

PEC11H-4120F-S0020

PEC11H-4120F-S0020

  • 厂商:

    BOURNS(伯恩斯)

  • 封装:

    插件

  • 描述:

    特性:推开关选项。高定位扭矩。高旋转寿命和开关寿命。金属衬套/轴。符合RoHS标准。应用:视听设备中的电平控制、调谐和定时器设置。消费电器中的电平控制、调谐和定时器设置

  • 数据手册
  • 价格&库存
PEC11H-4120F-S0020 数据手册
Features n Push switch option n High detent torque n High rotational life and switch life n Metal bushing/shaft n RoHS compliant* PEC11H Series - 11 mm Encoder w/High Detent Force Electrical Characteristics Output������������������������������������������������������������������������������������������������������ 2-bit quadrature code Closed Circuit Resistance������������������������������������������������������������������� 100 milliohms maximum Contact Rating������������������������������������������������������������������������������������������������� 10 mA @ 5 VDC Insulation Resistance��������������������������������������������������������������������� 100 megohms @ 250 VDC Dielectric Withstanding Voltage - Sea Level�������������������������������������������������300 VAC minimum Electrical Travel������������������������������������������������������������������������������������������������������� Continuous Contact Bounce (60 RPM)�������������������������������������������������������������������������� 3.0 ms maximum** RPM (Operating)������������������������������������������������������������������������������������������������ 60 maximum** Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES LIBRARY CONTACT Environmental Characteristics Operating Temperature Range������������������������������������������� -20 °C to +70 °C (-4 °F to +158 °F) Storage Temperature Range�������������������������������������������� -35 °C to +85 °C (-31 °F to +185 °F) Humidity������������������������������������������������������������������� MIL-STD-202, Method 103B, Condition A Vibration������������������������������������������������������������������ 10~55~10 Hz / 1 min. / Amplitude 1.5 mm Shock�������������������������������������������������������������������������������������������������������������������������������100 G Rotational Life������������������������������������������������������������������������������������ 100,000 cycles minimum IP Rating���������������������������������������������������������������������������������������������������������������������������� IP 40 Moisture Sensitivity Level���������������������������������������������������������������������������������������������������������1 Mechanical Characteristics Mechanical Angle��������������������������������������������������������������������������������������������360 ° continuous Torque Detent����������������������������������������������������������������������������������� 210 ±70 gf-cm (2.0 ± 0.1 oz-in) Mounting���������������������������������������������������������������������������������� 70 N-cm (6.2 lb-in) maximum Shaft Strength (Push-Pull)���������������������������������������������������������������������������������� 50 N (11.2 lbs) Weight������������������������������������������������������������������������������������������������5 gm (0.17 oz) maximum Terminals������������������������������������������������������������������������������������ Printed circuit board terminals Soldering Condition  Wave Soldering������������������������������������������Sn95.5/Ag2.8/Cu0.7 solder with no-clean flux: . 260 °C ±5 °C max. for 3 ± 1 seconds  Hand Soldering������������������������������������������������������������������������������������� Not recommended Hardware��������������������������One flat washer and one mounting nut supplied with each encoder Switch Characteristics Switch Type���������������������������������������������������������������������� Contact Push ON Momentary SPST Switch Life��������������������������������������������������������������������������������������30,000 actuations minimum Power Rating (Resistive Load)������������������������������������������������������������������������10 mA at 5 V DC Switch Travel���������������������������������������������������������������������������������������������������������0.5 ± 0.3 mm Switch Actuation Force���������������������������������������������������������� 610 ± 306 gf (8.47 ± 4.24 oz.-in.) WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. **Devices are tested using standard noise reduction filters. For optimum performance, designers should use noise reduction filters in their circuits. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com CAUTION Do not store product in high temperature and humidity, direct sunlight and/or places where corrosive gases may be generated. Please use product within 6 months from the date of delivery and promptly after unpacking. Applications Level control, tuning and timer settings in: n Audio-visual equipment n Consumer electric appliances n Environmental controls n Musical instrumentation n Communications equipment PEC11H Series - 11 mm Encoder w/High Detent Force Product Dimensions PEC11H-4xxxF-Nxxxx M7XP 0.75 (.030) 2.0 (.079) 7.5 (.295) 11.8 (.465) 0.5 (.020) 2 PLCS. 2.2 +0.2/-0 (.087 +.008/-0) 12.8 (.504) 7.5 (.295) 1.4 +0.2/-0 (.055 +.008/-0) A CHANNEL C COMMON A C B B CHANNEL LB 6.5 (.267) 6.0 (.236) 4.5 +0/-0.05 (.177 +0/-.002) 6.0 (.236) DIA. F 3.0 (.118) C L 6.0 (.236) 1.0 +0.1/-0 (.039 +.004/-0) DIA. 3 PLCS. A C B 5.0 (.197) MOUNTING SURFACE P LB C A 0.8 (.032) L 1.0 (.039) L LB F P A C Dim. Tol. 18 TEETH KNURLED 15 (.591) 5.0 (.197) 5.0 (.197) 7.0 (.276) 6.0 (.236) 6.0 (.236)
