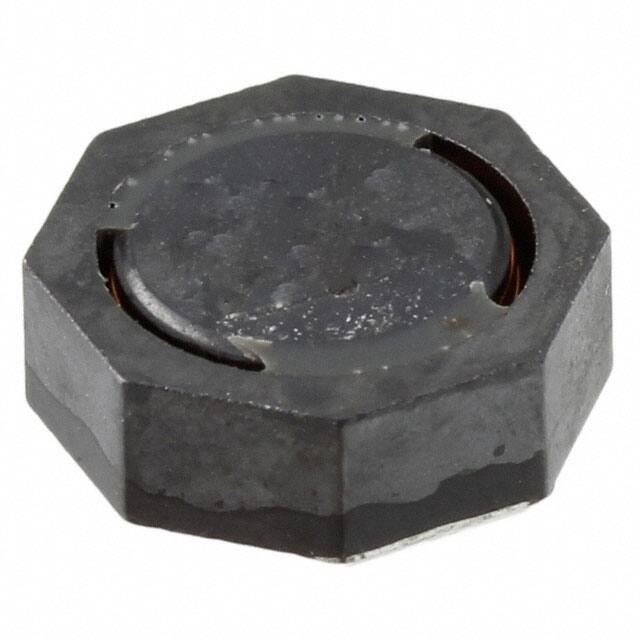

PM104SH-151-RC

Applications PL IA N T Features M ■ Formerly model ■ Input/output of DC/DC converters *R oH S CO ■ Available in E6 series ■ Power supplies for: ■ Unit height of 3.8 mm • Portable communication equipment • Camcorders • LCD TVs ■ Current up to 7.2 A 100 ■ RoHS compliant* PM104SH Series - Shielded SMD Power Inductors Inductance 100 kHz Bourns Part No. PM104SH-1R5-RC PM104SH-2R5-RC PM104SH-3R8-RC PM104SH-5R2-RC PM104SH-7R0-RC PM104SH-100-RC PM104SH-150-RC PM104SH-220-RC PM104SH-330-RC PM104SH-470-RC PM104SH-680-RC PM104SH-101-RC PM104SH-151-RC PM104SH-221-RC PM104SH-331-RC (μH) 1.5 2.5 3.8 5.2 7.0 10.0 15.0 22.0 33.0 47.0 68.0 100.0 150.0 220.0 330.0 Electrical Schematic Tol. % ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 ± 30 Q Ref. 14 12 14 12 13 24 24 20 22 22 24 24 20 22 20 Test Frequency (MHz) 7.96 7.96 7.96 7.96 7.96 7.96 2.52 2.52 2.52 2.52 2.52 0.796 0.796 0.796 0.796 SRF Min. (MHz) 65.0 50.0 35.0 30.0 36.0 20.0 16.0 12.0 10.0 8.0 7.0 6.0 5.0 4.0 3.0 RDC (mΩ) 5.2 12.5 15.0 22.0 35.0 25.0 37.0 55.8 86.0 121.0 166.0 220.0 358.0 565.0 773.0 I rms Max. (A) 7.20 6.10 5.50 4.60 3.90 3.80 2.80 2.20 1.80 1.65 1.10 1.30 0.90 0.65 0.55 I sat Typ. (A) 7.00 6.00 5.50 4.80 4.00 3.60 2.70 2.30 1.80 1.60 1.30 1.10 0.80 0.65 0.52 Inductor Connection Test Voltage .......................................1 V .. 230 °C, 50 sec. max. Operating Temp. .........-40 °C to +125 °C (Temperature rise included) Storage Temperature .. -40 °C to +125 °C Resistance to Soldering Heat ............................... 260 °C for 10 sec. Moisture Sensitivity Level .......................2 ...................N/A Materials Core ....................Ferrite DR and RI core Wire ............................Enameled copper Base .....................................LCP E4008 Terminal ....................................Ag/Ni/Sn Rated Current ...................Ind. drop 35 % typ. at Isat Temperature Rise .....................40 °C max. at rated Irms Packaging .................. 1000 pcs. per reel Product Dimensions 10.0 ± 0.3 (.394 ± .012) 10.0 ± 0.3 (.394 ± .012) LCR METER 3.8 ± 0.3 (.150 ± .012) 7.4 TYP. (.291) 3.4 (.134) TYP. 3.2 (.126) TYP. 3.4 TYP. (.134) Recommended Layout 1.8 (.071) REF. 7.2 (.283) REF. 1.8 (.071) REF. WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov * RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf DIMENSIONS: MM (INCHES) 3.6 (.142) REF. PM104SH Series - Shielded SMD Power Inductors 330 DIA. (12.99) 2.0 ± 0.5 (.079 ± .020) 30.4 (1.20) COVER TAPE 13.0 ± 0.5 (.512 ± .020) DIA. 21.0 ± 0.8 (.827 ± .031) EMBOSSED CAVITY 50.0 (1.969) 13.0 ± 0.5 DIA. (.512 ± .020) EMBOSSED CARRIER 24.0 (.945) 26 (1.02) 4 (.157) END START 16 (.63) NO COMPONENT 160 (6.299) NO COMPONENT COMPONENTS 400 (15.748) USER DIRECTION OF FEED QTY: 1000 PCS. PER REEL DIMENSIONS: MM (INCHES) Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 520 390 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com REV. 03/18 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
