PL
IA
N
T
Features
M
■ Formerly
model
*R
oH
S
CO
■ Shielded construction
This series is currently available,
but not recommended for new
designs. The newer SRP1238A
series is recommended.
■ Unit height of 3.7 mm
1R0 9
172
■ Inductance range: 0.67 µH to 1.2 µH
■ Current up to 28 A
■ RoHS compliant*

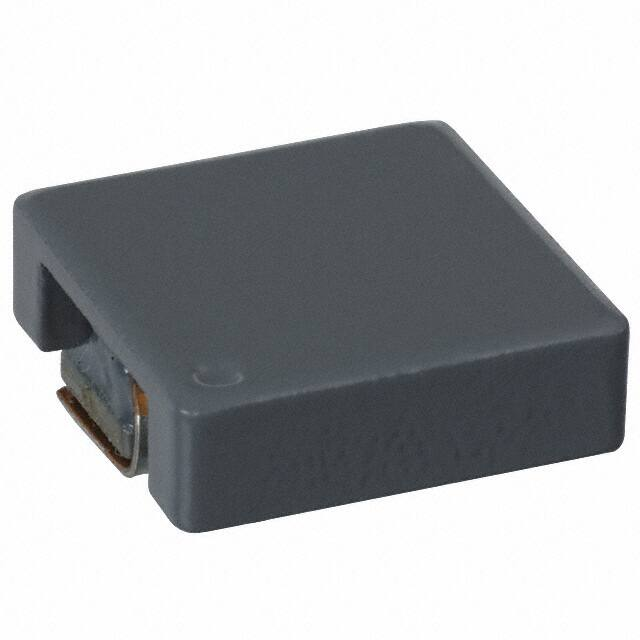

PM12639S Series - Shielded Power Inductors
Bourns Part No.
PM12639S-R67M-RC
PM12639S-1R2M-RC
Inductance
L (μH)
0.67
1.20
I rms
(A)
28.0
21.0
I sat
(A)
32
29
DCR
(mΩ) max.
2.5
4.5
SRF
(MHz) typ.
72
37
Temperature (°C)
275
Maximum of 10 seconds
between +255 °C and +260 °C
225
260 °C peak
255 °C
Test Voltage ..................................0.25 V
Test Frequency ......................... 100 KHz
....230 ˚C; 50 sec max.
Operating Temperature
................................-55 °C to +150 °C
(Temperature rise included)
Storage Temperature
................................-55 °C to +150 °C
Resistance to Soldering Heat
............................. +260 °C for 10 sec.
Moisture Sensitivity Level ..................... 1
................. N/A
220 °C
190°C
60 seconds
maximum
175
Materials
Ramp Down
5 °C/second
Core ..................................................Iron
Wire ............................Enameled copper
Terminal ........................................Cu/Sn
Rated Current ....Ind. drops 20 % at I sat
Temperature Rise .... 40 ˚C at rated I rms
Packaging ....... 600 pcs. per 13-inch reel
150 °C
125
120 -150 seconds
10 seconds minimum
75
Ramp Up
4 °C/second maximum
25
0
50
100
150
200
250
300
Time (Seconds)
Product Dimensions
3.7
(.146)
MAX.
13.9
MAX.
(0.547)
12.7 ± 0.3
(0.500 ± 0.012)
Electrical Schematic
13.5
(0.531)
MAX.
3.5
(.138)
MAX.
1R0
1729
12.7 ± 0.3
(0.500 ± 0.012)
3.0 ± 0.5
(0.118 ± 0.020)
2.5 ± 0.5
(0.098 ± 0.020)
Recommended Layout
4.5
(.177)
15.0
(0.591)
7.0
(.276)
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice. Users should verify actual device performance in their specific
applications. The products described herein and this document are subject to specific legal disclaimers as set forth on
the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf
DIMENSIONS:
MM
(INCHES)
Applications
■ Input/output of DC/DC converters
■ Power supplies for:
• Portable communications equipment
• Camcorders
• LCD TVs
PM12639S Series - Shielded Power Inductors
0.96
80
0.72
60
0.48
40
0.24
20
0
8
16
24
32
100
1.6
80
1.2
60
0.8
40
0.4
20
0
0
40
0
PM12639S-1R2M-RC
2.0
Inductance (μH)
Inductance (μH)
100
Temperature Rise (°C)
PM12639S-R67M-RC
1.2
0
5.8
DC Current (A)
11.6
17.4
23.2
Temperature Rise (°C)
L vs. I Charts
0
29
DC Current (A)
2.0 ± 0.5
(.079 ± .020)
330.0
(13.00)
DIA.
THICKNESS
0.10
(.004)
MAX.
13.5 ± 0.5
(0.53 ± .020)
DIA.
21.0 ± 0.8
(.827 ± .031)
EMBOSSED
CAVITY
75.0 ± 2.0
(2.96 ± 0.08)
13.5 ± 0.5
DIA.
(.53 ± .020)
EMBOSSED
CARRIER
24.0 ± 0.5
(0.95 ± 0.020)
0.35 ± 0.05
(0.014 ± 0.020)
2.0 ± 0.1
(0.079 ± 0.004)
4.0 ± 0.1
(0.157 ± 0.004)
1.5 ± 0.1
(0.059 ± 0.004)
DIA.
13.9 ± 0.1
(0.547 ± 0.004)
4.5 ± 0.1
(0.177 ± 0.004)
1.75 ± 0.1
(.069 ± 0.004)
2.7 ± 0.3
(.106 ± 0.012)
13.5 ± 0.1
(0.520 ± 0.004)
0.15
DIA.
(0.0006)
DIMENSIONS:
24.0 ± 0.3
(0.95 ± 0.012)
16.0 ± 0.1
(0.629 ± 0.004)
MM
(INCHES)
Tel: +886-2 2562-4117 • Email: asiacus@bourns.com
EMEA: Tel: +36 88 520 390 • Email: eurocus@bourns.com
The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com
www.bourns.com
REV. 03/18
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
