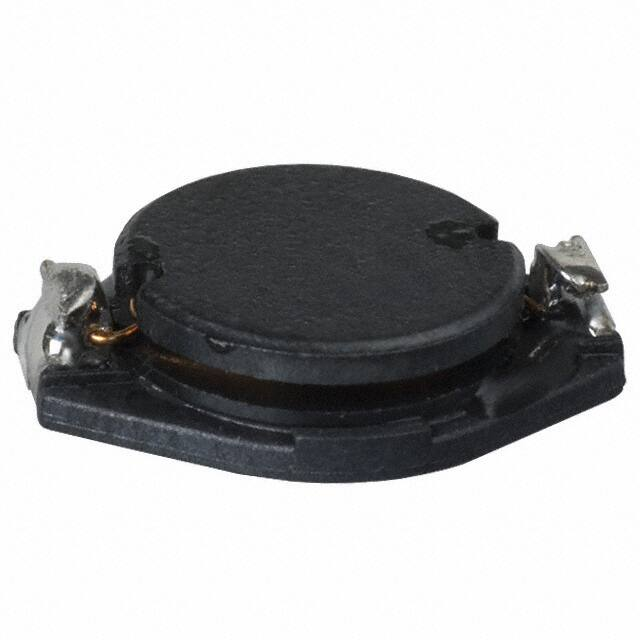

PM3308-220M

SMT Power Inductors Special Features PM3308 Series • High current capacity • High reliability • Low DCR • Ferrite bobbin core • Low profile, compact size • High heat resistance, ideal for reflow • • • • • soldering Test frequency 100KHz Operating temperature -55 to +105°C Saturation DC current to cause 10% max. inductance drop Rms current to cause 30°C max. temperature rise Tape & reel packaged 1000/reel 13.0 max. Part Number PM3308-100M PM3308-150M PM3308-220M PM3308-330M PM3308-470M PM3308-680M PM3308-101M PM3308-151M PM3308-221M PM3308-331M PM3308-471M PM3308-681M PM3308-102M L (uH) ±20% 10 15 22 33 47 68 100 150 220 330 470 680 1000 DCR (Ω) Max. 0.11 0.15 0.23 0.30 0.39 0.66 0.84 1.2 1.9 2.7 4.0 5.3 8.4 7.37 9.5 max. 2.92 2.79 Pad layout 3.0 max. 7.62 2.54 2.54 Dimensions: mm 306 E. Alondra Blvd., Gardena, CA 90247-1059 • (310) 515-1720 • FAX (310) 515-1962 50 w w w . j w m i l l e r . c o m I, sat. (A) 2.4 2.0 1.6 1.4 1.0 0.9 0.7 0.6 0.5 0.4 0.3 0.2 0.1 I, rms (A) 2.0 1.5 1.3 1.1 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.05
