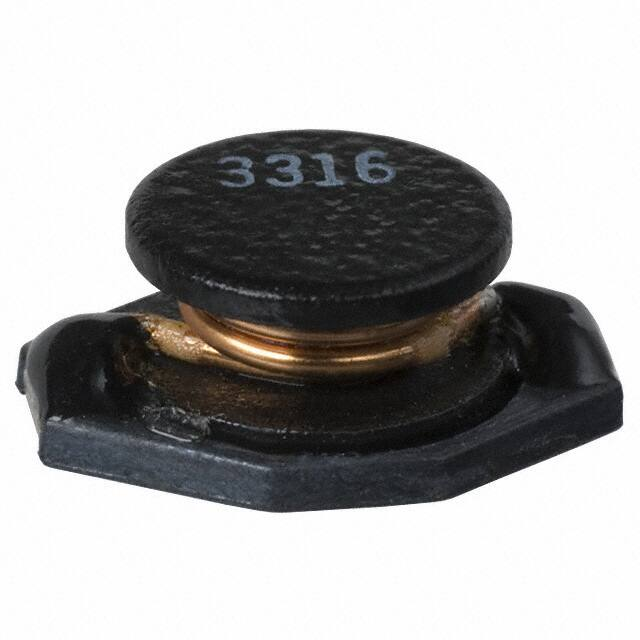

PM3316-470M

SMT Power Inductors Special Features • High current capacity • High reliability • Low DCR • Ferrite bobbin core • Compact size • High heat resistance, ideal for reflow soldering • Test frequency 100KHz • Operating temperature -55 to +105°C • Tape & reel packaged 500/reel Part Number L (uH) ±20% PM3316-1ROM PM3316-1R5M PM3316-2R2M PM3316-3R3M PM3316-4R7M PM3316-6R8M PM3316-100M PM3316-150M PM3316-220M PM3316-330M PM3316-470M PM3316-680M PM3316-101M PM3316-151M PM3316-221M PM3316-331M PM3316-471M PM3316-681M PM3316-102M Notes * Saturation DC current to cause 10% max. inductance drop ** Rms current to cause 15°C max. temperature rise 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 680 1000 PM3316 Series DCR (Ω) Max. Also available as RoHS compliant. 13.0 Max. 0.009 0.010 0.012 0.015 0.018 0.027 0.038 0.046 0.085 0.10 0.14 0.20 0.28 0.40 0.61 1.02 1.27 2.02 3.00 I, sat.* (A) 9.0 8.0 7.0 6.4 5.4 4.6 3.8 3.0 2.6 2.0 1.6 1.4 1.2 1.0 0.8 0.6 0.5 0.4 0.3 I, rms** (A) 6.8 6.4 6.1 5.4 4.8 4.4 3.9 3.1 2.7 2.1 1.8 1.5 1.3 1.0 0.8 0.6 0.5 0.4 0.3 7.37 9.5 Max. 2.92 2.79 Pad layout 5.2 Max. 7.62 2.54 2.54 Dimensions: mm 306 E. Alondra Blvd. Gardena, CA 90247-1059 • Phone (310) 515-1720 • FAX (310) 515-1962 wwww.jwmiller.com 9.7
