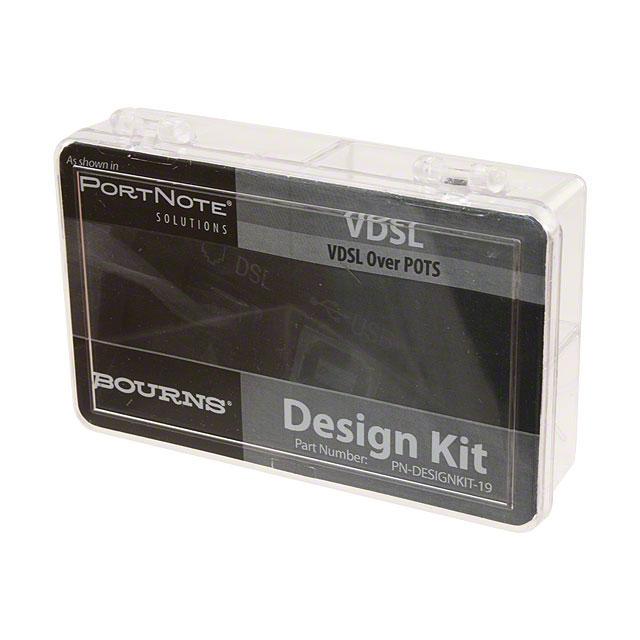

PN-DESIGNKIT-19

Features Applications ■ Superior circuit protection ■ Voice / VDSL cards ■ Overcurrent and overvoltage protection ■ Protection modules and dongles ■ Blocks surges up to rated limits ■ Process control equipment ■ High-speed performance ■ Test and measurement equipment ■ Small SMT package ■ General electronics ■ Agency listing: TBU-CA Series - TBU® High-Speed Protectors General Information Additional Information ® ® The TBU-CA Series of Bourns TBU Line In/ products are low capacitance single Line Out bidirectional high-speed protection components, constructed using MOSFET semiconductor technology, and designed to protect against faults caused by short circuits, AC power cross, induction and lightning surges. Line Out/ Line In TBU® Device Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY CONTACT Agency Listing The TBU® high-speed protector placed in the system circuit will monitor the current with the MOSFET detection circuit triggering to provide an effective barrier behind which sensitive electronics will not be exposed to large voltages or currents during surge events. The TBU® device is provided in a surface mount DFN package and meets industry standard requirements such as RoHS and Pb Free solder reflow profiles. UL Description File Number: E315805 Absolute Maximum Ratings (@ TA = 25 °C Unless Otherwise Noted) Symbol Value Unit Peak impulse voltage withstand with duration less than 10 ms TBU-CA025-xxx-WH TBU-CA040-xxx-WH TBU-CA050-xxx-WH TBU-CA065-xxx-WH TBU-CA085-xxx-WH 250 400 500 650 850 V Vrms Continuous A.C. RMS voltage TBU-CA025-xxx-WH TBU-CA040-xxx-WH TBU-CA050-xxx-WH TBU-CA065-xxx-WH TBU-CA085-xxx-WH 100 200 250 300 425 V Top Tstg Tjmax ESD Operating temperature range Storage temperature range Maximum Junction Temperature HBM ESD protection per IEC 61000-4-2 -55 to +125 -65 to +150 +125 ±2 °C °C °C kV Vimp Parameter Part Number Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov * RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. TBU-CA Series - TBU® High-Speed Protectors Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Symbol Itrigger Rdevice Parameter Part Number Min. Typ. Max. Unit Current required for the device to go from operating state to protected state TBU-CAxxx-050-WH TBU-CAxxx-100-WH TBU-CAxxx-200-WH TBU-CAxxx-300-WH TBU-CAxxx-500-WH 50 100 200 300 500 75 150 300 450 750 100 200 400 600 1000 mA Series resistance of the TBU device Vimp = 250 V Vimp = 250 V Vimp = 250 V Vimp = 250 V Vimp = 250 V Itrigger (min.) = 50 mA Itrigger (min.) = 100 mA Itrigger (min.) = 200 mA Itrigger (min.) = 300 mA Itrigger (min.) = 500 mA TBU-CA025-050-WH TBU-CA025-100-WH TBU-CA025-200-WH TBU-CA025-300-WH TBU-CA025-500-WH 13.3 7.1 4.2 3.2 2.6 15.3 8.2 4.8 3.8 3.0 Vimp = 400 V Vimp = 400 V Vimp = 400 V Vimp = 400 V Vimp = 400 V Itrigger (min.) = 50 mA Itrigger (min.) = 100 mA Itrigger (min.) = 200 mA Itrigger (min.) = 300 mA Itrigger (min.) = 500 mA TBU-CA040-050-WH TBU-CA040-100-WH TBU-CA040-200-WH TBU-CA040-300-WH TBU-CA040-500-WH 14.3 8.1 5.2 4.3 3.6 16.5 9.4 6.0 5.0 4.2 Vimp = 500 V Vimp = 500 V Vimp = 500 V Vimp = 500 V Vimp = 500 V Itrigger (min.) = 50 mA Itrigger (min.) = 100 mA Itrigger (min.) = 200 mA Itrigger (min.) = 300 mA Itrigger (min.) = 500 mA TBU-CA050-050-WH TBU-CA050-100-WH TBU-CA050-200-WH TBU-CA050-300-WH TBU-CA050-500-WH 15.7 9.5 6.6 5.6 5.0 18.0 10.9 7.5 6.5 5.7 Vimp = 650 V Vimp = 650 V Vimp = 650 V Vimp = 650 V Vimp = 650 V Itrigger (min.) = 50 mA Itrigger (min.) = 100 mA Itrigger (min.) = 200 mA Itrigger (min.) = 300 mA Itrigger (min.) = 500 mA TBU-CA065-050-WH TBU-CA065-100-WH TBU-CA065-200-WH TBU-CA065-300-WH TBU-CA065-500-WH 17.7 11.5 8.6 7.6 7.0 20.3 13.2 9.8 8.8 8.0 Vimp = 850 V Vimp = 850 V Vimp = 850 V Vimp = 850 V Vimp = 850 V Itrigger (min.) = 50 mA Itrigger (min.) = 100 mA Itrigger (min.) = 200 mA Itrigger (min.) = 300 mA Itrigger (min.) = 500 mA TBU-CA085-050-WH TBU-CA085-100-WH TBU-CA085-200-WH TBU-CA085-300-WH TBU-CA085-500-WH 21.4 15.2 12.3 11.3 10.7 24.5 17.4 14.0 13.0 12.2 1 μs 0.25 0.50 1.00 mA 12 16 20 Ω tblock Time for the device to go from normal operating state to protected state IQ Current through the triggered TBU® device with 50 Vdc circuit voltage Vreset Voltage below which the triggered TBU® device will transition to normal operating state Rth(j-l) Junction to package pads - FR4 using recommended pad layout 98 °C/W Rth(j-l) Junction to package pads - FR4 using heat sink on board (6 cm2) (1 in2) 40 °C/W V Environmental Characteristics Parameter Moisture Sensitivity Level ESD Classification (HBM) Value 1 1B Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. TBU-CA Series - TBU® High-Speed Protectors Reference Application Basic TBU Operation ® The TBU devices are general use protectors used in a wide variety of applications. The maximum voltage rating of the TBU® device should never be exceeded. Where necessary, an OVP should be employed to limit the maximum voltage. A costeffective protection solution combines Bourns® TBU® protection devices with a pair of Bourns® MOVs. For bandwidth sensitive applications, a Bourns® GDT may be substituted for the MOV. Line In / Line Out Line Out / Line In Equip. Line TBU ® Device OVP TBU ® Device OVP Line In / Line Out Line Out / Line In Line The TBU® device, constructed using MOSFET semiconductor technology, placed in the system circuit will monitor the current with the MOSFET detection circuit triggering to provide an effective barrier behind which sensitive electronics are not exposed to large voltages or currents during surge events. The TBU® device operates in approximately 1 μs - once line current exceeds the TBU® device’s trigger current Itrigger. When operated, the TBU® device will limit the current to less than the Itrigger value within the tblock duration. If voltage above Vreset is continuously sustained, the TBU® device will subsequently reduce the current to a quiescent current level within a period of time that is dependent upon the applied voltage. After the surge, the TBU® device resets when the voltage across the TBU® device falls to the Vreset level. The TBU® device will automatically reset on lines which have no DC bias or have DC bias below Vreset (such as unpowered signal lines). If the line has a normal DC bias above Vreset, the voltage across the TBU® device may not fall below Vreset after the surge. In such cases, special care needs to be taken to ensure that the TBU® device will reset, with software monitoring as one method used to accomplish this. Bourns application engineers can provide further assistance. Performance Graphs Typical V-I Characteristics (TBU-CA050-300-WH) Typical Trigger Current vs. Temperature 1.8 ITRIP 1.6 Normalized Trip Current CURRENT (100 mA/div) VRESET VOLTAGE (5 V/div) 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0.0 -75 -50 -25 0 25 50 75 100 125 150 Junction Temperature (°C) Power Derating Curve Typical Resistance vs. Temperature 3.0 2.2 No Additional PCB Cu 0.5 sq. in. Additional PCB Cu 2.0 1.8 Normalized Resistance Total Max. Power (W) 2.5 2.0 1.5 1.0 0.5 0.0 20 40 60 80 100 Junction Temperature (°C) 120 140 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0.0 -75 -50 -25 0 25 50 75 100 125 150 Junction Temperature (°C) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. TBU-CA Series - TBU® High-Speed Protectors Product Dimensions 0.70 (.028) 0.80 (.031) 0.70 (.028) 1.85 (.073) 0.30 (.012) 6.50 ± 0.10 (.256 ± .004) 4.00 ± 0.10 (.157 ± .004) XXXXX YWWLL PIN 1 & BACKSIDE CHAMFER SEATING PLANE DIMENSIONS: 1.85 (.073) 3.40 (.134) A= A1 = 0.80 - 1.00 (.031 - .039) 0.00 - 0.05 (.000 - .002) MM (INCHES) 0.30 (.012) C 0.25 PIN 1 (.010) Pad Designation Pad # Pin Out 1 Line In/Out 2 NU 3 Line Out/In Recommended Pad Layout TBU® High-Speed Protectors have a 100 % matte-tin termination finish. For improved thermal dissipation, the recommended layout uses PCB copper areas which extend beyond the exposed solder pad. The exposed solder pads should be defined by a solder mask which matches the pad layout of the TBU® device in size and spacing. It is recommended that they should be the same dimension as the TBU® pads but if smaller solder pads are used, they should be centered on the TBU® package terminal pads and not more than 0.10-0.12 mm (0.004-0.005 in.) smaller in overall width or length. Solder pad areas should not be larger than the TBU® pad sizes to ensure adequate clearance is maintained. The recommended stencil thickness is 0.10-0.12 mm (0.004-0.005 in.) with a stencil opening size 0.025 mm (0.0010 in.) less than the solder pad size. Extended copper areas beyond the solder pad significantly improve the junction to ambient thermal resistance, resulting in operation at lower junction temperatures with a corresponding benefit of reliability. All pads should soldered to the PCB, including pads marked as NC or NU but no electrical connection should be made to these pads. For minimum parasitic capacitance, it is recommended that signal, ground or power signals are not routed beneath any pad. 3 2 1 Dark grey areas show added PCB copper area for better thermal resistance. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. TBU-CA Series - TBU® High-Speed Protectors Reflow Profile Profile Feature Average Ramp-Up Rate (Tsmax to Tp) Preheat - Temperature Min. (Tsmin) - Temperature Max. (Tsmax) - Time (tsmin to tsmax) Time maintained above: - Temperature (TL) - Time (tL) Peak/Classification Temperature (Tp) Time within 5 °C of Actual Peak Temp. (tp) Ramp-Down Rate Time 25 °C to Peak Temperature Pb-Free Assembly 3 °C/sec. max. 150 °C 200 °C 60-180 sec. 217 °C 60-150 sec. 260 °C 20-40 sec. 6 °C/sec. max. 8 min. max. How to Order Typical Part Marking TBU - CA 085 - 500 - WH 5 DIGIT PRODUCT CODE: • 1ST ALPHA CHARACTER INDICATES PRODUCT FAMILY: A = TBU-CA SERIES • 2ND & 3RD DIGITS INDICATE IMPULSE VOLTAGE. • 4TH & 5TH DIGITS INDICATE TRIGGER CURRENT. MANUFACTURER’S TRADEMARK TBU® Product XXXXX YWWLL Series CA = Bi-Series Impulse Voltage Rating 025 = 250 V 040 = 400 V 050 = 500 V 065 = 650 V 085 = 850 V Trigger Current 050 = 50 mA 100 = 100 mA 200 = 200 mA 300 = 300 mA 500 = 500 mA PIN 1 MANUFACTURING DATE CODE: • 1ST DIGIT INDICATES THE YEAR. • 2ND & 3RD DIGITS INDICATE THE WEEK NUMBER. • 4TH & 5TH DIGITS INDICATE LOT CODE. Thermal Resistance vs Additional PCB Cu Area 120 Package Suffix H = DFN Package Thermal Resistance (°C/W) Hold to Trip Ratio Suffix W = Hold to Trip Ratio 100 80 60 40 20 0 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 Added Cu Area (Sq. In.) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. TBU-CA Series - TBU® High-Speed Protectors Packaging Specifications P0 D t B E P2 F A W N XXXXX YWWLL C D B0 R K0 D1 A0 P G (MEASURED AT HUB) EMBOSSMENT The type of corner on carrier will vary at different assembly sites. USER DIRECTION OF FEED QUANTITY: 3000 PIECES PER REEL A Min. 326 (12.835) B Max. 330 (13.002) Min. 1.5 (.059) A0 Min. 4.3 (.169) B0 Max. 4.5 (.177) Min. 6.7 (.264) Max. 1.2 (.047) Min. 7.9 (.311) K0 Min. 1.0 (.039) C Max. 2.5 (.098) Min. 12.8 (.504) D Max. 13.5 (.531) D Max. 6.9 (.272) Min. 1.5 (.059) Max. 8.1 (.319) Min. 3.9 (.159) P Min. 20.2 (.795) — D1 Max. 1.6 (.063) Min. 1.5 (.059) Max. 4.1 (.161) Min. 1.9 (.075) P0 G Ref. 16.5 (.650) Max. E Max. — Min. 1.65 (.065) P2 F Max. 1.85 (.073) Min. 7.4 (.291) Max. 0.5 (.020) Min. 0.25 (.010) R Max. 2.1 (.083) Min. 0 (0) N Ref. 102 (4.016) Max. 7.6 (.299) t Max. 0.35 (.014) W Min. 15.7 (.618) Max. 16.3 (.642) DIMENSIONS: MM (INCHES) REV. 03/18 “TBU” is a registered trademark of Bourns, Inc. in the United States and other countries. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
