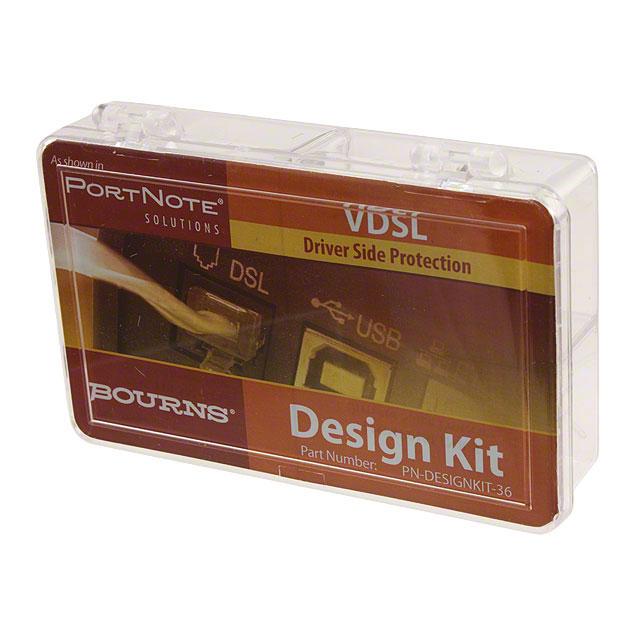

PN-DESIGNKIT-36

Features ■ Balanced Mini-TRIGARD™ ■ High surge current rating, low insertion (5 mm diameter, 7.5 mm length) ■ Ideal for board level protection of broadband circuits ■ Symmetrical breakdown voltage (L-L, L-G) ■ Leadless, surface mount for economical assembly loss ■ Stable breakdown throughout life ■ Recognized ■ RoHS compliant* versions available 2038 Series Miniature Symmetrical 3-Electrode Surface Mount Gas Discharge Tube Bourns offers a symmetrical surface mount (SM) 3-electrode GDT surge protection device. The industry-leading quality and features of the Bourns® miniature-TRIGARDTM series GDT continue in the 2038 symmetrical version. The 2038 series is ideal for board level protection of high bandwidth applications such as xDSL, cable broadband and high speed Ethernet, due to its symmetrical turn on characteristics as well as high energy-handling capability, long and stable life performance and low capacitance of less than 1 pF. The 2038 series breakdown voltages are nearly equal line to line as well as line to ground. Bourns® Gas Discharge Tubes (GDT) are designed to prevent damage from transient disturbances by acting as a “crowbar” in creating a virtual short-to-ground circuit during conduction. When an electrical surge exceeds the defined breakdown voltage level of the GDT, the gas becomes ionized and rapid conduction takes place. When the surge passes and the system voltage returns to normal levels, the GDT returns to its high-impedance (off) state. Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY CONTACT Characteristics Test Methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards. Characteristic DC Sparkover ± 25 % @ 100 V/s L1/L2 to Gnd (1) Typical Impulse Sparkover (2) L1/L2 to Gnd 100V/μs 1000V/μs Characteristic DC Sparkover ± 25 % @ 100 V/s L1/L2 to Gnd (1) Typical Impulse Sparkover (2) L1/L2 to Gnd 100V/μs 1000V/μs Model No. 2038-15-SM 2038-20-SM 2038-23-SM 2038-30-SM 2038-35-SM 150 V 200 V 230 V 300 V 350 V 350 V 500 V 425 V 575 V 450 V 600 V 500 V 650 V 600 V 750 V 2038-42-SM 2038-47-SM 2038-60-SM 2038-80-SM 2038-110-SM 420 V 470 V 600 V 800 V 1100 V 675 V 850 V 750 V 950 V 850 V 1100 V 1150 V 1400 V 1500 V 1700 V Model No. Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com *RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 2038 Series Miniature Symmetrical 3-Electrode Surface Mount Gas Discharge Tube Characteristics (continued) Impulse Transverse Delay ............................... 100 V/μs............................................................< 50 ns Insulation Resistance (IR) ............................... 100 V ................................................................> 109 Ω Glow Voltage ................................................... 10 mA................................................................~ 70 V Arc Voltage ...................................................... 1 A .....................................................................~ 10 V Glow-Arc Transition Current .......................................................................................................< 0.5 A Capacitance..................................................... 1 MHz ...............................................................< 1 pF DC Holdover Voltage (3) ................................... 135 V (80 V for Model 2038-15) .......................< 150 ms Impulse Discharge Current .............................. 10000 A, 8/20 μs (4) ...........................................1 operation min. 5000 A, 8/20 μs .................................................10 operations 200 A, 10/1000 μs .............................................300 operations 200 A, 10/700 μs ..............................................500 operations 10 A, 10/1000 μs ..............................................1500 operations Alternating Discharge Current ......................... 10 Arms, 1 s (4) ..................................................1 operation min. 5 Arms, 1 s ........................................................10 operations Operating Temperature...............................................................................................................-40 to +90 °C Climatic Category (IEC 60068-1)................................................................................................40/90/21 Moisture Sensitivity Level ...........................................................................................................1 ESD Classification (HBM)...........................................................................................................6 Notes: • 2038-15 through 2038-35 UL Recognized , file E153537. • 2038-80 & 2038-110 UL Recognized , file E313168 (UL 1449). • The rated discharge current for Mini-TRIGARD™ GDTs is the total current equally divided between each line to ground. • Surface Mount (SM) parts may show a temporary increase in DCBD after the solder reflow process. Most devices will recover within 24 hours time. It should be noted that there is no quality defect nor change in protection levels during the temporary change in DCBD. • Sparkover limits after life ±30 %. IR >108 Ω. • Operating characteristics per RUS PE-80 and Telcordia GR 1361 available on request. • At delivery AQL 0.65 Level II, DIN ISO 2859. • Bourns recommends reflowing surface mount devices per IPC/JEDEC J-STD-020 rev D. (1) Line to Line DC Sparkover tolerance typically less than +30 % at 100 V/s. (2) Impulse Sparkover voltage is defined as typical values of distribution. (3) Network applied. (4) DC Sparkover may exceed ±30 % but will continue to protect without venting. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 2038 Series Miniature Symmetrical 3-Electrode Surface Mount Gas Discharge Tube Product Dimensions Recommended Pad Layout 1.6 (.063) 7.5 ± 0.26 (.295 ± .010) 1.3 ± 0.13 (.051 ± .005) 5.6 (.220) 5.0 ± 0.3 (.197 ± .012) 0.51 ± 0.05 (.020 ± .002) 3.3 (.130) 8.2 (.323) How to Order 2038 - xx - SM - RP LF DIMENSIONS: MM (INCHES) Model Number Designator Voltage (Divided by 10) Surface Mount Packaging Options Blank = Bulk Packaging (Standard) RP = Reelpack (Optional) RP2 = Reelpack (Optional) RoHS Compliant Option Blank = Standard Product LF = RoHS Compliant Product Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 2038 Series Miniature Symmetrical 3-Electrode Surface Mount Gas Discharge Tube Packaging Specifications Standard Packaging Quantity Bulk (Bag) Model 2038-xx-SM Tray 250 Box Reel 1000 2038-xx-SM-RP 1000 2038-xx-SM-RP2 1000 The optional -RP & -RP2 reels are 330 mm in diameter and 23 mm wide. 4.0 -RP 2.0 12.0 -RP2 TOLERANCES: ±0.13 UNLESS OTHERWISE SPECIFIED DIMENSIONS: MILLIMETERS REV. O 08/20 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
