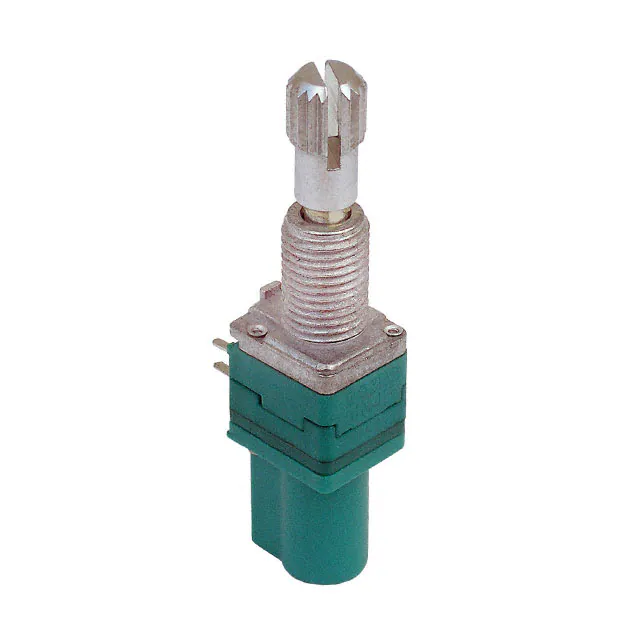

T PL IA N M CO *R oH S Features ■ Carbon element ■ Assortment of resistance tapers ■ Push latching shaft ■ Flatted, knurled and slotted shaft styles ■ Center detent option PTP90 Series Panel Control w/Push Latching Shaft Electrical Characteristics Standard Resistance Range ........................1K ohms to 1 megohm Standard Resistance Tolerance R < 250K ohms .........................±20 % R ≥ 250K ohms .........................±30 % End Resistance R < 50K ohms .............. 30 ohms max. R ≥ 50K ohms ......... 0.1 % of TR max. Insulation Resistance @ 250 VDC ............................. 100 megohms min. Dielectric Withstanding Voltage ..............................................300 VAC Tracking Error (-40 dB to 0 dB) .....±3 dB Standard Taper .................. Linear, Audio Power Rating Linear ................................... 0.05 watt Audio .................................. 0.025 watt Slider Noise .......................100 mV max. Operating Voltage ....... 50 VAC / 10 VDC Environmental Characteristics Operational Life ................15,000 cycles TR Shift .....................................±15 % Operating Temperature Range ..................................-10 °C to +55 °C Resistance to Solder Heat ..............±5 % IP Rating .........................................IP 40 Moisture Sensitivity Level .....................1 ESD Classification (HBM)................. N/A Mechanical Characteristics Mechanical Angle ..................310 ° max. Operating Torque ..............20~250 gf-cm Stop Strength................... 4 kgf-cm max. Mounting Torque ............ 10 kgf-cm max. Shaft Push Latch Force ..........40~500 gf Push Latch Operating Life ......................................10,000 cycles Soldering Condition Manual ........... 300 °C ±5 °C for 3 sec. Wave .............. 260 °C ±5 °C for 5 sec. Wash ..................... Not recommended Hardware ................One flat washer and one mounting nut supplied with each potentiometer Product Dimensions (Shown with Knurled Shaft) 23.25 (0.915) 30.0 ± 0.8 (1.181 ± 0.031) PUSH LATCH TRAVEL 8.0 (0.315) 6.0 (0.236) 10.0 (0.394) 0.5 (0.020) R2 R1 M7 x 0.75 0.030 9.5 (0.374) 4.85 (0.191) Y X X 1 2 3 6.5 ± 0.5 (0.256 ± 0.002) Y 10.7 (0.421) 1.0 ± 0.1 (0.039 ± 0.004) 6.0 (0.236) DIA. Mounting Hole Detail 0.9 ± 0.1 (0.035 ± 0.004) 3.5 (0.138) Locating Lug Detail 2.5 (0.098) Y 5.0 (0.197) X X 6.0 ± 0.2 (0.236 ± 0.008) MOUNTING SURFACE 5.0 (0.197) DIA. 1.0 +0.1/-0 (0.039 +0.004/-0) 6 PLCS. Y Standard Resistance Table DIA. 12.0 (.472) M7 x 0.75 (.030) DIA. 12.7 (.500) 11.0 (.433) DIA. 0.8 ± 0.2 (0.315 ± 0.008) 2.0 ± 0.1 (0.079 ± 0.004) Hardware DIMENSIONS: www.P65Warnings.ca.gov SHAFT SLOT IS OPTIONAL ANGLE C1 7.0 (0.276) 0.8 ± 0.2 (0.031 ± 0.002) NUT WARNING Cancer and Reproductive Harm PUSH TRAVEL 9.0 ± 0.5 (0.354 ± 0.020) 0.5 (.020) 2.0 (.079) DIA. 7.2 (.283) Resistance (Ohms) 1,000 2,000 5,000 10,000 20,000 50,000 100,000 200,000 500,000 1,000,000 Resistance Code 102 202 502 103 203 503 104 204 504 105 WASHER MM (INCHES) *RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Applications ■ Multimedia sound systems ■ Mixers / drum machines / DJ equipment ■ Portable electronics ■ Portable appliances PTP90 Series Panel Control w/Push Latching Shaft Additional Shaft Styles Tapers Flatted Shaft A Series Tapers 10.0 (0.394) 0.75 M7 X (0.030) 100 10.7 (0.428) 8.3 (0.327) 8.0 (0.315) PUSH LATCH TRAVEL 90 DIA. 4.5 +0/-0.1 (0.177 +0.004) 6.0 +0/-0.05 (0.236 +0.002) DIA. 60 ° ±10 °/-5 ° 4.5 (0.177) SHAFT SHOWN IN FULL CCW POSITION C1 9.0 ± 0.5 (0.354 ± 0.020) PUSH TRAVEL Output Voltage across Terminals 1-2 X 100 (%) Input Voltage across Terminals 1-3 30.0 (1.181) 80 70 60 50 40 6 );A 0A (3 30 4 A);A 20 (20 10 3 A);A (15 2 (10A);A 0 10 20 30 A5 A); (25 1 A);A (05 40 50 60 70 80 Rotational Travel (%) Terminal 1 90 100 Terminal 3 Slotted Shaft M7 X 0.75 (0.030) 9.0 ± 0.5 (0.354 ± 0.020) PUSH TRAVEL DIMENSIONS: B Series Tapers 100 );B5 (5B C1 SHAFT SHOWN IN FULL CCW POSITION MM (INCHES) Model Number Designator PTP90 = Panel Control w/Push Latching Shaft Number of Sections 1 = Single Gang 2 = Dual Gang Center Detent 0 = No Detent 1 = Center Detent Shaft Length (FMS) 30 = 30 mm Shaft Style F = Flatted Metal K = Knurled (18 tooth serrated) S = Slotted Metal Resistance Code (See Standard Resistance Table) Resistance Taper (See Taper Charts) Taper Series followed by Curve Number 2 (2 1 ;B 60 50 40 30 20 10 Schematics 10 20 30 40 50 60 70 80 Rotational Travel (%) Terminal 1 90 100 Terminal 3 Single Gang C Series Tapers 100 2 90 3 R1 1 Dual Gang 2 3 R1 1 3' R2 1' 2' Output Voltage across Terminals 1-2 X 100 (%) Input Voltage across Terminals 1-3 PTP90 2 - 0 30 K - 103 B2 B) 70 0 How To Order B) ;B (4B );B 3 80 (1 60 ° ±10 °/-5 ° 4 90 );B 10.0 (0.394) PUSH LATCH TRAVEL 8.0 (0.315) 1.6 ± 0.2 (0.063 ± 0.008) 1.0 (0.039) 6.0 (0.236) DIA. (3B 10.7 (0.428) Output Voltage across Terminals 1-2 X 100 (%) Input Voltage across Terminals 1-3 30.0 (1.181) 80 70 60 50 40 (3 0C ) (25 30 ;C6 C) ;C 5 (20 20 (1 0C );C 10 (05 C) 0 10 Terminal 1 20 30 40 2 C);C (15 C 4 );C 3 ;C1 50 60 Rotational Travel (%) 70 80 90 100 Terminal 3 REV. 06/21 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
