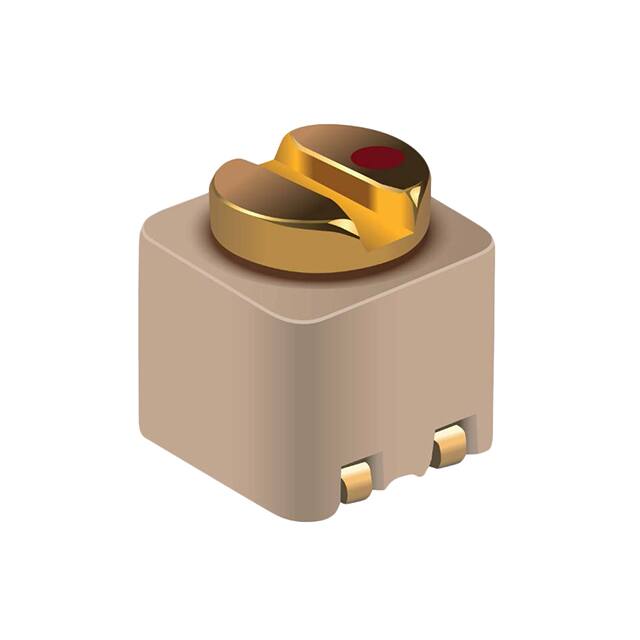

PVF2.pdf 01/27/17 Trimmer Potentiometers SMD Sealed Type Single-Turn PVF2 Series 2.30 ± 0.15 (.091 ± .006) 0.50 (.020) 2.00 (.079) Features #2 1. Surface Mount 2 mm Square / Single-turn / Carbon / Sealed 2. Available in top adjustment style 3. RoHS compliant* 4. For trimmer applications/processing guidelines, click here Circuit #1 #2 (Wiper) #1 2.15 (.084) MAX. 2.00 (.079) PVF2 #3 MARKING 0.35 ± 0.1 (.014 ± .004) DIA. 0.30 (.012) #3 Clockwise 0.30 (.012) 1.6 (.063) 0.70 ± 0.15 (.028 ± .006) Applications 0.50 (.020) 0.70 ± 0.15 (.028 ± .006) 1. Hearing aids 2. Ultra-compact sensors 0.30 ± 0.15 (.012 ± .006) 0.30 (.012) DIMENSIONS: 0.50 (.020) MM (INCHES) TOLERANCES: ± 0.25 (.010) EXCEPT WHERE NOTED Top Adjustment Part Number Power Rating (W) Number of Turns (Effective Rotation Angle) 0.0001 (50 °C) 1 PVF2A204A1xR0x Total Resistance Value 200k ohms ±10 % Operating Temperature Range: -25 to +60 °C Soldering Method: Forced Hot Air, Convection, IR, Vapor Phase (In-Line) Standard Land Pattern 0.6 (.024) 0.9 (.035) 1.1 (.043) 1.1 (.043) DIMENSIONS: MM (INCHES) TOLERANCES: ± 0.1 (.004) EXCEPT WHERE NOTED 0.9 (.035) 0.6 (.024) 0.4 (.016) 0.6 (.024) *RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. Specifications are subject to change without notice. The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their specific applications. TCR (ppm/°C) ±500 PVF2.pdf 01/27/17 Characteristics Part Numbering Temperature Cycle ΔTR : ±5% Humidity ΔTR : +15%/-2% Vibration (20G) ΔTR : ±5% Shock (100G) ΔTR : ±5% Temperature Load Life ΔTR : +2%/-10% Low Temperature Exposure ΔTR : ±3% Rotational Life ΔTR : ±10% (100 cycles) Product ID PV = Trimming Potentiometer PV F2 A 204 A1A R03 Series F2 = 2 mm Square, Single-turn Adjustment Adjustment Direction/Lead Type A = Top / In-line ΔTR: Total Resistance Change Total Resistance Expressed by three figures. The first and second figures are significant digits; the third figure expresses the number of zeros that follow. Resistance (Ohms) Resistance Code 200,000 204 Individual Specification A11 = Rotor preset at midpoint (Standard) A1A = Rotor preset at clockwise position Packaging R00 = Tape and Reel (500 pcs. per 7 ” reel) R03 = Tape and Reel (1500 pcs. per 7 ” reel) Specifications are subject to change without notice. The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their specific applications.
