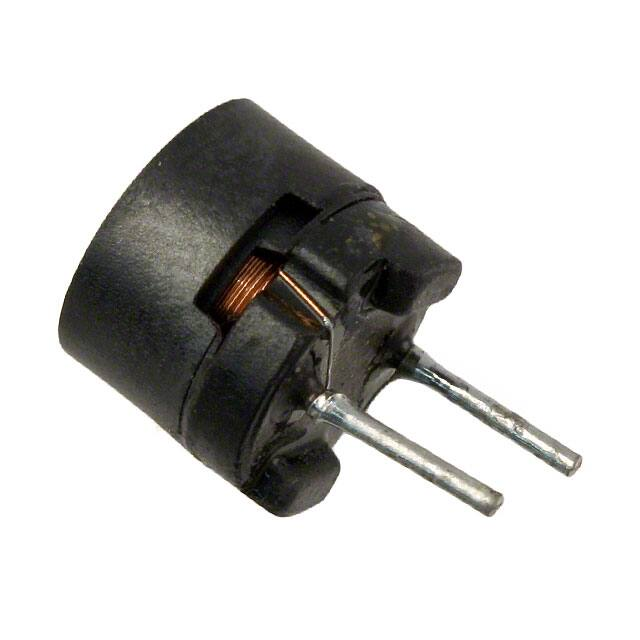

RL875S-680K

Shielded, Radial Lead RF Chokes Special Features RL875S Series • Magnetic shielded for low radiation • Ferrite bobbin core • Low core loss at frequency • High reliability, efficiency • Fixed lead spacing • Operating temperature -30 to +100°C • Current to cause maximum 10% of inductance drop, or 40°C temperature rise 7.8 -/+0.5 7.5 max. 5.0 0.7 Dia. 5.0 -/+0.3 Dim: mm Part Number RL875S-220K RL875S-270K RL875S-330K RL875S-390K RL875S-470K L (uH) ±15% 22 27 33 39 47 Test Freq. 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz DCR (Ω) Max. 0.08 0.10 0.14 0.15 0.17 I, DC (mA) 1600 1490 1300 1200 1100 RL875S-560K RL875S-680K RL875S-820K RL875S-101K RL875S-120K RL875S-151K RL875S-181K RL875S-221K RL875S-271K RL875S-331K RL875S-391K RL875S-471K RL875S-561K RL875S-681K RL875S-821K RL875S-102K RL875S-122K RL875S-152K RL875S-182K RL875S-222K RL875S-272K RL875S-332K RL875S-392K RL875S-472K RL875S-562K RL875S-682K RL875S-822K RL875S-103K ±10% 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 8200 10,000 2.52 MHz 2.52 MHz 2.52 MHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 0.19 0.21 0.27 0.32 0.36 0.51 0.57 0.76 0.86 0.97 1.28 1.44 1.61 2.07 2.33 2.72 3.98 4.50 6.81 7.56 8.54 9.74 12.9 1407 20.4 23.0 30.6 35.0 990 890 810 740 670 600 550 500 450 410 370 340 310 280 260 230 210 190 170 160 140 130 120 110 99 89 81 74 306 E. Alondra Blvd., Gardena, CA 90247-1059 • (310) 515-1720 • FAX (310) 515-1962 56 w w w . j w m i l l e r . c o m
