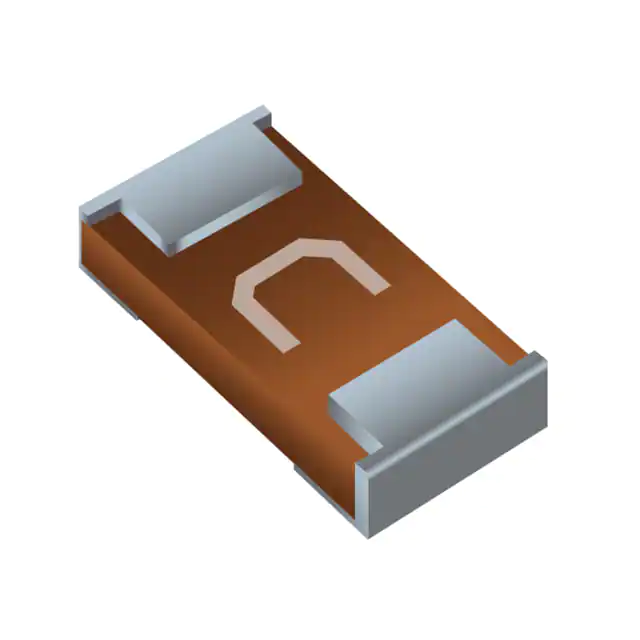

CO LO & MP LI GE AN N T FR EE SinglFuse™ SF-0603HI-F Series Features *R oH S ■ Single blow fuse for overcurrent ** HA ■ ■ ■ ■ ■ protection 1608 (EIA 0603) miniature footprint High inrush current withstand fuse UL 248-14 compliant RoHS compliant* and halogen free** Thin film chip design ■ Surface mount packaging for automated assembly SF-0603HI-F Series - High Inrush Current Withstand Surface Mount Fuses Clearing Time Characteristics for Series Additional Information Click these links for more information: Clearing Time at 25 °C % of Current Rating Min. Max. 100 % 4 hours — 200 % 1 second 60 seconds 1000 % 0.0002 seconds 0.02 seconds PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY CONTACT Electrical Characteristics Model Rated Current (A) Resistance (Ω) Typ.*** SF-0603HI050F-2 0.50 0.1550 Rated Voltage Interrupting Rating 65 VDC 50 A @ 35 VAC 13 A @ 65 VDC 50 A @ 35 VDC Typical I2t (A2s)**** 0.019 SF-0603HI075F-2 0.75 0.0830 SF-0603HI100F-2 1.00 0.0500 SF-0603HI150F-2 1.50 0.0290 0.110 SF-0603HI200F-2 2.00 0.0200 0.310 SF-0603HI250F-2 2.50 0.0165 SF-0603HI300F-2 3.00 0.0140 SF-0603HI350F-2 3.50 0.0120 SF-0603HI400F-2 4.00 0.0095 35 VDC 35 A @ 35 VAC 50 A @ 24 VAC 35 A @ 35 VDC 50 A @ 24 VDC 0.036 0.052 0.400 0.600 0.800 1.200 Certifications cUL: E198545 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ *** Resistance value measured with ≤10 % rated current at 25 °C ambient. Tolerance ±25 %. **** Melting I2t calculated at 0.001 second pre-arcing time. Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. **Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. “SinglFuse” is a trademark of Bourns, Inc. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SinglFuse™ SF-0603HI-F Series Applications ■ Portable memory ■ Cell phones ■ LED lighting ■ LCD monitors ■ Rechargeable battery packs ■ Power tools ■ Disk drives ■ Battery chargers ■ PDAs ■ Set-top boxes ■ Digital cameras ■ Industrial controllers ■ MP3 players ■ Battery Management Systems (BMS) SF-0603HI-F Series - High Inrush Current Withstand Surface Mount Fuses Average I2t vs. t Curves Average Pre-Arcing Time vs. Current Curves 2.00 A 1.50 A 1.00 A 0.75 A 0.50 A 2.50 A 3.00 A 3.50 A 4.00 A 4.00 A 3.50 A 3.00 A 2.50 A 2.00 A 1.50 A 1.00 A 0.75 A 0.50 A 1000 100 100 10 10 I2t (A2s) PRE-ARCING TIME (SECONDS) 1 0.1 1 0.1 0.01 0.01 0.001 0.0001 0.001 0.1 1 10 CURRENT (A) 100 0.0001 0.0001 0.001 0.01 0.1 1 10 100 TIME (SECONDS) Environmental Characteristics Operating Temperature.................................................................................................................................................................. -55 °C to +90 °C Storage Conditions Temperature .............................................................................................................................................................................. +5 °C to +35 °C Humidity......................................................................................................................................................................................... 40 % to 75 % Shelf Life..........................................................................................................................................................2 years from manufacturing date Moisture Sensitivity Level ...................................................................................................................................................................................... 1 ESD Classification (HBM)............................................................................................................................................................................ Class 6 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-0603HI-F Series - High Inrush Current Withstand Surface Mount Fuses Typical Part Marking How to Order Packaging SF - 0603 HI 015 F - 2 Represents total content. Layout may vary. SinglFuse™ Product Designator F SMD Footprint 0603 = 1608 (EIA 0603) size Fuse Blow Type HI = High Inrush Current Withstand RATED CURRENT (A) C = 0.50 J = 2.50 D = 0.75 L = 3.00 E = 1.00 N = 3.50 T = 1.50 P = 4.00 F = 2.00 Rated Current 050 ~ 400 (500 mA ~ 4.0 A) Reel Dimension 7-inch Tape and Reel Specification EIA 481-2 Quantity 8,000 pieces Packaging Code -2 Recommended Pad Layout 0.80 (.031) Structure Type F = Thin film Packaging Type - 2 = Tape & Reel 1.00 (.039) Product Dimensions 1.60 ± 0.10 (.063 ± .004) DIMENSIONS: MM (INCHES) 0.36 ± 0.10 (.014 ± .004) 0.81 ± 0.10 (.032 ± .004) 0.36 ± 0.10 (.014 ± .004) 2.20 (.087) 0.36 ± 0.10 (.014 ± .004) 0.36 ± 0.10 (.014 ± .004) 0.36 ± 0.10 (.014 ± .004) RATED CURRENT PERCENTAGE (%) Current Rating Thermal Derating Curve 140 120 100 80 60 40 20 0 -60 -40 -20 0 20 40 60 80 100 AMBIENT TEMPERATURE (°C) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-0603HI-F Series - High Inrush Current Withstand Surface Mount Fuses Solder Reflow Recommendations Profile Feature Tp MAX. RAMP UP RATE = 3 °C/s MAX. RAMP DOWN RATE = 6 °C/s TEMPERATURE (°C) TL Tsmax tp Tc -5 °C tL PREHEAT AREA Tsmin ts 25 TIME 25 °C TO PEAK TIME Pb-Free Assembly Preheat / Soak: Temperature Min. (Tsmin) Temperature Max. (Tsmax) Time (ts) from (Tsmin to Tsmax) 150 °C 200 °C 60~120 seconds Ramp Up Rate (TL to Tp) 3 °C / second max. Liquidous Temperature (TL) Time (tL) maintained above TL 217 °C 60~150 seconds Peak Package Body Temperature (Tp) 260 °C Time (tp)* within 5 °C of the specified classification temperature (Tc) 30 seconds* Ramp Down Rate (Tp to TL) 6 °C / second max. Time 25 °C to Peak Temperature 8 minutes max. * Tolerance for peak profile temperature (Tp ) is defined as a supplier minimum and a user maximum. Reliability Testing No. Test Requirement Test Condition Test Reference 2 mm Refer to STP document 1 Bending ≤1 A: DCR change ≤ ±10 % >1 A: DCR change ≤ ±20 % 2 Solderability Minimum 95 % coverage One dip at 255 °C for 5 seconds MIL-STD-202 Method 208 3 Thermal shock DCR change ≤ ±10 % No mechanical damage 100 cycles between -55 °C and +125 °C MIL-STD-202 Method 107 4 Moisture resistance DCR change ≤ ±10 % No excessive corrosion 10 cycles MIL-STD-202 Method 106 5 Salt spray DCR change ≤ ±10 % No excessive corrosion 48 hour exposure, 5 % salt solution MIL-STD-202 Method 101 6 Mechanical vibration DCR change ≤ ±10 % No mechanical damage 0.4 inch D.A. or 30 G between 5-3000 Hz MIL-STD-202 Method 204 7 Mechanical shock DCR change ≤ ±10 % No mechanical damage 1500 G, 0.5 ms, half-sine shocks MIL-STD-202 Method 213 8 Life No electrical “opens” during testing Voltage drop change shall be less than ±10 % of initial value 75 % rated current for 2000 hours at ambient temperature between +20 °C and +30 °C Refer to STP document REV. C 03/21 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
