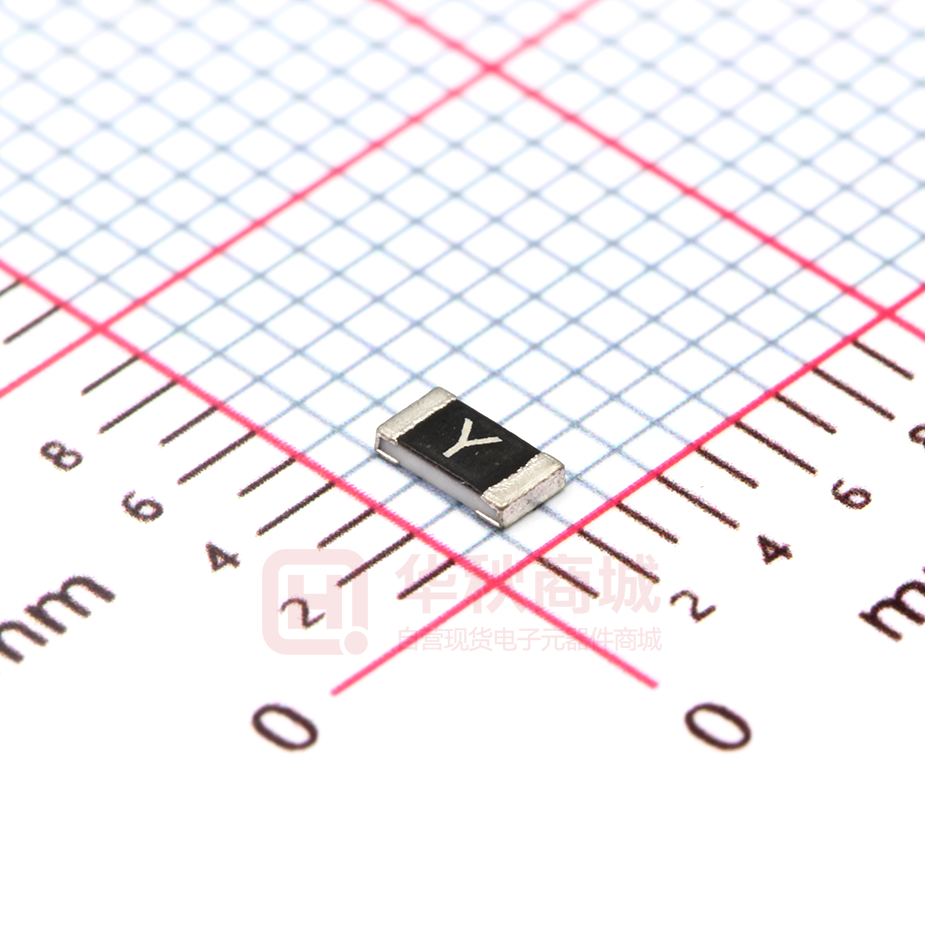

SinglFuse™ SF-1206F Series Features
OM
n Fast acting thin film chip fuse for overcurrent protection
*R
oH
S
C
n 3216 (EIA 1206) miniature footprint
n Surface mount packaging for automated assembly
n UL listed (UL 248-14)
LE
AD
F
RE
E
n RoHS compliant* and halogen free**
SF-1206F Series - Fast Acting Surface Mount Fuses
SF-1206F050
SF-1206F080
SF-1206F100
SF-1206F125
SF-1206F150
Rated Current
(Amps)
0.50
0.80
1.00
1.25
1.50
SF-1206F250
SF-1206F300
SF-1206F400
SF-1206F500
2.50
3.00
4.00
5.00
Model
SF-1206F200
SF-1206F700
2.00
7.00
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
Electrical Characteristics
Fusing Time
Open within 1 min.
at 200 % rated
current
Resistance
(mΩ) Typ.***
590
225
130
88
65
Rated Voltage
Breaking Capacity
DC 63 V
DC 63 V
50 A
DC 32 V
DC 32 V
50 A
DC 24 V
DC 24 V
50 A
38
32
23
15
11
7
Typical
I2t (A2s)****
0.011
0.031
0.034
0.062
0.144
0.181
*** Resistance value was measured with less than 10 % of rated current.
****Typical I2t value is measured at 10x rated current.
0.351
0.501
0.954
0.966
3.25
Reliability Testing
Parameter
Requirement
Test Method
Carrying Capacity...................................... No fusing.....................................................Rated current, 4 hours
Fusing Time............................................... Within 1 minute...........................................200 % of its rated current
Interrupting Ability...................................... No mechanical damages............................After the fuse is interrupted, rated voltage applied for
30 seconds again
Bending Test.............................................. No mechanical damages............................Distance between holding points: 90 mm,
Bending: 3 mm,1time, 30 seconds
Resistance to Solder Heat......................... ±20 %..........................................................260 °C ±5 °C,10 seconds ±1 second
Solderability............................................... 95 % coverage minimum............................235 °C ±5 °C, 2 ±0.5 second
245 °C ±5 °C, 2 ±0.5 second (lead free)
Temperature Rise......................................
