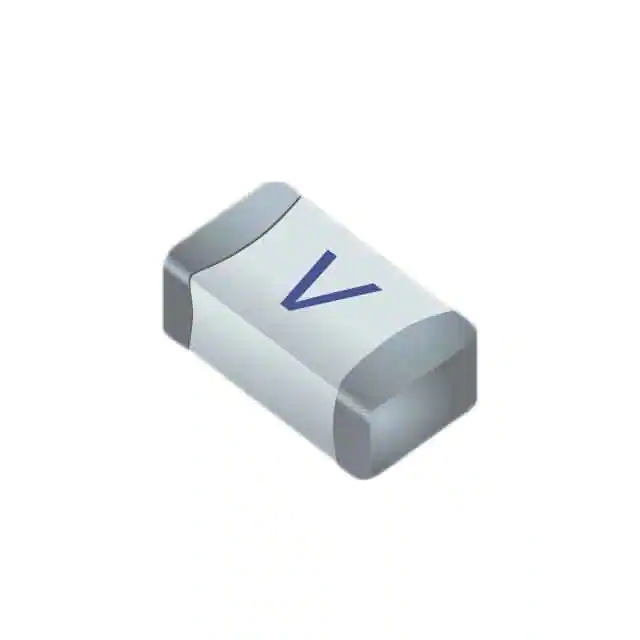

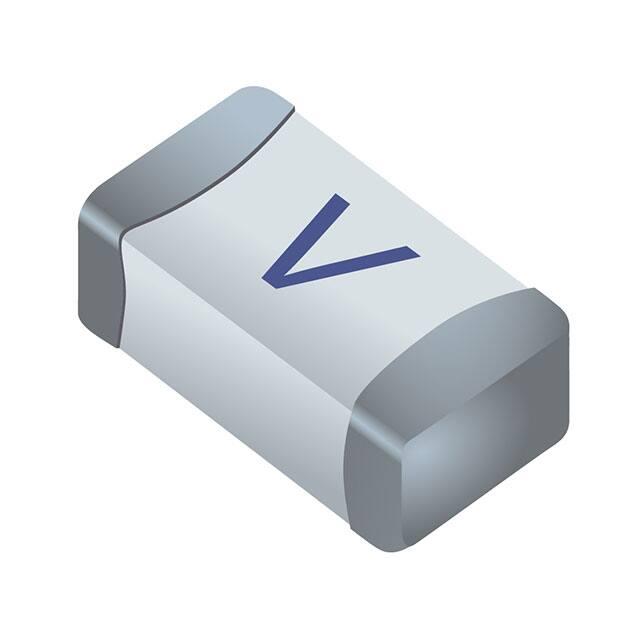

SF-1206HV25M-2

** Ro HS ** *H C AL & OM PL OG IA EN NT FR EE SinglFuse™ SF-1206HV-M Series Features ■ Single blow fuse for overcurrent ■ ■ V ■ ■ ■ protection 3216 (EIA 1206) footprint High voltage rating applications High current rating applications UL 248-14 compliant RoHS compliant* and halogen free** ■ Multilayer SMD design ■ Surface mount packaging for automated assembly SF-1206HV-M Series - High Voltage & High Current Multilayer Surface Mount Fuses Clearing Time Characteristics for Series Additional Information Click these links for more information: Clearing Time at 25 °C % of Current Rating Min. Max. 100 % 4 hours — 350 % — 5 seconds PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY CONTACT Electrical Characteristics Model Rated Current (A) Resistance (Ω) Typ.*** Rated Voltage Interrupting Rating Typical I2t (A2s)**** SF-1206HV10M-2 10.0 0.0055 SF-1206HV12M-2 12.0 0.0045 SF-1206HV15M-2 15.0 0.0032 SF-1206HV20M-2 20.0 0.0023 SF-1206HV25M-2 25.0 0.0016 200 A @ 35 VDC 120.0 SF-1206HV30M-2 30.0 0.0012 SF-1206HV40M-2 40.0 0.0009 200 A @ 35 VDC 300 A @ 26 VDC 240.0 15.0 150 A @ 35 VDC 35 VDC 20.0 35.0 80.0 180.0 Certifications cUL: E198545 ✓ ✓ ✓ ✓ ✓ ✓ ✓ *** Resistance value measured with ≤10 % rated current at 25 °C ambient. Tolerance ±25 %. **** Melting I2t calculated at 1000 % of current rating. Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov * Meets Bourns’ internal AEC-Q200 equivalent test plan. ** RoHS Directive 2015/863, Mar 31, 2015 and Annex. *** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. “SinglFuse” is a trademark of Bourns, Inc. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SinglFuse™ SF-1206HV-M Series Applications ■ Portable memory ■ Cell phones ■ LED lighting ■ LCD monitors ■ Rechargeable battery packs ■ Power tools ■ Disk drives ■ Battery chargers ■ PDAs ■ Set-top boxes ■ Digital cameras ■ Industrial controllers ■ MP3 players ■ Battery Management Systems (BMS) SF-1206HV-M Series - High Voltage & High Current Multilayer Surface Mount Fuses Average I2t vs. t Curves Average Pre-Arcing Time vs. Current Curves 20.0 A 15.0 A 12.0 A 10.0 A 25.0 A 30.0 A 40.0 A 100000 100 40.0 A 30.0 A 25.0 A 20.0 A 15.0 A 12.0 A 10.0 A 10 1 I2t (A2s) PRE-ARCING TIME (SECONDS) 10000 1000 0.1 100 0.01 0.001 10 10 0 CURRENT (A) 1000 10 0.001 0.01 0.1 1 10 TIME (SECONDS) Environmental Characteristics Operating Temperature................................................................................................................................................................ -55 °C to +125 °C Storage Conditions Temperature .............................................................................................................................................................................. +5 °C to +35 °C Humidity......................................................................................................................................................................................... 40 % to 75 % Shelf Life..........................................................................................................................................................2 years from manufacturing date Moisture Sensitivity Level ...................................................................................................................................................................................... 1 ESD Classification (HBM)............................................................................................................................................................................ Class 6 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-1206HV-M Series - High Voltage & High Current Multilayer Surface Mount Fuses Typical Part Marking How to Order Packaging SF - 1206 HV 10 M - 2 Represents total content. Layout may vary. Q RATED CURRENT (A) Q = 10.0 S = 25.0 X = 12.0 V = 30.0 Y = 15.0 O = 40.0 Z = 20.0 Reel Dimension 7-inch Tape and Reel SinglFuse™ Product Designator Specification EIA 481-2 SMD Footprint 1206 = 3216 (EIA 1206) size Quantity 3,000 pieces Fuse Blow Type HV = High Voltage & High Current Packaging Code -2 Rated Current 10 ~ 40 (10.0 A ~ 40.0 A) Recommended Pad Layout Structure Type M = Multilayer 1.50 (.059) Packaging Type - 2 = Tape & Reel 1.80 (.071) Product Dimensions 3.20 ± 0.20 (.126 ± .008) DIMENSIONS: MM (INCHES) 4.40 (.173) 1.60 ± 0.20 (.063 ± .008) DIMENSIONS: 1.60 ± 0.20 (.063 ± .008) 0.51 ± 0.25 (.020 ± .010) MM (INCHES) H1 & H2 H1 (10-25 A): 0.97 ± 0.20 (.038 ± .008) H2 (30-40 A): 1.30 ± 0.20 (.051 ± .008) RATED CURRENT PERCENTAGE (%) Current Rating Thermal Derating Curve 105 100 95 90 85 80 75 70 65 60 55 50 -55 -35 -15 5 25 45 65 85 105 125 AMBIENT TEMPERATURE (°C) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-1206HV-M Series - High Voltage & High Current Multilayer Surface Mount Fuses Solder Reflow Recommendations Profile Feature Tp MAX. RAMP UP RATE = 3 °C/s MAX. RAMP DOWN RATE = 6 °C/s TEMPERATURE (°C) TL Tsmax tp tL PREHEAT AREA Tsmin ts 25 TIME 25 °C TO PEAK TIME Tc -5 °C Pb-Free Assembly Preheat / Soak: Temperature Min. (Tsmin) Temperature Max. (Tsmax) Time (ts) from (Tsmin to Tsmax) 150 °C 200 °C 60~120 seconds Ramp Up Rate (TL to Tp) 3 °C / second max. Liquidous Temperature (TL) Time (tL) maintained above TL 217 °C 60~150 seconds Peak Package Body Temperature (Tp) 260 °C Time (tp)* within 5 °C of the specified classification temperature (Tc) 30 seconds* Ramp Down Rate (Tp to TL) 6 °C / second max. Time 25 °C to Peak Temperature 8 minutes max. * Tolerance for peak profile temperature (Tp ) is defined as a supplier minimum and a user maximum. Recommended Temperature Profile for Wave Soldering 10 sec. max. TEMPERATURE (°C) 260 Wave soldering is suitable for 1206 size models. 150 PREHEATING 120 seconds TIME Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-1206HV-M Series - High Voltage & High Current Multilayer Surface Mount Fuses Reliability Testing No. Test Requirement Test Condition Test Reference 1 Solderability Minimum 95 % coverage One dip at 245 °C for 5 seconds MIL-STD-202 Method 208 2 Soldering heat resistance DCR change ≤ 10 % No mechanical damage One dip at 260 °C for 60 seconds MIL-STD-202 Method 210 3 Moisture resistance DCR change ≤ ±15 % No excessive corrosion 10 cycles MIL-STD-202 Method 106 4 Salt spray DCR change ≤ ±10 % No excessive corrosion 48 hour exposure, 5 % salt solution MIL-STD-202 Method 101 5 Mechanical vibration DCR change ≤ ±10 % No mechanical damage 0.4 inch D.A. or 30 G between 5-3000 Hz MIL-STD-202 Method 204 6 Mechanical shock DCR change ≤ ±10 % No mechanical damage 1500 G, 0.5 ms, half-sine shocks MIL-STD-202 Method 213 7 Thermal Shock DCR change ≤ ±10 % No mechanical damage 100 cycles between -65 °C and +125 °C MIL-STD-202 Method 107 8 Life No electrical “opens” during testing Voltage drop change shall be less than ±20 % of initial value 80 % rated current (75 % for < 1 A fuses) Refer to STP for 2000 hours at ambient temperature document between +20 °C and +30 °C REV. C 03/21 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
