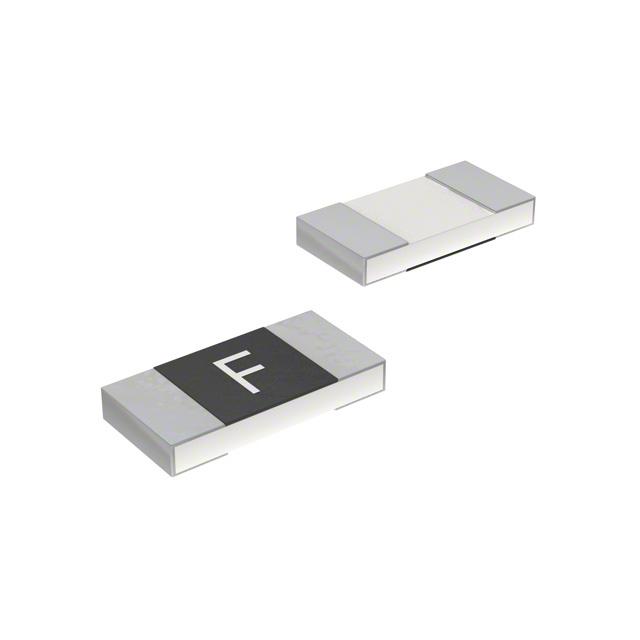

CO LO & MP LI GE AN N T FR EE SinglFuse™ SF-1206S Series Features ■ Slow blow thin film chip fuse for overcurrent protection *R oH S ■ 3216 (EIA 1206) miniature footprint ** HA ■ Surface mount packaging for automated assembly ■ UL 248-14 compliant ■ RoHS compliant* and halogen free** SF-1206S Series - Slow Blow Surface Mount Fuses Clearing Time Characteristics for Series Additional Information Click these links for more information: Clearing Time at 25 °C % of Current Rating Min. Max. 100 % 4 hours — 250 % — 5 seconds PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY CONTACT Electrical Characteristics Rated Current (A) Resistance (Ω) Typ.*** SF-1206S050-2 0.50 0.596 0.030 SF-1206S080-2 0.80 0.165 0.068 SF-1206S100-2 1.00 0.132 Model Rated Voltage Interrupting Rating Typical I t (A2s) **** 2 0.098 63 VDC 50 A @ 63 VDC SF-1206S125-2 1.25 0.09 0.155 SF-1206S150-2 1.50 0.079 0.236 SF-1206S200-2 2.00 0.041 0.339 SF-1206S250-2 2.50 0.033 0.605 SF-1206S300-2 3.00 0.023 0.933 SF-1206S400-2 4.00 0.0155 SF-1206S500-2 5.00 0.013 2.533 SF-1206S700-2 7.00 0.007 5.684 32 VDC 50 A @ 32 VDC 1.537 Certifications cUL: E198545 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ *** Resistance value measured with ≤10 % rated current at 25 °C ambient. Tolerance ± 25 %. **** Melting I2t calculated at 10 times rated current. Environmental Characteristics Operating Temperature................................................................................................................................................................. -20 °C to +105 °C Storage Conditions Temperature ............................................................................................................................................................................... +5 °C to +35 °C Humidity..........................................................................................................................................................................................40 % to 75 % Shelf Life.......................................................................................................................................................... 2 years from manufacturing date Moisture Sensitivity Level ....................................................................................................................................................................................... 1 ESD Classification (HBM)............................................................................................................................................................................. Class 6 WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. **Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. “SinglFuse” is a trademark of Bourns, Inc. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SinglFuse™ SF-1206S Series Applications ■ Portable memory ■ Cell phones ■ LCD monitors ■ Rechargeable battery packs ■ Disk drives ■ Battery chargers ■ PDAs ■ Set top boxes ■ Digital cameras ■ Industrial controllers ■ DVDs SF-1206S Series - Slow Blow Surface Mount Fuses Average I2t vs. t Curves Average Pre-Arcing Time vs. Current Curves 1.50 A 1.25 A 1.00 A 0.80 A 0.50 A 100 2.00 A 2.50 A 3.00 A 4.00 A 5.00 A 7.00 A 1000 7.00 A 5.00 A 4.00 A 100 3.00 A 2.50 A 2.00 A 1.50 A 1.25 A 1.00 A 10 1 0.80 A I2t (A2s) PRE-ARCING TIME (SECONDS) 10 0.50 A 0.1 1 0.01 0.1 0.001 0.1 1 10 0.01 0.001 100 CURRENT (A) 0.01 0.1 TIME (SECONDS) Product Dimensions Recommended Pad Layout 3.1 ± 0.1 (.122 ± .004) 0.6 ± 0.1 (.024 ± .004) 2.2 ± 0.2 (.087 ± .008) 1.55 ± 0.1 (.061 ± .004) 1.65 ± 0.15 (.065 ± .006) 0.5 ± 0.2 (.020 ± .008) 0.5 ± 0.3 (.020 ± .012) 0.5 ± 0.3 (.020 ± .012) 1 DIMENSIONS: 0.5 ± 0.2 (.020 ± .008) MM (INCHES) 4.7 ± 0.3 (.185 ± .012) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-1206S Series - Slow Blow Surface Mount Fuses RATED CURRENT PERCENTAGE (%) Thermal Derating Curve Packaging 120 110 Reel Dimension 7-inch Tape and Reel Specification EIA 481-2 Quantity 5,000 pieces Packaging Code -2 100 Typical Part Marking 90 Represents total content. Layout may vary. 80 -20 0 20 60 40 80 100 120 AMBIENT TEMPERATURE (°C) How to Order SF - 1206 S 050 - 2 SinglFuse™ Product Designator RATED CURRENT (A) F = 0.50 T = 2.50 K = 0.80 3 = 3.00 L = 1.00 W = 4.00 M = 1.25 Y = 5.00 P = 1.50 Z = 7.00 S = 2.00 SMD Footprint 3216 (EIA 1206) size Fuse Blow Type S = Slow Blow Rated Current 050-700 (500 mA - 7.00 A) Packaging Type - 2 = Tape & Reel (5,000 pcs./reel) Solder Reflow Recommendations 250 Peak: 250 +0/-5 °C TEMPERATURE (°C) 230 °C or higher 200 180 °C 150 PRE-HEATING ZONE PEAK: 250 +0/-5 °C, 5 seconds PRE-HEATING ZONE: 150 to 180 °C, 90 ± 30 seconds SOLDERING ZONE: 230 °C or higher, 30 ± 10 seconds 150 °C 90 ± 30 Seconds 100 30 ± 10 Seconds SOLDERING ZONE 50 HEATING TIME Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-1206S Series - Slow Blow Surface Mount Fuses Reliability Testing No. Test Requirement Test Condition 1 Carrying Capacity No fusing Rated current, 4 hours 2 Fusing Time Within 5 seconds 200 % of its rated current 3 Interrupting Ability No mechanical damages After the fuse is interrupted, rated voltage applied for 30 seconds again 4 Bending Test No mechanical damages Distance between holding points: 90 mm, Bending: 3 mm, 1 time, 30 seconds 5 Resistance to Solder Heat ±20 % 260 °C ±5 °C,10 seconds ±1 second 6 Solderability 95 % coverage minimum 235 °C ±5 °C, 2 ±0.5 second 245 °C ±5 °C, 2 ±0.5 second (lead free) 7 Temperature Rise
