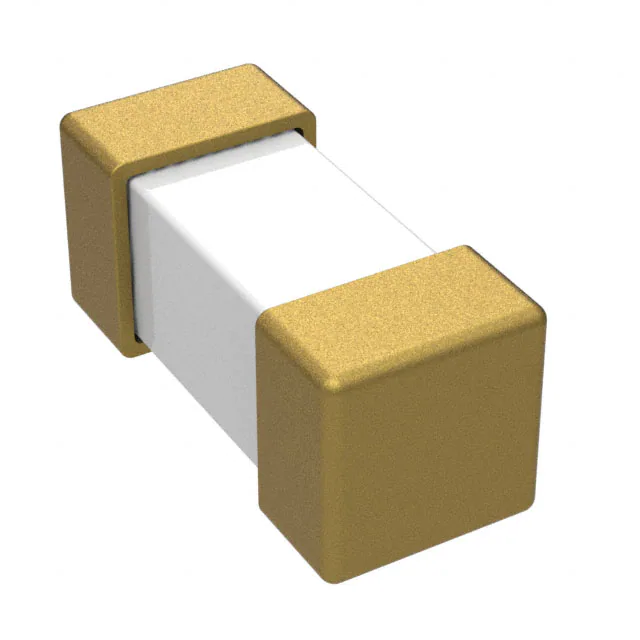

SF-2410FP010T-2

CO LO & MP LI GE AN N T FR EE SinglFuse™ SF-2410FP-T Series Features ■ Single blow fuse for overcurrent protection ■ Ceramic tube design for fast acting precision fusing speed applications ■ UL 248-14 compliant F 3A ** HA *R oH S ■ EIA 2410 (6125 metric) footprint ■ Surface mount packaging for automated assembly ■ RoHS compliant* and halogen free** SF-2410FP-T Series – Fast Acting Precision SMD Fuses Clearing Time Characteristics for Series Additional Information Click these links for more information: Clearing Time at 25 °C % of Current Rating Min. Max. 100 % 4 hours — 200 % — 5 seconds PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY CONTACT Electrical Characteristics Rated Current (A) Resistance (Ω) Typ.*** SF-2410FP0062T-2 0.062 6.653 0.0012 SF-2410FP008T-2 0.080 4.974 0.0017 SF-2410FP010T-2 0.100 3.014 0.0043 Model Rated Voltage Interrupting Rating Typical I t (A2s) **** 2 SF-2410FP0125T-2 0.125 2.044 0.0094 SF-2410FP016T-2 0.160 0.8655 0.0116 SF-2410FP020T-2 0.200 1.8535 0.0517 SF-2410FP025T-2 0.250 1.119 0.0528 SF-2410FP0315T-2 0.315 0.843 0.1365 SF-2410FP0375T-2 0.375 0.732 0.1502 SF-2410FP040T-2 0.400 0.4995 0.2149 SF-2410FP050T-2 0.500 0.476 0.358 50 A @ 125 VAC 50 A @ 125 VDC 300 A @ 32 VDC SF-2410FP075T-2 0.750 0.2065 SF-2410FP100T-2 1.00 0.158 SF-2410FP150T-2 1.50 0.114 SF-2410FP200T-2 2.00 0.0605 1.08 SF-2410FP250T-2 2.50 0.044 1.1471 SF-2410FP300T-2 3.00 0.036 1.548 SF-2410FP315T-2 3.15 0.033 2.6485 SF-2410FP350T-2 3.50 0.029 2.695 SF-2410FP400T-2 4.00 0.021 3.9744 SF-2410FP500T-2 5.00 0.013 6.175 SF-2410FP700T-2 7.00 0.01 9.016 SF-2410FP800T-2 8.00 0.0085 16.758 SF-2410FP1000T-2 10.00 0.006 24.42 125 VDC 0.3761 0.4143 1.0606 Certifications cUL: E198545 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ *** Resistance value measured with ≤10 % rated current at 25 °C ambient. Tolerance ± 30 %. **** Melting I2t calculated at 10 times rated current. WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. **Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. “SinglFuse” is a trademark of Bourns, Inc. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SinglFuse™ SF-2410FP-T Series Applications ■ Notebooks ■ PC Servers ■ LCD Monitors ■ Power Supplies ■ LCD Backlight Inverters ■ Game Consoles ■ POE, POE+ ■ White Goods SF-2410FP-T Series – Fast Acting Precision SMD Fuses Environmental Characteristics Operating Temperature................................................................................................................................................................. -55 °C to +125 °C Storage Conditions Temperature ............................................................................................................................................................................. +15 °C to +30 °C Humidity..........................................................................................................................................................................................20 % to 70 % Shelf Life.......................................................................................................................................................... 2 years from manufacturing date Moisture Sensitivity Level ....................................................................................................................................................................................... 1 ESD Classification (HBM)............................................................................................................................................................................. Class 6 Average Pre-Arcing Time vs. Current Curves 200 mA 250 mA 160 mA 125 mA 750 mA 10000 1000 1000 PRE-ARCING TIME (SECONDS) 10000 100 10 1 10 1 0.1 0.01 0.01 CURRENT (A) 10 10 A 100 0.1 1 8A 1A 100000 0.1 7A 1.5 A 100000 0.001 0.01 5A 2A 500 mA 62 mA 4A 2.5 A 400 mA 80 mA 3.5 A 3A 375 mA 100 mA PRE-ARCING TIME (SECONDS) 3.15 A 315 mA 0.001 0.1 1 10 100 CURRENT (A) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-2410FP-T Series – Fast Acting Precision SMD Fuses Average I2t vs. t Curves 10000 750 mA 500 mA 400 mA 375 mA 315 mA 250 mA 200 mA 160 mA 125 mA 100 mA 80 mA 62 mA 1000 100 1 100000 10000 1000 0.1 100 0.01 10 0.001 1 0.0001 0.01 0.1 1 10 100 1000 TIME (SECONDS) 10000 100000 10 A 8A 7A 5A 4A 3.5 A 3.15 A 3A 2.5 A 2A 1.5 A 1A 1000000 I2t (A2s) I2t (A2s) 10 10000000 0.1 0.01 0.1 1 10 100 1000 10000 100000 TIME (SECONDS) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-2410FP-T Series – Fast Acting Precision SMD Fuses How to Order Packaging SF - 2410 FP 0062 T - 2 Reel Dimension 7-inch Tape and Reel SinglFuse™ Product Designator Specification EIA 481-2 SMD Footprint 2410 = EIA 2410 (6125 metric) Quantity 1,000 pieces Packaging Code -2 Fuse Blow Type FP = Fast Acting Precision Rated Current 0062 ~ 1000 (62 mA ~ 10 A) Structure Type T = Ceramic Tube Packaging Type - 2 = Tape & Reel Typical Part Marking Represents total content. Layout may vary. F 3A Rated Current Part Marking Rated Current 62 mA 62 mA 1A 1A 80 mA 80 mA 1.5 A 1.5 A 100 mA 100 mA 2A 2A 125 mA 125 mA 2.5 A 2.5 A 160 mA 160 mA 3A 3A 200 mA 200 mA 3.15 A 3.15 A 250 mA 250 mA 3.5 A 3.5 A 315 mA 315 mA 4A 4A 375 mA 375 mA 5A 5A 400 mA 400 mA 7A 7A 500 mA 500 mA 8A 8A 750 mA 750 mA 10 A 10 A Product Dimensions Part Marking Recommended Pad Layout 2.95 (.116) 2.60 ± 0.10 (.102 ± .004) 6.10 ± 0.20 (.240 ± .008) F 3A 1.45 ± 0.10 (.057 ± .004) 3.15 (.124) 2.15 ± 0.10 (.085 ± .004) 2.60 ± 0.10 (.102 ± .004) DIMENSIONS: 1.96 (.077) MM (INCHES) DIMENSIONS: MM (INCHES) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-2410FP-T Series – Fast Acting Precision SMD Fuses Solder Reflow Recommendations tp TP Profile Feature CRITICAL ZONE T L TO TP RAMP-UP Temperature TL tL TS MAX. RAMP-DOWN TS MIN. ts PREHEAT 25 °C t 25 °C TO PEAK Time Preheat / Soak: Temperature Min. (Tsmin) Temperature Max. (Tsmax) Time (ts) from (Tsmin to Tsmax) Pb-Free Assembly 150 °C 200 °C 60~180 seconds Ramp Up Rate (TL to Tp) 3 °C / second max. Ramp Up Rate (Tsmax to TL) 5 °C / second max. Liquidous Temperature (TL) Time (tL) maintained above TL 217 °C 60~90 seconds Peak Package Body Temperature (Tp) 235 °C ± 5 °C Time within 5 °C of actual peak temperature (Tp) 20~30 seconds* Ramp Down Rate (Tp to TL) 6 °C / second max. Time 25 °C to Peak Temperature 8 minutes max. Do not exceed 240 °C * Tolerance for peak profile temperature (Tp ) is defined as a supplier minimum and a user maximum. Solder Wave Recommendations Peak Temperature (Dwell Time) 300 Profile Feature 280 260 Preheat: Temperature Max. (Tsmax) Time (Min. to Max.) 240 Temperature (°C) 220 200 180 160 140 Pb-Free Assembly 150 °C 60~90 seconds Solder Pot Temperature 260 °C max. Solder Dwell Time 2~3 seconds 120 100 80 60 40 20 0 20 40 60 PREHEAT TIME 80 100 120 140 160 180 200 220 240 COOLING TIME Time (Sec.) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SF-2410FP-T Series – Fast Acting Precision SMD Fuses RATED CURRENT PERCENTAGE (%) Current Rating Thermal Derating Curve 120 100 80 60 40 25 °C 20 0 -60 -40 -20 0 20 40 60 80 100 120 140 AMBIENT TEMPERATURE (°C) Reliability Testing No. Test Test Condition Requirement Test Reference 1 Solderability Temperature setup: 235 ±5 °C Time setup: 10 ±1 sec. After test terminal electrode wetting area must be greater than 95 % IEC 60068-2-58 2 Resistance to soldering heat Temperature setup: 235 ±5 °C Time setup: 30 ± 5 sec. DCR change ≤ ±15 % IEC 60068-2-58 DCR change ≤ ±15 % No mechanical damage 3 Thermal shock Temperature setup: 25 °C ~ -65 °C ~ 25 °C ~ 125 °C Time setup: -65 °C (30 min) ~ 25 °C (5 min) ~ 125 °C (30 min) ~ 25 °C (5 min), 5 cycles 4 Humidity unload Heat (85 ±0.5 °C) High Humidity (85 ±1 % RH) 240 hours DCR change ≤ ±15 % No mechanical damage MIL-STD-202G Method 103B Test Condition A 5 Salt spray Salt spray concentration: 5 ±1 % Test liquid temperature: 35 ±0.5 °C 96 hours DCR change ≤ ±15 % No mechanical damage MIL-STD-202G Method 101E Test Condition A 6 Bending The board shall be bent by 1 mm at a rate of 1 mm/sec. DCR change ≤ ±15 % IEC 60127-4 7 Vibration Frequency setup: 10 ~ 55 ~ 10 Hz Time setup: 1 Minute/cycle (X-Y-Z, 120 cycles, 6 hours) DCR change ≤ ±15 % No mechanical damage MIL-STD-202G Method 107G Test Condition B MIL-STD-202G Method 201A Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com REV. 03/21 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
