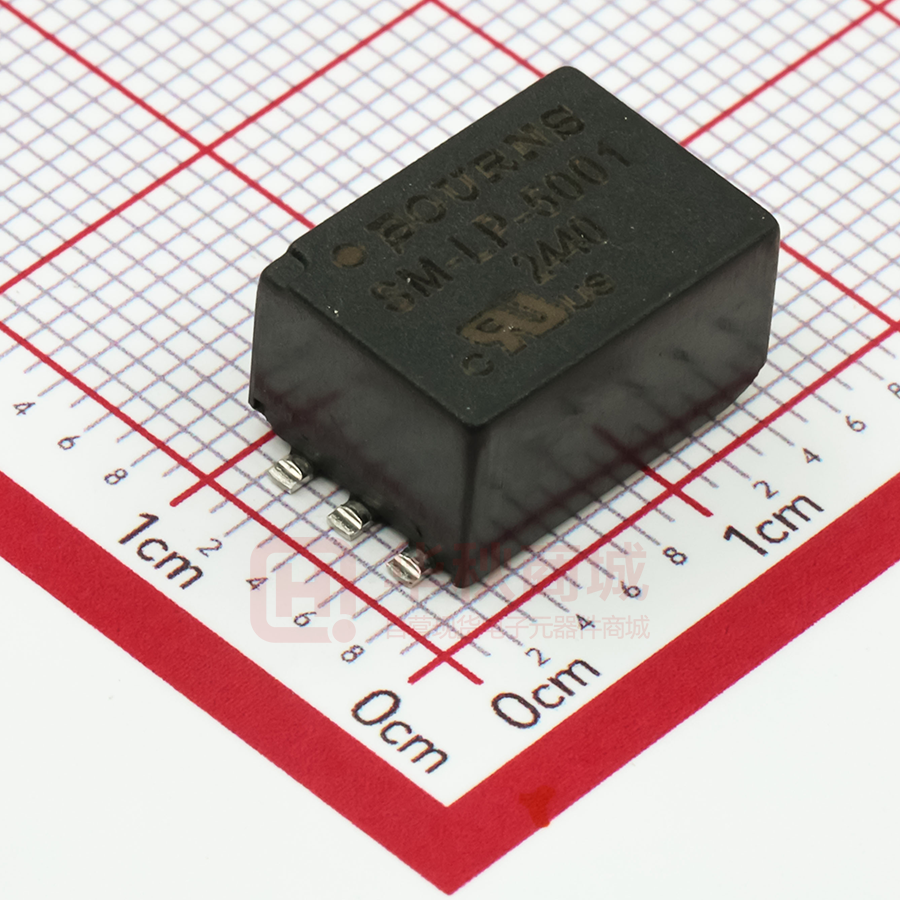

SM-LP-5001E

oH V SC AV ER OM AI SIO PL LA N IA BL S NT E Features ■ ■ ■ ■ ■ ■ ■ Lead free version available (see How to Subminiature in SMT 7.36 mm seated height Tested at 4600 Vrms, 1 minute Distortion of only 0.015 % Vacuum encapsulated EN 60950, EN 41003, BS 415, BABT and UL approved Order) ■ Lead free versions are RoHS compliant* Applications ■ ■ ■ ■ *R Modems (V32) Laptop Computers Telecommunications Instrumentation Electrical Specifications Nominal Impedance.......................600 Ω Turns Ratio..........................................1:1 Insertion Loss ........2.0 dB max. at 2 kHz Frequency Response .....................±0.25 dB max. 200-4 kHz Return Loss .........24 dB min. 200-4 kHz* Balance ..................................80 dB min. Distortion .............................-76 dB max. @ 600 Hz, -10 dBm Dielectric Strength .............................4600 Vrms for 1 min. Insulation Resistance ...................................100 MΩ @ 500 V DC Resistance** Primary ............................115 Ω ±15 % Secondary .......................115 Ω ±15 % Shunt Inductance....................3.8 H min. Shunt Loss ...........................7500 Ω min. Leakage Inductance ......6-7 mH @ 1 kHz Power Level ................................10 dBm Operating Temperature ...................................-20 °C to +85 °C Storage Temperature ...................................-40 °C to +85 °C Materials Terminal Plating...............................AgSn *For use with recommended circuit (BS6305 impedance Class A non-speech or Class B speech). **SM-LP-5001 is symetrical, meaning there is no real primary nor secondary winding. 0 -50 -LP SM 1 SM-LP-5001 Series -Surface Mount Line Matching Transformers Product Dimensions 12.5 (.492) 0.3 (.012) 1.0 (.039) 7.36 MAX. (.290) How to Order SM-LP-5001 __ __ Model Packaging Blank = Packaged in tubes E = Tape and reel (400 pcs. per reel) Termination Blank = Tin-lead: Date code 0513 or older Blank = Tin only (lead free): Date code 0514 or newer 9.6 (.378) 2.54 (1.00) 1 2 3 0.6 ± 0.03 (.023 ± .001) 1.1 (.043) 6 5 4 0.6 ± 0.5 (.023 ± .020) Suggested PCB Layout 14.5 (.571) 2.5 (.098) 0.75 (.030) 2.54 (.100) DIMENSIONS ARE: LEAD COPLANARITY: MM (INCHES) 0.15 MAX. (.006) ±0.25 MAX. (.010) UNLESS OTHERWISE SPECIFIED, TOLERANCE: Schematic 1 6 2 5 3 4 REV. 05/06 *RoHS Directive 2002/95/EC Jan 27 2003 including Annex Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
