Applications
■ Maximum Peak Power Dissipation:
■ High peak power applications (up to
6600 watts
■ Meets ISO7637-2 / ISO16750-2 Surge
specification (varies by test condition)
■ RoHS compliant*
■ AEC-Q101 compliant** and manufactured
at an IATF 16949:2016 certified factory
203
**
AE
Features
rated limits)
■ High temperature applications (up to
rated limits)
■ Clamping diode
■ Load switching and lighting

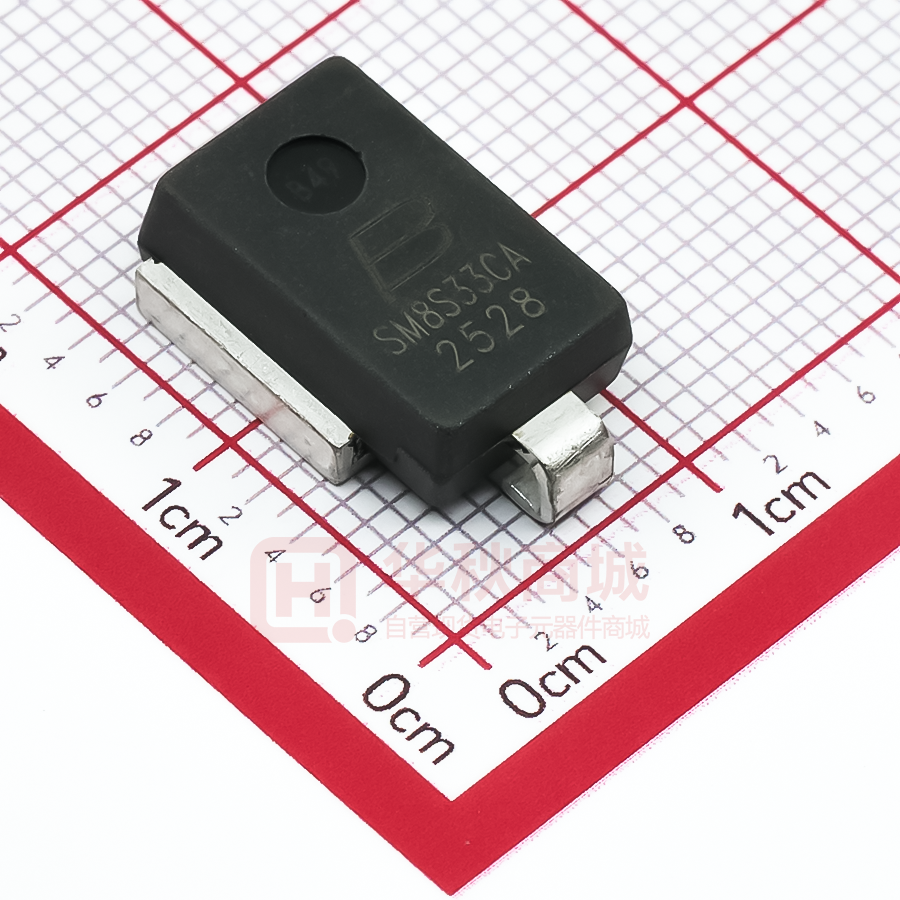

SM8S-Q Transient Voltage Suppressor Diode Series
General Information
Additional Information
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection
applications, in compact chip package DO-218 size format. The Transient Voltage
Suppressor series offers a choice of Working Peak Reverse Voltage from 16 V up to 43 V.
Typical fast response times are less than 1.0 picosecond from 0 V to Breakdown Voltage.
Click these links for more information:
PRODUCT TECHNICAL INVENTORY SAMPLES
SELECTOR LIBRARY
CONTACT
Absolute Maximum Ratings (@ TA = 25 °C Unless Otherwise Noted)
Parameter
Symbol
Value
Unit
Maximum Peak Pulse Power Dissipation (10/1000 μs)
PPK
6600
W
Maximum Peak Pulse Power Dissipation (10/10000 μs)
PPK
5200
W
Power Dissipation with Infinite Heatsink (Tc = 25 °C)
PD
8
W
Operating Temperature Range
TJ
-55 to +175
°C
TSTG
-55 to +175
°C
Storage Temperature Range
Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted)
Working
Peak
Reverse
Voltage
Maximum
Reverse
Leakage
@ VRWM
Maximum
Reverse
Voltage
@ IRSM
Maximum
Reverse
Surge
Current
VRWM (V)
IR (μA)
VRSM (V)
IRSM (A)
5
16.0
10
26.0
254.0
5
17.0
10
27.6
239.0
22.10
5
18.0
10
29.2
226.0
22.20
24.50
5
20.0
10
32.4
204.0
24.40
26.90
5
22.0
10
35.5
186.0
SM8S24CA
26.70
29.50
5
24.0
10
38.9
170.0
SM8S26A
SM8S26CA
28.90
31.90
5
26.0
10
42.1
157.0
SM8S28A
SM8S28CA
31.10
34.40
5
28.0
10
45.4
145.0
SM8S30A
SM8S30CA
33.30
36.80
5
30.0
10
48.4
136.0
SM8S33A
SM8S33CA
36.70
40.60
5
33.0
10
53.3
124.0
SM8S36A
SM8S36CA
40.00
44.20
5
36.0
10
58.1
114.0
SM8S40A
SM8S40CA
44.40
49.10
5
40.0
10
64.5
102.0
SM8S43A
SM8S43CA
47.80
52.80
5
43.0
10
69.4
95.0
Breakdown Voltage
VBR (Volts)
Unidirectional Device
Bidirectional Device
Part No.
Part No.
Min.
Max. @ IT (mA)
SM8S16A
SM8S16CA
17.80
19.70
SM8S17A
SM8S17CA
18.90
20.90
SM8S18A
SM8S18CA
20.00
SM8S20A
SM8S20CA
SM8S22A
SM8S22CA
SM8S24A
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
* RoHS Directive 2015/863, Mar 31, 2015 and Annex.
**”Q” part number suffix for automotive and other applications requiring appropriate AEC-Q101 compliance.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
SM8S-Q Transient Voltage Suppressor Diode Series
Performance Graphs
Load Dump Power Characteristics
Steady State Power Dissipation
8.0
6000
Power Dissipation (W)
Load Dump Power (W)
5000
4000
3000
2000
6.0
4.0
2.0
1000
0
0
25
50
75
100
125
150
0
175
0
100
150
200
Case Temperature (°C)
Case Temperature, Tc (°C)
(10 ms Exponential Waveform)
Pulse Waveform
Maximum Non-Repetitive Surge Current
10000
150
Peak value (IPPM)
Reverse Surge Power (W)
TJ = 25 °C
Pulse width (td)
is defined as the point
where the peak current
decays to 50 % of IPPM
tr = 10 µs
Input Peak Pulse Current (%)
50
100
Half value = IPPM
50
td
0
0
10
20
t - Time (ms)
30
40
1000
10
100
Pulse Width (ms) - 1/2 IPP Exponential Waveform
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
SM8S-Q Transient Voltage Suppressor Diode Series
Performance Graphs
Typical Transient Thermal Impedance
Typical Junction Capacitance
100,000
C J - Junction Capacitance (pF)
Transient Thermal Impedance (°C/W)
100
R θJA
10
R θJC
1
0.1
0.01
0.01
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
Measured at Zero Bias
10,000
Measured at
Stand-Off Voltage V WM
1,000
0.1
1
t - Pulse Width (s)
10
100
10
15
20
25
30
35
40
45
VWM - Reverse Stand-Off Voltage (V)
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
SM8S-Q Transient Voltage Suppressor Diode Series
Performance Graphs
ISO 16750-2 Test A (10 Pulse) - SM8S24A
0
0
td: 100 ms
td: 200 ms
td: 400 ms
1
2
2
3
3
4
4
5
5
6
6
7
7
8
79
90
td: 100 ms
td: 200 ms
td: 400 ms
1
Ri Ohm
Ri Ohm
ISO 7637-2 5a (1 Pulse) - SM8S24A
8
UA: 14 V
101
65
V Vs
UA: 13.5 V
87
V Vs
ISO 16750-2 Test A (10 Pulse) - SM8S36A
ISO 7637-2 5a (1 Pulse) - SM8S36A
0
0
1
1
td: 100 ms
td: 200 ms
td: 350 ms
2
td: 100 ms
td: 200 ms
td: 350 ms
2
3
Ri Ohm
3
Ri Ohm
76
4
4
5
5
6
6
7
7
8
151
176.5
V Vs
UA: 28 V
202
8
123
148.5
UA: 27 V
174
V Vs
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
SM8S-Q Transient Voltage Suppressor Diode Series
Product Dimensions
A
D
B
Dimension
Value
A
15.5 ± 0.5
(0.610 ± 0.02)
B
10.0 ± 0.5
(0.394 ± 0.02)
C
4.85 ± 0.15
(0.191 ± 0.006)
D
13.5 ± 0.2
(0.531 ± 0.008)
E
8.5 ± 0.2
(0.335 ± 0.008)
F
9.0 ± 0.3
(0.354 ± 0.012)
G
3.0 ± 0.5
(0.118 ± 0.02)
H
2.0 ± 0.5
(0.079 ± 0.02)
E
F
G
C
H
Metal Heatsink
DIMENSIONS:
MM
(INCHES)
Recommended Footprint
I
K
Dimension
Value
I
3.5 ± 0.3
(0.138 ± 0.012)
J
10.0 ± 0.5
(0.394 ± 0.02)
K
2.0 ± 0.3
(0.079 ± 0.012)
L
2.7 ± 0.3
(0.106 ± 0.012)
M
9.0 ± 0.3
(0.354 ± 0.012)
N
14.5 ± 0.4
(0.571 ± 0.016)
J
L
M
N
DIMENSIONS:
MM
(INCHES)
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
SM8S-Q Transient Voltage Suppressor Diode Series
Physical Specifications
Typical Part Marking
Case ............................................ Molded plastic per UL Class 94V-0
Polarity.........................Cathode band indicates unidirectional device
No cathode band indicates bidirectional device
PART
NUMBER
How to Order
SM8SXXX
YYWW
SM8S 18 CA - Q
Package
SM8S = DO-218 Package
Working Peak Reverse Voltage
18 = 18 VRWM (Volts)
MANUFACTURER’S
TRADEMARK
DATE CODE:
YY = LAST TWO DIGITS OF YEAR
WW = WEEK NUMBER
CATHODE BAND
Suffix
A = 5 % Tolerance Unidirectional Device
CA = 5 % Tolerance Bidirectional Device
AEC-Q101 Suffix
Q = AEC-Q101 Compliant
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
SM8S-Q Transient Voltage Suppressor Diode Series
Packaging Information
The product will be dispensed in tape and reel format (see diagram below).
P
0
P
1
d
T
E
Index Hole
120 °
F
D2
W
B
SM8SXXX
YYWW
P
A
Trailer
.......
.......
End
D1 D
C
Device
.......
.......
Leader
.......
.......
.......
.......
W1
Start
DIMENSIONS:
10 pitches (min.)
10 pitches (min.)
Direction of Feed
Item
Symbol
Carrier Width
A
Carrier Length
B
Carrier Depth
C
Sprocket Hole
d
Reel Outside Diameter
D
Reel Inner Diameter
D1
Feed Hole Diameter
D2
Sprocket Hole Position
E
Punch Hole Position
F
Punch Hole Pitch
P
Sprocket Hole Pitch
P0
Embossment Center
P1
Overall Tape Thickness
T
Tape Width
W
Reel Width
W1
Quantity per Reel
--
MM
(INCHES)
Devices are packed in accordance with EIA 481
standard specifications shown here.
SM8S-Q Series
10.77 ± 0.20
(0.424 ± 0.008)
16.33 ± 0.20
(0.643 ± 0.008)
6.02 ± 0.20
(0.237 ± 0.008)
1.50 + 0.10 / - 0.00
(0.059 + 0.004 / - 0.00)
330 ± 2.0
(12.992 ± 0.079)
60.0
MIN.
(2.362)
13.0 + 0.50 / - 0.20
(0.512 + 0.020 / - 0.008)
1.75 ± 0.10
(0.069 ± 0.004)
11.5 ± 0.10
(0.453 ± 0.004)
16.0 ± 0.10
(0.63 ± 0.004)
4.00 ± 0.10
(0.157 ± 0.004)
2.00 ± 0.10
(0.079 ± 0.004)
12
MAX.
(0.472)
24.0 ± 0.30
(0.945 ± 0.012)
30.4
MAX.
(1.197)
750
