PACKAGE MECHANICAL INFORMATION
SOT-223

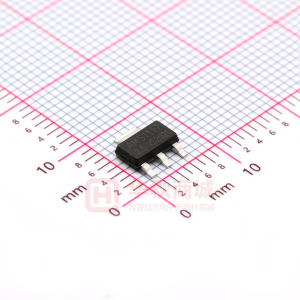

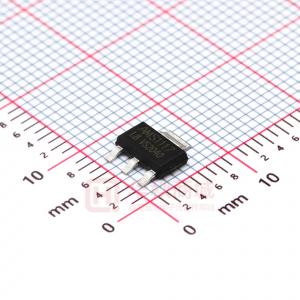

Package Outline Dimensions
4-Pin Plastic Small Outline Surface Mount 2.85 - 3.10 (0.112 - 0.122)
TO-261AA, JEDEC Publication 95
4 6.70 - 7.30 (0.264 - 0.287) 1 2 3
2.30 TYP. (0.090) 4.60 TYP. (0.181)
6.30 - 6.70 (0.248 - 0.264)
3.30 - 3.70 (0.130 - 0.146)
1.80 MAX. (0.071) 0.64 - 0.84 (0.025 - 0.033)
DIMENSIONS ARE : MILLIMETERS (INCHES)
0.02 - 0.12 (0.001 - 0.005)
10 ° MAX.
MD-SOT223-002-a
SEPTEMBER 2005 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
SOT-223
Tape Dimensions
4-Pin Plastic Small Outline Surface Mount Single-Sprocket Tape
3.90 - 4.10 (0.154 - 0.161) DIA. 1.95 - 2.05 (0.076 - 0.080)
1.50 MIN. (0.059) DIA. 1.50 - 1.60 (0.059 - 0.063) 1.65 - 1.85 (0.065 - 0.073) 0.35 MAX. (0.014)
5.45 - 5.55 (0.214 - 0.218)
11.70 - 12.30 (0.460 - 0.484)
0 MIN. 7.90 - 8.10 (0.311 - 0.318)
Direction of Feed
Carrier Tape Embossment
Cover Tape 2.10 TYP. (0.083)
20 °
Maximum component rotation
Typical component cavity center line
Typical component center line
DIMENSIONS ARE : MILLIMETERS (INCHES)
MD-SOT223-003-a
SEPTEMBER 2005 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
SOT-223
Reel Dimensions
4-Pin Plastic Small Outline Surface Mount Reel
18.40 MAX. (0.724)
DIA. 328.0 - 332.0 (12.91 - 13.07)
20.20 MIN. (0.795) 99.75 - 100.25 (3.92 - 3.94) DIA. 12.8 - 13.2 (0.504 - 0.519)
12.40 - 14.40 (0.488 - 0.567)
DIMENSIONS ARE : MILLIMETERS (INCHES)
MD-SOT223-004-a
NOTE:
2500 devices per reel.
SEPTEMBER 2005 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
SOT-223
Recommended Printed Wiring Land Pattern Dimensions
4-Pin Plastic Small Outline Surface Mount Printed Wiring Land Pattern 3.40 - 3.60 (0.133 - 0.142)
2.20 (0.086)
4.00 (0.157)
6.20 (0.244)
8.40 (0.330)
2.20 (0.086)
1.20 (0.047) 2.30 (0.090)
DIMENSIONS ARE : MILLIMETERS (INCHES)
MD-SOT223-005-a
SEPTEMBER 2005 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
