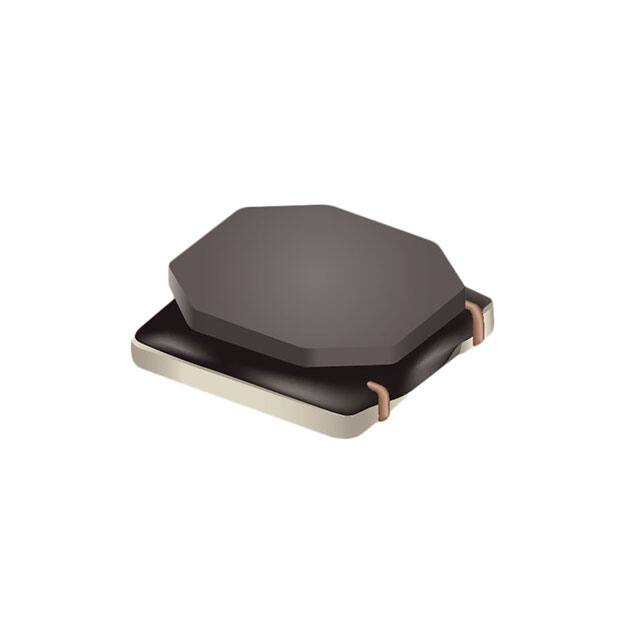

SRN4012TA-1R0M

*R & oHS AE C C OM AP P PR LI OV AN ED T Features ■ Semi-shielded construction ■ Inductance range: 0.47 to 22 µH ■ Rated current up to 3.2 A ■ AEC-Q200 qualified ■ RoHS compliant* and halogen free** SRN4012TA Series - Semi-shielded Power Inductors Inductance @ 100 kHz / 1 V Bourns Part No. SRN4012TA-R47M SRN4012TA-1R0M SRN4012TA-1R5M SRN4012TA-2R2M SRN4012TA-3R3M SRN4012TA-4R7M SRN4012TA-5R6M SRN4012TA-6R8M SRN4012TA-100M SRN4012TA-150M SRN4012TA-220M L (μH) 0.47 1.0 1.5 2.2 3.3 4.7 5.6 6.8 10 15 22 Tol. % ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 Q (Min.) @ 100 kHz 6 6 6 6 6 6 6 6 10 10 10 SRF (MHz) Typ. 140 100 90 70 60 45 40 35 30 24 18 DCR (Ω) ±20 % 0.025 0.042 0.05 0.06 0.07 0.095 0.12 0.125 0.18 0.26 0.4 Irms (A) 3.2 2.2 2 1.9 1.7 1.5 1.4 1.3 1.1 0.75 0.62 Isat (A) 4 2.8 2.2 1.65 1.4 1.2 1.1 0.9 0.8 0.65 0.5 Operating Temperature ................................. -40 °C to +125 °C (Temperature rise included) Storage Temperature .. -40 °C to +125 °C Temperature Rise .....40 °C at rated Irms Rated Current ............ Inductance drops 30 % at Isat Failure In Time (FIT) ........24.7/109 hours Mean Time Between Failures (MTBF) .................................. 40.4 x 106 hours Materials Core ..............................................Ferrite Wire ............................Enameled copper Terminal Finish ...................................Sn Coating .................Magnetic epoxy resin Packaging ..... 4500 pcs. per 13-inch reel Product Dimensions 4.0 ± 0.2 (.157 ± .008) Preheating Soldering Natural Cooling TP (260 °C, 10 Sec. Max.) 4.0 ± 0.2 (.157 ± .008) Temperature (°C) tp (245 °C, 20~40 Sec.) 200 °C 150°C 217 °C 60~150 Sec. 60~180 Sec. 480 Sec. Max. REF. 1.2 (.047) 25 Time (Seconds) Electrical Schematic REF. REF. 1.2 (.047) 1.6 (.063) 1.2 (.047) MAX. How to Order SRN4012TA - 100M Model Recommended Layout Value Code (see table) 4.2 REF. (.165) 4.2 (.165) REF. WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov * RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. **Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf REF. 1.2 (.047) DIMENSIONS: MM (INCHES) SRF0504 Series - Line Filter SRN4012TA Series - Semi-shielded Power Inductors Inductance vs. Current 1.5 0.4 0.2 0 2.5 Inductance (μH) 0.6 0 1.0 0.5 2 3 4 0 5 1.0 0.5 1 2 3 4 0 5 SRN4012TA-3R3M 3 4.5 6 1 0 0.7 1.4 2.1 Inductance (μH) 8 2 3.0 1.5 0 0.5 DC Current(A) 1.0 1.5 2 0.4 0.8 0.5 1.2 2.0 0.9 1.2 SRN4012TA-100M 12 20 9 15 6 3 10 5 0 0 1.6 1.0 DC Current(A) 0 0 0 0 2.0 Inductance (μH) Inductance (μH) 4 1.5 2 SRN4012TA-6R8M SRN4012TA-5R6M 6 4 4 DC Current(A) 8 3 0 0 2.8 2 SRN4012TA-4R7M 6.0 0 1 DC Current(A) 4 Inductance (μH) Inductance (μH) 1.5 DC Current(A) SRN4012TA-2R2M Inductance (μH) 2.0 0 0 1 DC Current(A) 0.4 0.8 1.2 1.6 DC Current(A) DC Current(A) SRN4012TA-150M 0 0.3 0.6 DC Current(A) SRN4012TA-220M 25 40 20 Inductance (μH) Inductance (μH) SRN4012TA-1R5M SRN4012TA-1R0M 2.0 Inductance (μH) Inductance (μH) SRN4012TA-R47M 0.8 15 10 5 30 20 10 0 0 0 0.2 0.4 0.6 DC Current(A) 0.8 1.0 0 0.2 0.4 0.6 0.8 1.0 DC Current(A) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and in this document are subject to specific legal disclaimers set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SRP4012TA Series - Shielded Power Inductors L vs. I Charts SRP4012TA-8R2M 16 80 40 30 3 20 60 50 8 40 30 4 20 0 0.475 0.950 0 0 1.900 1.425 60 50 12 40 8 30 20 4 10 10 0 70 16 Inductance (μH) 6 12 Temperature Rise (°C) 50 Inductance (μH) 60 80 70 Temperature Rise (°C) Inductance (μH) 9 SRP4012TA-100M 20 80 70 0.45 0 1.35 0.90 10 0 1.80 0 0 DC Current (A) DC Current (A) Temperature Rise (°C) SRP4012TA-6R8M 12 0.3 0.6 1.2 0.9 0 1.5 DC Current (A) Electrical Schematic 330 DIA. (12.99) 2.0 ± 0.5 (.079 ± .020) 13.5 ± 0.5 (.531 ± .020) DIA. 100.0 ± 2.0 (3.937 ± .079) 13.5 ± 0.5 DIA. (.531 ± .020) 12.0 ± 0.5 (.472 ± .020) 1.75 (.069) 4.0 (.157) 2.0 (.079) 0.35 ± 0.05 (.014 ± .002) 1.5 DIA. (.059) 5.0 ± 0.1 (.197 ± .004) 5.5 ± 0.1 (.217 ± .004) Marking USER DIRECTION OF FEED Marking 8.0 ± 0.1 (.315 ± .004) Marking Marking Marking Marking 12.0 ± 0.3 (.472 ± .012) 3° 4.5 ± 0.1 (.177 ± .004) 1.5 ± 0.1 (.059 ± .004) DIMENSIONS: MM (INCHES) QTY: 4000 PCS. PER REEL Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and in this document are subject to specific legal disclaimers set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SRP4012TA Series - Shielded Power Inductors Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 520 390 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com REV. 09/17 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and in this document are subject to specific legal disclaimers set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
