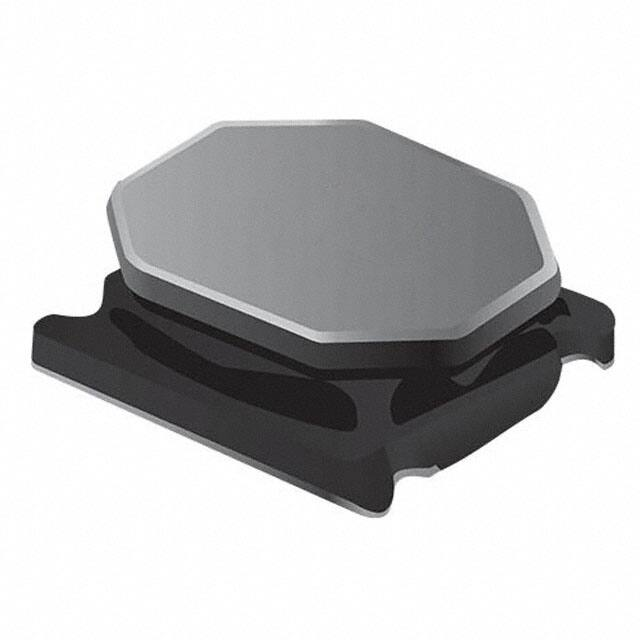

SRN5020-3R3M

T PL IA N M CO *R oH S Features Applications ■ Semi-shielded construction ■ DC/DC converters ■ Component height: 2 mm max. ■ Notebook computers ■ Inductance range: 1 to 33 µH ■ Digital video cameras ■ High rated current - up to 3.6 A ■ Televisions, LCD displays ■ RoHS compliant* and halogen free** SRN5020 Series - Semi-shielded Power Inductors Inductance @ 100 KHz/1 V SRF (MHz) Typ. DCR (Ω) Max. Irms (A) Isat (A) 4.00 Bourns Part No. L (μH) Tol. % SRN5020-1R0Y 1.0 30 13 7.96 85 0.025 3.60 SRN5020-1R5Y 1.5 30 13 7.96 60 0.031 3.20 3.35 SRN5020-2R2Y 2.2 30 11 7.96 50 0.042 2.90 2.90 SRN5020-3R3M 3.3 20 11 7.96 40 0.058 2.40 2.40 SRN5020-4R7M 4.7 20 11 7.96 30 0.072 2.0 2.00 SRN5020-5R6M 5.6 20 11 7.96 28 0.106 1.80 1.80 SRN5020-6R8M 6.8 20 11 7.96 23 0.108 1.65 1.60 SRN5020-100M 10 20 11 2.52 21 0.144 1.45 1.30 SRN5020-150M 15 20 14 2.52 15 0.198 1.20 1.10 SRN5020-220M 22 20 11 2.52 13 0.312 1.00 0.90 SRN5020-330M 33 20 11 2.52 10 0.516 0.90 0.80 Temperature Rising Area Preheat Area Reflow Area Forced Cooling Area +4.0 °C/Sec. Max. 150~200 °C / 60~120 Sec. +3.0 °C/Sec. Max. -(1.0~5.0) °C/Sec. Max. Operating Temperature ................................. -40 °C to +125 °C (Temperature rise included) Storage Temperature (Component) ................................. -40 °C to +125 °C Resistance to Solder Heat ...............................+260 °C for 10 sec. Temperature Rise .....40 °C at rated Irms Rated Current ............ Inductance drops 30 % at Isat Moisture Sensitivity Level ..................... 1 ................. N/A Materials Core ..............................................Ferrite Wire ............................Enameled copper Terminal Finish ........................Sn/Ag/Cu Coating .................Magnetic epoxy resin Packaging ..... 2000 pcs. per 13-inch reel How to Order SRN5020 - 100M Peak Temperature: 250 °C 250 Temperature (°C) Test Freq. (MHz) Q (Ref.) 217 °C Model Peak Temperature 250 max. Value Code (see table) 60~150 Sec. 200 Max. Time Above 217 60~150 sec. max. 60~120 Sec. 100 Product Dimensions Max. Peak Temp. -5 °C 30 sec. max. 60 Sec. Max. 150 : 5.0 ± 0.2 (.197 ± .008) 50 0 50 100 150 200 5.0 ± 0.2 (.197 ± .008) 100 250 Time (Seconds) Electrical Schematic Recommended Layout 6.3 (.248) 5.7 (.224) 1.6 (.063) 1.6 (.063) DIMENSIONS: MM (INCHES) 2.0 (.079) MAX. * RoHS Directive 2015/863, Mar 31, 2015 and Annex. ** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SRF0504 Filter SRN5020 Series Series -- Line Semi-shielded Power Inductors 330 DIA. (12.992) 2.0 ± 0.5 (.079 ± .020) 17.2 (.677) 13.5 ± 0.5 (.531 ± .020) DIA. 21.0 ± 0.8 (.827 ± .031) 99.5 (3.917) 13.5 ± 0.5 DIA. (.531 ± .020) 12.6 (.496) 0.4 (.016) 2.0 ± 0.05 (.079 ± .002) 4.0 (.157) 1.75 (.069) 1.5 +0.1/-0.0 DIA. (.059 +.004/-.000) 5.5 (.217) 5.4 (.213) 2.25 (.089) 12.0 (.472) 5.4 (.213) 1.5 DIA. (.059) 8.0 (.315) USER DIRECTION OF FEED QTY: 2000 PCS. PER REEL DIMENSIONS: MM (INCHES) Tel: +886-2 2562-4117 • Fax: +886-2 2562-4116 EMEA: Tel: +36 88 520 390 • Fax: +36 88 520 211 The Americas: Tel: +1-951 781-5500 • Fax: +1-951 781-5700 www.bourns.com REV. 09/17 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
