Features
■ Semi-shielded construction
Applications
■ DC/DC converters ■ Notebook computers ■ Digital video cameras ■ HDDs ■ Cell phones ■ Televisions, LCD displays
CO M
*R oH S
8R2
■ High rated current ■ Component height 4.5 mm ■ Inductance range: 1 to 100 µH ■ Rated current up to 4.2 A ■ RoHS compliant* and halogen free**

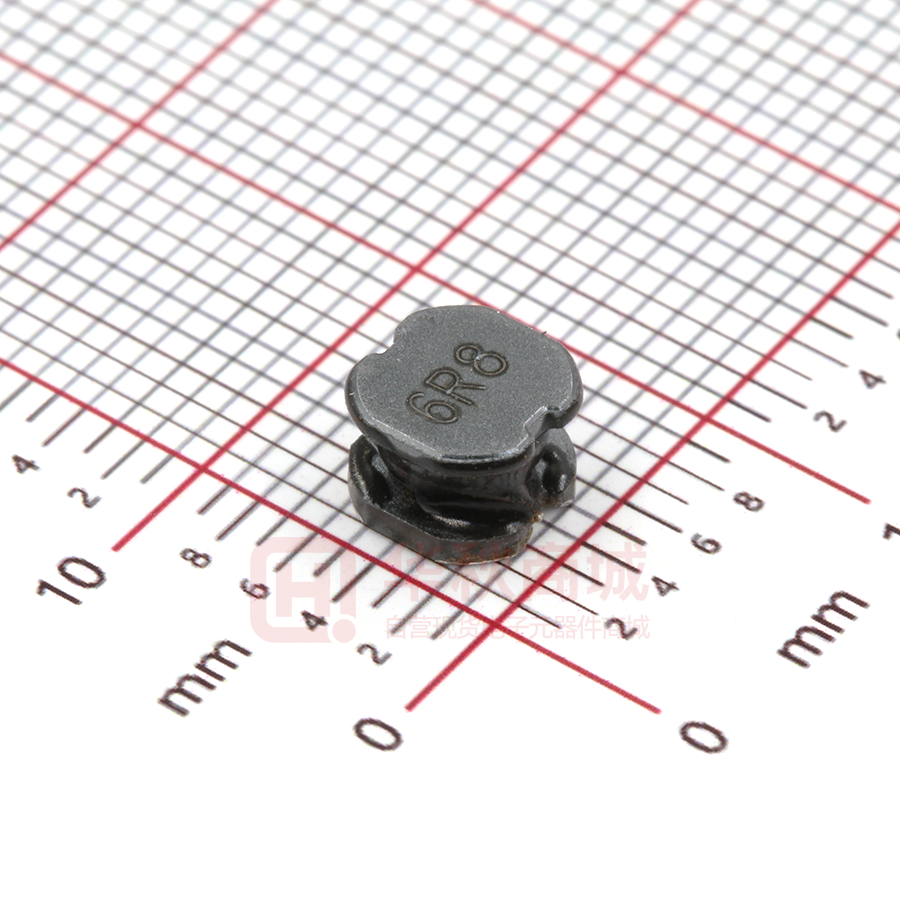

SRN6045 Series - Semi-shielded Power Inductors
Electrical Specifications @ 25 °C
Inductance @ 100 KHz/1 V DCR (Ω) Max.
General Specifications Operating Temperature ................................. -40 °C to +125 °C (Temperature rise included) Storage Temperature .. -40 °C to +125 °C Resistance to Solder Heat ...............................+250 °C for 10 sec. Temperature Rise .... 40 °C at rated Irms Rated Current ........... Inductance drops 30 % at Isat Materials Core ..............................................Ferrite Wire ........................... Enameled copper Terminal Finish ....................................Sn Coating ................ Magnetic epoxy resin Packaging.....1000 pcs. per 13-inch reel How to Order
Bourns Part No. SRN6045-1R0Y SRN6045-1R3Y SRN6045-1R8Y SRN6045-2R2Y SRN6045-3R3Y SRN6045-4R7Y SRN6045-6R8Y SRN6045-8R2Y SRN6045-100M SRN6045-150M SRN6045-220M SRN6045-330M SRN6045-470M SRN6045-680M SRN6045-101M
L (μH)
Tol. %
Irms (A)
Isat (A)
1.0 1.3 1.8 2.2 3.3 4.7 6.8 8.2 10 15 22 33 47 68 100
30 30 30 30 30 30 30 30 20 20 20 20 20 20 20
0.0139 0.017 0.0198 0.0251 0.0302 0.0376 0.0473 0.055 0.0586 0.0958 0.142 0.188 0.257 0.351 0.494
4.2 4.0 3.7 3.5 3.2 3.0 2.8 2.7 2.5 1.9 1.5 1.4 1.1 0.9 0.7
8.5 8.0 7.0 6.0 5.0 4.0 3.8 3.3 3.0 2.3 1.9 1.5 1.3 1.0 0.8
SRN6045 - 100M
Model Value Code (see table)
Soldering Profile
Temperature Rising Area ±3.0 °C/sec. max.
Product Dimensions
Preheat Area 150 ~ 200 °C / 60 - 180 sec. Reflow Area +1.5 ~ 3.0 °C Forced Cooling Area 6.0 °C / sec max.
PeakTemperature: 250 °C +5/-10 °C, 5 sec. max.
6.0 ± 0.2 (.236 ± .008)
Temperature (°C)
250 200 150 100 50
40~90 sec.max.
217 °C
6.0 ± 0.2 (.236 ± .008)
0
50
100
150
200
250
Time (Seconds)
Peak Temperature: 255 ° max. Maximum Time Above 217 °C: 90 seconds
Electrical Schematic
Recommended Layout
REF. 4.7 (.185)
REF.
2.5 (.098)
4.5 MAX. (.177)
6.0 REF. (.236)
REF.
2.0 (.079)
REF.
2.0 (.079)
DIMENSIONS:
MM (INCHES)
* RoHS Directive 2002/95/EC Jan 27, 2003 including Annex. ** Bourns follows the prevailing definition of “halogen free” in the industry. Bourns considers a product to be “halogen free” if (a) the Bromine (Br ) content is 900 ppm or less; (b) the Chlorine ( Cl ) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine ( Cl ) content is 1500 ppm or less. Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
SRF0504 Series -- Line Filter RN6045 Series Semi-shielded Power Inductors
Packaging Specifications
330 DIA. (12.992) 2.0 ± 0.5 (.079 ± .020)
22.4 (.881) 13.0 ± 0.5 (.512 ± .020) DIA. 50.0 -0 (1.97 -0)
21.0 ± 0.8 (.827 ± .031)
13.0 ± 0.5 DIA. (.512 ± .020) 18 +0 (.709 +0)
16.0 (.630)
END
12.0 (.472)
4.0 (.157)
START
LEADER
COMPONENTS
TRAILER
200 (7.874)
MIN. NO COMPONENT
400 (15.748)
USER DIRECTION OF FEED
MIN. NO COMPONENT
QTY: 1000 PCS. PER REEL
DIMENSIONS:
MM (INCHES)
Asia-Pacific: Tel: +886-2 2562-4117 • Fax: +886-2 2562-4116 Europe: Tel: +41-41 768 5555 • Fax: +41-41 768 5510 The Americas: Tel: +1-951 781-5500 • Fax: +1-951 781-5700 www.bourns.com
08/11
Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
