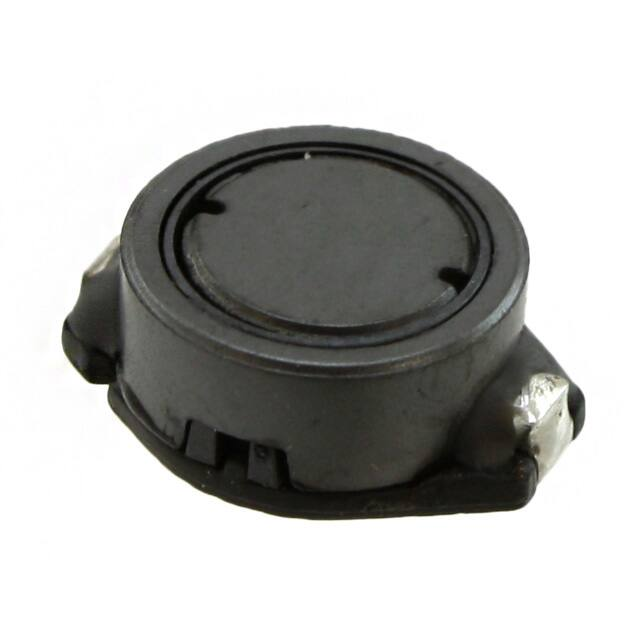

SRR1005-182K

Features I Available in E12 series I Unit height of 5.2mm I Current up to 4.5A Applications I Input/output of DC/DC converters I Power supplies for: • Portable communication equipment • Camcorders • LCD TVs • Car radios SRR1005 Series - Shielded Power Inductors Electrical Specifications Inductance 1kHz Bourns Part No. (µH) Tol. % Q Ref. Test Frequency (MHz) SRF Min. (MHz) RDC (Ω) I rms Max. (A) I sat Typ. (A) SRR1005-1R0M SRR1005-1R5M SRR1005-2R2M SRR1005-3R0M SRR1005-4R7M SRR1005-7R0M SRR1005-100M SRR1005-120M SRR1005-150M SRR1005-180Y SRR1005-220Y SRR1005-270Y SRR1005-330Y SRR1005-390Y SRR1005-470Y SRR1005-560Y SRR1005-680Y SRR1005-820Y SRR1005-101K SRR1005-121K SRR1005-151K SRR1005-181K SRR1005-221K SRR1005-271K SRR1005-331K SRR1005-391K SRR1005-471K SRR1005-561K SRR1005-681K SRR1005-821K SRR1005-102K SRR1005-122K SRR1005-152K SRR1005-182K SRR1005-222K SRR1005-272K SRR1005-332K 1.0 1.5 2.2 3.0 4.7 7.0 10 12 15 18 22 27 33 39 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 1200 1500 1800 2200 2700 3300 ± 20 ± 20 ± 20 ± 20 ± 20 ± 20 ± 20 ± 20 ± 20 ± 15 ± 15 ± 15 ± 15 ± 15 ± 15 ± 15 ± 15 ± 15 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 15 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 25 25 25 25 25 22 48 45 40 35 42 40 40 40 35 35 35 35 35 30 28 28 30 30 30 25 40 40 37 37 65 58 53 65 55 55 50 7.96M 7.96M 7.96M 7.96M 7.96M 7.96M 2.52M 2.52M 2.52M 2.52M 2.52M 2.52M 2.52M 2.52M 2.52M 2.52M 2.52M 2.52M 0.796M 0.796M 0.796M 0.796M 0.796M 0.796M 0.796M 0.796M 0.796M 0.796M 0.796M 0.796M 0.252M 0.252M 0.252M 0.252M 0.252M 0.252M 0.252M 120 100 90.0 80.0 50.0 32.0 30.0 25.0 20.0 19.0 18.0 17.0 15.0 13.0 12.0 11.0 9.0 8.0 7.5 7.2 6.2 5.8 5.2 4.8 4.5 4.2 3.0 2.7 2.6 2.5 2.0 2.0 1.6 1.4 1.4 1.2 1.2 0.017 0.020 0.027 0.030 0.040 0.055 0.065 0.080 0.085 0.090 0.100 0.120 0.160 0.180 0.190 0.210 0.340 0.380 0.420 0.460 0.520 0.700 0.800 1.100 1.200 1.400 1.600 1.800 2.300 2.600 3.200 3.600 5.200 5.700 6.500 8.600 10.00 4.50 3.60 3.10 2.90 2.50 2.20 2.00 1.80 1.70 1.60 1.40 1.30 1.20 1.05 1.00 0.90 0.82 0.75 0.68 0.60 0.55 0.50 0.45 0.40 0.35 0.33 0.30 0.28 0.26 0.24 0.22 0.20 0.17 0.16 0.14 0.12 0.10 8.00 7.00 6.10 5.00 3.80 3.20 3.00 2.30 2.10 2.10 1.90 1.60 1.56 1.40 1.30 1.10 1.10 0.95 0.90 0.80 0.66 0.65 0.63 0.52 0.48 0.45 0.45 0.42 0.38 0.36 0.32 0.29 0.24 0.23 0.21 0.18 0.17 General Specifications Test Voltage .........................................1V Reflow Soldering.....230°C, 10 sec. max. Operating Temperature ...-40°C to +105°C Storage Temperature ....-40°C to +125°C Resistance to Soldering Heat ....................................260°C for 5 sec. Materials Core .....................Ferrite DR and RI core Wire ............................Enamelled copper Base ......................................LCP E4008 Terminal ......................Tinned copper flat Rated Current .Ind. drop 10% typ. at Isat Temperature Rise ........................40°C max. at rated Irms Packaging.....................600 pcs. per reel Product Dimensions 101 10.0 ± 0.2 (.393 ± .008) 12.7 ± 0.1 (.500 ± .004) 5.2 MAX. (.205) 7.6 ± 0.3 (.299 ± .012) 2.4 ± 0.2 (.094 ± .008) 2.5 ± 0.2 (.098 ± .008) Recommended Layout 7.3 (.287) 2.8 (.110) 3.0 (.118) DIMENSIONS: MM (INCHES) Specifications are subject to change without notice. SRR1005 Series - Shielded Power Inductors Packaging Specifications 330 DIA. (12.99) 2.0 ± 0.5 (.079 ± .020) 30.4 (1.20) 13.0 ± 0.5 (.512 ± .020) DIA. 50.0 (1.969) 21.0 ± 0.8 (.827 ± .031) THICKNESS 0.10 (.004) MAX. EMBOSSED CAVITY 13.0 ± 0.5 DIA. (.512 ± .020) 26 (1.02) 4 (.157) EMBOSSED CARRIER END START 24 (.945) 5.3 (.209) 16.0 (.63) NO COMPONENT COMPONENTS NO COMPONENT 200 (7.874) 9600 (378.2) 400 (15.748) USER DIRECTION OF FEED QTY: 600 PCS. PER REEL DIMENSIONS: MM (INCHES) REV. 10/01 Specifications are subject to change without notice.
