Features
■ Available in E12 series ■ Unit height of 6.8 mm ■ Current up to 8 A Isat ■ Lead free ■ RoHS compliant*
Applications
■ Input/output of DC/DC converters ■ Power supplies for: • Portable communication equipment • Camcorders • LCD TVs • Car radios
*R
oH
S
CO
M
PL

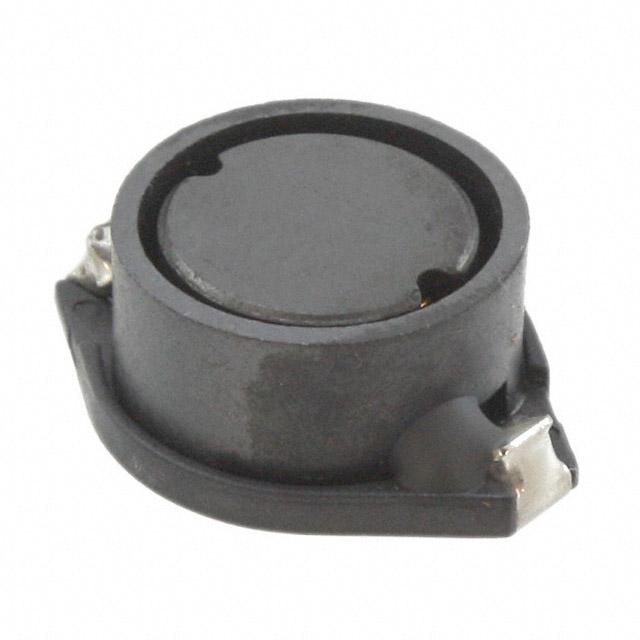

SRR1806 Series - Shielded Power Inductors
Electrical Specifications
Inductance 100 kHz Bourns Part No. (µH) Tol. % Q Ref. Test Frequency (MHz) SRF Typ. (MHz) RDC –20% (Ω) I rms Max. (A) I sat Typ. (A)
SRR1806-100M SRR1806-150M SRR1806-220M SRR1806-330M SRR1806-470M SRR1806-680M SRR1806-101M SRR1806-151M SRR1806-221M SRR1806-331M SRR1806-471M SRR1806-681M SRR1806-102M
10.0 15.0 22.0 33.0 47.0 68.0 100.0 150.0 220.0 330.0 470.0 680.0 1000.0
± ± ± ± ± ± ± ± ± ± ± ± ±
20 20 20 20 20 20 20 20 20 20 20 20 20
56 53 51 44 40 37 40 39 29 30 27 19 46
2.52 2.52 2.52 2.52 2.52 2.52 0.796 0.796 0.796 0.796 0.796 0.796 0.796
19.0 17.5 16.0 10.0 8.0 6.0 4.6 4.3 3.5 3.0 2.4 2.1 1.5
0.033 0.039 0.053 0.083 0.110 0.170 0.270 0.400 0.510 0.790 1.000 1.470 2.160
4.00 3.60 3.00 2.50 2.00 1.60 1.30 1.05 1.00 0.80 0.64 0.54 0.45
8.20 7.20 6.20 5.00 4.20 3.40 2.60 2.30 1.90 1.40 1.30 1.10 0.90
General Specifications Test Voltage.....................................0.1 V Reflow soldering.....250 °C; 10 sec max. (In compliance with JEDEC, J-STD-020C, Table 4-2) Operating Temperature ..-40 °C to +125 °C (Temperature rise included) Storage Temperature..-45 °C to +125 °C Resistance to Soldering Heat ............................250 °C, 10 sec. max. Materials Core.......................................Ferrite core Wire .............................Enameled copper Base ......................................LCP E4008 Terminal ....................................Cu/Ni/Sn Rated CurrentInd. drop 10 % typ. at Isat Temperature Rise ......................40 °C max. at rated Irms Packaging.....................250 pcs. per reel
Soldering Profile
300
Product Dimensions
Max. of 10 seconds at 250 °C Max. of 30 seconds > 220 °C
250
250 °C
101
200
14.0 ± 0.3 (.551 ± .012)
Temperature (°C)
150 120 - 150 seconds 100
18.3 ± 0.3 (.720 ± .012)
Ramp-down 5 °C/second maximum
6.8 ± 0.3 (.268 ± .012)
50
Ramp-up 4 °/second maximum
13.0 ± 0.3 (.512 ± .012)
100 150 Time (seconds) 200 250 300
0 0 50
2.5 ± 0.2 (.098 ± .008)
Electrical Schematic
2.6 ± 0.2 (.102 ± .008)
Recommended Layout
REF. 12.7 (.500) 2.9 REF. (.114)
3.0 REF. (.118)
DIMENSIONS:
MM (INCHES)
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
SRR1806 Series - Shielded Power Inductors
Packaging Specifications
330 DIA. (12.99) 2.0 ± 0.5 (.079 ± .020) 38.4 (1.512) 13.0 ± 0.5 (.512 ± .020) DIA. 50.0 (1.969) 13.0 ± 0.5 DIA. (.512 ± .020) 34 (1.339) EMBOSSED CARRIER 32.0 (1.260) THICKNESS 0.10 (.004) MAX. EMBOSSED CAVITY
21.0 ± 0.8 (.827 ± .031)
END
4.0 (.157)
START
32.0 (1.260)
101
101
101
101
20.0 (.787)
DIMENSIONS:
NO COMPONENT NO COMPONENT COMPONENTS
MM (INCHES)
160 (6.299)
390 (15.354)
USER DIRECTION OF FEED
QTY: 250 PCS. PER REEL
REV. 02/06 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
