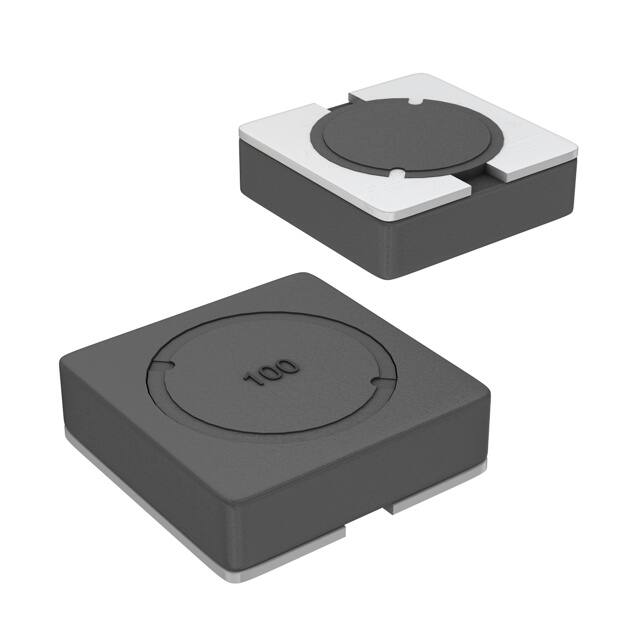

SRR5018-150Y

T PL IA N M CO *R oH S Features Applications ■ Height of 2.0 mm max. ■ Input/output of DC/DC converters ■ Current rating up to 3 A ■ Power supplies for: • Portable communication equipment • Camcorders • LCD TVs ■ RoHS compliant* SRR5018 Series - Shielded Power Inductors Inductance 100 KHz Bourns Part No. SRR5018-1R2Y Q Ref. 9.2 Tol. (%) ±30 uH 1.2 Test Frequency (MHz) 7.96 SRF Typ. (MHz) 118 DCR Max. (mΩ) 30 I rms (A) 3.00 I sat (A) 3.50 SRR5018-1R8Y 1.8 ±30 8.9 7.96 93 35 2.60 3.00 SRR5018-2R5Y 2.5 ±30 8.6 7.96 74 40 2.40 2.70 SRR5018-3R0Y 3.0 ±30 8.3 7.96 79 45 2.20 2.40 SRR5018-3R9Y 3.9 ±30 8 7.96 64 55 2.00 2.10 SRR5018-4R1Y 4.1 ±30 8 7.96 60 55 2.00 2.10 SRR5018-5R0Y 5.0 ±30 7.9 7.96 55 60 1.65 1.80 SRR5018-5R4Y 5.4 ±30 7.4 7.96 58 76 1.65 1.65 SRR5018-6R2Y 6.2 ±30 7.5 7.96 51 80 1.45 1.60 SRR5018-7R5Y 7.5 ±30 7.9 7.96 42 90 1.35 1.50 SRR5018-8R9Y 8.9 ±30 7.3 7.96 40 116 1.25 1.25 SRR5018-9R0Y 9.0 ±30 7.2 7.96 37 110 1.25 1.35 SRR5018-100Y 10 ±30 11 2.52 41 130 1.10 1.25 SRR5018-120Y 12 ±30 8.6 2.52 39 160 1.00 1.15 SRR5018-150Y 15 ±30 12.7 2.52 32 190 0.95 1.10 SRR5018-180Y 18 ±30 8.8 2.52 29 210 0.90 1.00 SRR5018-220Y 22 ±30 14.7 2.52 22 280 0.80 0.90 SRR5018-270Y 27 ±30 10.2 2.52 21 320 0.75 0.80 SRR5018-330Y 33 ±30 10.9 2.52 20 350 0.65 0.70 SRR5018-390Y 39 ±30 10.6 2.52 17 500 0.55 0.65 SRR5018-470Y 47 ±30 8.9 2.52 14 550 0.52 0.60 SRR5018-560Y 56 ±30 8.9 2.52 13 600 0.48 0.55 SRR5018-680Y 68 ±30 9.9 2.52 12 850 0.40 0.50 SRR5018-820Y 82 ±30 9.1 2.52 11 950 0.38 0.45 SRR5018-101Y 100 ±30 13.1 0.796 10 1100 0.35 0.42 SRR5018-121Y 120 ±30 12.9 0.796 11 1420 0.30 0.40 SRR5018-151Y 150 ±30 11.8 0.796 11 1650 0.28 0.35 SRR5018-181Y 180 ±30 13.6 0.796 10 2300 0.25 0.32 SRR5018-221Y 220 ±30 8.7 0.796 8 2500 0.23 0.30 Test Voltage .................... 0.1 V, 100 KHz .. 230 °C, 50 sec. max. Operating Temperature ................................-40 °C to +125 °C (Temperature rise included) Storage Temperature .. -40 °C to +125 °C Resistance to Soldering Heat .................................. 260 °C, 10 sec. Moisture Sensitivity Level ..................... 1 ................. N/A Materials Core ..............................................Ferrite Wire ............................Enameled copper Adhesive .............................. Epoxy resin Terminal ....................................Ag/Ni/Sn Rated Current ...............Ind. drop of 35 % typ. at Isat Temp. Rise ..........40 °C typ. at rated Irms Packaging .................... 500 pcs. per reel Product Dimensions 5.80 ± 0.30 (.228 ± .012) 6R2 5.80 ± 0.30 (.228 ± .012) 1.80 ± 0.20 (.071 ± .008) 1.90 (.075) TYP. TYP. 2.00 (.079) 1.90 (.075) TYP. 275 Maximum of 10 seconds between +255°C and +260°C 260°C peak 255°C 225 Recommended Layout 220°C Temperature (°C) 190°C Ramp Down 6°C/second maximum 60 - 90 seconds 175 6.30 REF. (.248) 150°C 2.20 (.087) REF. 125 120 - 150 seconds 10 seconds minimum R 75 Ramp Up 3°C/second maximum 2.20 (.087) REF. REF. 1.90 (.075) 25 0 50 100 150 Time (seconds) 200 250 300 Rev. 02/22/05 DIMENSIONS: WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov MM (INCHES) 2.20 (.087) REF. *RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SRR5018 Series - Shielded Power Inductors Inductance vs. Current Electrical Schematic 102 101 7 5 3 330 2 Inductance (μH) 101 7 100 5 3 3R0 2 100 7 5 1R2 LCR METER 3 2 10-1 101 2 3 5 7 102 2 5 7 103 3 2 3 5 7 104 DC Current (mA) 2.0 ± 0.5 (.079 ± .020) 178.0 (7.00) DIA. 21.0 ± 0.8 (.827 ± .032) 20.5 (.807) DIA. 13.0 (.511) 50.0 - 0 (1.969 - 0) 13.0 DIA. (.511) 18.0 + 0 (.709 + 0) 12.0 (.472) END 6R2 4.0 (.157) 6R2 6R2 NO COMPONENT 200 (7.87) 6R2 NO COMPONENT 400 (15.75) COMPONENTS USER DIRECTION OF FEED REV. 03/18 START DIMENSIONS: MM (INCHES) QTY: 500 PCS. PER REEL Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
