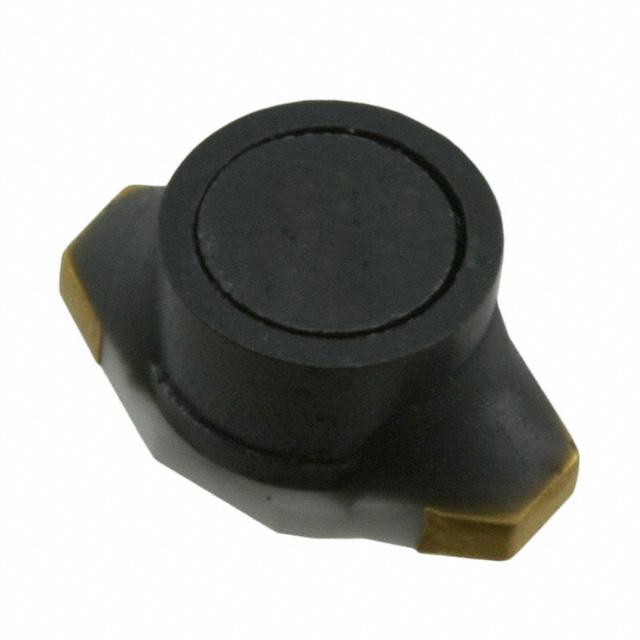

SRR6603-6R8M

Ro VER LEA H S SI D F CO ON RE M SA E PL R IA E NT Features Applications ■ Available in E12 series ■ Input/output of DC/DC converters ■ Unit height of 3 mm ■ Power supplies for: • Portable communication equipment • Camcorders • LCD TVs • Car radios ■ Current up to 3 A ■ Lead free version available (see How to Order) ■ Lead free versions are RoHS compliant* SRR6603 Series - Shielded Power Inductors Inductance 100kHz Bourns Part No. (µH) SRR6603-1R0M_ SRR6603-1R5M_ SRR6603-2R2M_ SRR6603-3R3M_ SRR6603-4R7M_ SRR6603-6R8M_ SRR6603-100M_ SRR6603-150M_ SRR6603-220M_ SRR6603-330M_ SRR6603-470M_ SRR6603-680M_ SRR6603-101M_ SRR6603-151M_ SRR6603-221M_ SRR6603-331M_ SRR6603-471M_ SRR6603-681M_ SRR6603-102M_ SRR6603-152M_ SRR6603-222M_ SRR6603-332M_ SRR6603-472M_ SRR6603-682M_ SRR6603-103M_ 1.0 1.5 2.2 3.3 4.7 6.8 10.0 15.0 22.0 33.0 47.0 68.0 100.0 150.0 220.0 330.0 470.0 680.0 1000.0 1500.0 2200.0 3300.0 4700.0 6800.0 10000.0 Electrical Schematic Tol. % ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 Q Ref. Test Frequency (kHz) Q SRF Nom. (MHz) RDC Max. (Ω) IDC Max. (A) 30 30 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 50 50 50 50 50 50 200 200 200 200 200 200 200 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 250 125 120 120 105 50 38 33 25 20 20 15 10 9 6 5 4 3 2 2 2 1 1 1 0.8 0.040 0.045 0.050 0.055 0.060 0.065 0.075 0.090 0.110 0.190 0.230 0.290 0.480 0.590 0.770 1.400 1.800 2.200 3.400 4.200 8.500 11.000 13.900 25.000 32.800 3.00 2.80 1.80 1.60 1.40 1.20 1.00 0.80 0.70 0.60 0.50 0.40 0.30 0.26 0.22 0.20 0.19 0.18 0.15 0.12 0.10 0.08 0.06 0.04 0.02 General Specifications Test Voltage.....................................0.1 V Reflow Soldering ...230 °C, 10 sec. max. Operating Temperature ..-40 °C to +125 °C (Temperature rise included) Storage Temperature..-40 °C to +105 °C Resistance to Soldering Heat ................................260 °C for 10 sec. Materials Core.........................Ferrite DR & RI core Wire .............................Enameled copper Base ..........................................Ceramic Temperature Rise ......................30 °C max. at rated Irms Packaging.....................600 pcs. per reel Product Dimensions 6.60 MAX. (.260) 220 Electrical Specifications 4.40 MAX. (.173) 3.00 MAX. (.118) How to Order SRR6603 - 100M __ Model Value/Tolerance: from table Termination L = Cu/Ni/Au Blank = Cu/Ni/SnPb 2.50 ± 0.10 (.098 ± .004) 1.24 ± 0.10 (.049 ± .004) 4.45 ± 0.10 (.175 ± .004) Recommended Layout 4.10 (.161) REF. 1.60 (.063) REF. 7.00 (.276) 3.00 (.118) REF. *RoHS Directive 2002/95/EC Jan 27 2003 including Annex Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. SRR6603 Series - Shielded Power Inductors Packaging Specifications 178 DIA. (7.00) 2.0 ± 0.5 (.079 ± .020) 16.5 (.650) THICKNESS 0.10 (.004) MAX. 13.0 ± 0.5 (.512 ± .020) DIA. 21.0 ± 0.8 (.827 ± .031) EMBOSSED CAVITY 50.0 (1.969) 13.0 ± 0.5 DIA. (.512 ± .020) EMBOSSED CARRIER 14 (.551) 12.0 (.472) 12.0 (.472) 4 (.157) END 220 220 220 START 2 8 (.315) NO COMPONENT 160 (6.299) NO COMPONENT 390 (15.354) COMPONENTS USER DIRECTION OF FEED QTY: 600 PCS. PER REEL DIMENSIONS: REV. 11/04 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. MM (INCHES)
