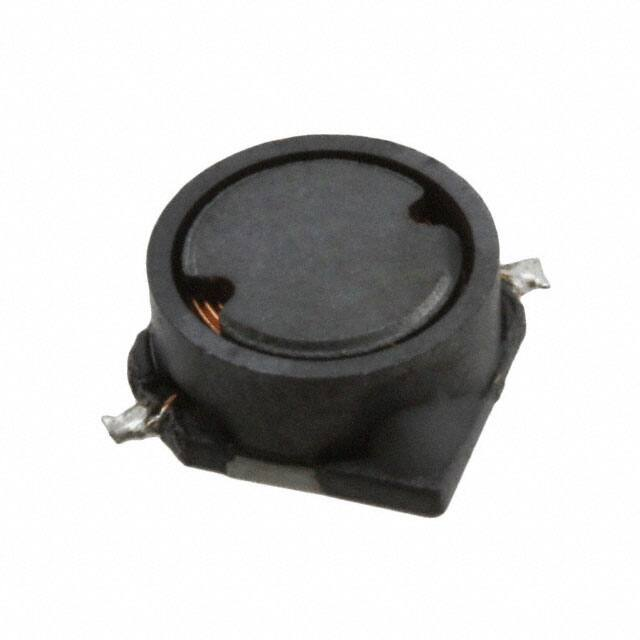

SRR7032-470M

IA NT Features ■ Available in E6 values Applications ■ Input/output of DC/DC converters ■ Power supplies for: • Portable communication equipment • Camcorders • LCD TVs • Car radios CO M PL 15 *R 0 oH ■ Inductance value to 1000 µH ■ Lead free ■ RoHS compliant* S SRR7032 Series - Shielded SMD Power Inductors Electrical Specifications Inductance 100 kHz Bourns Part No. (µH) Tol. % Q Typ. Test Frequency (MHz) SRF Min. (MHz) RDC Max. (Ω) I rms Max. (A) I sat Typ. (A) SRR7032-3R3M SRR7032-4R7M SRR7032-6R8M SRR7032-100M SRR7032-150M SRR7032-220M SRR7032-330M SRR7032-470M SRR7032-680M SRR7032-101M SRR7032-151M SRR7032-221M SRR7032-331M SRR7032-471M SRR7032-681M SRR7032-102M 3.3 4.7 6.8 10.0 15.0 22.0 33.0 47.0 68.0 100.0 150.0 220.0 330.0 470.0 680.0 1000.0 ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 16 16 17 25 22 20 23 26 22 28 35 47 46 34 58 120 7.96 7.96 7.96 2.52 2.52 2.52 2.52 2.52 2.52 0.796 0.796 0.796 0.796 0.796 0.796 0.252 55 43 37 35 32 29 20 18 16 12 10 7.5 6.1 5.1 3.8 3.1 0.027 0.042 0.054 0.068 0.095 0.135 0.200 0.280 0.380 0.540 0.800 1.300 1.900 2.400 3.750 5.400 2.40 2.00 1.60 1.40 1.10 0.96 0.76 0.67 0.60 0.45 0.37 0.30 0.22 0.20 0.16 0.15 2.20 2.00 1.80 1.60 1.20 1.05 0.86 0.77 0.70 0.50 0.38 0.32 0.24 0.20 0.15 0.14 General Specifications Test Voltage.....................................0.5 V Reflow Soldering ...230 °C, 50 sec. max. Operating Temperature .-40 °C to +125 °C (Temperature rise included) Storage Temperature..-40 °C to +125 °C Resistance to Soldering Heat ................................260 °C for 10 sec. Materials Core ............................Ferrite DR and RI Wire .............Enameled copper wire 130 Terminal.....................................Cu/Ni/Sn Rated Current ....................Ind. drop 10 % typ. at Isat Temperature Rise ..................30 °C max. at rated Irms Packaging ..................1500 pcs. per reel Product Dimensions 7.0 ± 0.3 (.276 ± .012) Electrical Schematic Recommended Layout REF. 2.4 (.094) 1.8 REF. (.071) 220 7.0 ± 0.3 (.276 ± .012) 4.2 (.165) REF. 7.80 (.307) REF. 3.20 ± 0.2 (.126 ± .008) 1.8 REF. (.071) TYP. 2.0 (.079) 1.5 (.059) TYP. 4.0 TYP. (.157) DIMENSIONS: MM (INCHES) *RoHS Directive 2002/95/EC Jan 27 2003 including Annex Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. SRR7032 Series - Shielded SMD Power Inductors Packaging Specifications 330 DIA. (13.00) 2.0 ± 0.5 (.079 ± .020) 22.4 (.882) 13.0 ± 0.5 (.512 ± .020) DIA. 50.0 (1.969) 21.0 ± 0.8 (.827 ± .031) THICKNESS 0.10 (.004) MAX. EMBOSSED CAVITY 13.0 ± 0.5 DIA. (.512 ± .020) 18 (.709) EMBOSSED CARRIER END 12.0 (.472) 4 (.157) START 16 (.630) 220 220 2 5.3 (.209) NO COMPONENT COMPONENTS NO COMPONENT 160 (6.299) 390 (15.354) USER DIRECTION OF FEED QTY: 1500 PCS. PER REEL DIMENSIONS: MM (INCHES) REV. 05/05 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
