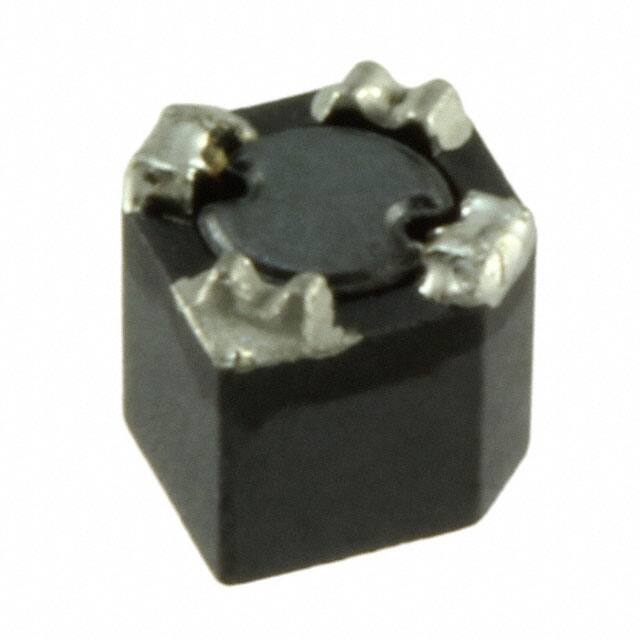

SRU3028A-150Y

* A E Ro H C- S C Q2 O 0 0 MP QU LI A AL NT IF IE D Features ■ Shielded construction & ■ Inductance range: 10 to 33 µH ■ Heating current up to 0.7 A 100 ■ AEC-Q200 qualified ■ RoHS compliant* and halogen free** SRU3028A Series - Shielded Power Inductors Electrical Specifications @ 25 °C Bourns Part Number SRU3028A-100Y Inductance @ 100 KHz / 0.1 V L (μH) Tol. (%) 10 General Specifications Q (Ref.) Test Freq. (MHz) SRF (MHz) Typ. DCR (Ω) Max. I rms (A) I sat (A) 20 2.52 35 0.20 0.72 0.86 ±30 SRU3028A-150Y 15 ±30 18 2.52 25 0.29 0.66 0.72 SRU3028A-220Y 22 ±30 18 2.52 15 0.335 0.60 0.62 SRU3028A-330Y 33 ±30 20 2.52 10 0.56 0.47 0.48 How to Order Recommended Layout SRU3028A - 100Y Materials Core ..............................................Ferrite Wire ............................Enameled copper Terminal Finish .........................Ag/Ni/Sn Packaging .................... 600 pcs. per reel 4.2 (.165) Model Value Code (see table) Operating Temperature ................................-40 °C to +125 °C (Temperature rise included) Storage Temperature ................................-40 °C to +125 °C Temperature Rise ......................40 °C typ. at rated I rms Inductance Drop .......... 35 % typ. at I sat 1.8 (.071) Inductor Connection Product Dimensions 3.5 ± 0.2 (.138 ± .008) 1.2 (.047) 100 LC R M ET ER 1.3 (.051) 3.3 ± 0.2 (.130 ± .008) 2.8 ± 0.2 (.110 ± .008) 0.5 TYP. (.020) 1.1 (.043) TYP. Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com 2.30 TYP. (.091) TYP. 0.5 (.020) DIMENSIONS: MM (INCHES) Electrical Schematic WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov * RoHS Directive 2015/863, Mar 31, 2015 and Annex. ** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. SRU3028A Series - Shielded Power Inductors Soldering Profile Inductance vs. DC Current Plot 10 3 7 5 Peak Temperature 250 max. Max. Peak Temperature -5 30 sec. max. Max. Time Above 217 : 60~150 sec. max. Temperature Rising Area Preheat Area Reflow Area Forced Cooling Area +4.0 °C/Sec. Max. 150~200 °C / 60~120 Sec. +3.0 °C/Sec. Max. -(1.0~5.0) °C/Sec. Max. Inductance (µH) 2 Peak Temperature: 250 °C 250 Temperature (°C) 3 217 °C 60~150 Sec. 200 60 Sec. Max. 150 60~120 Sec. 100 50 10 2 7 5 3 2 10 1 7 5 -100Y 3 2 0 50 100 150 200 250 10 0 Time (Seconds) 10 -2 2 3 5 7 10 -1 2 3 5 7 10 0 2 3 5 7 1 01 DC Current (A) Packaging Specifications 178 DIA. (7.008) 2.0 ± 0.5 (.079 ± .020) 16.5 (.650) 13.0 (.512) DIA. 21.0 ± 0.8 (.827 ± .031) 50 -0 (1.969 -0) 13.0 DIA. (.512) 12 (.472) 14 +0 (.551 +0) 4 (.157) END 100 100 START 100 8 (.315) NO COMPONENT 200 (7.874) NO COMPONENT COMPONENTS USER DIRECTION OF FEED QTY: 600 PCS. PER REEL 400 (15.748) DIMENSIONS: MM (INCHES) REV. 11/19 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
