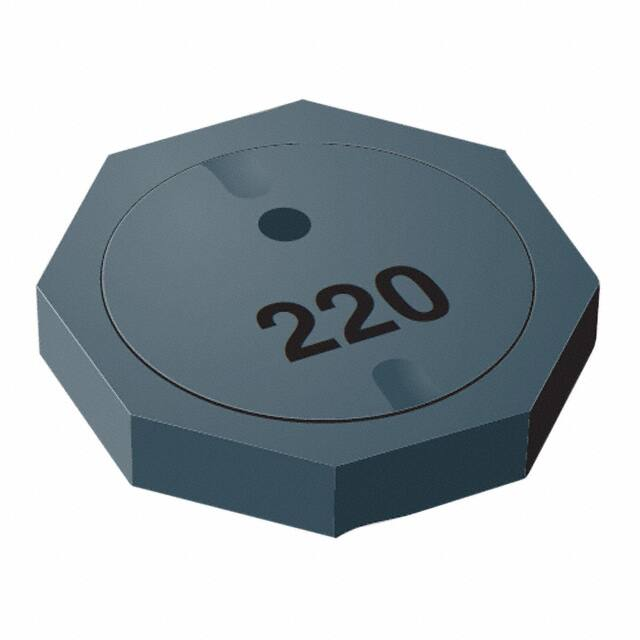

SRU5011-330Y

PL IA NT CO M *R oH S Features Applications ■ Available in E6 series ■ Input/output of DC/DC converters ■ Unit height of 1.1 mm ■ Power supplies for: • Portable communication equipment • Camcorders • LCD TVs ■ Current up to 1800 mA ■ RoHS compliant* 220 SRU5011 Series - Shielded SMD Power Inductors Inductance @ 100 KHz Tol. L (μH) (%) Bourns Part Number Q Ref. Test Freq. (MHz) SRF Min. (MHz) RDC .(mΩ) I rms Max. (A) I sat Typ. (A) **KFactor SRU5011-1R5Y 1.5 ±30 8 7.96 195.0 32 1.80 1.50 904 SRU5011-2R5Y 2.5 ±30 8 7.96 125.0 52 1.30 1.10 765 SRU5011-3R3Y 3.3 ±30 8 7.96 110.0 66 1.15 0.94 585 SRU5011-4R7Y 4.7 ±30 8 7.96 85.0 95 1.00 0.82 524 SRU5011-6R8Y 6.8 ±30 8 7.96 70.0 130 0.82 0.68 398 SRU5011-100Y 10.0 ±30 12 7.96 50.0 170 0.70 0.58 368 SRU5011-150Y 15.0 ±30 12 2.52 42.0 250 0.60 0.48 284 SRU5011-220Y 22.0 ±30 14 2.52 38.0 380 0.50 0.40 231 SRU5011-330Y 33.0 ±30 14 2.52 30.0 550 0.38 0.30 188 SRU5011-470Y 47.0 ±30 16 2.52 25.0 800 0.32 0.26 163 SRU5011-680Y 68.0 ±30 14 2.52 20.0 1240 0.26 0.22 136 SRU5011-101Y 100.0 ±30 30 0.796 15.0 1600 0.20 0.18 112 Test Voltage ....................................0.1 V .. 230 °C, 50 sec. max. Operating Temp. .........-40 °C to +125 °C (Temperature rise included) Storage Temperature ..-40 °C to +125 °C Resistance to Soldering Heat ............................. +260 °C for 10 sec. Moisture Sensitivity Level ..................... 1 ................. N/A Materials Core ....................Ferrite DR and RI core Wire ............................Enameled copper Terminal ....................................Ag/Ni/Sn Rated Current..Ind. drop 35 % typ. at Isat Temp. Rise.......25 °C max. at rated Irms Packaging .................. 1500 pcs. per reel Product Dimensions 5.2 ± 0.2 (.205 ± .008) Δ I (peak-to-peak ripple current, A), determine core loss from Core Loss vs. Flux Density plot. 5.2 ± 0.2 (.205 ± .008) Core Loss vs. Flux Density 1000 1.1 ± 0.1 (.043 ± .004) Core Loss (mW) 100 1 MHz 500 KHz 300 KHz 200 KHz 100 KHz 50 KHz 1 1.7 (.067) TYP. 3.9 TYP. (.154) 10 1.8 TYP. (.071) 0.1 1.7 TYP. (.067) 0.01 100 1000 10000 1.1 (.043) REF. Flux Density Bp-p (gauss) Electrical Schematic * RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf Recommended Layout Inductor Connection 1.1 (.043) REF. 1.1 (.043) REF. 3.7 (.146) REF. 3.7 (.146) REF. 2.0 (.079) REF. LCR METER WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov 1.1 (.043) REF. REF. DIMENSIONS: MM (INCHES) 2.0 (.079) SRU5011 Series SMD Power Inductors SRF0504 Series- -Shielded Line Filter 178 DIA. (7.008) 2.0 ± 0.5 (.079 ± .020) 16.5 (.650) 13.0 ± 0.5 (.512 ± .020) DIA. 21.0 ± 0.8 (.827 ± .031) COVER TAPE EMBOSSED CAVITY 50.0 (1.969) 13.0 ± 0.5 DIA. (.512 ± .020) EMBOSSED CARRIER 14 (.551) 12.0 (.472) 4 (.157) END START 8 (.315) NO COMPONENT 160 (6.299) NO COMPONENT COMPONENTS 400 (15.748) USER DIRECTION OF FEED QTY: 1500 PCS. PER REEL DIMENSIONS: MM (INCHES) REV. 03/18 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
