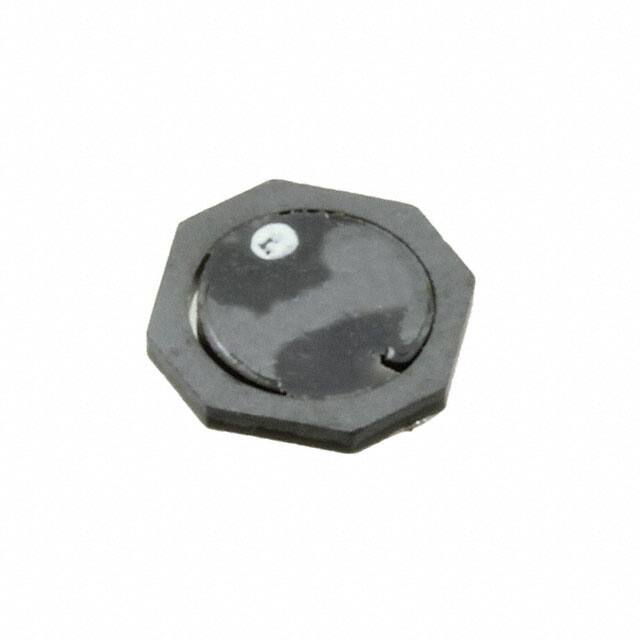

SRU6011-220Y

T PL IA N M CO *R oH S Features Applications ■ Maximum height of 1.25 mm ■ Input/output of DC/DC converters ■ Current up to 2.6 A ■ Power supplies for: • Portable communication equipment • Camcorders • LCD TVs ■ RoHS compliant* 100 SRU6011 Series - Shielded SMD Power Inductors Bourns Part Number Inductance @ 100 KHz L Tol. (μH) (%) Q Ref. Test Freq. (MHz) SRF Typ. (MHz) RDC Max. (mΩ) I rms Max. (A) I sat Typ. (A) **KFactor SRU6011-1R4Y 1.4 ±30 8 7.96 140 40 2.60 1.80 707 SRU6011-2R7Y 2.7 ±30 8 7.96 100 62 2.20 1.45 490 SRU6011-4R7Y 4.7 ±30 8 7.96 70 86 1.80 1.10 374 SRU6011-6R8Y 6.8 ±30 7 7.96 55 136 1.40 0.90 303 SRU6011-100Y 10 ±30 12 2.52 45 220 1.10 0.72 236 SRU6011-150Y 15 ±30 10 2.52 32 320 0.95 0.62 193 SRU6011-220Y 22 ±30 10 2.52 26 390 0.80 0.48 163 SRU6011-330Y 33 ±30 10 2.52 22 560 0.68 0.38 141 SRU6011-470Y 47 ±30 10 2.52 20 850 0.55 0.32 112 SRU6011-680Y 68 ±30 12 2.52 18 1200 0.46 0.28 92 Δ I (peak-to-peak ripple current, A), determine core loss from Core Loss vs. Flux Density plot. Test Voltage ....................................0.1 V .. 230 °C, 50 sec. max. Operating Temp. .........-40 °C to +125 °C (Temperature rise included) Storage Temp. ............-40 °C to +125 °C Resistance to Soldering Heat ............................... 260 °C for 10 sec. Moisture Sensitivity Level ..................... 1 ................. N/A Materials Core ....................Ferrite DR and RI core Wire ............................Enameled copper Terminal ....................................Ag/Ni/Sn Rated Current..Ind. drop 35 % typ. at Isat Temp. Rise.......40 °C max. at rated Irms Packaging .................. 1000 pcs. per reel Product Dimensions Core Loss vs. Flux Density 1000 100 Core Loss (mW) 100 10 1 MHz 500 KHz 300 KHz 200 KHz 100 KHz 50 KHz 1 6.50 ± 0.30 (.256 ± .012) 4.90 TYP. (.193) 0.1 6.20 ± 0.30 (.244 ± .012) 1.10 ± 0.15 (.043 ± .006) 2.15 (.085) TYP. 0.01 100 1000 10000 2.20 (.087) TYP. Flux Density Bp-p (gauss) Electrical Schematic 2.15 TYP. (.085) Recommended Layout REF. 1.10 (.043) 1.10 (.043) REF. DIMENSIONS: 4.90 REF. (.193) 1.10 (.043) REF. 4.90 (.193) REF. 2.40 (.094) REF. WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov 1.10 (.043) REF. MM (INCHES) 2.40 REF. (.094) * RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf SRU6011 Series SMD Power Inductors SRF0504 Series- -Shielded Line Filter 178.0 DIA. (7.008) 2.0 ± 0.5 (.079 ± .020) 16.5 (.650) COVER TAPE 13.0 ± 0.5 (.512 ± .020) DIA. 21.0 ± 0.8 (.827 ± .031) EMBOSSED CAVITY 50.0 (1.969) 13.0 ± 0.5 DIA. (.512 ± .020) EMBOSSED CARRIER 12.0 (.472) 14 (.551) 4 (.157) END 100 START 100 100 10 8 (.315) NO COMPONENT NO COMPONENT 200 (7.874) DIMENSIONS: COMPONENTS MM (INCHES) 400 (15.748) USER DIRECTION OF FEED QTY: 1,000 PCS. PER REEL REV. 03/18 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
