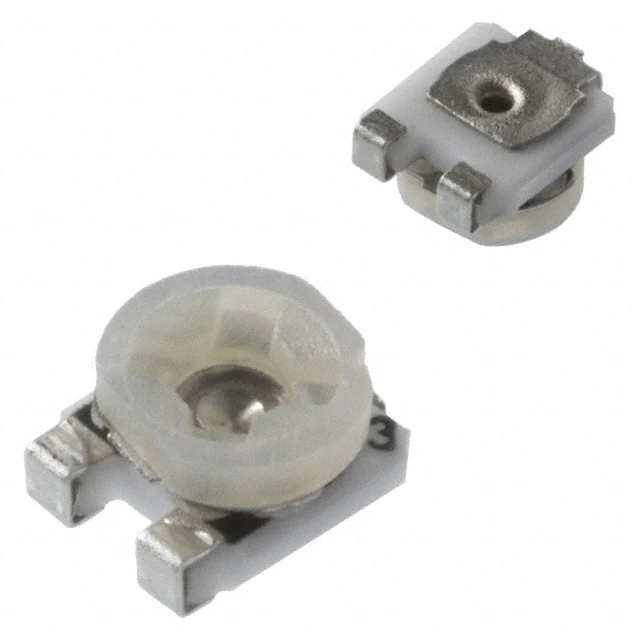

TC03X-2-202E

Features ■ RoHS compliant† - see processing ■ High temperature plastic rotor ■ Recommended for reflow processing ■ Rotor design compatible with pick and information on lead free surface mount trimmers place and automatic adjustment equipment ■ Supplied in 8 mm embossed tape, compatible with automatic assembly equipment ■ Cermet element TC03 - Trimming Potentiometer Electrical Characteristics Standard Resistance Range ..................................100 to 1 megohm (see standard resistance table) Resistance Tolerance ............±25 % std. Absolute Minimum Resistance ≤ 1K Ohms......................20 ohms max. >1K Ohms ....................2 % max. of TR Contact Resistance Variation ...............................................5 % max. Resolution...................................Infinite Adjustment Angle..................270 ° ±20 ° Environmental Characteristics Power Rating (50 VDC max.) 70 °C ......................................0.10 watt Temperature Range ....................................-40 °C to +85 °C Temperature Coefficient .........................................±250 ppm/°C Humidity ....................................95 %RH 500 hours TRS max. .......................................±5 % Load Life ............@ 70 °C rated power 500 hours TRS ±5 % Rotational Cycling......................20 turns TRS ±15 % Physical Characteristics Torque........................20-200 g-cm max. Mechanical Angle .................Continuous Marking......................Part marking code Standard Packaging ..................................2000 pcs./7 ” reel TC03X-2 3mm Open Frame for Reflow Soldering 3-Terminal Standard Resistance Table 3.00 (.118) 2.30 DIA. (.091) 3.55 (.140) 2 0.60 (.023) 1.50 (.059) 1.80 (.071) 3 1 1.85 (.072) 1.70 (.067) 0.60 (.023) 0.90 (.035) 1.10 (.043) 0.70 (.028) SUGGESTED PWB LAYOUT 1.60 (.062) How To Order TC03 X - 2 - 103 E Model Style Orientation of Parts In Tape: Style X: Terminals Away From Sprocket Holes 0.90 (.035) 1.00 (.039) 1.50 (.059) 0.80 (.031) 1.20 (.047) 3.20 (.125) Standard or Modified Product Indicator -2 = Cross Slot Rotor (Std. Product) Resistance Code 2 Embossed Tape Designator Consult factory for other available options. CCW WIPER 3 1 CLOCKWISE DIMENSIONS ARE: REV. 09/04 † RoHS Directive 2002/95/EC Jan 27 2003 including Annex. Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. MM (INCHES) Part Marking Code 12 22 52 13 23 53 14 24 54 15 25 55 16 Resistance Code 101 201 501 102 202 502 103 203 503 104 204 504 105 Popular distribution resistance values listed in boldface. Special resistances available. 1.00 (.039) 0.80 (.031) Resistance (Ohms) 100 200 500 1,000 2,000 5,000 10,000 20,000 50,000 100,000 200,000 500,000 1,000,000 CW
