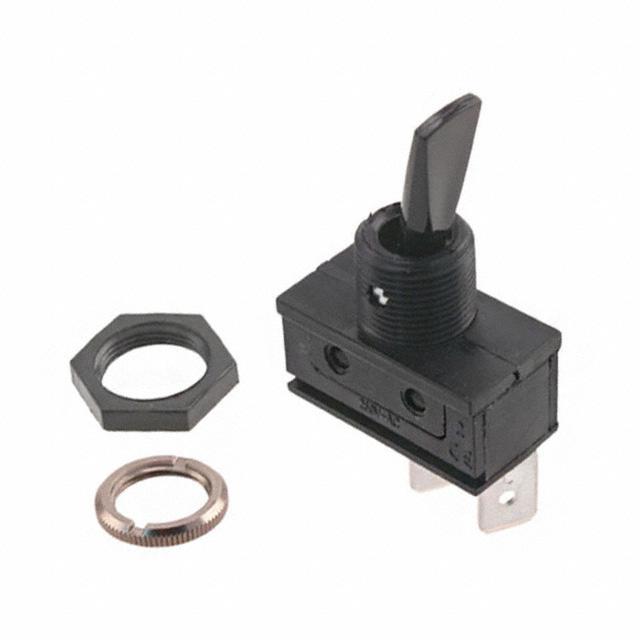

1700 & 1750 Toggle Switches 16A 250Vac Single and Double Pole
៉ Nylon toggle switches
16(4)A 250Vac T85
៉ Ratings up to 20A,
UL 20A 250Vac Non Ind (Single pole)
UL 16A 250Vac Non Ind (Double pole)
UL CSA (2 pos types) 250Vac 1hp, 125Vac 1/2hp
UL CSA (3 pos types) 250Vac 1/2hp, 125Vac 1/4hp
CSA 16A 250Vac Non Ind
UL 85˚C, file E45221, CSA file LR10990
UL and CSA N/A on momentary types
250V ac
៉ Single and double
pole
៉ Wide choice of
terminals
៉ Choice of circuit
options including 3
position
៉ Flat & round actuator
In house test
Inrush 36A to EN61058-1 & 20A 28Vdc
RoHS
RoHS compliant
options
toggle
switches
Selective “A, B, C” and “OFF, A, A+B” circuits at 5 amp also available.
3mm contact gap except where marked µ.
Technical data on pages 4 & 5.
C 1750 H
TERMINAL
CODE
ORDER FORMAT
TERMINAL
9.1
6.3 x 0.8
ACTUATOR
CODE
FUNCTION
Single pole
C
FUNCTION
CODE
1 2
ACTUATOR
Double pole
1
2
3
4
5
6
H
3
1700
16.4
1750
ON - OFF
H
9.1
1710 µ
1760 µ
4.8 x 0.8
ON - ON
K
R
9.1
2.0
17.5
1720 µ
1.2
1770 µ
13.8
ON - OFF - ON
2.8 x 0.8
T
7.0
1721 µ
ON - OFF -ON
(momentary 1 side)
Ø2.1
Solder
X
1722 µ
9.1
4.0
ON - OFF - ON
(momentary 2 sides)
PCB 0.8 Sq
36
Phone: 760-343-3650 • Arcolectric • Email: americas@elektron-technology.com
The switch is on between centre
terminals (2 & 5) and
the terminals over which the lever
is positioned.
CAT 170 P34-38 0600-3900-1750_2_11-0328:CAT 170 P34-38 0600/3900/1750
23/5/11
08:55
Page 37
C1700H --
C1760R --
C1750H --
toggle
switches
C1700R --
BODY
DIMENSIONS (mm)
OPTIONS
O
Neck Seal M539
Single pole
Material - Nitrile
(H & R Actuators)
Actuator visible
Thread: 15/32” x 32TPI
Keyway
Single Pole
(C terminals shown)
Thread: 15/32” x 32TPI
Keyway
25.5
Cover M1080
10.0
12.2
10.0
13.7
Material - EPDM
(R Actuator only)
12.2
0FF
Cover M331
Material - PVC
(R Actuator only)
0N
Optional
P236 plate
SP or DP
O
Double pole
Thread: 15/32” x 32TPI
Covers have internal nylon nuts
Double Pole
(C terminals shown)
Keyway
Thread: 15/32” x 32TPI
Fixing nuts (Standard is M506 & T92)
T5 Hex brass
M506 Hex nylon
10.0
Keyway
30.2
15.2
19.2
3.0 (M506)
2.0 (T5)
25.0
10.0
19.2
1.3
Ø12.7
11.1
T92 Knurled brass slotted
With barrier
1A 2A
3A
1A 2A
3A
4B 5B
6B
4B 5B
6B
2.6
Panel hole (all types)
Panel thickness (Max)
Both nuts - 3.5mm
Less backnut - 6.5mm
Without barrier
16.0
M279 Knurled nylon
16.2
4.1
Optional terminal barrier M441.
Phone: 760-343-3650 • Arcolectric • Email: americas@elektron-technology.com
37
