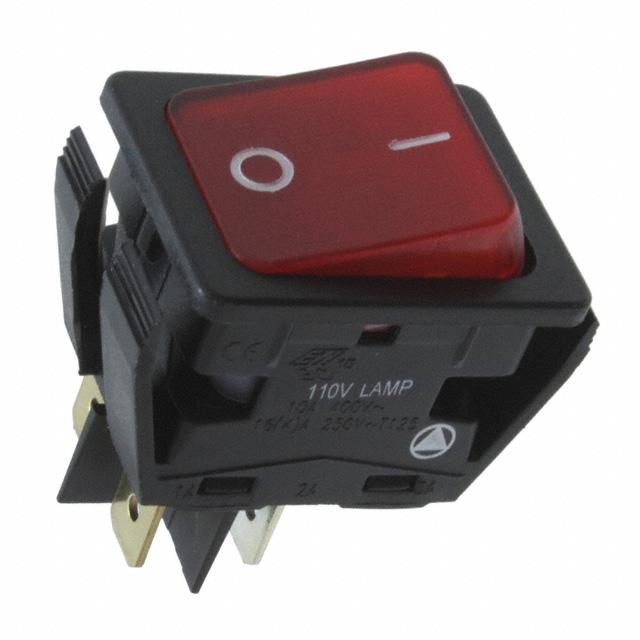

CAT 170 P18-29 1500-6000_2_11-0328:CAT 170 P18-29 1500/6000 23/5/11 08:41 Page 20 6050 DP Splash Resistant Switches - & Twins # ៉ Ratings up to 20A, 16A 250Vac European 16(4)A 250Vac T125, 10A 400Vac T125 277V ac ៉ High in-rush (ON-OFF types) UL CSA 20A 277Vac, 250Vac 11/2hp, 125Vac 1hp UL 100˚C, file E45221, CSA file LR10990 ៉ Positive switch action In house test ៉ Distinctive styling Inrush 150A* to EN61058-1 8(8)A 250Vac T125 5E4 on 6050 only * applies to non-momentary types ៉ Illuminated & non- illuminated ៉ Double pole RoHS compliant RoHS ៉ Panel cut out: 30.1 x 22.2mm rocker switches 3mm contact gap with Positive Break switching. # Call sales for IP details on Twin units. Technical data on pages 4 & 5 (switches), 6 (indicators). Patent app. NON-LIT B BLACK R RED W WHITE LIT B BLACK R RED W WHITE A C G R AMBER CLEAR GREEN RED 2 125V NEON 3 250V NEON 7 12V INCANDESCENT C 6053 A L B R 2 1197W ORDER FORMAT TERMINAL CODE TERMINAL FUNCTION CODE ROCKER CODE BODY BODY CODE COLOR ROCKER COLOR LAMP VOLTAGE IF REQUIRED FUNCTION ROCKER C A Softline Approvals & ratings vary with function ON OFF Switches - ON when pressed over terminals 3 & 6 9.7 6.3 x 0.8 1 2 3 4 5 6 6050 ON - OFF 6060 ON - ON 6051 ON - OFF (momentary ON) 6061 ON - ON (momentary 1 side) 6052 ON - OFF (momentary OFF) 6062 2 Circuit ON - ON ON - OFF Lit 6066 ON - ON (Single pole) Isolated light 6054 ON - OFF (momentary ON) Lit 6067 ON - ON Lit 6055 ON - OFF (Single pole) (momentary ON) Lit 6068 ON - ON 1pole ON - OFF Lit 1pole 6056 ON - OFF (Single pole) Isolated light 6090 6057 ON - OFF Isolated light 6091 ON - OFF (momentary ON) Lit 6058 ON - OFF (Single pole) Lit 6092 ON - OFF 1 pole ON - ON 1 pole Lit In house tests only Matt A Softline Matt H 6053 9.7 4.8 x 0.8 S 9.7 Screw & Clamp N/A for assemblies with 3 terminals in either pole 18 20 6059 ON - OFF (Single pole) (momentary ON) Isolated light Lit P Lit Window Matt ON - OFF 1pole ON - OFF Lit 1pole Circuits are Double Pole unless described otherwise Phone: 760-343-3650 • Arcolectric • Email: americas@elektron-technology.com Lit Window LEGEND & OPTIONS CAT 170 P18-29 1500-6000_2_11-0328:CAT 170 P18-29 1500/6000 23/5/11 08:41 Page 21 C6053AL C6053PL C6000/6000AL C6003/60003PL C6003P/6030AL rocker switches C6050AL Integral Splash Resistance Current carrying parts are protected from moisture. Droplets which may enter the switch are channelled out through ports in the switch body For IP65 see options below BODY OPTIONS L Double pole Finish Matt is standard 30.0 2.0 25.0 10.0 5B R2.0 L Legend printing Select from the examples or call factory for custom legends 30.0/ 30.1 0.75 to 3.0mm Color Call factory for custom colors Bezel A full range is available for large orders 22.1/22.2 Panel thickness 8.0 4B Panel cut-out * DIMENSIONS (mm) 31.5 Lamp voltage Call factory for details * For cut-out details on momentary switches call sales Terminal spacing - Poles 10.5 between centres Protective cover (designed to IP65 #) The 6000 series is a water thru design. For a higher level of sealing, a snap on cover is available (add suffix G72). This reduces panel thickness by 1mm. L Twin units Contact sales for information on splash resistance and IP ratings Panel cut-out * 22.1/22.2 Panel sealing washer W42 is available but reduces panel thickness by a further 0.8mm. Covers are not suitable for momentary types. Bezel R2.0 25.0 IP Ratings Call the factory for details 30.0/ 30.1 31.5 Jumper Terminal P1067 connects the poles of a double pole switch or twin unit Examples of our range of legend printing ( ) is legend color B-Black, W-White, R-Red # Mounting orientation may affect IP rating For all options call the factory Cut-outs must be punched in the direction of insertion 1196(W) Phone: 760-343-3650 • Arcolectric • Email: americas@elektron-technology.com 1197(W) 19 21
