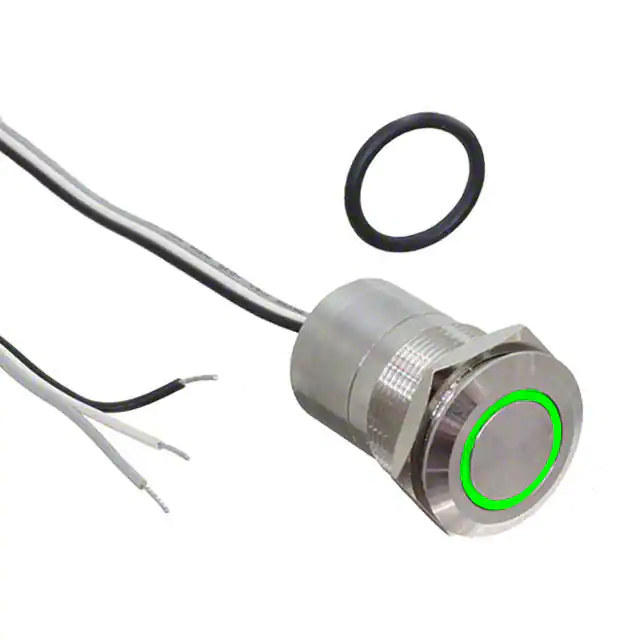

MC22MOSGR

Switches Capacitive Switches Activated by the touch of a finger, our Capacitive Switches are ideal for many repetitive applications requiring a rugged sealed and easy to use switch solution. Sealed to IP68 and IP69K Easy to use and clean Momentary or latching functions Extremely robust and durable – IK10 rated Large or thin ring illumination options No operating force required – ideal for repetitive applications Long life operation – 50 million of cycles Activated by the touch of a finger – even with surgeon gloves 16, 19, 22 or 25mm diameter options Natural, black and red anodised options as well as 316L stainless steels Switches 321 Capacitive Switches Capacitive Switches - 16mm 16mm Illuminated Illuminated 300 mm lead + + MC16 Specification MC16 Type Momentary / Latching Materials Case: Aluminium, Anodised and Stainless Steel Panel Cutout Dimensions Multi-wire leads setion 0.22mm² (length 300mm) Panel cutout: ø16.20 (.637 DIA) Maximum Current / Voltage Rating: 500mA at 5V, 12V or 24VDC Supply Voltage 5, 12 or 24 VDC Contact Resistance 20mΩ LED state for output image option 1 LED: The LED is ON when output is closed. Sealing IP68 (2m depth for >30mins) IP69K 2 LEDS: First colour is ON when the output is open. Second colour is ON when the output is closed. Operating temperature -25°C to +55°C RoHS Compliant Actuating force, typically Zero Newton’s (Touch Sensitive) Life cycle >50 Million Environmental Specification Circuit Specification See wiring diagrams on page 326 322 Switches Capacitive Switches Capacitive Switches - 19mm 19mm Illuminated Illuminated 300 mm lead + + MC19 Specification MC19 Type Momentary / Latching Materials Case: Aluminium, Anodised and Stainless Steel Panel Cutout Dimensions Multi-wire leads setion 0.22mm² (length 300mm) Panel cutout: ø19.20 (.756 DIA) Maximum Current / Voltage Rating: 500mA at 5V, 12V or 24VDC Supply Voltage 5, 12 or 24 VDC Contact Resistance 20mΩ LED state for output image option 1 LED: The LED is ON when output is closed. Sealing IP68 (2m depth for >30mins) IP69K 2 LEDS: First colour is ON when the output is open. Second colour is ON when the output is closed. Operating temperature -25°C to +55°C RoHS Compliant Actuating force, typically Zero Newton’s (Touch Sensitive) Life cycle >50 Million Environmental Specification Circuit Specification See wiring diagrams on page 326 Switches 323 Capacitive Switches Capacitive Switches - 22mm 22mm Illuminated Illuminated 300 mm lead + + MC22 Specification MC22 Type Momentary / Latching Materials Case: Aluminium, Anodised and Stainless Steel Panel Cutout Dimensions Multi-wire leads setion 0.22mm² (length 300mm) Panel cutout: ø22.20 (.874 DIA) Maximum Current / Voltage Rating: 500mA at 5V, 12V or 24VDC Supply Voltage 5, 12 or 24 VDC Contact Resistance 20mΩ LED state for output image option 1 LED: The LED is ON when output is closed. Sealing IP68 (2m depth for >30mins) IP69K 2 LEDS: First colour is ON when the output is open. Second colour is ON when the output is closed. Operating temperature -25°C to +55°C RoHS Compliant Actuating force, typically Zero Newton’s (Touch Sensitive) Life cycle >50 Million Environmental Specification Circuit Specification See wiring diagrams on page 326 324 Switches Capacitive Switches Capacitive Switches - 25mm 25mm Illuminated Illuminated 300 mm lead + + MC25 Specification MC25 Type Momentary / Latching Materials Case: Aluminium, Anodised and Stainless Steel Panel Cutout Dimensions Multi-wire leads setion 0.22mm² (length 300mm) Panel cutout: ø25.20 (.992 DIA) Maximum Current / Voltage Rating: 500mA at 5V, 12V or 24VDC Supply Voltage 5, 12 or 24 VDC Contact Resistance 20mΩ LED state for output image option 1 LED: The LED is ON when output is closed. Sealing IP68 (2m depth for >30mins) IP69K 2 LEDS: First colour is ON when the output is open. Second colour is ON when the output is closed. Operating temperature -25°C to +55°C RoHS Compliant Actuating force, typically Zero Newton’s (Touch Sensitive) Life cycle >50 Million Environmental Specification Circuit Specification See wiring diagrams on page 326 Switches 325 Capacitive Switches Capacitive Switches - Part No System Part No System MC XX X Series Switch Size Switch Function M = Momentary O = Normally Open 19 = 19mm L = Latching C = Normally Closed MC-Capacitive Switch 16 = 16mm X Switch Status 22 = 22mm X XX Colour / Material XX LED Colours GN = GREEN (1 LED) B = Black Anodised Voltage 05 = 5VDC R = Red Anodised RD = RED (1 LED) 24 = 24VDC S = Stainless Steel AM = AMBER (1 LED) * No Suffix = 12VDC RG = RED + GREEN (2 LEDS) 25 = 25mm GR = GREEN + RED (2 LEDS) Blank = Non-illuminated Note: 2 LED's option: when the output circuit open, first LED color lights. Second LED lights when the output circuit closes Examples: MC16MOSRD = 16mm, Stainless Steel, Momentary Normally Open, Red Illumination, 12VDC MC22LOBRG24 = 22mm, Black Anodised, Catching Normally Open, Red and Green llumination, 24VDC Circuit Specifications Wiring Diagrams Legend 1 LED Output Indicator OFF-ON (momentary) Normally Open ON-OFF (momentary) Normally Closed OFF-ON (latching) Normally Open ON-OFF (latching) Normally Closed Output Indicator Output Indicator Vin Vin Vin Vout Vout Vout LED LED LED-1 LED-2 GND GND GND Vin Vin Vin Vout LED Vout LED Vout LED-1 LED-2 GND GND GND Vin Vin Vin Vout Vout LED LED Vout LED-1 LED-2 GND GND GND Vin Vin Vin Vout LED GND Other switches are available upon request* 326 Switches 2 LEDS LED Vout LED-1 GND LED-2 Vout GND Grey Black White Vin black GND Vout Wire colours may vary. Always refer to the label on the switch.
