GEN. PURPOSE
This long established series of connectors still find many uses where
small, but lower current connections are needed. The range consists of
circular and rectangular styles with 3, 4, 6 and 8 poles, in a choice of
configurations, with current ratings up to 6 Amps. The 8 pole round has
become the standard connector for the disco and lighting industry and
is available in cable and chassis mounting versions.
Type
PX0551
PX0552
PX0552/PC
PX0956/S
PX0957/S
PX0959/P
PX0959/P/PC
PX0429
PX0430/SE
PX0646
PX0635
PX0636
SA2403
SA2404
SA2367
SA2368
PX0649
PX0650
Accessories
www.bulgin.co.uk
Page
8
8
8
8
8
8
8
2
2
2
6
6
3
3
4
4
3
3
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
Pole
connector
outlet
outlet
connector
outlet
inlet
inlet
+ Earth
+ Earth
+ Earth
144
144
144
145
145
146
146
147
147
147
148
148
149
149
149
149
150
150
151
143
GENERAL PURPOSE CONNECTORS
Flex Mount Plug and Panel Mount Sockets
FLEX MOUNT MALE CIRCULAR CONNECTOR
8 Poles
Mates with PX0552,
PX0552/PC, PX0956/S and
PX0957/S
Screw Terminals
6A, 250V a.c. (per Pin)
PX0551
PANEL MOUNT FEMALE CIRCULAR OUTLET
8 Poles
Mates with PX0551
4.8mm Tabs
6A, 250V a.c. (per Pin)
PX0552
PC PANEL MOUNT FEMALE CIRCULAR OUTLET
GEN. PURPOSE
8 Poles
Mates with PX0551
PC Spills
6A, 250V a.c. (per Pin)
PX0552/PC
Specification
PX0551
PX0552
PX0552/PC
Terminations:
Screw Terminals
4.8 Series Tab
P.C. Spills
Max. Rating:
6A, 250V a.c. (per pin)
6A, 250V a.c. (per pin)
6A, 250V a.c. (per pin)
Contact Resistance:
103 MΩ
A.C. Breakdown:
Pole-Pole 5.2kV
Poles-Accessible Parts 6kV
Pole-Pole 5.2kV
Poles-Exterior Parts/Panel 2kV
Pole-Pole 5.2kV
Poles-Exterior Parts/Panel 6.6kV
Operating Temp. Range:
–20˚C to +70˚C
–20˚C to +70˚C
–20˚C to +70˚C
Mouldings:
Glass Filled Nylon (Black)
Glass Filled Nylon (Black)
Glass Filled Nylon (Black)
Flammability Rating:
UL94 HB
UL94 HB
UL94 HB
Contacts:
Brass, Nickel Plated
Brass, Tin Plated
Brass, Tin Plated
Mates With:
PX0552, PX0552/PC, PX0956/S,
PX0957/S
PX0551, PX0959/P, PX0959/P/PC
PX0551, PX0959/P, PX0959/P/PC
Compliant
Compliant
Compliant
RoHS
144
www.bulgin.co.uk
GENERAL PURPOSE CONNECTORS
Flex Mount and Panel Mount Sockets
FLEX MOUNT FEMALE CIRCULAR CONNECTOR
8 Poles
Mates with PX0551,
PX0959/P and PX0959/P/PC
Screw/Solder Terminals
6A, 250V a.c. (per Pin)
PX0956/S
PANEL MOUNT FEMALE CIRCULAR OUTLET
8 Poles
Mates with PX0551,
PX0959/P and PX0959/P/PC
4.8mm Tabs/Solder
6A, 250V a.c. (per Pin)
GEN. PURPOSE
PX0957/S
Specification
PX0956/S
PX0957/S
Terminations:
Screw/Solder Terminals
4.8 Tab/Solder Tag
Max. Rating:
6A, 250V a.c.
6A, 250V a.c.
Contact Resistance:
108 MΩ @ 500V d.c.
A.C. Breakdown:
Pole-Pole 5.5kV
Poles-Exterior Parts 5kV
Pole-Pole 5.5kV
Poles-Exterior Parts/Panel 6.4kV
Operating Temp. Range:
–20˚C to +70˚C
–20˚C to +70˚C
Mouldings:
Glass Filled Nylon (black)
Glass Filled Nylon (black)
Flammability Rating:
UL94 HB
UL94 HB
Contacts:
Brass, Tin Plated
Brass, Tin Plated
Mates With:
PX0551, PX0959/P, PX0959/P/PC
PX0551, PX0959/P, PX0959/P/PC
Compliant
Compliant
RoHS
www.bulgin.co.uk
145
GENERAL PURPOSE CONNECTORS
Panel Mount Plugs
PANEL MOUNT MALE CIRCULAR INLET
8 Poles
Mates with PX0956/S,
PX0957/S, PX0552 and
PX0552/PC
Solder bucket terminals
6A, 250V a.c. (per Pin)
PX0959/P
PANEL MOUNT MALE CIRCULAR INLET
8 Poles
Mates with PX0956/S,
PX0957/S, PX0552 and
PX0552/PC
P.C. Spill terminations
6A, 250V a.c. (per Pin)
GEN. PURPOSE
PX0959/P/PC
Specification
PX0959/P
PX0959/P/PC
Terminations:
Solder bucket
P.C. Spill
Max. Rating:
6A, 250V a.c. (per pin)
6A, 250V a.c. (per pin)
Contact Resistance:
104 MΩ @ 500V d.c.
A.C. Breakdown:
Pole-Pole 6kV
Poles-Exterior Parts/Panel 6kV
Pole-Pole 6kV
Poles-Exterior Parts/Panel 6kV
Operating Temp. Range:
–20˚C to +70˚C
–20˚C to +70˚C
Mouldings:
Glass Filled Nylon (black)
Glass Filled Nylon (black)
Flammability Rating:
UL94 HB
UL94 HB
Contacts:
Turned Brass, Tin Plated
Turned Brass, Tin Plated
Mates With:
PX0956/S, PX0957/S, PX0552,
PX0552/PC
PX0956/S, PX0957/S, PX0552
PX0552/PC
Compliant
Compliant
RoHS
146
MΩ @ 500V d.c.
www.bulgin.co.uk
GENERAL PURPOSE CONNECTORS
Plugs and Sockets (2 Pole + Earth)
CIRCULAR MALE INLET
2 Pole + Earth
Mates with PX0430/SE and
PX0646
Key to Ensure Correct Polarity
Solder Tags
3A, 250V a.c.
PX0429
CIRCULAR FEMALE CONNECTOR
2 Pole + Earth
Mates with PX0429
Key Way to Ensure Correct
Polarity
Solder Tags
3A, 250V a.c.
PX0430/SE
CIRCULAR FEMALE CONNECTOR
GEN. PURPOSE
2 Pole + Earth
Mates with PX0429
Key Way to Ensure Correct
Polarity
Solder Tags
3A, 250V a.c.
PX0646
Specification
PX0429
PX0430/SE
PX0646
Terminations:
Solder Tags
Solder Tags
Solder Tags
Max. Rating:
3A, 250V a.c.
3A, 250V a.c.
3A, 250V a.c.
Contact Resistance:
105 MΩ
A.C. Breakdown:
Pole-Pole 4.5kV
Poles-Panel 8.5kV
Pole-Pole 4.5kV
Poles-Accessible Parts 3.5kV
Pole-Pole 4.5kV
Poles-Accessible Parts 3.5kV
Operating Temp. Range:
–20˚C to +60˚C
–20˚C to +60˚C
–20˚C to +60˚C
Mouldings:
Glass Filled Nylon
Nylon and Glass Filled Nylon
Nylon and Glass Filled Nylon
Contacts:
Brass, Tin Plated
Brass, Silver Plated
Brass, Silver Plated
Accessories:
P.No. 9455 (see page 151)
Mates With:
PX0430/SE & PX0646
PX0429
PX0429
Compliant
Compliant
Compliant
RoHS
www.bulgin.co.uk
147
GENERAL PURPOSE CONNECTORS
Plug and Socket (6 Pole)
CIRCULAR MALE INLET
6 Pole
Mates with PX0636
Key to Ensure Correct Polarity
Solder Buckets
3A, 50V a.c.
PX0635
CIRCULAR FEMALE CONNECTOR
6 Pole
Mates with PX0635
Key Way to Ensure Correct
Polarity
Solder Tags
3A, 50V a.c.
GEN. PURPOSE
PX0636
Specification
PX0635
PX0636
Terminations:
Solder Buckets
Solder Tags
Max. Rating:
3A, 50V a.c.
3A, 50V a.c.
Contact Resistance:
104 MΩ
A.C. Breakdown:
Pole-Pole 2.1kV
Poles-Panel 6.0kV
Pole-Pole 2.1kV
Poles-Accessible Parts 1.5kV
Operating Temp. Range:
–20˚C to +60˚C
–20˚C to +60˚C
Mouldings:
Glass Filled Nylon
Glass Filled Nylon
Contacts:
Brass, Silver Plated
Brass, Silver Plated
Accessories:
P.No. 9455 (see page 151)
Mates With:
PX0636
PX0635
Compliant
Compliant
RoHS
148
4
www.bulgin.co.uk
GENERAL PURPOSE CONNECTORS
Plugs and Sockets (3 & 4 pole)
CIRCULAR MALE CONNECTOR
Mates with SA2404 (3 pole)
and SA2368 (4 pole)
Key to Ensure Correct Polarity
Screw Terminals
3A, 250V a.c.

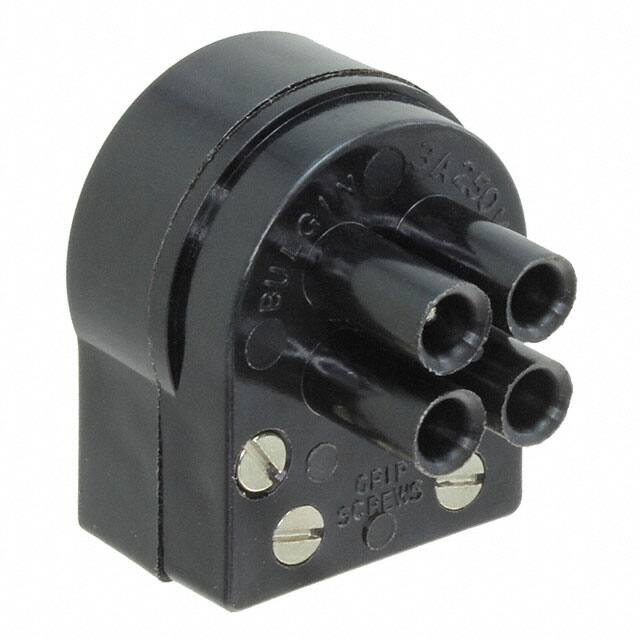

SA2403 (3 Pole)
SA2367 (4 Pole)
CIRCULAR FEMALE OUTLET
Mates with SA2403 (3 pole)
and SA2367 (4 pole)
Key Way to Ensure Correct
Polarity
Solder Sockets
3A, 250V a.c.
GEN. PURPOSE

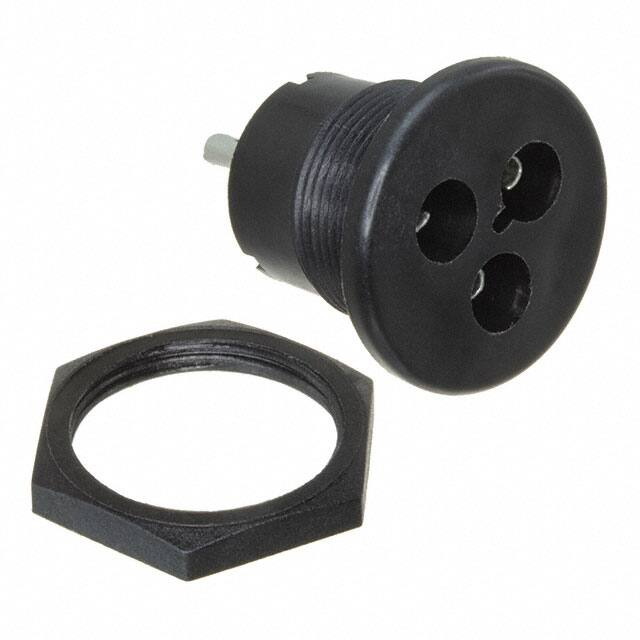

SA2404 (3 Pole)
SA2368 (4 Pole)
Specification
SA2403 (3 Pole)
SA2367 (4 Pole)
SA2404 (3 Pole)
SA2368 (4 Pole)
Terminations:
Screw Terminals
Solder Buckets
Max. Rating:
3A, 250V a.c.
3A, 250V a.c.
Contact Resistance:
104 MΩ
A.C. Breakdown:
Pole-Pole 4.2kV
Poles-Accessible Parts 2kV
Pole-Pole 4.2kV
Poles-Panel 8.2kV
Operating Temp. Range:
–20˚C to +70˚C
–20˚C to +70˚C
Mouldings:
Glass Filled Nylon
Glass Filled Nylon
Contacts:
Brass, Nickel Plated
Brass, Tin Plated
Accessories:
Mates With:
RoHS
www.bulgin.co.uk
P.No. 9455 (see page 151)
3 Pole - SA2404
4 Pole - SA2368
3 Pole - SA2403
4 Pole - SA2367
Compliant
Compliant
149
GENERAL PURPOSE CONNECTORS
Plug and Socket (2 Pole + Earth)
CIRCULAR MALE CONNECTOR
2 Pole + Earth
Mates with PX0650
Solder Sockets
3A, 250V a.c.
PX0649
CIRCULAR FEMALE OUTLET
2 Pole + Earth
Mates with PX0649
Solder Tags
3A, 250V a.c.
GEN. PURPOSE
PX0650
Specification
PX0649
PX0650
Terminations:
Solder Sockets
Solder Tags
Max. Rating:
3A, 250V a.c.
3A, 250V a.c.
Contact Resistance:
104 MΩ
A.C. Breakdown:
Pole-Pole 4.2kV
Poles-Accessible Parts 10kV
Pole-Pole 4.2kV
Poles-Panel 10kV
Operating Temp. Range:
–20˚C to +60˚C
–20˚C to +60˚C
Mouldings:
Nylon and Phenolic
Glass Filled Nylon
Contacts:
Brass, Tin Plated
Brass, Silver Plated
MΩ
Accessories:
Mates With:
RoHS
150
P.No. 9455 (see page 151)
PX0650
PX0649
Compliant
Compliant
www.bulgin.co.uk
GENERAL PURPOSE CONNECTORS
Accessories
INSULATION BOOT
Prevents Accidental Removal
of Connector
Insulating Boot
Protects Against Accidental
Electric Shock
GEN. PURPOSE
PNo 9455
Specification
P.No. 9455
Insulation cover for
PX0429,
PX0635,
PX0650,
SA2368,
SA2404
Operating Temp. Range:
–20˚C to +60˚C
Max. Working Voltage:
250V a.c.
Flash Tested:
2kV a.c.
Material:
P.V.C.
Flammability Rating:
UL94V-0
RoHS
www.bulgin.co.uk
Compliant
151
