ADS131M04
SBAS890C – MARCH 2019 – REVISED ADS131M04
JANUARY 2021
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
www.ti.com
ADS131M04 4-Channel, Simultaneously-Sampling, 24-Bit, Delta-Sigma ADC
1 Features
3 Description
•
•
•
•
The ADS131M04 is a four-channel, simultaneouslysampling, 24-bit, delta-sigma (ΔΣ), analog-to-digital
converter (ADC) that offers wide dynamic range, low
power, and energy-measurement-specific features,
making the device an excellent fit for energy metering,
power metrology, and circuit breaker applications. The
ADC inputs can be directly interfaced to a resistordivider network or a power transformer to measure
voltage or to a current transformer, shunt, or a
Rogowski coil to measure current.
•
•
•
•
•
•
•
•
•
•
•
•
•
4 simultaneously sampling differential inputs
Programmable data rate up to 32 kSPS
Programmable gain up to 128
Noise performance:
– 102-dB dynamic range at gain = 1, 4 kSPS
– 80-dB dynamic range at gain = 64, 4 kSPS
Total harmonic distortion: –100 dB
High-impedance inputs for direct sensor
connection:
– 330-kΩ input impedance for gains of
1, 2, and 4
– 1-MΩ input impedance for gains of
8, 16, 32, and 64
Programmable channel-to-channel phase delay
calibration:
– 244-ns resolution, 8.192-MHz fCLKIN
Current-detect mode allows for extremely low
power tamper detection
Fast startup: first data within 0.5 ms of supply
ramp
Integrated negative charge pump allows input
signals below ground
Crosstalk between channels: –120 dB
Low-drift internal voltage reference
Cyclic redundancy check (CRC) on
communications and register map
2.7-V to 3.6-V analog and digital supplies
Low power consumption: 3.3 mW at 3-V AVDD
and DVDD
Packages: 20-pin TSSOP or 20-pin WQFN
Operating temperature range: –40°C to +125°C
2 Applications
•
•
•
•
•
•
Electricity meters: commercial and residential
Circuit breakers
Protection relays
Power quality meters
Battery test equipment
Battery management systems
The individual ADC channels can be independently
configured depending on the sensor input. A lownoise, programmable gain amplifier (PGA) provides
gains ranging from 1 to 128 to amplify low-level
signals. Additionally, this device integrates channel-tochannel phase calibration and offset and gain
calibration registers to help remove signal-chain
errors.
A low-drift, 1.2-V reference is integrated into the
device reducing printed circuit board (PCB) area.
Cyclic redundancy check (CRC) options can be
individually enabled on the data input, data output,
and register map to ensure communication integrity.
The complete analog front-end (AFE) is offered in a
20-pin TSSOP or leadless 20-pin WQFN package and
is specified over the industrial temperature range of
–40°C to +125°C.
Device Information (1)
PART NUMBER
PACKAGE
ADS131M04
(1)
BODY SIZE (NOM)

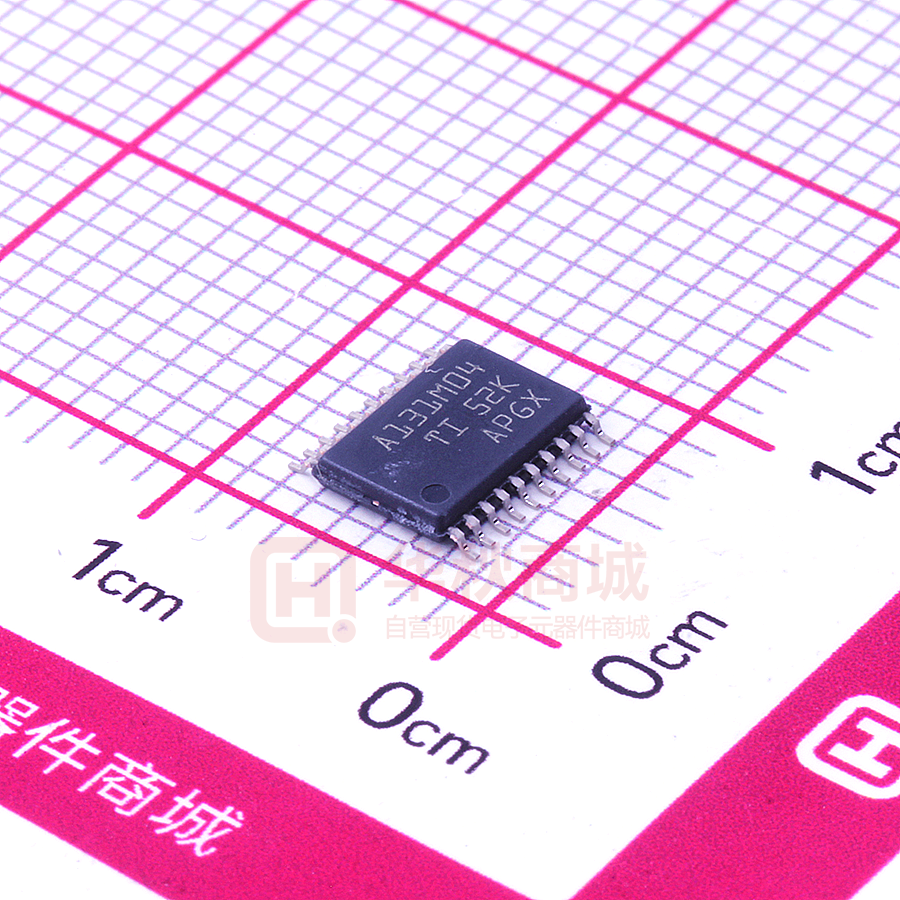

TSSOP (20)
6.50 mm × 4.40 mm
WQFN (20)
3.00 mm × 3.00 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
AVDD
DVDD
1.2-V
Reference
AIN0P
+
AIN0N
±
AIN1P
+
AIN1N
±
'6 ADC
Phase Shift &
Digital Filters
Gain & Offset
Calibration
'6 ADC
Phase Shift &
Digital Filters
Gain & Offset
Calibration
SYNC / RESET
CS
SCLK
Control &
Serial Interface
DIN
DOUT
AIN2P
+
AIN2N
±
AIN3P
+
AIN3N
±
AGND
'6 ADC
Phase Shift &
Digital Filters
Gain & Offset
Calibration
'6 ADC
Phase Shift &
Digital Filters
Gain & Offset
Calibration
DRDY
Clock
Generation
CLKIN
DGND
Simplified Block Diagram
An©IMPORTANT
NOTICEIncorporated
at the end of this data sheet addresses availability, warranty, changes, use in
safety-critical
applications,
Copyright
2021 Texas Instruments
Submit
Document
Feedback
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Product Folder Links: ADS131M04
1
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................4
6 Specifications.................................................................. 5
6.1 Absolute Maximum Ratings ....................................... 5
6.2 ESD Ratings .............................................................. 5
6.3 Recommended Operating Conditions ........................6
6.4 Thermal Information ...................................................6
6.5 Electrical Characteristics ............................................7
6.6 Timing Requirements ................................................. 9
6.7 Switching Characteristics ...........................................9
6.8 Timing Diagrams....................................................... 10
6.9 Typical Characteristics.............................................. 11
7 Parameter Measurement Information.......................... 16
7.1 Noise Measurements................................................ 16
8 Detailed Description......................................................17
8.1 Overview................................................................... 17
8.2 Functional Block Diagram......................................... 17
8.3 Feature Description...................................................18
8.4 Device Functional Modes..........................................29
8.5 Programming............................................................ 35
8.6 ADS131M04 Registers............................................. 45
9 Application and Implementation.................................. 74
9.1 Application Information............................................. 74
9.2 Typical Application.................................................... 82
10 Power Supply Recommendations..............................89
10.1 CAP Pin Behavior................................................... 89
10.2 Power-Supply Sequencing......................................89
10.3 Power-Supply Decoupling.......................................89
11 Layout........................................................................... 90
11.1 Layout Guidelines................................................... 90
11.2 Layout Example...................................................... 91
12 Device and Documentation Support..........................92
12.1 Documentation Support.......................................... 92
12.2 Receiving Notification of Documentation Updates..92
12.3 Support Resources................................................. 92
12.4 Trademarks............................................................. 92
12.5 Electrostatic Discharge Caution..............................92
12.6 Glossary..................................................................92
13 Mechanical, Packaging, and Orderable
Information.................................................................... 92
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (June 2020) to Revision C (January 2021)
Page
• Changed RUK (WQFN) package from preview to production data.................................................................... 1
• Added thermal pad to RUK pin out and Pin Functions table ............................................................................. 4
• Added Offset Error time drift and Gain Error time drift........................................................................................7
• Changed SPI timing diagram and SYNC/RESET diagram...............................................................................10
• Added typical characteristics plots and corrected test condition of Typical Characteristics section ................ 11
• Added fMOD equation in the ΔΣ Modulator section............................................................................................20
• Changed description in SINC3 and SINC3 + SINC1 Filter section.................................................................... 22
• Changed captions for figures in the Digital Filter Characteristic section...........................................................22
• Changed CRC seed value and description in the Communication Cyclic Redundancy Check (CRC) section....
27
• Added DRDY transitions in Power-Up and Reset section................................................................................ 29
• Moved Fast Startup Behavior section to Device Functional Modes section, and changed values for wait time
delays in text and figures.................................................................................................................................. 30
• Added global chop mode block diagram, global chop mode conversion timing diagram, and Equation 9 ...... 31
• Added description for new conversions when reading data in the Data Ready (DRDY) section......................35
• Changed Register Map table............................................................................................................................ 45
• Added pullup resistor option for DRDY in the Unused Inputs and Outputs section..........................................74
• Changed Number of phases row in Key System Specifications table.............................................................. 83
• Changed layout example image....................................................................................................................... 91
Changes from Revision A (July 2019) to Revision B (June 2020)
Page
• Changed 300-kΩ to 330-kΩ in input impedance Features bullet........................................................................1
• Updated the numbering format for tables, figures, and cross-references throughout the document..................1
2
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Changed Applications section............................................................................................................................ 1
Added Input bias current Gain = 1,2, or 4...........................................................................................................7
Added Input bias current Gain = 8,16,32, 64 or 128...........................................................................................7
Changed typcial value for Offset Error (global chop mode, channel 0) to ±35µV ..............................................7
Changed typical value for Offset Error (global chop mode, channels 1-3) to ±15µV.........................................7
Changed typical value for Offset drift (global chop mode) to 200nV/°C............................................................. 7
Changed title of Input Offset Current vs Gain figure......................................................................................... 11
Changed Input Offset Voltage vs Gain figure....................................................................................................11
Changed DC AVDD PSRR vs Temperature figure............................................................................................11
Changed THD vs AVDD figure..........................................................................................................................11
Added Single Device Noise Histogram at 4 kSPS and Single Device Noise Histogram at 32 kSPS figures....11
Changed description of global-chop mode improvement and second paragraph to Noise Measurements
section.............................................................................................................................................................. 16
Changed second bullet in Input Multiplexer section......................................................................................... 18
Changed 317 kΩ to 330 kΩ in Equation 4 ....................................................................................................... 19
Deleted sentence regarding delay after first conversion result in Voltage Reference section ......................... 19
Changed description of modulator frequency in ΔΣ Modulator section............................................................ 20
Changed Digital Filter section...........................................................................................................................20
Changed Digital Filter Implementation title and section....................................................................................21
Added last two sentences to DC Block Filter section....................................................................................... 23
Added programmable delay to programmable delay (tGC_DLY) in Global-Chop Mode mode............................31
Changed Standby Mode section.......................................................................................................................32
Changed tSRLRST to tw(RSL) in first paragraph of Current-Detect Mode section.................................................32
Changed writes to transmits in second paragraph of SPI Communication Frames section............................. 36
Added second paragraph to SPI Communication Frames section .................................................................. 36
Changed DRDY_FMT bit setting from 0 to 0b in Collecting Data for the First Time or After a Pause in Data
Collection section..............................................................................................................................................38
Changed opcode to command word in RESET (0000 0000 0001 0001) section............................................. 40
Changed tSRLRST to tw(RSL) in Synchronization section.....................................................................................44
Changed Register Map table............................................................................................................................ 45
Changed AVSS to AGND in Unused Inputs and Outputs section.................................................................... 74
Added reference to TIDA-010037 design guide in Typical Application section................................................ 82
Deleted discussion of voltage to current crosstalk from Voltage Measurement Front-End section.................. 83
Changed discussion of burden resistor in Current Measurement Front-End section....................................... 84
Deleted Test Methodology and Results sections ............................................................................................. 85
Added Application Curves section ................................................................................................................... 85
Changed CAP Pin title to CAP Pin Behavior ................................................................................................... 89
Changed required capacitor for AVDD and DVDD from at least a 100-nF capacitor to a 1-µF capacitor in
Power-Supply Decoupling section.................................................................................................................... 89
Changes from Revision * (March 2019) to Revision A (July 2019)
Page
• Changed document status from advance information to production data.......................................................... 1
• Added Protection relays and Power quality meters to Applications section....................................................... 1
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
3
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
AIN0P
CAP
DGND
1
AIN0N
2
AIN1N
3
15
Thermal
14
DIN
13
DOUT
AIN2P
5
11
DRDY
CS
SYNC/RESET
AIN3P
AIN3N
10
SCLK
9
12
8
4
7
AIN1P
6
1
20
DVDD
AGND
2
19
DGND
AIN0P
3
18
CAP
AIN0N
4
17
CLKIN
AIN1N
5
16
DIN
AIN1P
6
15
DOUT
CLKIN
Pad
AIN2N
AVDD
16
17
AVDD
DVDD
18
19
20
AGND
5 Pin Configuration and Functions
AIN2P
7
14
SCLK
AIN2N
8
13
DRDY
AIN3N
9
12
CS
AIN3P
10
11
SYNC/RESET
Not to scale
Not to scale
Figure 5-1. RUK Package), 20-Pin WQFN, Top View
Figure 5-2. PW Package, 20-Pin TSSOP, Top View
Table 5-1. Pin Functions
PIN
NAME
NO.
WQFN
TSSOP
AGND
20
2
Supply
AIN0N
2
4
Analog input
Negative analog input 1
AIN0P
1
3
Analog input
Positive analog input 1
AIN1N
3
5
Analog input
Negative analog input 2
AIN1P
4
6
Analog input
Positive analog input 2
AIN2N
6
8
Analog input
Negative analog input 3
AIN2P
5
7
Analog input
Positive analog input 3
AIN3N
7
9
Analog input
Negative analog input 4
AIN3P
8
10
Analog input
Positive analog input 4
AVDD
19
1
Supply
CAP
16
18
Analog output
CLKIN
15
17
Digital input
Master clock input
CS
10
12
Digital input
Chip select; active low
DGND
17
19
Supply
DIN
14
16
Digital input
DOUT
13
15
Digital output
Serial data output
DRDY
11
13
Digital output
Data ready; active low
DVDD
18
20
Supply
SCLK
12
14
Digital input
Serial data clock
SYNC/RESET
9
11
Digital input
Conversion synchronization or system reset; active low
—
—
Thermal pad
(1)
4
DESCRIPTION(1)
I/O
Analog ground
Analog supply. Connect a 1-µF capacitor to AGND.
Digital low-dropout (LDO) regulator output.
Connect a 220-nF capacitor to DGND.
Digital ground
Serial data input
Digital I/O supply. Connect a 1-µF capacitor to DGND.
Thermal pad; connect to AGND
See the Unused Inputs and Outputs section for details on how to connect unused pins.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6 Specifications
6.1 Absolute Maximum Ratings
Power-supply voltage
MIN
MAX
AVDD to AGND
–0.3
3.9
UNIT
V
AGND to DGND
–0.3
0.3
V
DVDD to DGND
–0.3
3.9
V
DVDD to DGND, CAP tied to DVDD
–0.3
2.2
V
CAP to DGND
–0.3
2.2
V
Analog input voltage
AINxP, AINxN
AGND – 1.6
AVDD + 0.3
V
Digital input voltage
CS, CLKIN, DIN, SCLK, SYNC/RESET
DGND – 0.3
DVDD + 0.3
V
Input current
Temperature
Continuous, all pins except power-supply pins
–10
10
Junction, TJ
150
Storage, Tstg
–60
150
mA
°C
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1)
±2000
Charged device model (CDM), per JEDEC specification JESD22-C101(2)
±500
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
5
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.3 Recommended Operating Conditions
over operating ambient temperature range (unless otherwise noted)
MIN
NOM
MAX
AVDD to AGND, normal operating modes
2.7
3.0
3.6
AVDD to AGND, standby and current-detect
modes
2.4
3.0
3.6
AGND to DGND
–0.3
0
0.3
DVDD to DGND
2.7
3.0
3.6
1.65
1.8
2
UNIT
POWER SUPPLY
Analog power supply
Digital power supply
DVDD to DGND, DVDD shorted to CAP
(digital LDO bypassed)
V
V
ANALOG INPUTS(1)
VAINxP,
VAINxN
Absolute input voltage
VIN
Differential input voltage
Gain = 1, 2, or 4
AGND – 1.3
AVDD
Gain = 8, 16, 32, 64 or 128
AGND – 1.3
AVDD – 1.8
VIN = VAINxP - VAINxN
–VREF / Gain
VREF / Gain
V
V
EXTERNAL CLOCK SOURCE
fCLKIN
External clock frequency
High-resolution mode
0.3
8.192
8.4
Low-power mode
0.3
4.096
4.15
Very-low-power mode
0.3
2.048
2.08
40%
50%
60%
Duty cycle
MHz
DIGITAL INPUTS
Input voltage
DGND
DVDD
V
–40
125
°C
TEMPERATURE RANGE
TA
(1)
Operating ambient temperature
The subscript "x" signifies the channel. For example, the positive analog input to channel 0 is named AIN0P. See the Pin
Configurations and Functions section for the pin names.
6.4 Thermal Information
ADS131M04
THERMAL
RθJA
RUK (WQFN)
PW (TSSOP)
20 PINS
20 PINS
Junction-to-ambient thermal resistance
UNIT
94.1
94.9
°C/W
RθJC(top) Junction-to-case (top) thermal resistance
58.1
34.9
°C/W
RθJB
Junction-to-board thermal resistance
64.3
46.4
°C/W
ΨJT
Junction-to-top characterization parameter
31.8
2.7
°C/W
ΨJB
Junction-to-board characterization parameter
58.0
46.0
°C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance
5.9
N/A
°C/W
(1)
6
METRIC(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.5 Electrical Characteristics
minimum and maximum specifications apply from TA = –40°C to +125°C; typical specifications are at TA = 25°C; all
specifications are at AVDD = 3 V, DVDD = 3 V, fCLKIN = 8.192 MHz, data rate = 4 kSPS, and gain = 1 (unless otherwise
noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
ANALOG INPUTS
Input bias current
Gain = 1, 2, or 4, VINP = VINN = 0 V,
IB = (IBP + IBN) / 2
0.6
Input bias current
Gain = 8, 16, 32, 64 or 128, VINP = VINN =
0 V, IB = (IBP + IBN) / 2
0.2
Gain = 1, 2, or 4
300
IB
Zin
Differential input impedance
µA
Gain = 8, 16, 32, 64, or 128
±1
kΩ
(2)
µA/V
ADC CHARACTERISTICS
Resolution
24
Gain settings
1, 2, 4, 8, 16, 32, 64, 128
High-resolution mode, fCLKIN = 8.192 MHz
fDATA
Data rate
Startup time
Bits
250
32k
Low-power mode, fCLKIN = 4.096 MHz
125
16k
Very-low-power mode, fCLKIN = 2.048 MHz
62.5
8k
Measured from supplies at 90% to first
DRDY falling edge
0.5
SPS
ms
ADC PERFORMANCE
INL
Integral nonlinearity (best fit)
6
ppm of
FSR
±175
Offset error (input referred)
Offset drift
Offset error time drift
Global-chop mode, channel 0
±35
Global-chop mode, channels 1-3
±15
300
Global-chop mode
200
1000 hours at 85°C, TSSOP package
4
1000 hours at 85°C, QFN package
4
Gain error
Gain drift
Gain error time drift
CMRR
PSRR
Common-mode rejection
ratio
Power-supply rejection ratio
Input-referred noise
1
Including internal reference
8.5
1000 hours at 85°C, TSSOP package
400
1000 hours at 85°C, QFN package
120
At dc
100
fCM = 50 Hz or 60 Hz
94
AVDD at dc
75
DVDD at dc
88
AVDD supply, fPS = 50 Hz or 60 Hz
78
DVDD supply, fPS = 50 Hz or 60 Hz
85
5.35
During fast-startup
55.0
99
Gain = 64
102
80
All other gain settings
Crosstalk
nV/°C
μV
±0.1%
Gain = 1
Dynamic range
µV
fIN = 50 Hz or 60 Hz
ppm/°C
ppm
dB
dB
µVRMS
dB
See Table 2
–120
dB
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
7
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.5 Electrical Characteristics (continued)
minimum and maximum specifications apply from TA = –40°C to +125°C; typical specifications are at TA = 25°C; all
specifications are at AVDD = 3 V, DVDD = 3 V, fCLKIN = 8.192 MHz, data rate = 4 kSPS, and gain = 1 (unless otherwise
noted)
PARAMETER
SNR
Signal-to-noise ratio
TEST CONDITIONS
MIN
TYP
fIN = 50 Hz or 60 Hz, gain = 1, VIN = –0.5
dBFS,
normalized
100
fIN = 50 Hz or 60 Hz, gain = 64, VIN = –0.5
dBFS,
normalized
79
MAX
UNIT
dB
THD
Total harmonic distortion
fIN = 50 Hz or 60 Hz (up to 50 harmonics),
VIN = –0.5 dBFS
–100
dB
SFDR
Spurious-free dynamic
range
fIN = 50 Hz or 60 Hz (up to 50 harmonics),
VIN = –0.5 dBFS
105
dB
1.2
V
INTERNAL VOLTAGE REFERENCE
VREF
Internal reference voltage
Accuracy
TA = 25°C
±0.1%
Temperature drift
7.5
20 ppm/°C
DIGITAL INPUTS/OUTPUTS
VIL
Logic input level, low
VIH
Logic input level, high
VOL
Logic output level, low
IOL = –1 mA
VOH
Logic output level, high
IOH = 1 mA
IIN
Input current
DGND < VDigital Input < DVDD
DGND
0.2 DVDD
V
0.8 DVDD
DVDD
V
0.2 DVDD
0.8 DVDD
V
V
–1
1
µA
POWER SUPPLY
IAVDD
Analog supply current
IDVDD
Digital supply
current(1)
High-resolution mode
3.5
4.0
Low-power mode
2.0
2.2
Very-low-power mode
1.0
1.2
Current-detect mode
900
Standy mode
0.3
High-resolution mode
0.4
0.5
Low-power mode
0.2
0.3
Very-low-power mode
0.1
0.2
Current-detect mode
65
Standy mode
PD
(1)
(2)
8
Power dissipation
1
High-resolution mode
12
Low-power mode
6.6
Very-low-power mode
3.3
Current-detect mode
2.9
Standy mode
3.9
mA
µA
mA
µA
mW
µW
Currents measured with SPI idle.
Specified in µA/V because current can flow either into or out of the input pin.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.6 Timing Requirements
over operating ambient temperature range, DOUT load: 20 pF || 100 kΩ (unless otherwise noted)
MIN
MAX
UNIT
1.65 V ≤ DVDD ≤ 2.0 V
tw(CLH)
Pulse duration, CLKIN high
49
ns
tw(CLL)
Pulse duration, CLKIN low
49
ns
tc(SC)
SCLK period
64
ns
tw(SCL)
Pulse duration, SCLK low
32
ns
tw(SCH)
Pulse duration, SCLK high
32
ns
td(CSSC)
Delay time, first SCLK rising edge after CS falling edge
16
ns
td(SCCS)
Delay time, CS rising edge after final SCLK falling edge
10
ns
tw(CSH)
Pulse duration, CS high
20
ns
tsu(DI)
Setup time, DIN valid before SCLK falling egde
5
ns
th(DI)
Hold time, DIN valid after SCLK falling edge
8
ns
tw(RSL)
Pulse duration, SYNC/RESET low to generate device reset
tw(SYL)
Pulse duration, SYNC/RESET low for synchronization
tsu(SY)
Setup time, SYNC/RESET valid before CLKIN rising edge
2048
tCLKIN
1
2047
10
tCLKIN
ns
2.7 V ≤ DVDD ≤ 3.6 V
tw(CLL)
Pulse duration, CLKIN low
49
ns
tw(CLH)
Pulse duration, CLKIN high
49
ns
tc(SC)
SCLK period
40
ns
tw(SCL)
Pulse duration, SCLK low
20
ns
tw(SCH)
Pulse duration, SCLK high
20
ns
td(CSSC)
Delay time, first SCLK rising edge after CS falling edge
16
ns
td(SCCS)
Delay time, CS rising edge after final SCLK falling edge
10
ns
tw(CSH)
Pulse duration, CS high
15
ns
tsu(DI)
Setup time, DIN valid before SCLK falling egde
5
ns
th(DI)
Hold time, DIN valid after SCLK falling edge
8
ns
tw(RSL)
Pulse duration, SYNC/RESET low to generate device reset
tw(SYL)
Pulse duration, SYNC/RESET low for synchronization
tsu(SY)
Setup time, SYNC/RESET valid before CLKIN rising edge
2048
tCLKIN
1
2047
10
tCLKIN
ns
6.7 Switching Characteristics
over operating ambient temperature range, DOUT load: 20 pF || 100 kΩ (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
1.65 V ≤ DVDD ≤ 2.0 V
tp(CSDO)
Propagation delay time, CS falling edge to
DOUT driven
50
ns
tp(SCDO)
Progapation delay time, SCLK rising edge to
valid new DOUT
32
ns
tp(CSDOZ)
Propagation delay time, CS rising edge to DOUT
high impedance
75
ns
tw(DRH)
Pulse duration, DRDY high
tw(DRL)
Pulse duration, DRDY low
SPI timeout
tPOR
Power-on-reset time
4
tCLKIN
4
tCLKIN
32768
Measured from supplies at
90%
tREGACQ Register default acquisition time
tCLKIN
250
µs
5
µs
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
9
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.7 Switching Characteristics (continued)
over operating ambient temperature range, DOUT load: 20 pF || 100 kΩ (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
2.7 V ≤ DVDD ≤ 3.6 V
tp(CSDO)
Propagation delay time, CS falling edge to
DOUT driven
50
ns
tp(SCDO)
Progapation delay time, SCLK rising edge to
valid new DOUT
20
ns
tp(CSDOZ)
Propagation delay time, CS rising edge to DOUT
high impedance
75
ns
tw(DRH)
Pulse duration, DRDY high
4
tCLKIN
tw(DRL)
Pulse duration, DRDY low
4
tCLKIN
SPI timeout
tPOR
32768
Measured from supplies at
90%
Power-on-reset time
tREGACQ Register default acquisition time
tCLKIN
250
µs
5
µs
6.8 Timing Diagrams
tw(CLH)
tw(CLL)
CLKIN
tw(DRL)
DRDY
tw(DRH)
§
CS
tw(SCL)
td(CSSC)
td(SCCS)
tc(SC)
tw(SCH)
tw(CSH)
§
SCLK
tsu(DI)
th(DI)
§ §
DIN
tp(CSDO)
tp(SCDO)
DOUT
MSB - 1
tw(CSDOZ)
§ §
MSB
LSB + 1
LSB
SPI settings are CPOL = 0 and CPHA = 1. CS transitions must take place when SCLK is low.
Figure 6-1. SPI Timing Diagram
§
CLKIN
tsu(SY)
tw(SYL)
tw(RSL)
§
SYNC/RESET
Figure 6-2. SYNC/ RESET Timing Requirements
Supplies
90%
tPOR
DRDY
Figure 6-3. Power-On-Reset Timing
10
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.9 Typical Characteristics
at TA = 25°C, AVDD = 3 V, DVDD = 3 V, fCLKIN = 8.192 MHz, data rate = 4 kSPS, and gain = 1 with global chop mode
disabled (unless otherwise noted)
350
100
HR Mode
LP Mode
VLP Mode
VLP Mode
LP Mode
HR Mode
50
30
20
250
Zin (M:)
Input Offset Current (nA)
300
200
150
10
5
3
2
100
1
50
0.5
0
0.3
0.2
8
16
32
Gain
64
128
1
2
4
8
16
32
64
128
Gain
Gains of 8, 16, 32, 64, and 128 only
Figure 6-4. Input Offset Current vs Gain
Figure 6-5. Input Impedance vs Gain
4
120
2
94
0
81
80
-2
Vin (V)
Occurances
100
60
-6
40
-8
24
20
-10
357.8
Time (Ps)
357.5
357.2
1
356.9
0
-4
ADS1
Ta = -40
Ta = 25
Ta = 125
-12
-1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 0.75
INL (LSB)
1
1.25
Figure 6-7. INL vs VIN
Figure 6-6. Startup Time Histogram
350
200
Input Offset Voltage (PV)
Input Offset Voltage (PV)
300
250
200
150
100
180
160
140
120
50
0
1
2
4
8
16
32
64
128
100
-40
-20
Gain
0
20
40
60
80
Temperature (qC)
100
120
140
ADS1
30 units, channel 1
Figure 6-8. Input Offset Voltage vs Gain
Figure 6-9. Input Offset Voltage vs Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
11
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.9 Typical Characteristics (continued)
at TA = 25°C, AVDD = 3 V, DVDD = 3 V, fCLKIN = 8.192 MHz, data rate = 4 kSPS, and gain = 1 with global chop mode
disabled (unless otherwise noted)
0
0
18 units, all channels
18 units, all channels
-25
Gain Error (ppm)
-200
-300
-400
-50
-75
-100
-125
-500
-150
-600
0
200
400
600
Time (Hours)
800
0
1000
Figure 6-10. Gain Error vs Time (TSSOP Package)
0
200
400
600
Time (Hours)
100
Humidity (%)
80
-600
60
-900
40
18 units, all channels
-1500
20
40
Time (Hours)
150
20
0
80
60
Gain Error (ppm)
-300
Relative Humidity (%)
Gain Error (ppm)
Humidity (%)
0
80
18 units, all channels
0
60
-150
40
-300
20
-450
0
Figure 6-12. Gain Error vs Humidity (TSSOP Package)
20
40
Time (Hours)
0
80
60
Figure 6-13. Gain Error vs Humidity (WQFN Package)
0.2
115
0.1
0.05
0
-0.05
Gain
1
2
4
8
16
32
64
128
110
DC CMRR (dB)
Gain
1
2
4
8
16
32
64
128
0.15
Gain Error (%)
1000
Figure 6-11. Gain Error vs Time (WQFN Package)
300
100
-1200
800
Relative Humidity (%)
Gain Error (ppm)
-100
105
100
95
-0.1
90
-0.15
-0.2
-40
-20
0
20
40
60
80 100
Temperature (qC)
120
140
160
85
-40
-20
0
20
40
60
80
Temperature
100 120 140 160
ADS1
Includes internal reference error
Figure 6-14. Gain Error vs Temperature
12
Figure 6-15. DC CMRR vs Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.9 Typical Characteristics (continued)
at TA = 25°C, AVDD = 3 V, DVDD = 3 V, fCLKIN = 8.192 MHz, data rate = 4 kSPS, and gain = 1 with global chop mode
disabled (unless otherwise noted)
110
110
DC CMRR (dB)
106
104
102
100
98
96
109
108
AVDD CMRR (dB)
Gain
1
2
4
8
16
32
64
128
108
107
106
105
104
103
94
102
92
101
90
2.7
2.8
2.9
3
3.1 3.2 3.3 3.4
AVDD Voltage (V)
3.5
3.6
3.7
100
10
3.8
20 30 50 70100 200
500 1000 2000
Frequency (Hz)
ADS1
Figure 6-16. DC CMRR vs AVDD
5000 10000
ADS1
Figure 6-17. AVDD CMRR vs Frequency
120
110
109
110
AVDD DC PSRR (dB)
AC AVDD CMRR (dB)
108
107
106
105
104
103
102
100
90
80
70
101
100
2.7
2.8
2.9
3
3.1
3.2
3.3
AVDD Voltage (V)
3.4
3.5
60
-40
3.6
Figure 6-18. AC CMRR vs AVDD
Number of Occurrences
DC DVDD PSRR (dB)
105
100
95
90
85
-20
0
20
40
60
80
Temperature (qC)
0
100
20
40
60
80
Temperature (qC)
100
120
140
Figure 6-19. DC AVDD PSRR vs Temperature
110
80
-40
-20
ADS1
120
140
15000
14000
13000
12000
11000
10000
9000
8000
7000
6000
5000
4000
3000
2000
1000
0
-24
ADS1
-18
-12
-6
0
6
12
Input Referred Voltage (PV)
18
24
Gain = 1, inputs shorted
Figure 6-20. DC DVDD PSRR vs Temperature
Figure 6-21. Single Device Noise Histogram at 4 kSPS
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
13
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.9 Typical Characteristics (continued)
at TA = 25°C, AVDD = 3 V, DVDD = 3 V, fCLKIN = 8.192 MHz, data rate = 4 kSPS, and gain = 1 with global chop mode
disabled (unless otherwise noted)
6.2
33000
Channel
Channel
Channel
Channel
30000
6
24000
5.8
21000
Noise (PVrms)
Number of Occurances
27000
18000
15000
12000
9000
0
1
2
3
5.6
5.4
5.2
6000
5
3000
0
-100
-80
-60
-40 -20
0
20
40
Input Referred Voltage (PV)
60
80
4.8
-40
100
-20
0
20
40
60
80
Temperature (qC)
100
120
140
Gain = 1, inputs shorted
Figure 6-22. Single Device Noise Histogram at 32 kSPS
Figure 6-23. Noise vs Temperature
110
110
HR Mode
LP Mode
VLP Mode
100
Dynamic Range (dB)
Dynamic Range (dB)
100
90
80
Channel
0
1
2
3
70
90
80
70
60
60
1
2
4
8
16
32
64
128
Gain
1
8
16
32
64
128
ADS1
Figure 6-25. Dynamic Range vs Gain
-100
120
110
-105
100
90
-110
80
70
Crosstalk (dB)
Dynamic Range (dB)
4
Gain
Figure 6-24. Dynamic Range at 4 kSPS vs Gain
OSR
128
256
512
1024
2048
4096
8192
16384
60
50
40
30
20
10
1
2
-115
-120
-125
-130
-135
0
4
8
16
32
64
Gain
128
-140
0
1
2
3
Channel
ADS1
Figure 6-26. Dynamic Range vs Gain
14
2
ADS1
Figure 6-27. Crosstalk vs Channel
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
6.9 Typical Characteristics (continued)
at TA = 25°C, AVDD = 3 V, DVDD = 3 V, fCLKIN = 8.192 MHz, data rate = 4 kSPS, and gain = 1 with global chop mode
disabled (unless otherwise noted)
-100
-80
OSR
16384
8192
4096
2048
1024
512
265
128
THD (dB)
-90
-95
-100
-102.5
-105
THD (dB)
-85
Channel
0
1
2
3
-107.5
-110
-105
-112.5
-110
-115
2.7
-115
1
2
4
8
16
32
64
128
Gain
2.8
3
3.1
3.2
3.3
AVDD Voltage (V)
3.4
3.5
3.6
Figure 6-29. THD vs AVDD
Figure 6-28. THD vs Gain
3.5
5
HR Mode
LP Mode
VLP Mode
4.5
3
AVDD Current (mA)
4
AVDD Current (mA)
2.9
ADS1
3.5
3
2.5
2
1.5
1
2.5
2
1.5
HR Mode
LP Mode
VLP Mode
1
0.5
0.5
0
1
2
4
8
16
32
64
128
Gain
0
1
2
3
4
5
Frequency (MHz)
ADS1
Figure 6-30. AVDD Current vs Gain
6
7
8 8.5
ADS1
Figure 6-31. AVDD Current vs CLKIN Frequency
400
DVDD Current (PA)
350
300
250
200
150
100
HR Mode
LP Mode
VLP Mode
50
0
0
1
2
3
4
5
Frequency (MHz)
6
7
8 8.5
ADS1
Figure 6-32. DVDD Current vs CLKIN Frequency
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
15
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
7 Parameter Measurement Information
7.1 Noise Measurements
Adjust the data rate and gain to optimize the ADS131M04 noise performance. When averaging is increased by
reducing the data rate, noise drops correspondingly. Table 7-1 summarizes the ADS131M04 noise performance
using the 1.2-V internal reference and a 3.0-V analog power supply. The data are representative of typical noise
performance at TA = 25°C when fCLKIN = 8.192 MHz. The modulator clock frequency fMOD = fCLKIN / 2. The data
shown are typical input-referred noise results with the analog inputs shorted together and taking an average of
multiple readings across all channels. A minimum 1 second of consecutive readings are used to calculate the
RMS noise for each reading. Table 7-2 shows the dynamic range and effective resolution calculated from the
noise data. Equation 1 calculates dynamic range. Equation 2 calculates effective resolution. In each case, VREF
corresponds to the internal 1.2-V reference. In global-chop mode, noise is improved by a factor of √ 2.
The noise performance scales with the OSR and gain settings, but is independent from the configured power
mode. Thus, the device exhibits the same noise performance in different power modes when selecting the same
OSR and gain settings. However, the data rate at the OSR settings scales based on the applied clock frequency
for the different power modes.
§
·
VREF
Dynamic Range = 20 u log ¨
¸¸
¨ 2 u Gain u V
RMS ¹
©
(1)
§ 2 u VREF ·
Effective Resolution = log2 ¨
¸
© Gain u VRMS ¹
(2)
Table 7-1. Noise (µVRMS) at TA = 25°C
GAIN
OSR
DATA RATE (kSPS),
fCLKIN = 8.192 MHz
1
2
4
8
16
32
64
128
16384
0.25
1.90
1.69
1.56
0.95
0.64
0.42
0.42
0.42
8192
0.5
2.39
2.13
2.13
1.29
0.86
0.57
0.57
0.57
4096
1
3.38
2.99
2.88
1.74
1.17
0.77
0.77
0.77
2048
2
4.25
3.91
3.79
2.27
1.52
1.00
1.00
1.00
1024
4
5.35
4.68
4.52
2.70
1.82
1.20
1.20
1.20
512
8
7.56
6.62
6.37
3.82
2.55
1.69
1.69
1.69
256
16
10.68
9.56
9.09
5.42
3.63
2.39
2.39
2.40
128
32
21.31
15.26
13.52
7.89
5.21
3.41
3.42
3.42
64
128
Table 7-2. Dynamic Range (Effective Resolution) at TA = 25°C
16
GAIN
OSR
DATA RATE (kSPS),
fCLKIN = 8.192 MHz
1
2
16384
0.25
113 (20.3)
8192
0.5
111 (19.9)
4096
1
2048
2
1024
512
4
8
108 (19.4)
103 (18.6)
101 (18.3)
98 (17.8)
96 (17.5)
90 (16.5)
84 (15.4)
106 (19.1)
100 (18.1)
98 (17.8)
96 (17.4)
93 (17.0)
87 (16.0)
81 (15.0)
108 (19.4)
103 (18.6)
97 (17.7)
96 (17.4)
93 (17.0)
91 (16.6)
85 (15.6)
79 (14.6)
106 (19.1)
101 (18.2)
95 (17.3)
93 (17.0)
91 (16.6)
88 (16.2)
82 (15.2)
76 (14.2)
4
104 (18.8)
99 (18.0)
93 (17.0)
92 (16.8)
89 (16.3)
87 (15.9)
81 (14.9)
75 (13.9)
8
101 (18.3)
96 (17.5)
90 (16.5)
89 (16.3)
86 (15.8)
84 (15.4)
78 (14.4)
72 (13.4)
256
16
98 (17.8)
93 (16.9)
87 (16.0)
86 (15.8)
83 (15.3)
81 (14.9)
75 (13.9)
69 (12.9)
128
32
92 (16.8)
89 (16.3)
84 (15.4)
83 (15.2)
80 (14.8)
78 (14.4)
72 (13.4)
65 (12.4)
Submit Document Feedback
16
32
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8 Detailed Description
8.1 Overview
The ADS131M04 is a low-power, four-channel, simultaneously sampling, 24-bit, delta-sigma (ΔΣ) analog-todigital converter (ADC) with a low-drift internal reference voltage. The dynamic range, size, feature set, and
power consumption are optimized for cost-sensitive applications requiring simultaneous sampling.
The ADS131M04 requires both analog and digital supplies. The analog power supply (AVDD – AGND) can
operate between 2.7 V and 3.6 V. An integrated negative charge pump allows absolute input voltages as low as
1.3 V below AGND, which enables measurements of input signals varying around ground with a single-ended
power supply. The digital power supply (DVDD – DGND) accepts both 1.8-V and 3.3-V supplies. The device
features a programmable gain amplifier (PGA) with gains up to 128. An integrated input precharge buffer
enabled at gains greater than 4 ensures high input impedance at high PGA gain settings. The ADC receives its
reference voltage from an integrated 1.2-V reference. The device allows differential input voltages as large as
the reference. Three power-scaling modes allow designers to trade power consumption for ADC dynamic range.
Each channel on the ADS131M04 contains a digital decimation filter that demodulates the output of the ΔΣ
modulators. The filter enables data rates as high as 32 kSPS per channel in high-resolution mode. The relative
phase of the samples can be configured between channels, thus enabling an accurate compensation for the
sensor phase response. Offset and gain calibration registers can be programmed to automatically adjust output
samples for measured offset and gain errors. The Functional Block Diagram provides a detailed diagram of the
ADS131M04.
The device communicates via a serial programming interface (SPI)-compatible interface. Several SPI commands
and internal registers control the operation of the ADS131M04. Other devices can be added to the same SPI bus
by adding discrete CS control lines. The SYNC/RESET pin can be used to synchronize conversions between
multiple ADS131M04 devices as well as to maintain synchronization with external events.
8.2 Functional Block Diagram
AVDD
DVDD
1.2-V
Reference
AIN0P
+
AIN0N
±
'6 ADC
Phase Shift &
Digital Filters
Gain & Offset
Calibration
SYNC / RESET
AIN1P
+
AIN1N
±
'6 ADC
Phase Shift &
Digital Filters
Gain & Offset
Calibration
CS
SCLK
Control &
Serial Interface
DIN
DOUT
AIN2P
+
AIN2N
±
AIN3P
+
AIN3N
'6 ADC
Phase Shift &
Digital Filters
Gain & Offset
Calibration
'6 ADC
Phase Shift &
Digital Filters
Gain & Offset
Calibration
±
AGND
DRDY
Clock
Generation
CLKIN
DGND
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
17
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.3 Feature Description
8.3.1 Input ESD Protection Circuitry
Basic electrostatic discharge (ESD) circuitry protects the ADS131M04 inputs from ESD and overvoltage events
in conjunction with external circuits and assemblies. Figure 8-1 depicts a simplified representation of the ESD
circuit. The protection for input voltages exceeding AVDD can be modeled as a simple diode.
AVDD
AINnP
To analog inputs
AINnN
AVDD
Figure 8-1. Input ESD Protection Circuitry
The ADS131M04 has an integrated negative charge pump that allows for input voltages below AGND with a
unipolar supply. Consequently, shunt diodes between the inputs and AGND cannot be used to clamp excessive
negative input voltages. Instead, the same diode that clamps overvoltage is used to clamp undervoltage at its
reverse breakdown voltage. Take care to prevent input voltages or currents from exceeding the limits provided in
the Absolute Maximum Ratings table in the Specifications section.
8.3.2 Input Multiplexer
Each channel of the ADS131M04 has a dedicated input multiplexer. The multiplexer controls which signals are
routed to the ADC channels. Configure the input multiplexer using the MUXn[1:0] bits in the CHn_CFG register.
The input multiplexer allows the following inputs to be connected to the ADC channel:
• The analog input pins corresponding to the given channel
• AGND, which is helpful for offset calibration
• Positive DC test signal
• Negative DC test signal
See the Internal Test Signals section for more information about the test signals. Figure 8-2 shows a diagram of
the input multiplexer on the ADS131M04.
MUXn[1:0] = 00
SW
To Positive
PGA Input
AINnP
MUXn[1:0] = 10
SW
MUXn[1:0] = 11
SW
+
DC Test
Signal
±
AGND
SW
SW
MUXn[1:0] = 01
SW
SW
SW
MUXn[1:0] = 01
MUXn[1:0] = 10
AINnN
To Negative
PGA Input
MUXn[1:0] = 00
Figure 8-2. Input Multiplexer
18
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.3.3 Programmable Gain Amplifier (PGA)
Each channel of the ADS131M04 features an integrated programmable gain amplifier (PGA) that provides gains
of 1, 2, 4, 8, 16, 32, 64, and 128. The gains for all channels are individually controlled by the PGAGAINn bits for
each channel in the GAIN1 register.
Varying the PGA gain scales the differential full-scale input voltage range (FSR) of the ADC. Equation 3
describes the relationship between FSR and gain. Equation 3 uses the internal reference voltage, 1.2 V, as the
scaling factor without accounting for gain error caused by tolerance in the reference voltage.
FSR = ±1.2 V / Gain
(3)
Table 8-1 shows the corresponding full-scale ranges for each gain setting.
Table 8-1. Full-Scale Range
GAIN SETTING
FSR
1
±1.2 V
2
±600 mV
4
±300 mV
8
±150 mV
16
±75 mV
32
±37.5 mV
64
±18.75 mV
128
±9.375 mV
The input impedance of the PGA dominates the input impedance characteristics of the ADS131M04. The PGA
input impedance for gain settings up to 4 behaves according to Equation 4 without accounting for device
tolerance and change over temperature. Minimize the output impedance of the circuit that drives the
ADS131M04 inputs to obtain the best possible gain error, INL, and distortion performance.
330 kΩ × 4.096 MHz / fMOD
(4)
where:
•
fMOD is the ΔΣ modulator frequency, fCLKIN / 2
The device uses an input precharge buffer for PGA gain settings of 8 and higher. The input impedance at these
gain settings is very high. Specifying the input bias current for these gain settings is therefore more useful. A plot
of input bias current for the high gain settings is provided in Figure 6-5.
8.3.4 Voltage Reference
The ADS131M04 uses an internally-generated, low-drift, band-gap voltage to supply the reference for the ADC.
The reference has a nominal voltage of 1.2 V, allowing the differential input voltage to swing from –1.2 V to 1.2 V.
The reference circuitry starts up very quickly to accommodate the fast-startup feature of this device. The device
waits until after the reference circuitry is fully settled before generating conversion data.
8.3.5 Clocking and Power Modes
An LVCMOS clock must be provided at the CLKIN pin continuously when the ADS131M04 is running in normal
operation. The frequency of the clock can be scaled in conjunction with the power mode to provide a tradeoff
between power consumption and dynamic range.
The PWR[1:0] bits in the CLOCK register allow the device to be configured in one of three power modes: highresolution (HR) mode, low-power (LP) mode, and very low-power (VLP) mode. Changing the PWR[1:0] bits
scales the internal bias currents to achieve the expected power levels. The external clock frequency must follow
the guidance provided in the Recommended Operating Conditions table in the Specifications section
corresponding to the intended power mode in order for the device to perform according to the specification.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
19
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.3.6 ΔΣ Modulator
The ADS131M04 uses a delta-sigma (ΔΣ) modulator to convert the analog input voltage to a one's density
modulated digital bit-stream. The ΔΣ modulator oversamples the input voltage at a frequency many times
greater than the output data rate. The modulator frequency, fMOD, of the ADS131M04 is equal to half the master
clock frequency, that is, fMOD = fCLKIN / 2.
The output of the modulator is fed back to the modulator input through a digital-to-analog converter (DAC) as a
means of error correction. This feedback mechanism shapes the modulator quantization noise in the frequency
domain to make the noise more dense at higher frequencies and less dense in the band of interest. The digital
decimation filter following the ΔΣ modulator significantly attenuates the out-of-band modulator quantization
noise, allowing the device to provide excellent dynamic range.
8.3.7 Digital Filter
The ΔΣ modulator bit-stream feeds into a digital filter. The digital filter is a linear phase, finite impulse response
(FIR), low-pass sinc-type filter that attenuates the out-of-band quantization noise of the ΔΣ modulator. The digital
filter demodulates the output of the ΔΣ modulator by averaging. The data passing through the filter is decimated
and downsampled, to reduce the rate at which data come out of the modulator (fMOD) to the output data rate
(fDATA). The decimation factor is defined as per Equation 5 and is called the oversampling ratio (OSR).
OSR = fMOD / fDATA
(5)
The OSR is configurable and set by the OSR[2:0] bits in the CLOCK register. There are eight OSR settings in
the ADS131M04, allowing eight different data rate settings for any given master clock frequency. Table 8-2 lists
the OSR settings and their corresponding output data rates for the nominal CLKIN frequencies mentioned.
The OSR determines the amount of averaging of the modulator output in the digital filter and therefore also the
filter bandwidth. The filter bandwidth directly affects the noise performance of the ADC because lower bandwidth
results in lower noise whereas higher bandwidth results in higher noise. See Table 7-1 for the noise
specifications for various OSR settings.
20
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Table 8-2. OSR Settings and Data Rates for Nominal Master Clock Frequencies
POWER MODE
NOMINAL MASTER CLOCK
FREQUENCY
HR
fMOD
8.192 MHz
LP
4.096 MHz
4.096 MHz
VLP
2.048 MHz
2.048 MHz
1.024 MHz
OSR
OUTPUT DATA RATE
128
32 kSPS
256
16 kSPS
512
8 kSPS
1024
4 kSPS
2048
2 kSPS
4096
1 kSPS
8192
500 SPS
16384
250 SPS
128
16 kSPS
256
8 kSPS
512
4 kSPS
1024
2 kSPS
2048
1 kSPS
4096
500 SPS
8192
250 SPS
16384
125 SPS
128
8 kSPS
256
4 kSPS
512
2 kSPS
1024
1 kSPS
2048
500 SPS
4096
250 SPS
8192
125 SPS
16384
62.5 SPS
8.3.7.1 Digital Filter Implementation
Figure 8-3 shows the digital filter implementation of the ADS131M04. The modulator bit-stream feeds two
parallel filter paths, a sinc3 filter, and a fast-settling filter path.
PHASEx[9:0]
OSR[2:0]
Phase
Delay
Sinc3
Regular
Filter
Modulator
Bitstream
Power-up
or
Reset
0
MUX
Fast-Settling Filter
265 ” 1024
Sinc1 Averager
(OSR>1024)
OSR[2:0]
1
0
MUX
Global
Chop
Logic
Calibration
Logic,
Gain scaling
1
PGA_GAINx[2:0]
OSR = 1024
Figure 8-3. Digital Filter Implementation
8.3.7.1.1 Fast-Settling Filter
At power-up or after a device reset, the ADS131M04 selects the fast-settling filter to allow for settled output data
generation with minimal latency. The fast-settling filter has the characteristic of a first-order sinc filter (sinc1).
After two conversions, the device switches to and remains in the sinc3 filter path until the next time the device is
reset or powered cycled.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
21
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
The fast-settling filter exhibits wider bandwidth and less stop-band attenuation than the sinc3 filter. Consequently,
the noise performance when using the fast-settling filter is not as high as with the sinc3 filter. The first two
samples available from the ADS131M04 after a supply ramp or reset have the noise performance and frequency
response corresponding to the fast-settling filter as specified in the Electrical Characteristics table, whereas
subsequent samples have the noise performance and frequency response consistent with the sinc3 filter. See
the Fast Startup Behavior section for more details regarding the fast startup capabilities of the ADS131M04.
8.3.7.1.2 SINC3 and SINC3 + SINC1 Filter
The ADS131M04 selects the sinc3 filter path two conversion after power-up or device reset. For OSR settings of
128 to 1024 the sinc3 filter output directly feeds into the global chop and calibration logic. For OSR settings of
2048 and higher the sinc3 filter is followed by a sinc1 filter. As shown in Table 8-3, the sinc3 filter operates at a
fixed OSR of 1024 in this case while the sinc1 filter implements the additional OSRs of 2 to 16. That means when
an OSR of 4096 (for example) is selected, the sinc3 filter operates at an OSR of 1024 and the sinc1 filter at an
OSR of 4.
The filter has infinite attenuation at integer multiples of the data rate except for integer multiples of fMOD. Like all
digital filters, the digital filter response of the ADS131M04 repeats at integer multiples of the modulator
frequency, fMOD. The data rate and filter notch frequencies scale with fMOD.
When possible, plan frequencies for unrelated periodic processes in the application for integer multiples of the
data rate such that any parasitic effect they have on data acquisition is effectively cancelled by the notches of
the digital filter. Avoid frequencies near integer multiples of fMOD whenever possible because tones in these
bands can alias to the band of interest.
The sinc3 and sinc3 + sinc1 filters for a given channel require time to settle after a channel is enabled, the
channel multiplexer or gain setting is changed, or a resynchronization event occurs. See the Synchronization
section for more details on resynchronization. Table 8-3 lists the settling times of the sinc3 and sinc3 + sinc1
filters for each OSR setting. The ADS131M04 does not gate unsettled data. Therefore, the host must account for
the filter settling time and disregard unsettled data if any are read. The data at the next DRDY falling edge after
the filter settling time listed in Table 8-3 has expired can be considered fully settled.
Table 8-3. Digital Filter Startup Times after powerup or resynchronization
OSR (OVERALL)
OSR (SINC3)
OSR (SINC1)
SETTLING TIME (tCLKIN)
128
128
N/A
856
256
256
N/A
1112
512
512
N/A
1624
1024
1024
N/A
2648
2048
1024
2
4696
4096
1024
4
8792
8192
1024
8
16984
16384
1024
16
33368
8.3.7.2 Digital Filter Characteristic
Equation 6 calculates the z-domain transfer function of a sinc3 filter that is used for OSRs of 1024 and lower.
3
H z
1
N1
Z
N
Z
1
(6)
where N is the OSR.
Equation 7 calculates the transfer function of a sinc3 filter in terms of the continuous-time frequency parameter f.
22
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Npf
fMOD
sin
½H(f)½ =
N ´ sin
3
pf
fMOD
(7)
where N is the OSR.
Figure 8-4 through Figure 8-7 show the digital filter response of the fast-settling filter and the sinc3 filter for OSRs
of 1024 and lower. Figure 8-6 and Figure 8-7 show the digital filter response of the sinc3 + sinc1 filter for an OSR
of 4096.
0
0
-20
-1.5
-3
Magnitude (dB)
Magnitude (dB)
-40
-60
-80
-100
-4.5
-6
-7.5
-9
-120
-10.5
Fast-settling filter
Sinc3 filter
-140
0
1
2
3
Frequency (fIN/fDATA)
4
0
5
Figure 8-4. Fast-Settling and Sinc3 Digital Filter
Response
0
0.1
0.2
0.3
Frequency (fIN/fDATA)
0.4
0.5
Figure 8-5. Fast-Settling and Sinc3 Digital Filter
Response, Pass-Band Detail
0
Sinc3 filter (1024)
Sinc3 + Sinc1 filter
-20
Fast-settling filter
Sinc3 filter
-12
-2
Magnitude (dB)
Magnitude (dB)
-40
-60
-80
-100
-4
-6
-8
-10
-120
-140
0
1
2
3
4
5
6
7
8
Frequency (fIN/fDATA)
9
10
11
12
Figure 8-6. Digital Filter Response for OSR = 1024
and OSR = 4096
Sinc3 filter (1024)
Sinc3 + Sinc1 filter
-12
0
0.1
0.2
0.3
Frequency (fIN/fDATA)
0.4
0.5
Figure 8-7. Digital Filter Response for OSR = 1024
and OSR = 4096, Pass-Band Detail
8.3.8 DC Block Filter
The ADS131M04 includes an optional high-pass filter to eliminate any systematic offset or low-frequency noise.
The filter is enabled by writing any value in the DCBLOCK[3:0] bits in the CD_TH_LSB register besides 0h. The
DC block filter can be enabled and disabled on a channel-by-channel basis by the DCBLKn_DIS bit in the
CHn_CFG register for each respective channel.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
23
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Figure 8-8 shows the topology of the DC block filter. Coefficient a represents a register configurable value that
configures the cutoff frequency of the filter. The cutoff frequency is configured using the DCBLOCK[3:0] bits in
the CD_TH_LSB register. Table 8-4 describes the characteristics of the filter for various DCBLOCK[3:0] settings.
The data provided in Table 8-4 is provided for an 8.192-MHz CLKIN frequency and a 4-kSPS data rate. The
frequency response of the filter response scales directly with the frequency of CLKIN and the data rate.
Input
1Å
z-1
1-z-1
a
2
Output
ÅD
Figure 8-8. DC Block Filter Topology
Table 8-4. DC Block Filter Characteristics
DCBLOCK[3:0] a COEFFICIENT
–3-dB
CORNER(1)
0h
(1)
PASS-BAND ATTENUATION(1)
50 Hz
60 Hz
SETTLING TIME (Samples)
SETTLED >99%
FULLY SETTLED
DC block filter disabled
1h
1/4
181 Hz
11.5 dB
10.1 dB
17
88
2h
1/8
84.8 Hz
5.89 dB
4.77 dB
36
187
3h
1/16
41.1 Hz
2.24 dB
1.67 dB
72
387
4h
1/32
20.2 Hz
657 mdB
466 mdB
146
786
5h
1/64
10.0 Hz
171 mdB
119 mdB
293
1585
6h
1/128
4.99 Hz
43.1 mdB
29.9 mdB
588
3182
7h
1/256
2.49 Hz
10.8 mdB
7.47 mdB
1178
6376
8h
1/512
1.24 Hz
2.69 mdB
1.87 mdB
2357
12764
9h
1/1024
622 mHz
671 µdB
466 µdB
4714
25540
Ah
1/2048
311 mHz
168 µdB
116 µdB
9430
51093
Bh
1/4096
155 mHz
41.9 µdB
29.1 µdB
18861
102202
Ch
1/8192
77.7 mHz
10.5 µdB
7.27 µdB
37724
204447
Dh
1/16384
38.9 mHz
2.63 µdB
1.82 µdB
75450
409156
Eh
1/32768
19.4 mHz
655 ndB
455 ndB
150901
820188
Fh
1/65536
9.70 mHz
164 ndB
114 ndB
301803
1627730
Values given are for a 4-kSPS data rate with a 8.192-MHz CLKIN frequency.
8.3.9 Internal Test Signals
The ADS131M04 features an internal analog test signal that is useful for troubleshooting and diagnosis. A
positive or negative DC test signal can be applied to the channel inputs through the input multiplexer. The
multiplexer is controlled through the MUXn[1:0] bits in the CHn_CFG register. The test signals are created by
internally dividing the reference voltage. The same signal is shared by all channels.
The test signal is nominally 2 / 15 × VREF. The test signal automatically adjusts its voltage level with the gain
setting such that the ADC always measures a signal that is 2 / 15 × VDiff Max. For example, at a gain of 1, this
voltage equates to 160 mV. At a gain of 2, this voltage is 80 mV.
8.3.10 Channel Phase Calibration
The ADS131M04 allows fine adjustment of the sample phase between channels through the use of channel
phase calibration. This feature is helpful when different channels are measuring the outputs of different types of
sensors that have different phase responses. For example, in power metrology applications, voltage can be
measured by a voltage divider, whereas current is measured using a current transformer that exhibits a phase
difference between its input and output signals. The differences in phase between the voltage and current
measurement must be compensated to measure the power and related parameters accurately.
24
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
The phase setting of the different channels is configured by the PHASEn[9:0] bits in the CHn_CFG register
corresponding to the channel whose phase adjustment is desired. The register value is a 10-bit two's
complement value corresponding to the number of modulator clock cycles of phase offset compared to a
reference phase of 0 degrees.
The mechanism for achieving phase adjustment derives from the ΔΣ architecture. The ΔΣ modulator produces
samples continuously at the modulator frequency, fMOD. These samples are filtered and decimated to the output
data rate by the digital filter. The ratio between fMOD and the data rate is the oversampling ratio (OSR). Each
conversion result corresponds to an OSR number of modulator samples provided to the digital filter. When the
different channels of the ADS131M04 have no programmed phase offset between them, the modulator clock
cycles corresponding to the conversion results of the different channels are aligned in the time domain. Figure
8-9 depicts an example scenario where the voltage input to channel 1 has no phase offset from channel 0.
Sample
Period
CH0 Input
CH1 Input
Figure 8-9. Two Channel Outputs With Equal Phase Settings
However, the sample period of one channel can be shifted with respect to another. If the inputs to both channels
are sinusoids of the same frequency and the samples for these channels are retrieved by the host at the same
time, the effect is that the phase of the channel with the modified sample period appears shifted. Figure 8-10
depicts how the period corresponding to the samples are shifted between channels. Figure 8-11 illustrates how
the samples appear as having generated a phase shift when they are retrieved by the host.
Sample
Period
CH0 Input
CH1 Input
Sample Period
Offset
Figure 8-10. Channel 1 With a Positive Sample Phase Shift With Respect to Channel 0
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
25
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
CH0 Output
CH1 Output
Figure 8-11. Channels 1 and 0 From the Perspective of the Host
The valid setting range is from –OSR / 2 to (OSR / 2) – 1, except for OSRs greater than 1024, where the phase
calibration setting is limited to –512 to 511. If a value outside of –OSR / 2 and (OSR / 2) – 1 is programmed, the
device internally clips the value to the nearest limit. For example, if the OSR setting is programmed to 128 and
the PHASEn[9:0] bits are programmed to 0001100100b corresponding to 100 modulator clock cycles, the device
sets the phase of the channel to 63 because that value is the upper limit of phase calibration for that OSR
setting. Table 8-5 gives the range of phase calibration settings for various OSR settings.
Table 8-5. Phase Calibration Setting Limits for Different OSR Settings
OSR SETTING
PHASE OFFSET RANGE (tMOD)
PHASEn[9:0] BITS RANGE
128
–64 to 63
11 1100 0000b to 00 0011 1111b
256
–128 to 127
11 1000 0000b to 00 0111 1111b
512
–256 to 255
11 0000 0000b to 00 1111 1111b
1024
–512 to 511
10 0000 0000b to 01 1111 1111b
2048
–512 to 511
10 0000 0000b to 01 1111 1111b
4096
–512 to 511
10 0000 0000b to 01 1111 1111b
8192
–512 to 511
10 0000 0000b to 01 1111 1111b
16384
–512 to 511
10 0000 0000b to 01 1111 1111b
Follow these steps to create a phase shift larger than half the sample period for OSRs less than 2048:
• Create a phase shift corresponding to an integer number of sample periods by modifying the indices between
channel data in software
• Use the phase calibration function of the ADS131M04 to create the remaining fractional sample period phase
shift
For example, to create a phase shift of 2.25 samples between channels 0 and 1, create a phase shift of two
samples by aligning sample N in the channel 0 output data stream with sample N+2 in the channel 1 output data
stream in the host software. Make the remaining 0.25 sample adjustment using the ADS131M04 phase
calibration function.
The phase calibration settings of the channels affect the timing of the data-ready interrupt signal, DRDY. See the
Data Ready (DRDY) section for more details regarding how phase calibration affects the DRDY signal.
8.3.11 Calibration Registers
The calibration registers allow for the automatic computation of calibrated ADC conversion results from preprogrammed values. The host can rely on the device to automatically correct for system gain and offset after the
error correction terms are programmed into the corresponding device registers. The measured calibration
coefficients must be store in external non-volatile memory and programmed into the registers each time the
ADS131M04 powers up because the ADS131M04 registers are volatile.
The offset calibration registers are used to correct for system offset error, otherwise known as zero error. Offset
error corresponds to the ADC output when the input to the system is zero. The ADS131M04 corrects for offset
errors by subtracting the contents of the OCALn[23:0] register bits in the CHn_OCAL_MSB and
CHn_OCAL_LSB registers from the conversion result for that channel before being output. There are separate
CHn_OCAL_MSB and CHnOCAL_LSB registers for each channel, which allows separate offset calibration
coefficients to be programmed for each channel. The contents of the OCALn[23:0] bits are interpreted by the
device as 24-bit two's complement values, which is the same format as the ADC data.
26
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
The gain calibration registers are used to correct for system gain error. Gain error corresponds to the deviation of
gain of the system from its ideal value. The ADS131M04 corrects for gain errors by multiplying the ADC
conversion result by the value given by the contents of the GCALn[23:0] register bits in the CHn_GCAL_MSB
and CHn_GCAL_LSB registers before being output. There are separate CHn_GCAL_MSB and
CHn_GCAL_LSB registers for each channel, which allows separate gain calibration coefficients to be
programmed for each channel. The contents of the GCALn[23:0] bits are interpreted by the device as 24-bit
unsigned values corresponding to linear steps ranging from gains of 0 to 2 – (1 / 223). Table 8-6 describes the
relationship between the GCALn[23:0] bit values and the gain calibration factor.
Table 8-6. GCALn[23:0] Bit Mapping
GCALn[23:0] VALUE
GAIN CALIBRATION FACTOR
000000h
0
000001h
1.19 × 10–7
800000h
1
FFFFFEh
2 – 2.38 × 10–7
FFFFFFh
2 – 1.19 × 10–7
The calibration registers do not need to be enabled because they are always in use. The OCALn[23:0] bits have
a default value of 000000h resulting in no offset correction. Similarly, the GCALn[23:0] bits default to 800000h
resulting in a gain calibration factor of 1.
Figure 8-12 shows a block diagram illustrating the mechanics of the calibration registers on one channel of the
ADS131M04.
û
Modulator
Digital
Filter
To Interface
Å
1
OCALn[23:0]
223
GCALn[23:0]
Figure 8-12. Calibration Block Diagram
8.3.12 Communication Cyclic Redundancy Check (CRC)
The ADS131M04 features a cyclic redundancy check (CRC) engine on both input and output data to mitigate
SPI communication errors. The CRC word is 16 bits wide for either input or output CRC. Coverage includes all
words in the SPI frame where the CRC is enabled, including padded bits in a 32-bit word size.
CRC on the SPI input is optional and can be enabled and disabled by writing the RX_CRC_EN bit in the MODE
register. Input CRC is disabled by default. When the input CRC is enabled, the device checks the provided input
CRC against the CRC generated based on the input data. A CRC error occurs if the CRC words do not match.
The device does not execute any commands, except for the WREG command, if the input CRC check fails. A
WREG command always executes even when the CRC check fails. The device sets the CRC_ERR bit in the
STATUS register for all cases of a CRC error. The response on the output in the SPI frame following the frame
where the CRC error occurred is that of a NULL command, which means the STATUS register plus the
conversion data are output in the following SPI frame. The CRC_ERR bit is cleared when the STATUS register is
output.
The output CRC cannot be disabled and always appears at the end of the output frame. The host can ignore the
data if the output CRC is not used.
There are two types of CRC polynomials available: CCITT CRC and ANSI CRC (CRC-16). The CRC setting
determines the algorithm for both the input and output CRC. The CRC type is programmed by the CRC_TYPE
bit in the MODE register. Table 8-7 lists the details of the two CRC types.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
27
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
The seed value of the CRC calculation is FFFFh.
Table 8-7. CRC Types
CRC TYPE
CCITT CRC
ANSI CRC
POLYNOMIAL
x16
+
x12
+
x5
BINARY POLYNOMIAL
+1
0001 0000 0010 0001
x16 + x15 + x2 + 1
1000 0000 0000 0101
8.3.13 Register Map CRC
The ADS131M04 performs a CRC on its own register map as a means to check for unintended changes to the
registers. Enable the register map CRC by setting the REG_CRC_EN bit in the MODE register. When enabled,
the device constantly calculates the register map CRC using each bit in the writable register space. The register
addresses covered by the register map CRC on the ADS131M04 are 02h through 1Ch. The CRC is calculated
beginning with the MSB of register 02h and ending with the LSB of register 1Ch using the polynomial selected in
the CRC_TYPE bit in the MODE register.
The calculated CRC is a 16-bit value and is stored in the REGMAP_CRC register. The calculation is done using
one register map bit per CLKIN period and constantly checks the result against the previous calculation. The
REG_MAP bit in the STATUS register is set to flag the host if the register map CRC changes, including changes
resulting from register writes. The bit is cleared by reading the STATUS register, or by the STATUS register being
output as a response to the NULL command.
28
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.4 Device Functional Modes
Figure 8-13 shows a state diagram depicting the major functional modes of the ADS131M04 and the transitions
between them.
POR, pin reset, or
RESET command
Reset
complete
Reset
STANDBY
Standby
Mode
Continuous
Conversion Mode
WAKEUP && GC_EN
STANDBY
Current detection
complete
GC_EN
WAKEUP
&& GC_EN
GC_EN
SYNC
Current
Detect Mode
Global Chop
Mode
Figure 8-13. State Diagram Depicting Device Functional Modes
8.4.1 Power-Up and Reset
The ADS131M04 is reset in one of three ways: by a power-on reset (POR), by the SYNC/RESET pin, or by a
RESET command. After a reset occurs, the configuration registers are reset to the default values and the device
begins generating conversion data as soon as a valid MCLK is provided. In all three cases a low to high
transition on the DRDY pin indicates that the SPI interface is ready for communication. The device ignores any
SPI communication before this point.
8.4.1.1 Power-On Reset
Power-on reset (POR) is the reset that occurs when a valid supply voltage is first applied. The POR process
requires tPOR from when the supply voltages reach 90% of their nominal value. Internal circuitry powers up and
the registers are set to their default state during this time. The DRDY pin transitions from low to high immediately
after tPOR indicating the SPI interface is ready for communication. The device ignores any SPI communication
before this point.
8.4.1.2 SYNC/RESET Pin
The SYNC/RESET pin is an active low, dual-function pin that generates a reset if the pin is held low longer than
tw(RSL). The device maintains a reset state until SYNC/RESET is returned high. The host must wait for at least
tREGACQ after SYNC/RESET is brought high or for the DRDY rising edge before communicating with the device.
Conversion data are generated immediately after the registers are reset to their default values, as described in
the Fast Startup Behavior section.
8.4.1.3 RESET Command
The ADS131M04 can be reset via the SPI RESET command (0011h). The device communicates in frames of a
fixed length. See the SPI Communication Frames section for details regarding SPI data framing on the
ADS131M04. The RESET command occurs in the first word of the data frame, but the command is not latched
by the device until the entire frame is complete. After the response completes channel data and CRC words are
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
29
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
clocked out. Terminating the frame early causes the RESET command to be ignored. Six words are required to
complete a frame on the ADS131M04.
A reset occurs immediately after the command is latched. The host must wait for tREGACQ before communicating
with the device to ensure the registers have assumed their default settings. Conversion data are generated
immediately after the registers are reset to their default values, as described in the Fast Startup Behavior
section.
8.4.2 Fast Startup Behavior
The ADS131M04 begins generating conversion data shortly after startup as soon as a valid CLKIN signal is
provided to the ΔΣ modulators. The fast startup feature is useful for applications such as circuit breakers
powered from the mains that require a fast determination of the input voltage soon after power is applied to the
device. Fast startup is accomplished via two mechanisms. First, the device internal power-supply circuitry is
designed specifically to enable fast startup. Second, the digital decimation filter dynamically switches from a fastsettling filter to a sinc3 filter when the sinc3 filter has had time to settle.
After the supplies are ramped to 90% of their final values, the device requires tPOR for the internal circuitry to
settle. The end of tPOR is indicated by a transition of DRDY from low to high. The transition of DRDY from low to
high also indicates the SPI interface is ready to accept commands.
The ΔΣ modulators of the ADS131M04 require CLKIN to toggle after tPOR to begin working. The modulators
begin sampling the input signal after an initial wait time delay of (256 + 44) × tMOD when CLKIN begins toggling.
Therefore, provide a valid clock signal on CLKIN as soon as possible after the supply ramp to achieve the fastest
possible startup time.
The data generated by the ΔΣ modulators are fed to the digital filter blocks. The data are provided to both the
fast-settling filter and the sinc3 filter paths. The fast-settling filter requires only one data rate period to provide
settled data. Meanwhile, the sinc3 filter requires three data rate periods to settle. The fast-settling filter generates
the output data for the two interim ADC output samples indicated by DRDY transitioning from high to low while
the sinc3 filter is settling. The device disables the fast-settling filter and provides conversion data from the sinc3
filter path for the third and following samples. Figure 8-14 shows the behavior of the fast-startup feature when
using an external clock that is provided to the device right after the supplies have ramped. Table 8-8 shows the
values for the various startup and settling times relevant to the device startup.
Supplies
90%
tSETTLE3
tPOR
tDATA
tSETTLE1
tDATA
DRDY
Fast-settling
filter data
...
CLKIN
Sinc3
filter data
Fast-settling
filter data
...
...
Sinc3
filter data
...
Figure 8-14. Fast Startup Behavior and Settling Times
Table 8-8. Fast Startup Settling Times for Default OSR = 1024
PARAMETER
VALUE (DETAILS)
(tMOD)
VALUE
(tMOD)
VALUE AT
FCLKIN = 8.192 MHz (ms)
tDATA = 1/fDATA
1024
1024
0.250
tSETTLE1
256 + 44 + 1024
1324
0.323
tSETTLE3
256 + 44 + 3 x 1024
3372
0.823
The fast-settling filter provides conversion data that are significantly noisier than the data that comes from the
sinc3 filter path, but allows the device to provide settled conversion data during the longer settling time of the
more accurate sinc3 digital filter. If the level of precision provided by the fast-settling filter is insufficient even for
30
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
the first samples immediately following startup, ignore the first two instances of DRDY toggling from high to low
and begin collecting data on the third instance.
The startup process following a RESET command or a pin reset using the SYNC/RESET pin is similar to what
occurs after power up. However there is no tPOR in the case of a command or pin reset because the supplies are
already ramped. After reset, the device waits for the initial wait time delay of (256 + 44) × tMOD before providing
modulator samples to the two digital filters. The fast-settling filter is enabled for the first two output samples.
8.4.3 Conversion Modes
There are two ADC conversion modes on the ADS131M04: continuous-conversion and global-chop mode.
Continuous-conversion mode is a mode where ADC conversions are generated constantly by the ADC at a rate
defined by fMOD / OSR. Global-chop mode differs from continuous-conversion mode because global-chop
periodically chops (or swaps) the inputs, which reduces system offset errors at the cost of settling time between
the points when the inputs are swapped. In either continuous-conversion or global-chop mode, there are three
power modes that provide flexible options to scale power consumption with bandwidth and dynamic range. The
Power Modes section discusses these power modes in further detail.
8.4.3.1 Continuous-Conversion Mode
Continuous-conversion mode is the mode in which ADC data are generated constantly at the rate of fMOD / OSR.
New data are indicated by a DRDY falling edge at this rate. Continuous-conversion mode is intended for
measuring AC signals because this mode allows for higher output data rates than global-chop mode.
8.4.3.2 Global-Chop Mode
The ADS131M04 incorporates a global-chop mode option to reduce offset error and offset drift inherent to the
device due to mismatch in the internal circuitry to very low levels. When global-chop mode is enabled by setting
the GC_EN bit in the GLOBAL_CHOP_CFG register, the device uses the conversion results from two
consecutive internal conversions taken with opposite input polarity to cancel the device offset voltage.
Conversion n is taken with normal input polarity. The device then reverses the internal input polarity for
conversion n + 1. The average of two consecutive conversions (n and n + 1, n + 1 and n + 2 and so on) yields
the final offset compensated result.
Figure 8-15 shows a block diagram of the global-chop mode implementation. The combined PGA and ADC
internal offset voltage is modeled as VOFS. Only this device inherent offset voltage is reduced by global-chop
mode. Offset in the external circuitry connected to the analog inputs is not affected by global-chop mode.
GC_EN
Chop Switch
VOFS
+ Digital
Filter
ADC
AINnP
PGA
ADC
Global-Chop
Mode Control
Conversion Output
AINnN
Figure 8-15. Global-Chop Mode Implementation
The conversion period in global-chop mode differs from the conversion time when global-chop mode is disabled
(tDATA = OSR x tMOD). Figure 8-16 shows the conversion timing for an ADC channel using global-chop mode.
Global-chop delay
Modulator sampling
Conversion
start
xx
Sampling
n
Data not
settled
Data not
settled
Sampling
n
Swap inputs,
digital filter reset
xx
Sampling
n
tGC_FIRST CONVERSION
Sampling
n+1
Data not
settled
Data not
settled
Sampling
n+1
st
nd
1 global-chop
conversion result
Sampling
n+1
x
2 global-chop
conversion result
Sampling
n+2
Sampling
n+2
tGC_CONVERSION
Sampling
n+2
Sampling
n+3
x
x
ADC overhead
Sampling
n+3
Sampling
n+3
tDATA
Figure 8-16. Conversion Timing With Global-Chop Mode Enabled
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
31
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Every time the device swaps the input polarity, the digital filter is reset. The ADC then always takes three internal
conversions to produce one settled global-chop conversion result.
The ADS131M04 provides a programmable delay (tGC_DLY) between the end of the previous conversion period
and the beginning of the subsequent conversion period after the input polarity is swapped. This delay is to allow
for external input circuitry to settle because the chopping switches interface directly with the analog inputs. The
GC_DLY[3:0] bits in the GLOBAL_CHOP_CFG register configure the delay after chopping the inputs. The
global-chop delay is selected in terms of modulator clock periods from 2 to 65,536 x tMOD.
The effective conversion period in global-chop mode follows Equation 8. A DRDY falling edge is generated each
time a new global-chop conversion becomes available to the host.
The conversion process of all ADC channels in global-chop mode is restarted in the following two conditions so
that all channels start sampling at the same time:
• Falling edge of SYNC/RESET pin
• Change of OSR setting
The conversion period of the first conversion after the ADC channels have been reset is considerably longer
than the conversion period of all subsequent conversions mentioned in Equation 8, because the device first
needs to perform two fully settled internal conversions with the input polarity swapped. The conversion period for
the first conversion in global-chop mode follows Equation 9.
tGC_CONVERSION = tGC_DLY + 3 × OSR x tMOD
(8)
tGC_FIRST_CONVERSION = tGC_DLY + 3 × OSR x tMOD + tGC_DLY + 3 × OSR x tMOD + 44 x tMOD
(9)
Using global-chop mode reduces the ADC noise shown in Table 7-1 at a given OSR by a factor of √2 because
two consecutive internal conversions are averaged to yield one global-chop conversion result. The DC test
signal cannot be measured in global-chop mode.
Phase calibration is automatically disabled in global-chop mode.
8.4.4 Power Modes
In both continuous-conversion and global-chop mode, there are three selectable power modes that allow scaling
of power with bandwidth and performance: high-resolution (HR) mode, low-power (LP) mode, and very-lowpower (VLP) mode. The mode is selected by the PWR[1:0] bits in the CLOCK register. See the Recommended
Operating Conditions table in the Specifications section for restrictions on the CLKIN frequency for each power
mode.
8.4.5 Standby Mode
Standby mode is a low-power state in which all channels are disabled, and the reference and other nonessential circuitry are powered down. This mode differs from completely powering down the device because the
device retains its register settings. Enter standby mode by sending the STANDBY command (0022h). Stop
toggling CLKIN when the device is in standby mode to minimize device power consumption. Exit standby mode
by sending the WAKEUP command (0033h). After exiting standby mode, the modulators begin sampling the
input signal after a modulator settling time of 8 × tMOD when CLKIN begins toggling.
8.4.6 Current-Detect Mode
Current-detect mode is a special mode that is helpful for applications requiring tamper detection when the
equipment is in a low-power state. In this mode, the ADS131M04 collects a configurable number of samples at a
nominal data rate of 2.7 kSPS and compares the absolute value of the results to a programmable threshold. If a
configurable number of results exceed the threshold, the host is notified via a DRDY falling edge and the device
returns to standby mode. Enter current-detect mode by providing a negative pulse on SYNC/RESET with a pulse
duration less than tw(RSL) when in standby mode. Current-detect mode can only be entered from standby mode.
The device uses a limited power operating mode to generate conversions in current-detect mode. The
conversion results are only used for comparison by the internal digital threshold comparator and are not
accessible by the host. The device uses an internal oscillator that enables the device to capture the data without
32
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
the use of the external clock input. Do not toggle CLKIN when in current-detect mode to minimize device power
consumption.
Current-detect mode is configured in the CFG, THRSHLD_MSB, and THRSHLD_LSB registers. Enable and
disable current-detect mode by toggling the CD_EN bit in the CFG register. The THRSHLD_MSB and
THRSHLD_LSB registers contain the CD_THRSH[23:0] bits that represent the digital comparator threshold
value during current detection.
The number of samples used for current detection are programmed by the CD_LEN[2:0] bits in the CFG register.
The number of samples used for current detection range from 128 to 3584.
The programmable values in CD_NUM[2:0] configure the number of samples that must exceed the threshold for
a detection to occur. The purpose of requiring multiple samples for detection is to control noisy values that may
exceed the threshold, but do not represent a high enough power level to warrant action by the host. In summary,
the conversion result must exceed the value programmed in CD_THRSH[23:0] a number of times as
represented by the value stored in CD_NUM[2:0].
The device can be configured to notify the host based on any of the results from either individual channels , all
channels, or any combination of channels. The CD_ALLCH bit in the CFG register determines how many
channels are required to exceed the programmed thresholds to trigger a current detection. When the bit is 1, all
enabled channels are required to meet the current detection requirements in order for the host to be notified. If
the bit is 0, any enabled channel triggers a current detection notification if the requirements are met. Enable and
disable channels using the CHn_EN bits in the CLK register to control which combination of channels must meet
the requirements to trigger a current-detection notification.
Figure 8-17 illustrates a flow chart depicting the current-detection process on the ADS131M04.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
33
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Continuous Conversion
Mode
WAKEUP Command
No
STANDY Command?
Yes
Standby Mode
No
SYNC
Asserted?
Yes
Current Detection Mode
Yes
Samples Collected =
CD_LEN?
No
Measurement >
CD_THRSHLD?
No
Yes
Increment threshold
counter
Threshold counter >
CD_NUM?
No
Yes
No
Assert DRDY
CD_ALLCH?
Yes
Yes
Current detected on all
enabled channels?
No
Figure 8-17. Current-Detect Mode Flow Chart
34
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.5 Programming
8.5.1 Interface
The ADS131M04 uses an SPI-compatible interface to configure the device and retrieve conversion data. The
device always acts as an SPI slave; SCLK and CS are inputs to the interface. The interface operates in SPI
mode 1 where CPOL = 0 and CPHA = 1. In SPI mode 1, the SCLK idles low and data are launched or changed
only on SCLK rising edges; data are latched or read by the master and slave on SCLK falling edges. The
interface is full-duplex, meaning data can be sent and received simultaneously by the interface. The device
includes the typical SPI signals: SCLK, CS, DIN (MOSI), and DOUT (MISO). In addition, there are two other
digital pins that provide additional functionality. The DRDY pin serves as a flag to the host to indicate new
conversion data are available. The SYNC/RESET pin is a dual-function pin that allows synchronization of
conversions to an external event and allows for a hardware device reset.
8.5.1.1 Chip Select (CS)
The CS pin is an active low input signal that selects the device for communication. The device ignores any
communication and DOUT is high impedance when CS is held high. Hold CS low for the duration of a
communication frame to ensure proper communication. The interface is reset each time CS is taken high.
8.5.1.2 Serial Data Clock (SCLK)
The SCLK pin is an input that serves as the serial clock for the interface. Output data on the DOUT pin transition
on the rising edge of SCLK and input data on DIN are latched on the falling edge of SCLK.
8.5.1.3 Serial Data Input (DIN)
The DIN pin is the master out, slave in (MOSI) pin for the device. Serial commands are shifted in through the
DIN pin by the device with each SCLK falling edge when the CS pin is low.
8.5.1.4 Serial Data Output (DOUT)
The DOUT pin is the master in, slave out (MISO) pin for the device. The device shifts out command responses
and ADC conversion data serially with each rising SCLK edge when the CS pin is low. This pin assumes a highimpedance state when CS is high.
8.5.1.5 Data Ready (DRDY)
The DRDY pin is an active low output that indicates when new conversion data are ready in conversion mode or
that the requirements are met for current detection when in current-detect mode. Connect the DRDY pin to a
digital input on the host to trigger periodic data retrieval in conversion mode. The period between each DRDY
falling edge is the data rate period.
The timing of DRDY with respect to the sampling of a given channel on the ADS131M04 depends on the phase
calibration setting of the channel and the state of the DRDY_SEL[1:0] bits in the MODE register. Setting the
DRDY_SEL[1:0] bits to 00b configures DRDY to assert when the channel with the largest positive phase
calibration setting, or the most lagging, has a new conversion result. When the bits are 01b, the device asserts
DRDY each time any channel data are ready. Finally, setting the bits to either 10b or 11b configures the device to
assert DRDY when the channel with the most negative phase calibration setting, or the most leading, has new
conversion data. Changing the DRDY_SEL[1:0] bits has no effect on DRDY behavior in global-chop mode
because phase calibration is automatically disabled in global-chop mode.
The timing of the first DRDY assertion after channels are enabled or after a synchronization pulse is provided
depends on the phase calibration setting. If the channel that causes DRDY to assert has a phase calibration
setting less than zero, the first DRDY assertion can be less than one sample period from the channel being
enabled or the occurrence of the synchronization pulse. However, DRDY asserts in the next sample period if the
phase setting puts the output timing too close to the beginning of the sample period.
Table 8-9 lists the phase calibration setting boundary at which DRDY either first asserts within a sample period,
or in the next sample period. If the setting for the channel configured to control DRDY assertion is greater than
the value listed in Table 8-9 for each OSR, DRDY asserts for the first time within a sample period of the channel
being enabled or the synchronization pulse. If the phase setting value is equal to or more negative than the
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
35
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
value in Table 8-9, DRDY asserts in the following sample period. See the Synchronization section for more
information about synchronization.
Table 8-9. Phase Setting First DRDY Assertion Boundary
OSR
PHASE SETTING BOUNDARY
PHASEn[9:0] BIT SETTING BOUNDARY
128
–19
3EDh
256
–83
3ADh
512
–211
32Dh
1024
–467
22Dh
>1024
None
N/A
The DRDY_HIZ bit in the MODE register configures the state of the DRDY pin when deasserted. By default the
bit is 0b, meaning the pin is actively driven high using a push-pull output stage. When the bit is 1b, DRDY
behaves like an open-drain digital output. Use a 100-kΩ pullup resistor to pull the pin high when DRDY is not
asserted.
The DRDY_FMT bit in the MODE register determines the format of the DRDY signal. When the bit is 0b, new
data are indicated by DRDY changing from high to low and remaining low until either all of the conversion data
are shifted out of the device, or remaining low and going high briefly before the next time DRDY transitions low.
When the DRDY_FMT bit is 1b, new data are indicated by a short negative pulse on the DRDY pin. If the host
does not read conversion data after the DRDY pulse when DRDY_FMT is 1b, the device skips a conversion
result and does not provide another DRDY pulse until the second following instance when data are ready
because of how the pulse is generated. See the Collecting Data for the First Time or After a Pause in Data
Collection section for more information about the behavior of DRDY when data are not consistently read.
The DRDY pulse is blocked when new conversions complete while conversion data are read. Therefore, avoid
reading ADC data during the time where new conversions complete in order to achieve consistent DRDY
behavior.
8.5.1.6 Conversion Synchronization or System Reset (SYNC/RESET)
The SYNC/RESET pin is a multi-function digital input pin that serves primarily to allow the host to synchronize
conversions to an external process or to reset the device. See the Synchronization section for more details
regarding the synchronization function. See the SYNC/RESET Pin section for more details regarding how the
device is reset.
8.5.1.7 SPI Communication Frames
SPI communication on the ADS131M04 is performed in frames. Each SPI communication frame consists of
several words. The word size is configurable as either 16 bits, 24 bits, or 32 bits by programming the
WLENGTH[1:0] bits in the MODE register.
The ADS131M04 implements a timeout feature for the SPI communication. Enable or disable the timeout using
the TIMEOUT bit in the MODE register. When enabled, the entire SPI frame (first SCLK to last SCLK) must
complete within 215 CLKIN cycles otherwise the SPI will reset. This feature is provided as a means to recover
SPI synchronization for cases where CS is tied low.
The interface is full duplex, meaning that the interface is capable of transmitting data on DOUT while
simultaneously receiving data on DIN. The input frame that the host sends on DIN always begins with a
command. The first word on the output frame that the device transmits on DOUT always begins with the
response to the command that was written on the previous input frame. The number of words in a command
depends on the command provided. For most commands, there are six words in a frame. On DIN, the host
provides the command, the command CRC if input CRC is enabled or a word of zeros if input CRC is disabled,
and four additional words of zeros. Simultaneously on DOUT, the device outputs the response from the previous
frame command, four words of ADC data representing the four ADC channels, and a CRC word. Figure 8-18
illustrates a typical command frame structure.
36
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
DRDY
CS
SCLK
DIN
DOUT
Hi-Z
Command
CRC
Response
Channel 0 Data
Channel 1 Data
Channel 2 Data
Channel 3 Data
CRC
Hi-Z
Command
CRC
Response
Channel 0 Data
Figure 8-18. Typical Communication Frame
There are some commands that require more than six words. In the case of a read register (RREG) command
where more than a single register is read, the response to the command contains the acknowledgment of the
command followed by the register contents requested, which may require a larger frame depending on how
many registers are read. See the RREG (101a aaaa annn nnnn) section for more details on the RREG
command.
In the case of a write register (WREG) command where more than a single register is written, the frame extends
to accommodate the additional data. See the WREG (011a aaaa annn nnnn) section for more details on the
WREG command.
See the Commands section for a list of all valid commands and their corresponding responses on the
ADS131M04.
Under special circumstances, a data frame can be shortened by the host. See the Short SPI Frames section for
more information about artificially shortening communication frames.
8.5.1.8 SPI Communication Words
An SPI communication frame with the ADS131M04 is made of words. Words on DIN can contain commands,
register settings during a register write, or a CRC of the input data. Words on DOUT can contain command
responses, register settings during a register read, ADC conversion data, or CRC of the output data.
Words can be 16, 24, or 32 bits. The word size is configured by the WLENGTH[1:0] bits in the MODE register.
The device defaults to a 24-bit word size. Commands, responses, CRC, and registers always contain 16 bits of
actual data. These words are always most significant bit (MSB) aligned, and therefore the least significant bits
(LSBs) are zero-padded to accommodate 24- or 32-bit word sizes. ADC conversion data are nominally 24 bits.
The ADC truncates its eight LSBs when the device is configured for 16-bit communication. There are two options
for 32-bit communication available for ADC data that are configured by the WLENGTH[1:0] bits in the MODE
register. Either the ADC data can be LSB padded with zeros or the data can be MSB sign extended.
8.5.1.9 ADC Conversion Data
The device provides conversion data for each channel at the data rate. The time when data are available relative
to DRDY asserting is determined by the channel phase calibration setting and the DRDY_SEL[1:0] bits in the
MODE register when in continuous-conversion mode. All data are available immediately following DRDY
assertion in global-chop mode. The conversion status of all channels is available as the DRDY[3:0] bits in the
STATUS register. The STATUS register content is automatically output as the response to the NULL command.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
37
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Conversion data are 24 bits. The data LSBs are truncated when the device operates with a 16-bit word size. The
LSBs are zero padded or the MSBs sign extended when operating with a 32-bit word size depending on the
setting of the WLENGTH[1:0] bits in the MODE register.
Data are given in binary two's complement format. Use Equation 10 to calculate the size of one code (LSB).
1 LSB = (2.4 / Gain) / 224 = +FSR / 223
(10)
A positive full-scale input VIN ≥ +FSR – 1 LSB = 1.2 / Gain – 1 LSB produces an output code of 7FFFFFh and a
negative full-scale input (VIN ≤ –FSR = –1.2 / Gain) produces an output code of 800000h. The output clips at
these codes for signals that exceed full-scale.
Table 8-10 summarizes the ideal output codes for different input signals.
Table 8-10. Ideal Output Code versus Input Signal
INPUT SIGNAL,
VIN = VAINP – VAINN
IDEAL OUTPUT CODE
≥ FSR (223 – 1) / 223
7FFFFFh
223
FSR /
000001h
0
000000h
–FSR /
223
FFFFFFh
≤ –FSR
800000h
Figure 8-19 shows the mapping of the analog input signal to the output codes.
7FFFFFh
000001h
000000h
FFFFFFh
¼
Output Code
¼
7FFFFEh
800001h
800000h
¼
-FS
2
23
FS
¼
Input Voltage VIN
-1
-FS
2
0
23
2
23
FS
2
-1
23
Figure 8-19. Code Transition Diagram
8.5.1.9.1 Collecting Data for the First Time or After a Pause in Data Collection
Take special precaution when collecting data for the first time or when beginning to collect data again after a
pause. The internal mechanism that outputs data contains a first-in-first-out (FIFO) buffer that can store two
samples of data per channel at a time. The DRDY flag for each channel in the STATUS register remains set until
both samples for each channel are read from the device. This condition is not obvious under normal
circumstances when the host is reading each consecutive sample from the device. In that case, the samples are
cleared from the device each time new data are generated so the DRDY flag for each channel in the STATUS
register is cleared with each read. However, both slots of the FIFO are full if a sample is missed or if data are not
read for a period of time. Either strobe the SYNC/RESET pin to re-synchronize conversions and clear the FIFOs,
or quickly read two data packets when data are read for the first time or after a gap in reading data. This process
ensures predictable DRDY pin behavior. See the Synchronization section for information about the
synchronization feature. These methods do not need to be employed if each channel data was read for each
output data period from when the ADC was enabled.
38
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Figure 8-20 depicts an example of how to collect data after a period of the ADC running, but where no data are
being retrieved. In this instance, the SYNC/RESET pin is used to clear the internal FIFOs and realign the
ADS131M04 output data with the host.
Time where data is
not being read
DRDY
SYNC / RESET
SYNC Pulse
CS
SCLK
DOUT
Data
Data
Hi-Z
CRC
Status
Data
CRC
Figure 8-20. Collecting Data After a Pause in Data Collection Using the SYNC/RESET Pin
Another functionally equivalent method for clearing the FIFO after a pause in collecting data is to begin by
reading two samples in quick succession. Figure 8-21 depicts this method. This example shows when the
DRDY_FMT bit in the MODE register is set to 0b indicating DRDY is a level output. There is a very narrow pulse
on DRDY immediately after the first set of data are shifted out of the device. This pulse may be too narrow for
some microcontrollers to detect. Therefore, do not rely upon this pulse but instead immediately read out the
second data set after the first data set. The host operates synchronous to the device after the second word is
read from the device.
Time where data is
not being read
Narrow DRDY Pulse
DRDY
CS
SCLK
DOUT
Data
Data
CRC
Hi-Z
Status
Data
CRC
Status
Data
CRC
Data is read a
second time
Figure 8-21. Collecting Data After a Pause in Data Collection by Reading Data Twice
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
39
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.5.1.10 Commands
Table 8-11 contains a list of all valid commands, a short description of their functionality, their binary command
word, and the expected response that appears in the following frame.
Table 8-11. Command Definitions
COMMAND
NULL
RESPONSE
0000 0000 0000 0000
STATUS register
Reset the device
0000 0000 0001 0001
1111 1111 0010 0100
STANDBY
Place the device into standby mode
0000 0000 0010 0010
0000 0000 0010 0010
WAKEUP
Wake the device from standby mode to conversion
mode
0000 0000 0011 0011
0000 0000 0011 0011
Lock the interface such that only the NULL, UNLOCK,
and RREG commands are valid
0000 0101 0101 0101
0000 0101 0101 0101
Unlock the interface after the interface is locked
0000 0110 0101 0101
0000 0110 0101 0101
RREG
Read nnn nnnn plus 1 registers beginning at address a
aaaa a
101a aaaa annn nnnn
dddd dddd dddd dddd
or
111a aaa annn nnnn (1)
WREG
Write nnn nnnn plus 1 registers beginning at address a
aaaa a
011a aaaa annn nnnn
LOCK
UNLOCK
(2)
COMMAND WORD
No operation
RESET
(1)
DESCRIPTION
010a aaaa ammm mmmm
(2)
When nnn nnnn is 0, the response is the requested register data dddd dddd dddd dddd. When nnn nnnn is greater than 0, the
response begins with 111a aaaa annn nnnn, followed by the register data.
In this case mmm mmmm represents the number of registers that are actually written minus one. This value may be less than nnn
nnnn in some cases.
8.5.1.10.1 NULL (0000 0000 0000 0000)
The NULL command is the no-operation command that results in no registers read or written, and the state of
the device remains unchanged. The intended use case for the NULL command is during ADC data capture. The
command response for the NULL command is the contents of the STATUS register. Any invalid command also
gives the NULL response.
8.5.1.10.2 RESET (0000 0000 0001 0001)
The RESET command resets the ADC to its register defaults. The command is latched by the device at the end
of the frame. A reset occurs immediately after the command is latched. The host must wait for tREGACQ after
reset before communicating with the device to ensure the registers have assumed their default settings. The
device sends an acknowledgment of FF24h when the ADC is properly RESET. The device responds with 0011h
if the command word is sent but the frame is not completed and therefore the device is not reset. See the
RESET Command section for more information regarding the operation of the reset command. Figure 8-22
illustrates a properly sent RESET command frame.
40
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
CS
SCLK
DIN
RESET
CRC
RESET command
latched here
DOUT
Hi-Z
Response
'RQ¶W &DUH
'RQ¶W &DUH
'RQ¶W &DUH
'RQ¶W &DUH
'RQ¶W &DUH
Hi-Z
Figure 8-22. RESET Command Frame
8.5.1.10.3 STANDBY (0000 0000 0010 0010)
The STANDBY command places the device in a low-power standby mode. The command is latched by the
device at the end of the frame. The device enters standby mode immediately after the command is latched. See
the Standby Mode section for more information. This command has no effect if the device is already in standby
mode.
8.5.1.10.4 WAKEUP (0000 0000 0011 0011)
The WAKEUP command returns the device to conversion mode from standby mode. This command has no
effect if the device is already in conversion mode.
8.5.1.10.5 LOCK (0000 0101 0101 0101)
The LOCK command locks the interface, preventing the device from accidentally latching unwanted commands
that can change the state of the device. When the interface is locked, the device only responds to the NULL,
RREG, and UNLOCK commands. The device continues to output conversion data even when locked.
8.5.1.10.6 UNLOCK (0000 0110 0110 0110)
The UNLOCK command unlocks the interface if previously locked by the LOCK command.
8.5.1.10.7 RREG (101a aaaa annn nnnn)
The RREG is used to read the device registers. The binary format of the command word is 101a aaaa annn
nnnn, where a aaaa a is the binary address of the register to begin reading and nnn nnnn is the unsigned binary
number of consecutive registers to read minus one. There are two cases for reading registers on the
ADS131M04. When reading a single register (nnn nnnn = 000 0000b), the device outputs the register contents in
the command response word of the following frame. If multiple registers are read using a single command (nnn
nnnn > 000 0000b), the device outputs the requested register data sequentially in order of addresses.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
41
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.5.1.10.7.1 Reading a Single Register
Read a single register from the device by specifying nnn nnnn as zero in the RREG command word. As with all
SPI commands on the ADS131M04, the response occurs on the output in the frame following the command.
Instead of a unique acknowledgment word, the response word is the contents of the register whose address is
specified in the command word. Figure 8-23 shows an example of reading a single register.
DRDY
CS
SCLK
DIN
DOUT
Hi-Z
RREG
CRC
Response
Channel 0 Data
Channel 1 Data
Channel 2 Data
Channel 3 Data
CRC
Hi-Z
Command
CRC
Register
Data
Channel 0 Data
Figure 8-23. Reading a Single Register
8.5.1.10.7.2 Reading Multiple Registers
Multiple registers are read from the device when nnn nnnn is specified as a number greater than zero in the
RREG command word. Like all SPI commands on the ADS131M04, the response occurs on the output in the
frame following the command. Instead of a single acknowledgment word, the response spans multiple words in
order to shift out all requested registers. Continue toggling SCLK to accommodate outputting the entire data
stream. ADC conversion data are not output in the frame following an RREG command to read multiple
registers. Figure 8-24 shows an example of reading multiple registers.
CS
SCLK
DIN
DOUT
Hi-Z
RREG
CRC
Response
Channel 0 Data
Channel 1 Data
Channel 2 Data
Channel 3 Data
CRC
Hi-Z
Command
CRC
RREG
ack
1st UHJLVWHU¶V
data
2nd UHJLVWHU¶V
data
N-1th UHJLVWHU¶V
data
Nth UHJLVWHU¶V
data
CRC
Hi-Z
Figure 8-24. Reading Multiple Registers
42
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.5.1.10.8 WREG (011a aaaa annn nnnn)
The WREG command allows writing an arbitrary number of contiguous device registers. The binary format of the
command word is 011a aaaa annn nnnn, where a aaaa a is the binary address of the register to begin writing
and nnn nnnn is the unsigned binary number of consecutive registers to write minus one. Send the data to be
written immediately following the command word. Write the intended contents of each register into individual
words, MSB aligned.
If the input CRC is enabled, write this CRC after the register data. The registers are written to the device as they
are shifted into DIN. Therefore, a CRC error does not prevent an erroneous value from being written to a
register. An input CRC error during a WREG command sets the CRC_ERR bit in the STATUS register.
The device ignores writes to read-only registers or to out-of-bounds addresses. Gaps in the register map
address space are still included in the parameter nnn nnnn, but are not writeable so no change is made to them.
The response to the WREG command that occurs in the following frame appears as 010a aaaa ammm mmmm
where mmm mmmm is the number of registers actually written minus one. This number can be checked by the
host against nnn nnnn to ensure the expected number of registers are written.
Figure 8-25 shows a typical WREG sequence. In this example, the number of registers to write is larger than the
number of ADC channels and, therefore, the frame is extended beyond the ADC channels and output CRC
word. Ensure all of the ADC data and output CRC are shifted out during each transaction where new data are
available. Therefore, the frame must be extended beyond the number of words required to send the register data
in some cases.
DRDY
CS
SCLK
DIN
DOUT
Hi-Z
WREG
1st UHJLVWHU¶V
data
2nd UHJLVWHU¶V
data
3rd UHJLVWHU¶V
data
4th UHJLVWHU¶V
data
5th UHJLVWHU¶V
data
Response
Channel 0 Data
Channel 1 Data
Channel 2 Data
Channel 3 Data
CRC
6th UHJLVWHU¶V
data
N-1th UHJLVWHU¶V
data
'RQ¶W &DUH
Nth UHJLVWHU¶V
data
CRC
Hi-Z
Command
CRC
Response
Channel 0 Data
Figure 8-25. Writing Registers
8.5.1.11 Short SPI Frames
The SPI frame can be shortened to only send commands and receive responses if the ADCs are disabled and
no ADC data are being output by the device. Read out all of the expected output data words from each sample
period if the ADCs are enabled. Reading all of the data output with each frame ensures predictable DRDY pin
behavior. If reading out all the data on each output data period is not feasible, see the Collecting Data for the
First Time or After a Pause in Data Collection section on how to begin reading data again after a pause from
when the ADCs were last enabled.
A short frame is not possible when using the RESET command. A full frame must be provided for a device reset
to take place when providing the RESET command.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
43
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.5.2 Synchronization
Synchronization can be performed by the host to ensure the ADC conversions are synchronized to an external
event. For example, synchronization can realign the data capture to the expected timing of the host if a glitch on
the clock causes the host and device to become out of synchronization.
Provide a negative pulse on the SYNC/RESET pin with a duration less than tw(RSL) but greater than a CLKIN
period to trigger synchronization. The device internally compares the leading negative edge of the pulse to its
internal clock that tracks the data rate. The internal data rate clock has timing equivalent to the DRDY pin if
configured to assert with a phase calibration setting of 0b. If the negative edge on SYNC/RESET aligns with the
internal data rate clock, the device is determined to be synchronized and therefore no action is taken. If there is
misalignment, the digital filters on the device are reset to be synchronized with the SYNC/RESET pulse.
Conversions are immediately restarted when the SYNC/RESET pin is toggled in global-chop mode.
The phase calibration settings on all channels are retained during synchronization. Thus, channels with non-zero
phase calibration settings generate conversion results less than a data rate period after the synchronization
event occurs. However, the results can be corrupted and are not settled until the respective channels have at
least three conversion cycles for the sinc3 filter to settle.
44
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6 ADS131M04 Registers
Table 8-12 lists the ADS131M04 registers. All register offset addresses not listed in Table 8-12 should be
considered as reserved locations and the register contents should not be modified.
Table 8-12. Register Map
ADDRESS
REGISTER
RESET
VALUE
BIT 15
BIT 14
BIT 13
BIT 12
BIT 11
BIT 10
BIT 9
BIT 8
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
0
1
0
DEVICE SETTINGS AND INDICATORS (Read-Only Registers)
00h
ID
24xxh
01h
STATUS
0500h
0
CHANCNT[3:0]
RESERVED
LOCK
F_RESYNC
REG_MAP
CRC_ERR
CRC_TYPE
RESET
0
0
0
0
DRDY3
DRDY2
0
0
REGCRC_EN
RX_CRC_EN
CRC_TYPE
RESET
0
0
0
TIMEOUT
0
0
0
0
0
0
0
OSR
0
PGAGAIN3[2:0]
0
0
PGAGAIN1[2:0]
0
WLENGTH[1:0]
DRDY1
DRDY0
GLOBAL SETTINGS ACROSS CHANNELS
02h
MODE
0510h
03h
CLOCK
0F0Eh
04h
GAIN
0000h
06h
CFG
0600h
07h
THRSHLD_MSB
0000h
08h
THRSHLD_LSB
0000h
0
0
CD_ALLCH
DRDY_SEL[1:0]
CH3_EN
0
WLENGTH[1:0]
DRDY_HiZ
CH2_EN
CH0_EN
PWR
PGAGAIN2[2:0]
PGAGAIN0[2:0]
GC_DLY[3:0]
CD_NUM[2:0]
DRDY_FMT
CH1_EN
GC_EN
CD_LEN[2:0]
CD_EN
CD_TH_MSB[15:8]
CD_TH_MSB[7:0]
CD_TH_LSB[7:0]
0
0
0
0
0
0
DCBLOCK[3:0]
CHANNEL-SPECIFIC SETTINGS
09h
CH0_CFG
0Ah
CH0_OCAL_MSB
0000h
0Bh
CH0_OCAL_LSB
0000h
0Ch
CH0_GCAL_MSB
8000h
0Dh
CH0_GCAL_LSB
0000h
0Eh
CH1_CFG
CH1_OCAL_MSB
0000h
10h
CH1_OCAL_LSB
0000h
11h
CH1_GCAL_MSB
8000h
12h
CH1_GCAL_LSB
0000h
CH2_CFG
PHASE0[1:0]
CH2_OCAL_MSB
0000h
15h
CH2_OCAL_LSB
0000h
16h
CH2_GCAL_MSB
8000h
17h
CH2_GCAL_LSB
0000h
DCBLK0_DIS0
MUX0[1:0]
OCAL0_MSB[7:0]
OCAL0_LSB[7:0]
0
0
0
0
0
0
0
0
0
0
0
0
0
DCBLK1_DIS0
GCAL0_MSB[15:8]
GCAL0_MSB[7:0]
GCAL0_LSB[7:0]
0
0
0
0
PHASE1[9:2]
PHASE1[1:0]
0
0
MUX1[1:0]
OCAL1_MSB[15:8]
OCAL1_MSB[7:0]
OCAL1_LSB[7:0]
0
0
0
0
0
0
0
0
0
0
0
0
0
DCBLK2_DIS0
GCAL1_MSB[15:8]
GCAL1_MSB[7:0]
GCAL1_LSB[7:0]
0
0
0
0
PHASE2[9:2]
0000h
14h
0
OCAL0_MSB[15:8]
0000h
0Fh
13h
PHASE0[9:2]
0000h
PHASE2[1:0]
0
0
MUX2[1:0]
OCAL2_MSB[15:8]
OCAL2_MSB[7:0]
OCAL2_LSB[7:0]
0
0
0
0
0
0
0
0
0
0
0
GCAL2_MSB[15:8]
GCAL2_MSB[7:0]
GCAL2_LSB[7:0]
0
0
0
0
0
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
45
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Table 8-12. Register Map (continued)
ADDRESS
18h
REGISTER
CH3_CFG
RESET
VALUE
BIT 15
BIT 14
BIT 13
BIT 12
BIT 11
BIT 10
BIT 9
BIT 8
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
PHASE3[9:2]
0000h
19h
CH3_OCAL_MSB
0000h
1Ah
CH3_OCAL_LSB
0000h
1Bh
CH3_GCAL_MSB
8000h
1Ch
CH3_GCAL_LSB
0000h
PHASE3[1:0]
0
0
0
DCBLK3_DIS0
MUX3[1:0]
OCAL3_MSB[15:8]
OCAL3_MSB[7:0]
OCAL3_LSB[7:0]
0
0
0
0
0
0
0
0
0
0
0
GCAL3_MSB[15:8]
GCAL3_MSB[7:0]
GCAL3_LSB[7:0]
0
0
0
0
0
REGISTER MAP CRC AND RESERVED REGISTERS
3Eh
3Fh
REGMAP_CRC
RESERVED
REG_CRC[15:8]
0000h
0000h
REG_CRC[7:0]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Complex bit access types are encoded to fit into small table cells. Table 8-13 shows the codes that are used for
access types in this section.
Table 8-13. Access Type Codes
Access Type
Code
Description
R
Read
W
Write
Read Type
R
Write Type
W
Reset or Default Value
-n
46
Value after reset or the default value
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.1 ID Register (Address = 0h) [reset = 24xxh]
The ID register is shown in Figure 8-26 and described in Table 8-14.
Return to the Summary Table.
Figure 8-26. ID Register
15
14
7
13
12
11
10
RESERVED
CHANCNT
R-0010b
R-0100b
6
5
4
3
2
9
8
1
0
RESERVED
R-xxxxxxxxb
Table 8-14. ID Register Field Descriptions
Field
Type
Reset
Description
15:12
Bit
RESERVED
R
0010b
Reserved
Always reads 0010b
11:8
CHANCNT
R
0100b
Channel count Always reads 0100b
7:0
RESERVED
R
xxxxxxxxb
Reserved
Values are subject to change without notice.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
47
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.2 STATUS Register (Address = 1h) [reset = 0500h]
The STATUS register is shown in Figure 8-27 and described in Table 8-15.
Return to the Summary Table.
Figure 8-27. STATUS Register
15
14
13
12
11
10
9
8
LOCK
F_RESYNC
REG_MAP
CRC_ERR
CRC_TYPE
RESET
WLENGTH
R-0b
R-0b
R-0b
R-0b
R-0b
R-1b
R-01b
7
6
5
4
3
2
1
0
RESERVED
DRDY3
DRDY2
DRDY1
DRDY0
R-0000b
R-0b
R-0b
R-0b
R-0b
Table 8-15. STATUS Register Field Descriptions
Bit
Field
Type
Reset
Description
15
LOCK
R
0b
SPI interface lock indicator
0b = Unlocked (default)
1b = Locked
14
F_RESYNC
R
0b
ADC resynchronization indicator.
This bit is set each time the ADC resynchronizes.
0b = No resynchronization (default)
1b = Resynchronization occurred
13
REG_MAP
R
0b
Register map CRC fault indicator
0b = No change in the register map CRC (default)
1b = Register map CRC changed
12
CRC_ERR
R
0b
SPI input CRC error indicator
0b = No CRC error (default)
1b = Input CRC error occured
11
CRC_TYPE
R
0b
CRC type
0b = 16 bit CCITT (default)
1b = 16 bit ANSI
10
RESET
R
1b
Reset status
0b = Not reset
1b = Reset occurred (default)
9:8
WLENGTH
R
01b
Data word length
00b = 16 bit
01b = 24 bits (default)
10b = 32 bits; zero padding
11b = 32 bits; sign extension for 24-bit ADC data
7:4
3
RESERVED
R
0000b
Reserved
Always reads 0000b
DRDY3
R
0b
Channel 3 ADC data available indicator
0b = No new data available
1b = New data are available
2
DRDY2
R
0b
Channel 2 ADC data available indicator
0b = No new data available
1b = New data are available
48
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Table 8-15. STATUS Register Field Descriptions (continued)
Bit
1
Field
Type
Reset
Description
DRDY1
R
0b
Channel 1 ADC data available indicator
0b = No new data available
1b = New data are available
0
DRDY0
R
0b
Channel 0 ADC data available indicator
0b = No new data available
1b = New data are available
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
49
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.3 MODE Register (Address = 2h) [reset = 0510h]
The MODE register is shown in Figure 8-28 and described in Table 8-16.
Return to the Summary Table.
Figure 8-28. MODE Register
15
14
13
12
11
RESERVED
REG_CRC_EN
RX_CRC_EN
CRC_TYPE
RESET
WLENGTH
R/W-00b
R/W-0b
R/W-0b
R/W-0b
R/W-1b
R/W-01b
4
3
2
7
6
5
10
9
8
1
0
RESERVED
TIMEOUT
DRDY_SEL
DRDY_HiZ
DRDY_FMT
R/W-000b
R/W-1b
R/W-00b
R/W-0b
R/W-0b
Table 8-16. MODE Register Field Descriptions
Bit
15:14
13
Field
Type
Reset
Description
RESERVED
R/W
00b
Reserved
Always write 00b
REG_CRC_EN
R/W
0b
Register map CRC enable
0b = Register CRC disabled (default)
1b = Register CRC enabled
12
RX_CRC_EN
R/W
0b
SPI input CRC enable
0b = Disabled (default)
1b = Enabled
11
CRC_TYPE
R/W
0b
SPI input and output, register map CRC type
0b = 16-bit CCITT (default)
1b = 16-bit ANSI
10
RESET
R/W
1b
Reset
Write 0b to clear this bit in the STATUS register
0b = No reset
1b = Reset occurred (default by definition)
9:8
WLENGTH
R/W
01b
Data word length selection
00b = 16 bits
01b = 24 bits (default)
10b = 32 bits; LSB zero padding
11b = 32 bits; MSB sign extension
7:5
4
RESERVED
R/W
000b
Reserved
Always write 000b
TIMEOUT
R/W
1b
SPI Timeout enable
0b = Disabled
1b = Enabled (default)
3:2
DRDY_SEL
R/W
00b
DRDY pin signal source selection
00b = Most lagging enabled channel (default)
01b = Logic OR of all the enabled channels
10b = Most leading enabled channel
11b = Most leading enabled channel
50
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Table 8-16. MODE Register Field Descriptions (continued)
Bit
1
Field
Type
Reset
Description
DRDY_HiZ
R/W
0b
DRDY pin state when conversion data are not available
0b = Logic high (default)
1b = High impedance
0
DRDY_FMT
R/W
0b
DRDY signal format when conversion data are available
0b = Logic low (default)
1b = Low pulse with a fixed duration
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
51
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.4 CLOCK Register (Address = 3h) [reset = 0F0Eh]
The CLOCK register is shown in Figure 8-29 and described in Table 8-17.
Return to the Summary Table.
Figure 8-29. CLOCK Register
15
14
7
13
11
10
9
8
RESERVED
CH3_EN
CH2_EN
CH1_EN
CH0_EN
R-0000b
R/W-1b
R/W-1b
R/W-1b
R/W-1b
3
2
1
6
12
5
4
0
RESERVED
RESERVED
OSR
PWR
R/W-00b
R/W-0b
R/W-011b
R/W-10b
Table 8-17. CLOCK Register Field Descriptions
Bit
15:12
11
Field
Type
Reset
Description
RESERVED
R
0000b
Reserved
Always reads 0000b
CH3_EN
R/W
1b
Channel 3 ADC enable
0b = Disabled
1b = Enabled (default)
10
CH2_EN
R/W
1b
Channel 2 ADC enable
0b = Disabled
1b = Enabled (default)
9
CH1_EN
R/W
1b
Channel 1 ADC enable
0b = Disabled
1b = Enabled (default)
8
CH0_EN
R/W
1b
Channel 0 ADC enable
0b = Disabled
1b = Enabled (default)
7:6
RESERVED
R/W
00b
Reserved
Always write 00b
5
RESERVED
R/W
0b
Reserved
Always write 0b
OSR
R/W
011b
Modulator oversampling ratio selection
4:2
000b = 128
001b = 256
010b = 512
011b = 1024 (default)
100b = 2048
101b = 4096
110b = 8192
111b = 16256
1:0
PWR
R/W
10b
Power mode selection
00b = Very-low-power
01b = Low-power
10b = High-resolution (default)
11b = High-resolution
52
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.5 GAIN1 Register (Address = 4h) [reset = 0000h]
The GAIN1 register is shown in Figure 8-30 and described in Table 8-18.
Return to the Summary Table.
Figure 8-30. GAIN1 Register
15
14
13
12
11
10
9
RESERVED
PGAGAIN3
RESERVED
PGAGAIN2
R/W-0b
R/W-000b
R/W-0b
R/W-000b
7
6
5
4
3
2
1
RESERVED
PGAGAIN1
RESERVED
PGAGAIN0
R/W-0b
R/W-000b
R/W-0b
R/W-000b
8
0
Table 8-18. GAIN1 Register Field Descriptions
Bit
Field
Type
Reset
Description
15
RESERVED
R/W
0b
Reserved
Always write 0b
14:12
PGAGAIN3
R/W
000b
PGA gain selection for channel 3
000b = 1 (default)
001b = 2
010b = 4
011b = 8
100b = 16
101b = 32
110b = 64
111b = 128
11
RESERVED
R/W
0b
Reserved
Always write 0b
10:8
PGAGAIN2
R/W
000b
PGA gain selection for channel 2
000b = 1 (default)
001b = 2
010b = 4
011b = 8
100b = 16
101b = 32
110b = 64
111b = 128
7
RESERVED
R/W
0b
Reserved
Always write 0b
6:4
PGAGAIN1
R/W
000b
PGA gain selection for channel 1
000b = 1 (default)
001b = 2
010b = 4
011b = 8
100b = 16
101b = 32
110b = 64
111b = 128
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
53
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Table 8-18. GAIN1 Register Field Descriptions (continued)
Bit
Field
Type
Reset
Description
3
RESERVED
R/W
0b
Reserved
Always write 0b
2:0
PGAGAIN0
R/W
000b
PGA gain selection for channel 0
000b = 1 (default)
001b = 2
010b = 4
011b = 8
100b = 16
101b = 32
110b = G64
111b = 128
54
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.6 RESERVED Register (Address = 5h) [reset = 0000h]
The RESERVED register is shown in Figure 8-31 and described in Table 8-19.
Return to the Summary Table.
Figure 8-31. RESERVED Register
15
14
13
12
11
10
9
8
2
1
0
RESERVED
R/W-00000000b
7
6
5
4
3
RESERVED
R/W-00000000b
Table 8-19. RESERVED Register Field Descriptions
Bit
15:0
Field
Type
Reset
RESERVED
R/W
0000000000 Reserved
000000b
Always write 0000000000000000b
Description
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
55
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.7 CFG Register (Address = 6h) [reset = 0600h]
The CFG register is shown in Figure 8-32 and described in Table 8-20.
Return to the Summary Table.
Figure 8-32. CFG Register
15
14
13
12
11
10
9
8
RESERVED
GC_DLY
GC_EN
R/W-000b
R/W-0011b
R/W-0b
7
6
5
4
3
2
1
0
CD_ALLCH
CD_NUM
CD_LEN
CD_EN
R/W-0b
R/W-000b
R/W-000b
R/W-0b
Table 8-20. CFG Register Field Descriptions
Field
Type
Reset
Description
15:13
Bit
RESERVED
R/W
000b
Reserved
Always write 000b
12:9
GC_DLY
R/W
0011b
Global-chop delay selection
Delay in modulator clock periods before measurement begins
0000b = 2
0001b = 4
0010b = 8
0011b = 16 (default)
0100b = 32
0101b = 64
0110b = 128
0111b = 256
1000b = 512
1001b = 1024
1010b = 2048
1011b = 4096
1100b = 8192
1101b = 16384
1110b = 32768
1111b = 65536
8
GC_EN
R/W
0b
Global-chop enable
0b = Disabled (default)
1b = Enabled
7
CD_ALLCH
R/W
0b
Current-detect channel selection
Channels required to trigger current-detect
0b = Any channel (default)
1b = All channels
56
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Table 8-20. CFG Register Field Descriptions (continued)
Bit
Field
Type
Reset
Description
6:4
CD_NUM
R/W
000b
Number of current-detect exceeded thresholds selection
Number of current-detect exceeded thresholds to trigger a detection
000b = 1 (default)
001b = 2
010b = 4
011b = 8
100b = 16
101b = 32
110b = 64
111b = 128
3:1
CD_LEN
R/W
000b
Current-detect measurement length selection
Current-detect measurement length in conversion periods
000b = 128 (default)
001b = 256
010b = 512
011b = 768
100b = 1280
101b = 1792
110b = 2560
111b = 3584
0
CD_EN
R/W
0b
Current-detect mode enable
0b = Disabled (default)
1b = Enabled
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
57
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.8 THRSHLD_MSB Register (Address = 7h) [reset = 0000h]
The THRSHLD_MSB register is shown in Figure 8-33 and described in Table 8-21.
Return to the Summary Table.
Figure 8-33. THRSHLD_MSB Register
15
14
13
12
11
10
9
8
2
1
0
CD_TH_MSB
R/W-00000000b
7
6
5
4
3
CD_TH_MSB
R/W-00000000b
Table 8-21. THRSHLD_MSB Register Field Descriptions
Bit
15:0
58
Field
Type
Reset
CD_TH_MSB
R/W
0000000000 Current-detect mode threshold MSB
000000b
Description
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.9 THRSHLD_LSB Register (Address = 8h) [reset = 0000h]
The THRSHLD_LSB register is shown in Figure 8-34 and described in Table 8-22.
Return to the Summary Table.
Figure 8-34. THRSHLD_LSB Register
15
14
13
12
11
10
9
8
1
0
CD_TH_LSB
R/W-00000000b
7
6
5
4
3
2
RESERVED
DCBLOCK
R-0000b
R/W-0000b
Table 8-22. THRSHLD_LSB Register Field Descriptions
Field
Type
Reset
Description
15:8
Bit
CD_TH_LSB
R/W
00000000b
Current-detect mode threshold LSB
7:4
RESERVED
R
0000b
Reserved
Always write 0000b
3:0
DCBLOCK
R/W
0000b
DC block filter setting, see Table 8-4for details.
Value of coefficient a
0000b = DC block filter disabled
0001b = 1/4
0010b = 1/8
0011b = 1/16
0100b = 1/32
0101b = 1/64
0110b = 1/128
0111b = 1/256
1000b = 1/512
1001b = 1/1024
1010b = 1/2048
1011b = 1/4096
1100b = 1/8192
1101b = 1/16384
1110b = 1/32768
1111b = 1/65536
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
59
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.10 CH0_CFG Register (Address = 9h) [reset = 0000h]
The CH0_CFG register is shown in Figure 8-35 and described in Table 8-23.
Return to the Summary Table.
Figure 8-35. CH0_CFG Register
15
14
13
12
11
10
9
2
1
8
PHASE0
R/W-0000000000b
7
6
5
4
3
0
PHASE0
RESERVED
DCBLK0_DIS0
MUX0
R/W-0000000000b
R-000b
R/W-0b
R/W-00b
Table 8-23. CH0_CFG Register Field Descriptions
Field
Type
Reset
15:6
Bit
PHASE0
R/W
0000000000 Channel 0 phase delay
b
Phase delay in modulator clock cycles provided in two's complement
format. See Table 8-5 for details.
5:3
RESERVED
R
000b
Reserved
Always write 000b
DCBLK0_DIS0
R/W
0b
DC block filter for channel 0 disable
2
Description
0b = Controlled by DCBLOCK[3:0] (detault)
1b = Disabled for this channel
1:0
MUX0
R/W
00b
Channel 0 input selection
00b = AIN0P and AIN0N (default)
01b = ADC inputs shorted
10b = Positive DC test signal
11b = Negative DC test signal
60
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.11 CH0_OCAL_MSB Register (Address = Ah) [reset = 0000h]
The CH0_OCAL_MSB register is shown in Figure 8-36 and described in Table 8-24.
Return to the Summary Table.
Figure 8-36. CH0_OCAL_MSB Register
15
14
13
12
11
10
9
8
2
1
0
OCAL0_MSB
R/W-00000000b
7
6
5
4
3
OCAL0_MSB
R/W-00000000b
Table 8-24. CH0_OCAL_MSB Register Field Descriptions
Bit
15:0
Field
Type
Reset
OCAL0_MSB
R/W
0000000000 Channel 0 offset calibration register bits [23:8]
000000b
Description
8.6.12 CH0_OCAL_LSB Register (Address = Bh) [reset = 0000h]
The CH0_OCAL_LSB register is shown in Figure 8-37 and described in Table 8-25.
Return to the Summary Table.
Figure 8-37. CH0_OCAL_LSB Register
15
14
13
12
11
10
9
8
2
1
0
OCAL0_LSB
R/W-00000000b
7
6
5
4
3
RESERVED
R-00000000b
Table 8-25. CH0_OCAL_LSB Register Field Descriptions
Bit
Field
Type
Reset
Description
15:8
OCAL0_LSB
R/W
00000000b
Channel 0 offset calibration register bits [7:0]
7:0
RESERVED
R
00000000b
Reserved
Always reads 00000000b
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
61
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.13 CH0_GCAL_MSB Register (Address = Ch) [reset = 8000h]
The CH0_GCAL_MSB register is shown in Figure 8-38 and described in Table 8-26.
Return to the Summary Table.
Figure 8-38. CH0_GCAL_MSB Register
15
14
13
12
11
10
9
8
2
1
0
GCAL0_MSB
R/W-10000000b
7
6
5
4
3
GCAL0_MSB
R/W-00000000b
Table 8-26. CH0_GCAL_MSB Register Field Descriptions
Bit
15:0
Field
Type
Reset
GCAL0_MSB
R/W
1000000000 Channel 0 gain calibration register bits [23:8]
000000b
Description
8.6.14 CH0_GCAL_LSB Register (Address = Dh) [reset = 0000h]
The CH0_GCAL_LSB register is shown in Figure 8-39 and described in Table 8-27.
Return to the Summary Table.
Figure 8-39. CH0_GCAL_LSB Register
15
14
13
12
11
10
9
8
2
1
0
GCAL0_LSB
R/W-00000000b
7
6
5
4
3
RESERVED
R-00000000b
Table 8-27. CH0_GCAL_LSB Register Field Descriptions
Bit
62
Field
Type
Reset
Description
15:8
GCAL0_LSB
R/W
00000000b
Channel 0 gain calibration register bits [7:0]
7:0
RESERVED
R
00000000b
Reserved
Always reads 00000000b
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.15 CH1_CFG Register (Address = Eh) [reset = 0000h]
The CH1_CFG register is shown in Figure 8-40 and described in Table 8-28.
Return to the Summary Table.
Figure 8-40. CH1_CFG Register
15
14
13
12
11
10
9
2
1
8
PHASE1
R/W-0000000000b
7
6
5
4
3
0
PHASE1
RESERVED
DCBLK1_DIS0
MUX1
R/W-0000000000b
R-000b
R/W-0b
R/W-00b
Table 8-28. CH1_CFG Register Field Descriptions
Field
Type
Reset
15:6
Bit
PHASE1
R/W
0000000000 Channel 1 phase delay
b
Phase delay in modulator clock cycles provided in two's complement
format. See Table 8-5 for details.
5:3
RESERVED
R
000b
Reserved
Always reads 000b
DCBLK1_DIS0
R/W
0b
DC block filter for channel 1 disable
2
Description
0b = Controlled by DCBLOCK[3:0] (default)
1b = Disabled for this channel
1:0
MUX1
R/W
00b
Channel 1 input selection
00b = AIN1P and AIN1N (default)
01b = ADC inputs shorted
10b = Positive DC test signal
11b = Negative DC test signal
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
63
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.16 CH1_OCAL_MSB Register (Address = Fh) [reset = 0000h]
The CH1_OCAL_MSB register is shown in Figure 8-41 and described in Table 8-29.
Return to the Summary Table.
Figure 8-41. CH1_OCAL_MSB Register
15
14
13
12
11
10
9
8
2
1
0
OCAL1_MSB
R/W-00000000b
7
6
5
4
3
OCAL1_MSB
R/W-00000000b
Table 8-29. CH1_OCAL_MSB Register Field Descriptions
Bit
15:0
Field
Type
Reset
OCAL1_MSB
R/W
0000000000 Channel 1 offset calibration register bits [23:8]
000000b
Description
8.6.17 CH1_OCAL_LSB Register (Address = 10h) [reset = 0000h]
The CH1_OCAL_LSB register is shown in Figure 8-42 and described in Table 8-30.
Return to the Summary Table.
Figure 8-42. CH1_OCAL_LSB Register
15
14
13
12
11
10
9
8
2
1
0
OCAL1_LSB
R/W-00000000b
7
6
5
4
3
RESERVED
R-00000000b
Table 8-30. CH1_OCAL_LSB Register Field Descriptions
Bit
64
Field
Type
Reset
Description
15:8
OCAL1_LSB
R/W
00000000b
Channel 1 offset calibration register bits [7:0]
7:0
RESERVED
R
00000000b
Reserved
Always reads 00000000b
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.18 CH1_GCAL_MSB Register (Address = 11h) [reset = 8000h]
The CH1_GCAL_MSB register is shown in Figure 8-43 and described in Table 8-31.
Return to the Summary Table.
Figure 8-43. CH1_GCAL_MSB Register
15
14
13
12
11
10
9
8
2
1
0
GCAL1_MSB
R/W-10000000b
7
6
5
4
3
GCAL1_MSB
R/W-00000000b
Table 8-31. CH1_GCAL_MSB Register Field Descriptions
Bit
15:0
Field
Type
Reset
GCAL1_MSB
R/W
1000000000 Channel 1 gain calibration register bits [23:8]
000000b
Description
8.6.19 CH1_GCAL_LSB Register (Address = 12h) [reset = 0000h]
The CH1_GCAL_LSB register is shown in Figure 8-44 and described in Table 8-32.
Return to the Summary Table.
Figure 8-44. CH1_GCAL_LSB Register
15
14
13
12
11
10
9
8
2
1
0
GCAL1_LSB
R/W-00000000b
7
6
5
4
3
RESERVED
R-00000000b
Table 8-32. CH1_GCAL_LSB Register Field Descriptions
Bit
Field
Type
Reset
Description
15:8
GCAL1_LSB
R/W
00000000b
Channel 1 gain calibration register bits [7:0]
7:0
RESERVED
R
00000000b
Reserved
Always reads 00000000b
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
65
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.20 CH2_CFG Register (Address = 13h) [reset = 0000h]
The CH2_CFG register is shown in Figure 8-45 and described in Table 8-33.
Return to the Summary Table.
Figure 8-45. CH2_CFG Register
15
14
13
12
11
10
9
2
1
8
PHASE2
R/W-0000000000b
7
6
5
4
3
0
PHASE2
RESERVED
DCBLK2_DIS0
MUX2
R/W-0000000000b
R-000b
R/W-0b
R/W-00b
Table 8-33. CH2_CFG Register Field Descriptions
Field
Type
Reset
15:6
Bit
PHASE2
R/W
0000000000 Channel 2 phase delay
b
Phase delay in modulator clock cycles provided in two's complement
format. See Table 8-5 for details.
5:3
RESERVED
R
000b
Reserved
Always reads 000b
DCBLK2_DIS0
R/W
0b
DC block filter for channel 2 disable
2
Description
0b = Controlled by DCBLOCK[3:0] (default)
1b = Disabled for this channel
1:0
MUX2
R/W
00b
Channel 2 input selection
00b = AIN2P and AIN2N (default)
01b = ADC inputs shorted
10b = Positive DC test signal
11b = Negative DC test signal
66
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.21 CH2_OCAL_MSB Register (Address = 14h) [reset = 0000h]
The CH2_OCAL_MSB register is shown in Figure 8-46 and described in Table 8-34.
Return to the Summary Table.
Figure 8-46. CH2_OCAL_MSB Register
15
14
13
12
11
10
9
8
2
1
0
OCAL2_MSB
R/W-00000000b
7
6
5
4
3
OCAL2_MSB
R/W-00000000b
Table 8-34. CH2_OCAL_MSB Register Field Descriptions
Bit
15:0
Field
Type
Reset
OCAL2_MSB
R/W
0000000000 Channel 2 offset calibration register bits [23:8]
000000b
Description
8.6.22 CH2_OCAL_LSB Register (Address = 15h) [reset = 0000h]
The CH2_OCAL_LSB register is shown in Figure 8-47 and described in Table 8-35.
Return to the Summary Table.
Figure 8-47. CH2_OCAL_LSB Register
15
14
13
12
11
10
9
8
2
1
0
OCAL2_LSB
R/W-00000000b
7
6
5
4
3
RESERVED
R-00000000b
Table 8-35. CH2_OCAL_LSB Register Field Descriptions
Bit
Field
Type
Reset
Description
15:8
OCAL2_LSB
R/W
00000000b
Channel 2 offset calibration register bits [7:0]
7:0
RESERVED
R
00000000b
Reserved
Always reads 00000000b
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
67
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.23 CH2_GCAL_MSB Register (Address = 16h) [reset = 8000h]
The CH2_GCAL_MSB register is shown in Figure 8-48 and described in Table 8-36.
Return to the Summary Table.
Figure 8-48. CH2_GCAL_MSB Register
15
14
13
12
11
10
9
8
2
1
0
GCAL2_MSB
R/W-10000000b
7
6
5
4
3
GCAL2_MSB
R/W-00000000b
Table 8-36. CH2_GCAL_MSB Register Field Descriptions
Bit
15:0
Field
Type
Reset
GCAL2_MSB
R/W
1000000000 Channel 2 gain calibration register bits [23:8]
000000b
Description
8.6.24 CH2_GCAL_LSB Register (Address = 17h) [reset = 0000h]
The CH2_GCAL_LSB register is shown in Figure 8-49 and described in Table 8-37.
Return to the Summary Table.
Figure 8-49. CH2_GCAL_LSB Register
15
14
13
12
11
10
9
8
2
1
0
GCAL2_LSB
R/W-00000000b
7
6
5
4
3
RESERVED
R-00000000b
Table 8-37. CH2_GCAL_LSB Register Field Descriptions
Bit
68
Field
Type
Reset
Description
15:8
GCAL2_LSB
R/W
00000000b
Channel 2 gain calibration register bits [7:0]
7:0
RESERVED
R
00000000b
Reserved
Always reads 00000000b
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.25 CH3_CFG Register (Address = 18h) [reset = 0000h]
The CH3_CFG register is shown in Figure 8-50 and described in Table 8-38.
Return to the Summary Table.
Figure 8-50. CH3_CFG Register
15
14
13
12
11
10
9
2
1
8
PHASE3
R/W-0000000000b
7
6
5
4
3
0
PHASE3
RESERVED
DCBLK3_DIS0
MUX3
R/W-0000000000b
R-000b
R/W-0b
R/W-00b
Table 8-38. CH3_CFG Register Field Descriptions
Field
Type
Reset
15:6
Bit
PHASE3
R/W
0000000000 Channel 3 phase delay
b
Phase delay in modulator clock cycles provided in two's complement
format. See Table 8-5 for details.
5:3
RESERVED
R
000b
Reserved
Always reads 000b
DCBLK3_DIS0
R/W
0b
DC block filter for channel 3 disable
2
Description
0b = Controlled by DCBLOCK[3:0] (default)
1b = Disabled for this channel
1:0
MUX3
R/W
00b
Channel 3 input selection
00b = AIN3P and AIN3N (default)
01b = ADC inputs shorted
10b = Positive DC test signal
11b = Negative DC test signal
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
69
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.26 CH3_OCAL_MSB Register (Address = 19h) [reset = 0000h]
The CH3_OCAL_MSB register is shown in Figure 8-51 and described in Table 8-39.
Return to the Summary Table.
Figure 8-51. CH3_OCAL_MSB Register
15
14
13
12
11
10
9
8
2
1
0
OCAL3_MSB
R/W-00000000b
7
6
5
4
3
OCAL3_MSB
R/W-00000000b
Table 8-39. CH3_OCAL_MSB Register Field Descriptions
Bit
15:0
Field
Type
Reset
OCAL3_MSB
R/W
0000000000 Channel 3 offset calibration register bits [23:8]
000000b
Description
8.6.27 CH3_OCAL_LSB Register (Address = 1Ah) [reset = 0000h]
The CH3_OCAL_LSB register is shown in Figure 8-52 and described in Table 8-40.
Return to the Summary Table.
Figure 8-52. CH3_OCAL_LSB Register
15
14
13
12
11
10
9
8
2
1
0
OCAL3_LSB
R/W-00000000b
7
6
5
4
3
RESERVED
R-00000000b
Table 8-40. CH3_OCAL_LSB Register Field Descriptions
Bit
70
Field
Type
Reset
Description
15:8
OCAL3_LSB
R/W
00000000b
Channel 3 offset calibration register bits [7:0]
7:0
RESERVED
R
00000000b
Reserved
Always reads 00000000b
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.28 CH3_GCAL_MSB Register (Address = 1Bh) [reset = 8000h]
The CH3_GCAL_MSB register is shown in Figure 8-53 and described in Table 8-41.
Return to the Summary Table.
Figure 8-53. CH3_GCAL_MSB Register
15
14
13
12
11
10
9
8
2
1
0
GCAL3_MSB
R/W-10000000b
7
6
5
4
3
GCAL3_MSB
R/W-00000000b
Table 8-41. CH3_GCAL_MSB Register Field Descriptions
Bit
15:0
Field
Type
Reset
GCAL3_MSB
R/W
1000000000 Channel 3 gain calibration register bits [23:8]
000000b
Description
8.6.29 CH3_GCAL_LSB Register (Address = 1Ch) [reset = 0000h]
The CH3_GCAL_LSB register is shown in Figure 8-54 and described in Table 8-42.
Return to the Summary Table.
Figure 8-54. CH3_GCAL_LSB Register
15
14
13
12
11
10
9
8
2
1
0
GCAL3_LSB
R/W-00000000b
7
6
5
4
3
RESERVED
R-00000000b
Table 8-42. CH3_GCAL_LSB Register Field Descriptions
Bit
Field
Type
Reset
Description
15:8
GCAL3_LSB
R/W
00000000b
Channel 3 gain calibration register bits [7:0]
7:0
RESERVED
R
00000000b
Reserved
Always reads 00000000b
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
71
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.30 REGMAP_CRC Register (Address = 3Eh) [reset = 0000h]
The REGMAP_CRC register is shown in Figure 8-55 and described in Table 8-43.
Return to the Summary Table.
Figure 8-55. REGMAP_CRC Register
15
14
13
12
11
10
9
8
2
1
0
REG_CRC
R-0000000000000000b
7
6
5
4
3
REG_CRC
R-0000000000000000b
Table 8-43. REGMAP_CRC Register Field Descriptions
Bit
15:0
72
Field
Type
Reset
REG_CRC
R
0000000000 Register map CRC
000000b
Description
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
8.6.31 RESERVED Register (Address = 3Fh) [reset = 0000h]
The RESERVED register is shown in Figure 8-56 and described in Table 8-44.
Return to the Summary Table.
Figure 8-56. RESERVED Register
15
14
13
12
11
10
9
8
2
1
0
RESERVED
R/W-00000000b
7
6
5
4
3
RESERVED
R/W-00000000b
Table 8-44. RESERVED Register Field Descriptions
Bit
15:0
Field
Type
Reset
RESERVED
R/W
0000000000 Reserved,
000000b
Always write 0000000000000000b
Description
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
73
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
9 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification, and TI
does not warrant its accuracy or completeness. TI’s customers are responsible for determining
suitability of components for their purposes, as well as validating and testing their design
implementation to confirm system functionality.
9.1 Application Information
9.1.1 Unused Inputs and Outputs
Leave any unused analog inputs floating or connect them to AGND.
Do not float unused digital inputs because excessive power-supply leakage current can result. Tie all unused
digital inputs to the appropriate levels, DVDD or DGND. Leave the DRDY pin unconnected or connect it to
DVDD using a weak pullup resistor if unused.
9.1.2 Antialiasing
An analog low-pass filter is required in front of each of the channel inputs to prevent out-of-band noise and
interferers from coupling into the band of interest. Because the ADS131M04 is a delta-sigma ADC, the
integrated digital filter provides substantial attenuation for frequencies outside of the band of interest up to the
frequencies adjacent to fMOD. Therefore, a single-order RC filter provides sufficient antialiasing protection in the
vast majority of applications.
Choosing the values of the resistor and capacitor depends on the desired cutoff frequency, limiting source
impedance for the ADC inputs, and providing enough instantaneous charge to the ADC input sampling circuit
through the filter capacitor. Figure 9-1 shows the recommended filter component values. These
recommendations are sufficient for CLKIN frequencies between 2 MHz and 8.2 MHz.
1k
10 nF
To ADC
Inputs
1k
Figure 9-1. Recommended Antialiasing Circuitry
74
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
9.1.3 Minimum Interface Connections
Figure 9-2 depicts how the ADS131M04 can be configured for the minimum number of interface pins. This
configuration is useful when using data isolation to minimize the number of isolation channels required or when
the microcontroller (MCU) pins are limited.
The CLKIN pin requires an LVCMOS clock that can be either generated by the MCU or created using a local
LVCMOS output device. Tie the SYNC/RESET pin to DVDD in hardware if unused. The DRDY pin can be left
floating if unused. Connect either SYNC/RESET or DRDY to the MCU to ensure the MCU stays synchronized to
ADC conversions. If the MCU provides CLKIN, the CLKIN periods can be counted to determine the sample
period rather than forcing synchronization using the SYNC/RESET pin or monitoring the DRDY pin.
Synchronization cannot be regained if a bit error occurs on the clock and samples can be missed if the SYNC/
RESET or DRDY pins are not used. CS can be tied low in hardware if the ADS131M04 is the only device on the
SPI bus. Ensure the data input and output CRC are enabled and are used to guard against faulty register reads
and writes if CS is tied low permanently.
Local
Oscillator
DVDD
OR
CLKIN
CLKOUT
SYNC/RESET
GPIO
OR
DRDY
Device
GPIO
CS
CS
MCU
OR
SCLK
SCLK
DIN
MOSI
DOUT
MISO
DGND
Figure 9-2. Minimum Connections Required to Operate the ADS131M04
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
75
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
9.1.4 Multiple Device Configuration
Multiple ADS131M04 devices can be arranged to capture all signals simultaneously. The same clock must be
provided to all devices and the SYNC/RESET pins must be strobed simultaneously at least one time to align the
sample periods internally between devices. The phase settings of each device can be changed uniquely, but the
host must take care to record which channel in the group of devices represents the zero phase.
The devices can also share the SPI bus where only the CS pins for each device are unique. Each device can be
addressed sequentially by asserting CS for the device that the host wishes to communicate with. The DOUT pin
remains high impedance when the CS pin is high, allowing the DOUT lines to be shared between devices as
long as no two devices sharing the bus simultaneously have their CS pins low. Figure 9-3 shows multiple
devices configured for simultaneous data acquisition while sharing the SPI bus.
Monitoring the DRDY output of only one of the devices is sufficient because all devices convert simultaneously.
Device 1
SYNC/RESET
GPIO
CLKIN
CLKOUT
DRDY
IRQ
SCLK
SCLK
DIN
MOSI
DOUT
MISO
CS
MCU
CS1
CS2
...
CSn
Device 2
SYNC/RESET
CLKIN
DRDY
SCLK
DIN
DOUT
CS
Device n
SYNC/RESET
CLKIN
DRDY
SCLK
DIN
DOUT
CS
Figure 9-3. Multiple Device Configuration
76
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
9.1.5 Power Metrology Applications
Each channel of the ADS131M04 is identical, giving designers the flexibility to sense voltage or current with any
channel. Simultaneous sampling allows the application to calculate instantaneous power for any simultaneous
voltage and current measurement. This section provides several diagrams depicting the common energy
metrology configurations that can be used with the ADS131M04. A Rogowski coil can alternatively be used to
sense current in the following examples wherever a CT is used. The integration to determine the current flowing
through the Rogowski coil is done digitally if that modification is made. RC antialiasing filters are not shown in
the following diagrams for simplicity, but are recommended for all channels.
Figure 9-4 shows a two-phase (or split phase) metrology front-end that uses current transformers (CTs) to
measure the current on two live phases and two resistor voltage dividers to measure the voltage between the
live phases and neutral. Figure 9-5 shows a configuration similar to Figure 9-4, but with the voltage measured
between the phases and the neutral current measured directly with a CT.
Load
Load
Load
Load
VDD
VDD
AVDD
AVDD
AIN0N
AIN0N
AIN0P
AIN0P
AIN1P
AIN1P
AIN1N
AIN1N
ADS131M04
Phase
Neutral
ADS131M04
AIN2N
AIN2N
AIN2P
AIN2P
AIN3P
AIN3P
AIN3N
AIN3N
AGND
AGND
Phase
Phase
Figure 9-4. Two-Phase CTs for Live Currents, With
Voltages Measured to Neutral
Neutral
Phase
Figure 9-5. Two-Phase CTs for Live and Neutral
Currents, With Voltages Measured Between
Phases
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
77
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
Figure 9-6 shows a single phase configuration where live and neutral currents are monitored using CTs, the live
phase voltage is measured using a voltage divider, and the final channel is used for an auxiliary measurement.
This auxiliary measurement can be temperature if connected to an external thermistor or other voltage output
temperature sensor. Otherwise this measurement can sense any other signal that requires monitoring on the
board. Figure 9-7 is similar to Figure 9-6 but shows a configuration where the live current is measured using a
CT and the neutral current is measured using a shunt. The reverse configuration, where the shunt is used for live
and the CT for neutral, is also valid.
Load
Load
VDD
VDD
AVDD
AVDD
AIN0N
AIN0N
AIN0P
AIN0P
AIN1P
AIN1P
AIN1N
AIN1N
ADS131M04
ADS131M04
AIN2N
AIN2N
AIN2P
AIN2P
AIN3P
AIN3P
Aux
Aux
Phase
AIN3N
AIN3N
AGND
AGND
Phase
Neutral
Figure 9-6. Single-Phase CT for Live and Neutral
Currents, With Phase and Auxiliary Voltages
Measured
78
Neutral
Figure 9-7. Single-Phase, Shunt for Live Current,
CT for Neutral Current, With Phase and Auxiliary
Voltages Measured
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: ADS131M04
ADS131M04
www.ti.com
SBAS890C – MARCH 2019 – REVISED JANUARY 2021
9.1.6 Code Example
This section contains example pseudocode for a simple program that configures and streams data from the
ADS131M04. The pseudocode is written to resemble C code. The code uses several descriptive precompilerdefined constants that are indicated in upper case. The definitions are not included for brevity. The program
works in three sections: MCU initialization, ADC configuration, and data streaming. This code is not optimized for
using the fast startup feature of the ADS131M04.
The MCU is initialized by enabling the necessary peripherals for this example. These peripherals include an SPI
port, a GPIO configured as an input for the ADS131M04 DRDY output, a clock output to connect to the
ADS131M04 CLKIN input, and a direct memory access (DMA) module that streams data from the SPI port into
memory without significant processor intervention. The SPI port is configured to a 24-bit word size because the
ADC default SPI word size is 24 bits. The CS pin is configured to remain low as long as the SPI port is busy so
that it does not de-assert in the middle of a frame.
The ADC is configured through register writes. A function referred to as adcRegisterWrite writes an ADC register
using the SPI peripheral. No CRC data integrity is used in this example for simplicity, but is recommended. The
ADC outputs are initially disabled so short frames can be written during initialization consistent with the guidance
provided in the Short SPI Frames section. The ADC is configured to output DRDY as pulses, the gain is changed
to 32 for channels 1 and 3, and the DC block filter is used with a corner frequency of 622 mHz. Finally, the ADC
word size is changed to 32 bits with an MSB sign extension to accommodate the MCU memory length and to
allow for 32-bit DMA transfers. All other settings are left as defaults.
Data streaming is performed by using an interrupt that is configured to trigger on a negative edge received on
the GPIO connected to the DRDY pin. The interrupt service routine, referred to as DRDYinterrupt, sends six 32bit dummy words to assert CS and to toggle SCLK for the length of the entire ADC output frame. The ADC
output frame consists of one 32-bit status word, four 32-bit ADC conversion data words, and an optional 32-bit
CRC word. The frame is long enough for output CRC even though the CRC word is disabled in this example.
The DMA module is configured to trigger upon receiving data on the SPI input. The DMA automatically sends the
ADC data to a predetermined memory location as soon as the data are shifted into the MCU through the SPI
input.
numFrameWords = 6;
// Number of words in a full ADS131M04 SPI frame
unsigned long spiDummyWord[numFrameWords] =
{
0x00000000,
0x00000000,
0x00000000,
0x00000000,
0x00000000,
0x00000000};
// Dummy word frame to write ADC during ADC data reads
bool firstRead = true; // Flag to tell us if we are reading ADC data for the// first time
signed long adcData;
// Location where DMA will store ADC data in memory,
// length defined elsewhere/*
Interrupt the MCU each time DRDY asserts when collecting data
*/
DRDYinterupt(){
if(firstRead){
// Clear the ADC's 2-deep FIFO on the first read
for(i=0; i
