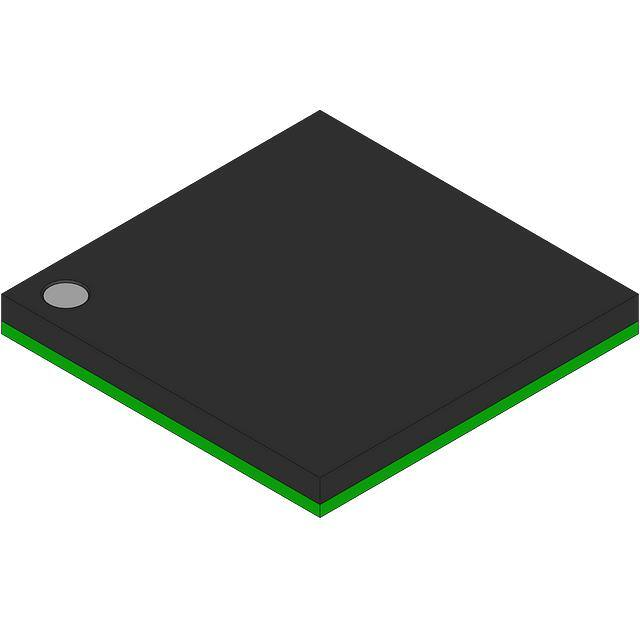

ADS58H40IZCR

ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Quad-Channel, 250-MSPS Receiver and Feedback ADC Check for Samples: ADS58H40 FEATURES DESCRIPTION • • The ADS58H40 is a high-linearity, quad-channel, 14bit, 250-MSPS analog-to-digital converter (ADC). The four ADC channels are separated into two blocks with two ADCs each. Each block can be individually configured into three different operating modes. One operating mode includes the implementation of the SNRBoost3G+ signal processing technology to provide high signal-to-noise ratio (SNR) in a band up to 90 MHz wide with only 11-bit resolution. Designed for low power consumption and high spurious-free dynamic range (SFDR), the ADC has low-noise performance and outstanding SFDR over a large input frequency range. 1 2 • • • • • • Quad Channel Three Different Operating Modes: – 11-Bit: 250 MSPS – 11-Bit SNRBoost3G+: 250 MSPS – 14-Bit: 250 MSPS (Burst Mode) Maximum Sampling Data Rate: 250 MSPS Power Dissipation: – 11-Bit Mode: 365 mW per Channel SNRBoost3G+ Bandwidth: 2x 45 MHz or 90 MHz Spectral Performance at 170 MHz IF (typ): – SNR: 70.5 dBFS in 90-MHz Band with SNRBoost3G+ – SFDR: 85 dBc DDR LVDS Digital Output Interface 144-Pad BGA (10-mm × 10-mm) APPLICATIONS • • • • Multi-Carrier GSM Cellular Infrastructure Base Stations Multi-Carrier Multi-Mode Cellular Infrastructure Base Stations Active Antenna Arrays for Wireless Infrastructures Communications Test Equipment 1 2 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. All trademarks are the property of their respective owners. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Copyright © 2012, Texas Instruments Incorporated ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. PACKAGE AND ORDERING INFORMATION (1) PRODUCT PACKAGELEAD PACKAGE DESIGNATOR SPECIFIED TEMPERATURE RANGE ECO PLAN (2) LEAD AND BALL FINISH PACKAGE MARKING ADS58H40 BGA-144 ZCR –40°C to +85°C GREEN (RoHS, no SB or BR) CuNiPdAu ADS58H40I (1) (2) ORDERING NUMBER TRANSPORT MEDIA ADS58H40IZCR Tray ADS58H40IZCRR Tape and Reel For the most current package and ordering information, see the Package Option Addendum at the end of this document, or visit the device product folder at www.ti.com. These packages conform to Lead (Pb)-free and green manufacturing specifications. Additional details including specific material content can be accessed at www.ti.com/leadfree. GREEN: TI defines Green to mean Lead (Pb)-Free and in addition, uses less package materials that do not contain halogens, including bromine (Br), or antimony (Sb) above 0.1% of total product weight. N/A: Not yet available Lead (Pb)-Free; for estimated conversion dates, go to www.ti.com/leadfree. Pb-FREE: TI defines Lead (Pb)-Free to mean RoHS compatible, including a lead concentration that does not exceed 0.1% of total product weight, and, if designed to be soldered, suitable for use in specified lead-free soldering processes. ABSOLUTE MAXIMUM RATINGS (1) Over operating free-air temperature range, unless otherwise noted. Supply voltage range Voltage between Voltage applied to input pins Temperature VALUE UNIT AVDD33 –0.3 to +3.6 V AVDD –0.3 to +2.1 V DRVDD –0.3 to +2.1 V AVSS and DRVSS –0.3 to +0.3 V AVDD and DRVDD –2.4 to +2.4 V AVDD33 and DRVDD –2.4 to +3.9 V AVDD33 and AVDD –2.4 to +3.9 V XINP, XINM –0.3 to minimum (1.9, AVDD + 0.3) V CLKP, CLKM (2) –0.3 to minimum (1.9, AVDD + 0.3) V RESET, SCLK, SDATA, SEN, SNRB, TRIG_EN, PDN –0.3 to +3.9 V Operating free-air, TA –40 to +85 °C Operating junction, TJ Storage, Tstg Electrostatic discharge (ESD) ratings (1) (2) 2 Human body model (HBM) +150 °C –65 to +150 °C 2 kV Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. When AVDD is turned off, TI recommends switching off the input clock (or ensuring the voltage on CLKP and CLKM is less than | 0.3 V |). This recommendation prevents the ESD protection diodes at the clock input pins from turning on. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 THERMAL INFORMATION ADS58H40 THERMAL METRIC (1) ZCR (BGA) UNITS 144 PINS θJA Junction-to-ambient thermal resistance θJCtop Junction-to-case (top) thermal resistance 5.1 θJB Junction-to-board thermal resistance 12.6 ψJT Junction-to-top characterization parameter 0.1 ψJB Junction-to-board characterization parameter 12.4 θJCbot Junction-to-case (bottom) thermal resistance N/A 35.9 °C/W SPACER (1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953. RECOMMENDED OPERATING CONDITIONS MIN NOM MAX UNIT 3.15 3.3 3.45 V 1.8 1.9 2.0 V 1.7 1.8 2.0 V SUPPLIES AVDD33 AVDD Supply voltage DRVDD ANALOG INPUTS Differential input voltage range 2 Input common-mode voltage VCM ± 0.025 Analog input common-mode current (per input pin of each channel) V 1.5 VCM current capability Maximum analog input frequency VPP µA/MSPS 5 mA 2-VPP input amplitude (1) 400 MHz 1.4-VPP input amplitude 500 MHz CLOCK INPUTS 184 (2) Input clock sample rate Sine wave, ac-coupled Input clock amplitude differential (VCLKP – VCLKM) 0.2 250 MSPS 1.5 VPP LVPECL, ac-coupled 1.6 VPP LVDS, ac-coupled 0.7 VPP LVCMOS, single-ended, ac-coupled Input clock duty cycle 1.8 40% 50% VPP 60% DIGITAL OUTPUTS CLOAD Maximum external load capacitance from each output pin to DRVSS (default strength) 3.3 pF RLOAD Differential load resistance between the LVDS output pairs (LVDS mode) 100 Ω TEMPERATURE RANGE TA TJ (1) (2) (3) Operating free-air temperature Operating junction temperature +85 °C Recommended –40 +105 °C Maximum rated (3) +125 °C See the Theory of Operation section. The minimum functional clock speed can be 10 MSPS after writing the following special modes: address 4Ah, value 01h; address 62h, value 01h; address 92h, value 01h; and address 7Ah, value 01h. See the SPECIAL MODE[17:14] bits in Table 4 of the Serial Interface Registers section. Prolonged use at this junction temperature may increase the device failure-in-time (FIT) rate. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 3 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Table 1. High-Performance Modes Summary (1) (2) fS = 245.76 MSPS ADDRESS (Hex) DATA (Hex) D4 80 D5 80 D6 80 √ √ √ √ √ √ (1) (2) D7 0C DB 30 F0 38 F1 20 F5 42 RS = 50 ZONE = 2 RS = 100 ZONE = 2 RS = 50 ZONE = 3 fS = 184.32 MSPS RS = 100 ZONE = 3 RS = 50 ZONE = 2 RS = 100 ZONE = 2 √ √ √ √ √ √ √ √ √ √ √ √ √ RS refers to the source impedance. Zone refers to the Nyquist zone in which the signal band lies. Zone = 2 corresponds to the signal band that lies between fS / 2 and fS. Zone = 3 corresponds to the signal band that lies between fS and 3 × fS / 2. Best performance can be achieved by writing these modes depending upon source impedance, band of operation, and sampling speed. ELECTRICAL CHARACTERISTICS Typical values are at TA = +25°C, full temperature range is TMIN = –40°C to TMAX = +85°C, ADC clock frequency = 250 MHz, 50% clock duty cycle, AVDD33V = 3.3 V, AVDD = 1.9 V, DRVDD = 1.8 V, and –1-dBFS differential input, unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNITS RESOLUTION Default resolution 11 Bits 2 VPP ANALOG INPUTS Differential input full-scale VCM Common mode input voltage 1.15 RIN Input resistance, differential V At 170-MHz input frequency 700 Ω CIN Input capacitance, differential At 170-MHz input frequency 3.3 pF Analog input bandwidth, 3 dB With a 50-Ω source driving the ADC analog inputs 500 MHz DYNAMIC ACCURACY EO Offset error Gain error (1) EG Specified across devices and channels –15 15 mV As a result of internal reference inaccuracy alone Specified across devices and channels –5 5 %FS Of channel alone Specified across channels within a device Channel gain error temperature coefficient (1) ±0.2 %FS 0.001 Δ%/°C POWER SUPPLY (2) IAVDD33 3.3-V analog supply 51 mA IAVDD 1.9-V analog supply 350 mA 340 mA 400 mA 11-bit operation Supply current IDRVDD 1.8-V digital supply PTOTAL Total Power dissipation PDISS(standby) Standby PDISS(global) Global power-down (1) (2) 4 3G+ SNRBoost enabled (90 MHz) 14-bit burst mode 355 11-bit operation 1.45 1.6 W SNRBoost3G+ enabled 1.55 1.8 W 14-bit burst mode 1.47 W 400 mW 6 mA 52 mW There are two sources of gain error: internal reference inaccuracy and channel gain error. A 185-MHz, full-scale, sine-wave input signal is applied to all four channels. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 ELECTRICAL CHARACTERISTICS (continued) Typical values are at TA = +25°C, full temperature range is TMIN = –40°C to TMAX = +85°C, ADC clock frequency = 250 MHz, 50% clock duty cycle, AVDD33V = 3.3 V, AVDD = 1.9 V, DRVDD = 1.8 V, and –1-dBFS differential input, unless otherwise noted. PARAMETER DYNAMIC AC CHARACTERISTICS TEST CONDITIONS 11-bit SNRBoost3G+, 90-MHz BW SNR Signal-to-noise ratio 11-bit SNRBoost3G+, 60-MHz BW SINAD MIN TYP Signal-to-noise and distortion ratio 11-bit SNRBoost3G+, 90-MHz BW 3G+ 11-bit SNRBoost 60-MHz BW 71 dBFS 69 70.5 dBFS fIN = 220 MHz, AIN = –1 dBFS 70 dBFS fIN = 307 MHz, AIN = –3 dBFS 71.7 dBFS fIN = 350 MHz, AIN = –3 dBFS 71.5 dBFS fIN = 140 MHz, AIN = –1 dBFS 70.6 dBFS 70.1 dBFS fIN = 220 MHz, AIN = –1 dBFS 69.5 dBFS fIN = 307 MHz, AIN = –3 dBFS 69.7 , dBFS fIN = 350 MHz, AIN = –3 dBFS 69.2 dBFS fIN = 140 MHz, AIN = –1 dBFS 85 dBc 85 dBc fIN = 220 MHz, AIN = –1 dBFS 82 dBc fIN = 307 MHz, AIN = –3 dBFS 78 dBc fIN = 350 MHz, AIN = –3 dBFS 77 dBc fIN = 140 MHz, AIN = –1 dBFS 82 dBc 82 dBc fIN = 220 MHz, AIN = –1 dBFS 80 dBc fIN = 307 MHz, AIN = –3 dBFS 77 dBc fIN = 350 MHz, AIN = –3 dBFS 76 dBc fIN = 140 MHz, AIN = –1 dBFS 86 dBc 85 dBc fIN = 220 MHz, AIN = –1 dBFS 82 dBc fIN = 307 MHz, AIN = –3 dBFS 78 dBc fIN = 350 MHz, AIN = –3 dBFS 77 dBc fIN = 140 MHz, AIN = –1 dBFS 85 dBc 85 dBc fIN = 220 MHz, AIN = –1 dBFS 85 dBc fIN = 307 MHz, AIN = –3 dBFS 85 dBc fIN = 350 MHz, AIN = –3 dBFS 83 dBc fIN = 140 MHz, AIN = –1 dBFS 95 dBc 95 dBc fIN = 220 MHz, AIN = –1 dBFS 95 dBc fIN = 307 MHz, AIN = –3 dBFS 95 dBc fIN = 350 MHz, AIN = –3 dBFS 95 fIN = 140 MHz, AIN = –1 dBFS fIN = 170 MHz, AIN = –1 dBFS fIN = 170 MHz, AIN = –1 dBFS 68 fIN = 170 MHz, AIN = –1 dBFS SFDR Spurious-free dynamic range 80 fIN = 170 MHz, AIN = –1 dBFS THD Total harmonic distortion 77 fIN = 170 MHz, AIN = –1 dBFS Second-order harmonic distortion (5) HD2 80 fIN = 170 MHz, AIN = –1 dBFS HD3 Third-order harmonic distortion 82 fIN = 170 MHz, AIN = –1 dBFS Worst spur (non HD2, HD3) DNL Differential nonlinearity INL Integral nonlinearity PSRR (3) (4) (5) MAX UNITS (3) (4) 87 –0.95 dBc ±0.5 1.6 ±1.5 ±5.25 LSBs LSBs Input overload recovery Recovery to within 1% (of final value) for 6-dB output overload with sine-wave input 1 Clock cycle Crosstalk With a full-scale, 220-MHz signal on aggressor channel and no signal on victim channel 90 dB AC power-supply rejection ratio For 50-mVPP signal on AVDD supply < 30 dB Phase and amplitude imbalances onboard must be minimized to obtain good performance. Dynamic ac characteristics are taken with respect to the 14-bit burst mode, unless otherwise noted. The minimum value across temperature is ensured by bench characterization. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 5 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com DIGITAL CHARACTERISTICS The dc specifications refer to the condition where the digital outputs are not switching, but are permanently at a valid logic level '0' or '1'. AVDD33 = 3.3 V, AVDD = 1.9 V, and DRVDD = 1.8 V, unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT DIGITAL INPUTS (1) (RESET, SCLK, SDATA, SEN, PDN, SNRB, TRIG_EN) VIH High-level input voltage All digital inputs support 1.8-V logic levels. SPI supports 3.3-V logic levels. VIL Low-level input voltage All digital inputs support 1.8-V logic levels. SPI supports 3.3-V logic levels. IIH High-level input current Low-level input current IIL RESET, SCLK, PDN, SNRB, TRIG_EN pins SEN (2) pin 1.25 V 0.45 VHIGH = 1.8 V 10 µA VHIGH = 1.8 V 0 µA RESET, SCLK, PDN, SNRB, TRIG_EN pins VLOW = 0 V 0 µA SEN pin VLOW = 0 V 10 µA DRVDD V DIGITAL OUTPUTS (SDOUT, HIRES, TRIG_RDY) VOH High-level output voltage VOL Low-level output voltage DRVDD – 0.1 0 0.1 V DIGITAL OUTPUTS, LVDS INTERFACE (DAB[13:0]P, DAB[13:0]M, DCD[13:0]P, DCD[13:0]M, CLKOUTABP, CLKOUTABM, CLKOUTCDP, CLKOUTCDM) VODH High (3) Standard-swing LVDS 270 350 465 mV Low Standard-swing LVDS –465 –350 –270 mV VODL Output differential voltage VOCM Output common-mode voltage (1) (2) (3) 6 1.05 V RESET, SDATA, SCLK, TRIG_EN, and SNRB have an internal 150-kΩ pull-down resistor. SEN has an internal 150-kΩ pull-up resistor to DRVDD. With an external 100-Ω termination. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 TIMING REQUIREMENTS (1) Typical values are at +25°C, AVDD33 = 3.3 V, AVDD = 1.9 V, DRVDD = 1.8 V, sine-wave input clock, CLOAD = 3.3 pF (2), and RLOAD = 100 Ω (3), unless otherwise noted. Minimum and maximum values are across the full temperature range of TMIN = –40°C to TMAX = +85°C. PARAMETER tA TEST CONDITIONS MIN Aperture delay tJ 0.7 Aperture delay matching Between any two channels of the same device Variation of aperture delay Between two devices at the same temperature and DRVDD supply 1.2 1.6 UNIT ns ps ±150 ps 140 fs rms 100 µs Time to valid data after coming out of channel power down 10 µs Default latency in 11-bit mode 10 Output clock cycles Digital gain enabled 13 Output clock cycles Digital gain and offset correction enabled 14 Output clock cycles SNRBoost3G+ (90-MHz BW) enabled alone 13 Output clock cycles SNRBoost3G+ (90-MHz BW), digital gain, and offset correction enabled 17 Output clock cycles SNRBoost3G+ (45-MHz BW) enabled alone 15 Output clock cycles SNRBoost3G+ (45-MHz BW), digital gain, and offset correction enabled 19 Output clock cycles Time to valid data after coming out of global power down ADC latency (4) (5) MAX ±70 Aperture jitter Wake up time TYP OUTPUT TIMING (6) tSU Data setup time (7) (8) (9) Data valid to CLKOUTxxP zero-crossing 0.6 0.85 ns tH Data hold time (7) (8) (9) CLKOUTxxP zero-crossing to data becoming invalid 0.6 0.84 ns LVDS bit clock duty cycle Differential clock duty cycle (CLKOUTxxP – CLKOUTxxM) tPDI Clock propagation delay (5) Input clock falling edge cross-over to output clock falling edge cross-over, 184 MSPS ≤ sampling frequency ≤ 250 MSPS tdelay Delay time Input clock falling edge cross-over to output clock falling edge cross-over, 184 MSPS ≤ sampling frequency ≤ 250 MSPS tRISE, tFALL Data rise and fall time Rise time measured from –100 mV to +100 mV 0.1 ns tCLKRISE, tCLKFALL Output clock rise and fall time Rise time measured from –100 mV to +100 mV 0.1 ns (1) (2) (3) (4) (5) (6) (7) (8) (9) 50% 0.25 × tS + tdelay 6.9 8.65 ns 10.5 ns Timing parameters are ensured by design and characterization and are not tested in production. CLOAD is the effective external single-ended load capacitance between each output pin and ground. RLOAD is the differential load resistance between the LVDS output pair. ADC latency is given for channels B and D. For channels A and C, latency reduces by half of the output clock cycles. Overall latency = ADC latency + tPDI. Measurements are done with a transmission line of 100-Ω characteristic impedance between the device and load. Setup and hold time specifications take into account the effect of jitter on the output data and clock. Data valid refers to a logic high of +100 mV and a logic low of –100 mV. Note that these numbers are taken with delayed output clocks by writing the following registers: address A9h, value 02h; and address ACh, value 60h. Refer to the Serial Interface Registers section. By default after reset, minimum setup time and minimum hold times are 520 ps each. The setup and hold times of a channel are measured with respect to the same channel output clock. Table 2. LVDS Timings Across Lower Sampling Frequencies SETUP TIME (ns) HOLD TIME (ns) SAMPLING FREQUENCY (MSPS) MIN TYP MIN TYP 210 0.89 1.03 0.82 1.01 185 1.06 1.21 0.95 1.15 MAX Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 MAX 7 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com PARAMETRIC MEASUREMENT INFORMATION LVDS OUTPUT TIMING Figure 1 shows a timing diagram of the LVDS output voltage levels. Figure 2 shows the latency described in the Timing Requirements table. DxnP Logic 0 VODL Logic 1 VODH DxnM VOCM GND Figure 1. LVDS Output Voltage Levels N+1 Sample N Input Signal N+2 N+3 N+4 N+11 N+12 N+10 tA CLKINM Input Clock CLKINP CLKOUTABM (CLKOUTCDM) CLKOUTABP (CLKOUTCDP) DDR LVDS tPDI Output Data DABP, DABM (DCDP, DCDM) Ch B Ch A Ch B Ch A Ch B Ch A Ch B Ch A Ch B Ch A (Ch D) (Ch C) (Ch D) (Ch C) (Ch D) (Ch C) (Ch D) (Ch C) (Ch D) (Ch C) Ch A Ch B Ch A Ch B Ch A Ch B Ch A Ch B Ch A (Ch C) (Ch D) (Ch C) (Ch D) (Ch C) (Ch D) (Ch C) (Ch D) (Ch C) Figure 2. Latency Timing 8 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 PARAMETRIC MEASUREMENT INFORMATION (continued) All 14 data bits of one channel (11 data bits in default SNRBoost3G+ mode) are included in the digital output interface at the same time, as shown in Figure 3. Channel A and C data are output on the rising edge of the output clock while channels B and D are output on the falling edge of the output clock. CLKOUTABM CLKOUTABP DAB[13:0]P, DAB[13:0]M DA[13:0]P, DA[13:0]M DB[13:0]P, DB[13:0]M Sample N DA[13:0]P, DA[13:0]M DB[13:0]P, DB[13:0]M DA[13:0]P, DA[13:0]M Sample N + 1 DB[13:0]P, DB[13:0]M Sample N + 2 CLKOUTCDM CLKOUTCDP DCD[13:0]P, DCD[13:0]M DC[13:0]P, DC[13:0]M DD[13:0]P, DD[13:0]M Sample N DC[13:0]P, DC[13:0]M DD[13:0]P, DD[13:0]M DC[13:0]P, DC[13:0]M Sample N + 1 DD[13:0]P, DD[13:0]M Sample N + 2 Figure 3. LVDS Output Interface Timing Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 9 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com PIN CONFIGURATION ZCR PACKAGE BGA-144 (TOP VIEW) 1 2 3 4 5 6 7 8 9 10 11 12 A AVDD AVDD CINM CINP AVDD VCM VCM AVDD BINM BINP AVDD AVDD B DINP AVSS AVDD AVDD AVSS AVDD33 AVDD33 AVSS AVDD AVDD AVSS AINM C DINM AVSS AVSS AVSS AVSS CLKINM CLKINP AVSS AVSS AVSS AVSS AINP D AVDD AVDD VCM AVSS AVSS AVSS AVSS AVSS AVSS VCM AVDD AVDD E AVDD33 AVDD33 SNRB DRVSS DRVSS DRVSS DRVSS DRVSS DRVSS PDN AVDD33 AVDD33 F DCD13M DCD13P DRVDD DRVSS DRVSS DRVSS DRVSS DRVSS DRVSS DRVDD DAB13P DAB13M G DCD12M DCD12P HIRES RESET SCLK SDATA SEN SDOUT DAB12P DAB12M H DCD11M DCD11P DCD6P DCD6M DRVDD DRVDD DRVDD DRVDD DAB6M DAB6P DAB11P DAB11M J DCD10M DCD10P DCD5P DCD5M DCD2P DRVDD DRVDD DAB2M DAB5M DAB5P DAB10P DAB10M K DCD9M DCD9P DCD4P DCD4M DCD2M DRVDD DRVDD DAB2P DAB4M DAB4P DAB9P DAB9M L DCD8M DCD8P DCD3P DCD3M DCD1P DCD1M DAB1M DAB1P DAB3M DAB3P DAB8P DAB8M M DCD7M DCD7P CLKOUT CDP CLKOUT CDM DCD0P/ OVRCDP DCD0M/ OVRCDM DAB0M/ OVRABM DAB0P/ OVRABP CLKOUT ABM CLKOUT ABP DAB7P DAB7M 10 TRIG_EN TRIG_RDY Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 PIN FUNCTIONS PIN NAME NUMBER I/O DESCRIPTION AINM B12 I Negative differential analog input for channel A AINP C12 I Positive differential analog input for channel A AVDD33 B6, B7, E1, E2, E11, E12 I Analog 3.3-V power supply AVDD A1, A2, A5, A8, A11, A12, B3, B4, B9, B10, D1, D2, D11, D12 I Analog 1.9-V power supply AVSS B2, B5, B8, B11, C2-C5, C8-C11, D4-D9 I Analog ground BINM A9 I Negative differential analog input for channel B BINP A10 I Positive differential analog input for channel B CINM A3 I Negative differential analog input for channel C CINP A4 I Positive differential analog input for channel C CLKINM C6 I Negative differential clock input CLKINP C7 I Positive differential clock input CLKOUTABM M9 O Negative differential LVDS clock output for channel A and B CLKOUTABP M10 O Positive differential LVDS clock output for channel A and B CLKOUTCDM M4 O Negative differential LVDS clock output for channels C and D CLKOUTCDP M3 O Positive differential LVDS clock output for channels C and D DAB[13:1]P, DAB0P/OVRABP, DAB[13:1]M, DAB0M/OVRABM F11, F12, G11, G12, H9-H12, J8-J12, K8-K12, L7-L12, M7, M8, M11, M12 O DDR LVDS outputs for channels A and B. In 11-bit mode, DAB13 is the MSB, DAB3 is the LSB, and DAB0 is the over-range (OVR) bit. In 14-bit burst mode, DAB13 is the MSB and DAB0 is the LSB. There is no OVR bit in this mode. DCD[13:1]P, DCD0P/OVRCDP, DCD[13:1]M, DCD0M/OVRCDM F1, F2, G1, G2, H1-H4, J1-J5, K1-K5, L1-L6, M1, M2, M5, M6 O DDR LVDS outputs for channels C and D. In 11-bit mode, DCD13 is the MSB, DCD3 is the LSB, and DCD0 is the OVR bit. In 14-bit burst mode, DCD13 is the MSB and DCD0 is the LSB. There is no OVR bit in this mode. DINM C1 I Negative differential analog input for channel D DINP B1 I Positive differential analog input for channel D DRVDD F3, F10, H5-H8, J6, J7, K6, K7 I Digital 1.8-V power supply DRVSS E4-E9, F4-F9 I Digital ground HIRES G5 O Indication in burst mode if output data is high or low resolution PDN E10 I Power-down control; active high. Logic high is power down. RESET G6 I Hardware reset; active high SCLK G7 I Serial interface clock input SDATA G8 I Serial interface data input SDOUT G10 O Serial interface data output SEN G9 I Serial interface enable SNRB E3 I SNRB enable; active high TRIG_EN G3 I Trigger burst mode; active high TRIG_RDY G4 O Indication if ADC is ready for another high-resolution burst mode VCM A6, A7, D3, D10 O Common-mode voltage for analog inputs. All VCM pins are internally connected together. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 11 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com FUNCTIONAL BLOCK DIAGRAM Digital Processing Block AINP, AINM 14-Bit ADC Digital Block BINP, BINM DAB0P, DAB0M or OVRABP, OVRABM 11-Bit SNR Boost 13 Burst Mode 14-Bit ADC 11-Bit 14-Bit DAB[13:1]P, DAB[13:1]M CLKOUTABP, CLKOUTABM TRIG_RDY Output Formatter CLKINP, CLKINM Digital Processing Block CINP, CINM TRIG_EN 11-Bit 14-Bit ADC Digital Block DINP, DINM HRES DDR LVDS SNR Boost Burst Mode 14-Bit ADC 11-Bit DCD0P, DCD0M or OVRCDP, OVRCDM 14-Bit 13 VCM DCD[13:1]P, DCD[13:1]M CLKOUTCDP, CLKOUTCDM Common Mode 12 SNRB PDN SDATA SDOUT SEN SCLK RESET Configuration Registers Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 TYPICAL CHARACTERISTICS At +25°C, AVDD = 1.9 V, AVDD3V = 3.3 V, DRVDD = 1.8 V, rated sampling frequency, 0-dB gain, 14-bit burst mode, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1-dBFS differential analog input, DDR LVDS output interface, and 32k-point FFT, unless otherwise noted. FFT IN 14-BIT MODE INPUT FREQUENCY (140 MHz) FFT IN 14-BIT MODE INPUT FREQUENCY (170 MHz) 0 0 SFDR = 88.1 dBc SNR = 70.1 dBFS SINAD = 70 dBFS THD = 85 dBc −20 −20 −40 Amplitude (dB) Amplitude (dB) −40 −60 −60 −80 −80 −100 −100 −120 SFDR = 90.1 dBc SNR = 69.6 dBFS SINAD = 69.6 dBFS THD = 86.3 dBc 0 25 50 75 Frequency (MHz) 100 −120 125 0 25 50 75 Frequency (MHz) 100 125 G001 G002 Figure 4. Figure 5. FFT IN 14-BIT MODE INPUT FREQUENCY (185 MHz) FFT IN 14-BIT MODE INPUT FREQUENCY (190 MHz) 0 0 SFDR = 87.6 dBc SNR = 69.5 dBFS SINAD = 69.4 dBFS THD = 85.5 dBc −20 −20 −40 Amplitude (dB) Amplitude (dB) −40 −60 −60 −80 −80 −100 −100 −120 SFDR = 85.8 dBc SNR = 69.1 dBFS SINAD = 69 dBFS THD = 83.9 dBc 0 25 50 75 Frequency (MHz) 100 125 −120 0 25 50 75 Frequency (MHz) 100 G003 Figure 6. 125 G005 Figure 7. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 13 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com TYPICAL CHARACTERISTICS (continued) At +25°C, AVDD = 1.9 V, AVDD3V = 3.3 V, DRVDD = 1.8 V, rated sampling frequency, 0-dB gain, 14-bit burst mode, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1-dBFS differential analog input, DDR LVDS output interface, and 32k-point FFT, unless otherwise noted. FFT IN 11-BIT MODE WITH SNRBoost3G+ INPUT FREQUENCY (150 MHz, 90-MHz Bandwidth) FFT IN 14-BIT MODE INPUT FREQUENCY (230 MHz) 0 0 SFDR = 81.9 dBc SNR = 68.9 dBFS SINAD = 68.6 dBFS THD = 79.4 dBc −20 −20 −40 Amplitude (dB) Amplitude (dB) −40 −60 −60 −80 −80 −100 −100 −120 BW = 90 MHz (17.5 MHz to 107.5 MHz) AIN = −1 dBFS SFDR = 86.7 dBc SNR = 70.4 dBFS SINAD = 70.3 dBFS 0 25 50 75 Frequency (MHz) 100 −120 125 0 25 50 75 Frequency (MHz) 100 125 G005 G006 Figure 8. Figure 9. FFT IN 11-BIT MODE WITH SNRBoost3G+ INPUT FREQUENCY (185 MHz, 90-MHz Bandwidth) FFT IN 11-BIT MODE WITH SNRBoost3G+ INPUT FREQUENCY (230 MHz, 90-MHz Bandwidth) 0 0 BW = 90 MHz (17.5 MHz to 107.5 MHz) AIN = −1 dBFS SFDR = 86.5 dBc SNR = 70.3 dBFS SINAD = 70.2 dBFS −20 −20 −40 Amplitude (dB) Amplitude (dB) −40 −60 −60 −80 −80 −100 −100 −120 BW = 90 MHz (17.5 MHz to 107.5 MHz) AIN = −1 dBFS SFDR = 84.7 dBc SNR = 70.1 dBFS SINAD = 70 dBFS 0 25 50 75 Frequency (MHz) 100 125 −120 0 25 50 75 Frequency (MHz) G007 Figure 10. 14 100 125 G008 Figure 11. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 TYPICAL CHARACTERISTICS (continued) At +25°C, AVDD = 1.9 V, AVDD3V = 3.3 V, DRVDD = 1.8 V, rated sampling frequency, 0-dB gain, 14-bit burst mode, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1-dBFS differential analog input, DDR LVDS output interface, and 32k-point FFT, unless otherwise noted. FFT FOR –7-dBFS, TWO-TONE INPUT SIGNAL IN 14-BIT MODE FFT FOR –36-dBFS, TWO-TONE INPUT SIGNAL IN 14-BIT MODE 0 0 Each Tone at −7 dBFS Amplitude fIN1 = 185.1 MHz fIN2 = 190.1 MHz 2−Tone IMD = 97 dBFS SFDR = 102.2 dBFS −20 −20 −40 Amplitude (dB) Amplitude (dB) −40 −60 −60 −80 −80 −100 −100 −120 Each Tone at −36 dBFS Amplitude fIN1 = 185.1 MHz fIN2 = 190.1 MHz 2−Tone IMD = 101 dBFS SFDR = 100.9 dBFS 0 25 50 75 Frequency (MHz) 100 −120 125 0 25 50 75 Frequency (MHz) 100 G009 125 G010 Figure 12. Figure 13. SPURIOUS-FREE DYNAMIC RANGE vs INPUT FREQUENCY SIGNAL-TO-NOISE RATIO vs INPUT FREQUENCY 71 100 70.5 95 SNR (dBFS) SFDR (dBc) 70 90 85 69.5 69 80 75 140 68.5 155 170 185 200 Input Frequency (MHz) 215 230 68 140 G011 Figure 14. 155 170 185 200 215 Input Frequency (MHz) 230 G012 Figure 15. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 15 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com TYPICAL CHARACTERISTICS (continued) At +25°C, AVDD = 1.9 V, AVDD3V = 3.3 V, DRVDD = 1.8 V, rated sampling frequency, 0-dB gain, 14-bit burst mode, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1-dBFS differential analog input, DDR LVDS output interface, and 32k-point FFT, unless otherwise noted. SPURIOUS-FREE DYNAMIC RANGE vs HIGH INPUT FREQUENCY (–3 dBFS) SIGNAL-TO-NOISE RATIO vs HIGH INPUT FREQUENCY (–3 dBFS) 71 86 84 70.5 82 70 SNR (dBFS) SFDR (dBc) 80 78 69.5 76 69 74 68.5 72 70 270 290 310 330 68 270 350 Input Frequency (MHz) 290 310 330 350 Input Frequency (MHz) G013 G014 Figure 16. Figure 17. SPURIOUS-FREE DYNAMIC RANGE vs GAIN ACROSS INPUT FREQUENCY SIGNAL-TO-NOISE RATIO AND DISTORTION vs GAIN ACROSS INPUT FREQUENCY 72 96 71 94 70 92 SINAD (dBFS) SFDR (dBc) 69 90 88 68 67 66 86 82 65 140 MHz 170 MHz 185 MHz 190 MHz 230 MHz 84 0 0.5 1 1.5 2 2.5 3 3.5 4 Digital Gain (dB) 4.5 5 5.5 140 MHz 170 MHz 185 MHz 190 MHz 230 MHz 64 6 63 0 0.5 1 1.5 2 2.5 3 3.5 4 Digital Gain (dB) G015 Figure 18. 16 4.5 5 5.5 6 G016 Figure 19. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 TYPICAL CHARACTERISTICS (continued) At +25°C, AVDD = 1.9 V, AVDD3V = 3.3 V, DRVDD = 1.8 V, rated sampling frequency, 0-dB gain, 14-bit burst mode, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1-dBFS differential analog input, DDR LVDS output interface, and 32k-point FFT, unless otherwise noted. SIGNAL-TO-NOISE RATIO vs GAIN ACROSS INPUT FREQUENCY PERFORMANCE vs INPUT AMPLITUDE 70 110 73.5 100 73 SFDR (dBc,dBFS) 69 68 67 66 90 72.5 80 72 70 71.5 60 71 50 70.5 SNR (dBFS) Input Frequency = 185 MHz 140 MHz 170 MHz 185 MHz 190 MHz 230 MHz 71 SNR (dBFS) 74 120 72 65 70 40 64 SFDR (dBc) SFDR (dBFS) SNR 30 63 62 20 −50 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 −40 −30 −20 Amplitude (dBFS) 6 −10 69.5 0 69 G018 Digital Gain (dB) G017 Figure 20. Figure 21. PERFORMANCE vs INPUT COMMON-MODE VOLTAGE SPURIOUS-FREE DYNAMIC RANGE vs TEMPERATURE (AVDD Supply) 72 94 90 Input Frequency = 185 MHz 92 71.5 89 90 71 88 88 70.5 86 70 84 69.5 82 69 87 SFDR (dBc) SNR (dBFS) SFDR (dBc) Input Frequency = 185 MHz 86 85 84 68.5 80 SFDR SNR 78 0.7 0.8 0.9 1 1.1 1.2 Input Common−Mode Voltage (V) 83 68 1.3 82 −40 G019 AVDD = 1.8 V AVDD = 1.9 V AVDD = 2 V −15 10 35 Temperature (°C) 60 85 G020 Figure 22. Figure 23. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 17 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com TYPICAL CHARACTERISTICS (continued) At +25°C, AVDD = 1.9 V, AVDD3V = 3.3 V, DRVDD = 1.8 V, rated sampling frequency, 0-dB gain, 14-bit burst mode, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1-dBFS differential analog input, DDR LVDS output interface, and 32k-point FFT, unless otherwise noted. SIGNAL-TO-NOISE RATIO vs TEMPERATURE (AVDD Supply) SPURIOUS-FREE DYNAMIC RANGE vs TEMPERATURE (DRVDD Supply) 71 90 Input Frequency = 185 MHz Input Frequency = 185 MHz 89 70.5 88 SFDR (dBc) SNR (dBFS) 70 69.5 87 86 69 85 68.5 68 −40 84 AVDD = 1.8 V AVDD = 1.9 V AVDD = 2 V −15 10 35 Temperature (°C) 60 83 −40 85 DRVDD = 1.7 V DRVDD = 1.8 V DRVDD = 1.9 V DRVDD = 2 V −15 10 35 Temperature (°C) 60 85 G021 G022 Figure 24. Figure 25. SIGNAL-TO-NOISE RATIO vs TEMPERATURE (DRVDD Supply) SPURIOUS-FREE DYNAMIC RANGE vs TEMPERATURE (AVDD3V Supply) 71 90 Input Frequency = 185 MHz Input Frequency = 185 MHz 89 70.5 88 70 SFDR (dBc) SNR (dBFS) 87 69.5 86 85 69 84 68.5 68 −40 DRVDD = 1.7 V DRVDD = 1.8 V DRVDD = 1.9 V DRVDD = 2 V −15 10 35 Temperature (°C) 83 60 85 82 −40 AVDD3V = 3.15 V AVDD3V = 3.3 V AVDD3V = 3.45 V −15 10 35 Temperature (°C) G023 Figure 26. 18 60 85 G024 Figure 27. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 TYPICAL CHARACTERISTICS (continued) At +25°C, AVDD = 1.9 V, AVDD3V = 3.3 V, DRVDD = 1.8 V, rated sampling frequency, 0-dB gain, 14-bit burst mode, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1-dBFS differential analog input, DDR LVDS output interface, and 32k-point FFT, unless otherwise noted. SIGNAL-TO-NOISE RATIO vs TEMPERATURE (AVDD3V Supply) PERFORMANCE vs DIFFERENTIAL CLOCK AMPLITUDE 71 100 71 70.5 SFDR (dBc) SNR (dBFS) 70 69.5 98 70.5 96 70 94 69.5 92 69 90 68.5 88 68 86 67.5 84 67 82 66.5 SNR (dBFS) Input Frequency = 185 MHz Input Frequency = 185 MHz 69 66 80 68.5 AVDD3V = 3.15 V AVDD3V = 3.3 V AVDD3V = 3.45 V 68 −40 −15 SFDR SNR 78 76 0.2 10 35 Temperature (°C) 60 0.5 85 0.8 1.1 1.4 1.7 2 2.3 Differential Clock Amplitudes (Vpp) 2.6 65.5 65 2.9 G026 G025 Figure 28. Figure 29. PERFORMANCE vs INPUT CLOCK DUTY CYCLE TIME DOMAIN DATA WITH SNRBoost3G+ ENABLED 72 92 2048 FS = 250 MSPS FIN = 185 MHz Input Frequency = 185 MHz 91 71.5 90 71 89 70.5 88 70 87 69.5 86 69 85 68.5 84 68 1792 83 82 SNR THD 25 30 35 40 45 50 55 60 Input Clock Duty Cycle (%) 65 70 75 Output Code (LSB) SNR (dBFS) THD (dBc) 1536 1280 1024 768 512 67.5 256 67 0 0 G027 4096 8192 12288 16384 20480 24576 28672 32768 Sample Number G028 Figure 30. Figure 31. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 19 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com TYPICAL CHARACTERISTICS (continued) At +25°C, AVDD = 1.9 V, AVDD3V = 3.3 V, DRVDD = 1.8 V, rated sampling frequency, 0-dB gain, 14-bit burst mode, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1-dBFS differential analog input, DDR LVDS output interface, and 32k-point FFT, unless otherwise noted. TIME DOMAIN DATA WITH SNRBoost3G+ DISABLED (Default is 11-Bit Mode) COMMON-MODE REJECTION RATIO vs FREQUENCY 0 2048 FS = 250 MSPS FIN = 185 MHz Input Frequency = 185 MHz 50−mVPP Signal Superimposed on VCM −5 1792 −10 −15 −20 1280 CMRR (dB) Output Code (LSB) 1536 1024 −25 −30 −35 768 −40 −45 512 −50 256 −55 0 0 4096 −60 8192 12288 16384 20480 24576 28672 32768 Sample Number 0 50 100 150 200 250 Frequency of Input Common−Mode Signal (MHz) 300 G029 G030 Figure 32. Figure 33. COMMON-MODE REJECTION RATIO SPECTRUM fIN = 185 MHz fCM = 10 MHz, 50 mVPP SFDR = 76.2 dBc Amplitude: fIN = -1 dBFS fCM = -95.1 dBFS fIN + fCM = -77.2 dBFS fIN - fCM = 80.9 dBFS −20 Amplitude (dB) −40 PSRR on AVDD Supply PSRR on AVDD3V Supply fIN = 185 MHz −25 −30 −35 −60 fIN + fCM = 195 MHz POWER-SUPPLY REJECTION RATIO vs FREQUENCY −20 PSRR (dB) 0 fIN - fCM = 175 MHz −40 −45 −50 −80 −55 fCM = 10 MHz −60 −100 −65 −120 0 25 50 75 Frequency (MHz) 100 125 −70 Input Frequency = 10 MHz 50−mVPP Signal Superimposed on Supply 0 50 100 150 200 250 Frequency of Signal on Supply (MHz) G031 Figure 34. 20 300 G032 Figure 35. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 TYPICAL CHARACTERISTICS (continued) At +25°C, AVDD = 1.9 V, AVDD3V = 3.3 V, DRVDD = 1.8 V, rated sampling frequency, 0-dB gain, 14-bit burst mode, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1-dBFS differential analog input, DDR LVDS output interface, and 32k-point FFT, unless otherwise noted. ZOOMED VIEW OF POWER-SUPPLY REJECTION RATIO SPECTRUM 0 −20 −40 Default 11−bit 14−bit Burst Mode 11−bit with SNRBoost 1.4 1.2 Total Power (W) fIN Amplitude (dB) TOTAL POWER vs SAMPLING RATE 1.6 fIN = 10 MHz fPSRR = 2 MHz, 50 mVPP Amplitude (fIN) = -1 dBFS Amplitude (fPSRR) = -87.4 dBFS Amplitude (fIN + fPSRR) = -60.6 dBFS Amplitude (fIN - fPSRR) = -60 dBFS fIN - fPSRR −60 fIN + fPSRR fPSRR 1.0 0.8 −80 0.6 −100 0.4 Input Frequency = 185 MHz −120 0 5 10 15 20 25 30 Frequency (MHz) 35 40 45 0.2 50 0 25 50 75 100 125 150 175 Sampling Speed (MSPS) 200 225 250 G033 G034 Figure 36. Figure 37. ANALOG POWER vs SAMPLING RATE DRVDD POWER vs SAMPLING RATE IN VARIOUS DIGITAL MODES 700 800 600 700 500 600 DRVDD Power (mW) Analog Power (mW) AVDD Power AVDD3V Power 400 300 Default 11−bit 14−bit Burst Mode 11−bit with SNRBoost 500 400 200 300 100 200 Input Frequency = 185 MHz 0 0 25 50 75 100 125 150 175 Sampling Speed (MSPS) 200 225 Input Frequency = 185 MHz 250 100 0 25 50 75 100 125 150 175 Sampling Speed (MSPS) 200 225 G035 Figure 38. 250 G036 Figure 39. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 21 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com DEVICE CONFIGURATION The ADS58H40 can be configured with a serial programming interface (SPI), as described in the Serial Interface section. In addition, the device has control pins that control power-down and SNRBoost3G+ operation. SERIAL INTERFACE The ADC has a set of internal registers that can be accessed by the serial interface formed by the SEN (serial interface enable), SCLK (serial interface clock), SDATA (serial interface input data), and SDOUT (serial interface read back data) pins. The serial shift of bits into the device is enabled when SEN is low. Serial data (SDATA) are latched at every SCLK falling edge when SEN is active (low). The serial data are loaded into the register at every 16th SCLK falling edge when SEN is low. When the word length exceeds a multiple of 16 bits, the excess bits are ignored. Data can be loaded in multiples of 16-bit words within a single active SEN pulse. The first eight bits form the register address and the remaining eight bits are the register data. The interface can function with SCLK frequencies from 20 MHz down to very low speeds (of a few hertz) and also with a non-50% SCLK duty cycle. Register Initialization After power-up, the internal registers must be initialized to the default values. This initialization can be accomplished in one of two ways: 1. Either through a hardware reset by applying a high pulse on the RESET pin (of widths greater than 10 ns), as shown in Figure 40; or 2. By applying a software reset. When using the serial interface, set the RESET bit (D1 in register 00h) high. This setting initializes the internal registers to the default values and then self-resets the RESET bit low. In this case, the RESET pin is kept low. Register Address SDATA A6 A7 A5 A4 A3 Register Data A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 tDH tSCLK tDSU SCLK tSLOADS tSLOADH SEN RESET Figure 40. Serial Interface Timing Table 3. Timing Characteristics for Figure 40 PARAMETER MIN MAX UNIT 20 MHz SCLK frequency (equal to 1 / tSCLK) tSLOADS SEN to SCLK setup time 25 ns tSLOADH SCLK to SEN hold time 25 ns tDSU SDI setup time 25 ns tDH SDI hold time 25 ns 22 > dc TYP fSCLK Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Serial Register Readout The device includes a mode where the contents of the internal registers can be read back, as shown in Figure 41. This read-back mode can be useful as a diagnostic check to verify the serial interface communication between the external controller and ADC. 1. Set the READOUT register bit to '1'. This setting disables any further writes to the registers except register address 00h. 2. Initiate a serial interface cycle specifying the address of the register (A[7:0]) whose content must be read. 3. The device outputs the contents (D[7:0]) of the selected register on the SDOUT pin (pin G10). 4. The external controller can latch the contents at the SCLK falling edge. 5. To enable register writes, reset the READOUT register bit to '0'. Note that the contents of register 00h cannot be read back because the register contains RESET and READOUT bits. When the READOUT bit is disabled, the SDOUT pin is in a high-impedance state. If serial readout is not used, the SDOUT pin must not be connected (must float). Register Address A[7:0] = 00h SDATA A7 A6 A5 A4 A3 A2 Register Data D[7:0] = 01h A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 SCLK SEN The SDOUT pin is in a high-impedance state (READOUT = 0). SDOUT a) Enable serial readout (READOUT = 1) Register Address A[7:0] = 45h SDATA A7 A6 A5 A4 A3 A2 Register Data D[7:0] = XX (don’t care) A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 0 1 0 0 SCLK SEN SDOUT The SDOUT pin functions as a serial readout (READOUT = 1). b) Read contents of Register 45h. This register is initialized with 04h. Figure 41. Serial Readout Timing Diagram SDOUT comes out at the SCLK rising edge with an approximate delay (tSD_DELAY) of 8 ns, as shown in Figure 42. SCLK tSD_DELAY SDOUT Figure 42. SDOUT Delay Timing Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 23 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com SERIAL INTERFACE REGISTERS Table 4 summarizes the ADS58H40 registers. Table 4. Register Map REGISTER ADDRESS A[7:0] (Hex) D7 D6 D5 D4 REGISTER DATA D3 D2 D1 D0 00 0 0 0 0 0 0 RESET READOUT 0 0 01 LVDS SWING 25 DIGITAL GAIN CH B DIGITAL GAIN BYPASS CH B TEST PATTERN CH B 2B DIGITAL GAIN CH A DIGITAL GAIN BYPASS CH A TEST PATTERN CH A 31 DIGITAL GAIN CH D DIGITAL GAIN BYPASS CH D TEST PATTERN CH D DIGITAL GAIN CH C DIGITAL GAIN BYPASS CH C TEST PATTERN CH C 37 3D 0 0 3F 0 0 SEL OFFSET CORR 0 0 0 CUSTOM PATTERN[7:0] 0 0 0 AUTO BURST ENABLE HIGH RESOLUTION SAMPLES, NH 42 0 0 0 0 DIGITAL ENABLE SNRB 45/95MHz 44 BMODE EN CH CD BMODE EN CH AB 0 0 0 BMODE OVR ENABLE 0 DIS SNRB 45 0 0 0 0 SEL OVR GLOBAL POWER DOWN 0 CONFIG PDN PIN A9 0 0 0 0 AC 0 C4 LOW RESOLUTION SAMPLES, NL CLOCKOUT DELAY PROG CH AB CLOCKOUT DELAY PROG CH CD C3 24 0 CUSTOM PATTERN[13:8] 40 41 0 0 0 0 FAST OVR THRESH PROG EN FAST OVR THRESH 0 0 0 0 0 0 0 0 0 0 CF 0 0 0 0 SPECIAL MODE 0 D4 SPECIAL MODE 1 0 0 0 0 0 0 0 D5 SPECIAL MODE 2 0 0 0 0 0 0 0 D6 SPECIAL MODE 3 0 0 0 0 0 0 0 D7 0 0 0 0 SPECIAL MODE 5 SPECIAL MODE 4 0 0 DB 0 0 SPECIAL MODE 7 SPECIAL MODE 6 0 0 0 0 F0 0 0 SPECIAL MODE 10 SPECIAL MODE 9 SPECIAL MODE 8 0 0 0 0 0 0 0 F1 0 0 SPECIAL MODE 11 F5 0 SPECIAL MODE 13 0 ENABLE LVDS SWING PROG 0 SPECIAL MODE 12 0 4A 0 0 0 0 0 0 0 SPECIAL MODE 14 62 0 0 0 0 0 0 0 SPECIAL MODE 15 92 0 0 0 0 0 0 0 SPECIAL MODE 16 7A 0 0 0 0 0 0 0 SPECIAL MODE 17 EA SNRB PIN OVRD 0 0 0 0 0 0 0 FE 0 0 0 0 PDN CH D PDN CH C PDN CH A PDN CH B Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 DESCRIPTION OF SERIAL REGISTERS Register Address 00h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 0 0 RESET READOUT Bits D[7:2] Always write '0' Bit D1 RESET: Software reset applied This bit resets all internal registers to the default values and self-clears to '0'. Bit D0 READOUT: Serial readout This bit sets the serial readout of the registers. 0 = Serial readout of registers disabled; the SDOUT pin is placed in a high-impedance state. 1 = Serial readout enabled; the SDOUT pin functions as a serial data readout with CMOS logic levels running from the DRVDD supply. Register Address 01h (Default = 00h) D7 D6 D5 D4 D3 LVDS SWING Bits D[7:2] D2 D1 D0 0 0 LVDS SWING: LVDS swing programmability These bits program the LVDS swing only after the ENABLE LVDS SWING PROG bits are set to '11'. 000000 = Default LVDS swing; ±350 mV with an external 100-Ω termination 011011 = ±420-mV LVDS swing with an external 100-Ω termination 110010 = ±470-mV LVDS swing with an external 100-Ω termination 010100 = ±560-mV LVDS swing with an external 100-Ω termination 001111 = ±160-mV LVDS swing with an external 100-Ω termination Bits D[1:0] Always write '0' Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 25 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Register Address 25h (Default = 00h) D7 D6 D5 D4 DIGITAL GAIN CH B Bits D[7:4] D3 DIGITAL GAIN BYPASS CH B D2 D1 D0 TEST PATTERN CH B DIGITAL GAIN CH B: Channel B digital gain programmability These bits set the digital gain programmability from 0 dB to 6 dB in 0.5-dB steps for channel B. Set the DIGITAL ENABLE bit to '1' beforehand to enable this feature. 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 Bit D3 = = = = = = = = = = = = = 0-dB gain 0.5-dB gain 1-dB gain 1.5-dB gain 2-dB gain 2.5-dB gain 3-dB gain 3.5-dB gain 4-dB gain 4.5-dB gain 5-dB gain 5.5-dB gain 6-dB gain DIGITAL GAIN BYPASS CH B: Channel B digital gain bypass 0 = Normal operation 1 = Digital gain feature for channel B is bypassed Bits D[2:0] TEST PATTERN CH B: Channel B test pattern programmability These bits program the test pattern for channel B. 000 = Normal operation 001 = Outputs all 0s 010 = Outputs all 1s 011 = Outputs toggle pattern In 11-bit mode, output data (D[10:0]) are an alternating sequence of 10101010101 and 01010101010. In 14-bit burst mode, output data ([D:0]) are an alternating sequence of 01010101010101 and 10101010101010. 100 = Outputs digital ramp In 11-bit mode, output data increments by one 11-bit LSB every 8th clock cycle from code 0 to code 2047. In 14-bit burst mode, output data increments by one 14-bit LSB every clock cycle from code 0 to code 16383 101 = Outputs custom pattern To program a pattern in 11-bit mode, use the CUSTOM PATTERN D[13:3] bits of registers 3Fh and 40h. To program a pattern in 14-bit mode, use the CUSTOM PATTERN D[13:0] bits of registers 3Fh and 40h. 110 = Unused 111 = Unused 26 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Register Address 2Bh (Default = 00h) D7 D6 D5 D4 DIGITAL GAIN CH A Bits D[7:4] D3 DIGITAL GAIN BYPASS CH A D2 D1 D0 TEST PATTERN CH A DIGITAL GAIN CH A: Channel A digital gain programmability These bits set the digital gain programmability from 0 dB to 6 dB in 0.5-dB steps for channel A. Set the DIGITAL ENABLE bit to '1' beforehand to enable this feature. 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 Bit D3 = = = = = = = = = = = = = 0-dB gain 0.5-dB gain 1-dB gain 1.5-dB gain 2-dB gain 2.5-dB gain 3-dB gain 3.5-dB gain 4-dB gain 4.5-dB gain 5-dB gain 5.5-dB gain 6-dB gain DIGITAL GAIN BYPASS CH A: Channel A digital gain bypass 0 = Normal operation 1 = Digital gain feature for channel A is bypassed Bits D[2:0] TEST PATTERN CH A: Channel A test pattern programmability These bits program the test pattern for channel A. 000 = Normal operation 001 = Outputs all 0s 010 = Outputs all 1s 011 = Outputs toggle pattern In 11-bit mode, output data (D[10:0]) are an alternating sequence of 10101010101 and 01010101010. In 14-bit burst mode, output data ([D:0]) are an alternating sequence of 01010101010101 and 10101010101010. 100 = Outputs digital ramp In 11-bit mode, output data increments by one 11-bit LSB every 8th clock cycle from code 0 to code 2047. In 14-bit burst mode, output data increments by one 14-bit LSB every clock cycle from code 0 to code 16383 101 = Outputs custom pattern To program a pattern in 11-bit mode, use the CUSTOM PATTERN D[13:3] bits of registers 3Fh and 40h. To program a pattern in 14-bit mode, use the CUSTOM PATTERN D[13:0] bits of registers 3Fh and 40h. 110 = Unused 111 = Unused Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 27 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Register Address 31h (Default = 00h) D7 D6 D5 D4 DIGITAL GAIN CH D Bits D[7:4] D3 DIGITAL GAIN BYPASS CH D D2 D1 D0 TEST PATTERN CH D DIGITAL GAIN CH D: Channel D digital gain programmability These bits set the digital gain programmability from 0 dB to 6 dB in 0.5-dB steps for channel D. Set the DIGITAL ENABLE bit to '1' beforehand to enable this feature. 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 Bit D3 = = = = = = = = = = = = = 0-dB gain 0.5-dB gain 1-dB gain 1.5-dB gain 2-dB gain 2.5-dB gain 3-dB gain 3.5-dB gain 4-dB gain 4.5-dB gain 5-dB gain 5.5-dB gain 6-dB gain DIGITAL GAIN BYPASS CH D: Channel D digital gain bypass 0 = Normal operation 1 = Digital gain feature for channel A is bypassed Bits D[2:0] TEST PATTERN CH D: Channel D test pattern programmability These bits program the test pattern for channel D. 000 = Normal operation 001 = Outputs all 0s 010 = Outputs all 1s 011 = Outputs toggle pattern In 11-bit mode, output data (D[10:0]) are an alternating sequence of 10101010101 and 01010101010. In 14-bit burst mode, output data ([D:0]) are an alternating sequence of 01010101010101 and 10101010101010. 100 = Outputs digital ramp In 11-bit mode, output data increments by one 11-bit LSB every 8th clock cycle from code 0 to code 2047. In 14-bit burst mode, output data increments by one 14-bit LSB every clock cycle from code 0 to code 16383 101 = Outputs custom pattern To program a pattern in 11-bit mode, use the CUSTOM PATTERN D[13:3] bits of registers 3Fh and 40h. To program a pattern in 14-bit mode, use the CUSTOM PATTERN D[13:0] bits of registers 3Fh and 40h. 110 = Unused 111 = Unused 28 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Register Address 37h (Default = 00h) D7 D6 D5 D4 DIGITAL GAIN CH C Bits D[7:4] D3 DIGITAL GAIN BYPASS CH C D2 D1 D0 TEST PATTERN CH C DIGITAL GAIN CH C: Channel C digital gain programmability These bits set the digital gain programmability from 0 dB to 6 dB in 0.5-dB steps for channel C. Set the DIGITAL ENABLE bit to '1' beforehand to enable this feature. 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 Bit D3 = = = = = = = = = = = = = 0-dB gain 0.5-dB gain 1-dB gain 1.5-dB gain 2-dB gain 2.5-dB gain 3-dB gain 3.5-dB gain 4-dB gain 4.5-dB gain 5-dB gain 5.5-dB gain 6-dB gain DIGITAL GAIN BYPASS CH C: Channel C digital gain bypass 0 = Normal operation 1 = Digital gain feature for channel A is bypassed Bits D[2:0] TEST PATTERN CH C: Channel C test pattern programmability These bits program the test pattern for channel C. 000 = Normal operation 001 = Outputs all 0s 010 = Outputs all 1s 011 = Outputs toggle pattern In 11-bit mode, output data (D[10:0]) are an alternating sequence of 10101010101 and 01010101010. In 14-bit burst mode, output data ([D:0]) are an alternating sequence of 01010101010101 and 10101010101010. 100 = Outputs digital ramp In 11-bit mode, output data increments by one 11-bit LSB every 8th clock cycle from code 0 to code 2047. In 14-bit burst mode, output data increments by one 14-bit LSB every clock cycle from code 0 to code 16383 101 = Outputs custom pattern To program a pattern in 11-bit mode, use the CUSTOM PATTERN D[13:3] bits of registers 3Fh and 40h. To program a pattern in 14-bit mode, use the CUSTOM PATTERN D[13:0] bits of registers 3Fh and 40h. 110 = Unused 111 = Unused Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 29 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Register Address 3Dh (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 SEL OFFSET CORR 0 0 0 0 0 Bits D[7:6] Always write '0' Bit D5 SEL OFFSET CORR: Offset correction setting This bit enables the offset correction feature for all four channels after the DIGITAL ENABLE bit is set to ‘1,’ correcting mid-code to 1023. In addition, write the SPECIAL MODE 0 bit (register CFh, value 08h) for proper operation of the offset correction feature. Note that the offset correction feature should only be used in the default 11-bit mode. 0 = Offset correction disabled 1 = Offset correction enabled Bits D[4:0] Always write '0' Register Address 3Fh (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 CUSTOM PATTERN D13 CUSTOM PATTERN D12 CUSTOM PATTERN D11 CUSTOM PATTERN D10 CUSTOM PATTERN D9 CUSTOM PATTERN D8 Bits D[7:6] Always write '0' Bits D[5:0] CUSTOM PATTERN D[13:8] Set the custom pattern using these bits for all four channels. Register Address 40h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 CUSTOM PATTERN D7 CUSTOM PATTERN D6 CUSTOM PATTERN D5 CUSTOM PATTERN D4 CUSTOM PATTERN D3 CUSTOM PATTERN D2 CUSTOM PATTERN D1 CUSTOM PATTERN D0 Bits D[7:0] CUSTOM PATTERN D[7:0] Set the custom pattern using these bits for all four channels. 30 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Register Address 41h (Default = 00h) D7 D6 D5 0 0 0 D4 D3 D2 HIGH RESOLUTION SAMPLES, NH Bits D[7:5] Always write '0' Bits D[4:1] HIGH RESOLUTION SAMPLES, NH D1 D0 AUTO BURST ENABLE These bits control the number of high-resolution samples in 14-bit burst mode with Equation 1: 210 + NH 0000: 0001: 0010: 0011: 0100: 0101: 0110: 0111: 1000: 1001: 1010: 1011: 1100: 1101: 1110: 1111: Bit D0 NH NH NH NH NH NH NH NH NH NH NH NH NH NH NH NH (1) = = = = = = = = = = = = = = = = 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 AUTO BURST ENABLE 0 = 14-bit burst mode disabled 1 = 14-bit burst mode auto-enabled Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 31 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Register Address 42h (Default = 00h) D7 D6 D5 D4 D3 D2 0 0 0 0 DIGITAL ENABLE SNRB 45/90MHz Bits D[7:4] Always write '0' Bit D3 DIGITAL ENABLE D1 D0 LOW RESOLUTION SAMPLES, NL 1 = Digital gain and offset correction features disabled 1 = Digital gain and offset correction features enabled SNRB 45/90MHz: SNRBoost3G+ enable Bit D2 0 = SNRBoost3G+ enabled with 90-MHz bandwidth (default after reset) 1 = SNRBoost3G+ enabled with 45-MHz bandwidth Bits D[1:0] LOW RESOLUTION SAMPLES, NL These bits control the number of low-resolution samples in 14-bit burst mode with Equation 2: 213 + NH + NL 00: 01: 10: 11: NL NL NL NL = = = = (2) 0 1 2 3 Register Address 44h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 BMODE EN CH CD BMODE EN CH AB 0 0 0 BMODE OVR ENABLE 0 DIS SNRB Bit D7 BMODE EN CH CD 0 = 14-bit burst mode disabled for channels C and D 1 = 14-bit burst mode enabled for channels C and D Bit D6 BMODE EN CH AB 0 = 14-bit burst mode disabled for channels A and B 1 = 14-bit burst mode enabled for channels A and B Bits D[5:3] Always write '0' Bit D2 BMODE OVR ENABLE This bit can only be used in 14-bit burst mode. 0 = 14-bit data comes out without an OVR 1 = The ADC data out bit (Dxx[0]) becomes OVRxx. See the Overrange Indication (OVRxx) section for details. Bit D1 Always write '0' Bit D0 DIS SNRB: Disable SNRBoost This bit only functions when SNRB PIN OVRD is set. 0 = Default 1 = SNRBoost3G+ is disabled for all four channels. 32 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Register Address 45h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 SEL OVR GLOBAL POWER DOWN 0 CONFIG PDN PIN Bits D[7:4] Always write '0' Bit D3 SEL OVR: OVR selection 0 = Fast OVR selected 1 = Normal OVR selected. See the Overrange Indication (OVRxx) section for details. Bit D2 GLOBAL POWER DOWN 0 = Normal operation 1 = Global power down. All ADC channels, internal references, and output buffers are powered down. Wakeup time from this mode is slow (100 µs). Bit D1 Always write '0' Bit D0 CONFIG PDN PIN Use this bit to configure PDN pin. 0 = The PDN pin functions as a standby pin. All channels are put in standby. Wake-up time from standby mode is fast (10 µs). 1 = The PDN pin functions as a global power-down pin. All ADC channels, internal references, and output buffers are powered down. Wake-up time from global power mode is slow (100 µs). Register Address A9h (Default = 00h) D7 D6 D5 D4 0 0 0 0 Bits D[7:4] Always write '0' Bits D[6:3] CLOCKOUT DELAY PROG CH AB D3 D2 D1 D0 CLOCKOUT DELAY PROG CH AB These bits program the clock out delay for channels A and B, see Table 5. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 33 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Register Address ACh (Default = 00h) D7 D6 0 D5 D4 D3 CLOCKOUT DELAY PROG CH CD Bit D7 Always write '0' Bits D[7:4] CLOCKOUT DELAY PROG CH CD D2 D1 D0 0 0 0 These bits program the clock out delay for channels C and D, as shown in Table 5. Bits D[2:0] Always write '0' Table 5. Clock Out Delay Programmability for All Channels CLOCKOUT DELAY PROG CHxx DELAY (ps) 0000 0 0001 –30 0010 70 0011 30 0100 –150 0101 –180 0110 –70 0111 –110 1000 270 1001 230 1010 340 1011 300 1100 140 1101 110 1110 200 1111 170 Register Address C3h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 FAST OVR THRESH PROG Bits D[7:0] FAST OVR THRESH PROG The ADS58H40 has a fast OVR mode that indicates an overload condition at the ADC input. The input voltage level at which the overload is detected is referred to as the threshold and is programmable using the FAST OVR THRESH PROG bits. FAST OVR is triggered seven output clock cycles after the overload condition occurs. To enable the FAST OVR programmability, enable the EN FAST OVR THRESH register bit. The threshold at which fast OVR is triggered is (full-scale × [the decimal value of the FAST OVR THRESH PROG bits] / 255). After reset, when EN FAST OVR THRESH PROG is set, the default value of the FAST OVR THRESH PROG bits is 230 (decimal). 34 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Register Address C4h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 EN FAST OVR THRESH 0 0 0 0 0 0 0 Bit D7 EN FAST OVR THRESH This bit enables the ADS58H40 to be programmed to select the fast OVR threshold. Bits D[6:0] Always write '0' Register Address CFh (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 SPECIAL MODE 0 0 0 0 Bits D[7:4] Always write '0' Bit D3 SPECIAL MODE 0 This bit must be set to ‘1’ when the SEL OFFSET CORR bit is selected. Bits D[2:0] Always write '0' Register Address D4h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 SPECIAL MODE 1 0 0 0 0 0 0 0 Bit D7 SPECIAL MODE 1 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bits D[6:0] Always write '0' Register Address D5h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 SPECIAL MODE 2 0 0 0 0 0 0 0 Bit D7 SPECIAL MODE 2 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bits D[6:0] Always write '0' Register Address D6h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 SPECIAL MODE 3 0 0 0 0 0 0 0 Bit D7 SPECIAL MODE 3 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bits D[6:0] Always write '0' Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 35 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Register Address D7h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 SPECIAL MODE 5 SPECIAL MODE 4 0 0 Bits D[7:4] Always write '0' Bit D3 SPECIAL MODE 5 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bit D2 SPECIAL MODE 4 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bits D[1:0] Always write '0' Register Address DBh (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 SPECIAL MODE 7 SPECIAL MODE 6 0 0 0 0 Bits D[7:6] Always write '0' Bit D5 SPECIAL MODE 7 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bit D4 SPECIAL MODE 6 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bits D[3:0] Always write '0' Register Address F0h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 SPECIAL MODE 10 SPECIAL MODE 9 SPECIAL MODE 8 0 0 0 Bits D[7:6] Always write '0' Bit D5 SPECIAL MODE 10 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bit D4 SPECIAL MODE 9 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bit D3 SPECIAL MODE 8 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bits D[2:0] 36 Always write '0' Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Register Address F1h (Default = 00h) D7 D6 D5 D4 D3 0 0 SPECIAL MODE 11 0 0 Bits D[7:6] Always write '0' Bit D7 SPECIAL MODE 11 D2 D1 D0 ENABLE LVDS SWING PROG Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bits D[4:3] Always write '0' Bits D[2:0] ENABLE LVDS SWING PROG This bit enables the LVDS swing control with the LVDS SWING bits. 00 = LVDS swing control disabled 01 = Do not use 10 = Do not use 11 = LVDS swing control enabled Register Address F5h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 SPECIAL MODE 13 0 0 0 0 SPECIAL MODE 12 0 Bit D7 Always write '0' Bit D6 SPECIAL MODE 13 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bits D[5:2] Always write '0' Bit D1 SPECIAL MODE 12 Refer to Table 1 for optimal performance in a given frequency band and source impedance. Bit D0 Always write '0' Register Address 4Ah (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 0 0 0 SPECIAL MODE 14 Bits D[7:1] Always write '0' Bit D0 SPECIAL MODE 14 Set the SPECIAL MODE[17:14] bits high to reduce the minimum functional clock speed to 10 MSPS. Usage of these bits should be limited to functional checks only because performance degrades when these bits are set high. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 37 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Register Address 62h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 0 0 0 SPECIAL MODE 15 Bits D[7:1] Always write '0' Bit D0 SPECIAL MODE 15 Set the SPECIAL MODE[17:14] bits high to reduce the minimum functional clock speed to 10 MSPS. Usage of these bits should be limited to functional checks only because performance degrades when these bits are set high. Register Address 92h (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 0 0 0 SPECIAL MODE 16 Bits D[7:1] Always write '0' Bit D0 SPECIAL MODE 16 Set the SPECIAL MODE[17:14] bits high to reduce the minimum functional clock speed to 10 MSPS. Usage of these bits should be limited to functional checks only because performance degrades when these bits are set high. Register Address 7Ah (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 0 0 0 SPECIAL MODE 17 Bits D[7:1] Always write '0' Bit D0 SPECIAL MODE 17 Set the SPECIAL MODE[17:14] bits high to reduce the minimum functional clock speed to 10 MSPS. Usage of these bits should be limited to functional checks only because performance degrades when these bits are set high. 38 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Register Address EAh (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 SNRB PIN OVRD 0 0 0 0 0 0 0 Bit D7 SNRB PIN OVRD 0 = SNRBoost3G+ is controlled by the SNRB pin. 1 = SNRBoost3G+ is controlled by the DIS SNRB register bit. Bits D[6:0] Always write '0' Register Address FEh (Default = 00h) D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 0 PDN CH D PDN CH C PDN CH A PDN CH B Bits D[7:4] Always write '0' Bit D3 PDN CH D: Power-down channel D Channel D is powered down. Bit D2 PDN CH C: Power-down channel C Channel C is powered down. Bit D1 PDN CH B: Power-down channel A Channel B is powered down. Bit D0 PDN CH A: Power-down channel B Channel A is powered down. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 39 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com APPLICATION INFORMATION THEORY OF OPERATION The ADS58H40 is a quad-channel, 11-bit, analog-to-digital converter (ADC) with sampling rates up to 250 MSPS. At every falling edge of the input clock, the analog input signal for each channel is sampled simultaneously. The sampled signal in each channel is converted by a pipeline of low-resolution stages. In each stage, the sampled-and-held signal is converted by a high-speed, low-resolution, flash sub-ADC. The difference (residue) between the stage input and its quantized equivalent is gained and propagates to the next stage. At every clock, each subsequent stage resolves the sampled input with greater accuracy. The digital outputs from all stages are combined in a digital correction logic block and digitally processed to create the final code, after a data latency of 10 clock cycles. The digital output is available in a double data rate (DDR) low-voltage differential signaling (LVDS) interface and is coded in binary twos complement format. ANALOG INPUT The analog input consists of a switched-capacitor-based differential sample-and-hold architecture. This differential topology results in very good ac performance even for high input frequencies at high sampling rates. The INP and INM pins must be externally biased around a common-mode voltage of 1.15 V, available on the VCM pin. For a full-scale differential input, each input pin (INP, INM) must swing symmetrically between VCM + 0.5 V and VCM – 0.5 V, resulting in a 2-VPP differential input swing. The input sampling circuit has a high 3-dB bandwidth that extends up to 500 MHz when a 50-Ω source drives the ADC analog inputs. Drive Circuit Requirements For optimum performance, the analog inputs must be driven differentially. This configuration improves the common-mode noise immunity and even-order harmonic rejection. A 5-Ω to 15-Ω resistor in series with each input pin is recommended to damp out ringing caused by package parasitics. Spurious-free dynamic range (SFDR) performance can be limited because of several reasons (such as the effect of sampling glitches, sampling circuit nonlinearity, and quantizer nonlinearity that follows the sampling circuit). Depending on the input frequency, sampling rate, and input amplitude, one of these metrics plays a dominant part in limiting performance. At very high input frequencies, SFDR is determined largely by the device sampling circuit nonlinearity. At low input amplitudes, the quantizer nonlinearity typically limits performance. Glitches are caused by opening and closing the sampling switches. The driving circuit should present a low source impedance to absorb these glitches, otherwise these glitches may limit performance. A low impedance path between the analog input pins and VCM is required from the common-mode switching currents perspective as well. This impedance can be achieved by using two resistors from each input terminated to the common-mode voltage (VCM). The ADS58H40 includes an internal R-C filter from each input to ground. The purpose of this filter is to absorb the sampling glitches inside the device itself. The R-C component values are also optimized to support high input bandwidth (up to 500 MHz). However, using an R-LC-R filter (refer to Figure 46, Figure 47, Figure 48, Figure 49, and Figure 50) improves glitch filtering, thus further resulting in better performance. 40 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 In addition, the drive circuit may have to be designed to provide a low insertion loss over the desired frequency range and matched source impedance. In doing so, the ADC input impedance must be considered. Figure 43, Figure 44, and Figure 45 show the impedance (ZIN = RIN || CIN) at the ADC input pins. XINP(1) RIN ZIN(2) CIN XINM(1) (1) X = A, B, C, or D. (2) ZIN = RIN || (1/jωCIN). Figure 43. ADC Equivalent Input Impedance 1 6 0.8 Differential Input Capacitance, Cin (pF) Differential Input Resistance, Rin (kΩ) 0.9 0.7 0.6 0.5 0.4 0.3 4 3 2 1 0.2 0.1 100 5 200 300 Frequency (MHz) 400 500 0 100 G037 Figure 44. ADC Analog Input Resistance (RIN) vs Frequency 200 300 Frequency (MHz) 400 500 G038 Figure 45. ADC Analog Input Capacitance (CIN) vs Frequency Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 41 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Driving Circuit Two example driving circuits with a 50-Ω source impedance are shown in Figure 46 and Figure 47. The driving circuit in Figure 46 is optimized for input frequencies in the second Nyquist zone (centered at 185 MHz), whereas the circuit in Figure 47 is optimized for input frequencies in third Nyquist zone (centered at 310 MHz). Note that both drive circuits are terminated by 50 Ω near the ADC side. This termination is accomplished with a 25-Ω resistor from each input to the 1.15-V common-mode (VCM) from the device. This architecture allows the analog inputs to be biased around the required common-mode voltage. The mismatch in the transformer parasitic capacitance (between the windings) results in degraded even-order harmonic performance. Connecting two identical RF transformers back-to-back helps minimize this mismatch and good performance is obtained for high-frequency input signals. 50 : T1 T2 0.1 PF 10 : INP 25 : Band-Pass Filter Centered at f0 = 185 MHz BW = 125 MHz 25 : 82 nH RIN 10 pF CIN 0.1 PF 25 : 25 : INM 1:1 1:1 10 : 0.1 PF VCM Device Figure 46. Driving Circuit for a 50-Ω Source Impedance and Input Frequencies in the Second Nyquist Zone 50 : T1 T2 0.1 PF 10 : INP 25 : Band-Pass Filter Centered at f0 = 310 MHz BW = 125 MHz 25 : 27 nH RIN 10 pF CIN 0.1 PF 25 : 25 : INM 1:1 1:1 0.1 PF 10 : VCM Device Figure 47. Driving Circuit for a 50-Ω Source Impedance and Input Frequencies in the Third Nyquist Zone 42 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Appropriate high-performance modes must be written to ensure best performance in a given Nyquist zone and source impedance. Table 6 summarizes all available high-performance modes. Table 6. High-Performance Modes Summary (1) (2) fS = 245.76 MSPS (1) (2) RS = 50 ZONE = 2 RS = 100 ZONE = 2 fS = 184.32 MSPS ADDRESS (Hex) DATA (Hex) RS = 50 ZONE = 3 D4 80 D5 80 D6 80 √ √ √ D7 0C √ √ √ DB 30 F0 38 F1 20 F5 42 RS = 100 ZONE = 3 RS = 50 ZONE = 2 RS = 100 ZONE = 2 √ √ √ √ √ √ √ √ √ √ √ √ √ RS refers to the source impedance. Zone refers to the Nyquist zone in which the signal band lies. Zone = 2 corresponds to the signal band that lies between fS / 2 and fS. Zone = 3 corresponds to the signal band that lies between fS and 3 × fS / 2. Best performance can be achieved by writing these modes depending upon source impedance, band of operation, and sampling speed. Two example driving circuits with 100-Ω differential termination are shown in Figure 48 and Figure 49. In these example circuits, the 1:2 transformer (T1) is used to transform the 50-Ω source impedance into a differential 100 Ω at the input of the band-pass filter. In Figure 48, the parallel combination of two 68-Ω resistors and one 120-nH inductor and two 100-Ω resistors is used (100-Ω is the effective impedance in pass-band) for better performance. The required high-performance modes for these applications are given in Table 6. 50 : T1 0.1 PF T2 10 : INP 68 : Band-Pass Filter Centered at f0 = 185 MHz BW = 125 MHz 25 : 100 : 120 nH 82 nH RIN 10 pF CIN 0.1 PF 100 : 68 : 25 : 10 : 1:2 INM 0.1 PF 1:1 VCM Device Figure 48. Driving Circuit for a 100-Ω Source Impedance and Input Frequencies in the Second Nyquist Zone 50 : T1 T2 0.1 PF 10 : INP 25 : 50 : Band-Pass Filter Centered at f0 = 310 MHz BW = 125 MHz 27 nH RIN 10 pF CIN 0.1 PF 50 : 25 : 10 : 1:2 1:1 0.1 PF INM VCM Device Figure 49. Driving Circuit for a 100-Ω Source Impedance and Input Frequencies in the Third Nyquist Zone Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 43 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Input Common Mode To ensure a low-noise, common-mode reference, the VCM pin should be filtered with a 0.1-µF low-inductance capacitor connected to ground. The VCM pin is designed to directly bias the ADC inputs (refer to Figure 46 to Figure 49). Each ADC input pin sinks a common-mode current of approximately 1.5 µA per MSPS of clock frequency. When a differential amplifier is used to drive the ADC (with dc-coupling), ensure that the output common-mode of the amplifier is within the acceptable input common-mode range of the ADC inputs (VCM ± 25 mV). Clock Input The ADS58H40 clock inputs can be driven differentially with a sine, LVPECL, or LVDS source with little or no difference in performance between them. The common-mode voltage of the clock inputs is set to 0.95 V using internal 5-kΩ resistors, as shown in Figure 50. This setting allows the use of transformer-coupled drive circuits for sine-wave clock or ac-coupling for LVPECL, LVDS, and LVCMOS clock sources (see Figure 51, Figure 52, and Figure 53). For best performance, the clock inputs must be driven differentially, thereby reducing susceptibility to commonmode noise. TI recommends keeping the differential voltage between clock inputs less than 1.8 VPP to obtain best performance. A clock source with very low jitter is recommended for high input frequency sampling. Bandpass filtering of the clock source can help reduce the effects of jitter. There is no change in performance with a non-50% duty cycle clock input. Clock Buffer LPKG ~ 2 nH 20 Ω CLKP CBOND ~ 1 pF CEQ RESR ~ 100 Ω CEQ 5 kΩ 0.95V LPKG ~ 2 nH 5 kΩ 20 Ω CLKM CBOND ~ 1 pF RESR ~ 100 Ω CEQ is 1 pF to 3 pF and is the equivalent input capacitance of the clock buffer. Figure 50. Internal Clock Buffer 44 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 0.1 mF ZO CLKP 0.1 mF CLKP Differential Sine-Wave Clock Input RT Typical LVDS Clock Input 100 W 0.1 mF ZO CLKM 0.1 mF CLKM (1) RT is the termination resistor (optional). Figure 53. LVDS Clock Driving Circuit Figure 51. Differential Sine-Wave Clock Driving Circuit 0.1 mF ZO CLKP 0.1 mF CLKP CMOS Clock Input 150 W Typical LVPECL Clock Input 100 W ZO VCM 0.1 mF CLKM 0.1 mF CLKM 150 W Figure 54. Typical LVCMOS Clock Driving Circuit Figure 52. LVPECL Clock Driving Circuit OVERVIEW OF OPERATING MODES There are three available operating modes: 11-bit, 250-MSPS mode; 11-bit SNRBoost3G+, 250-MSPS mode; and 14-bit, 250-MSPS mode (burst mode). Table 7 shows a summary of the operating modes. Table 7. Operating Mode Summary RESULTING MODE OF OPERATION PIN SETTING Default (after power up) REGISTER SETTING — CHANNELS A AND B 11 bit, 250 MSPS 11 bit, 250 MSPS , 90 MHz SNRBoost3G+, 90 MHz Set SNRB 45/95MHz bit (register 42h, value 4h) SNRBoost3G+, 45 MHz SNRBoost3G+, 45 MHz Set SNRB pin high Set BMODE EN CH AB bit (register 44h, value 40h) Burst mode: Low resolution = 11 bits at 250 MSPS High resolution = 14 bits at 250 MSPS SNRBoost3G+, 90 MHz Set SNRB pin high Set BMODE EN CH CD bit (register 44h, value 80h) SNRBoost3G+, 90 MHz Burst mode: Low resolution = 11 bits at 250 MSPS High resolution = 14 bits at 250 MSPS Set SNRB pin low (default) Set both BMODE EN CH AB and BMODE EN CH CD bits (register 44h, value C0h) Burst mode: Low resolution = 11 bits at 250 MSPS High resolution = 14 bits at 250 MSPS Burst mode: Low resolution = 11 bits at 250 MSPS High resolution = 14 bits at 250 MSPS — Set SNRB pin high 3G+ CHANNELS C AND D SNRBoost 11-Bit, 250-MSPS Mode: Output of the 11 MSBs on the digital DDR LVDS interface. 11-Bit SNRBoost3G+, 250-MSPS Mode: 11-bit output using SNRBoost3G+ signal processing. • 90-MHz wide (centered on fS / 4) • 45-MHz wide (centered on fS / 8 and 3 fS / 8) 14-Bit, 250-MSPS (Burst) Mode: In burst mode, the 14-bit, 250-MSPS digital output data stream alternates between high resolution (14-bit) and low resolution (11-bit). The high-resolution sample can be transmitted using the burst trigger input (TRIG_EN). The HIRES output flag indicates high-resolution data. The amount of highresolution samples is programmable. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 45 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com There are two different options available in burst mode: auto-trigger and manual-trigger. • Auto-Trigger Mode: After transmission of the final low-resolution sample, the ADS58H40 immediately begins sending the high-resolution samples. However, auto-trigger mode requires an initial trigger at the TRIG_EN pin to start the high-resolution process. Thereafter, all subsequent triggers are automated. • Manual-Trigger Mode: After transmission of the final low-resolution sample, the ADS58H40 is ready for the manual trigger of a high-resolution data burst indicated by the TRIG_RDY flag. The high-resolution samples are triggered every time by the rising edge of the pulse on the TRIG_EN pin. The default mode of operation is 11-bit resolution. A set of two channels (channels A and B and channels C and D) can be in either SNRBoost3G+ mode or in burst mode, separately. SNRBoost3G+ can be enabled by the SNRB pin or by the SPI bit (SNRB PIN OVRD). However, burst mode can only be enabled by using an SPI register bit. In burst mode, the automatic trigger can be enabled by setting the SPI register bit AUTO BURST ENABLE (register 41h, bit 0) and the manual trigger can be enabled through the TRIG_EN pin. Table 7 summarizes the process for enabling SNRBoost3G+ from pin settings and enabling burst mode from the SPI registers on different channels. Burst Mode After enabling burst mode, the device is limited to 11-bit (low-resolution) samples until a trigger is asserted through the TRIG_EN pin. A TRIG_EN rising edge causes the device to output a set of 14-bit (high-resolution) samples, followed by another set of 11-bit (low-resolution) samples. In auto-trigger mode (set using the SPI register), this cycle repeats as long as the device is in burst mode. In manual-trigger mode, this cycle is followed by a delay until the next rising edge on the TRIG_EN pin occurs. During this cycle (high-resolution samples followed by low-resolution samples), any edge on TRIG_EN is ignored. The HIRES output flag is set high when the device outputs high-resolution, 14-bit data; otherwise, HIRES is '0'. The TRIG_RDY output flag is set high while the device waits for a rising edge on the TRIG_EN pin; otherwise, this flag is cleared. The ratio of high-resolution, 14-bit samples to low-resolution, 11-bit samples is programmable between 1:8 and 1:64. The number of high-resolution, 14-bit samples is also programmable. The number of 14-bit, high-resolution samples is shown in Equation 3: 210 + NH where: 0 ≤ NH ≤ 15 (3) The number of 11-bit, low-resolution samples is shown in Equation 4: 213 + NH + NL where: 0 ≤ NL ≤ 3 (4) Both NH and NL parameters can be programmed through the SPI at any time, but are internally updated at the end of the high-resolution data transmission. 46 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 Manual-Trigger Mode Figure 55 shows a timing diagram for this mode. Enable Burst Mode Manual Trigger TRIG_EN Trigger on TRIG_EN Rising Edge tTRIG_DELAY TRIG_RDY DAB[13:0], DCD[13:0] High-Resolution (14-Bit) 210 Samples Low Resolution (11-Bit) 213 Samples Ready for New Trigger High-Resolution (14-Bit) 210+NH Samples Low Resolution (11-Bit) 2(13+NH+NL) Samples Ready for New Trigger Update NH and NL Values Update NH and NL Values HIRES Figure 55. Timing For Manual-Trigger Mode Auto-Trigger Mode In this mode, the output data cycles automatically between 11-bit and 14-bit resolution, as shown in Figure 56. After the first rising edge of the pulse on TRIG_EN that turns the 14-bit burst mode on, the device continues to provide high-resolution samples interlaced with low-resolution samples and any subsequent edge on TRIG_EN is ignored. The TRIG_RDY output flag is invalid in this mode. Enable Burst Mode Auto Trigger DAB[13:0], DCD[13:0] Low Resolution (11-Bit) 213 Samples High-Resolution (14-Bit) 210 Samples Low Resolution (11-Bit) 2(13+NH+NL) Samples Update NH and NL Values High-Resolution (14-Bit) 210+NH Samples Update NH and NL Values HIRES Figure 56. Timing for Auto-Trigger Mode Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 47 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com Overrange Indication (OVRxx) The ADS58H40 outputs overrange information on the Dxx0P and Dxx0M pins (where xx = channels A and B or channels C and D) of the digital output interface. When transmitting high-resolution (14-bit) output data in burst mode, Dxx0P and Dxx0M transmit the output data LSB instead. An OVR timing diagram is shown in Figure 57. CLKOUTP, CLKOUTM DAB13P, DAB13M (MSB) A B A B DAB12P, DAB12M A B A B ... ... SNRBoost3G+ 11-Bit Output DAB4P, DAB4M A B A B DAB3P, DAB3M (LSB) A B A B B A B DAB2P, DAB2M Not Valid Output Data DAB1P, DAB1M Not Valid Output Data OVRABP, OVRABM (DAB0P, DAB0M) A Sample N Overrange Indicator Sample N+1 Figure 57. Overrange Indicator (OVR) Timing Normal overrange indication (OVR) shows the event of the ADS58H40 digital output being saturated when the input signal exceeds the ADC full-scale range. Normal OVR has the same latency as digital output data. However, an overrange event can be indicated earlier (than normal latency) by using the fast OVR mode. The fast OVR mode (enabled by default) is triggered seven clock cycles after the overrange condition that occurred at the ADC input. The fast OVR thresholds are programmable with the FAST OVR THRESH PROG bits (refer to Table 4, register address C3h). At any time, either normal or fast OVR mode can be programmed on the Dxx0P and Dxx0M pins. A block diagram indicating required register writes to enable OVR is shown in Figure 58. Dxx[13:1] 0 Dxx[0] Fast OVR Dxx[0]/OVR 0 0 1 1 Normal OVR 1 HIRES Bit BMODE OVR ENABLE Bit SEL OVR Bit Figure 58. OVR Block Diagram 48 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 SNRBoost3G+ Implementation There are two possible filter configurations in SNRBoost3G+ mode. The SNRBoost3G+ bandwidth can be set to 90 MHz (Figure 59) or 45 MHz (Figure 60). In the 45-MHz mode, there are two 45-MHz filter bands available simultaneously. One band is centered on fS / 8 (low side) and the other band is centered on 3 fS / 8 (high side). The filter configurations are detailed in Table 8. Table 8. SNRBoost3G+ Filter Configurations CORNER FREQUENCIES BANDWIDTH (MHz) START STOP CENTER FREQUENCY fS / 4 90 0.06 × fS 0.44 × fS 45 (low side) 0.03 × fS 0.216 × fS fS / 8 45 (high side) 0.286 × fS 0.466 × fS 3 × fS / 8 0 0 −20 −20 −40 Amplitude (dB) Amplitude (dB) −40 −60 −80 −60 −80 −100 −100 −120 0 25 50 75 Frequency (MHz) 100 125 −120 0 G093 Figure 59. 90-MHz SNRBoost3G+ Filter Bandwidth Centered on fS / 4 25 50 75 Frequency (MHz) 100 125 G092 3G+ Figure 60. 45-MHz SNRBoost Filter Bandwidth Centered on fS / 8 and 3 fS / 8 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 49 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com GAIN FOR SFDR AND SNR TRADE-OFF The ADS58H40 includes gain settings that can be used to obtain improved SFDR performance. The gain is programmable from 0 dB to 6 dB (in 0.5-dB steps) using the DIGITAL GAIN CH X register bits. For each gain setting, the analog input full-scale range scales proportionally, as shown in Table 9. Table 9. Full-Scale Range Across Gains GAIN (dB) TYPE FULL-SCALE (VPP) 0 Default after reset 2 1 Fine, programmable 1.78 2 Fine, programmable 1.59 3 Fine, programmable 1.42 4 Fine, programmable 1.26 5 Fine, programmable 1.12 6 Fine, programmable 1 SFDR improvement is achieved at the expense of SNR; for each gain setting, SNR degrades by approximately 0.5 dB to 1 dB. SNR degradation is diminished at high input frequencies. As a result, the fine gain is very useful at high input frequencies because SFDR improvement is significant with marginal degradation in SNR. Therefore, fine gain can be used to trade-off between SFDR and SNR. After a reset, the gain function is disabled. To use fine gain: • First, program the DIGITAL ENABLE bits to enable digital functions. • This setting enables the gain for all four channels and places the device in a 0-dB gain mode. • For other gain settings, program the DIGITAL GAIN CH X register bits. DIGITAL OUTPUT INFORMATION The ADS58H40 provides 11-bit (or 14-bit in burst mode) digital data for each channel and two output clocks in LVDS mode. Output pins are shared by a pair of channels that are accompanied by one dedicated output clock. DDR LVDS Outputs In the LVDS interface mode, the data bits and clock are output using LVDS levels. The data bits of two channels are multiplexed and output on each LVDS differential pair of pins; see Figure 61 and Figure 62. 50 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 CLKOUTxxP, CLKOUTxxM Dxx0P, Dxx0M Dxx1P, Dxx1M Dxx2P, Dxx2M 14-Bit Output in Burst Mode (11-Bit in Default and SNRBoost3G+ Mode on the Dxx[13:3] Output Pins) Dxx12P, Dxx12M Dxx13P, Dxx13M Device NOTE: xx = channels A and B or C and D. Figure 61. DDR LVDS Interface CLKOUTABM CLKOUTABP DAB[13:0]P, DAB[13:0]M DA[13:0]P, DA[13:0]M DB[13:0]P, DB[13:0]M Sample N DA[13:0]P, DA[13:0]M DB[13:0]P, DB[13:0]M DA[13:0]P, DA[13:0]M Sample N + 1 DB[13:0]P, DB[13:0]M Sample N + 2 CLKOUTCDM CLKOUTCDP DCD[13:0]P, DCD[13:0]M DC[13:0]P, DC[13:0]M DD[13:0]P, DD[13:0]M Sample N DC[13:0]P, DC[13:0]M DD[13:0]P, DD[13:0]M DC[13:0]P, DC[13:0]M Sample N + 1 DD[13:0]P, DD[13:0]M Sample N + 2 Figure 62. DDR LVDS Interface Timing Diagram Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 51 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com LVDS Output Data and Clock Buffers The equivalent circuit of each LVDS output buffer is shown in Figure 63. After reset, the buffer presents an output impedance of 100 Ω to match with the external 100-Ω termination. The VDIFF voltage is nominally 350 mV, resulting in an output swing of ±350 mV with 100-Ω external termination. The VDIFF voltage is programmable using the LVDS SWING register bits (refer to Table 4, register address 01h). The buffer output impedance behaves similar to a source-side series termination. By absorbing reflections from the receiver end, the source-side termination helps to improve signal integrity. VDIFF(high) High Low OUTP External 100-W Load OUTM 1.1 V ROUT VDIFF(low) Low High Figure 63. LVDS Buffer Equivalent Circuit Output Data Format The ADS58H40 transmits data in binary twos complement format. In the event of an input voltage overdrive, the digital outputs go to the appropriate full-scale level. For a positive overdrive, the output code is 3FFh. For a negative input overdrive, the output code is 400h. BOARD DESIGN CONSIDERATIONS For evaluation module (EVM) board information, refer to the ADS58H40 EVM User's Guide (SLAU455). Grounding A single ground plane is sufficient to provide good performance, as long as the analog, digital, and clock sections of the board are cleanly partitioned. See the ADS58H40 EVM User's Guide (SLAU455) for details on layout and grounding. 52 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 ADS58H40 www.ti.com SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 DEFINITION OF SPECIFICATIONS Analog Bandwidth – The analog input frequency at which the power of the fundamental is reduced by 3 dB with respect to the low-frequency value. Aperture Delay – The delay in time between the rising edge of the input sampling clock and the actual time at which the sampling occurs. This delay is different across channels. The maximum variation is specified as aperture delay variation (channel-to-channel). Aperture Uncertainty (Jitter) – The sample-to-sample variation in aperture delay. Clock Pulse Width and Duty Cycle – The duty cycle of a clock signal is the ratio of the time the clock signal remains at a logic high (clock pulse width) to the period of the clock signal. Duty cycle is typically expressed as a percentage. A perfect differential sine-wave clock results in a 50% duty cycle. Maximum Conversion Rate – The maximum sampling rate at which specified operation is given. All parametric testing is performed at this sampling rate unless otherwise noted. Minimum Conversion Rate – The minimum sampling rate at which the ADC functions. Differential Nonlinearity (DNL) – An ideal ADC exhibits code transitions at analog input values spaced exactly 1 LSB apart. DNL is the deviation of any single step from this ideal value, measured in units of LSBs. Integral Nonlinearity (INL) – INL is the deviation of the ADC transfer function from a best-fit line determined by a least-squares curve fit of that transfer function, measured in units of LSBs. Gain Error – Gain error is the deviation of the ADC actual input full-scale range from the ideal value. Gain error is given as a percentage of the ideal input full-scale range. Gain error has two components: error as a result of reference inaccuracy and error as a result of the channel. Both errors are specified independently as EGREF and EGCHAN. To a first-order approximation, the total gain error is ETOTAL ~ EGREF + EGCHAN. For example, if ETOTAL = ±0.5%, the full-scale input varies from (1 – 0.5 / 100) × fS ideal to (1 + 0.5 / 100) × fS ideal. Offset Error – Offset error is the difference, given in number of LSBs, between the ADC actual average idle channel output code and the ideal average idle channel output code. This quantity is often mapped into millivolts. Temperature Drift – The temperature drift coefficient (with respect to gain error and offset error) specifies the change per degree Celsius of the parameter from TMIN to TMAX. The coefficient is calculated by dividing the maximum deviation of the parameter across the TMIN to TMAX range by the difference TMAX – TMIN. Signal-to-Noise Ratio – SNR is the ratio of the power of the fundamental (PS) to the noise floor power (PN), excluding the power at dc and the first nine harmonics. SNR = 10Log10 PS PN (5) SNR is either given in units of dBc (dB to carrier) when the absolute power of the fundamental is used as the reference, or dBFS (dB to full-scale) when the power of the fundamental is extrapolated to the converter fullscale range. Signal-to-Noise and Distortion (SINAD) – SINAD is the ratio of the power of the fundamental (PS) to the power of all the other spectral components including noise (PN) and distortion (PD), but excluding dc. SINAD = 10Log10 PS PN + PD (6) SINAD is either given in units of dBc (dB to carrier) when the absolute power of the fundamental is used as the reference, or dBFS (dB to full-scale) when the power of the fundamental is extrapolated to the converter fullscale range. Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 53 ADS58H40 SBAS589B – AUGUST 2012 – REVISED NOVEMBER 2012 www.ti.com REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision A (August 2012) to Revision B • 54 Page Changed footnote 8 in Timing Requirements table .............................................................................................................. 7 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated Product Folder Links: ADS58H40 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) ADS58H40IZCR ACTIVE NFBGA ZCR 144 184 RoHS & Green SNAGCU Level-3-260C-168 HR -40 to 85 ADS58H40I ADS58H40IZCRR ACTIVE NFBGA ZCR 144 1000 RoHS & Green SNAGCU Level-3-260C-168 HR -40 to 85 ADS58H40I (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
