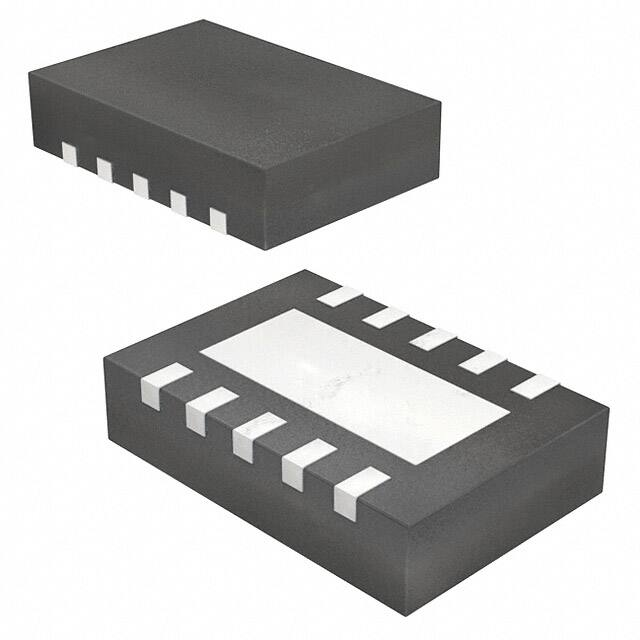

ADS7142QDQCRQ1

Product Folder Order Now Support & Community Tools & Software Technical Documents ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 ADS7142-Q1 Automotive, 2-Channel, 12-Bit, 140-kSPS, I2C-Compatible ADC With Programmable Threshold and Host Wake-Up Features 1 Features • 1 • • • • • • • • 2 Applications General-purpose voltage, current and temperature monitoring in: • Automotive camera modules • Driver monitoring and assistance systems • Infotainment systems and clusters • Electric and ICE powertrain systems AEC-Q100 qualified for automotive applications: – Device temperature grade 1: –40°C to 125°C, TA Small package size: 3 mm × 2 mm 12-bit noise-free resolution Up to 140-kSPS sampling rate Efficient host sleep and wake-up: – Autonomous monitoring at 900 nW – Windowed comparator for event-triggered host wake-up Independent configuration and calibration: – Dual-channel, pseudo-differential, or groundsense input configuration – Programmable thresholds for calibration – Internal calibration improves offset and drift False trigger prevention: – Programmable thresholds per channel – Programmable hysteresis for noise immunity – Event counter for transient rejection I2C interface: – Compatible from 1.65 V to 3.6 V – 8 configurable addresses – Up to 3.4 MHz (high speed) Analog supply: 1.65 V to 3.6 V 3 Description The ADS7142-Q1 is 12-bit, 140-kSPS successiveapproximation register (SAR) analog-to-digital converter (ADC) that can autonomously monitor signals while maximizing system power, reliability, and performance. The device implements eventtriggered interrupts per channel using a digital window comparator with programmable high and low thresholds, hysteresis, and event counter. The device includes a dual-channel analog multiplexer in front of a SAR ADC followed by an internal data buffer for converting and capturing data from sensors. The ADS7142-Q1 is available in a 10-pin WSON package and can achieve low power consumption of only 900 nW. The small form-factor and low-power consumption make this device suitable for spaceconstrained applications. Device Information(1) PART NAME ADS7142-Q1 PACKAGE BODY SIZE (NOM) WSON (10) 3.00 mm × 2.00 mm (1) For all available packages, see the orderable addendum at the end of the datasheet. Block Diagram AVDD DVDD High/Low Threshold ± Hysteresis AINP/AIN0 Analog Input and Multiplexer Conversion Result SAR-ADC Digital Window Comparator ALERT AINM/AIN1 SCL Offset Calibration Oscillator and Timing Control Accumulator SDA I2C Interface BUSY/RDY Data Buffer Conversion Result [0] «««. «««. «««. GND I2C Address Selector Conversion Result [15] ADDR 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Table of Contents 1 2 3 4 5 6 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 6.9 6.10 6.11 6.12 6.13 6.14 7 1 1 1 2 3 4 Absolute Maximum Ratings ...................................... 4 ESD Ratings.............................................................. 4 Recommended Operating Conditions....................... 4 Thermal Information .................................................. 4 Electrical Characteristics: All Modes......................... 5 Electrical Characteristics: Manual Mode................... 6 Electrical Characteristics: Autonomous Modes......... 7 Electrical Characteristics: High Precision Mode ....... 8 Timing Requirements ................................................ 8 Switching Characteristics ...................................... 10 Typical Characteristics: All Modes ........................ 12 Typical Characteristics: Manual Mode .................. 13 Typical Characteristics: Autonomous Modes........ 17 Typical Characteristics: High-Precision Mode ...... 18 Detailed Description ............................................ 19 7.1 7.2 7.3 7.4 7.5 7.6 8 Overview ................................................................. Functional Block Diagram ....................................... Feature Description................................................. Device Functional Modes........................................ Programming........................................................... Register Map........................................................... 19 19 20 28 39 42 Application and Implementation ........................ 59 8.1 Application Information............................................ 59 8.2 Typical Applications ................................................ 59 9 Power Supply Recommendations...................... 65 9.1 AVDD and DVDD Supply Recommendations......... 65 10 Layout................................................................... 66 10.1 Layout Guidelines ................................................. 66 10.2 Layout Example .................................................... 67 11 Device and Documentation Support ................. 68 11.1 11.2 11.3 11.4 11.5 Receiving Notification of Documentation Updates Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 68 68 68 68 68 12 Mechanical, Packaging, and Orderable Information ........................................................... 68 4 Revision History Changes from Original (November 2018) to Revision A • 2 Page Changed document status from advance information to production data.............................................................................. 1 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 5 Pin Configuration and Functions DQC Package 10-Pin WSON Top View GND 1 10 AVDD 2 9 SCL AINP/AIN0 3 8 SDA AINM/AIN1 4 7 ALERT ADDR 5 6 BUSY/RDY Thermal Pad DVDD Not to scale Pin Functions PIN NO. NAME I/O DESCRIPTION 1 GND Supply Ground for power supply, all analog and digital signals are referred to this pin. 2 AVDD Supply Analog supply input, also used as the reference voltage for analog-to-digital conversion. 3 AINP/AIN0 Analog input Single-channel operation: positive analog signal input. Two-channel operation: analog signal input, channel 0. 4 AINM/AIN1 Analog input Single-channel operation: negative analog signal input. Two-channel operation: analog signal input, channel 1. 5 ADDR Analog Input Input for selecting the I2C address of the device. See the I2C Address Selection section for details. 6 BUSY/RDY Digital output The device pulls this pin high when scanning through channels in a sequence and brings this pin low when the sequence is completed or aborted. 7 ALERT Digital output Active low, open-drain output. The status of this pin is controlled by the digital window comparator block. Connect a pullup resistor from DVDD to this pin. 8 SDA 9 SCL Digital input 10 DVDD Supply Digital input/output Serial data input/output for the I2C interface. Connect a pullup resistor from DVDD to this pin. Serial clock for the I2C interface. Connect a pullup resistor from DVDD to this pin. Digital I/O supply voltage. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 3 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) MIN MAX ADDR to GND –0.3 AVDD + 0.3 V AVDD to GND –0.3 3.9 V DVDD to GND –0.3 3.9 V AINP/AIN0 to GND –0.3 AVDD + 0.3 V AINM/AIN1 to GND –0.3 AVDD + 0.3 Input current on any pin except supply pins –10 10 Digital input to GND –0.3 DVDD + 0.3 V Junction temperature, TJ –40 150 °C Storage temperature, Tstg –60 150 °C (1) UNIT V mA Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Condition. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 6.2 ESD Ratings VALUE Human-body model (HBM), per AEC Q100-002 (1) V(ESD) (1) Electrostatic discharge Charged-device model (CDM), per AEC Q100-011 UNIT ±2000 Corner pins (1, 5, 6, and 10) ±750 All other pins ±500 V AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification. 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) MIN NOM MAX UNIT AVDD Analog supply voltage range 1.65 3.6 DVDD Digital supply voltage range 1.65 3.6 V V TA Ambient temperature –40 125 °C 6.4 Thermal Information ADS7142-Q1 THERMAL METRIC (1) DQC (WSON) UNIT 10 PINS RθJA Junction-to-ambient thermal resistance 61.8 °C/W RθJC(top) Junction-to-case (top) thermal resistance 66.3 °C/W RθJB Junction-to-board thermal resistance 29.8 °C/W ΨJT Junction-to-top characterization parameter 2.1 °C/W ΨJB Junction-to-board characterization parameter 29.7 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance 6.1 °C/W (1) 4 For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 6.5 Electrical Characteristics: All Modes at TA = -40°C to 125°C, AVDD = 3 V, DVDD = 1.65 V to 3.6 V, All Channel Configurations (unless otherwise noted) (1) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT ANALOG INPUT (Two-Channel Single-Ended Configuration) Full-scale input voltage span (1) AINP/AIN0 to GND or AINM/AIN1 to GND 0 AVDD V Absolute input voltage range AINP/AIN0 to GND or AINM/AIN1 to GND –0.1 AVDD + 0.1 V 0 AVDD V AINP/AIN0 to GND –0.1 AVDD + 0.1 AINM/AIN1 to GND –0.1 0.1 ANALOG INPUT (Single-Channel Single-Ended Configuration with Remote Ground Sense) Full-scale input voltage span (1) Absolute input voltage range AINP/AIN0 to AINM/AIN1 V ANALOG INPUT (Single-Channel Pseudo-Differential Configuration with Remote Ground Sense) Full-scale input voltage span (1) Absolute input voltage range AINP/AIN0 to AINM/AIN1 –AVDD/2 AVDD/2 AINP/AIN0 to GND –0.1 AVDD + 0.1 AINM/AIN1 to GND AVDD/2–0.1 AVDD/2+0.1 V V INTERNAL OSCILLATOR tHSO Time period for highspeed oscillator tLPO Time period for low-power oscillator 50 110 ns 95.2 300 µs DIGITAL INPUT/OUTPUT (SCL, SDA) VIH High-level input voltage 0.7 × DVDD DVDD V VIL Low-level input voltage 0 0.3 × DVDD V With 3 mA sink current and DVDD > 2 V 0 0.4 With 3 mA sink current and 1.65 V < DVDD < 2V 0 0.2 × DVDD VOL = 0.4 V for standard and fast mode (100, 400 kHz) 3 VOL = 0.6 V for fast mode (400 kHz) 6 VOL = 0.4 V fast mode Plus (1 MHz) 20 VOL= 0.4 V high speed (1.7 MHz, 3.4 MHz) 25 VOL Low-level output voltage V IOL Low-level output current (sink) IOL Low-level output current (sink) II Input current on pin 10 µA CI Input capacitance on pin 10 pF 0.7 × DVDD DVDD V 0 0.3 × DVDD V mA mA DIGITAL OUTPUT (BUSY/RDY) VOH High-level output voltage Isource = 2 mA VOL Low-level output voltage Isink = 2 mA DIGITAL OUTPUT (ALERT) IOL Low-level output current VOL < 0.25 V VOL Low-level output voltage Isink = 5 mA 5 mA 0 0.25 V POWER-SUPPLY REQUIREMENTS AVDD Analog supply voltage 1.65 3.6 V DVDD Digital I/O supply voltage 1.65 3.6 V (1) Ideal Input span, does not include gain or offset error. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 5 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 6.6 Electrical Characteristics: Manual Mode at TA = -40°C to 125°C, AVDD = 3 V, DVDD = 1.65 V to 3.6 V, All Channel Configurations (unless otherwise noted) (1) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT SAMPLING DYNAMICS tconv Conversion time AVDD = 1.65 V to 3.6 V tacq Acquisition time AVDD = 1.65 V to 3.6 V tcycle Cycle time AVDD = 1.65 V to 3.6 V, SCL = 3.4 MHz 1.8 18 µs TSCL 7.1 µs DC SPECIFICATIONS Resolution 12 Bits NMC No missing codes AVDD = 1.65 V to 3.6 V 12 Bits DNL Differential nonlinearity AVDD = 1.65 V to 3.6 V –0.99 ±0.3 1 INL Integral nonlinearity –2.75 ±0.5 2.75 LSB EO Offset error Post offset calibration –4 ±0.5 4 LSB dVOS/dT Offset drift with temperature Post offset calibration EG Gain error –0.1 ±0.03 5 Gain error drift with temperature LSB (1) ppm/°C 0.1 5 %FSR ppm/°C AC SPECIFICATIONS SNR THD (2) Signal-to-noise ratio (2) (3) SINAD (2) Total harmonic distortion Signal-to-noise and distortion SFDR (2) Spurious-free dynamic range BW –3-dB small-signal bandwidth fIN = 2 kHz, AVDD = 3 V, fSAMPLE = 140 kSPS 68.75 70 dB fIN = 2 kHz, AVDD = 1.8 V, fSAMPLE = 140 kSPS 68 fIN = 2 kHz, AVDD = 3 V, fSAMPLE = 140 kSPS –85 fIN = 2 kHz, AVDD = 1.8 V, fSAMPLE = 140 kSPS –80 dB fIN = 2 kHz, AVDD = 3 V, fSAMPLE = 140 kSPS 68.5 69.5 dB fIN = 2 kHz, AVDD = 1.8 V, fSAMPLE = 140 kSPS 67.5 fIN = 2 kHz, AVDD = 3 V, fSAMPLE = 140 kSPS 90 dB 25 MHz POWER CONSUMPTION fSAMPLE = 140 kSPS, SCL = 3.4 MHz 265 fSAMPLE= 5.5 kSPS, SCL = 100 kHz IAVDD IDVDD Analog supply current Digital supply current 300 8 fSAMPLE = 140 kSPS, SCL = 3.4 MHz, AVDD = 1.8 V 160 fSAMPLE = 5.5 kSPS, SCL = 100 kHz, AVDD = 1.8 V 5 fSAMPLE = 140 kSPS, SCL = 3.4 MHz, SDA = AAA0h 25 fSAMPLE = 5.5 kSPS, SCL = 100 kHz, SDA = AAA0h 2 fSAMPLE = 140 kSPS, SCL = 3.4 MHz, AVDD = 1.8 V, SDA = AAA0h 15 µA µA IAVDD Static analog supply current No activity on SCL and SDA 6 nA IDVDD Static digital supply current No activity on SCL and SDA 2 nA (1) (2) (3) 6 LSB means least significant byte. See the ADC Transfer Function for details. All specifications expressed in decibels (dB) refer to the full-scale input (FSR) and are tested with an input signal 0.5 dB below full-scale, unless otherwise specified. Calculated on the first nine harmonics of the input frequency. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 6.7 Electrical Characteristics: Autonomous Modes at TA = -40°C to 125°C, AVDD = 3 V, DVDD = 1.65 V to 3.6 V, All Channel Configurations (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT SAMPLING DYNAMICS tconv tacq tcycle Conversion time Acquisition time Cycle time High-speed oscillator 14 Low-power oscillator 14 High-speed oscillator 7 Low-power oscillator 4 tHSO tLPO tHSO tLPO High-speed oscillator nCLK tHSO Low-power oscillator nCLK tLPO 12 Bits Post offset calibration ±0.5 LSB ±0.03 %FSR DC SPECIFICATIONS Resolution EO Offset error EG Gain error POWER CONSUMPTION IAVDD IDVDD Analog supply current Digital supply current With low-power oscillator, nCLK = 18 0.75 With low-power oscillator, AVDD = 1.8 V, nCLK = 18 0.45 With low-power oscillator, nCLK = 250 0.5 With low-power oscillator, nCLK = 21 940 With low-power oscillator, nCLK = 18, DVDD = 3.3 V 0.15 With low-power oscillator, DVDD = 1.8 V, nCLK = 18 0.25 With low-power oscillator, nCLK = 250, DVDD = 3.3 V 0.15 With high-power oscillator, nCLK = 21, DVDD = 3.3 V 0.15 µA µA IAVDD Static analog supply current No activity on SCL and SDA 5 nA IDVDD Static digital supply current No activity on SCL and SDA 0.6 nA Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 7 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 6.8 Electrical Characteristics: High Precision Mode at TA = -40°C to 125°C, AVDD = 3 V, DVDD = 1.65 V to 3.6 V, All Channel Configurations (unless otherwise noted) (1) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT DC SPECIFICATIONS Resolution (2) 16 ENOB Effective number of bits With DC input of AVDD / 2 (3) 15.4 EO Offset error Post offset calibration ±10 EG Gain error Bits LSB ±0.03 %FSR POWER CONSUMPTION IAVDD IDVDD Analog supply current Digital supply current With low-power oscillator, nCLK = 18 0.6 With low-power oscillator, AVDD = 1.8 V, nCLK = 18 0.3 With low-power oscillator, nCLK = 250 0.5 With high-speed oscillator, nCLK = 21 980 With low-power oscillator, nCLK = 21, DVDD = 3.3 V 0.2 With low-power oscillator, DVDD = 1.8 V, nCLK = 21 µA 0.25 µA With low-power oscillator, nCLK = 250, DVDD = 3.3 V 0.2 With high-speed oscillator, nCLK = 21, DVDD = 3.3 V 0.2 IAVDD Static analog supply current No activity on SCL and SDA 5 nA IDVDD Static analog supply current No activity on SCL and SDA 0.7 nA (1) (2) (3) Sampling dynamics for high precision mode are same as for autonomous modes. See Equation 5 For DC input, ENOB = Ln[FSR/Standard deviation of Codes]/Ln[2]. See 6.9 Timing Requirements at TA = -40°C to 125°C, AVDD = 3 V, DVDD = 1.65 V to 3.6 V, All Channel Configurations (unless otherwise noted) (1) PARAMETER MIN MAX UNIT 100 kHz STANDARD MODE (100 kHz) fSCL SCL clock frequency 0 tHD-STA Hold time (repeated) START condition 4 µs tLOW Low period of SCL 4.7 µs tHIGH High period of SCL 4 µs tSU-STA Setup time for a repeated start condition 4.7 µs 0 µs tHD-DAT (2) (3) Data hold time tSU-DAT Data setup time 250 ns tSU-STO Data setup time 4 µs tBUF Bus free time between a STOP and START condition 4.7 µs Cb Capacitive load on each line 400 pF 400 kHz FAST MODE (400 kHz) fSCL SCL clock frequency tHD-STA Hold time (repeated) START condition 0.6 µs tLOW Low period of SCL 1.3 µs tHIGH High period of SCL 0.6 µs (1) (2) (3) 8 0 All values referred to VIH(min) (0.7 DVDD) and VIL(max) (0.3 DVDD). tHD-DAT is the data hold time that is measured from the falling edge of SCL and applies to data in transmission and the acknowledge. The maximum tHD-DAT can be 3.45 µs and 0.9 µs for standard-mode and fast-mode, but must be less than the maximum of tVD-DAT or tVD-ACK by a transition time. This maximum must only be met if the device does not stretch the LOW period (tLOW) of the SCL signal. If the clock is streched, the data must be valid by the setup time before being released. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Timing Requirements (continued) at TA = -40°C to 125°C, AVDD = 3 V, DVDD = 1.65 V to 3.6 V, All Channel Configurations (unless otherwise noted)(1) PARAMETER MIN tSU-STA Setup time for a repeated start condition tHD-DAT Data hold time tSU-DAT MAX UNIT 0.6 µs 0 µs Data setup time 100 ns tSU-STO Data setup time 0.6 µs tBUF Bus free time between a STOP and START condition 1.3 µs Cb Capacitive load on each line 400 pF 1000 kHz FAST MODE PLUS (1000 kHz) fSCL SCL clock frequency tHD-STA Hold time (repeated) START condition 0 tLOW tHIGH 0.26 µs Low period of SCL 0.5 µs High period of SCL 0.26 µs tSU-STA Setup time for a repeated start condition 0.26 µs tHD-DAT Data hold time 0 µs tSU-DAT Data setup time 50 ns tSU-STO Data setup time 0.26 µs tBUF Bus free time between a STOP and START condition 0.5 µs Cb Capacitive load on each line 550 pF 1.7 MHz HIGH SPEED MODE (1.7 MHz, Cb = 400 pF max) fSCLH SCLH clock frequency tHD-STA Hold time (repeated) START condition 160 0 ns tLOW Low period of SCL 320 ns tHIGH High period of SCL 120 ns tSU-STA Setup time for a repeated start condition 160 tHD-DAT Data hold time 0 tSU-DAT Data setup time 10 tSU-STO Data setup time 160 Cb Capacitive load on each line ns 150 ns ns ns 100 pF 3.4 MHz HIGH SPEED MODE (3.4 MHz, Cb = 100 pF max) fSCLH SCLH clock frequency tHD-STA Hold time (repeated) START condition 160 0 ns tLOW Low period of SCL 160 ns tHIGH High period of SCL 60 ns tSU-STA Setup time for a repeated start condition tHD-DAT Data hold time 0 tSU-DAT Data setup time 10 tSU-STO Data setup time 160 Cb Capacitive load on each line 160 ns 70 ns ns 100 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ns pF 9 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 6.10 Switching Characteristics at TA = -40°C to 125°C, AVDD = 3 V, DVDD = 1.65 V to 3.6 V, All Channel Configurations (unless otherwise noted) (1) PARAMETER TEST CONDITIONS MIN MAX UNIT STANDARD MODE (100 kHz) trCL Rise time of SCL 1000 ns trDA Rise time of SDA 1000 ns tfCL Fall time of SCL 300 ns tfDA Fall time of SDA 300 ns tVD-DAT (2) Data valid time 3.45 µs tVD-ACK (2) Data hold time 3.45 µs FAST MODE (400 kHz) trCL Rise time of SCL 20 300 ns trDA Rise time of SDA 20 300 ns tfCL Fall time of SCL 20 × DVDD/3.6 300 ns tfDA Fall time of SDA 20 × DVDD/3.6 300 ns tVD-DAT Data valid time 0.9 µs tVD-ACK Data hold time 0.9 µs tSP (3) Pulse duration of spikes suppressed by the input filter 50 ns 0 FAST MODE PLUS (1000 kHz) trCL Rise time of SCL 120 ns trDA Rise time of SDA 120 ns tfCL Fall time of SCL 20 × DVDD/3.6 120 ns tfDA Fall time of SDA 20 × DVDD/3.6 120 ns tVD-DAT Data valid time 0.45 µs tVD-ACK Data hold time 0.45 µs tSP Pulse duration of spikes suppressed by the input filter 0 50 ns HIGH SPEED MODE (1.7 MHz, Cb = 400 pF max) trCL Rise time of SCLH 20 80 ns trCL1 Rise time of SCLH after a repeated start condition and after an acknowledge bit 20 160 ns trDA Rise time of SDAH 20 160 ns tfCL Fall time of SCLH 20 80 ns tfDA Fall time of SDAH 20 160 ns tSP Pulse duration of spikes suppressed by the input filter 0 10 ns HIGH SPEED MODE (3.4 MHz, Cb = 100 pF max) trCL Rise time of SCLH 10 40 ns trCL1 Rise time of SCLH after a repeated start condition and after an acknowledge bit 10 80 ns trDA Rise time of SDAH 10 80 ns tfCL Fall time of SCLH 10 40 ns tfDA Fall time of SDAH 10 80 ns tSP Pulse duration of spikes suppressed by the input filter 0 10 ns (1) (2) (3) 10 All values referred to VIH(min) ( 0.7 DVDD ) and VIL(max) ( 0.3 DVDD ). tVD-DAT = time for data signal from SCL LOW to SDA output. Input filters on the SDA and SCL inputs suppress noise spikes of less than 50 ns. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 tf tr SDA tSU-DAT 70% « 70% cont. 30% 30% tHD-DAT tVD-DAT tf tr 70% SCL tHD-STA S 70% 70% 30% tHIGH 30% 70% 30% 30% « cont. 9th clock tLOW 1/fSCL 1st clock cycle tBUF . . . SDA tSU-STA tVD-ACK tHD-STA tSP tSU-STO 70% . . . SCL Sr 30% 9th clock P S VIL = 0.3VDD VIH = 0.7VDD Figure 1. Timing Diagram for Standard Mode, Fast Mode, and Fast Mode Plus trDA Sr Sr P tfDA 0.7 x VDD SDAH or SDA 0.3 x VDD tHD-DAT tSU-STO tSU-STA tHD-STA tSU-DAT 0.7 x VDD SCLH or SCL 0.3 x VDD tFCL trCL1 (1) trCL1 (1) trCL tHIGH tLOW tLOW tHIGH = MCS current source pull-up = Rp resistor pull-up (1) First rising edge of the SCLH signal after Sr and after each acknowledge bit. Figure 2. Timing Diagram for High-Speed Mode Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 11 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 6.11 Typical Characteristics: All Modes 60 160 56 140 Time Period (Ps) Time Period (ns) at TA = 25°C, AVDD = 3 V, DVDD = 3.3 V, and two-channel single-ended configuration (unless otherwise noted) 52 48 44 40 -40 100 80 -7 26 59 Free-Air Temperature (qC) 92 125 60 -40 ADS7 Figure 3. High-Speed Oscillator Time Period vs Temperature 12 120 -7 26 59 Free-Air Temperature (qC) 92 125 ADS7 Figure 4. Low-Power Oscillator Time Period vs Temperature Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 6.12 Typical Characteristics: Manual Mode at TA = 25°C, AVDD = 3 V, DVDD = 3.3 V, and two-channel single-ended configuration (unless otherwise noted) 0 0 -20 -20 -40 Amplitude (dB) Amplitude (dB) -40 -60 -80 -100 -120 -60 -80 -100 -120 -140 -140 -160 -160 -180 0 10000 20000 30000 fIN, Input Frequency (Hz) 40000 50000 0 10000 ADS7 SNR = 69.6 dB, THD = –84 dB, ENOB = 11.2, fsample = 140 kSPS, SFDR = 87 dB, AVDD = 1.8 V 20000 30000 fIN, Input Frequency (Hz) 40000 50000 ADS7 SNR = 71.3 dB, THD = –87 dB, ENOB = 11.5, fsample = 140 kSPS, SFDR = 89.3 dB, AVDD = 3 V Figure 5. Typical FFT in Manual Mode Figure 6. Typical FFT in Manual Mode 73 72 SNR SINAD 71 Amplitude (dB) Amplitude (dB) 72 71 70 69 70 SNR SINAD 69 68 68 -40 -7 26 59 Free-Air Temperature (qC) 92 67 1.8 125 2.16 ADS7 fsample = 140 kSPS 3.24 3.6 ADS7 fsample = 140 kSPS Figure 7. SNR and SINAD in Manual Mode vs Temperature Figure 8. SNR and SINAD in Manual Mode vs AVDD -82 91 -83.6 90.4 SFDR (dB) THD (dB) 2.52 2.88 Free-Air Temperature (qC) -85.2 -86.8 -88.4 89.8 89.2 88.6 -90 -40 -7 26 59 Free-Air Temperature (qC) 92 125 88 -40 ADS7 fsample = 140 kSPS -7 26 59 Free-Air Temperature (qC) 92 125 ADS7 fsample = 140 kSPS Figure 9. THD in Manual Mode vs Temperature Figure 10. SFDR in Manual Mode vs Temperature Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 13 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Typical Characteristics: Manual Mode (continued) at TA = 25°C, AVDD = 3 V, DVDD = 3.3 V, and two-channel single-ended configuration (unless otherwise noted) -78 60000 Number of Hits THD (dB) -81 -84 -87 40000 20000 -90 3790 -93 1.8 2.16 2.52 2.88 AVDD (V) 3.24 2047 3.6 ADS7 ADS7 Figure 12. Typical DC Code Spread in Manual Mode 3 2.5 2.6 2.1 Offset Error (LSB) Offset Error (LSB) 2049 Mean code = 2047.9, standard deviation = 0.32 Figure 11. THD in Manual Mode vs AVDD 2.2 1.8 1.4 1.7 1.3 0.9 1 -40 -7 26 59 Free-Air Temperature (qC) 92 0.5 1.8 125 2.16 ADS7 Figure 13. Offset Error in Manual Mode vs Temperature 0.07 0.03 0.052 0.01 -0.01 -0.03 2.52 2.88 AVDD (V) 3.24 3.6 ADS7 Figure 14. Offset Error in Manual Mode vs AVDD 0.05 Gain Error ( FSR) Gain Error ( FSR) 2048 Output Code fsample = 140 kSPS 0.034 0.016 -0.002 -0.05 -40 -7 26 59 Free-Air Temperature (qC) 92 125 -0.02 1.8 ADS7 Figure 15. Gain Error in Manual Mode vs Free-Air Temperature 14 3046 0 2.16 2.52 2.88 AVDD (V) 3.24 3.6 ADS7 Figure 16. Gain Error in Manual Mode vs AVDD Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Typical Characteristics: Manual Mode (continued) at TA = 25°C, AVDD = 3 V, DVDD = 3.3 V, and two-channel single-ended configuration (unless otherwise noted) 0.5 Differential Nonlinearity (LSB) Differential Nonlinearity (LSB) 0.5 0.3 0.1 -0.1 -0.3 -0.5 0.3 0.1 -0.1 -0.3 -0.5 0 819 1638 2457 Output Code 3276 4095 0 819 ADS7 AVDD = 3 V Figure 17. Typical DNL in Manual Mode 4095 ADS7 Figure 18. Typical DNL in Manual Mode Integral Nonlinearity (LSB) 1 0.6 0 -0.6 -1.2 0.6 0.2 -0.2 -0.6 -1 0 819 1638 2457 Output Code 3276 4095 0 819 ADS7 AVDD = 3 V 1638 2457 Output Code 3276 4095 ADS7 AVDD = 1.8 V Figure 19. Typical INL in Manual Mode Figure 20. Typical INL in Manual Mode 1 1 Maximum Minimum Differential Nonlinearity (LSB) Maximum Minimum Differential Nonlinearity (LSB) 3276 AVDD = 1.8 V 1.2 Integral Nonlinearity (LSB) 1638 2457 Output Code 0.6 0.2 -0.2 -0.6 -1 -40 -7 26 59 Free-Air Temperature (qC) 92 125 0.6 0.2 -0.2 -0.6 -1 1.8 2.16 ADS7 Figure 21. DNL in Manual Mode vs Temperature 2.52 2.88 AVDD (V) 3.24 3.6 ADS7 Figure 22. DNL in Manual Mode vs AVDD Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 15 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Typical Characteristics: Manual Mode (continued) 1 1 0.5 0.4 Integral Nonlinearity (LSB) Integral Nonlinearity (LSB) at TA = 25°C, AVDD = 3 V, DVDD = 3.3 V, and two-channel single-ended configuration (unless otherwise noted) Maximum Minimum 0 -0.5 -1 -1.5 -40 -7 26 59 Free-Air Temperature (qC) 92 Maximum Minimum -0.2 -0.8 -1.4 -2 1.8 125 Figure 23. INL in Manual Mode vs Temperature 2.52 2.88 AVDD (V) 3.24 3.6 ADS7 Figure 24. INL in Manual Mode vs AVDD 350 260 300 254 250 248 IAVDD (PA) IAVDD (PA) 2.16 ADS7 200 150 242 236 100 1.8 2.16 2.52 2.88 AVDD (V) 3.24 230 -40 3.6 -7 ADS7 26 59 Free-Air Temperature (qC) 92 125 ADS7 fSample = 140 kSPS, SCL = 3.4 MHz Figure 25. IAVDD in Manual Mode vs AVDD Figure 26. IAVDD in Manual Mode vs Temperature 0.8 20 AVDD = 1.8 V AVDD = 3 V 17.5 0.6 12.5 IAVDD (PA) IDVDD (PA) 15 10 7.5 0.4 0.2 5 0 2.5 0 0 500 1000 1500 2000 SCL (kHz) 2500 3000 3500 -0.2 -40 ADS7 DVDD = 1.8 V 26 59 Free-Air Temperature (qC) 92 125 ADS7 No activity on SCL and SDA Figure 27. IDVDD in Manual Mode vs SCL 16 -7 Figure 28. Static IAVDD in Manual Mode vs Temperature Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 6.13 Typical Characteristics: Autonomous Modes at TA = 25°C, AVDD = 3 V, DVDD = 3.3 V, and two-channel single-ended configuration (unless otherwise noted) 8 Analog Input Current (nA) Analog Input Current (PA) 12 9 6 3 0 6.4 4.8 3.2 1.6 0 0 45 90 135 nCLK 180 225 270 0 45 90 ADS7 Input voltage = 1.5 V, CH0, high-speed oscillator, stop burst mode 135 nCLK 180 270 AINC Input voltage = 1.5 V, CH0, low-power oscillator, stop burst mode Figure 29. Analog Input Current in Autonomous Modes vs nCLK Figure 30. Analog Input Current in Autonomous Modes vs nCLK 1500 1500 AVDD = 1.8 V AVDD = 3 V AVDD = 1.8 V AVDD = 3 V 1200 1200 900 900 IAVDD (PA) IAVDD (nA) 225 600 300 0 -40 600 300 -7 26 59 Free-Air Temperature (qC) 92 125 0 -40 ADS7 Stop burst mode, low-power oscillator, nCLK = 25 Figure 31. IAVDD in Autonomous Modes vs Temperature -7 26 59 Free-Air Temperature (qC) 92 125 Auto Stop burst mode, high-speed oscillator, nCLK = 25 Figure 32. IAVDD in Autonomous Modes vs Temperature Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 17 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 6.14 Typical Characteristics: High-Precision Mode at TA = 25°C, AVDD = 3 V, DVDD = 3.3 V, and two-channel single-ended configuration (unless otherwise noted) 10 0.03 0.018 Gain Error ( FSR) Offset Error (LSB) 7 4 0.006 -0.006 1 -0.018 -2 -40 -7 26 59 Free-Air Temperature (qC) 92 -0.03 -40 125 -7 Offs Figure 33. Offset Error in High-Precision Mode vs Temperature 26 59 Free-Air Temperature(qC) AVDD = 1.8 V AVDD = 3 V 900 900 IAVDD (PA) IAVDD (nA) Gain 1200 AVDD = 1.8 V AVDD = 3 V 600 300 600 300 -7 26 59 Free-Air Temperature (qC) 92 125 0 -40 ADS7 Low-power oscillator, nCLK = 25 -7 26 59 Free-Air Temperature (qC) 92 125 IAVD High-speed oscillator, nCLK = 25 Figure 35. IAVDD in High-Precision Mode vs Temperature 18 125 Figure 34. Gain Error in High-Precision Mode vs Temperature 1200 0 -40 92 Figure 36. IAVDD in High-Precision Mode vs Temperature Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 7 Detailed Description 7.1 Overview The ADS7142-Q1 is a small size, dual-channel, 12-bit programmable sensor monitor with an integrated analogto-digital converter (ADC), input multiplexer, digital comparator, data buffer, accumulator and internal oscillator. The input multiplexer can be either configured as two single-ended channels, one single-ended channel with remote ground sensing, or one pseudo-differential channel where the input can swing to approximately AVDD / 2. The device includes a digital window comparator with a dedicated output pin, which can be used to alert the host when a programmed high or low threshold is crossed. The device address is configured by the I2C address selector block. The device uses internal oscillators (high speed or low power) for conversion. The start of conversion is controlled by the host in manual mode and by the device in the autonomous modes. The device also features a data buffer and an accumulator. The data buffer can store up to 16 conversion results of the ADC in the autonomous modes and the accumulator can accumulate up to 16 conversion results of the ADC in high-precision mode. The device includes an offset calibration to calibration its own offset. 7.2 Functional Block Diagram AVDD DVDD High/Low Threshold ± Hysteresis AINP/AIN0 Analog Input and Multiplexer Conversion Result SAR-ADC Digital Window Comparator ALERT AINM/AIN1 SCL Offset Calibration Oscillator and Timing Control Accumulator SDA I2C Interface BUSY/RDY Data Buffer Conversion Result [0] «««. «««. «««. GND I2C Address Selector Conversion Result [15] ADDR Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 19 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 7.3 Feature Description 7.3.1 Analog Input and Multiplexer Figure 37 shows a small-signal equivalent circuit for the analog input pins. The device includes a two-channel analog multiplexer with each input pin having ESD protection diodes to AVDD and GND. The sampling switches are represented by ideal switches SW1 and SW2 in series with resistors Rs1 and Rs2 (typically 150 Ω). The sampling capacitors, Cs1 and Cs2, are typically 15 pF. The multiplexer configuration is set by the CH_INPUT_CFG register. During acquisition, switches SW1 and SW2 are closed to allow the input signal to charge the internal sampling capacitors. During conversion, switches SW1 and SW2 are opened to disconnect the input signal from the sampling capacitors. The analog input of the device are optimized to be driven by high impedance source (up-to 100 kΩ) in Autonomous Modes or in High Precision Mode mode with low power oscillator. It is recommended to drive the analog input of the device with an external amplifier when in Autonomous Modes or in High Precision Mode mode with a high-speed oscillator. Figure 29 and Figure 30 provide the analog input current for CH0 and CH1 of the device. Figure 38, Figure 39 and Figure 40 provide a simplified circuit for analog input for input configurations described in Two-Channel, Single-Ended Configuration, Single-Channel, Single-Ended Configuration and Single-Channel, Pseudo-Differential Configuration respectively. The analog multiplexer supports following input configurations (set by writing into the CH_INPUT_CFG register). AVDD AVDD CH0 SW1 AINP/AIN0 AINP/AIN0 SW1 CH0 CH1 Rs1 GND Rs1 Cs1 Cs1 AVDD AVDD MUX CH1 Cs2 SW2 AINM/AIN1 V_BIAS Cs2 MUX V_BIAS SW2 AINM/AIN1 Rs2 Rs2 GND GND GND CHANNEL_INPUT_CFG_REG CHANNEL_INPUT_CFG_REG Figure 38. Two-Channel, Single-Ended Configuration Figure 37. Equivalent Circuit for Analog Input AVDD AVDD SW1 AINP/AIN0 Cs1 GND MUX SW2 Rs2 Rs1 Cs1 GND MUX V_BIAS Cs2 AVDD/2 + 100mV Cs2 AINM/AIN1 SW1 AINP/AIN0 V_BIAS GND + 100mV GND AVDD/2 Rs1 AVDD/2 SW2 AINM/AIN1 Rs2 AVDD/2-100mV GND -100mV GND GND CHANNEL_INPUT_CFG_REG CHANNEL_INPUT_CFG_REG Figure 39. Single-Channel, Single-Ended Configuration With Remote Ground Sensing Figure 40. Single-Channel, Pseudo-Differential Configuration 7.3.1.1 Two-Channel, Single-Ended Configuration Figure 38 shows a simplified block diagram showing a two-channel, single-ended configuration. Set the CH0_CH1_IP_CFG bits = 00b or 11b to select this configuration. This configuration is also the default for the device after power up. In this configuration, CS2 always samples the GND pin and CS1 samples the input signal provided on channel 0 (AINP/AIN0) or channel 1 (AINM/AIN1) based on the channel selection. Each analog input channel can accept input signals in the range 0 V to AVDD V. 20 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Feature Description (continued) On power-up, the device wakes up in manual mode with two-channel, single-ended configuration and samples CH0 only. This configuration can also be set by setting OPMODE_SEL to 000b or 001b, The device can be configured to sample either CH0 or CH1 or both channels by setting bits in the AUTO_SEQ_CHEN register to select the channels. • • • • To select a channel in AUTO sequence, set AUTO_SEQ_CHx bit in the AUTO_SEQ_CHEN register to 1. Set the bits in the OPMODE_SEL register to 100b or 101b for manual mode with AUTO sequence. Set the bits in the OPMODE_SEL register to 110b for Autonomous Modes with AUTO sequence. Set the bits in the OPMODE_SEL register to 111b for High Precision Mode with AUTO sequence. 7.3.1.2 Single-Channel, Single-Ended Configuration See Figure 39 for a simplified block diagram showing a single-channel, single ended configuration. Set CH0_CH1_IP_CFG bits = 01b to select this configuration. In this configuration, CS1 samples the input signal provided on the AINP/AIN0 pin whereas CS2 samples input signal provided on the AINM/AIN1 pin. AINP/AIN0 pin can accept input signals in the range 0 V to AVDD V and AINM/AIN1 pin can accept input signals in the range –100 mV to +100 mV. This input configuration is useful in systems where the sensor and/or the signal conditioning block is placed far from the device and there could be a small difference between the ground potentials. In this channel configuration, remove channel 1 from AUTO sequence by setting the AUTO_SEQ_CH1 bit to 0. Selecting channel 1 in AUTO sequence leads to an error condition and the device sets an error flag in the SEQUENCE_STATUS register. 7.3.1.3 Single-Channel, Pseudo-Differential Configuration See Figure 40 for a simplified block diagram showing a single-channel, pseudo-differential configuration. Set CH0_CH1_IP_CFG bits = 10b to select this configuration. In this configuration, CS1 samples the input signal provided on the AINP/AIN0 pin whereas CS2 samples input signal provided on the AINM/AIN1 pin. AINP/AIN0 pin can accept input signals in the range 0 V to AVDD V and AINM/AIN1 pin can accept input signals in the range (AVDD/2) - 100 mV to (AVDD/2) + 100 mV. This input configuration is useful to interface with sensors that provide pseudo-differential signal with negative output as AVDD/2 like an electrochemical gas sensor. In this channel configuration, remove channel 1 from AUTO sequence by setting the AUTO_SEQ_CH1 bit to 0. Selecting channel 1 in AUTO sequence leads to an error condition and the device sets an error flag in SEQUENCE_STATUS register. 7.3.2 OFFSET Calibration The offset can be calibrated by setting the TRIG_OFFCAL bit in the OFFSET_CAL register. During offset calibration, the sampling switches are open (Figure 37) and the device keeps BUSY/RDY pin high. The device calculates its offset error and corrects for this error for subsequent conversions. The device calibrates the offset on power up. To nullify the change in offset due to change in temperature or in AVDD voltage, it is recommended to perform this calibration periodically. 7.3.3 Reference The device uses the analog supply voltage (AVDD) as a reference for the analog-to-digital conversion process. It is recommended to place a 220-nF, low-ESR ceramic decoupling capacitor between the AVDD pin and the GND pin, close to the AVDD Pin. See Power Supply Recommendations section. 7.3.4 ADC Transfer Function The ADC provides data in straight binary format. The ADC resolution can be computed by Equation 1: 1 LSB = VREF / 2N where: • • VREF = AVDD N = 12 for Autonomous Monitoring Modes and Manual Mode (1) Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 21 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Feature Description (continued) Figure 41 and Figure 42 show the ideal transfer characteristics for single-ended input and pseudo-differential input, respectively. Table 1 show the digital output codes for the transfer functions. PFSC ADC Code (Hex) ADC Code (Hex) PFSC MC + 1 MC MC + 1 MC NFSC+1 NFSC 1 LSB VREF/2 (VREF/2 + 1 LSB) VIN (VREF ± 1 LSB) NFSC+1 NFSC Figure 41. Ideal Transfer Characteristics for Single-Ended Configurations (-VREF/2 + 1 LSB) 0 1 LSB VIN (VREF/2 ± 1 LSB) Figure 42. Ideal Transfer Characteristics for Pseudo-Differential Configuration Table 1. Transfer Characteristics INPUT VOLTAGE FOR SINGLE-ENDED INPUT INPUT VOLTAGE FOR PSEUDO DIFFERENTIAL INPUT CODE DESCRIPTION IDEAL OUTPUT CODE (Autonomous Monitoring Mode or Manual Mode) ≤1 LSB ≤ (–VREF / 2 + 1) LSB NFSC Negative full-scale code 000 1 LSB to 2 LSBs (–VREF / 2 + 1) to (–VREF / 2 + 2) LSB NFSC + 1 — 001 (VREF / 2) to (VREF / 2) + 1 LSB 0 LSB to 1 LSB MC Mid code 800 (VREF / 2) + 1 LSB to (VREF / 2) + 2 LSBs 1 LSB to 2 LSB MC + 1 — 801 ≥ VREF – 1 LSB ≥ VREF / 2 – 1 LSB PFSC Positive full-scale code FFF 7.3.5 Oscillator and Timing Control The device uses one of the two internal oscillators (low power oscillator or high speed oscillator) for converting the analog input voltage into a digital output code. The steps for selecting the oscillator and setting the sampling speed are listed below: 1. Select the low power oscillator (OSC_SEL = 1b) to monitor slow moving signals (< 300 Hz) at extremely low power consumption and sampling speeds (< 600 SPS). Select the high speed oscillator (OSC_SEL = 0b) to scan the sensor signals with faster sampling speed (> 50 kHz). 2. Set sampling speed by programming the NCLK_SEL register: Oscillator frequency nCLK fS • • • 22 fs = Sampling speed Oscillator frequency = 1 / tHSO or 1 / tLPO depending on the OSC_SEL bit; see the Specifications section for 1 / tHSO or 1 / tLPO nCLK is number of clocks in one conversion cycle (see the NCLK_SEL register) (2) Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 7.3.6 I2C Address Selector The I2C address for the device is determined by connecting external resistors on ADDR pin. The device address are selected on power-up based on the resistor values. The device retains this address until the next power up, or until next device reset, or until the device receives a command to program its own address (General Call With Write Software Programmable Part of Slave Address). Figure 43 provides the connection diagram for the ADDR pin and Table 2 provides the resistor values for selecting different addresses of the device. AVDD R1 ADDR R2 Copyright © 2017, Texas Instruments Incorporated Figure 43. External Resistor Connection Diagram for ADDR Pin Table 2. I2C Address Selection RESISTORS R1 (1) ADDRESS 0Ω DNP (2) 0011111b (1Fh) 11 kΩ DNP (2) 0011110b (1Eh) 33 kΩ DNP (2) 0011101b (1Dh) (2) 0011100b (1Ch) 100 kΩ DNP DNP (2) 0Ω or DNP (2) 0011000b (18h) DNP (2) 11 kΩ 0011001b (19h) 33 kΩ 0011010b (1Ah) 100 kΩ 0011011b (1Bh) DNP (2) DNP (2) (1) (2) R2 (1) Tolerance for R1, R2 < ±5%. DNP = Do not populate. 7.3.7 Data Buffer When operating in autonomous monitoring mode, the device can use the internal data buffer for data storage. The internal data buffer is 16-bit wide and 16-word deep and follows the first-in, first-out (FIFO) approach. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 23 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 7.3.7.1 Filling of the Data Buffer The write operation to the data buffer starts and stops as per the settings in the DATA_BUFFER_OPMODE register. The DATA_BUFFER_STATUS register provides the number of entries filled in the data buffer and this register can be read during an active sequence to get the current status of the data buffer. The time between two consecutive conversions is set by the NCLK_SEL register and Equation 3 provides the relationship for time between two consecutive conversions of the same channel and nCLK parameter. tcc = k x nCLK x OscillatorTimePeriod where • • • • tcc = Time between two consecutive conversions of same channel, tcc = k × tcycle k = Number of channels enabled in the device sequence nCLK = Number of clocks used by device for one conversion cycle Oscillator timer period = tLPO or tHSO depending on the OSC_SEL value; see the Specifications section for tLPO or tHSO (3) The format of the 16-bit contents of each entry in the data buffer are set by programming the DOUT_FORMAT_CFG register. The DATA_OUT_CFG register enables the channel ID and DATA_VALID flag in data buffer. Channel ID represents the channel number for the data entry in the data buffer. DATA_VALID is set to zero in either of the following conditions: • • If the entry in the data buffer is not filled after the last start of sequence. If the I2C master tries to read more than 16 entries from the data buffer, the device provides zeros with DATA_VALID set to zero At the end of the write operation, the data buffer always has results of 16 (or lesser) consecutive conversions. The data buffer is filled in the order that the data is converted by the ADC. The channels converted by the ADC are controlled by the AUTO_SEQ_CHEN register. The entries that are not filled during an active sequence are filled with zeros. 7.3.7.2 Reading Data From the Data Buffer The device brings the BUSY/RDY pin low after completion of the sequence or after the SEQ_ABORT bit is set. As illustrated in Figure 44, the device provides the contents of the data buffer (in FIFO fashion) on receiving I2C read frame, which consists of the device address and the read bit set to 1. S Device Address (7 Bits) R A MSB for Data Buffer Entry 0 A LSB for Data Buffer Entry 0 A MSB for Data Buffer Entry 1 A LSB for Data Buffer Entry 15 N P/Sr Data from Host to Device Data from Device to Host Figure 44. Reading Data Buffer (16 Bit Words × 16 Words) The device returns zeroes with DATA VALID flag set to zero for all I2C read frames received after all the valid data words from the data buffer are read or when a I2C read frame is issued during an active sequence (indicated by high on the BUSY/RDY pin). The I2C master needs to provide a NACK followed by a STOP or RESTART condition in an I2C frame to finish the reading process. The data buffer is reset by setting the SEQ_START bit or after resetting the device. 24 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 7.3.8 Accumulator When operating in High Precision Mode, the device offers a 16-bit internal accumulator per channel. The Accumulator for a channel is enabled only if that channel is selected in the channel scanning sequence. The accumulator adds sixteen 12-bit conversion results. The result of adding 16 twelve bit words is one 16 bit word that has an effective resolution of an 16-bit ADC. The time between two consecutive conversions for accumulation is controlled by the NCLK_SEL register and Equation 3 provides the relationship for time between two consecutive conversions of same channel and nCLK parameter. The accumulated data can be read from the ACC_CHx_MSB and ACC_CHx_LSB registers in the device. The ACCUMULATOR_STATUS register provides the number of accumulations done in the accumulator since last conversion. This register can be read during an active sequence to get the current status of the accumulator. The accumulator is reset on setting the SEQ_START bit and on resetting the device. Equation 4 provides the relationship between high precision data and ADC conversion results. 16 High Precision Data for CHx ¦ Conversion Result[k] for CHx (4) k 1 Equation 5 provides the value of LSB in high precision mode for the accumulated result. AVDD 1 LSB 216 (5) 7.3.9 Digital Window Comparator The internal digital window comparator is available in all modes. In Autonomous Modes with Thresholds monitoring and Diagnostics, the digital window comparator controls the filling of the data and the output of the alert pin and in other modes, it only controls the output of the ALERT pin. Figure 45 provides the block diagram for digital window comparator. DWC_BLOCK_EN ALERT_EN_CH1 Channel 1 ALERT_EN_CH0 Channel 0 (High Side Threshold, Hysteresis) for CH0 ADC Conversion Result for CH0 (Low Side Threshold, Hysteresis) for CH0 High Side Comparator High Side Counter End of Conversion S Q High Latched Flag for CH0 R Write Bit to Reset Low Side Counter OR OR ALERT R Q Low Latched Flag for CH0 S Low Side Comaparator Figure 45. Digital Comparator Block Diagram The low side threshold, high side threshold, and hysteresis parameters are independently programmable for each input channel. Figure 46 shows the comparison thresholds and hysteresis for the two comparators. A prealert event counter after each comparator counts the output of the comparator and sets the latched flags. The pre-alert event counter settings are common to the two channels. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 25 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com NOTE: PRE_ALT_MAX_EVENT_COUNT = 70h (waits for 8 counts to set alert) 2 High Threshold 1 3 1 5 High Threshold - Hysteresis 8 2 4 7 3 4 5 6 6 Counter Reset because the high-side-comparator reset before 8. Counter Reset because the high-side-comparator reset before 8. Low Threshold + Hysteresis 7 4 Low Threshold 5 6 3 1 2 High Side Comparator (Internal Only Signal) Low Side Comparator (Internal Only Signal) ALERT Figure 46. Thresholds, Hysteresis and Event Counter for Digital Window Comparator The DWC_BLOCK_EN bit in ALERT_DWC_EN register enables/disables the complete digital window comparator block (disabled at power-up) and ALERT_EN_CHx bits in the ALERT_CHEN register enables digital window comparator for individual channels. When enabled, whenever a new conversion result is available: 1. The output of the high side comparator transitions to logic high when the conversion result is greater than the high threshold. This comparator resets when the conversion result is less than the high threshold – hysteresis. 26 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 2. The output of the low side comparator transitions to logic high when the conversion result is less than the low threshold. This comparator resets when the conversion result is greater than the low threshold + hysteresis. 3. A different threshold and hysteresis can be used for each channel. 4. When the output of either the high side or low side comparator transitions high the pre-alert event counter begins to increment for each subsequent conversion. This counter continues to increment until it reaches the value stored in the PRE_ALT_MAX_EVENT_COUNT register. When it reaches PRE_ALT_MAX_EVENT_COUNT, the alert becomes active and sets the latched flags. If the comparator output becomes zero before counter reaches PRE_ALT_MAX_EVENT_COUNT, then the event counter is reset to zero, Alert does not be set and latched flag is not set. Therefore, the latched flags (high and low) for the channel are updated only if the respective comparator output remains 1 for the specified number of consecutive conversions (set by PRE_ALT_MAX_EVENT_COUNT). The latched flags can be read from the ALERT_LOW_FLAGS and ALERT_HIGH_FLAGS registers. To clear a latched flag, write 1 to the applicable bit location. The ALERT pin status is re-evaluated whenever an applicable latched flag gets set or is cleared. The response time for ALERT pin can be estimated by Equation 6 tresponse = [1 + k x (PRE_ALT_MAX_EVENT_COUNT + 1) ] x nCLK x Oscillator TimePeriod where • • • k = Number of channels enabled in device sequence nCLK = Number of clocks used by device for one conversion cycle Oscillator timer period = tLPO or tHSO depending on the OSC_SEL value; see the Specifications section for tLPO or tHSO (6) 7.3.10 I2C Protocol Features 7.3.10.1 General Call On receiving a general call (00h), the device provides an ACK. 7.3.10.2 General Call With Software Reset On receiving a general call (00h) followed with Software Reset (06h), the device resets itself. 7.3.10.3 General Call With Write Software Programmable Part of Slave Address On receiving a general call (00h) followed by 04h, the device configures its own I2C address configured by the ADDR pin. During this operation, the device keeps BUSY/RDY Pin high and does not respond to other I2C commands except general call. 7.3.10.4 Configuring the Device Into High-Speed I2C Mode The device can be configured in high-speed I2C mode by providing an I2C frame with one of the HS-mode master codes (08h to 0Fh). After receiving one of the HS-mode master codes, the device sets the HS_MODE bit in the OPMODE_I2CMODE_STATUS register and remains in high-speed I2C mode until a STOP condition is received in an I2C frame. 7.3.10.5 Bus Clear If the SDA line is stuck low because of an incomplete I2C frame, providing nine clocks on SCL is recommended. The device releases the SDA line within these nine clocks, and then the next I2C frame can be started. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 27 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 7.4 Device Functional Modes The device has below functional modes: • Manual mode • Autonomous modes: – Autonomous mode with threshold monitoring and diagnostics – Autonomous mode with burst data • High-precision mode Device powers up in manual mode and can be configured into one of the other modes of these modes by writing the configuration registers for the desired mode. Steps for configuring device into different modes are illustrated in Figure 47 Device Power Up or Reset OFFSET Calibration on Power Up(1) Select the Channel Input Configurations(2) Select the Operation Mode of the device(3) Set the I2C Mode to High Speed (Optional)(4) Manual Mode(5) Autonomous Modes(5) High Precision Mode(5) (1) Offset can also be calibrated anytime during normal operation by setting the bit in the OFFSET_CAL register. (2) Configure the CH_INPUT_CFG register. (3) Configure the OPMODE_SEL register for the desired operation mode. (4) See the Configuring the Device Into High-Speed I2C Mode section. (5) Operating mode is selected by configuring the OPMODE_SEL register in step 3. (6) For reading and writing registers, see the Programming section. Figure 47. Configuring Device Into Different Modes 7.4.1 Device Power Up and Reset On power up, the device calibrates its own offset and calculates the address from the resistors connected on ADDR pin. During this time, the device keeps BUSY/RDY high. The device can be reset by recycling power on AVDD pin, by general call (00h) followed by software reset (06h), or by writing the WKEY register followed by setting the bit in the DEVICE_RESET register. Recycling power on the AVDD pin and on general call (00h) followed by software reset (06h), all the device configurations are reset, and the device initiates offset calibration and re-evaluates its I2C address. When setting the bit in DEVICE_RESET register, all the device configurations except latched flags for the digital window comparator and the WKEY register are reset, The device does not initiate offset calibration and does not re-evaluate its I2C address. 28 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Device Functional Modes (continued) 7.4.2 Manual Mode On power-up, the device is in Manual Mode using the single ended and dual channel configuration and starts by sampling the analog input applied on channel 0. In this mode, the device uses the high frequency oscillator for conversions. Manual mode allows the external host processor to directly request and control when the data is sampled. The data capture is initiated by an I2C command from the host processor and the data is then returned over the I2C bus at a throughput rate of up to 140-kSPS. Applications that can take advantage of this type of functionality include traditional ADC applications that require 1 or 2 channels of continuous data output. After setting the operation mode to manual mode as illustrated in Figure 47, steps for operating the device to be in manual mode and reading data are illustrated in Figure 48. The host can either configure the device to scan through one channel or both channels by configuring the CH_INPUT_CFG register and AUTO_SEQ_CHEN register. 7.4.2.1 Manual Mode With CH0 Only Set the OPMODE_SEL register to 000b or 001b for manual mode with channel 0 only. The host must provide the device address and read bit to start the conversions. To continue with conversions and reading data to the host must provide continuous SCL (Figure 49). In this mode, a NACK followed by a STOP condition in I2C frame is required to abort the operation. Then the device operation mode can be changed to another operation mode. 7.4.2.2 Manual Mode With AUTO Sequence Set the OPMODE_SEL register to 100b or 101b for manual mode with AUTO Sequence. The host must set the SEQ_START bit in the START_SEQUENCE register and provide the device address and read bit to start the conversions. To continue with conversions and reading data, the host must provide continuous SCL (Figure 49). In this mode, the SEQ_ABORT bit in the ABORT_SEQUENCE register must be set to abort the operation. Then the device operation mode can be changed to another operation mode. In this mode, a register read aborts the AUTO sequence. In manual mode, the device always uses the high-speed oscillator and the nCLK parameter has no effect. The maximum scan rate is given by Equation 7: 1000 fS >18 u TSCL k @ • • • • fs = Maximum sampling speed in kSPS TSCL= Time period of SCL clock (in µs) if TSCL-LOW (Low period of SCL) < 1.8.µs, k = (1.8 - TSCL-LOW) and the device stretches clock in manual mode; not applicable for standard I2C mode (100 kHz) if TSCL-LOW (low period of SCL) ≥ 1.8.µsec, k = 0 and the device does not stretch clock in manual mode (7) Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 29 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Device Functional Modes (continued) Manual Mode(1) AUTO Sequence Scan CH0 Only CH0 Only (Default) No Select Manual Mode with AUTO Sequence and Select Channels in AUTO Sequence(2) Yes Set SEQ_START Bit(3) Provide Device Address and Read Bit to Start Conversions(4) Provide Device Address and Read Bit to Start Conversions(4) Provide Continuous SCL to the device(4) Provide Continuous SCL to the device(4) Yes Yes Continue with conversions and reading data Continue with conversions and reading data No Provide STOP Condition on I2C Bus(4) No No Set SEQ_ABORT Bit(5) Yes Continue in same Operation Mode Yes Continue in same Operation Mode No No Exit to another Operation Mode(6) (1) For setting the operation mode to manual mode, see Figure 47. (2) Select manual mode with AUTO sequence in OPMODE_SEL register. Select channels in the AUTO_SEQ_CHEN register. (3) Set the bit SEQ_START bit in the START_SEQUENCE register. (4) See Figure 49. (5) Set the bit SEQ_ABORT bit in the ABORT_SEQUENCE register. (6) Select another operation mode in the OPMODE_SEL register. (7) For reading and writing registers, see the Programming section. Figure 48. Device Operation in Manual Mode 30 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Device Functional Modes (continued) Data can be read from the device by providing a device address and read bit followed by continuous SCL as shown in Figure 49. Sample A Sample A+1 Device I2C Address from Host SDA SCL S ADC Data for Sample A A6 A5 A4 A3 A2 A1 A0 R ACK 1 2 3 4 5 6 7 8 9 Device in Acquisition ADC Data for Sample A D11 D10 D9 D8 D7 D6 D5 1 2 3 4 5 6 7 Optional Clock Stretch Sample A+2 ADC Data for Sample A+1 D4 ACK D3 D2 D1 D0 0 0 0 8 9 10 11 12 13 14 15 16 Device in Acquisition 0 ACK D11 D10 0 NA CK 17 18 1 2 17 18 Optional Clock Stretch Device in Acquisition Data from Host to Device Data from Device to Host (1) See Equation 7 for sampling speed in manual mode. (2) If the device scans both channels in AUTO sequence, first data (for sample A) is from channel 0 and second data (for sample A +1) is from channel 1. Figure 49. Starting Conversion and Reading Data in Manual Mode 7.4.3 Autonomous Modes In autonomous mode, the device can be programmed to monitor the voltage applied on the analog input pins of the device and generate a signal on the ALERT pin when the programmable high or low threshold values are crossed and store the conversion results in the data buffer before or after the crossing a threshold or before setting the SEQ_ABORT bit (start burst) in the ABORT_SEQUENCE register or after setting the START_SEQUENCE bit in the START_SEQUENCE register. In autonomous mode, the device generates the start of conversion using the internal oscillator. The first start of conversion must be provided by the host and the device generates the subsequent start of conversions. After configuring the operation mode to autonomous mode (set the OPMODE_SEL register to 110b) as illustrated in Figure 47, steps for operating the device to be in different autonomous modes are illustrated in Figure 50. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 31 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Device Functional Modes (continued) Autonomous Modes(1) Select the Channels in AUTO Sequence(2) Select the Oscillator & Set the nCLK value(3) Select the Data Buffer Configuration(4) Autonomous Mode with Threshold Monitoring and Diagnostics Autonomous Mode with Burst Data Stop Burst Pre Alert Post Alert Start Burst Set the Thresholds, Hysteresis and Enable Alert(5) Set the Thresholds, Hysteresis and Enable Alert(5) Set the SEQ_START Bit(6) Set the SEQ_Start Bit(6) Set the SEQ_START Bit(6) Set the SEQ_START Bit(6) Device Starts conversions and starts Filling Data Buffer Device Starts Conversions Device Starts conversions and starts Filling Data Buffer Device Starts conversions and starts Filling Data Buffer No No Yes Is Alert Set? Is Alert Set or SEQ_ABORT bit set ? No Is Data Buffer Filled or SEQ_ABORT bit Set? No Yes Is SEQ_ABORT Bit Set ? Device Starts Filling Data Buffer Yes Yes Yes Is Data Buffer Filled or SEQ_ABORT bit Set? No Device Stops Conversions & Stops Filling Data Buffers Yes Device Stops Conversions & Stops Filling Data Buffers Read the latched flags of Digital Window Comparator(7) Read the latched flags of Digital Window Comparator(7) Reset the latched flags by writing 1(8) Reset the latched flags by writing 1(8) Device Stops Conversions & Stops Filling Data Buffer Device Stops Conversions & Stops Filling Data Buffer Read the Data Buffer(9) Continue in same operation mode No Exit to another Operation Mode(10) Yes Set the SEQ_START Bit(6) (1) For setting the operation mode to Autonomous modes, see Figure 47. (2) Select channels in the AUTO_SEQ_CHEN register. (3) Select the oscillator by configuring the OSC_SEL register and configure the NCLK_SEL register. (4) Select the data buffer mode in the DATA_BUFFER_OPMODE register. (5) Configure the thresholds in the DWC_xTH_CHx_xxx registers and hysteresis in the DWC_HYS_CHx registers. Enable the alert for channels in the ALERT_CHEN register and set the DWC_BLOCK_EN bit in the ALERT_DWC_EN register. (6) Set the bit SEQ_START bit in the START_SEQUENCE register. (7) Read the ALERT_LOW_FLAGS and/or ALERT_HIGH_FLAGS registers. (8) Reset the ALERT_LOW_FLAGS and/or ALERT_HIGH_FLAGS registers by writing 03h. (9) See the Reading Data From the Data Buffer section. (10) Select another operation mode in the OPMODE_SEL register. (11) For reading and writing registers, see the Programming section. Figure 50. Configuring Device in Autonomous Modes 32 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Device Functional Modes (continued) TI recommends aborting the present sequence by setting the SEQ_ABORT bit in the ABORT_SEQUENCE register before changing the device operation mode or device configuration. 7.4.3.1 Autonomous Mode With Threshold Monitoring and Diagnostics The threshold monitoring mode automatically scans the input voltage on the input channels and generates a signal when the programmable high or low threshold values are crossed. This mode is useful for applications where the output of the sensor must be continuously monitored and action only taken when the sensor output deviates outside of an acceptable range. Applications that could take advantage of this type of functionality include wireless sensor nodes, environmental sensors, smoke and heat detectors, motion detectors, and so on. In this mode, the data buffer can be configured to store the conversion results of the ADC in two different ways. 7.4.3.1.1 Autonomous Mode With Pre Alert Data In this mode, the device stores the sixteen conversion prior to the activation of the alert. Upon activation of ALERT, conversion stops. For this mode, set DATA_BUFFER_OPMODE to 100b. In this mode, the device starts converting and stores the data on setting the SEQ_START bit in the START_SEQUENCE register and continues to store the data into the data buffer until one of the digital comparator flags is set for crossing a high threshold or a low threshold for the channels selected in the sequence. If the SEQ_ABORT bit is set before the data buffer is filled, the device aborts the sequence and stops storing the conversion results. If more than 16 conversions occur between start of sequence and alert output, the first entries written into the data buffer are over-written. Device stops conversions and Sets the Latched flag and alert pin after count(=4) is reached Conversion [N+ 15] for CHx High Threshold Sets the Output of the Comparator Hysteresis ADC Conversion Result ADC Conversion Result Figure 51 and Figure 52 show the filling of data buffer in autonomous mode with Pre alert Data. Device stops conversions and stops storing data in the buffer after the count is reached Conversion [N+ 15] for CHy High Threshold - Hysteresis Sets the Output of the Comparator Data Buffer Conversion [N] for CHx Conversion [N + 1] for CHy tCC Data Buffer Conversion [N] for CHx tCC Conversion [N] for CHx Conversion [N + 14] for CHx Conversion [N + 15] for CHy Conversion [N+1] for CHy Conversion [N] for CHx SEQ_START bit is set by user High Threshold CHy is the channel which first triggered the ALERT Conversion [N + 14] for CHx Conversion [N + 15] for CHx Conversion [0] for CHx SEQ_START bit is set by user Conversion [0] for CHx Conversion [1] for CHy BUSY/RDY BUSY/RDY Time Time Figure 51. Pre Alert Data for Single Channel Configurations Figure 52. Pre Alert Data for Dual Channel Configuration Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 33 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 7.4.3.1.2 www.ti.com Autonomous Mode With Post Alert Data In this mode, the device captures the next sixteen conversion results after the Alert is active. Once these sixteen conversions are stored in the data buffer, all conversion stops. For this mode, Set DATA_BUFFER_OPMODE to 110b. In this mode, the device starts converting the data on setting the SEQ_START bit and stores the data in the data buffer when one of the digital comparator flags is set after the crossing a high threshold or a low threshold for the channels selected in the sequence. if the SEQ_ABORT bit is set before the data buffer is filled, the device aborts the sequence and stops storing the conversion results. ADC Conversion Result Figure 53 and Figure 54 show the filling of the data buffer in autonomous mode with Post Alert Data. Conversion [N+ 14] for CHx Conversion [N+ 15] for CHx Sets the Output of the Comparator SEQ_START bit is set by user Conversion [N] for CHx tCC Data Buffer Conversion [N] for CHx Device Starts storing data in buffer and sets the Latched flag and alert pin after the count is reached Conversion [N] for CHx Hysteresis Data Buffer Conversion [N] for CHx Conversion [N + 14] for CHx Conversion [N + 15] for CHx SEQ_START bit is set by user High Threshold - Hysteresis Conversion [0] for CHx Conversion [N+1] for CHy Conversion [N + 14] for CHx Conversion [N + 15] for CHy CHx is the channel which first triggered the ALERT Sets the Output of the Comparator High Threshold Conversion [N+ 15] for CHy Conversion [N + 1] for CHy tCC Device Starts storing data in buffer and sets the Latched flag and alert pin after count(=4) is reached Device stops conversions and stops storing data in the buffer after the data buffer is filled ADC Conversion Result Device stops conversions and stops storing data in buffer after the data buffer is filled High Threshold Conversion [0] for CHx Conversion [1] for CHy BUSY/RDY Time BUSY/RDY Figure 54. Post Alert Data for Dual Channel Configuration Time Figure 53. Post Alert Data for Single Channel Configurations 34 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 7.4.3.2 Autonomous Mode With Burst Data In this mode, the device can be configured to store up-to 16 conversion results in the data buffer based on user command. Applications that could take advantage of this mode are remote data loggers, environmental sensing and patient monitors. In this mode, the user can either start the burst or stop the burst of data as described in the following sections: 7.4.3.2.1 Autonomous Mode With Start Burst Device stops conversions and stops filling the data buffer after the buffer is filled Conversion [15] for CHx ADC Conversion Result ADC Conversion Result For this mode, set DATA_BUFFER_OPMODE to 001b. With Start Burst, the user can configure the device to start the filling of data buffer with conversion results by setting the SEQ_START bit and the device stops converting data and filling the data buffer after the data buffer is filled. Conversion [14] for CH0 Device stops conversions and stops storing data after the data buffer is filled Conversion [15] for CH1 Data Buffer Conversion [0] for CH0 Conversion [1] for CH1 Data Buffer Conversion [0] for CHx tCC tCC SEQ_START bit is set by user Conversion [0] for CHx Conversion [14] for CHx Conversion [15] for CHx Device starts conversions and starts storing data in the buffer on setting the SEQ_START bit Conversion [14] for CH0 Conversion [15] for CH1 Conversion [0] for CH0 Conversion [1] for CH1 BUSY/RDY BUSY/RDY Time Time Figure 55. Start Burst with Single Channel Configurations Figure 56. Start Burst with Dual Channel Configuration Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 35 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 7.4.3.2.2 Autonomous Mode With Stop Burst Device stops conversions and stops filling the data buffer on setting the SEQ_ABORT bit Conversion [N+ 15] for CHx ADC Conversion Result ADC Conversion Result For this mode, Set DATA_BUFFER_OPMODE to 000b. With Stop Burst, the user can configure the device to stop filling the data buffer with conversion results by setting the SEQ_ABORT bit. If more than 16 conversions occur between start of sequence and abort of sequence, the entries first written into the data buffer are overwritten. Figure 57 and Figure 58 illustrate the filling of the data buffer in autonomous mode with Stop Burst. Conversion [N+ 14] for CH0 Device stops conversions and stops storing data on setting the SEQ_ABORT bit Conversion [N+ 15] for CH1 tCC Data Buffer Conversion [N] for CH0 tCC Conversion [N + 1] for CH1 Data Buffer Conversion [N] for CHx Conversion [N] for CH0 Conversion [N] for CHx SEQ_START bit is set by user Conversion [0] for CHx Conversion [N + 14] for CH0 Conversion [N + 15] for CH1 Conversion [N+1] for CH1 Conversion [N + 14] for CHx Conversion [N + 15] for CHx SEQ_START bit is set by user Conversion [0] for CH0 Conversion [1] for CH1 BUSY/RDY BUSY/RDY Time Time Figure 57. Stop Burst with Single Channel Configurations Figure 58. Stop Burst with Dual Channel Configuration 7.4.4 High Precision Mode The High Precision Mode increases the accuracy of the data measurement to 16-bit accuracy. This is useful for applications where the level of precision required to accurately measure the sensor output needs to be higher than 12 bits. Applications that could take advantage of this type of functionality include gas detectors, air quality testers, water quality testers, and so on. For this mode, Set the OPMODE_SEL register to 111b. In this mode, the device starts converting and starts accumulating the conversion results in an accumulator on setting the SEQ_START bit. The device stops accumulating the conversion results in accumulator after 16 conversions or when the SEQ_ABORT bit is set. Upon accumulating 16 twelve bit conversions, the accumulator contains one 16 bit conversion result. The device has an accumulator for each channel and the device accumulates conversion results from each channel into the respective accumulator. If the operation of the device is aborted in high precision mode before the BUSY/RDY pin goes low, the device provides invalid data. In this mode, on providing a device address and read bit for reading data buffer (Figure 44), the device provides zeroes as output. In this mode, the BUSY/RDY can be used to wake up the MCU or host from sleep or hibernation on completion of accumulation. The steps for configuring the device into High Precision Mode are illustrated in Figure 59 . 36 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 High Precision Mode(1) Select the Channels in AUTO Sequence(2) Select the Oscillator & Set the nCLK value(3) Enable the accumulator(4) Set the SEQ_START Bit(5) Device Starts Conversions & Starts Accumulating Data Check Busy/RDY pin to see if 16 accumulations are completed No Yes Read the Accumulated Results(6) Continue in High Presicion Mode Yes No Exit to another Operation Mode(7) (1) For setting the operation mode to High Precision mode, Refer to Figure 47 (2) Select the channels in the AUTO_SEQ_CHEN register. (3) Select the oscillator by configuring the OSC_SEL register and configure the NCLK_SEL register. (4) Enable the accumulator by setting bits in the ACC_EN register. (5) Set the bit SEQ_START bit in the START_SEQUENCE register. (6) Read the ACC_CHx_xxx registers. (7) Select another operation mode in the OPMODE_SEL register. (8) For reading and writing registers, Refer to Programming section. Figure 59. Configuring Device in High Precision Mode TI recommends aborting the present sequence by setting the SEQ_ABORT bit before changing the device operation mode or device configuration. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 37 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com ADC Conversion Result Figure 60 and Figure 61 show the accumulation of conversion results in high-precision mode. Device stops after accumulating 16 conversion results Device starts accumulating on setting the SEQ_START bit tCC Conversion [15] for CHx Conversion [0] for CHx BUSY/RDY Time ADC Conversion Result Figure 60. High-Precision Mode With Single-Channel Configurations Accumulated in Accumulator for CH0 Device starts accumulating on setting the SEQ_START bit Device stops after accumulating 16 conversion results tCC Conversion [15] for CH0 Conversion [0] for CH0 Conversion [15] for CH1 Conversion [0] for CH1 Accumulated in Accumulator for CH1 BUSY/RDY Time Figure 61. High-Precision Mode With Dual-Channel Configurations 38 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 7.5 Programming Table 3 provides the acronyms for different conditions in an I2C Frame. Table 3. I2C Frame Acronyms SYMBOL DESCRIPTION S START condition for I2C frame Sr RESTART condition for I2C frame P STOP condition for I2C frame A ACK (low) N NACK (high) R Read bit (high) W Write bit (low) Table 4. Opcodes for Commands OPCODE COMMAND DESCRIPTION 00010000b Single register read 00001000b Single register write 00011000b Set bit 00100000b Clear bit 00110000b Reading a continuous block of registers 00101000b Writing a continuous block of registers 7.5.1 Reading Registers The I2C master can either read a single register or a continuous block registers from the device as described in Single Register Read and in Reading a Continuous Block of Registers. 7.5.1.1 Single Register Read To read a single register from the device, the I2C master has to first provide an I2C command with three frames (of 8-bits each) to set the address as illustrated in Figure 62. The register address is the address of the register which must be read. The opcode for register read command is listed in Table 4. S Device Address (7 Bits) W A Register Read or Block Read Opcode (8 Bits) A Register Address (8 Bits) A P/Sr Data from Host to Device Data from Device to Host Figure 62. Setting Register Address for Reading Registers After this, the I2C master has to provide another I2C frame containing the device address and read bit as illustrated in Figure 63. After this frame, the device provides register data. If the host provides more clocks, the device provides same register data. To end the register read command, the master has to provide a STOP or a RESTART condition in the I2C frame. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 39 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 S Device Address (7 Bits) www.ti.com R A Register Data (8 Bits) A P/Sr Data from Host to Device Data from Device to Host Figure 63. Reading Register Data 7.5.1.2 Reading a Continuous Block of Registers To read a continuous block of registers, the I2C master has to first provide an I2C command to set the address as illustrated in Figure 62. The register address is the address of the first register in the block which must be read. The opcode for reading a continuous block of register is listed in Table 4. Next, the I2C master has to provide another I2C frame containing the device address and read bit as illustrated in Figure 64. After this frame, the device provides register data. On providing more clocks, the device provides data for next register. On reading data from addresses which does not exist in the Register Map of the device, the device returns zeros. If the device does not have any further registers to provide the data, it provides zeros. To end the register read command, the master has to provide a STOP or a RESTART condition in the I2C frame. S Device Address (7 Bits) R A Register Data (8 Bits) for Register N A Register Data (8 Bits) for Register N+1 A Register Data (8 Bits) for Register N+2 A Register Data (8 Bits) for Register N+k A P/Sr Data from Host to Device Data from Device to Host Figure 64. Reading a Continuous Block of Registers 7.5.2 Writing Registers The I2C master can either write a single register or a continuous block registers to the device. It can also set a few bits in a register or clear a few bits in a register. 7.5.2.1 Single Register Write To write to a single register in the device, the I2C master has to provide an I2C command with four frames as illustrated in Figure 65. The register address is the address of the register which must be written and register data is the value that must be written. The opcode for single register write is listed in Table 4. To end the register write command, the master has to provide a STOP or a RESTART condition in the I2C frame. S Device Address (7 Bits) W A Write Register or Set Bit or Clear Bit Opcode (8 Bits) A Register Address (8 Bits) A Register Data (8 Bits) A P/Sr Data from Host to Device Data from Device to Host Figure 65. Writing a Single Register 40 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 7.5.2.2 Set Bit To set bits in a register without changing the other bits, the I2C master has to provide an I2C command with four frames as illustrated in Figure 65. The register address is the address of the register in which the bits needs to be set and register data is the value representing the bits which need to be set. Bits with value as 1 in register data are set and bits with value as 0 in register data are not changed. The opcode for set bit is listed in Table 4. To end this command, the master has to provide a STOP or RESTART condition in the I2C frame. 7.5.2.3 Clear Bit To clear bits in a register without changing the other bits, the I2C master has to provide an I2C command with four frames as illustrated in Figure 65. The register address is the address of the register in which the bits needs to be cleared and register data is the value representing the bits which need to be cleared. Bits with value as 1 in register data are cleared and bits with value as 0 in register data are not changed. The opcode for clear bit is listed in Table 4. To end this command, the master has to provide a STOP or a RESTART condition in the I2C frame. 7.5.2.4 Writing a Continuous Block of Registers To write to a continuous block of registers, the I2C master has to provide an I2C command as illustrated in Figure 66. The register address is the address of the first register in the block which needs to be written. The I2C master has to provide data for registers in subsequent I2C frames in an ascending order of register addresses. Writing data to addresses which do not exist in the Register Map of the device has no effect. The opcode for writing a continuous block of registers is listed in Table 4. If the data provided by the I2C master exceeds the address space of the device, the device neglects the data beyond the address space. To end the register write command, the master has to provide a STOP or a RESTART condition in the I2C frame. S Device Address (7 Bits) Register Data (8 Bits) for Register N+1 W A Block Write Opcode (8 Bits) A Register Address (8 Bits) A A Register Data (8 Bits) for Register N A Register Data (8 Bits) for Register N+k A P/Sr Data from Host to Device Data from Device to Host Figure 66. Writing a Continuous Block of Registers Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 41 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 7.6 Register Map 7.6.1 ADS7142-Q1 Registers Table 5 lists the ADS7142-Q1 registers. All register offset addresses not listed in Table 5 should be considered as reserved locations and the register contents should not be modified. Table 5. ADS7142-Q1 Registers Offset 42 Acronym Register Name 0h OPMODE_I2CMODE_STATUS Device operation mode register OPMODE_I2CM ODE_STATUS Register (Offset = 0h) [reset = 0h] 1h DATA_BUFFER_STATUS Data buffer status register DATA_BUFFER_ STATUS Register (Offset = 1h) [reset = 0h] 2h ACCUMULATOR_STATUS Status of ADC accumulator ACCUMULATOR _STATUS Register (Offset = 2h) [reset = 0h] 3h ALERT_TRIG_CHID Alert trigeer channel ID ALERT_TRIG_C HID Register (Offset = 3h) [reset = 0h] 4h SEQUENCE_STATUS Sequence status register SEQUENCE_ST ATUS Register (Offset = 4h) [reset = 0h] 8h ACC_CH0_LSB CH0 accumulator data register (LSB) ACC_CH0_LSB Register (Offset = 8h) [reset = 0h] 9h ACC_CH0_MSB CH0 accumulated data register (MSB) ACC_CH0_MSB Register (Offset = 9h) [reset = 0h] Ah ACC_CH1_LSB CH1 accumulated data register (LSB) ACC_CH1_LSB Register (Offset = Ah) [reset = 0h] Bh ACC_CH1_MSB CH1 accumulated data register (MSB) ACC_CH1_MSB Register (Offset = Bh) [reset = 0h] Ch ALERT_LOW_FLAGS Alert low flags register ALERT_LOW_FL AGS Register (Offset = Ch) [reset = 0h] Eh ALERT_HIGH_FLAGS Alert high flags register ALERT_HIGH_FL AGS Register (Offset = Eh) [reset = 0h] 14h DEVICE_RESET Device reset register DEVICE_RESET Register (Offset = 14h) [reset = 0h] 15h OFFSET_CAL Offset calibration register OFFSET_CAL Register (Offset = 15h) [reset = 0h] 17h WKEY Write key for writing into DEVICE_RESET register 18h OSC_SEL Oscillator selection register Submit Documentation Feedback Section WKEY Register (Offset = 17h) [reset = 0h] OSC_SEL Register (Offset = 18h) [reset = 0h] Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Table 5. ADS7142-Q1 Registers (continued) Offset Acronym Register Name 19h NCLK_SEL nCLK selection register NCLK_SEL Register (Offset = 19h) [reset = 0h] Section 1Ch OPMODE_SEL Device operation mode selection OPMODE_SEL Register (Offset = 1Ch) [reset = 0h] 1Eh START_SEQUENCE Start channel scanning sequence register START_SEQUEN CE Register (Offset = 1Eh) [reset = 0h] 1Fh ABORT_SEQUENCE Abort channel sequence register ABORT_SEQUE NCE Register (Offset = 1Fh) [reset = 0h] 20h AUTO_SEQ_CHEN Auto sequencing channel select register AUTO_SEQ_CH EN Register (Offset = 20h) [reset = 3h] 24h CH_INPUT_CFG Channel input configuration register CH_INPUT_CFG Register (Offset = 24h) [reset = 0h] 28h DOUT_FORMAT_CFG Data buffer word configuration register DOUT_FORMAT _CFG Register (Offset = 28h) [reset = 0h] 2Ch DATA_BUFFER_OPMODE Data buffer operation mode register DATA_BUFFER_ OPMODE Register (Offset = 2Ch) [reset = 1h] 30h ACC_EN Accumulator control register ACC_EN Register (Offset = 30h) [reset = 0h] 34h ALERT_CHEN Alert channel enable register ALERT_CHEN Register (Offset = 34h) [reset = 0h] 36h PRE_ALT_MAX_EVENT_COUNT Pre-alert count register PRE_ALT_MAX_ EVENT_COUNT Register (Offset = 36h) [reset = 0h] 37h ALERT_DWC_EN Alert digital window comparator register ALERT_DWC_E N Register (Offset = 37h) [reset = 0h] 38h DWC_HTH_CH0_LSB CH0 high threshold LSB register DWC_HTH_CH0 _LSB Register (Offset = 38h) [reset = 0h] 39h DWC_HTH_CH0_MSB CH0 high threshold MSB register DWC_HTH_CH0 _MSB Register (Offset = 39h) [reset = 0h] 3Ah DWC_LTH_CH0_LSB CH0 low threshold LSB register DWC_LTH_CH0_ LSB Register (Offset = 3Ah) [reset = 0h] 3Bh DWC_LTH_CH0_MSB CH0 low threshold MSB register DWC_LTH_CH0_ MSB Register (Offset = 3Bh) [reset = 0h] Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 43 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Table 5. ADS7142-Q1 Registers (continued) Offset Acronym Register Name 3Ch DWC_HTH_CH1_LSB CH1 high threshold LSB register DWC_HTH_CH1 _LSB Register (Offset = 3Ch) [reset = 0h] Section 3Dh DWC_HTH_CH1_MSB CH1 high threshold MSB register DWC_HTH_CH1 _MSB Register (Offset = 3Dh) [reset = 0h] 3Eh DWC_LTH_CH1_LSB CH1 low threshold LSB register DWC_LTH_CH1_ LSB Register (Offset = 3Eh) [reset = 0h] 3Fh DWC_LTH_CH1_MSB CH1 low threshold MSB register DWC_LTH_CH1_ MSB Register (Offset = 3Fh) [reset = 0h] 40h DWC_HYS_CH0 CH0 comparator hysterisis register DWC_HYS_CH0 Register (Offset = 40h) [reset = 0h] 41h DWC_HYS_CH1 CH1 comparator hysterisis register DWC_HYS_CH1 Register (Offset = 41h) [reset = 0h] Complex bit access types are encoded to fit into small table cells. Table 6 shows the codes that are used for access types in this section. Table 6. ADS7142-Q1 Access Type Codes Access Type Code Description R Read W Write Read Type R Write Type W Reset or Default Value -n Value after reset or the default value Register Array Variables i,j,k,l,m,n When these variables are used in a register name, an offset, or an address, they refer to the value of a register array where the register is part of a group of repeating registers. The register groups form a hierarchical structure and the array is represented with a formula. y When this variable is used in a register name, an offset, or an address it refers to the value of a register array. 7.6.1.1 OPMODE_I2CMODE_STATUS Register (Offset = 0h) [reset = 0h] OPMODE_I2CMODE_STATUS is shown in Figure 67 and described in Table 7. Return to the Summary Table. Device operation mode register 44 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Figure 67. OPMODE_I2CMODE_STATUS Register 7 6 5 RESERVED R-00000b 4 3 2 HS_MODE R-0b 1 0 DEV_OPMODE[1:0] R-00b Table 7. OPMODE_I2CMODE_STATUS Register Field Descriptions Bit Field Type Reset Description 7-3 RESERVED R 00000b Reserved bits. Read returns 00000b. 2 HS_MODE R 0b This bit indicates when device is in high speed mode for I2C Interface. 0b = 1 : Device is not in high speed mode for I2C Interface. 1b = 2 : Device is in high speed mode for I2C Interface. 1-0 DEV_OPMODE[1:0] R 00b These bits indicate funtional mode of the device. 00b = 1 : Device is operating in manual mode. 01b = 2 : Not used. 10b = 3 : Device is operating in autonomous monitoring mode. 11b = 4 : Device is operating in high precision mode. 7.6.1.2 DATA_BUFFER_STATUS Register (Offset = 1h) [reset = 0h] DATA_BUFFER_STATUS is shown in Figure 68 and described in Table 8. Return to the Summary Table. Data buffer status register Figure 68. DATA_BUFFER_STATUS Register 7 6 RESERVED R-000b 5 4 3 2 DATA_WORDCOUNT[4:0] R-00000b 1 0 Table 8. DATA_BUFFER_STATUS Register Field Descriptions Bit Field Type Reset Description 7-5 RESERVED R 000b Reserved bits. Read returns 000b. 4-0 DATA_WORDCOUNT[4:0 R ] 00000b DATA_WORDCOUNT [00000] to [10000] = Number of entries filled in data buffer (0 to 16) 7.6.1.3 ACCUMULATOR_STATUS Register (Offset = 2h) [reset = 0h] ACCUMULATOR_STATUS is shown in Figure 69 and described in Table 9. Return to the Summary Table. Status of ADC accumulator Figure 69. ACCUMULATOR_STATUS Register 7 6 5 4 3 RESERVED R-0000b 2 1 ACC_COUNT[3:0] R-0000b 0 Table 9. ACCUMULATOR_STATUS Register Field Descriptions Bit Field Type Reset Description 7-4 RESERVED R 0000b Reserved bits. Read returns 0000b. 3-0 ACC_COUNT[3:0] R 0000b ACC_COUNT = Number of accumulation completed till last finished conversion. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 45 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 7.6.1.4 ALERT_TRIG_CHID Register (Offset = 3h) [reset = 0h] ALERT_TRIG_CHID is shown in Figure 70 and described in Table 10. Return to the Summary Table. Alert trigeer channel ID Figure 70. ALERT_TRIG_CHID Register 7 6 5 ALERT_TRIG_CHID[3:0] R-0000b 4 3 2 1 0 RESERVED R-0000b Table 10. ALERT_TRIG_CHID Register Field Descriptions Bit Field Type Reset Description 7-4 ALERT_TRIG_CHID[3:0] R 0000b These bits provide the channel ID of channel which was first to set the alert output. 0000b = 1 : Channel 0. 0001b = 2 : Channel 1. 3-0 RESERVED R 0000b Reserved bits. Reads returns 0000b. 7.6.1.5 SEQUENCE_STATUS Register (Offset = 4h) [reset = 0h] SEQUENCE_STATUS is shown in Figure 71 and described in Table 11. Return to the Summary Table. Sequence status register Figure 71. SEQUENCE_STATUS Register 7 6 5 RESERVED R-00000b 4 3 2 1 SEQ_ERR_ST[1:0] R-00b 0 RESERVED R-0b Table 11. SEQUENCE_STATUS Register Field Descriptions Bit Field Type Reset Description 7-3 RESERVED R 00000b Reserved bits. Read returns 00000b. 2-1 SEQ_ERR_ST[1:0] R 00b These bits give status of device sequence. 00b = 1 : Auto sequencing disabled, no error. 01b = 2 : Auto sequencing enabled, no error. 10b = 3 : Not used. 11b = 4 : Auto sequencing enabled, device in error. 0 RESERVED R 0b Reserved bit. Read returns 0b. 7.6.1.6 ACC_CH0_LSB Register (Offset = 8h) [reset = 0h] ACC_CH0_LSB is shown in Figure 72 and described in Table 12. Return to the Summary Table. CH0 accumulator data register (LSB) Figure 72. ACC_CH0_LSB Register 7 6 5 4 3 2 1 0 CH0_LSB[7:0] R-00000000b 46 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Table 12. ACC_CH0_LSB Register Field Descriptions Bit Field Type Reset Description 7-0 CH0_LSB[7:0] R 00000000b LSB of accumulated data for CH0. 7.6.1.7 ACC_CH0_MSB Register (Offset = 9h) [reset = 0h] ACC_CH0_MSB is shown in Figure 73 and described in Table 13. Return to the Summary Table. CH0 accumulated data register (MSB) Figure 73. ACC_CH0_MSB Register 7 6 5 4 3 2 1 0 1 0 1 0 CH0_MSB[7:0] R-00000000b Table 13. ACC_CH0_MSB Register Field Descriptions Bit Field Type Reset Description 7-0 CH0_MSB[7:0] R 00000000b MSB of accumulated data for CH0. 7.6.1.8 ACC_CH1_LSB Register (Offset = Ah) [reset = 0h] ACC_CH1_LSB is shown in Figure 74 and described in Table 14. Return to the Summary Table. CH1 accumulated data register (LSB) Figure 74. ACC_CH1_LSB Register 7 6 5 4 3 2 CH1_LSB[7:0] R-00000000b Table 14. ACC_CH1_LSB Register Field Descriptions Bit Field Type Reset Description 7-0 CH1_LSB[7:0] R 00000000b LSB of accumulated data for CH1. 7.6.1.9 ACC_CH1_MSB Register (Offset = Bh) [reset = 0h] ACC_CH1_MSB is shown in Figure 75 and described in Table 15. Return to the Summary Table. CH1 accumulated data register (MSB) Figure 75. ACC_CH1_MSB Register 7 6 5 4 3 2 CH1_MSB[7:0] R-00000000b Table 15. ACC_CH1_MSB Register Field Descriptions Bit Field Type Reset Description 7-0 CH1_MSB[7:0] R 00000000b MSB of accumulated data for CH1. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 47 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 7.6.1.10 ALERT_LOW_FLAGS Register (Offset = Ch) [reset = 0h] ALERT_LOW_FLAGS is shown in Figure 76 and described in Table 16. Return to the Summary Table. Alert low flags register Figure 76. ALERT_LOW_FLAGS Register 7 6 5 4 3 2 RESERVED R-000000b 1 ALERT_LOW_ CH1 R/W-0b 0 ALERT_LOW_ CH0 R/W-0b Table 16. ALERT_LOW_FLAGS Register Field Descriptions Bit Field Type Reset Description 7-2 RESERVED R 000000b Reserved bits. Read returns 000000b. ALERT_LOW_CH1 R/W 0b This bit indicates alert on low side comparator for CH1. 1 0b = 1 : Alert is not set for low side comparator for CH1. 1b = 2 : Alert is set for low side comparator for CH1. 0 ALERT_LOW_CH0 R/W 0b This bit indicates alert on low side comparator for CH0. 0b = 1 : Alert is not set for low side comparator for CH0. 1b = 2 : Alert is set for low side comparator for CH0. 7.6.1.11 ALERT_HIGH_FLAGS Register (Offset = Eh) [reset = 0h] ALERT_HIGH_FLAGS is shown in Figure 77 and described in Table 17. Return to the Summary Table. Alert high flags register Figure 77. ALERT_HIGH_FLAGS Register 7 6 5 4 3 RESERVED R-000000b 2 1 ALERT_HIGH_ CH1 R/W-0b 0 ALERT_HIGH_ CH0 R/W-0b Table 17. ALERT_HIGH_FLAGS Register Field Descriptions Bit Field Type Reset Description 7-2 RESERVED R 000000b Reserved bits. Read returns 000000b. ALERT_HIGH_CH1 R/W 0b This bit indicates alert on high side comparator of CH1. 1 0b = 1 : Alert is not set for high side comparator for CH1. 1b = 2 : Alert is set for high side comparator for CH1. 0 ALERT_HIGH_CH0 R/W 0b This bit indicates alert on high side comparator for CH0. 0b = 1 : Alert is not set for high side comparator for CH0. 1b = 2 : Alert is set for high side comparator for CH0. 7.6.1.12 DEVICE_RESET Register (Offset = 14h) [reset = 0h] DEVICE_RESET is shown in Figure 78 and described in Table 18. Return to the Summary Table. Device reset register 48 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Figure 78. DEVICE_RESET Register 7 6 5 4 RESERVED R-0000000b 3 2 1 0 DEV_RST W-0b 1 0 TRIG_OFFCAL W-0b Table 18. DEVICE_RESET Register Field Descriptions Bit Field Type Reset Description 7-1 RESERVED R 0000000b Reserved bits. Read returns 0000000b. DEV_RST W 0b Writing 1 to this bit resets the device. 0 7.6.1.13 OFFSET_CAL Register (Offset = 15h) [reset = 0h] OFFSET_CAL is shown in Figure 79 and described in Table 19. Return to the Summary Table. Offset calibration register Figure 79. OFFSET_CAL Register 7 6 5 4 RESERVED R-0000000b 3 2 Table 19. OFFSET_CAL Register Field Descriptions Bit Field Type Reset Description 7-1 RESERVED R 0000000b Reserved bits. Read returns 0000000b. TRIG_OFFCAL W 0b Writing 1 into this bit triggers internal offset calibration. 0 7.6.1.14 WKEY Register (Offset = 17h) [reset = 0h] WKEY is shown in Figure 80 and described in Table 20. Return to the Summary Table. Write key for writing into DEVICE_RESET register Figure 80. WKEY Register 7 6 5 4 3 2 1 RESERVED R-0000b 0 WKEY[3:0] R/W-0000b Table 20. WKEY Register Field Descriptions Bit Field Type Reset Description 7-4 RESERVED R 0000b Reserved bits. Do not write. Read returns 0000b. 3-0 WKEY[3:0] R/W 0000b Write 1010b into these bits to get write access for the DEVICE_RESET and OFFSET_CAL register. WKEY register is not reset to default value on device reset (see Reset section). After coming out of device reset, write 00h to the WKEY register to prevent erroneous reset. 7.6.1.15 OSC_SEL Register (Offset = 18h) [reset = 0h] OSC_SEL is shown in Figure 81 and described in Table 21. Return to the Summary Table. Oscillator selection register Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 49 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Figure 81. OSC_SEL Register 7 6 5 4 RESERVED R-0000000b 3 2 1 0 HSZ_LP R/W-0b Table 21. OSC_SEL Register Field Descriptions Bit Field Type Reset Description 7-1 RESERVED R 0000000b Reserved bits. Read returns 0000000b. HSZ_LP R/W 0b This bit selects oscillator used for the conversion process and cycle time for a single conversion. 0 0b = 1 : Device uses high speed oscillator. 1b = 2 : Device uses low power oscillator. 7.6.1.16 NCLK_SEL Register (Offset = 19h) [reset = 0h] NCLK_SEL is shown in Figure 82 and described in Table 22. Return to the Summary Table. nCLK selection register Figure 82. NCLK_SEL Register 7 6 5 4 3 2 1 0 NCLK[7:0] R/W-00000000b Table 22. NCLK_SEL Register Field Descriptions Bit Field Type Reset Description 7-0 NCLK[7:0] R/W 00000000b Sets number of clocks of the oscillator that the device uses for one conversion cycle. When using the High Speed Oscillator: For Value x written into the nCLK register • if x ≤ 21, nCLK is set to 21 (00010101b) • if x > 21, nCLK is set to x When using the Low Power Oscillator, For Value x written into the nCLK register: • if x ≤ 18, nCLK is set to 18 (00010010b) • if x > 18, nCLK is set to x 7.6.1.17 OPMODE_SEL Register (Offset = 1Ch) [reset = 0h] OPMODE_SEL is shown in Figure 83 and described in Table 23. Return to the Summary Table. Device operation mode selection Figure 83. OPMODE_SEL Register 7 50 6 5 RESERVED R-00000b 4 3 Submit Documentation Feedback 2 1 SEL_OPMODE[2:0] R/W-000b 0 Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Table 23. OPMODE_SEL Register Field Descriptions Bit Field Type Reset Description 7-3 RESERVED R 00000b Reserved bits. Read returns 00000b 2-0 SEL_OPMODE[2:0] R/W 000b These bits set the functional mode for the device. 000b = 1 : Manual mode with CH0 only (Default mode). 001b = 2 : Manual mode with CH0 only (Default mode). 010b = 3 : Reserved. Do not use. 011b = 4 : Reserved. Do not use. 100b = 5 : Manual mode with AUTO Sequencing enabled. 101b = 6 : Manual Mode with AUTO Sequencing enabled. 110b = 7 : Autonomous monitoring mode with AUTO sequencing enabled. 111b = 8 : High precision mode with AUTO sequencing enabled. 7.6.1.18 START_SEQUENCE Register (Offset = 1Eh) [reset = 0h] START_SEQUENCE is shown in Figure 84 and described in Table 24. Return to the Summary Table. Start channel scanning sequence register Figure 84. START_SEQUENCE Register 7 6 5 4 RESERVED R-0000000b 3 2 1 0 SEQ_START W-0b Table 24. START_SEQUENCE Register Field Descriptions Bit Field Type Reset Description 7-1 RESERVED R 0000000b Reserved bits. Read returns 0000000b. 0 SEQ_START W 0b Setting this bit to 1 brings the BUSY/RDY pin high and starts the first conversion in the sequence. 7.6.1.19 ABORT_SEQUENCE Register (Offset = 1Fh) [reset = 0h] ABORT_SEQUENCE is shown in Figure 85 and described in Table 25. Return to the Summary Table. Abort channel sequence register Figure 85. ABORT_SEQUENCE Register 7 6 5 4 RESERVED R-0000000b 3 2 1 0 SEQ_ABORT W-0b Table 25. ABORT_SEQUENCE Register Field Descriptions Bit Field Type Reset Description 7-1 RESERVED R 0000000b Reserved bits. Read returns 0000000b. SEQ_ABORT W 0b Setting this bit to 1 aborts the ongoing conversion and brings the BUSY/RDY pin low. 0 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 51 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 7.6.1.20 AUTO_SEQ_CHEN Register (Offset = 20h) [reset = 3h] AUTO_SEQ_CHEN is shown in Figure 86 and described in Table 26. Return to the Summary Table. Auto sequencing channel select register Figure 86. AUTO_SEQ_CHEN Register 7 6 5 4 3 2 RESERVED R-000000b 1 AUTOSEQ_EN _CH1 R/W-1b 0 AUTOSEQ_EN _CH0 R/W-1b Table 26. AUTO_SEQ_CHEN Register Field Descriptions Bit Field Type Reset Description 7-2 RESERVED R 000000b Reserved bits. Read returns 000000b. AUTOSEQ_EN_CH1 R/W 1b This bit selects CH1 for auto sequencing. 1 0b = 1 : Channel 1 is not selected for auto sequencing. 1b = 2 : Channel 1 is selected for auto sequencing. 0 AUTOSEQ_EN_CH0 R/W 1b This bit selects CH0 for auto sequencing. 0b = 1 : Channel 0 is not selected for auto sequencing. 1b = 2 : Channel 0 is selected for auto sequencing. 7.6.1.21 CH_INPUT_CFG Register (Offset = 24h) [reset = 0h] CH_INPUT_CFG is shown in Figure 87 and described in Table 27. Return to the Summary Table. Channel input configuration register Figure 87. CH_INPUT_CFG Register 7 6 5 4 3 2 RESERVED R-000000b 1 0 CH0_CH1_IP_CFG[1:0] R/W-00b Table 27. CH_INPUT_CFG Register Field Descriptions Bit Field Type Reset Description 7-2 RESERVED R 000000b Reserved bits. Read returns 000000b. 1-0 CH0_CH1_IP_CFG[1:0] R/W 00b This bit selects configuration for the input pins. 00b = 1 : Two-channel, single-ended configuration. 01b = 2 : Single-channel, single-ended configuration with remote ground sensing. 10b = 3 : Single-channel, pseudo-differential configuration. 11b = 4 : Two-channel, single-ended configuration. 7.6.1.22 DOUT_FORMAT_CFG Register (Offset = 28h) [reset = 0h] DOUT_FORMAT_CFG is shown in Figure 88 and described in Table 28. Return to the Summary Table. Data buffer word configuration register 52 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Figure 88. DOUT_FORMAT_CFG Register 7 6 5 4 3 2 1 0 DOUT_FORMAT[1:0] R/W-00b RESERVED R-000000b Table 28. DOUT_FORMAT_CFG Register Field Descriptions Bit Field Type Reset Description 7-2 RESERVED R 000000b Reserved bits. Read returns 000000b. 1-0 DOUT_FORMAT[1:0] R/W 00b These bits select 16-bit content of the data word in the data buffer. 00b = 1 : 12-bit conversion result followed by 0000b. 01b = 2 : 12-bit conversion result followed by 3-bit channel ID (000b for CH0, 001b for CH1). 10b = 3 : 12-bit conversion result followed by 3-bit channel ID (000b for CH0, 001b for CH1) followed by DATA_VALID bit. 11b = 4 : 12-bit conversion result followed by 0000b. 7.6.1.23 DATA_BUFFER_OPMODE Register (Offset = 2Ch) [reset = 1h] DATA_BUFFER_OPMODE is shown in Figure 89 and described in Table 29. Return to the Summary Table. Data buffer operation mode register Figure 89. DATA_BUFFER_OPMODE Register 7 6 5 RESERVED R-00000b 4 3 2 1 STARTSTOP_CNTRL[2:0] R/W-001b 0 Table 29. DATA_BUFFER_OPMODE Register Field Descriptions Bit Field Type Reset Description 7-3 RESERVED R 00000b Reserved bits. Read returns 00000b. 2-0 STARTSTOP_CNTRL[2:0] R/W 001b These bits select data buffer mode of operation. 000b = 1 : Stop burst mode. 001b = 2 : Start burst mode, default. 010b = 3 : Reserved, do not use. 011b = 4 : Reserved, do not use. 100b = 5 : Pre alert data mode. 101b = 6 : Reserved, do not use. 110b = 7 : Post alert data mode. 111b = 8 : Reserved, do not use. 7.6.1.24 ACC_EN Register (Offset = 30h) [reset = 0h] ACC_EN is shown in Figure 90 and described in Table 30. Return to the Summary Table. Accumulator control register Figure 90. ACC_EN Register 7 6 5 4 3 RESERVED R-0000b 2 1 0 EN_ACC[3:0] R/W-0000b Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 53 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Table 30. ACC_EN Register Field Descriptions Bit Field Type Reset Description 7-4 RESERVED R 0000b Reserved bits. Read returns 0000b. 3-0 EN_ACC[3:0] R/W 0000b These bits enable accumulator function of device. 0001b to 1110b settings are reserved. Do not use. 0000b = 1 : Accumulator is enabled. 7.6.1.25 ALERT_CHEN Register (Offset = 34h) [reset = 0h] ALERT_CHEN is shown in Figure 91 and described in Table 31. Return to the Summary Table. Alert channel enable register Figure 91. ALERT_CHEN Register 7 6 5 4 3 2 1 ALERT_EN_C H1 R/W-0b RESERVED R-000000b 0 ALERT_EN_C H0 R/W-0b Table 31. ALERT_CHEN Register Field Descriptions Bit Field Type Reset Description 7-2 RESERVED R 000000b Reserved bits. Read returns 000000b. ALERT_EN_CH1 R/W 0b This bit enables alert functionality of CH1. 1 0b = 1 : Alert is disabled for CH1, default. 1b = 2 : Alert is enabled for CH1. 0 ALERT_EN_CH0 R/W 0b This bit enables alert functionality for CH0. 0b = 1 : Alert is disabled for CH0, default. 1b = 2 : Alert is enabled for CH0. 7.6.1.26 PRE_ALT_MAX_EVENT_COUNT Register (Offset = 36h) [reset = 0h] PRE_ALT_MAX_EVENT_COUNT is shown in Figure 92 and described in Table 32. Return to the Summary Table. Pre-alert count register Figure 92. PRE_ALT_MAX_EVENT_COUNT Register 7 6 5 PREALERT_COUNT[3:0] R/W-0000b 4 3 2 1 0 RESERVED R-0000b Table 32. PRE_ALT_MAX_EVENT_COUNT Register Field Descriptions Bit Field Type Reset Description 7-4 PREALERT_COUNT[3:0] R/W 0000b These bits set the Pre-Alert Event Count = PREALERT_COUNT [7:4] + 1 3-0 RESERVED R 0000b Reserved bits. Read returns 0000b. 7.6.1.27 ALERT_DWC_EN Register (Offset = 37h) [reset = 0h] ALERT_DWC_EN is shown in Figure 93 and described in Table 33. Return to the Summary Table. Alert digital window comparator register 54 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Figure 93. ALERT_DWC_EN Register 7 6 5 4 RESERVED 3 2 1 R-0000000b 0 DWC_BLOCK_ EN R/W-0b Table 33. ALERT_DWC_EN Register Field Descriptions Bit Field Type Reset Description 7-1 RESERVED R 0000000b Reserved bits. Read returns 0000000b. DWC_BLOCK_EN R/W 0b This bit enables digital window comparator block. 0 0b = 1 : Disables digital window comparator. 1b = 2 : Enables digital window comparator. 7.6.1.28 DWC_HTH_CH0_LSB Register (Offset = 38h) [reset = 0h] DWC_HTH_CH0_LSB is shown in Figure 94 and described in Table 34. Return to the Summary Table. CH0 high threshold LSB register Figure 94. DWC_HTH_CH0_LSB Register 7 6 5 4 3 HTH_CH0_LSB[7:0] R/W-00000000b 2 1 0 Table 34. DWC_HTH_CH0_LSB Register Field Descriptions Bit Field Type Reset Description 7-0 HTH_CH0_LSB[7:0] R/W 00000000b These are 8 least significant bits of high threshold for CH0. 7.6.1.29 DWC_HTH_CH0_MSB Register (Offset = 39h) [reset = 0h] DWC_HTH_CH0_MSB is shown in Figure 95 and described in Table 35. Return to the Summary Table. CH0 high threshold MSB register Figure 95. DWC_HTH_CH0_MSB Register 7 6 5 4 3 RESERVED R-0000b 2 1 HTH_CH0_MSB[3:0] R/W-0000b 0 Table 35. DWC_HTH_CH0_MSB Register Field Descriptions Bit Field Type Reset Description 7-4 RESERVED R 0000b Reserved bits. Read returns 0000b. 3-0 HTH_CH0_MSB[3:0] R/W 0000b These are 4 most significant bits of high threshold for CH0. 7.6.1.30 DWC_LTH_CH0_LSB Register (Offset = 3Ah) [reset = 0h] DWC_LTH_CH0_LSB is shown in Figure 96 and described in Table 36. Return to the Summary Table. CH0 low threshold LSB register Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 55 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Figure 96. DWC_LTH_CH0_LSB Register 7 6 5 4 3 LTH_CH0_LSB[7:0] R/W-00000000b 2 1 0 Table 36. DWC_LTH_CH0_LSB Register Field Descriptions Bit Field Type Reset Description 7-0 LTH_CH0_LSB[7:0] R/W 00000000b These are 8 least significant bits of low threshold for CH0. 7.6.1.31 DWC_LTH_CH0_MSB Register (Offset = 3Bh) [reset = 0h] DWC_LTH_CH0_MSB is shown in Figure 97 and described in Table 37. Return to the Summary Table. CH0 low threshold MSB register Figure 97. DWC_LTH_CH0_MSB Register 7 6 5 4 3 RESERVED R-0000b 2 1 LTH_CH0_MSB[3:0] R/W-0000b 0 Table 37. DWC_LTH_CH0_MSB Register Field Descriptions Bit Field Type Reset Description 7-4 RESERVED R 0000b Reserved bits. Read returns 0000b. 3-0 LTH_CH0_MSB[3:0] R/W 0000b These are 4 most significant bits of low threshold for CH0. 7.6.1.32 DWC_HTH_CH1_LSB Register (Offset = 3Ch) [reset = 0h] DWC_HTH_CH1_LSB is shown in Figure 98 and described in Table 38. Return to the Summary Table. CH1 high threshold LSB register Figure 98. DWC_HTH_CH1_LSB Register 7 6 5 4 3 HTH_CH1_LSB[7:0] R/W-00000000b 2 1 0 Table 38. DWC_HTH_CH1_LSB Register Field Descriptions Bit Field Type Reset Description 7-0 HTH_CH1_LSB[7:0] R/W 00000000b These are 8 least significant bits of high threshold for CH1. 7.6.1.33 DWC_HTH_CH1_MSB Register (Offset = 3Dh) [reset = 0h] DWC_HTH_CH1_MSB is shown in Figure 99 and described in Table 39. Return to the Summary Table. CH1 high threshold MSB register Figure 99. DWC_HTH_CH1_MSB Register 7 6 5 4 3 RESERVED R-0000b 56 Submit Documentation Feedback 2 1 HTH_CH1_MSB[3:0] R/W-0000b 0 Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Table 39. DWC_HTH_CH1_MSB Register Field Descriptions Bit Field Type Reset Description 7-4 RESERVED R 0000b Reserved bits. Read returns 0000b. 3-0 HTH_CH1_MSB[3:0] R/W 0000b These are 4 most significant bits of high threshold for CH1. 7.6.1.34 DWC_LTH_CH1_LSB Register (Offset = 3Eh) [reset = 0h] DWC_LTH_CH1_LSB is shown in Figure 100 and described in Table 40. Return to the Summary Table. CH1 low threshold LSB register Figure 100. DWC_LTH_CH1_LSB Register 7 6 5 4 3 LTH_CH1_LSB[7:0] R/W-00000000b 2 1 0 Table 40. DWC_LTH_CH1_LSB Register Field Descriptions Bit Field Type Reset Description 7-0 LTH_CH1_LSB[7:0] R/W 00000000b These are 8 least significant bits of low threshold for CH1. 7.6.1.35 DWC_LTH_CH1_MSB Register (Offset = 3Fh) [reset = 0h] DWC_LTH_CH1_MSB is shown in Figure 101 and described in Table 41. Return to the Summary Table. CH1 low threshold MSB register Figure 101. DWC_LTH_CH1_MSB Register 7 6 5 4 3 2 1 LTH_CH1_MSB[3:0] R/W-0000b RESERVED R-0000b 0 Table 41. DWC_LTH_CH1_MSB Register Field Descriptions Bit Field Type Reset Description 7-4 RESERVED R 0000b Reserved bits. Read returns 0000b. 3-0 LTH_CH1_MSB[3:0] R/W 0000b These are 4 most significant bits of low threshold for CH1. 7.6.1.36 DWC_HYS_CH0 Register (Offset = 40h) [reset = 0h] DWC_HYS_CH0 is shown in Figure 102 and described in Table 42. Return to the Summary Table. CH0 comparator hysterisis register Figure 102. DWC_HYS_CH0 Register 7 6 5 RESERVED R-00b 4 3 2 1 0 HYS_CH0[5:0] R/W-000000b Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 57 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Table 42. DWC_HYS_CH0 Register Field Descriptions Bit Field Type Reset Description 7-6 RESERVED R 00b Reserved bits. Read returns 00b. 5-0 HYS_CH0[5:0] R/W 000000b These bits set hysteresis for both comparators for CH0. 7.6.1.37 DWC_HYS_CH1 Register (Offset = 41h) [reset = 0h] DWC_HYS_CH1 is shown in Figure 103 and described in Table 43. Return to the Summary Table. CH1 comparator hysterisis register Figure 103. DWC_HYS_CH1 Register 7 6 5 4 RESERVED R-00b 3 2 1 0 HYS_CH1[5:0] R/W-000000b Table 43. DWC_HYS_CH1 Register Field Descriptions 58 Bit Field Type Reset Description 7-6 RESERVED R 00b Reserved bits. Read returns 00b. 5-0 HYS_CH1[5:0] R/W 000000b These bits set hysteresis for both comparators for CH1. Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 8 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 8.1 Application Information In an increasing number of industrial applications, data acquisition sub-systems are collecting more data about the environment in which the system is operating and applying deep learning algorithms in order to improve system reliability, implement preventative maintenance, and/or enhance the quality of data collected by the system. The ADS7142-Q1 can be used to connect to a variety of sensors and can provide deeper data analytics at lower power levels than existing solutions. The depth of analysis that can be performed on the data collected by the ADS7142-Q1 is enhanced by the internal data buffer, programmable alarm thresholds and hysteresis, event counter, and internal calibration circuitry. The applications circuits described in this section highlight specific use-cases of the ADS7142-Q1 for data collection that can further increase the depth and quality of the data being measured by the system. 8.2 Typical Applications 8.2.1 ADS7142-Q1 as a Programmable Comparator With False Trigger Prevention and Diagnostics +VDD R RL No 1 VREF(UPPER) + A1 VOUT VIN R + VREF(LOWER) A2 R Copyright © 2017, Texas Instruments Incorporated Figure 104. Analog Window Comparator 8.2.1.1 Design Requirements In many automotive sensor monitors there is a need to make a decision at the system-level when the input signal crosses a predefined threshold. Analog window comparators are being used extensively in such applications. An analog window comparator has a set of comparators. The external input signal is connected to the inverting terminal of one comparator and the noninverting terminal of the other comparator. The remaining input of each comparator is connected to the internal reference. The outputs are tied together and are often connected to a reset or general-purpose input of a processor (such as a digital signal processor, field-programmable gate array, or application-specific integrated circuit) or the enable input of a voltage regulator (such as a DC-DC or lowdropout regulator). Figure 104 shows the circuit diagram for an analog window comparator. Though analog comparators are easy to design, there are certain disadvantages associated with analog comparators. • Higher Power Consumption: If the voltage that is monitored is greater than the window comparator supply voltage, then there is a need for a resistive divider ladder to scale down that voltage. This resistive ladder Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 59 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Typical Applications (continued) • draws a constant current and adds to the power consumption of the system. In battery powered applications, this becomes a challenge and can adversely affect the battery life. Fixed Threshold Voltages: The window comparator thresholds cannot be changed on-the-fly since these are set by hardware (typically with a resistive ladder). This may add a limitation if user wants to change the comparator thresholds during operation without switching in a new resistor ladder. Automotive systems often require a device which monitors either critical voltage rails, temperature of the critical blocks or sensors and gives an alert/interrupt to the host MCU only when the input that being monitored falls crosses a predefined, programmable threshold. The ADS7142-Q1 is an excellent fit for such system level monitoring due to its ability to autonomously monitor sensor output and wake up the host controller whenever the sensor output crosses pre-defined thresholds. Additionally, the ADS7142-Q1 has an internal data buffer which can store 16 sample data which the user can read in case further analysis is required. Figure 105 shows typical block diagram of ADS7142-Q1 as sensor monitor. As is shown in this figure, the sensor can be connected directly to the input of the ADC (depending on the sensor output signal characteristics). 3V3 + RFLT SCL Sensor 1 GND C AIN0 GND ADS7142-Q1 AIN1 RFLT SDA Host MCU ALERT + BUSY/RDY C Sensor 2 GND GND GND GND Figure 105. Sensor Monitor Circuit with ADS7142-Q1 8.2.1.2 Detailed Design Procedure 8.2.1.2.1 Programmable Thresholds and Hysteresis The ADS7142-Q1 can be programmed to monitor sensor output voltages and generate an ALERT signal for the host controller if the sensor output voltage crosses a threshold. The device can be configured to monitor for signals rising above a programmed threshold. Figure 106 illustrates the operation of the device when monitoring for signal crossings on the low threshold by setting the high threshold to 0xFFF. In this case, the output of the low-side comparator is set whenever the ADC conversion result is less than or equal to the low threshold, and the output of the high-side comparator is only set when the ADC conversion result is equal to 0xFFF. The device can also be configured to monitor for signals falling below a programmed threshold. Figure 107 illustrates the operation of the device when monitoring for signal crossings on the high threshold by setting the low threshold to 0x000. In this case, the output of high-side comparator is set whenever the ADC conversion result is greater than or equal to the high threshold and the output of the low-side comparator will only be set when the ADC conversion result is equal to 0x000. 60 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Typical Applications (continued) High Threshold = 0xFFF Hysteresis PRE_ALT_MAX_EVENT_COUNT = 50h Conversion [N+9] for CHx ± High Threshold - Hysteresis + Conversion [N+4] for CHx High Side Comparator Conversion [N] for CHx Hysteresis High Threshold High Threshold - Hysteresis Low Threshold + Hysteresis ± + Low Side Comparator ± High Side Comparator + Conversion [N+5] for CHx High Side Comparator Output (Internal Signal Only) Low Threshold Conversion [N+10] for CHx PRE_ALT_MAX_EVENT_COUNT = 50h Low Threshold + Hysteresis Low Side Comparator ± + Conversion [N] for CHx Low Threshold = 0x000 Low Side Comparator Output (Internal Signal Only) Low Side Comparator Output (Internal Signal Only) ALERT High Side Comparator Output (Internal Signal Only) Figure 106. Low Alert with ADS7142-Q1 ALERT Figure 107. High Alert with ADS7142-Q1 The device can also be configured to monitor for signals falling outside of a programmed window. Figure 108 illustrates the operation of the device for an out-of-range alert where the signal leaves the pre-defined window and crosses either the high or low threshold. In this case, the output of low side comparator is set whenever the ADC conversion result is less than or equal to the low threshold, and the output of high side comparator is set when the ADC conversion result is greater than or equal to the high threshold. PRE_ALT_MAX_EVENT_COUNT = 50h Conversion [N+12] for CHx Conversion [N+7] for CHx Hysteresis High Threshold High Threshold - Hysteresis ± + High Side Comparator Low Threshold + Hysteresis Low Side Comparator ± + Conversion [N] for CHx Low Threshold Low Side Comparator Output (Internal Signal Only) High Side Comparator Output (Internal Signal Only) ALERT Figure 108. Out of Range Alert with ADS7142-Q1 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 61 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Typical Applications (continued) 8.2.1.2.2 False Trigger Prevention with Event Counter The Pre-Alert event counter in the Digital Window Comparator helps to prevent false triggers. The alert output is not set until the output of the comparator remains set for a pre-defined number (count) of consecutive conversions. 8.2.1.2.3 Fault Diagnostics with Data Buffer The modes which are specifically designed for autonomous sensor monitor applications are Pre-Alert mode and Post-Alert mode. In Pre-Alert mode, the ADS7142-Q1 can be configured to monitor sensor outputs and continuously fill the internal data buffer until a threshold crossing occurs. The ADS7142-Q1 will generate an ALERT signal when the sensor output falls outside of the predefined window of operation. In this particular mode, the ADS7142-Q1 stops filling the data buffer when the threshold is crossed and provides the last 16 samples (15 sample data preceding the sample at which the ALERT is generated and 1 sample data for which the ALERT is generated). Figure 109 shows the ADS7142-Q1 operation in Pre-Alert mode showing 16 data samples before the sensor output crosses the low threshold. This is useful for applications where the state of the signal before the threshold is crossed is important to capture. Using the data captured before the alert, deep data analysis can be performed to determine the state of the system before the alert. This type of data is not available with analog comparators. In Post-Alert mode, ADS7142-Q1 can be configured to monitor sensor outputs and start filling the internal data buffer after a threshold crossing occurs. The ADS7142-Q1 generates an ALERT signal when the sensor output falls outside of the predefined window of operation. In this particular mode, the ADS7142-Q1 continues to fill the data buffer after the threshold is crossed for a total of 16 samples (1 sample data for which ALERT is generated and 15 sample data after the sample at which ALERT is generated). Figure 110 shows the ADS7142-Q1 operation in Post-Alert mode showing 16 data samples after the sensor output crosses the high threshold. This is useful for applications where the state of the signal after the threshold is crossed is important to capture. Using the data captured after the alert, deep data analysis can be performed for to determine the state of the system after the alert to detect system-level events such as saturation. This data is not available with analog comparators. 62 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Typical Applications (continued) 8.2.1.3 Application Curves Figure 109. Pre-Alert Data Capture Figure 110. Post Alert Data Capture Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 63 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com Typical Applications (continued) 8.2.2 Voltage and Temperature Monitoring in Remote Camera Modules Using the ADS7142-Q1 CO-AXIAL CABLE IMAGER NTC ADS7142-Q1 I2C FPD LINK FPD LINK Serializer De-Serializer DC-DC OR LDO DC/DC OR LDO I2C HOST CONTROLLER (Image Processing) VBAT Figure 111. Voltage and Temperature Sensing in Remote Camera Modules Using the ADS7142-Q1 8.2.2.1 Design Requirements Camera modules are an integral part of advanced driver assistance systems (ADAS), which are designed to make cars safer. Automotive cameras and camera modules are often assist in blind spot detection, nap prevention, lane and border detection, surround view and parking. Based on application, there are multiple types of camera modules available such as front camera, rear camera, night vision camera. Figure 111 shows the typical block diagram of camera module used in an automotive environment with key electronics building blocks in the system. The camera module is usually situated externally at front, back or either side of the vehicle. Many times the main controller that does the data processing can not be used on camera module side due to size constraints. The camera module unit communicates with central processor over co-axial cable. The camera module data is transmitted over co-axial cable using a serializer. On data processing unit, De-serializer is used to communicate this data with host processor. The power to the camera module is also transmitted over co-axial cable. As the camera module is remotely placed and power is transferred over co-axial cable which can be few meters long, voltage received by camera module and critical voltage rails powering image sensors are often monitored against permissible variations. Also the difference between camera lens and external ambient temperature can introduce dampness and degrade video quality. To ensure optimal video quality camera lens temperature is often monitored for any possible correction. The device monitoring these system level parameters has to be small size due to limited board space available on the camera module side. Also I2C interface is preferred as it enables user to connect multiple monitoring and sensing devices on the same I2C bus. ADS7142-Q1 small footprint (2mm x3mm, QFN package) and its I2C interface capable of working over wide digital I/O voltages enable this device in camera module monitoring application without demanding extra board space. 64 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 9 Power Supply Recommendations 9.1 AVDD and DVDD Supply Recommendations The ADS7142-Q1 has two separate power supplies: AVDD and DVDD. The device operates on AVDD; DVDD is used for the interface circuits. AVDD and DVDD can be independently set to any value within the permissible ranges. The AVDD supply also defines the full-scale input range of the device. Always set the AVDD supply to be greater than or equal to the maximum input signal to avoid saturation of codes. Decouple the AVDD and DVDD pins respectively with CAVDD = 220 nF and CDVDD = 100 nF ceramic decoupling capacitors, as shown in Figure 112. AVDD CAVDD GND CDVDD DVDD Copyright © 2016, Texas Instruments Incorporated Figure 112. Power-Supply Decoupling Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 65 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 10 Layout 10.1 Layout Guidelines • • Use a solid ground plane underneath the device and partition the PCB into analog and digital sections. Avoid crossing digital lines with the analog signal path and keep the analog input signals and the reference input signals away from noise sources. The power sources to the device must be clean and well-bypassed. Use CAVDD decoupling capacitors in close proximity to the analog (AVDD) power supply pin. Use a CDVDD decoupling capacitor close to the digital (DVDD) power-supply pin. Avoid placing vias between the AVDD and DVDD pins and the bypass capacitors. Connect the ground pin to the ground plane using a short, low-impedance path. Thermal pad should also be connected to the ground plane. Place the charge kickback filter components close to the device. • • • • • Among ceramic surface-mount capacitors, COG (NPO) ceramic capacitors are recommended because these components provide the most stable electrical properties over voltage, frequency, and temperature changes. Figure 113 shows the typical connection diagram of ADS7142-Q1. CDVDD ADS7142-Q1 1 GND DVDD 10 RSDA AVDD SCL 9 3 AINP/AIN0 SDA 8 To I2C Master or Host 4 AINM/AIN1 ALERT 7 To I2C Master or Host 5 ADDR BUSY/RDY 6 2 From Sensor Output From Sensor Output RFLT1 RALERT RSCL CAVDD To I2C Master or Host CFLT0 CFLT1 RADDR1 To I2C Master or Host AVDD RADDR2 PAD Figure 113. Example Schematic 66 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 10.2 Layout Example Figure 114. Example Layout Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 67 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 www.ti.com 11 Device and Documentation Support 11.1 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 11.2 Community Resources TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight from the experts. Search existing answers or ask your own question to get the quick design help you need. Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. 11.3 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 11.4 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 11.5 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 12 Mechanical, Packaging, and Orderable Information The following pages include mechanical packaging and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. 68 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 69 ADS7142-Q1 SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 70 Submit Documentation Feedback www.ti.com Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 ADS7142-Q1 www.ti.com SBAS891A – NOVEMBER 2018 – REVISED OCTOBER 2019 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated Product Folder Links: ADS7142-Q1 71 PACKAGE OPTION ADDENDUM www.ti.com 28-Sep-2021 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) ADS7142QDQCRQ1 ACTIVE WSON DQC 10 3000 RoHS & Green SN Level-2-260C-1 YEAR -40 to 125 1AU (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
