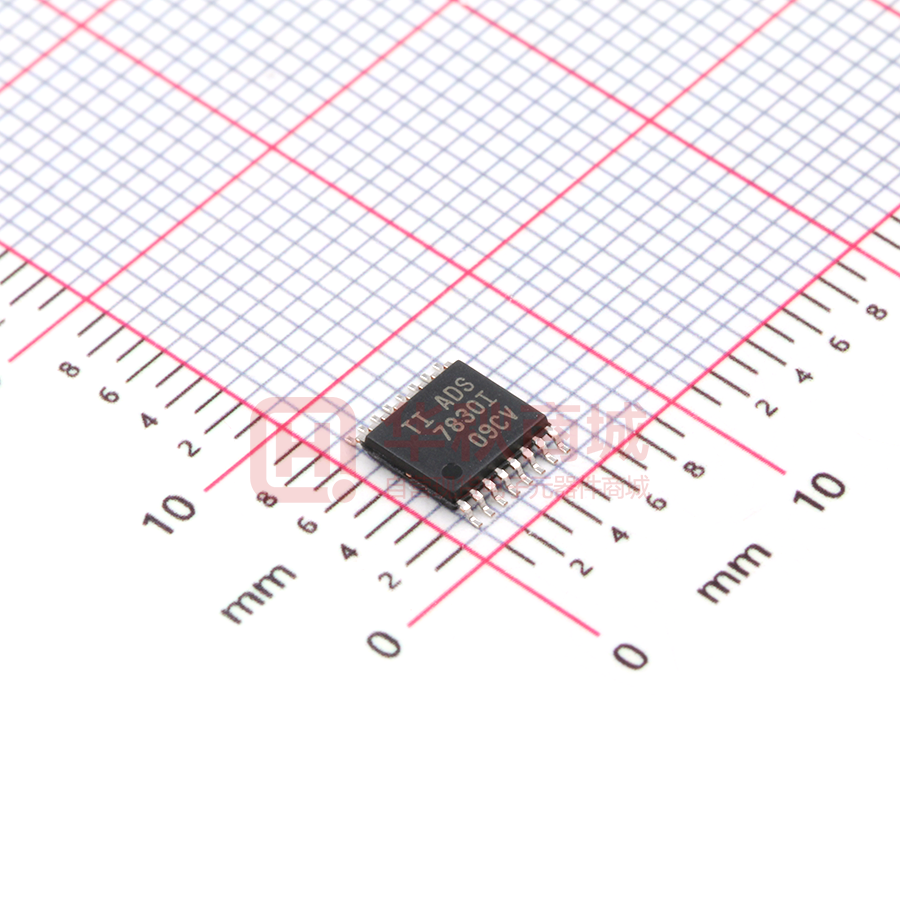

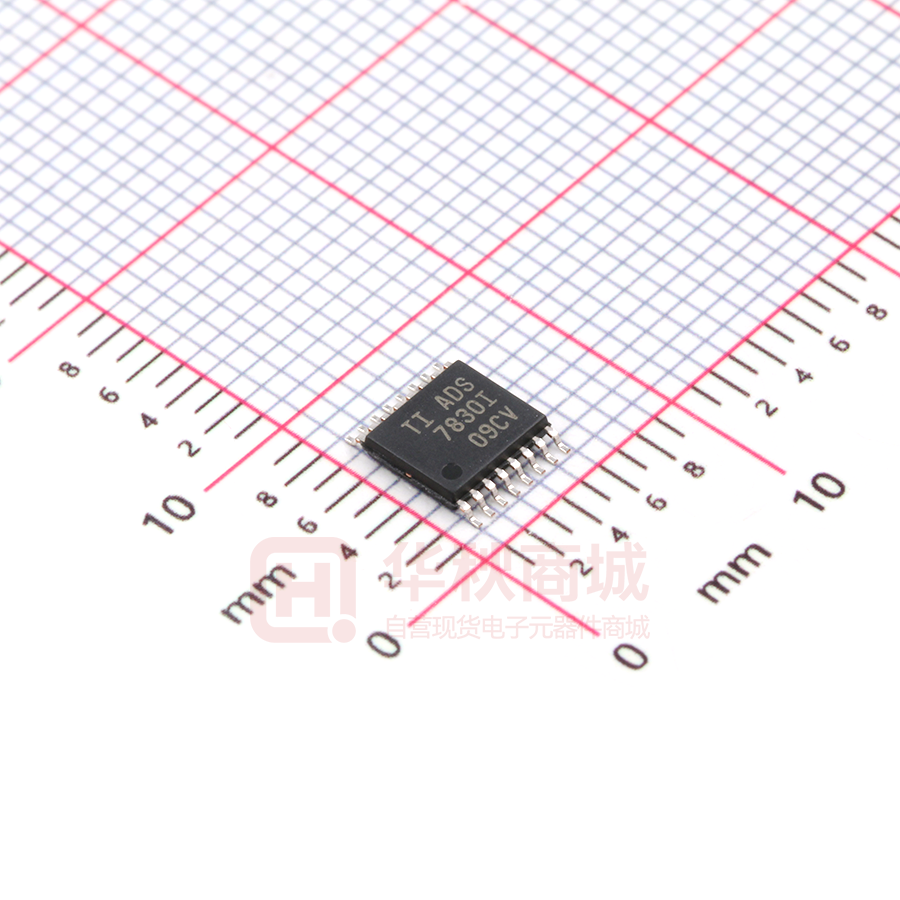

ADS7830IPWR

ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 8-Bit, 8-Channel Sampling ANALOG-TO-DIGITAL CONVERTER with I2C™ Interface Check for Samples: ADS7830 FEATURES APPLICATIONS • • • • • • • • • • • • 1 23 • • • 70kHz SAMPLING RATE ±0.5LSB INL/DNL 8 BITS NO MISSING CODES 4 DIFFERENTIAL/8 SINGLE-ENDED INPUTS 2.7V TO 5V OPERATION BUILT-IN 2.5V REFERENCE/BUFFER SUPPORTS ALL THREE I2C MODES: Standard, Fast, and High-Speed LOW POWER: 180μW (Standard Mode) 300μW (Fast Mode) 675μW (High-Speed Mode) DIRECT PIN COMPATIBLE WITH ADS7828 TSSOP-16 PACKAGE VOLTAGE-SUPPLY MONITORING ISOLATED DATA ACQUISITION TRANSDUCER INTERFACE BATTERY-OPERATED SYSTEMS REMOTE DATA ACQUISITION DESCRIPTION The ADS7830 is a single-supply, low-power, 8-bit data acquisition device that features a serial I2C interface and an 8-channel multiplexer. The Analogto-Digital (A/D) converter features a sample-and-hold amplifier and internal, asynchronous clock. The combination of an I2C serial, 2-wire interface and micropower consumption makes the ADS7830 ideal for applications requiring the A/D converter to be close to the input source in remote locations and for applications requiring isolation. The ADS7830 is available in a TSSOP-16 package. CH0 SAR CH1 CH2 CH3 CH4 8-Channel MUX CH5 SDA CH6 SCL CH7 CDAC Serial Interface COM A0 S/H Amp Comparator A1 2.5V VREF REFIN/REFOUT Buffer 1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. I C is a trademark of NXP Semiconductors. All other trademarks are the property of their respective owners. 2 2 3 PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Copyright © 2003–2012, Texas Instruments Incorporated ADS7830 SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 www.ti.com This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. ORDERING INFORMATION (1) (1) PRODUCT MAXIMUM INTEGRAL LINEARITY ERROR (LSB) ADS7830I ±0.5 PACKAGE-LEAD PACKAGE DESIGNATOR SPECIFIED TEMPERATURE RANGE TSSOP-16 PW –40°C to +125°C ORDERING NUMBER TRANSPORT MEDIA, QUANTITY ADS7830IPWT Tape and Reel, 250 ADS7830IPWR Tape and Reel, 2500 For the most current package and ordering information, see the Package Option Addendum at the end of this document, or visit the device product folder at www.ti.com. ABSOLUTE MAXIMUM RATINGS (1) VALUE UNIT –0.3 to +6 V –0.3 to +VDD + 0.3 V Operating Temperature Range –40 to +125 °C Storage Temperature Range –65 to +150 °C +150 °C +VDD to GND Digital Input Voltage to GND Junction Temperature (TJ max) TSSOP Package Power Dissipation (TJ max – TA)/θJA θJA Thermal Impedance (1) 240 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum conditions for extended periods may affect device reliability. PIN DESCRIPTIONS PIN CONFIGURATION PW PACKAGE TSSOP-16 (Top View) PIN NAME DESCRIPTION 1 CH0 Analog Input Channel 0 2 CH1 Analog Input Channel 1 3 CH2 Analog Input Channel 2 4 CH3 Analog Input Channel 3 CH0 1 16 +VDD 5 CH4 Analog Input Channel 4 CH1 2 15 SDA 6 CH5 Analog Input Channel 5 7 CH6 Analog Input Channel 6 8 CH7 Analog Input Channel 7 9 GND Analog Ground CH2 3 14 SCL CH3 4 13 A1 CH4 5 12 A0 10 REFIN / REFOUT CH5 6 11 COM 11 COM CH6 7 10 REFIN / REFOUT 12 A0 Slave Address Bit 0 GND 13 A1 Slave Address Bit 1 14 SCL Serial Clock 15 SDA Serial Data 16 +VDD CH7 2 °C/W 8 9 Submit Documentation Feedback Internal +2.5V Reference, External Reference Input Common to Analog Input Channel Power Supply, 3.3V Nominal Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 ELECTRICAL CHARACTERISTICS: +2.7V At TA = –40°C to +125°C, +VDD = +2.7V, VREF = +2.5V, and SCL Clock Frequency = 3.4MHz (High-Speed Mode), unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT ANALOG INPUT Full-Scale Input Scan Absolute Input Range Positive Input – Negative Input 0 VREF V Positive Input –0.2 +VDD + 0.2 V Negative Input –0.2 +0.2 V Capacitance 25 pF Leakage Current ±1 µA SYSTEM PERFORMANCE No Missing Codes 8 Bits ±0.1 ±0.5 LSB (1) Differential Linearity Error ±0.1 ±0.5 LSB Offset Error +0.5 +1 LSB Offset Error Match ±0.05 ±0.25 LSB Gain Error ±0.1 ±0.5 LSB Gain Error Match ±0.05 ±0.25 Integral Linearity Error LSB Noise 100 µVRMS Power-Supply Rejection 72 dB SAMPLING DYNAMICS 70 kSPS (2) Fast Mode: SCL = 400kHz 10 kSPS Standard Mode, SCL = 100kHz 2.5 kSPS High-Speed Mode: SCL = 3.4MHz Throughput Frequency Conversion Time 5 µs AC ACCURACY Total Harmonic Distortion VIN = 2.5VPP at 1kHz –72 dB (3) Signal-to-Ratio VIN = 2.5VPP at 1kHz 50 dB Signal-to-(Noise+Distortion) Ratio VIN = 2.5VPP at 1kHz 49 dB Spurious-Free Dynamic Range VIN = 2.5VPP at 1kHz 68 dB 90 dB Isolation Channel-to-Channel VOLTAGE REFERENCE OUTPUT Range Internal Reference Drift Output Impedance Quiescent Current TA = –40°C to +85°C 2.48 2.52 TA = –40°C to +125°C 2.47 2.53 TA = –40°C to +85°C V V 15 ppm/°C ppm/°C TA = –40°C to +125°C 40 Internal Reference ON 110 Ω Internal Reference OFF 1 GΩ Internal Reference ON, SCL and SDA pulled HIGH 850 µA VOLTAGE REFERENCE INPUT Range 0.05 Resistance Current Drain (1) (2) (3) High-Speed Mode: SCL= 3.4MHz VDD V 1 GΩ 20 µA LSB means least significant bit. When VREF = 2.5V, 1LSB is 9.8mV. kSPS means kilo samples-per-second. THD measured out to the 9th-harmonic. Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 3 ADS7830 SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 www.ti.com ELECTRICAL CHARACTERISTICS: +2.7V (continued) At TA = –40°C to +125°C, +VDD = +2.7V, VREF = +2.5V, and SCL Clock Frequency = 3.4MHz (High-Speed Mode), unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT DIGITAL INPUT/OUTPUT Logic Family Logic Levels CMOS VIH +VDD × 0.7 +VDD + 0.5 V VIL –0.3 +VDD × 0.3 V 0.4 V 10 µA VOL Input Leakage Minimum 3mA Sink Current IIH VIH = +VDD + 0.5V IIL VIL = –0.3V –10 Data Format µA Straight Binary ADS7830 HARDWARE ADDRESS (10010 Binary) Power-Supply Requirements Power-Supply Voltage, +VDD Quiescent Current Power Dissipation Power-Down Mode Power-Down Mode with Wrong Address Selected Full Power-Down Specified Performance 2.7 High-Speed Mode: SCL = 3.4MHz 225 Fast Mode: SCL = 400kHz 100 Standard Mode, SCL = 100kHz 60 High-Speed Mode: SCL = 3.4MHz 675 3.6 V 320 µA µA µA 1000 µW Fast Mode: SCL = 400kHz 300 µW Standard Mode, SCL = 100kHz 180 µW High-Speed Mode: SCL = 3.4MHz 70 µA µA Fast Mode: SCL = 400kHz 25 Standard Mode, SCL = 100kHz 6 SCL Pulled HIGH, SDA Pulled HIGH 400 µA 3000 nA +125 °C TEMPERATURE RANGE Specified Performance 4 –40 Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 ELECTRICAL CHARACTERISTICS: +5V At TA = –40°C to +125°C, +VDD = +5.0V, VREF = External +5.0V, and SCL Clock Frequency = 3.4MHz (High-Speed Mode), unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT ANALOG INPUT Full-Scale Input Scan Absolute Input Range Positive Input – Negative Input 0 VREF V Positive Input –0.2 +VDD + 0.2 V Negative Input –0.2 +0.2 V Capacitance 25 pF Leakage Current ±1 µA SYSTEM PERFORMANCE No Missing Codes 8 Bits ±0.1 ±0.5 LSB (1) Differential Linearity Error ±0.1 ±0.5 LSB Offset Error +0.5 +1 LSB Offset Error Match ±0.05 ±0.25 LSB Gain Error ±0.1 ±0.5 LSB Gain Error Match ±0.05 ±0.25 Integral Linearity Error LSB Noise 100 µVRMS Power-Supply Rejection 72 dB SAMPLING DYNAMICS 70 kSPS (2) Fast Mode: SCL = 400kHz 10 kSPS Standard Mode, SCL = 100kHz 2.5 kSPS High-Speed Mode: SCL = 3.4MHz Throughput Frequency Conversion Time 5 µs AC ACCURACY Total Harmonic Distortion VIN = 5VPP at 1kHz –72 dB (3) Signal-to-Ratio VIN = 5VPP at 1kHz 50 dB Signal-to-(Noise+Distortion) Ratio VIN = 5VPP at 1kHz 49 dB Spurious-Free Dynamic Range VIN = 5VPP at 1kHz 68 dB 90 dB Isolation Channel-to-Channel VOLTAGE REFERENCE OUTPUT Range Internal Reference Drift Output Impedance Quiescent Current TA = –40°C to +85°C 2.48 2.52 TA = –40°C to +125°C 2.47 2.53 TA = –40°C to +85°C V V 15 ppm/°C ppm/°C TA = –40°C to +125°C 40 Internal Reference ON 110 Ω Internal Reference OFF 1 GΩ Internal Reference ON, SCL and SDA pulled HIGH 1300 µA VOLTAGE REFERENCE INPUT Range 0.05 Resistance Current Drain (1) (2) (3) High-Speed Mode: SCL= 3.4MHz VDD V 1 GΩ 20 µA LSB means least significant bit. When VREF = 2.5V, 1LSB is 9.8mV. kSPS means kilo samples-per-second. THD measured out to the 9th-harmonic. Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 5 ADS7830 SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 www.ti.com ELECTRICAL CHARACTERISTICS: +5V (continued) At TA = –40°C to +125°C, +VDD = +5.0V, VREF = External +5.0V, and SCL Clock Frequency = 3.4MHz (High-Speed Mode), unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT DIGITAL INPUT/OUTPUT Logic Family Logic Levels CMOS VIH +VDD × 0.7 +VDD + 0.5 V VIL –0.3 +VDD × 0.3 V 0.4 V 10 µA VOL Input Leakage Minimum 3mA Sink Current IIH VIH = +VDD + 0.5V IIL VIL = –0.3V –10 Data Format µA Straight Binary ADS7830 HARDWARE ADDRESS (10010 Binary) Power-Supply Requirements Power-Supply Voltage, +VDD Quiescent Current Power Dissipation Power-Down Mode Power-Down Mode with Wrong Address Selected Full Power-Down Specified Performance 4.75 5 5.25 V High-Speed Mode: SCL = 3.4MHz 750 1000 µA Fast Mode: SCL = 400kHz 300 Standard Mode, SCL = 100kHz 150 High-Speed Mode: SCL = 3.4MHz 3.75 µA µA 5 mW Fast Mode: SCL = 400kHz 1.5 mW Standard Mode, SCL = 100kHz 0.75 mW High-Speed Mode: SCL = 3.4MHz 400 µA µA Fast Mode: SCL = 400kHz 150 Standard Mode, SCL = 100kHz 35 SCL Pulled HIGH, SDA Pulled HIGH 400 µA 3000 nA +125 °C TEMPERATURE RANGE Specified Performance 6 –40 Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 TIMING DIAGRAM SDA tBUF tLOW tF tR tSP tHD; STA SCL tHD; STA tSU; STA tHD; DAT STOP START tHIGH tSU; STO tSU; DAT REPEATED START TIMING CHARACTERISTICS (1) At TA = –40°C to +125°C and +VDD = +2.7V, unless otherwise noted. PARAMETER SCL Clock Frequency Bus Free Time Between a STOP and START Condition Hold Time (Repeated) START Condition LOW Period of the SCL Clock HIGH Period of the SCL Clock Setup Time for a Repeated START Condition Data Setup Time (1) (2) SYMBOL fSCL tBUF tHD; STA tLOW tHIGH tSU; STA tSU; DAT CONDITIONS MIN MAX UNIT Standard Mode 100 kHz Fast Mode 400 kHz High-Speed Mode, CB = 100pF max 3.4 MHz High-Speed Mode, CB = 400pF max 1.7 MHz Standard Mode 4.7 µs Fast Mode 1.3 µs Standard Mode 4.0 µs ns Fast Mode 600 High-Speed Mode 160 ns Standard Mode 4.7 µs Fast Mode 1.3 µs High-Speed Mode, CB = 100pF max (2) 160 ns High-Speed Mode, CB = 400pF max (2) 320 ns Standard Mode 4.0 µs Fast Mode 600 ns High-Speed Mode, CB = 100pF max (2) 60 ns High-Speed Mode, CB = 400pF max (2) 120 ns Standard Mode 4.7 µs Fast Mode 600 ns High-Speed Mode 160 ns Standard Mode 250 ns Fast Mode 100 ns High-Speed Mode 10 ns All values referred to VIHMIN and VILMAX levels. For bus line loads CB between 100pF and 400pF the timing parameters must be linearly interpolated. Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 7 ADS7830 SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 www.ti.com TIMING CHARACTERISTICS(1) (continued) At TA = –40°C to +125°C and +VDD = +2.7V, unless otherwise noted. PARAMETER Data Hold Time SYMBOL tHD; DAT CONDITIONS MIN MAX UNIT Standard Mode 0 3.45 µs Fast Mode 0 0.9 µs High-Speed Mode, CB = 100pF max (3) 0 (4) 70 ns High-Speed Mode, CB = 400pF max (3) 0 (4) 150 ns Standard Mode Rise Time of SCL Signal tRCL 1000 ns Fast Mode 20 + 0.1CB 300 ns High-Speed Mode, CB = 100pF max (3) 10 40 ns (3) 20 High-Speed Mode, CB = 400pF max Standard Mode Rise Time of SCL Signal After a Repeated START Condition and After an Acknowledge Bit tRCL1 Fast Mode 20 + 0.1CB tFCL tRDA Setup Time for STOP Condition tFDA tSU; STO Capacitive Load for SDA and SCL Line CB Pulse Width of Spike Suppressed tSP Noise Margin at the HIGH Level for Each Connected Device (Including Hysteresis) VNH Noise Margin at the LOW Level for Each Connected Device (Including Hysteresis) VNL (3) (4) 8 ns 10 80 ns 20 160 ns 300 ns 20 + 0.1CB 300 ns (3) 10 40 ns High-Speed Mode, CB = 400pF max (3) 20 80 ns 1000 ns Fast Mode High-Speed Mode, CB = 100pF max Fast Mode 20 + 0.1CB 300 ns High-Speed Mode, CB = 100pF max (3) 10 80 ns High-Speed Mode, CB = 400pF max (3) 20 160 ns Standard Mode Fall Time of SDA Signal ns 300 High-Speed Mode, CB = 400pF max (3) High-Speed Mode, CB = 100pF max Standard Mode Rise Time of SDA Signal ns (3) Standard Mode Fall Time of SCL Signal 80 1000 300 ns Fast Mode 20 + 0.1CB 300 ns High-Speed Mode, CB = 100pF max (3) 10 80 ns High-Speed Mode, CB = 400pF max (3) 20 160 ns Standard Mode 4.0 µs Fast Mode 600 ns High-Speed Mode 160 ns 400 pF Fast Mode 50 ns High-Speed Mode 10 ns Standard Mode 0.2VDD V Fast Mode 0.2VDD V High-Speed Mode 0.2VDD V Standard Mode 0.1VDD V Fast Mode 0.1VDD V High-Speed Mode 0.1VDD V For bus line loads CB between 100pF and 400pF the timing parameters must be linearly interpolated. A device must internally provide a data hold time to bridge the undefined part between VIH and VIL of the falling edge of the SCLH signal. An input circuit with a threshold as low as possible for the falling edge of the SCLH signal minimizes this hold time. Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 TYPICAL CHARACTERISTICS At TA = +25°C, VDD = +2.7V, VREF = External +2.5V, and fSAMPLE = 50kHz, unless otherwise noted. INTEGRAL LINEARITY ERROR vs CODE (2.5V Internal Reference) FFT vs FREQUENCY 0.5 0 0.4 0.3 0.2 ILE (LSB) Amplitude (dB) -20 -40 -60 0.1 0 -0.1 -0.2 -0.3 -80 -0.4 -0.5 -100 0 10 20 25 0 64 128 Output Code 192 255 Figure 1. Figure 2. DIFFERENTIAL LINEARITY ERROR vs CODE (2.5V Internal Reference) INTEGRAL LINEARITY ERROR vs CODE (2.5V External Reference) 0.5 0.5 0.4 0.4 0.3 0.3 0.2 0.2 0.1 0.1 ILE (LSB) ILE (LSB) Frequency (kHz) 0 -0.1 0 -0.1 -0.2 -0.2 -0.3 -0.3 -0.4 -0.4 -0.5 -0.5 0 64 128 Output Code 192 0 255 64 128 Output Code Figure 3. 192 255 Figure 4. DIFFERENTIAL LINEARITY ERROR vs CODE (2.5V External Reference) CHANGE IN OFFSET vs TEMPERATURE 0.5 0.10 0.4 Delta from 25°C (LSB) 0.3 ILE (LSB) 0.2 0.1 0 -0.1 -0.2 0.05 0 -0.05 -0.3 -0.4 -0.10 -0.5 0 64 128 Output Code 192 255 -50 -25 0 25 50 75 100 Temperature (°C) Figure 5. Figure 6. Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 9 ADS7830 SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 www.ti.com TYPICAL CHARACTERISTICS (continued) At TA = +25°C, VDD = +2.7V, VREF = External +2.5V, and fSAMPLE = 50kHz, unless otherwise noted. CHANGE IN GAIN vs TEMPERATURE INTERNAL REFERENCE vs TEMPERATURE 0.10 2.51875 Internal Reference (V) Delta from 25°C (LSB) 2.51250 0.05 0 -0.05 2.50625 2.50000 2.49375 2.48750 2.48125 -0.10 -50 0 -25 25 50 75 100 -50 0 -25 Temperature (°C) Figure 7. 400 600 350 Supply Current (mA) Supply Current (nA) 75 100 SUPPLY CURRENT vs TEMPERATURE 750 450 300 150 300 250 200 150 0 100 -150 -50 -25 0 25 50 75 100 125 -50 0 -25 25 50 75 100 Temperature (°C) Temperature (°C) Figure 9. Figure 10. SUPPLY CURRENT vs I2C BUS RATE INTERNAL VREF vs TURN-ON TIME 100 300 250 No Cap (37ms) 8-Bit Settling 80 Internal VREF (%) Supply Current (mA) 50 Figure 8. POWER-DOWN SUPPLY CURRENT vs TEMPERATURE 200 150 100 1mF Cap (930ms) 8-Bit Settling 60 40 20 50 0 0 10 100 1k 10k 0 2 200 400 600 800 1000 1200 1400 Turn-On Time (ms) I C Bus Rate (KHz) Figure 11. 10 25 Temperature (°C) Figure 12. Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 THEORY OF OPERATION REFERENCE The ADS7830 is a classic Successive Approximation Register (SAR) A/D converter. The architecture is based on capacitive redistribution which inherently includes a sampleand- hold function. The converter is fabricated on a 0.6µ CMOS process. The ADS7830 can operate with an internal 2.5V reference or an external reference. If a +5V supply is used, an external +5V reference is required in order to provide full dynamic range for a 0V to +VDD analog input. This external reference can be as low as 50mV. When using a +2.7V supply, the internal +2.5V reference will provide full dynamic range for a 0V to +VDD analog input. The ADS7830 core is controlled by an internally generated free-running clock. When the ADS7830 is not performing conversions or being addressed, it keeps the A/D converter core powered off, and the internal clock does not operate. As the reference voltage is reduced, the analog voltage weight of each digital output code is reduced. This is often referred to as the LSB (least significant bit) size and is equal to the reference voltage divided by 256. This means that any offset or gain error inherent in the A/D converter will appear to increase, in terms of LSB size, as the reference voltage is reduced. The simplified diagram of input and output for the ADS7830 is shown in Figure 13. ANALOG INPUT When the converter enters the hold mode, the voltage on the selected CHx pin is captured on the internal capacitor array. The input current on the analog inputs depends on the conversion rate of the device. During the sample period, the source must charge the internal sampling capacitor (typically 25pF). After the capacitor has been fully charged, there is no further input current. The amount of charge transfer from the analog source to the converter is a function of conversion rate. The noise inherent in the converter will also appear to increase with lower LSB size. With a 2.5V reference, the internal noise of the converter typically contributes only 0.02LSB peak-to-peak of potential error to the output code. When the external reference is 50mV, the potential error contribution from the internal noise will be 50 times larger—1LSB. The errors due to the internal noise are Gaussian in nature and can be reduced by averaging consecutive conversion results. +2.7V to +3.6V 5W + 1mF to 10mF 0.1mF REFIN/ REFOUT SDA CH1 SCL CH4 2kW + 1mF to 10mF CH0 CH2 ADS7830 CH3 2kW VDD Microcontroller A0 A1 GND CH5 CH6 CH7 COM Figure 13. Simplified I/O of the ADS7830 Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 11 ADS7830 SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 www.ti.com DIGITAL INTERFACE The ADS7830 supports the I2C serial bus and data transmission protocol, in all three defined modes: standard, fast, and high-speed. A device that sends data onto the bus is defined as a transmitter, and a device receiving data as a receiver. The device that controls the message is called a “master.” The devices that are controlled by the master are “slaves.” The bus must be controlled by a master device that generates the serial clock (SCL), controls the bus access, and generates the START and STOP conditions. The ADS7830 operates as a slave on the I2C bus. Connections to the bus are made via the open-drain I/O lines SDA and SCL. The following bus protocol has been defined (as shown in Figure 14): • Data transfer may be initiated only when the bus is not busy. • During data transfer, the data line must remain stable whenever the clock line is HIGH. Changes in the data line while the clock line is HIGH will be interpreted as control signals. Accordingly, the following bus conditions have been defined: Bus Not Busy: Both data and clock lines remain HIGH. Start Data Transfer: A change in the state of the data line, from HIGH to LOW, while the clock is HIGH, defines a START condition. Stop Data Transfer: A change in the state of the data line, from LOW to HIGH, while the clock line is HIGH, defines the STOP condition. Data Valid: The state of the data line represents valid data, when, after a START condition, the data line is stable for the duration of the HIGH period of the clock signal. There is one clock pulse per bit of data. Each data transfer is initiated with a START condition and terminated with a STOP condition. The number of data bytes transferred between START and STOP conditions is not limited and is determined by the master device. The information is transferred bytewise and each receiver acknowledges with a ninth-bit. Within the I2C bus specifications a standard mode (100kHz clock rate), a fast mode (400kHz clock rate), and a highspeed mode (3.4MHz clock rate) are defined. The ADS7830 works in all three modes. Acknowledge: Each receiving device, when addressed, is obliged to generate an acknowledge after the reception of each byte. The master device must generate an extra clock pulse that is associated with this acknowledge bit. 12 A device that acknowledges must pull down the SDA line during the acknowledge clock pulse in such a way that the SDA line is stable LOW during the HIGH period of the acknowledge clock pulse. Of course, setup and hold times must be taken into account. A master must signal an end of data to the slave by not generating an acknowledge bit on the last byte that has been clocked out of the slave. In this case, the slave must leave the data line HIGH to enable the master to generate the STOP condition. Figure 14 details how data transfer is accomplished on the I2C bus. Depending upon the state of the R/W bit, two types of data transfer are possible: 1. Data transfer from a master transmitter to a slave receiver. The first byte transmitted by the master is the slave address. Next follows a number of data bytes. The slave returns an acknowledge bit after the slave address and each received byte. 2. Data transfer from a slave transmitter to a master receiver. The first byte, the slave address, is transmitted by the master. The slave then returns an acknowledge bit. Next, a number of data bytes are transmitted by the slave to the master. The master returns an acknowledge bit after all received bytes other than the last byte. At the end of the last received byte, a notacknowledge is returned. The master device generates all of the serial clock pulses and the START and STOP conditions. A transfer is ended with a STOP condition or a repeated START condition. Since a repeated START condition is also the beginning of the next serial transfer, the bus will not be released. The ADS7830 may operate in the following two modes: • Slave Receiver Mode: Serial data and clock are received through SDA and SCL. After each byte is received, an acknowledge bit is transmitted. START and STOP conditions are recognized as the beginning and end of a serial transfer. Address recognition is performed by hardware after reception of the slave address and direction bit. • Slave Transmitter Mode: The first byte (the slave address) is received and handled as in the slave receiver mode. However, in this mode the direction bit will indicate that the transfer direction is reversed. Serial data is transmitted on SDA by the ADS7830 while the serial clock is input on SCL. START and STOP conditions are recognized as the beginning and end of a serial transfer. Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 SDA MSB Slave Address R/W Direction Bit Acknowledgement Signal from Receiver Acknowledgement Signal from Receiver 1 SCL 2 6 7 8 9 1 2 3-8 8 9 ACK ACK START Condition STOP Condition or Repeated START Condition Repeated If More Bytes Are Transferred Figure 14. Basic Operation of the ADS7830 Address Byte Command Byte MSB 6 5 4 3 2 1 LSB MSB 6 5 4 3 2 1 LSB 1 0 0 1 0 A1 A0 R/W SD C2 C1 C0 PD1 PD0 X X The address byte is the first byte received following the START condition from the master device. The first five bits (MSBs) of the slave address are factory pre-set to 10010. The next two bits of the address byte are the device select bits, A1 and A0. Input pins (A1-A0) on the ADS7830 determine these two bits of the device address for a particular ADS7830. A maximum of four devices with the same pre-set code can therefore be connected on the same bus at one time. The A1-A0 Address Inputs can be connected to VDD or digital ground. The device address is set by the state of these pins upon power-up of the ADS7830. The last bit of the address byte (R/W) defines the operation to be performed. When set to a ‘1’ a read operation is selected; when set to a ‘0’ a write operation is selected. Following the START condition the ADS7830 monitors the SDA bus, checking the device type identifier being transmitted. Upon receiving the 10010 code, the appropriate device select bits, and the R/W bit, the slave device outputs an acknowledge signal on the SDA line. The ADS7830 operating mode is determined by a command byte which is illustrated above. SD: Single-Ended/Differential Inputs 0: Differential Inputs 1: Single-Ended Inputs C2 - C0: Channel Selections PD1: Power-Down 0: Power-Down Selection X: Unused See Table 1 for a power-down selection summary. See Table 2 for a channel selection control summary. Table 1. Power-Down Selection PD1 PD0 0 0 Power Down Between A/D Converter Conversions DESCRIPTION 0 1 Internal Reference OFF and A/D Converter ON 1 0 Internal Reference ON and A/D Converter OFF 1 1 Internal Reference ON and A/D Converter ON Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 13 ADS7830 SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 www.ti.com Table 2. Channel Selection Control Addressed by Command BYTE CHANNEL SELECTION CONTROL SD C2 C1 C0 CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7 COM 0 0 0 0 +IN –IN — — — — — — — 0 0 0 1 — — +IN –IN — — — — — 0 0 1 0 — — — — +IN –IN — — — 0 0 1 1 — — — — — — +IN –IN — 0 1 0 0 –IN +IN — — — — — — — 0 1 0 1 — — –IN +IN — — — — — 0 1 1 0 — — — — –IN +IN — — — 0 1 1 1 — — — — — — –IN +IN — 1 0 0 0 +IN — — — — — — — –IN 1 0 0 1 — — +IN — — — — — –IN 1 0 1 0 — — — — +IN — — — –IN 1 0 1 1 — — — — — — +IN — –IN 1 1 0 0 — +IN — — — — — — –IN 1 1 0 1 — — — +IN — — — — –IN 1 1 1 0 — — — — — +IN — — –IN 1 1 1 1 — — — — — — — +IN –IN INITIATING CONVERSION READING DATA Provided the master has write-addressed it, the ADS7830 turns on the A/D converter section and begins conversions when it receives BIT 4 of the command byte shown in the Command Byte. If the command byte is correct, the ADS7830 will return an ACK condition. Data can be read from the ADS7830 by readaddressing the part (LSB of address byte set to ‘1’) and receiving the transmitted byte. Converted data can only be read from the ADS7830 once a conversion has been initiated as described in the preceding section. Each 8-bit data word is returned in one byte, as shown below, where D7 is the MSB of the data word, and D0 is the LSB. DATA 14 MSB 6 5 4 3 2 1 LSB D7 D6 D5 D4 D3 D2 D1 D0 Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 READING IN F/S MODE At the end of reading conversion data the ADS7830 can be issued a repeated START condition by the master to secure bus operation for subsequent conversions of the A/D converter. This would be the most efficient way to perform continuous conversions. Figure 15 describes the interaction between the master and the slave ADS7830 in Fast or Standard (F/S) mode. ADC Power-Down Mode S 1 0 0 1 0 A1 A0 W A ADC Sampling Mode SD C2 0 0 1 0 A1 X A ADC Power-Down Mode (depending on power-down selection bits) ADC Converting Mode 1 C0 PD1 PD0 X Command Byte Write-Addressing Byte Sr C1 A0 R A D7 D6 D5 D4 D3 D2 D1 D0 N P See Note (1) Read-Addressing Byte From Master to Slave From Slave to Master 1 x (8 Bits + not-ack) A = acknowledge (SDA LOW) N = not acknowledge (SDA HIGH) S = START Condition P = STOP Condition Sr = repeated START condition W = '0' (WRITE) R = '1' (READ) (1) To secure bus operation and loop back to the stage of write-addressing for next conversion, use repeated START. Figure 15. Typical Read Sequence in F/S Mode Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 15 ADS7830 SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 www.ti.com READING IN HS MODE See Figure 16 for a typical read sequence for HS mode. Included in the read sequence is the shift from F/S to HS modes. It may be desirable to remain in HS mode after reading a conversion; to do this, issue a repeated START instead of a STOP at the end of the read sequence, since a STOP causes the part to return to F/S mode. High Speed (HS) mode is fast enough that codes can be read out one at a time. In HS mode, there is not enough time for a single conversion to complete between the reception of a repeated START condition and the read-addressing byte, so the ADS7830 stretches the clock after the read-addressing byte has been fully received, holding it LOW until the conversion is complete. F/S Mode S 0 0 0 0 1 X X X N HS Mode Master Code HS Mode Enabled ADC Power-Down Mode Sr 1 0 0 1 0 A1 A0 W A ADC Sampling Mode SD C2 C1 Write-Addressing Byte C0 PD1 PD0 X X A Command Byte HS Mode Enabled ADC Converting Mode Sr 1 0 0 1 0 A1 A0 R A SCLH (2) is stretched LOW waiting for data conversion Read-Addressing Byte HS Mode Enabled Return to F/S Mode (1) ADC Power-Down Mode (depending on power-down selection bits) D7 D6 D5 D4 D3 D2 D1 D0 N P 1 x (8 Bits + not-ack) A = acknowledge (SDA LOW) N = not acknowledge (SDA HIGH) S = START Condition P = STOP Condition Sr = repeated START condition From Master to Slave From Slave to Master W = '0' (WRITE) R = '1' (READ) (1) To remain in HS mode, use repeated START instead of STOP. (2) SCLH is SCL in HS mode. Figure 16. Typical Read Sequence in HS Mode 16 Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 READING WITH REFERENCE ON/OFF The internal reference defaults to off when the ADS7830 power is on. To turn the internal reference on or off, see Table 1. If the reference (internal or external) is constantly turned on and off, a proper amount of settling time must be added before a normal conversion cycle can be started. The exact amount of settling time needed varies depending on the configuration. See Figure 17 for an example of the proper internal reference turn-on sequence before issuing the typical read sequences required for the F/S mode when an internal reference is used. When using an internal reference, there are three things that must be done: 1. In order to use the internal reference, the PD1 bit of Command Byte must always be set to logic ‘1’ for each sample conversion that is issued by the sequence, as shown in Figure 15. 2. In order to achieve 8-bit accuracy conversion when using the internal reference, the internal reference settling time must be considered, as shown in the Internal VREF vs Turn-On Time Typical Characteristic plot. If the PD1 bit has been set to logic ‘0’ while using the ADS7830, then the settling time must be reconsidered after PD1 is set to logic ‘1’. In other words, whenever the internal reference is turned on after it has been turned off, the settling time must be long enough to get 8-bit accuracy conversion. 3. When the internal reference is off, it is not turned on until both the first Command Byte with PD1 = ‘1’ is sent and then a STOP condition or repeated START condition is issued. (The actual turn-on time occurs once the STOP or repeated START condition is issued.) Any Command Byte with PD1 = ‘1’ issued after the internal reference is turned on serves only to keep the internal reference on. Otherwise, the internal reference would be turned off by any Command Byte with PD1 = ‘0’. The example in Figure 17 can be generalized for a HS mode conversion cycle by simply swapping the timing of the conversion cycle. If using an external reference, PD1 must be set to ‘0’, and the external reference must be settled. The typical sequence in Figure 15 or Figure 16 can then be used. Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 17 ADS7830 SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 www.ti.com Internal Reference Turn-On Settling Time Internal Reference Turn-On Sequence S 1 0 0 1 0 A1 A0 W A X X Write-Addressing Byte X X 1 X X X A P Command Byte Typical Read Settled Internal Reference (1) ADC Power-Down Mode S 1 0 0 1 0 A1 Wait until the required settling time is reached A0 W A ADC Sampling Mode SD C2 Write-Addressing Byte C1 C0 1 PD0 X X Sequence in F/S Mode A Command Byte Settled Internal Reference ADC Power-Down Mode (depending on power-down selection bits) ADC Converting Mode Sr 1 0 0 1 0 A1 A0 R A D7 D6 D5 D4 D3 D2 D1 D0 N P See Note (2) Read-Addressing Byte From Master to Slave From Slave to Master 1 x (8 Bits + not-ack) A = acknowledge (SDA LOW) N = not acknowledge (SDA HIGH) S = START Condition P = STOP Condition Sr = repeated START condition W = '0' (WRITE) R = '1' (READ) (1) Typical read sequences can be reused after the internal reference is settled. (2) To secure bus operation and loop back to the stage of write-addressing for next conversion, use repeated START. Figure 17. Internal Reference Turn-On Sequence and Typical Read Sequence (F/S mode shown) LAYOUT For optimum performance, care should be taken with the physical layout of the ADS7830 circuitry. The basic SAR architecture is sensitive to glitches or sudden changes on the power supply, reference, ground connections, and digital inputs that occur just prior to latching the output of the analog comparator. Therefore, during any single conversion for an “n-bit” SAR converter, there are n “windows” in which large external transient voltages can easily affect the conversion result. Such glitches might originate from switching power supplies, nearby digital logic, and high-power devices. With this in mind, power to the ADS7830 should be clean and well-bypassed. A 0.1μF ceramic bypass capacitor should be placed as close to the device as possible. A 1μF to 10μF capacitor may also be needed if the impedance of the connection between +VDD and the power supply is high. 18 The ADS7830 architecture offers no inherent rejection of noise or voltage variation in regards to using an external reference input. This is of particular concern when the reference input is tied to the power supply. Any noise and ripple from the supply will appear directly in the digital results. While highfrequency noise can be filtered out, voltage variation due to line frequency (50Hz or 60Hz) can be difficult to remove. The GND pin should be connected to a clean ground point. In many cases, this will be the “analog” ground. Avoid connections that are too near the grounding point of a microcontroller or digital signal processor. The ideal layout will include an analog ground plane dedicated to the converter and associated analog circuitry. Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 ADS7830 www.ti.com SBAS302C – DECEMBER 2003 – REVISED OCTOBER 2012 REVISION HISTORY Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision B (April 2008) to Revision C Page • Extended specified temperature range from –40°C to +85°C to –40°C to +125°C throughout document .......................... 1 • Changed operating temperature range maxmimum value in Absolute Maximum Ratings table ......................................... 2 • Changed Voltage Reference Output, Range and Internal Reference Drift parameters in 2.7V Electrical Characteristics table ............................................................................................................................................................. 3 • Changed Voltage Reference Output, Range and Internal Reference Drift parameters in 5V Electrical Characteristics table ...................................................................................................................................................................................... 5 Changes from Revision A (March 2005) to Revision B • Page Changed Low Power sub-bullets in Features section to show correct values; High Speed and Fast modes were reversed (typo). ..................................................................................................................................................................... 1 Submit Documentation Feedback Copyright © 2003–2012, Texas Instruments Incorporated Product Folder Links: ADS7830 19 PACKAGE OPTION ADDENDUM www.ti.com 25-Apr-2013 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish (2) MSL Peak Temp Op Temp (°C) Top-Side Markings (3) (4) ADS7830IPWR ACTIVE TSSOP PW 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 ADS 7830I ADS7830IPWRG4 ACTIVE TSSOP PW 16 2500 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 ADS 7830I ADS7830IPWT ACTIVE TSSOP PW 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 ADS 7830I ADS7830IPWTG4 ACTIVE TSSOP PW 16 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 ADS 7830I (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details. TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material) (3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature. (4) Multiple Top-Side Markings will be inside parentheses. Only one Top-Side Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Top-Side Marking for that device. Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release. In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis. Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com 25-Apr-2013 Addendum-Page 2 PACKAGE MATERIALS INFORMATION www.ti.com 17-Oct-2012 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Type Drawing SPQ Reel Reel A0 Diameter Width (mm) (mm) W1 (mm) B0 (mm) K0 (mm) P1 (mm) W Pin1 (mm) Quadrant ADS7830IPWR TSSOP PW 16 2500 330.0 12.4 6.9 5.6 1.6 8.0 12.0 Q1 ADS7830IPWT TSSOP PW 16 250 180.0 12.4 6.9 5.6 1.6 8.0 12.0 Q1 Pack Materials-Page 1 PACKAGE MATERIALS INFORMATION www.ti.com 17-Oct-2012 *All dimensions are nominal Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm) ADS7830IPWR TSSOP PW 16 2500 367.0 367.0 35.0 ADS7830IPWT TSSOP PW 16 250 210.0 185.0 35.0 Pack Materials-Page 2 PACKAGE OUTLINE PW0016A TSSOP - 1.2 mm max height SCALE 2.500 SMALL OUTLINE PACKAGE SEATING PLANE C 6.6 TYP 6.2 A 0.1 C PIN 1 INDEX AREA 14X 0.65 16 1 2X 5.1 4.9 NOTE 3 4.55 8 9 B 0.30 0.19 0.1 C A B 16X 4.5 4.3 NOTE 4 1.2 MAX (0.15) TYP SEE DETAIL A 0.25 GAGE PLANE 0.15 0.05 0 -8 0.75 0.50 DETAIL A A 20 TYPICAL 4220204/A 02/2017 NOTES: 1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M. 2. This drawing is subject to change without notice. 3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.15 mm per side. 4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm per side. 5. Reference JEDEC registration MO-153. www.ti.com EXAMPLE BOARD LAYOUT PW0016A TSSOP - 1.2 mm max height SMALL OUTLINE PACKAGE SYMM 16X (1.5) (R0.05) TYP 1 16 16X (0.45) SYMM 14X (0.65) 8 9 (5.8) LAND PATTERN EXAMPLE EXPOSED METAL SHOWN SCALE: 10X SOLDER MASK OPENING METAL UNDER SOLDER MASK METAL SOLDER MASK OPENING EXPOSED METAL EXPOSED METAL 0.05 MAX ALL AROUND NON-SOLDER MASK DEFINED (PREFERRED) 0.05 MIN ALL AROUND SOLDER MASK DEFINED SOLDER MASK DETAILS 15.000 4220204/A 02/2017 NOTES: (continued) 6. Publication IPC-7351 may have alternate designs. 7. Solder mask tolerances between and around signal pads can vary based on board fabrication site. www.ti.com EXAMPLE STENCIL DESIGN PW0016A TSSOP - 1.2 mm max height SMALL OUTLINE PACKAGE 16X (1.5) SYMM (R0.05) TYP 1 16X (0.45) 16 SYMM 14X (0.65) 8 9 (5.8) SOLDER PASTE EXAMPLE BASED ON 0.125 mm THICK STENCIL SCALE: 10X 4220204/A 02/2017 NOTES: (continued) 8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations. 9. Board assembly site may have different recommendations for stencil design. www.ti.com IMPORTANT NOTICE AND DISCLAIMER TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS” AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS. These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you permission to use these resources only for development of an application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these resources. TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated
