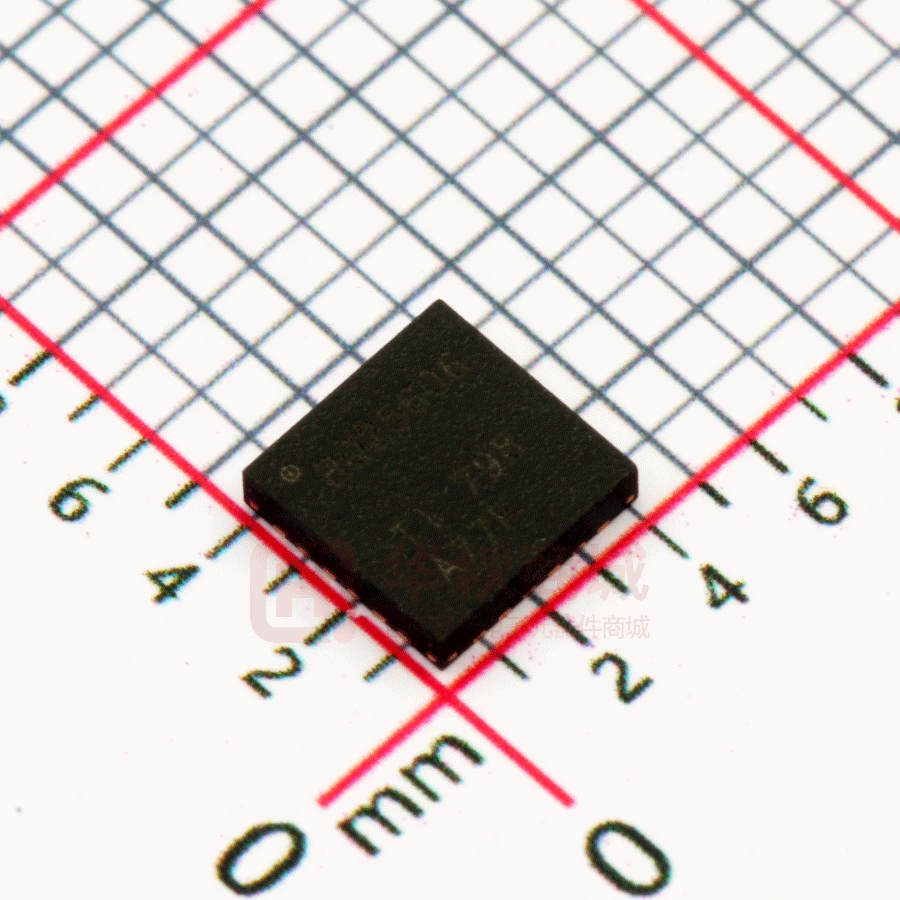

bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
用于高输入电压和窄电压直流 (NVDC) 电源路径管理的 bq25606 独立 3.0A
单节电池充电器
1 特性
•
1
•
•
•
•
•
•
•
•
高效 1.5MHz 同步开关模式降压充电器
– 在 2A 电流（5V 输入）下具有 92% 的充电效率
– 针对 USB 电压输入 (5V) 进行了优化
支持 USB On-The-Go (OTG)
– 具有高达 1.2A 输出的升压转换器
– 在 1A 输出下具有 92% 的升压效率
– 精确的恒定电流 (CC) 限制
– 高达 500µF 电容负载的软启动
– 输出短路保护
单个输入，支持 USB 输入和高电压适配器
– 支持 3.9V 至 13.5V 输入电压范围，绝对最大输
入电压额定值为 22V
– 通过高达 4.6V 的输入电压限制 (VINDPM) 进行
最大功率跟踪
– VINDPM 阈值自动跟踪电池电压
– 自动检测 USB SDP、DCP 以及非标准适配器
高电池放电效率，电池放电 MOSFET 为 19.5mΩ
窄 VDC (NVDC) 电源路径管理
– 无需电池或深度放电的电池即可瞬时启动
– 电池充电模式下的理想二极管运行
高集成度，包括所有 MOSFET、电流感应和环路补
偿
在系统待机电压下具有 58µA 的低电池泄漏电流
高精度
– ±0.5% 充电电压调节
– ±6% 1.2A 和 1.8A 充电电流调节
– ±5% 0.5A、1.2A 和 1.8A 输入电流调节
使用 bq25606 并借助 WEBENCH® 电源设计器 创
建定制设计
2 应用
•
•
EPOS、便携式扬声器、电子烟
便携式互联网设备和附件
3 说明
bq25606 器件高度集成的 独立 3.0A 开关模式电池充
电管理和系统电源路径管理器件，适用于单节锂离子和
锂聚合物电池。低阻抗电源路径对开关模式运行效率进
行了优化、缩短了电池充电时间并延长了放电阶段的电
池使用寿命。
器件信息(1)
器件型号
bq25606
封装
VQFN (24)
封装尺寸（标称值）
4.00mm x 4.00mm
(1) 如需了解所有可用封装，请参阅产品说明书末尾的可订购产品
附录。
简化应用
USB
VBUS
SW
BTST
ILIM
SYS
ICHG
BAT
CE
VSET
ICHG
REGN
+
TS
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
English Data Sheet: SLUSCK6
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
目录
1
2
3
4
5
6
7
特性 ..........................................................................
应用 ..........................................................................
说明 ..........................................................................
修订历史记录 ...........................................................
说明 （续） ..............................................................
Pin Configuration and Functions .........................
Specifications.........................................................
7.1
7.2
7.3
7.4
7.5
7.6
7.7
8
1
1
1
2
3
4
6
Absolute Maximum Ratings ...................................... 6
ESD Ratings.............................................................. 6
Recommended Operating Conditions....................... 6
Thermal information .................................................. 7
Timing Requirements ................................................ 7
Electrical Characteristics........................................... 7
Typical Characteristics ............................................ 13
Detailed Description ............................................ 15
8.1 Overview ................................................................. 15
8.2 Functional Block Diagram ....................................... 16
8.3 Feature Description................................................. 17
9
Application and Implementation ........................ 25
9.1 Application information............................................ 25
9.2 Typical Application Diagram .................................. 26
9.3 Application Curves .................................................. 28
10 Power Supply Recommendations ..................... 33
11 Layout................................................................... 34
11.1 Layout Guidelines ................................................. 34
11.2 Layout Example .................................................... 34
12 器件和文档支持 ..................................................... 36
12.1
12.2
12.3
12.4
12.5
文档支持 ...............................................................
社区资源................................................................
商标 .......................................................................
静电放电警告.........................................................
Glossary ................................................................
36
36
36
36
36
13 机械、封装和可订购信息 ....................................... 37
4 修订历史记录
注：之前版本的页码可能与当前版本有所不同。
Changes from Original (May 2017) to Revision A
Page
•
更新了产品说明书标题 ........................................................................................................................................................... 1
•
已删除 200nS 快速关闭 特性 .................................................................................................................................................. 1
•
更新了简化应用 原理图........................................................................................................................................................... 1
•
Changed ACDRV pin references to "NC" in Pin Configuration and Functions section.......................................................... 4
•
Deleted ACDRV pin references from Pin Functions table...................................................................................................... 4
•
Updated VAC pin description in Pin Functions table.............................................................................................................. 5
•
Deleted ACDRV pin references from Absolute Maximum Ratings table................................................................................ 6
•
Added ESD Ratings table....................................................................................................................................................... 6
•
Deleted VAC debounce time fromTiming Requirements table............................................................................................... 7
•
Updated Functional Block Diagram ...................................................................................................................................... 16
•
Updated Power Up from Input Source section ..................................................................................................................... 17
•
已删除 Power Up OVPFET section ...................................................................................................................................... 17
•
已删除 OVPFET Startup Control timing illustration ............................................................................................................. 17
•
Updated Input Overvoltage (ACOV) section......................................................................................................................... 24
•
Updated bq25606 Application Diagram schematic............................................................................................................... 26
2
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
5 说明 （续）
bq25606高度集成的独立3.0A 开关模式电池充电管理和系统电源路径管理器件，适用于单节锂离子和锂聚合物电
池。该器件 可针对 各种独立充电器和便携式设备实现快速充电，并提供高输入电压支持。其低阻抗电源路径对开
关模式运行效率进行了优化、缩短了电池充电时间并延长了放电阶段的电池使用寿命。其输入电压和电流调节可以
为电池提供最大的充电功率。该解决方案在系统和电池之间高度集成输入反向阻断场 FET（RBFET，Q1）、高侧
开关 FET（HSFET，Q2）、低侧开关 FET（LSFET，Q3）以及电池 FET（BATFET、Q4）。它还集成了自举二
极管以进行高侧栅极驱动，从而简化系统设计。
该器件支持多种输入源，包括标准 USB 主机端口、USB 充电端口以及兼容 USB 的高电压适配器。该器件根据内
置 USB 接口设置默认输入电流限值。 该器件符合 USB 2.0 和 USB 3.0 电源规范，具有输入电流和电压调节功
能。当器件内置 USB 接口确定输入适配器未知时，器件的输入电流限值由 ILIM 引脚设置电阻器值决定。 该器件
还具有高达 1.2A 的很定电流限制能力，能够为 VBUS 提供 5.15V 的电压，符合 USB On-the-Go (OTG) 运行功率
额定值规范。
电源路径管理将系统电压调节至稍高于电池电压的水平，但是不会下降至 3.5V 最小系统电压以下。借助于这个特
性，即使在电池电量完全耗尽或者电池被拆除时，系统也能保持运行。当达到输入电流限值或电压限值时，电源路
径管理自动将充电电流减少为 0。随着系统负载持续增加，电源路径在满足系统电源需求之前将电池放电。该补充
模式可防止输入源过载。
此器件在无需软件控制情况下启动并完成一个充电周期。它感应电池电压并通过三个阶段为电池充电：预充电、恒
定电流和恒定电压。在充电周期的末尾，当充电电流低于预设限值并且电池电压高于再充电阈值时，充电器自动终
止。如果已完全充电的电池降至再充电阈值以下，则充电器自动启动另一个充电周期。
此充电器提供针对电池充电和系统运行的多种安全 功能 ，其中包括电池负温度系数热敏电阻监视、充电安全计时
器以及过压和过流保护。当结温超过 110°C时，热调节会减小充电电流。STAT 输出报告充电状态和任何故障状
况。其他安全 功能 包括针对充电和升压模式的电池温度感应、热调节和热关断以及输入 UVLO 和过压保护。
该器件系列采用 24 引脚 4mm x 4mm QFN 封装。
Copyright © 2017, Texas Instruments Incorporated
3
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
6 Pin Configuration and Functions
Terminal
Name
NC
BAT
No.
I/O
2
13
14
VBUS
PMID
REGN
BTST
SW
SW
24
23
22
21
20
19
bq25606 WQFN Package
24-Pin WQFN
Top View
VAC
1
18
GND
NC
2
17
GND
D+
3
16
SYS
D±
4
STAT
5
OTG
6
9
10 11 12
ILIM
CE
ICHG
VSET
8
TS
7
PG
Thermal
Pad
15
SYS
14
BAT
13
BAT
(Not to scale)
Description
No connection. This pin must be floating.
P
Battery connection point to the positive terminal of the battery pack. The internal current sensing resistor
is connected between SYS and BAT. Connect a 10 µF closely to the BAT pin.
BTST
21
P
PWM high side driver positive supply. internally, the BTST is connected to the cathode of the boost-strap
diode. Connect the 0.047-μF bootstrap capacitor from SW to BTST.
CE
9
DI
Charge enable pin. When this pin is driven low, battery charging is enabled.
D+
3
AIO
Positive line of the USB data line pair. D+/D– based USB host/charging port detection. The detection
includes data contact detection (DCD), primary and secondary detection in BC1.2 and nonstandard
adaptors
D–
4
AIO
Negative line of the USB data line pair. D+/D– based USB host/charging port detection. The detection
includes data contact detection (DCD), primary and secondary detection in BC1.2 and nonstandard
adaptors
GND
17
Power ground and signal ground
18
ICHG
10
AI
ICHG pin sets the charge current limit. A resistor is connected from ICHG pin to ground to set charge
current limit as ICHG = KICHG/RICHG. The acceptable range for charge current is 300 mA – 3000 mA.
ILIM
8
AI
ILIM sets the input current limit. A resistor is connected from ILIM pin to ground to set the input current
limit as IINDPM = KILIM/RILIM. The acceptable range for ILIM current is 500 mA - 3200 mA.
The resistor based input current limit is effective only when the input adapter is detected as unknown.
Otherwise, the input current limit is determined by D+/D– detection outcome.
OTG
6
DI
Boost mode enable pin. When this pin is pulled HIGH, OTG is enabled. OTG cannot be floating.
PG
7
DO
Open drain active low power good indicator. Connect to the pull up rail through 10 kΩ resistor. LOW
indicates a good input if the input voltage is between UVLO and ACOV, above SLEEP mode threshold,
and input current limit is above 30 mA.
PMID
23
P
Connected to the drain of the reverse blocking MOSFET (RBFET) and the drain of HSFET. Put a 10 -μF
ceramic capacitor between PMID and GND.
REGN
22
P
PWM low side driver positive supply output. Internally, REGN is connected to the anode of the booststrap diode. Connect a 4.7-μF (10-V rating) ceramic capacitor from REGN to analog GND. The capacitor
should be placed close to the IC.
4
Copyright © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
(continued)
Terminal
Name
STAT
No.
5
I/O
Description
DO
Open-drain interrupt output. Connect the STAT pin to a logic rail via 10-kΩ resistor. The STAT pin
indicates charger status.
Charge in progress: LOW
Charge complete or charger in SLEEP mode: HIGH
Charge suspend (fault response): BlinK at 1Hz
19
SW
SYS
20
15
16
P
Switching node connecting to output inductor. Internally SW is connected to the source of the n-channel
HSFET and the drain of the n-channel LSFET. Connect the 0.047-μF bootstrap capacitor from SW to
BTST.
P
Converter output connection point. The internal current sensing resistor is connected between SYS and
BAT. Connect a 20 µF capacitor close to the SYS pin.
TS
11
AI
Temperature qualification voltage input to support JEITA profile. Connect a negative temperature
coefficient thermistor. Program temperature window with a resistor divider from REGN to TS to GND.
Charge suspends when TS pin voltage is out of range. Recommend 103AT-2 thermistor.
VAC
1
AI
Input voltage sensing. This pin must be shorted to VBUS pin.
VBUS
24
P
Charger input voltage. The internal n-channel reverse block MOSFET (RBFET) is connected between
VBUS and PMID with VBUS on source. Place a 1-uF ceramic capacitor from VBUS to GND and place it
as close as possible to IC.
AI
VSET pin sets default battery charge voltage in bq25606. Program battery regulation voltage with a
resistor pull-down from VSET to GND.
RPD > 50kΩ (float pin) = 4.208 V
RPD < 500Ω (short to GND) = 4.352 V
5kΩ < RPD < 25kΩ = 4.400 V
P
Ground reference for the device that is also the thermal pad used to conduct heat from the device. This
connection serves two purposes. The first purpose is to provide an electrical ground connection for the
device. The second purpose is to provide a low thermal-impedance path from the device die to the PCB.
This pad should be tied externally to a ground plane.
VSET
Thermal Pad
12
Copyright © 2017, Texas Instruments Incorporated
5
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
VAC
–2
22
V
Voltage Range (with respect to
GND)
VBUS (converter not switching) (2)
–2
22
V
Voltage Range (with respect to
GND)
BTST, PMID (converter not switching) (2)
–0.3
22
V
Voltage Range (with respect to
GND)
SW
–2
16
V
BTST to SW
–0.3
7
V
D+, D–
–0.3
7
V
Voltage Range (with respect to
GND)
REGN, TS, CE, PG, BAT, SYS (converter not switching)
–0.3
7
V
Output Sink Current
STAT
6
mA
Voltage Range (with respect to
GND)
VSET, ILIM, ICHG, OTG
–0.3
7
PGND to GND (QFN package only)
–0.3
0.3
V
Operating junction temperature, TJ
–40
150
°C
Storage temperature, Tstg
–65
150
°C
Voltage Range (with respect to
GND)
Voltage Range (with respect to
GND)
Voltage Range (with respect to
GND)
Voltage Range (with respect to
GND)
(1)
(2)
V
Stresses beyond those listed under Absolute maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltage
values are with respect to the network ground terminal unless otherwise noted.
VBUS is specified up to 22 V for a maximum of one hour at room temperature
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per
ANSI/ESDA/JEDEC JS-001, all pins (1)
±2000
Charged device model (CDM), per
JEDEC specification JESD22-C101, all
pins (2)
±250
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
MIN
NOM
MAX
UNIT
13.5 (1)
V
Input current (VBUS)
3.25
A
Output current (SW)
3.0
A
VBATOP
Battery voltage
4.4
V
IBATOP
Fast charging current
3.0
A
IBATOP
Discharging current (continuous)
TA
Operating ambient temperature
VBUS
Input voltage
Iin
ISYSOP
(1)
6
3.9
–40
6
A
85
°C
The inherent switching noise voltage spikes should not exceed the absolute maximum voltage rating on either the BTST or SW pins. A
tight layout minimizes switching noise.
Copyright © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
7.4 Thermal information
bq25606
THERMAL METRIC
RGE (VQFN)
UNIT
24 Pins
RθJA
Junction-to-ambient thermal resistance
31.9
°C/W
RθJC(top)
RθJB
Junction-to-case (top) thermal resistance
27
°C/W
Junction-to-board thermal resistance
9.2
°C/W
ΨJT
Junction-to-top characterization parameter
0.4
°C/W
ΨJB
Junction-to-board characterization parameter
9.2
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
2.8
°C/W
7.5 Timing Requirements
Parameter
Additional infor mAtion
Min
NOM
mAX
UNIT
VBUS/BAT POWER UP
VAC rising above ACOV threshold to
turn off Q2
tACOV
VBUS OVP reaction time
tBADSRC
Bad adapter detection duration
tTERM_DGL
Deglitch time for charge termination
tRECHG_DGL
Deglitch time for recharge
250
ms
tSYSOVLD_DGL
System over-current deglitch time to
turn off Q4
100
µs
tBATOVP
Battery overvoltage deglitch time to
disable charge
1
µs
tSAFETY
Typical Charge Safety Timer Range
8
200
ns
30
ms
250
ms
10
12
hr
7.6 Electrical Characteristics
VVAC_PRESENT < VVAC < VVAC_OV and VVAC > VBAT + VSLEEP, TJ = –40°C to 125°C and TJ = 25°C for typical values (unless
otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
QUIESCENT CURRENTS
IBAT
Battery discharge current (BAT, SW,
SYS) in buck mode
VBAT = 4.5 V, VBUS < VAC-UVLOZ,
leakage between BAT and
VBUS, TJ< 85°C
IBAT
Battery discharge current (BAT, SW,
SYS)
VBAT = 4.5 V, No VBUS, TJ <
85°C
IVBUS
Input supply current (VBUS) in buck
mode
VVBUS = 12 V, VVBUS > VVBAT,
converter not switching
IVBUS
Input supply current (VBUS) in buck
mode
VVBUS > VUVLO, VVBUS > VVBAT,
converter switching, VBAT =
3.8V, ISYS = 0A
3
mA
IBOOST
Battery discharge current in boost mode
VBAT = 4.2 V, boost mode, IVBUS
= 0 A, converter switching
3
mA
5
µA
58
85
µA
1.5
3
mA
VBUS, VAC AND BAT PIN POWER-UP
VBUS_OP
VBUS operating range
VVBUS rising
3.9
VVAC_PRESENT
REGN turn-on threshold
VVAC rising
3.36
VVAC_PRESENT_H
VVAC falling
YS
13.5
3.65
3.97
V
V
mV
300
VSLEEP
Sleep mode falling threshold
(VVAC–VVBAT ), VBUSMIN_FALL ≤
VBAT ≤ VREG, VAC falling
37
76
126
mV
VSLEEPZ
Sleep mode rising threshold
(VVAC–VVBAT ), VBUSMIN_FALL ≤
VBAT ≤ VREG, VAC rising
130
220
350
mV
VVAC_OV_RISE
VAC Overvoltage rising threshold
VAC rising
13.5
14.28
14.91
VVAC_OV_HYS
VAC Overvoltage hysteresis
VAC falling
Copyright © 2017, Texas Instruments Incorporated
520
V
mV
7
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
Electrical Characteristics (continued)
VVAC_PRESENT < VVAC < VVAC_OV and VVAC > VBAT + VSLEEP, TJ = –40°C to 125°C and TJ = 25°C for typical values (unless
otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
VBAT_DPL_FALL
Battery depletion falling threshold (Q4
turn-off threshold)
VBAT falling
2.15
2.6
V
VBAT_DPL_RISE
Battery Depletion rising threshold (Q4
turn-on threshold)
VBAT rising
2.35
2.82
V
VBAT_DPL_HYST
Battery Depletion rising hysteresis
VBAT rising
VBUSMIN_FALL
Bad adapter detection falling threshold
VBUS falling
VBUSMIN_HYST
Bad adapter detection hysteresis
IBADSRC
Bad adapter detection current source
Sink current from VBUS to GND
VSYS_MIN
System regulation voltage
VVBAT < VSYS_MIN = 3.5V, charge
enabled or disabled
VSYS
System regulation voltage
ISYS = 0 A, VVBAT > VSYSMIN,
charge disabled
RON(RBFET)
Top reverse blocking MOSFET onresistance between VBUS and PMID Q1
-40°C≤ TA ≤ 125°C
45
mΩ
RON(HSFET)
Top switching MOSFET on-resistance
between PMID and SW - Q2
VREGN = 5 V , -40°C≤ TA ≤
125°C
62
mΩ
RON(LSFET)
Bottom switching MOSFET onresistance between SW and GND - Q3
VREGN = 5 V , -40°C≤ TA ≤
125°C
70
mΩ
VFWD
BATFET forward voltage in supplement
mode
30
mV
RON(BAT-SYS)
SYS-BAT MOSFET on-resistance
QFN package, Measured from
BAT to SYS, VBAT = 4.2V, TJ =
25°C
19.5
24
mΩ
RON(BAT-SYS)
SYS-BAT MOSFET on-resistance
QFN package, Measured from
BAT to SYS, VBAT = 4.2V, TJ =
–40 - 125°C
19.5
30
mΩ
180
3.65
3.8
mV
3.93
V
200
mV
30
mA
POWER-PATH
3.5
3.68
V
VBAT +
50 mV
V
BATTERY CHARGER
VBATREG
Charge voltage
VBATREG_ACC
Charge voltage setting accuracy
ICHG_REG_RANGE
Charge current regulation range
RVSET > 50 kΩ, –40 ≤ TJ ≤ 85°C
4.187
4.208
4.229
V
RVSET < 500 Ω, –40 ≤ TJ ≤ 85°C
4.330
4.352
4.374
V
RVSET = 10 kΩ, –40 ≤ TJ ≤ 85°C
4.378
4.4
4.422
V
VBAT = 4.208 V or VBAT = 4.352
V, –40 ≤ TJ ≤ 85°C
–0.5%
0.5%
0
3000
mA
715
mA
ICHG_REG
Charge current regulation
RICHG = 1100 Ω, VVBAT = 3.1 V
or VVBAT = 3.8 V
ICHG_REG_ACC
Charge current regulation accuracy
RICHG = 1100 Ω, VVBAT = 3.1 V
or VVBAT = 3.8 V
ICHG_REG
Charge current regulation
ICHG_REG
Charge current regulation accuracy
RICHG = 562 Ω, VBAT = 3.1 V or
VBAT = 3.8 V
ICHG_REG
Charge current regulation
RICHG = 372 Ω, VVBAT = 3.1 V or
VVBAT = 3.8 V
1.715
ICHG_REG_ACC
Charge current regulation accuracy
RICHG = 372 Ω, VVBAT = 3.1 V or
VVBAT = 3.8 V
-5%
KICHG
Charge current regulation setting ratio
RICHG = 372 Ω, 562 Ω VVBAT =
3.1 V or VVBAT = 3.8 V
639
KICHG_ACC
Charge current regulation setting ratio
accuracy
RICHG = 372Ω, 562 Ω VVBAT =
3.1 V or VVBAT = 3.8 V
-6%
VBATLOWV_FALL
Battery LOWV falling threshold
Fast charge to precharge
2.67
8
RICHG = 562 Ω, VVBAT = 3.1 V or
VVBAT = 3.8 V
516
-16%
1.14
615
16%
1.218
-6%
1.28
A
6%
1.813
1.89
A
5%
677
715
A×Ω
6%
2.8
2.87
V
Copyright © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
Electrical Characteristics (continued)
VVAC_PRESENT < VVAC < VVAC_OV and VVAC > VBAT + VSLEEP, TJ = –40°C to 125°C and TJ = 25°C for typical values (unless
otherwise noted)
MIN
TYP
MAX
UNIT
VBATLOWV_RISE
Battery LOWV rising threshold
PARAMETER
Pre-charge to fast charge
TEST CONDITIONS
3.0
3.1
3.24
V
IPRECHG
Precharge current regulation
RICHG = 1100 Ω, VVBAT = 2.6 V,
IPRECHG = 5% of ICHG = 615mA
21
38
IPRECHG_ACC
Precharge current regulation accuracy
Percentage of ICHG,RICHG = 1100
Ω, VVBAT = 2.6 V, ICHG = 615mA
3.4%
6.2%
IPRECHG
Precharge current regulation
RICHG = 562 Ω, VVBAT = 2.6 V,
IPRECHG = 5% of ICHG = 1.218A
48
67
IPRECHG_ACC
Precharge current regulation accuracy
Percentage of ICHG,RICHG = 562
Ω, V1330 = 2.6 V, ICHG = 1.218A
3.9%
5.5%
IPRECHG
Precharge current regulation
RICHG = 372 Ω, VVBAT = 2.6 V,
IPRECHG = 5% of ICHG = 1.813A
76
97
IPRECHG_ACC
Precharge current regulation accuracy
Percentage of ICHG,RICHG = 372
Ω, VVBAT = 2.6 V, ICHG = 1.813A
4.1%
5.4%
ITERM
Termination current regulation
26
100
ITERM_ACC
Termination current regulation accuracy
Percentage of ICHG, RICHG = 562
Ω, VVBAT = 4.35 V, ICHG = 1.218
A
2.1%
8.3%
ITERM
Termination current regulation
RICHG = 372 Ω, VVBAT = 4.35 V,
ICHG = 1.813 A
ITERM_ACC
Termination current regulation accuracy
Percentage of ICHG, RICHG = 372
Ω, VVBAT = 4.35 V, ICHG = 1.813
A
VSHORT
Battery short voltage
VVBAT falling
1.85
2
2.15
VSHORTZ
Battery short voltage
VVBAT rising
2.05
2.25
2.35
V
ISHORT
Battery short current
VVBAT < VSHORTZ
70
90
110
mA
VRECHG
Recharge Threshold below VBAT_REG
VBAT falling
87
121
156
mV
ISYSLOAD
System discharge load current
VSYS = 4.2 V
RICHG = 562 Ω, VVBAT = 4.35V,
CHG = 1.218A
56
100
3.0%
126
mA
mA
mA
mA
mA
7.0%
30
V
mA
INPUT VOLTAGE AND CURRENT REGULATION
VDPM_VBAT
Input voltage regulation limit
VVBAT < 4.1 V (VVBAT= 3.6 V)
4.171
VDPM_VBAT_ACC
Input voltage regulation accuracy
VVBAT < 4.1 V (VVBAT = 3.6 V)
–3%
3%
IINDPM
USB input current regulation limit
VVBUS = 5 V, USB500 charge
port detected by DPDM , –40 ≤
TJ ≤ 85°C
448
500
mA
IINDPM
Input current regulation limit
RILIM = 910 Ω, unknown adaptor
detected by DPDM , –40 ≤ TJ ≤
85°C
505
526
550
mA
IINDPM
Input current regulation limit accuracy
RILIM = 374 Ω, unknown adaptor
detected by DPDM , –40 ≤ TJ ≤
85°C
1220
1276
1330
mA
IINDPM
Input current regulation limit
RILIM = 265 Ω, unknown adaptor
detected by DPDM , –40 ≤ TJ ≤
85°C
1.73
1.8
1.871
A
IINDPM_ACC
Input current regulation limit accuracy
RILIM = 265 Ω, 374 Ω, 910 Ω,
unknown adaptor detected by
DPDM , –40 ≤ TJ ≤ 85°C
–5%
KILIM
Input current setting ratio, ILIM = KILIM /
RILIM
RILIM = 910 Ω, 374 Ω, 265 Ω,
unknown adaptor detected by
DPDM, –40 ≤ TJ ≤ 85°C
459
KILIM_ACC
Input current setting ratio, ILIM = KILIM /
RILIM
RILIM = 910 Ω, 374 Ω, 265 Ω,
unknown adaptor detected by
DPDM, –40 ≤ TJ ≤ 85°C
–5%
IIN_START
Input current limit during system start-up
sequence
Copyright © 2017, Texas Instruments Incorporated
4.3
4.429
V
5%
478
500
A×Ω
5%
200
mA
9
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
Electrical Characteristics (continued)
VVAC_PRESENT < VVAC < VVAC_OV and VVAC > VBAT + VSLEEP, TJ = –40°C to 125°C and TJ = 25°C for typical values (unless
otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
BAT PIN OVERVOLTAGE PROTECTION
VBATOVP_RISE
Battery overvoltage threshold
VBAT rising, as percentage of
VBAT_REG
103%
104%
105%
VBATOVP_FALL
Battery overvoltage threshold
VBAT falling, as percentage of
VBAT_REG
101%
102%
103%
10
Copyright © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
Electrical Characteristics (continued)
VVAC_PRESENT < VVAC < VVAC_OV and VVAC > VBAT + VSLEEP, TJ = –40°C to 125°C and TJ = 25°C for typical values (unless
otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
THERMAL REGULATION AND THERMAL SHUTDOWN
TJUNCTION_REG
Junction Temperature Regulation
Threshold
TSHUT
Thermal Shutdown Rising Temperature
TSHUT_HYST
Thermal Shutdown Hysteresis
Temperature Increasing
110
°C
160
°C
30
°C
JEITA Thermistor Comparator (BUCK MODE)
VT1
T1 (0°C) threshold, Charge suspended
T1 below this temperature.
Charger suspends charge. As
Percentage to VREGN
VT1
Falling
72.4%
73.3%
74.2%
As Percentage to VREGN
69%
71.5%
74%
VT2
T2 (10°C) threshold, Charge back to
As percentage of VREGN
ICHG/2 and 4.2 V below this temperature
67.2%
68%
69%
VT2
Falling
As Percentage to VREGN
66%
66.8%
67.7%
VT3
T3 (45°C) threshold, charge back to
ICHG and 4.05V above this
temperature.
Charger suspends charge. As
Percentage to VREGN
43.8%
44.7%
45.8%
VT3
Falling
As Percentage to VREGN
45.1%
45.7%
46.2%
VT5
T5 (60°C) threshold, charge suspended
above this temperature.
As Percentage to VREGN
33.7%
34.2%
35.1%
VT5
Falling
As Percentage to VREGN
34.5%
35.3%
36.2%
COLD OR HOT THERMISTER COMPARATOR (BOOST MODE)
VBCOLD
Cold Temperature Threshold, TS pin
Voltage Rising Threshold
As Percentage to VREGN
(Approx. –20°C w/ 103AT),
–20°C ≤ TJ≤ 125°C
79.5%
80%
80.5%
VBCOLD
Falling
–20°C ≤ TJ≤ 125°C
78.5%
79%
79.5%
VBHOT
Hot Temperature Threshold, TS pin
Voltage falling Threshold
As Percentage to
VREGN (Approx. 60°C w/ 103AT),
–20°C ≤ TJ≤ 125°C
30.2%
31.2%
32.2%
VBHOT
Rising
–20°C ≤ TJ≤ 125°C
33.8%
34.4%
34.9%
Copyright © 2017, Texas Instruments Incorporated
11
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
Electrical Characteristics (continued)
VVAC_PRESENT < VVAC < VVAC_OV and VVAC > VBAT + VSLEEP, TJ = –40°C to 125°C and TJ = 25°C for typical values (unless
otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
CHARGE OVERCURRENT COMPARATOR (CYCLE-BY-CYCLE)
IHSFET_OCP
HSFET cycle-by-cycle over-current
threshold
5.2
IBATFET_OCP
System over load threshold
6.0
8.0
A
A
PWM
fSW
PWM switching frequency
DMAX
Maximum PWM duty cycle (1)
Oscillator frequency, buck mode
1320
1500
1680
kHz
Oscillator frequency, boost mode
1170
1412
1500
kHz
97%
BOOST MODE OPERATION
VOTG_REG
Boost mode regulation voltage
VVBAT = 3.8 V, I(PMID) = 0 A
4.972
VOTG_REG_ACC
Boost mode regulation voltage accuracy VVBAT = 3.8 V, I(PMID) = 0 A
-3
VBATLOWV_OTG
5.126
5.280
V
3
%
Battery voltage exiting boost mode
VVBAT falling
2.6
2.8
2.9
V
Battery voltage entering boost mode
VVBAT rising
2.9
3.0
3.15
V
1.2
1.4
1.6
A
5.55
5.8
6.15
V
IOTG
OTG mode output current limit
VOTG_OVP
OTG overvoltage threshold
Rising threshold
VREGN
REGN LDO output voltage
VVBUS = 9 V, IREGN = 40 mA
5.6
6
6.65
V
VREGN
REGN LDO output voltage
VVBUS = 5 V, IREGN = 20 mA
4.6
4.7
4.9
V
0.4
V
REGN LDO
LOGIC I/O PIN CHARACTERISTICS (CE, PSEL, SCL, SDA,, INT)
VILO
Input low threshold CE
VIH
Input high threshold CE
IBIAS
High-level leakage current CE
VILO
Input low threshold OTG
VIH
Input high threshold OTG
IBIAS
High-level leakage current OTG
1.3
V
Pull up rail 1.8 V
1
µA
0.4
V
1.3
V
Pull up rail 1.8 V
1
µA
0.4
V
1.35
V
LOGIC I/O PIN CHARACTERISTICS (PG, STAT)
VOL
Low-level output voltage
D+/D– DETECTION
VD+_1P2
D+ Threshold for Non-standard adapter
(combined V1P2_VTH_LO and
V1P2_VTH_HI)
ID+_LKG
Leakage current into D+
VD–_600MVSRC
Voltage source (600 mV)
ID–_100UAISNK
D– current sink (100 µA)
RD–_19K
D– resistor to ground (19 kΩ)
VD–_0P325
D– comparator threshold for primary
detection
D– pin Rising
VD–_2P8
1.05
HiZ
-1
1
µA
700
mV
150
µA
24.8
kΩ
500
600
VD– = 500 mV,
50
100
VD– = 500 mV,
14.25
250
400
mV
D– Threshold for non-standard adapter
(combined V2P8_VTH_LO and
V2P8_VTH_HI)
2.55
2.85
V
VD–_2P0
D– Comparator threshold for nonstandard adapter (For non-standard –
same as bq2589x)
1.85
2.15
V
VD–_1P2
D– Threshold for non-standard adapter
(combined V1P2_VTH_LO and
V1P2_VTH_HI)
1.05
1.35
V
ID–_LKG
Leakage current into D–
-1
1
µA
(1)
12
HiZ
Specified by design. Not production tested.
Copyright © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
7.7 Typical Characteristics
100
100
95
95
85
Efficiency (%)
Charge Efficiency (%)
90
90
85
80
75
80
75
70
65
70
VBUS Voltage
5V
9V
12 V
65
60
VBAT = 3.2 V
VBAT = 3.8 V
VBAT = 4.1 V
55
60
50
0
0.5
1
fSW = 1.5 MHz
VBAT = 3.8 V
1.5
2
Charge Current (A)
2.5
3
0
0.2
Inductor DCR = 18 mΩ
VOTG = 5.15 V
Figure 1. Charge Efficiency vs. Charge Current
0.6
0.8
OTG Current (A)
1
1.2
1.4
D001
inductor DCR = 18 mΩ
Figure 2. Efficiency vs. OTG Current
6
3.85
5
3.8
SYSMIN Voltage (V)
OTG Output Voltage (V)
0.4
D001
4
3
2
1
3.75
3.7
3.65
3.6
3.55
0
0
0.2
0.4
0.6
0.8
1
Output Current (A)
0 A ≤ IOTG ≤1.37 A
VVBAT = 3.8 V
1.2
1.4
3.5
-40
1.6
-25
-10
D001
5
20 35 50 65 80
Junction Temperature (°C)
95
110 125
D001
VOTG = 5.15 V
Figure 4. SYSMIN Voltage vs. Junction Temperature
Figure 3. OTG Output Voltage vs. Output Current
4.5
2.75
IINDPM = 1.8 A
IINDPM = 1.28 A
IINDPM = 0.52 A
2.25
4.4
Input Current Limit (A)
BATREG Charge Voltage (V)
2.5
4.3
4.2
4.1
4
-40
-10
5
20 35 50 65 80
Junction Temperature (°C)
95
1.5
1.25
1
0.75
0.5
VBATREG = 4.208 V
VBATREG = 4.352 V
VBATREG = 4.4 V
-25
2
1.75
0.25
110 125
0
-40
D001
-25
-10
5
20
35
50
Junction Temperature (°C)
65
80
95
D001
VVBUS = 5 V
Figure 5. BATREG Charge Voltage vs. Junction
Temperature
Copyright © 2017, Texas Instruments Incorporated
Figure 6. Input Current Limit vs. Junction Temperature
13
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
2.6
2.4
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
-40
2
ICHG = 1.8 A
ICHG = 1.2 A
ICHG = 0.68 A
1.8
1.6
Charge Current (A)
Charge Current (A)
Typical Characteristics (continued)
-25
-10
5
20
35
50
65
Junction Temperature (°C)
80
95
0.6
0
30
110
40
50
D001
VBAT = 3.8 V
VVBUS = 5V
60
70
80
90 100
Junction Temperature (°C)
110
120
130
D001
VBAT = 3.8V
Figure 8. Charge Current vs. Junction Temperature Under
Thermal Regulation
486
705
RILIM = 265 :
RILIM = 374 :
RILIM = 910 :
484
RICHG = 372 :
RICHG = 562 :
RICHG = 1100 :
700
Charge Current Setting Ratio
Input Current Limit Setting Ratio
1
0.8
0.2
Figure 7. Charge Current vs. Junction Temperature
482
480
478
476
474
695
690
685
680
675
670
665
-25
-10
VVBUS = 5 V
5
20
35
50
Junction Temperature (°C)
65
80
95
660
-40
-25
-10
D001
VBAT = 3.8 V
Figure 9. Input Current Limit Setting Ratio vs. Junction
Temperature
14
1.2
0.4
VVBUS = 5 V
472
-40
1.4
VVBUS = 5 V
5
20
35
50
65
Junction Temperature (°C)
80
95
110
D001
VBAT = 3.8 V
Figure 10. Charge Current Setting Ratio vs. Junction
Temperature
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
8 Detailed Description
8.1 Overview
The bq25606 device is a highly integrated 3.0-A switch-mode battery charger for single cell Li-Ion and Li-polymer
battery. It includes the input reverse-blocking FET (RBFET, Q1), high-side switching FET (HSFET, Q2), low-side
switching FET (LSFET, Q3), and battery FET (BATFET, Q4), and bootstrap diode for the high-side gate drive.
版权 © 2017, Texas Instruments Incorporated
15
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
8.2 Functional Block Diagram
VBUS
PMID
VVVAC_PRESENT
VVAC
IIN
+
RBFET (Q1)
UVLO
Q1 Gate
Control
±
VBAT + VSLEEP
+
VVAC
VVAC
VVAC_OV
SLEEP
EN_HIZ
+
REGN
EN_REGN
±
REGN
LDO
ACOV
±
BTST
FBO
VVBUS
VIN
VAC
VBUS_OVP_BOOST
+
VOTG_OVP
±
IQ2
Q2_UCP_BOOST
+
VVBUS
VOTG_HSZCP
±
±
VOTG_BAT
CONVERTER
Control
±
+
BAT
IINDPM
+
±
SW
Q3_OCP_BOOST
+
+
IIN
HSFET (Q2)
IQ3
VINDPM
REGN
BATOVP
104% × V BAT_REG
IC TJ
LSFET (Q3)
±
+
TREG
+
±
SYS
±
±
+
+
VSYSMIN
±
BAT
ILSFET_UCP
VBAT_REG
PGND
IQ2
+
UCP
Q2_OCP
+
IHSFET_OCP
IQ3
±
ICHG
±
EN_HIZ
EN_CHARGE
EN_BOOST
ICHG_REG
VBTST - VSW
REFRESH
+
VBTST_REFRESH
±
SYS
ICHG
VBAT_REG
ICHG_REG
Q4 Gate
Control
BATFET
(Q4)
BAT
IBADSRC
REF
DAC
ILIM
ICHG
BAD_SRC
Converter
Control State
Machine
IDC
±
IC TJ
TSHUT
±
BAT_GD
'Å
+
TSHUT
VSET
D+
+
Input
Source
Detection
BAT
+
VBATGD
±
USB
Adapter
VREG -VRECHG
RECHRG
OTG
+
BAT
±
ICHG
TERMINATION
+
ITERM
STAT
CHARGE
CONTROL
STATE
MACHINE
±
VBATLOWV
BATLOWV
+
BAT
±
bq25606
VSHORT
BATSHORT
+
SUSPEND
±
BAT
/PG
Battery
Sensing
Thermistor
TS
/CE
16
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
8.3 Feature Description
8.3.1 Device Power Up from Battery without Input Source
If only battery is present and the voltage is above depletion threshold (VBAT_DPL_RISE), the BATFET turns on and
connects battery to system. The REGN stays off to minimize the quiescent current. The low RDSON of BATFET
and the low quiescent current on BAT minimize the conduction loss and maximize the battery run time.
The device always monitors the discharge current through BATFET (Supplement Mode). When the system is
overloaded or shorted (IBAT > IBATFET_OCP), the device turns off BATFET immediately until the input source plugs
in again.
8.3.2 Power Up from Input Source
When an input source is plugged in, the device checks the input source voltage to turn on REGN LDO and all the
bias circuits. It detects and sets the input current limit before the buck converter is started. The power up
sequence from input source is as listed:
1. Power Up REGN LDO
2. Poor Source Qualification
3. Input Source Type Detection is based on D+/D– to set input current limit (IINDPM) .
4. Input Voltage Limit Threshold Setting (VINDPM threshold)
5. Converter Power-up
8.3.2.1 Power Up REGN Regulation
The REGN LDO supplies internal bias circuits as well as the HSFET and LSFET gate drive. The REGN also
provides bias rail to TS external resistors. The pull-up rail of STAT can be connected to REGN as well. The
REGN is enabled when all the below conditions are valid:
• VVAC above VVAC_PRESENT
• VVAC above VBAT + VSLEEPZ in buck mode or VBUS below VBAT + VSLEEP in boost mode
• After 220-ms delay is completed
If any one of the above conditions is not valid, the device is in high impedance mode (HIZ) with REGN LDO off.
The device draws less than IVBUS_HIZ from VBUS during HIZ state. The battery powers up the system when
the device is in HIZ.
8.3.2.2 Poor Source Qualification
After REGN LDO powers up, the device confirms the current capability of the input source. The input source
must meet both of the following requirements in order to start the buck converter.
• VAC voltage below VVAC_OV
• VBUS voltage above VVBUSMIN when pulling IBADSRC (typical 30 mA)
If the device fails the poor source detection, it repeats poor source qualification every 2 seconds.
8.3.2.3 Input Source Type Detection
After the REGN LDO is powered, the device runs input source detection through D+/D– lines. The bq25606
follows the USB Battery Charging Specification 1.2 (BC1.2) to detect input source (SDP/ DCP) and non-standard
adapter through USB D+/D– lines. The bq25606 sets input current limit through D+/D- detection and ILIM pins.
8.3.2.3.1 D+/D– Detection Sets Input Current Limit in bq25606
The bq25606 contains a D+/D– based input source detection to set the input current limit at VBUS plug-in. The
D+/D– detection includes standard USB BC1.2 and non-standard adapter. When input source is plugged in, the
device starts standard USB BC1.2 detections. The USB BC1.2 is capable to identify Standard Downstream Port
(SDP) and Dedicated Charging Port (DCP). When the Data Contact Detection (DCD) timer expires, the nonstandard adapter detection is applied to set the input current limit. The non-standard detection is used to
distinguish vendor specific adapters (Apple and Samsung) based on their unique dividers on the D+/D– pins. If
an adapter is detected as DCP, the input current limit is set at 2.4 A. If an adapter is detected as unknown, the
input current limit is set by ILIM pin.
版权 © 2017, Texas Instruments Incorporated
17
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
Feature Description (接
接下页)
表 1. Non-Standard Adapter Detection
Non-Standard
Adapter
D+ Threshold
D– Threshold
Input Current Limit (A)
Divider 1
VD+ within V2P7_VTH
VD– within V2P0_VTH
2.1
Divider 2
VD+ within V1P2_VTH
VD– within V1P2_VTH
2
Divider 3
VD+ within V2P0_VTH
VD– within V2P7_VTH
1
Divider 4
VD+ within V2P7_VTH
VD– within V2P7_VTH
2.4
表 2. Input Current Limit Setting from D+/D– Detection
D+/D– Detection
Input Current Limit (IINLIM)
USB SDP (USB500)
500 mA
USB DCP
2.4 A
Divider 3
1A
Divider 1
2.1 A
Divider 4
2.4 A
Divider 2
2A
Unknown 5-V Adapter
Set by ILIM pin
8.3.2.4 Input Voltage Limit Threshold Setting (VINDPM Threshold)
The device's VINDPM is set at 4.3V. The device supports dynamic VINDPM tracking which tracks the battery
voltage. The device's VINDPM tracks battery voltage with 200mV offset such that when VBAT + 200mV is
greater than 4.3V, the VINDPM value is automatically adjusted to VBAT + 200mV.
8.3.2.5 Converter Power-Up
After the input current limit is set, the converter is enabled and the HSFET and LSFET start switching. If battery
charging is disabled, BATFET turns off. Otherwise, BATFET stays on to charge the battery.
The device provides soft-start when system rail is ramped up. When the system rail is below 2.2 V, the input
current is limited to is to 200 mA. After the system rises above 2.2 V, the device limits input current to the value
set by ILIM pin.
As a battery charger, the device deploys a highly efficient 1.5 MHz step-down switching regulator. The fixed
frequency oscillator keeps tight control of the switching frequency under all conditions of input voltage, battery
voltage, charge current and temperature, simplifying output filter design.
The device switches to PFM control at light load or when battery is below minimum system voltage setting or
charging is disabled.
8.3.3 Boost Mode Operation From Battery
The device supports boost converter operation to deliver power from the battery to other portable devices
through USB port. The maximum output current is up to 1.2 A. The boost operation can be enabled if the
conditions are valid:
1. BAT above VOTG_BAT
2. VBUS less than BAT+VSLEEP (in sleep mode)
3. Boost mode operation is enabled (OTG pin HIGH)
4. Voltage at TS (thermistor) pin is within acceptable range (VBHOT < VTS < VBCOLD)
5. After 30-ms delay from boost mode enable
During boost mode, the VBUS output is 5.15 V and the output current can reach up to 1.2 A. The boost output is
maintained when BAT is above VOTG_BAT threshold.
When OTG is enabled, the device starts up with PFM and later transits to PWM to minimize the overshoot.
18
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
8.3.4 Standalone Power Management
8.3.5 Power Path Management
The device accommodates a wide range of input sources from USB, wall adapter, to car charger. The device
provides automatic power path selection to supply the system (SYS) from input source (VBUS), battery (BAT), or
both.
8.3.6 Battery Charging Management
The device charges 1-cell Li-Ion battery with up to 3.0-A charge current for high capacity tablet battery. The 19.5mΩ BATFET improves charging efficiency and minimize the voltage drop during discharging.
8.3.6.1 Autonomous Charging Cycle
With battery charging is enabled (CE pin is LOW), the device autonomously completes a charging cycle. The
device default charging parameters are listed in 表 3.
表 3. Charging Parameter Default Setting
A
•
•
•
•
Default Mode
bq25606
Charging voltage
VSET controlled
Charging current
ICHG controlled
Pre-charge current
5% of ICHG
Termination current
5% of ICHG
Temperature profile
JEITA
Safety timer
10 hours
new charge cycle starts when the following conditions are valid:
Converter starts
Battery charging is enabled (CE is low)
No thermistor fault on TS
No safety timer fault
The charger device automatically terminates the charging cycle when the charging current is below termination
threshold, battery voltage is above recharge threshold, and device not is in DPM mode or thermal regulation.
When a fully charged battery is discharged below recharge threshold , the device automatically starts a new
charging cycle. After the charge is done, toggle CE pin can initiate a new charging cycle.
The STAT output indicates the charging status: charging (LOW), charging complete or charge disable (HIGH) or
charging fault (Blinking).
8.3.6.2 Charging Termination
The device terminates a charge cycle when the battery voltage is above recharge threshold, and the current is
below termination current. After the charging cycle is completed, the BATFET turns off. The converter keeps
running to power the system, and BATFET can turn on again to engage Supplement Mode.
8.3.6.3 Thermistor Qualification
The charger device provides a single thermistor input for battery temperature monitor.
8.3.6.4 JEITA Guideline Compliance During Charging Mode
To improve the safety of charging Li-ion batteries, JEITA guideline was released on April 20, 2007. The guideline
emphasized the importance of avoiding a high charge current and high charge voltage at certain low and high
temperature ranges.
To initiate a charge cycle, the voltage on TS pin must be within the VT1 to VT5 thresholds. If TS voltage exceeds
the T1-T5 range, the controller suspends charging and waits until the battery temperature is within the T1 to T5
range.
版权 © 2017, Texas Instruments Incorporated
19
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
At cool temperature (T1-T2), the charge current is reduced to 20% of programmed fast charge current. At warm
temperature (T3-T5), the charge voltage is reduced to 4.1 V.
100
VBATREG
4.1
4
90
Charging Voltage (V)
Charging Current (%)
80
70
60
50
40
30
3
2
1
20
10
0
0
T2
T1
±5
0
5
T3
10 15 20 25 30
35 40 45 50
55 60 65
T2
T1
T5
70
Battery Pack Temperature (°C)
±5
0
5
T3
10 15 20 25 30
35 40 45 50
T5
55 60 65
70
Battery Pack Temperature (°C)
图 11. JEITA Profile: Charging Current
图 12. JEITA Profile: Charging Voltage
公式 1 through 公式 2 describe updates to the resistor bias network.
1 ö
æ 1
VREGN ´ RTHCOLD ´ RTHHOT ´ ç
÷
VT1
VT5
è
ø
RT2 =
æ VREGN
ö
æ VREGN
ö
RTHHOT ´ ç
- 1÷ - RTHCOLD ´ ç
- 1÷
VT5
VT1
è
ø
è
ø
æ æ VREGN ö
ö
çç
÷ - 1÷
VT1
ø
èè
ø
RT1 =
æ
ö
1
æ 1 ö
÷
ç RT2 ÷ + ç RTH
è
ø è
COLD ø
(1)
(2)
Select 0°C to 60°C range for Li-ion or Li-polymer battery:
• RTHCOLD = 27.28 KΩ
• RTHHOT = 3.02 KΩ
• RT1 = 5.23 KΩ
• RT2 = 30.9 KΩ
8.3.6.5 Boost Mode Thermistor Monitor during Battery Discharge Mode
For battery protection during boost mode, the device monitors the battery temperature to be within the to
thresholds. When temperature is outside of the temperature thresholds, the boost mode is suspended.
20
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
Temperature Range to Boost
VREGN
Boost Disabled
VBCOLD
(±10°C)
Boost Enabled
VBHOT
(65°C)
Boost Disabled
AGND
图 13. TS Pin Thermistor Sense Threshold in Boost Mode
8.3.6.6 Charging Safety Timer
The device has built-in safety timer to prevent extended charging cycle due to abnormal battery conditions. The
safety timer is 2 hours when the battery is below VBATLOWV threshold and 10 hours when the battery is higher
than VBATLOWV threshold.
During input voltage, current, JEITA cool or thermal regulation, the safety timer counts at half clock rate as the
actual charge current is likely to be below the register setting. For example, if the charger is in input current
regulation throughout the whole charging cycle, the safety timer will expire in 20 hours.
During the fault, timer is suspended. Once the fault goes away, fault resumes. If user stops the current charging
cycle, and start again, timer gets reset.
8.3.6.7 Narrow VDC Architecture
The device deploys Narrow VDC architecture (NVDC) with BATFET separating system from battery. The
minimum system voltage is set by SYS_Min bits. Even with a fully depleted battery, the system is regulated
above the minimum system voltage.
When the battery is below minimum system voltage setting, the BATFET operates in linear mode (LDO mode),
and the system is typically 180 mV above the minimum system voltage setting. As the battery voltage rises
above the minimum system voltage, BATFET is fully on and the voltage difference between the system and
battery is the VDS of BATFET.
When the battery charging is disabled and above minimum system voltage setting or charging is terminated, the
system is always regulated at typically 50mV above battery voltage..
4.5
4.3
Charge Disabled
Charge Enabled
Minimum System Voltage
SYS (V)
4.1
3.9
3.7
3.5
3.3
3.1
2.7
2.9
3.1
3.3
3.5
3.7
BAT (V)
3.9
4.1
4.3
D002
Plot1
图 14. System Voltage vs Battery Voltage
版权 © 2017, Texas Instruments Incorporated
21
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
8.3.6.8 Dynamic Power management
To meet maximum current limit in USB spec and avoid over loading the adapter, the device features Dynamic
Power management (DPM), which continuously monitors the input current and input voltage. When input source
is over-loaded, either the current exceeds the input current limit (IIDPM) or the voltage falls below the input
voltage limit (VINDPM). The device then reduces the charge current until the input current falls below the input
current limit and the input voltage rises above the input voltage limit.
When the charge current is reduced to zero, but the input source is still overloaded, the system voltage starts to
drop. Once the system voltage falls below the battery voltage, the device automatically enters the supplement
mode where the BATFET turns on and battery starts discharging so that the system is supported from both the
input source and battery.
图 15 shows the DPM response with 9-V/1.2-A adapter, 3.2-V battery, 2.8-A charge current and 3.5-V minimum
system voltage setting.
Voltage
VBUS
9V
SYS
3.6V
3.4V
3.2V
3.18V
BAT
Current
4A
ICHG
3.2A
2.8A
ISYS
1.2A
1.0A
0.5A
IIN
-0.6A
DPM
DPM
Supplement
图 15. DPM Response
8.3.6.9 Supplement Mode
When the system voltage falls 180 mV (VBAT > VSYSMin) or 45 mV (VBAT < VSYSMin) below the battery
voltage, the BATFET turns on and the BATFET gate is regulated the gate drive of BATFET so that the minimum
BATFET VDS stays at 30 mV when the current is low. This prevents oscillation from entering and exiting the
supplement mode.
As the discharge current increases, the BATFET gate is regulated with a higher voltage to reduce RDSON until
the BATFET is in full conduction. At this point onwards, the BATFET VDS linearly increases with discharge
current. 图 16 shows the V-I curve of the BATFET gate regulation operation. BATFET turns off to exit
supplement mode when the battery is below battery depletion threshold.
22
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
4.5
4
3.5
Current (A)
3
2.5
2
1.5
1
0.5
0
0
5
10
15
20 25 30 35
V(BAT-SYS) (mV)
40
45
50
55
D001
Plot1
图 16. BAFET V-I Curve
8.3.7 Status Outputs (PG, STAT)
8.3.7.1 Power Good indicator (PG Pin)
The PG pin goes LOW to indicate a good input source when:
• VBUS above VVBUS_UVLO
• VBUS above battery (not in sleep)
• VBUS below VVAC_OV threshold
• VBUS above VVBUSMin (typical 3.8 V) when IBADSRC (typical 30 mA) current is applied (not a poor source)
• Completed input Source Type Detection
8.3.7.2 Charging Status indicator (STAT)
The device indicates charging state on the open drain STAT pin. The STAT pin can drive LED.
表 4. STAT Pin State
CHARGING STATE
STAT INDICATOR
Charging in progress (including recharge)
LOW
Charging complete
HIGH
Sleep mode, charge disable
HIGH
Charge suspend (input overvoltage, TS fault, timer fault or system overvoltage)
Boost Mode suspend (due to TS fault)
Blinking at 1 Hz
8.3.8 Protections
8.3.8.1 Input Current Limit
The device's ILIM pin is to program maximum input current when D+/D- detection identifies an unknown adaptor
plugged in. The maximum input current is set by a resistor from ILIM pin to ground as:
K
IINMAX = ILIM
RILIM
(3)
8.3.8.2 Voltage and Current Monitoring in Converter Operation
The device closely monitors the input and system voltage, as well as internal FET currents for safe buck and
boost mode operation.
版权 © 2017, Texas Instruments Incorporated
23
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
8.3.8.2.1 Voltage and Current Monitoring in Buck Mode
8.3.8.2.1.1 Input Overvoltage (ACOV)
If VAC exceeds VVAC_OV, HSFET stops switching immediately.
8.3.8.2.1.2 System Overvoltage Protection (SYSOVP)
The charger device clamps the system voltage during load transient so that the components connect to system
would not be damaged due to high voltage. SYSOVP threshold is 350 mV above minimum system regulation
voltage when the system is regulate at VSYSMIN. Upon SYSOVP, converter stops switching immediately to clamp
the overshoot. The charger provides 30 mA discharge current to bring down the system voltage.
8.3.8.3 Voltage and Current Monitoring in Boost Mode
The device closely monitors the VBUS voltage, as well as RBFET and LSFET current to ensure safe boost mode
operation.
8.3.8.3.1 VBUS Soft Start
When the boost function is enabled, the device soft-starts boost mode to avoid inrush current.
8.3.8.3.2 VBUS Output Protection
The device monitors boost output voltage and other conditions to provide output short circuit and overvoltage
protection. The Boost build in accurate constant current regulation to allow OTG to adaptive to various types of
load. If short circuit is detected on VBUS, the Boost turns off and retry 7 times. If retries are not successful, OTG
is disabled.
8.3.8.3.3 Boost Mode Overvoltage Protection
When the VBUS voltage rises above regulation target and exceeds VOTG_OVP, the device stop switching.
8.3.8.4 Thermal Regulation and Thermal Shutdown
8.3.8.4.1 Thermal Protection in Buck Mode
The bq25606 monitors the internal junction temperature TJ to avoid overheat the chip and limits the IC surface
temperature in buck mode. When the internal junction temperature exceeds thermal regulation limit (110°C), the
device lowers down the charge current. During thermal regulation, the actual charging current is usually below
the programmed battery charging current. Therefore, termination is disabled, the safety timer runs at half the
clock rate.
8.3.8.4.2 Thermal Protection in Boost Mode
The device monitors the internal junction temperature to provide thermal shutdown during boost mode. When IC
junction temperature exceeds TSHUT (160ºC), the boost mode is disabled and BATFET is turned off. When IC
junction temperature is below TSHUT(160ºC) - TSHUT_HYS (30ºC), the BATFET is enabled automatically to allow
system to restore .
8.3.8.5 Battery Protection
8.3.8.5.1 Battery overvoltage Protection (BATOVP)
The battery overvoltage limit is clamped at 4% above the battery regulation voltage. When battery over voltage
occurs, the charger device immediately disables charging.
8.3.8.5.2 Battery Over-Discharge Protection
When battery is discharged below VBAT_DPL_FALL, the BATFET is turned off to protect battery from over discharge.
To recover from over-discharge latch-off, an input source plug-in is required at VBUS. The battery is charged
with ISHORT (typically 100 mA) current when the VBAT < VSHORT, or precharge current as set by 5% of ICHG
when the battery voltage is between VSHORTZ and VBAT_LOWV.
24
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
8.3.8.5.3 System Over-Current Protection
When the system is shorted or significantly overloaded (IBAT > IBATOP) and the current exceeds BATFET
overcurrent limit, the BATFET latches off. The BATFET latch can be reset with VBUS plug-in.
9 Application and Implementation
注
information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application information
A typical application consists of the device configured as a stand-alone power path management device and a
single cell battery charger for Li-Ion and Li-polymer batteries used in a wide range of smart phones and other
portable devices. It integrates an input reverse-block FET (RBFET, Q1), high-side switching FET (HSFET, Q2),
low-side switching FET (LSFET, Q3), and battery FET (BATFET Q4) between the system and battery. The
device also integrates a bootstrap diode for the high-side gate drive.
版权 © 2017, Texas Instruments Incorporated
25
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
9.2 Typical Application Diagram
图 17. Power Path Management Application
Input
3.9 V to 13.5 V
1 H
VBUS
System
3.5 V to 4.6 V
SW
1 F
10 F
47 nF
PMID
BTST
REGN
10 F
ACDRV
4.7 µF
GND
VAC
SYS
SYS
SYS
2.2 k
/PG
2.2 k
STAT
Host
bq25606
BAT
10 F
OTG
450
REGN
ICHG
5.23 k
/CE
TS
+
30.1 k
10 k
D+
USB
D-
ILIM
240
Float: VREG = 4.208 V
Short : VREG = 4.352 V
RPD=10 NŸ: VREG = 4.400 V
VSET
RPD
图 18. bq25606 Application Diagram
9.2.1 Design Requirements
9.2.2 Detailed Design Procedure
9.2.2.1 inductor Selection
The 1.5-MHz switching frequency allows the use of small inductor and capacitor values to maintain an inductor
saturation current higher than the charging current (ICHG) plus half the ripple current (IRIPPLE):
ISAT ≥ ICHG + (1/2) IRIPPLE
(4)
The inductor ripple current depends on the input voltage (VVBUS), the duty cycle (D = VBAT/VVBUS), the switching
frequency (fS) and the inductance (L).
V ´ D ´ (1 - D)
IRIPPLE = IN
fs ´ L
(5)
The maximum inductor ripple current occurs when the duty cycle (D) is 0.5 or approximately 0.5. Usually inductor
ripple is designed in the range between 20% and 40% maximum charging current as a trade-off between
inductor size and efficiency for a practical design.
26
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
Typical Application Diagram (接
接下页)
9.2.2.2 input Capacitor
Design input capacitance to provide enough ripple current rating to absorb input switching ripple current. The
worst case RMS ripple current is half of the charging current when duty cycle is 0.5. If the converter does not
operate at 50% duty cycle, then the worst case capacitor RMS current ICin occurs where the duty cycle is closest
to 50% and can be estimated using 公式 6.
ICIN = ICHG ´ D ´ (1 - D)
(6)
Low ESR ceramic capacitor such as X7R or X5R is preferred for input decoupling capacitor and should be
placed to the drain of the high-side MOSFET and source of the low-side MOSFET as close as possible. Voltage
rating of the capacitor must be higher than normal input voltage level. A rating of 25-V or higher capacitor is
preferred for 15 V input voltage. Capacitance of 22-μF is suggested for typical of 3A charging current.
9.2.2.3 Output Capacitor
Ensure that the output capacitance has enough ripple current rating to absorb the output switching ripple current.
公式 7 shows the output capacitor RMS current ICOUT calculation.
I
ICOUT = RIPPLE » 0.29 ´ IRIPPLE
2´ 3
(7)
The output capacitor voltage ripple can be calculated as follows:
æ
ö
V
V
DVO = OUT2 ç 1 - OUT ÷
VIN ø
8LCfs è
(8)
At certain input and output voltage and switching frequency, the voltage ripple can be reduced by increasing the
output filter LC.
The charger device has internal loop compensation optimized for >20μF ceramic output capacitance. The
preferred ceramic capacitor is 10V rating, X7R or X5R.
版权 © 2017, Texas Instruments Incorporated
27
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
9.3 Application Curves
VVBUS = 5 V
VVBAT = 3.2 V
Figure 19. Power-Up with Charge Disabled
VVBUS = 5 V
ISYS = 50 mA
Charge Disabled
Figure 21. PFM Switching in Buck Mode
28
VVBUS = 5 V
ICHG = 2 A
VVBAT = 3.2 V
Figure 20. Power-Up with Charge Enabled
VVBUS = 9 V
ISYS = 50 mA
Charge Disabled
Figure 22. PFM Switching in Buck Mode
Copyright © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
Application Curves (continued)
VVBUS = 12 V
ISYS = 50 mA
Charge Disabled
VVBUS = 5 V
ICHG = 2 A
Figure 24. PWM Switching in Buck Mode
Figure 23. PFM Switching in Buck Mode
VVBUS = 12 V
ICHG = 2 A
VVBAT = 3.8 V
Figure 25. PWM Switching in Buck mode
Copyright © 2017, Texas Instruments Incorporated
VVBAT = 3.8 V
VVBUS = 5 V
ICHG = 2 A
VVBAT = 3.2 V
Figure 26. Charge Enable
29
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
Application Curves (continued)
VVBUS = 5 V
ICHG = 2 A
VVBAT = 3.2 V
Figure 27. Charge Disable
VVBAT = 4 V
ILOAD= 50 mA
PFM Enabled
Figure 28. OTG Switching
VVBAT = 4 V
ILOAD= 1 A
PFM Enabled
Figure 29. OTG Switching
30
VVBUS = 5 V
ISYS from 0 A to 2 A
VBAT = 3.7 V
IINDPM = 1 A
ICHG = 1 A
Figure 30. System Load Transient
Copyright © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
Application Curves (continued)
VVBUS = 5 V
ISYS from 0 A to 4 A
VBAT = 3.7 V
IINDPM = 2 A
ICHG = 1 A
Figure 31. System Load Transient
VVBUS = 5 V
ISYS from 0 A to 4 A
VBAT = 3.7 V
IINDPM = 1 A
ICHG = 2 A
Figure 33. System Load Transient
版权 © 2017, Texas Instruments Incorporated
VVBUS = 5 V
ISYS from 0 A to 2 A
VBAT = 3.7 V
IINDPM = 1 A
ICHG = 2 A
Figure 32. System Load Transient
VVBUS = 5 V
ISYS from 0 A to 2 A
VBAT = 3.7 V
IINDPM = 2 A
ICHG = 2 A
Figure 34. System Load Transient
31
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
Application Curves (continued)
VVBUS = 5 V
ISYS from 0 A to 4 A
VBAT = 3.7 V
IINDPM = 2 A
ICHG = 2 A
VBAT = 3.8 V
CLOAD = 470 µF
Figure 36. OTG Start-Up
Figure 35. System Load Transient
32
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
10 Power Supply Recommendations
in order to provide an output voltage on SYS, the bq25606 device requires a power supply between 3.9 V and
14.2 V input with at least 100-mA current rating connected to VBUS and a single-cell Li-Ion battery with voltage >
VBATUVLO connected to BAT. The source current rating needs to be at least 3 A in order for the buck converter of
the charger to provide maximum output power to SYS.
版权 © 2017, Texas Instruments Incorporated
33
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
11 Layout
11.1 Layout Guidelines
The switching node rise and fall times should be minimized for minimum switching loss. Proper layout of the
components to minimize high frequency current path loop (see 图 37) is important to prevent electrical and
magnetic field radiation and high frequency resonant problems. Follow this specific order carefully to achieve the
proper layout.
1. Place input capacitor as close as possible to PMID pin and GND pin connections and use shortest copper
trace connection or GND plane.
2. Place inductor input pin to SW pin as close as possible. Minimize the copper area of this trace to lower
electrical and magnetic field radiation but make the trace wide enough to carry the charging current. Do not
use multiple layers in parallel for this connection. Minimize parasitic capacitance from this area to any other
trace or plane.
3. Put output capacitor near to the inductor and the device. Ground connections need to be tied to the IC
ground with a short copper trace connection or GND plane.
4. Route analog ground separately from power ground. Connect analog ground and connect power ground
separately. Connect analog ground and power ground together using thermal pad as the single ground
connection point. Or using a 0-Ω resistor to tie analog ground to power ground.
5. Use single ground connection to tie charger power ground to charger analog ground. Just beneath the
device. Use ground copper pour but avoid power pins to reduce inductive and capacitive noise coupling.
6. Place decoupling capacitors next to the IC pins and make trace connection as short as possible.
7. It is critical that the exposed thermal pad on the backside of the device package be soldered to the PCB
ground. Ensure that there are sufficient thermal vias directly under the IC, connecting to the ground plane on
the other layers.
8. Ensure that the number and sizes of vias allow enough copper for a given current path.
See the EVM user's guide SLUUBL3 for the recommended component placement with trace and via locations.
For the VQFN information, refer to SCBA017 and SLUA271.
11.2 Layout Example
+
+
±
图 37. High Frequency Current Path
34
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
Layout Example (接
接下页)
图 38. Layout Example
版权 © 2017, Texas Instruments Incorporated
35
bq25606
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
www.ti.com.cn
12 器件和文档支持
12.1 文档支持
12.1.1 相关链接
下面的表格列出了快速访问链接。类别包括技术文档、支持与社区资源、工具和软件，以及申请样片或购买产品的
快速链接。
12.2 社区资源
下列链接提供到 TI 社区资源的连接。链接的内容由各个分销商“按照原样”提供。这些内容并不构成 TI 技术规范，
并且不一定反映 TI 的观点；请参阅 TI 的 《使用条款》。
TI E2E™ 在线社区 TI 的工程师对工程师 (E2E) 社区。此社区的创建目的在于促进工程师之间的协作。在
e2e.ti.com 中，您可以咨询问题、分享知识、拓展思路并与同行工程师一道帮助解决问题。
设计支持
TI 参考设计支持 可帮助您快速查找有帮助的 E2E 论坛、设计支持工具以及技术支持的联系信息。
12.3 商标
E2E is a trademark of Texas Instruments.
WEBENCH is a registered trademark of Texas Instruments.
12.4 静电放电警告
这些装置包含有限的内置 ESD 保护。 存储或装卸时，应将导线一起截短或将装置放置于导电泡棉中，以防止 MOS 门极遭受静电损
伤。
12.5 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
36
版权 © 2017, Texas Instruments Incorporated
bq25606
www.ti.com.cn
ZHCSGR3A – MAY 2017 – REVISED AUGUST 2017
13 机械、封装和可订购信息
以下页面包含机械、封装和可订购信息。这些信息是指定器件的最新可用数据。这些数据如有变更，恕不另行通知
和修订此文档。如欲获取此产品说明书的浏览器版本，请参阅左侧的导航。
版权 © 2017, Texas Instruments Incorporated
37
PACKAGE OPTION ADDENDUM
www.ti.com
20-Mar-2019
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
BQ25606RGER
LIFEBUY
VQFN
RGE
24
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 85
BQ25606
BQ25606RGET
ACTIVE
VQFN
RGE
24
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 85
BQ25606
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
