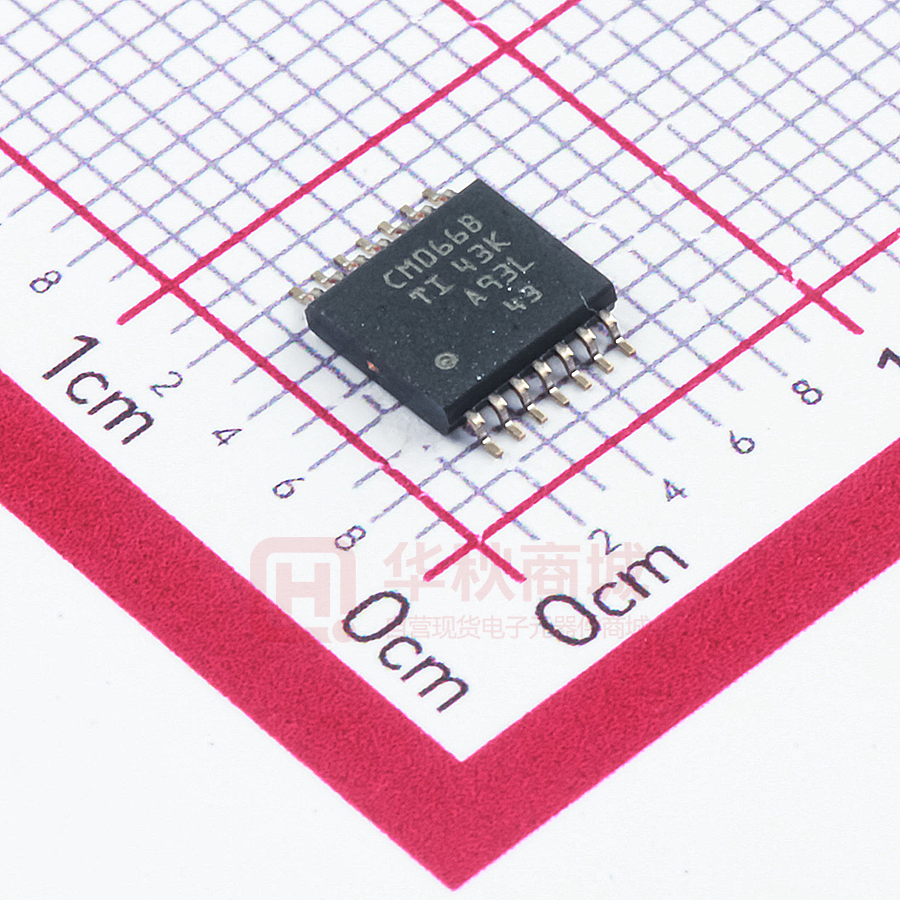

CD4066BPWR

Product Folder Order Now Support & Community Tools & Software Technical Documents CD4066B SCHS051H – NOVEMBER 1998 – REVISED FEBRUARY 2020 CD4066B CMOS Quad Bilateral Switch 1 Features 3 Description • • The CD4066B device is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with the CD4016B device, but exhibits a much lower on-state resistance. In addition, the on-state resistance is relatively constant over the full signalinput range. 1 • • • • • • • • • • • 15-V Digital or ±7.5-V Peak-to-Peak Switching 125-Ω Typical On-State Resistance for 15-V Operation Switch On-State Resistance Matched to Within 5 Ω Over 15-V Signal-Input Range On-State Resistance Flat Over Full Peak-to-Peak Signal Range High On or Off Output-Voltage Ratio: 80 dB Typical at fis = 10 kHz, RL = 1 kΩ High Degree of Linearity:
