CSD25501F3
SLPS692B – OCTOBER 2017 – REVISED OCTOBER 2021
CSD25501F3 –20-V P-Channel FemtoFET™ MOSFET
Product Summary
1 Features
•
•
•
•
•
•
•
TA = 25°C
Low on-resistance
Ultra-low Qg and Qgd
Ultra-small footprint
– 0.7 mm × 0.6 mm
Low profile
– 0.22-mm max height
Integrated ESD protection diode
Lead and halogen free
RoHS compliant
UNIT
VDS
Drain-to-Source Voltage
–20
V
Qg
Gate Charge Total (–4.5 V)
1.02
nC
Qgd
Gate Charge Gate-to-Drain
RDS(on)
Drain-to-Source
On-Resistance
VGS(th)
Threshold Voltage
0.09
nC
VGS = –1.8 V
120
VGS = –2.5 V
86
VGS = –4.5 V
64
–0.75
mΩ
V
Device Information
2 Applications
•
•
•
TYPICAL VALUE
Optimized for load switch applications
Battery applications
Handheld and mobile applications
DEVICE(1)
QTY
CSD25501F3
3000
CSD25501F3T
250
(1)
3 Description
This –20-V, 64-mΩ, P-Channel FemtoFET™ MOSFET
is designed and optimized to minimize the footprint
in many handheld and mobile applications. This
technology is capable of replacing standard small
signal MOSFETs while providing a substantial
reduction in footprint size. The integrated 10-kΩ
clamp resistor (RC) allows the gate voltage (VGS) to
be operated above the maximum internal gate oxide
value of –6 V, depending on duty cycle. The gate
leakage (IGSS) through the diode increases as VGS is
increased above –6 V.
MEDIA
PACKAGE
SHIP
7-Inch Reel
Femto
0.73-mm × 0.64-mm
Land Grid Array (LGA)
Tape
and
Reel
For all available packages, see the orderable addendum at
the end of the data sheet.
Absolute Maximum Ratings
TA = 25°C (unless otherwise stated)
VALUE
UNIT
VDS
Drain-to-Source Voltage
–20
V
VGS
Gate-to-Source Voltage
–20
V
ID
Continuous Drain Current(1)
–3.6
A
IDM
Pulsed Drain Current(1) (2)
–13.6
A
PD
Dissipation(1)
500
mW
Human Body Model (HBM)
4000
Charged Device Model (CDM)
2000
V(ESD)
TJ,
Tstg
(1)
(2)
Power
Operating Junction,
Storage Temperature
–55 to 150
V
°C
Typical RθJA = 255°C/W mounted on FR4 material with
minimum Cu mounting area.
Pulse duration ≤ 100 μs, duty cycle ≤ 1%.
G
RC
RG
0.2 mm
D
S
0.6 mm
0.7 mm
Top View.........

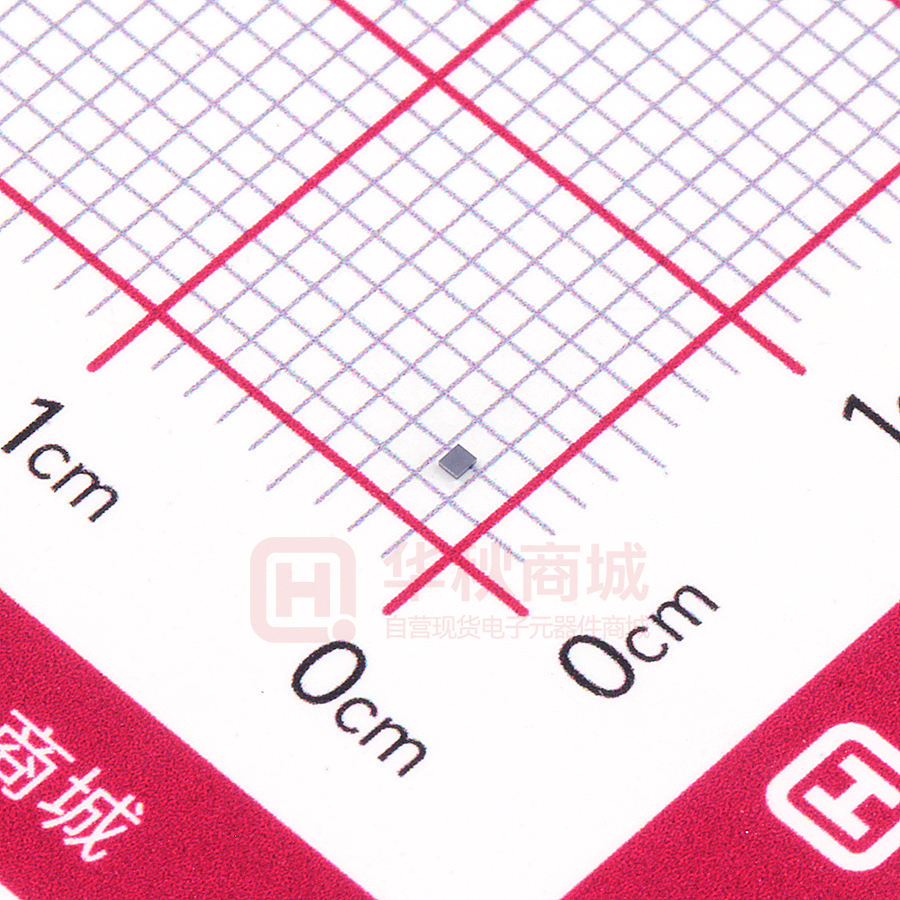

Typical Part Dimensions...............
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
CSD25501F3
www.ti.com
SLPS692B – OCTOBER 2017 – REVISED OCTOBER 2021
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Specifications.................................................................. 3
5.1 Electrical Characteristics.............................................3
5.2 Thermal Information....................................................3
5.3 Typical MOSFET Characteristics................................ 4
6 Device and Documentation Support..............................6
6.1 Receiving Notification of Documentation Updates......6
6.2 Support Resources..................................................... 6
6.3 Trademarks................................................................. 6
6.4 Electrostatic Discharge Caution..................................6
6.5 Glossary......................................................................6
7 Mechanical, Packaging, and Orderable Information.... 7
7.1 Mechanical Dimensions.............................................. 7
7.2 Recommended Minimum PCB Layout........................8
7.3 Recommended Stencil Pattern................................... 8
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (January 2018) to Revision B (October 2021)
Page
• Added footnote with link to support document....................................................................................................8
Changes from Revision * (October 2017) to Revision A (January 2018)
Page
• Added mechanical dimension information and Table 7-1 .................................................................................. 7
2
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: CSD25501F3
CSD25501F3
www.ti.com
SLPS692B – OCTOBER 2017 – REVISED OCTOBER 2021
5 Specifications
5.1 Electrical Characteristics
TA = 25°C (unless otherwise stated)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
nA
STATIC CHARACTERISTICS
BVDSS
Drain-to-source voltage
VGS = 0 V, IDS = –250 μA
IDSS
Drain-to-source leakage current
VGS = 0 V, VDS = –16 V
–50
IGSS
Gate-to-source leakage current
VDS = 0 V, VGS = –6 V
–50
nA
VDS = 0 V, VGS = –16 V
–1
mA
VGS(th)
Gate-to-source threshold voltage
RDS(on)
gfs
Drain-to-source on-resistance
Transconductance
VDS = VGS, IDS = –250 μA
–20
–0.45
V
–0.75
–1.05
VGS = –1.8 V, IDS = –0.1 A
120
260
VGS = –2.5 V, IDS = –0.4 A
86
125
VGS = –4.5 V, IDS = –0.4 A
64
76
VDS = –2 V, IDS = –0.4 A
3.4
V
mΩ
S
DYNAMIC CHARACTERISTICS
Ciss
Input capacitance
295
Coss
Output capacitance
Crss
Reverse transfer capacitance
RG
Series gate resistance
RC
Series clamp resistance
Qg
Gate charge total (–4.5 V)
1.02
Qgd
Gate charge gate-to-drain
0.09
nC
Qgs
Gate charge gate-to-source
0.45
nC
Qg(th)
Gate charge at Vth
0.36
nC
Qoss
Output charge
td(on)
Turnon delay time
tr
Rise time
td(off)
Turnoff delay time
tf
Fall time
VGS = 0 V, VDS = –10 V,
ƒ = 100 kHz
VDS = –10 V, IDS = –0.4 A
VDS = –10 V, VGS = 0 V
VDS = –10 V, VGS = –4.5 V,
IDS = –0.4 A, RG = 0 Ω
385
pF
70
91
pF
4.1
5.3
pF
33
Ω
10,000
Ω
1.33
nC
1.8
nC
474
ns
428
ns
1154
ns
945
ns
DIODE CHARACTERISTICS
VSD
Diode forward voltage
Qrr
Reverse recovery charge
trr
Reverse recovery time
ISD = –0.4 A, VGS = 0 V
VDS = –10 V, IF = –0.4 A, di/dt = 200 A/μs
–0.73
–0.95
V
3.0
nC
7.4
ns
5.2 Thermal Information
TA = 25°C (unless otherwise stated)
THERMAL METRIC
RθJA
(1)
(2)
TYPICAL VALUES
UNIT
Junction-to-ambient thermal resistance(1)
90
°C/W
Junction-to-ambient thermal resistance(2)
255
°C/W
Device mounted on FR4 material with 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu.
Device mounted on FR4 material with minimum Cu mounting area.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: CSD25501F3
3
CSD25501F3
www.ti.com
SLPS692B – OCTOBER 2017 – REVISED OCTOBER 2021
5.3 Typical MOSFET Characteristics
TA = 25°C (unless otherwise stated)
-IDS - Drain-to-Source Current (A)
12
Figure 5-1. Transient Thermal Impedance
VGS = -1.8 V
VGS = -2.5 V
VGS = -4.5 V
10
8
6
4
2
0
0
0.2
0.4 0.6 0.8
1
1.2 1.4 1.6
-VDS - Drain-to-Source Voltage (V)
1.8
2
D002
Figure 5-2. Saturation Characteristics
-IDS - Drain-To-Source Current (A)
12
TC = 125° C
TC = 25° C
TC = -55° C
10
8
6
4
2
0
0
0.5
1
1.5
2
2.5
-VGS - Gate-To-Source Voltage (V)
3
D003
VDS = –5 V
Figure 5-3. Transfer Characteristics
1000
Measured At External Gate Pin
Charge At Internal Gate Node
8
7
C - Capacitance (pF)
-VGS - Gate-to-Source Voltage (V)
9
6
5
4
3
100
10
2
Ciss = Cgd + Cgs
Coss = Cds + Cgd
Crss = Cgd
1
1
0
0
0.25
0.5
0.75
1
Qg - Gate Charge (nC)
ID = –0.4 A
1.25
1.5
0
2
D004
VDS = –10 V
4
6
8
10
12
14
16
-VDS - Drain-to-Source Voltage (V)
18
20
D005
Figure 5-5. Capacitance
Figure 5-4. Gate Charge
4
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: CSD25501F3
CSD25501F3
www.ti.com
SLPS692B – OCTOBER 2017 – REVISED OCTOBER 2021
5.3 Typical MOSFET Characteristics (continued)
TA = 25°C (unless otherwise stated)
180
RDS(on) - On-State Resistance (m:)
-VGS(th) - Threshold Voltage (V)
1.05
0.95
0.85
0.75
0.65
0.55
0.45
0.35
-75
-50
-25
0
25
50
75 100
TC - Case Temperature (qC)
125
150
TC = 25° C, ID = -0.4 A
TC = 125° C, ID = -0.4 A
150
120
90
60
30
0
175
1
1.5
D006
ID = –250 µA
2
2.5
3
3.5
4
4.5
5
-VGS - Gate-To-Source Voltage (V)
5.5
6
D007
Figure 5-7. On-State Resistance vs Gate-to-Source Voltage
Figure 5-6. Threshold Voltage vs Temperature
10
VGS = -1.8 V
VGS = -2.5 V
VGS = -4.5 V
1.4
-ISD - Source-To-Drain Current (A)
Normalized On-State Resistance
1.5
1.3
1.2
1.1
1
0.9
TC = 25qC
TC = 125qC
1
0.1
0.01
0.001
0.8
0.0001
0.7
-75
0
-50
-25
0
25
50
75 100
TC - Case Temperature (qC)
125
150
0.2
0.4
0.6
0.8
-VSD - Source-To-Drain Voltage (V)
175
1
D009
Figure 5-9. Typical Diode Forward Voltage
D008
ID = –0.4 A
Figure 5-8. Normalized On-State Resistance vs Temperature
5.0
-IDS - Drain-to-Source Current (A)
-IDS - Drain-To-Source Current (A)
100
10
1
100 ms
10 ms
0.1
0.1
1 ms
100 µs
1
10
-VDS - Drain-To-Source Voltage (V)
100
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-50
-25
D010
Single pulse, typical RθJA = 255°C/W
Figure 5-10. Maximum Safe Operating Area
0
25
50
75
100 125
TA - Ambient Temperature (qC)
150
175
D011
Typical RθJA = 90°C/W
Figure 5-11. Maximum Drain Current vs Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: CSD25501F3
5
CSD25501F3
www.ti.com
SLPS692B – OCTOBER 2017 – REVISED OCTOBER 2021
6 Device and Documentation Support
6.1 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. Click on
Subscribe to updates to register and receive a weekly digest of any product information that has changed. For
change details, review the revision history included in any revised document.
6.2 Support Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
6.3 Trademarks
FemtoFET™ and TI E2E™ are trademarks of Texas Instruments.
All trademarks are the property of their respective owners.
6.4 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled
with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric changes could cause the device not to meet its published
specifications.
6.5 Glossary
TI Glossary
6
This glossary lists and explains terms, acronyms, and definitions.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: CSD25501F3
CSD25501F3
www.ti.com
SLPS692B – OCTOBER 2017 – REVISED OCTOBER 2021
7 Mechanical, Packaging, and Orderable InformationPACKAGE OUTLINE
PicoStar
0.22 mm max
height
TheYJN0003A
following pages include mechanical, packaging, and
orderable- information.
This
information is the most
TM
current data available for the designated devices. This data is subject to change without
PicoStarnotice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
TM
7.1 Mechanical Dimensions
0.73
0.65
A
B
PIN 1 INDEX AREA
0.64
0.56
C
0.22 MAX
SEATING PLANE
0.4
0.225
2
3
0.175
0.51
0.49
0.35
1
0.16
0.14
C B A
2X
0.015
2X
0.16
0.14
0.015
0.26
0.24
C A B
4223685/A 05/2017
PicoStar
is a trademark
of Texas Instruments.
for
reference
only. Dimensioning
and
A. NOTES:
All linear dimensions are in millimeters. Any dimensions in parenthesis are
1. Y14.5M.
All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
tolerancing per ASME
per ASME
Y14.5M
B. This
drawing
is subject to change without notice.
2. This drawing is subject to change without notice.
This package
is a
bumpbump
design.
Bump finish
mayfinish
vary. may
To determine
exact finish,the
refer
to thefinish,
devicerefer
datasheet
C. 3. This
package
isPb-free
a Pb-free
design.
Bump
vary. Tothedetermine
exact
to the device data sheet or contact a
or contact a local TI representative.
local TI representative.
Table 7-1. Pin
Configuration
POSITION
DESIGNATION
Pin 1
Gate
Pin 2
Source
Pin 3
Drain
www.ti.com
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: CSD25501F3
7
CSD25501F3
www.ti.com
SLPS692B – OCTOBER 2017 – REVISED OCTOBER 2021
7.2 Recommended Minimum PCB Layout
(0.15)
2X (0.25)
2X (0.15)
0.05 MIN
ALL AROUND
TYP
1
3
SYMM
(0.35)
(0.5)
EXAMPLE STENCIL DESIGN
2
YJM0003A
(R0.05) TYP
SOLDER MASK TM
PicoStar
OPENING
TYP
PKG
METAL UNDER
SOLDER MASK
TYP
(0.175)
- 0.35 mm max height
PicoStar TM
(0.4)
A.
B.
All dimensions are in millimeters.
LAND PATTERN EXAMPLE
SOLDER
MASK DEFINED
For more information, see FemtoFET Surface Mount
Guide (SLRA003D).
SCALE:50X
7.3 Recommended Stencil Pattern
2X (0.25)
2X (0.2)
(0.15)
1
3
SYMM
(0.4)
2X (0.15)
(0.5)
2
PKG
(R0.05) TYP
2X SOLDER MASK EDGE
(0.175)
(0.4)
A.
4222304/A 09/2015
All dimensions are in millimeters.
NOTES: (continued)
SOLDER PASTE EXAMPLE
ON 0.075 - 0.1 mm THICK STENCIL
4. For more information, see Texas Instruments literature number SLUA271
(www.ti.com/lit/slua271).
SCALE:50X
www.ti.com
8
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: CSD25501F3
PACKAGE OPTION ADDENDUM
www.ti.com
8-Sep-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
CSD25501F3
ACTIVE
PICOSTAR
YJN
3
3000
RoHS & Green
Call TI
Level-1-260C-UNLIM
-55 to 150
V
CSD25501F3T
ACTIVE
PICOSTAR
YJN
3
250
RoHS & Green
Call TI
Level-1-260C-UNLIM
-55 to 150
V
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
