DRV10983, DRV10983Z
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
DRV1098312V 至 24V 三相无传感器 BLDC 电机驱动器
1 特性
•
•
•
•
•
•
•
1
•
•
•
•
•
•
•
•
•
•
2 应用
输入电压范围：8 至 28V
总驱动器 H + L rDS(on)：250mΩ
驱动电流：2A 持续绕组电流（峰值 3A）
无传感器专有反电动势 (BEMF) 控制方案
连续正弦 180° 换向
无需外部感测电阻
用户可通过添加外部感应电阻以灵活监视为电机提
供的功率
灵活的用户接口选项：
– I2C 接口：访问命令和反馈寄存器
– 专用的 SPEED 引脚：接受模拟或 PWM 输入
– 专用的 FG 引脚：提供 TACH 反馈
– 可通过 EEPROM 定制旋转曲线
– 使用 DIR 引脚进行正向/反向控制
集成了降压稳压器，可高效地为内部和外部电路提
供电压 (5V 或 3.3V)
电源电流为 3mA 待机型号 (DRV10983)
电源电流为 180 μA 睡眠型号 (DRV10983Z)
过流保护
锁定检测
电压浪涌保护
欠压闭锁 (UVLO) 保护
热关断保护
耐热增强型 24 引脚散热薄型小外形尺寸
(HTSSOP)
•
•
设备风扇
制热、通风与空调控制 (HVAC)
3 说明
DRV10983 器件是一款具有集成功率 MOSFET 的三相
无传感器电机驱动器，可提供高达 2A 的持续驱动电
流。该器件专为成本敏感型、低噪声、低外部组件数量
应用而设计低功耗是一个关键问题。
DRV10983 器件采用专有无传感器控制方案来提供持
续正弦驱动，可大幅降低换向过程中通常会产生的纯
音。该器件的接口设计简单而灵活。可直接通过
PWM、模拟、或 I2C 输入控制电机。可通过 FG 引脚
或 I2C 提供电机速度反馈。
DRV10983器件 安全功能包括 一个集成降压稳压器，
可高效地将电源电压降至 5V 或 3.3V，从而为内外部
电路供电。该器件提供睡眠模式和待机模式两种型号，
可在电机停止运转时实现节能。待机模式 (3mA) 型号
会使稳压器保持运行，而休眠模式 (180μA) 型号会使
稳压器停止工作。在使用稳压器 为外部 微控制器供电
的应用中使用待机模式型号。
器件信息(1)
器件型号
封装
DRV10983
封装尺寸（标称值）
散热薄型小外形尺寸
7.80mm × 6.40mm
封装 (HTSSOP) (24)
DRV10983Z
(1) 要了解所有可用封装，请参阅数据表末尾的可订购产品附录。
应用电路原理图
VCC
10 µF
0.1 µF
0.1 µF
10 µF
3.3 V/5 V
47 µH
1 µF
1 µF
Interface to
Microcontroller
1
VCP
VCC 24
2
CPP
VCC 23
3
CPN
W 22
4
SW
W 21
5
SWGND
V 20
6
VREG
V 19
7
V1P8
U 18
8
GND
U 17
9
V3P3
PGND 16
10
SCL
PGND 15
11
SDA
12
FG
M
DIR 14
SPEED 13
Copyright © 2016, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
English Data Sheet: SLVSCP6
DRV10983, DRV10983Z
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
www.ti.com.cn
目录
1
2
3
4
5
6
7
特性 ..........................................................................
应用 ..........................................................................
说明 ..........................................................................
修订历史记录 ...........................................................
说明 （续） ..............................................................
Pin Configuration and Functions .........................
Specifications.........................................................
7.1
7.2
7.3
7.4
7.5
7.6
8
1
1
1
2
4
4
5
Absolute Maximum Ratings ...................................... 5
ESD Ratings.............................................................. 5
Recommended Operating Conditions....................... 6
Thermal Information .................................................. 6
Electrical Characteristics........................................... 7
Typical Characteristics ............................................ 10
Detailed Description ............................................ 11
8.1
8.2
8.3
8.4
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
11
12
13
16
8.5 Register Maps ......................................................... 41
9
Application and Implementation ........................ 47
9.1 Application Information............................................ 47
9.2 Typical Application .................................................. 47
10 Power Supply Recommendations ..................... 49
11 Layout................................................................... 49
11.1 Layout Guidelines ................................................. 49
11.2 Layout Example .................................................... 50
12 器件和文档支持 ..................................................... 51
12.1
12.2
12.3
12.4
12.5
12.6
12.7
器件支持 ...............................................................
文档支持................................................................
商标 .......................................................................
静电放电警告.........................................................
接收文档更新通知 .................................................
社区资源................................................................
Glossary ................................................................
51
51
51
51
51
51
51
13 机械、封装和可订购信息 ....................................... 51
4 修订历史记录
注：之前版本的页码可能与当前版本有所不同。
Changes from Revision F (December 2017) to Revision G
Page
•
Added timing information for entering and exiting sleep mode and standby mode ............................................................... 8
•
Added BEMF COMPARATOR hysteresis specification ......................................................................................................... 9
•
Updated Start the Motor Under Different Initial Conditions figure ........................................................................................ 20
•
Changed the default value for register address 0x27 from 0xFC to 0xF4 in the Default EEPROM Value table ................. 42
•
Deleted the "TI recommends..." sentence from the description for address 0x27, bit 3 ...................................................... 45
•
已添加 constraints to recommended external inductor......................................................................................................... 48
Changes from Revision E (May 2017) to Revision F
Page
•
Added the internal SPEED pin pulldown resistance to ground parameter to the Electrical Characteristics table ................. 8
•
Changed the Step-Down Regulator section ......................................................................................................................... 13
•
Updated the Motor Phase Resistance section ..................................................................................................................... 16
•
已删除 the Inductive AVS Function section.......................................................................................................................... 36
•
Changed the default value for register address 0x29 from 0xB7 to 0xB9 in the Default EEPROM Value table ................. 42
•
已添加 application information for the sleep mode device .................................................................................................. 47
Changes from Revision D (May 2017) to Revision E
•
Page
Changed pin numbering in the Pin Functions table .............................................................................................................. 4
Changes from Revision C (May 2016) to Revision D
Page
•
在数据表标题和器件信息表中添加了 DRV10983Z 器件型号 .................................................................................................. 1
•
Added DRV10983Z part number ............................................................................................................................................ 6
•
Corrected the link to the DRV10983 and DRV10975 Tuning Guide .................................................................................... 16
•
Added text to the PWM Output section ................................................................................................................................ 36
2
版权 © 2014–2018, Texas Instruments Incorporated
DRV10983, DRV10983Z
www.ti.com.cn
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
•
Changed 图 37 ..................................................................................................................................................................... 37
•
Changed "FGOLSet[1:0]" to "FGOLsel[1:0]" in Register Map address 0x2B....................................................................... 41
•
Added recommended minimum dead time to SysOpt7 register........................................................................................... 46
•
Added External Components table ...................................................................................................................................... 48
•
Changed the link to the DRV10983 and DRV10975 Tuning Guide ..................................................................................... 48
•
Changed the layout example................................................................................................................................................ 50
Changes from Revision B (February 2015) to Revision C
Page
•
Added "phase to phase" clarification for overcurrent protection............................................................................................. 9
•
Added more accurate description to clarify overcurrent protection operation ...................................................................... 14
Changes from Revision A (October 2014) to Revision B
•
Page
更新了数据表以包含 DRV10983Z 睡眠型号 ........................................................................................................................... 1
Changes from Original (July 2014) to Revision A
Page
•
更新了输入电压范围：8V 至 28V ........................................................................................................................................... 1
•
删除了 DRV10983Z 睡眠型号部分并更新了待机模式电源电流 .............................................................................................. 1
•
Updated pin information for SW, SWGND, VREG, SDA, FG, and VCC pins ........................................................................ 4
•
Added DIR, SW, and VREG pins to Absolute Maximum Ratings ......................................................................................... 5
•
Updated max supply voltage and voltage range ratings for VCC and U, V, W in Recommended Operating Conditions ..... 5
•
changed Functional Block Diagram ..................................................................................................................................... 12
•
Changed "hardware current limit" to "lock detection current limit" and "software current" to "acceleration current
limit" throughout data sheet .................................................................................................................................................. 14
•
Updated max value for open to closed loop threshold ........................................................................................................ 26
•
Corrected description to "velocity constant of the motor" for 公式 2 ................................................................................... 26
•
Corrected register name in Start-Up Current Setting .......................................................................................................... 26
•
Updated 公式 3 .................................................................................................................................................................... 26
•
Updated 图 20 ..................................................................................................................................................................... 27
•
Updated caption name for 图 24 ......................................................................................................................................... 29
•
Corrected max speed command setting for SpdCtrl[8:0] .................................................................................................... 29
•
Updated register description for status register. .................................................................................................................. 41
•
Updated the data in the examples for MotorSpeed1 and MotorPeriod1 ............................................................................. 42
•
Updated IPDPosition description in Register Map .............................................................................................................. 43
•
Increased max motor voltage for Recommended Application Range ................................................................................. 48
•
Updated graph callout for 图 41 .......................................................................................................................................... 49
版权 © 2014–2018, Texas Instruments Incorporated
3
DRV10983, DRV10983Z
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
www.ti.com.cn
5 说明 （续）
用户可通过 I2C 接口对寄存器中的特定电机参数进行重新编程并可对 EEPROM 进行编程，以帮助优化既定应用的
性能。DRV10983 器件采用带有外露散热焊盘的高效散热型 HTSSOP 24 引脚封装。额定工作温度为 –40°C 至
125°C。
6 Pin Configuration and Functions

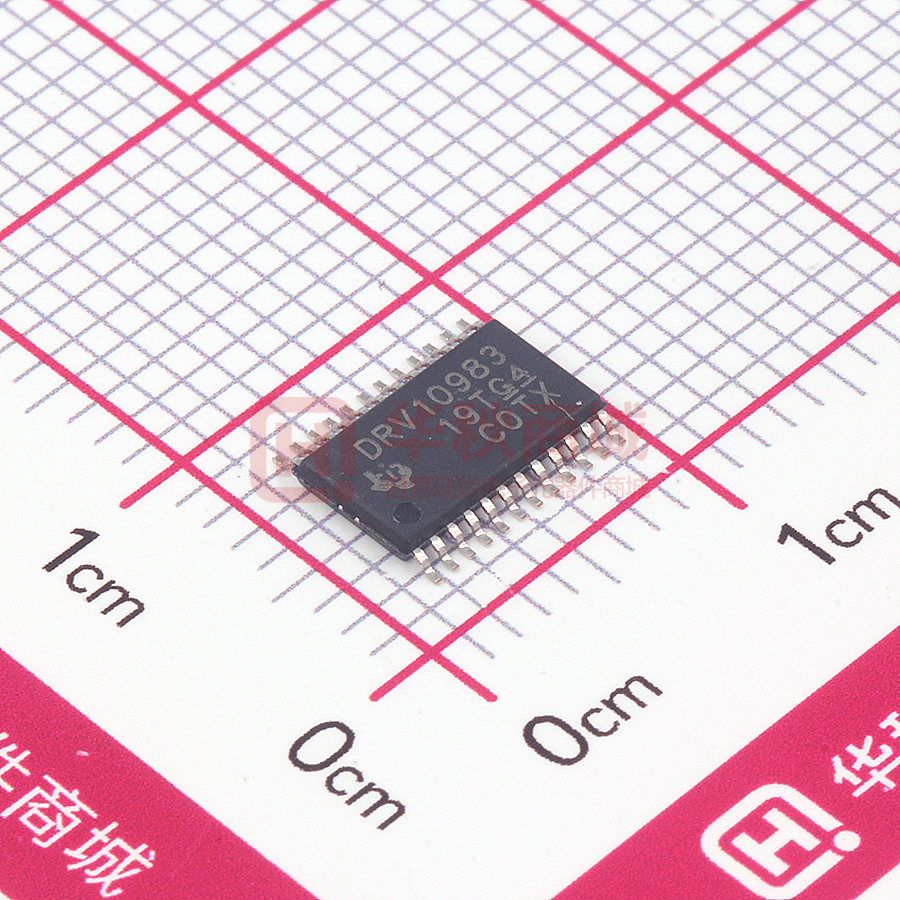

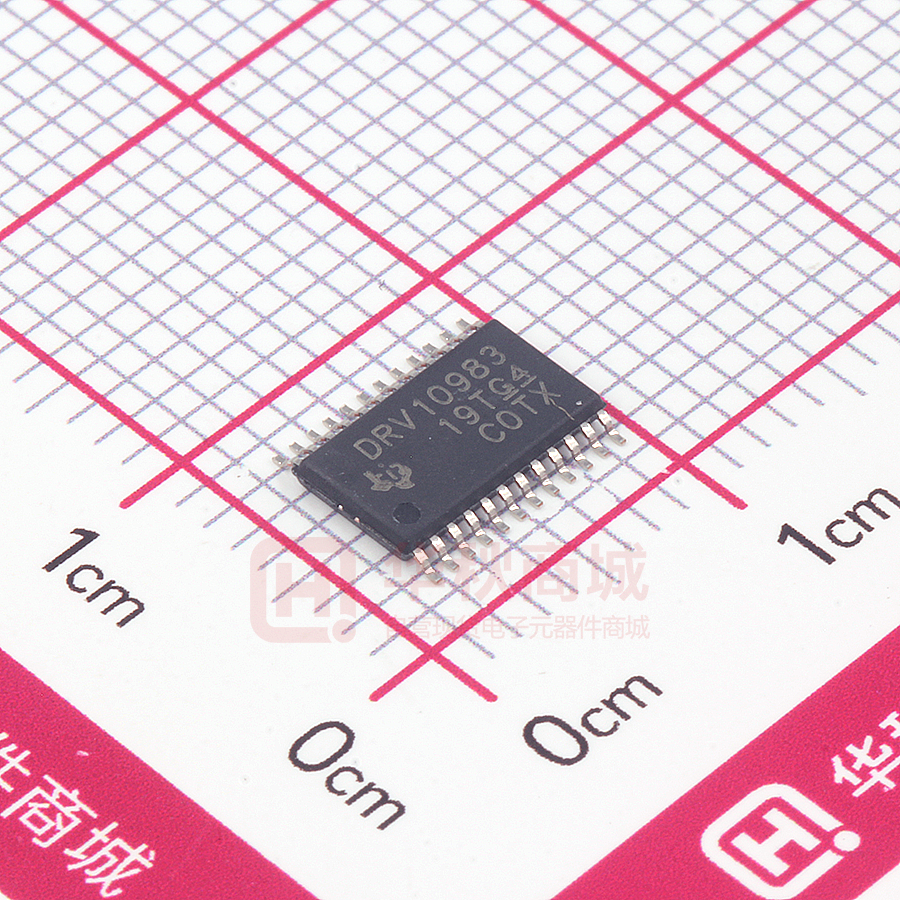

PWP PowerPAD™ Package
24-Pin HTSSOP
Top View
VCP
1
24
VCC
CPP
2
23
VCC
CPN
3
22
W
SW
4
21
W
SWGND
5
20
V
VREG
6
19
V
Thermal pad (GND)
V1P8
7
18
U
GND
8
17
U
V3P3
9
16
PGND
SCL
10
15
PGND
SDA
11
14
DIR
FG
12
13
SPEED
Not to scale
Pin Functions
PIN
NAME
NO.
TYPE (1)
DESCRIPTION
VCP
1
P
Charge pump output.
CPN
3
P
Charge pump pin 1, use a ceramic capacitor between CPN and CPP.
CPP
2
P
Charge pump pin 2, use a ceramic capacitor between CPN and CPP.
DIR
14
I
Direction
FG
12
O
FG signal output.
GND
8
—
Digital and analog ground
15, 16
—
Power ground
SCL
10
I
I2C clock signal
SDA
11
I/O
I2C data signal
SPEED
13
I
Speed control signal for PWM or analog input speed command
SW
4
O
Step-down regulator switching node output
SWGND
5
P
Step-down regulator ground
U
17, 18
O
Motor U phase
V
19, 20
O
Motor V phase
PGND
(1)
4
I = input, O = output, I/O = input/output, P = power
Copyright © 2014–2018, Texas Instruments Incorporated
DRV10983, DRV10983Z
www.ti.com.cn
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
Pin Functions (continued)
PIN
NAME
TYPE (1)
NO.
DESCRIPTION
V1P8
7
P
Internal 1.8-V digital core voltage. V1P8 capacitor must connect to GND. This is an output, but not
specified to drive external loads.
V3P3
9
P
Internal 3.3-V supply voltage. V3P3 capacitor must connect to GND. This is an output and may drive
external loads not to exceed IV3P3_MAX.
23, 24
P
Device power supply
6
P
Step-down regulator output and feedback point
21, 22
O
Motor W phase
—
—
The exposed thermal pad must be electrically connected to ground plane through soldering to PCB
for proper operation and connected to bottom side of PCB through vias for better thermal spreading.
VCC
VREG
W
thermal pad
(GND)
7 Specifications
7.1 Absolute Maximum Ratings
over operating ambient temperature (unless otherwise noted) (1)
Input voltage (2)
MIN
MAX
VCC
–0.3
30
SPEED
–0.3
4
GND
–0.3
0.3
SCL, SDA
–0.3
4
DIR
–0.3
4
–1
30
U, V, W
SW
Output voltage
(2)
–1
30
VREG
–0.3
7
FG
–0.3
4
VCP
–0.3
V(VCC) + 6
CPN
–0.3
30
CPP
–0.3
V(VCC) + 6
V3P3
–0.3
4
V1P8
UNIT
V
V
–0.3
2.5
Maximum junction temperature, TJ_MAX
–40
150
°C
Storage temperature, Tstg
–55
150
°C
(1)
(2)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values are with respect to the network ground terminal unless otherwise noted.
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic
discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins
(1)
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins (2)
±2500
±1500
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Copyright © 2014–2018, Texas Instruments Incorporated
5
DRV10983, DRV10983Z
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
www.ti.com.cn
7.3 Recommended Operating Conditions
over operating ambient temperature range (unless otherwise noted)
Supply voltage
Voltage
VCC
MIN
NOM
MAX
8
24
28
U, V, W
–0.7
SCL, SDA, FG, SPEED, DIR
–0.1
PGND, GND
–0.1
3.3
3.6
V
0.1
100
Step-down regulator output current (linear mode)
0
V3P3 LDO output current
5
Operating junction temperature, TJ
V
29
Step-down regulator output current (buck mode)
Current
UNIT
–40
125
mA
°C
7.4 Thermal Information
DRV10983, DRV10983Z
THERMAL METRIC (1)
PWP (HTSSOP)
UNIT
24 PINS
RθJA
Junction-to-ambient thermal resistance
36.1
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
17.4
°C/W
RθJB
Junction-to-board thermal resistance
14.8
°C/W
ψJT
Junction-to-top characterization parameter
0.4
°C/W
ψJB
Junction-to-board characterization parameter
14.5
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
1.1
°C/W
(1)
6
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Copyright © 2014–2018, Texas Instruments Incorporated
DRV10983, DRV10983Z
www.ti.com.cn
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
7.5 Electrical Characteristics
over operating ambient temperature range (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
TA = 25°C; sleepDis = 1; SPEED = 0 V;
V(VCC) = 24 V; buck regulator
3.5
5
TA = 25°C; sleepDis = 1; SPEED = 0 V;
V(VCC) = 24 V; linear regulator
11
TA = 25°C; SPEED = 0 V; V(VCC) = 24 V;
standby mode device; buck regulator
3
TA = 25°C; SPEED = 0 V; V(VCC) = 24 V;
standby mode device; linear regulator
9
UNIT
SUPPLY CURRENT (DRV10983)
IVcc
IVccSTBY
Supply current
Standby current
mA
4
mA
SUPPLY CURRENT (DRV10983Z)
TA = 25°C; sleepDis = 1; SPEED = 0 V;
V(VCC) = 24 V; buck regulator
3.5
TA = 25°C; sleepDis = 1; SPEED = 0 V;
V(VCC) = 24 V; linear regulator
11
Sleep current
TA = 25°C; SPEED = 0 V; V(VCC) = 24 V;
sleep mode device; buck regulator
160
200
µA
VUVLO_R
UVLO threshold voltage
Rise threshold, TA = 25°C
7
7.4
8
V
VUVLO_F
UVLO threshold voltage
Fall threshold, TA = 25°C
6.7
7.1
7.5
V
VUVLO_HYS
UVLO threshold voltage
hysteresis
TA = 25°C
200
300
400
mV
V(VCC) = 24 V, TA = 25°C, VregSel = 0,
5-mA load
3
3.3
3.6
V(VCC) = 24 V, TA = 25°C, VregSel = 1,
V(VREG) < 3.3 V, 5-mA load
V(VREG) – 0.3
V(VREG) – 0.1
V(VREG)
V(VCC) = 24 V, TA = 25°C, VregSel = 1,
V(VREG) ≥ 3.3 V, 5-mA load
3
3.3
3.6
IVcc
IVccSLEEP
Supply current
5
mA
UVLO
LDO OUTPUT
V3P3
IV3P3_MAX
Maximum load from V3P3
V1P8
V(VCC) = 24 V, TA = 25°C
5
V
mA
V(VCC) = 24 V, TA = 25°C, VregSel = 0
1.6
1.78
2
V(VCC) = 24 V, TA = 25°C, VregSel = 1
1.6
1.78
2
TA = 25˚C; VregSel = 0, LSW = 47 µH,
CSW = 10 µF, Iload = 50 mA
4.5
5
5.5
TA = 25˚C; VregSel = 1, LSW = 47 µH,
CSW = 10 µF, Iload = 50 mA
3.06
3.4
3.6
V
STEP-DOWN REGULATOR
VREG
VREG_L
IREG_MAX
Regulator output voltage
Regulator output voltage
(linear mode)
Maximum load from VREG
V
TA = 25°C, VregSel = 0, RSW = 39 Ω,
CSW = 10 µF
5
TA = 25°C, VregSel = 1, RSW = 39 Ω,
CSW = 10 µF
3.4
TA = 25°C, LSW = 47 µH, CSW = 10 µF
100
TA = 25˚C; V(VCC) = 24 V; V(VCP) = 29 V;
Iout = 1 A
0.25
TA = 85˚C; V(VCC) = 24 V; V(VCP) = 29 V;
Iout = 1 A
0.325
V
mA
INTEGRATED MOSFET
rDS(on)
Series resistance (H + L)
0.4
Ω
SPEED – ANALOG MODE
VAN/A_FS
Analog full speed voltage
VAN/A_ZS
Analog zero speed voltage
V(V3P3) × 0.9
100
mV
V
tSAM
Analog speed sample period
320
µs
VAN/A_RES
Analog voltage resolution
5.8
mV
SPEED – PWM DIGITAL MODE
Copyright © 2014–2018, Texas Instruments Incorporated
7
DRV10983, DRV10983Z
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
www.ti.com.cn
Electrical Characteristics (continued)
over operating ambient temperature range (unless otherwise noted)
PARAMETER
VDIG_IH
PWM input high voltage
VDIG_IL
PWM input low voltage
ƒPWM
PWM input frequency
TEST CONDITIONS
MIN
TYP
MAX
2.2
UNIT
V
1
0.6
V
100
kHz
STANDBY MODE (DRV10983)
VEN_SB
Analog voltage-to-enter
standby mode
SpdCtrlMd = 0 (analog mode)
VEX_SB
Analog voltage-to-exit
standby
SpdCtrlMd = 0 (analog mode)
120
mV
tEX_SB_ANA
Time-to-exit from standby
mode
SpdCtrlMd = 0 (analog mode)
SPEED > VEX_SB
700
ms
tEX_SB_DR_
Time taken to drive motor
after exiting from standby
mode
SpdCtrlMd = 0 (analog mode)
SPEED > VEX_SL; ISDen = 0;
BrkDoneThr[2:0] = 0
1
µs
Time-to-exit from standby
mode
SpdCtrlMd = 1 (PWM mode)
SPEED > VDIG_IH
1
µs
Time taken to drive motor
after exiting from standby
mode
SpdCtrlMd = 1 (PWM mode)
SPEED > VDIG_IH; ISDen = 0; BrkDoneThr[2:0] =
55
ms
SpdCtrlMd = 0 (analog mode)
SPEED < VEN_SL; AvSIndEn = 0
5
ms
SpdCtrlMd = 1 (PMW mode)
SPEED < VDIG_IL; AvSIndEn = 0
60
ms
ANA
tEX_SB_PW
M
tEX_SB_DR_
PWM
tEN_SB_ANA Time-to-enter sleep mode
tEN_SB_PW
Time-to-enter sleep mode
M
30
mV
0
SLEEP MODE (DRV10983Z)
VEN_SL
Analog voltage-to-enter sleep SpdCtrlMd = 0 (analog mode)
30
VEX_SL
Analog voltage-to-exit sleep
SpdCtrlMd = 0 (analog mode)
2.2
tEX_SL_ANA
Time-to-exit from sleep mode
SpdCtrlMd = 0 (analog mode)
SPEED > VEX_SL
tEX_SL_DR_
Time taken to drive motor
SpdCtrlMd = 0 (analog mode)
after exiting from sleep mode SPEED > VEX_SL; ISDen = 0;
BrkDoneThr[2:0] = 0
ANA
tEX_SL_PWM Time-to-exit from sleep mode
SpdCtrlMd = 1 (PWM mode)
SPEED > VDIG_IH
mV
3.3
V
1
µs
350
µs
1
µs
350
ms
PWM
SpdCtrlMd = 1 (PWM mode)
Time taken to drive motor
SPEED > VDIG_IH; ISDen = 0; BrkDoneThr[2:0] =
after exiting from sleep mode
tEN_SL_ANA
Time-to-enter sleep mode
SpdCtrlMd = 0 (analog mode)
SPEED < VEN_SL; AvSIndEn = 0
5.2
ms
tEN_SL_PWM Time-to-enter sleep mode
SpdCtrlMd = 1 (PMW mode)
SPEED < VDIG_IL; AvSIndEn = 0
58
ms
tEX_SL_DR_
0
RPD_SPEED Internal SPEED pin pulldown
VSPEED = 0 (sleep mode)
resistance to ground
_SL
55
kΩ
2.2
V
DIGITAL I/O (DIR INPUT AND FG OUTPUT)
VDIR_H
Input high
VDIR_L
Input low
IFG_SINK
Output sink current
0.6
Vout = 0.3 V
5
V
mA
I2C SERIAL INTERFACE
VI2C_H
Input high
VI2C_L
Input low
2.2
V
0.6
V
LOCK DETECTION RELEASE TIME
tLOCK_OFF
Lock release time
tLCK_ETR
Lock enter time
5
s
0.3
s
OVERCURRENT PROTECTION
8
Copyright © 2014–2018, Texas Instruments Incorporated
DRV10983, DRV10983Z
www.ti.com.cn
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
Electrical Characteristics (continued)
over operating ambient temperature range (unless otherwise noted)
PARAMETER
IOC_limit
Overcurrent protection
TEST CONDITIONS
TA = 25˚C; phase to phase
MIN
TYP
MAX
UNIT
3
4
A
150
°C
10
°C
50
mV
THERMAL SHUTDOWN
TSDN
Shutdown temperature
threshold
Shutdown temperature
TSDN_HYS
Shutdown temperature
threshold
Hysteresis
BEMF COMPARATOR
BEMFHYS
BEMF comparator hysteresis bemfHsyEn = 1
版权 © 2014–2018, Texas Instruments Incorporated
9
DRV10983, DRV10983Z
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
www.ti.com.cn
7.6 Typical Characteristics
0.008
Switching Regulator Output
5.2
Supply Current
0.006
0.004
0.002
5.1
5
4.9
IVCC
VREG
0
4.8
0
10
20
Power Supply
30
0
10
图 1. Supply Current vs Power Supply
20
Power Supply
D001
30
D002
图 2. Step-down Regulator Output vs Power Supply
(VregSel = 0)
Switching Regulator Output
3.5
3.4
3.3
3.2
VREG
3.1
0
10
20
Power Supply
30
D004
图 3. Step-down Regulator Output vs Power Supply
(VregSel = 1)
10
版权 © 2014–2018, Texas Instruments Incorporated
DRV10983, DRV10983Z
www.ti.com.cn
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
8 Detailed Description
8.1 Overview
The DRV10983 is a three-phase sensorless motor driver with integrated power MOSFETs, which provide drive
current capability up to 2 A continuous. The device is specifically designed for low-noise, low external component
count, 12- to 24-V motor drive applications. The device is configurable through a simple I2C interface to
accommodate different motor parameters and spin-up profiles for different customer applications.
A 180° sensorless control scheme provides continuous sinusoidal output voltages to the motor phases to enable
ultra-quiet motor operation by keeping the electrically induced torque ripple small.
The DRV10983 features extensive protection and fault detect mechanisms to ensure reliable operation. Voltage
surge protection prevents the input Vcc capacitor from overcharging, which is typical during motor deceleration.
The devices provides phase to phase overcurrent protection without the need for an external current sense
resistor. Rotor lock detect is available through several methods. These methods can be configured with register
settings to ensure reliable operation. The device provides additional protection for undervoltage lockout (UVLO)
and for thermal shutdown.
The commutation control algorithm continuously measures the motor phase current and periodically measures
the VCC supply voltage. The device uses this information for BEMF estimation, and the information is also
provided through the I2C register interface for debug and diagnostic use in the system, if desired.
A buck step-down regulator efficiently steps down the supply voltage. The output of this regulator provides power
for the internal circuits and can also be used to provide power for an external circuit such as a microcontroller. If
providing power for an external circuit is not necessary (and to reduce system cost), configure the buck stepdown regulator as a linear regulator by replacing the inductor with resistor.
TI designed the interfacing to the DRV10983 to be flexible. In addition to the I2C interface, the system can use
the discrete FG pin, DIR pin, and SPEED pin. SPEED is the speed command input pin. It controls the output
voltage amplitude. DIR is the direction control input pin. FG is the speed indicator output, which shows the
frequency of the motor commutation.
EEPROM is integrated in the DRV10983 as memory for the motor parameter and operation settings. EEPROM
data transfers to the register after power on and exit from sleep mode.
The DRV10983 device can also operate in register mode. If the system includes a microcontroller communicating
through the I2C interface, the device can dynamically update the motor parameter and operation settings by
writing to the registers. In this configuration, the EEPROM data is bypassed by the register settings.
版权 © 2014–2018, Texas Instruments Incorporated
11
DRV10983, DRV10983Z
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
www.ti.com.cn
8.2 Functional Block Diagram
SDA
I2C
Communication
SCL
Register
EEPROM
SW
3.3-/5-V StepDown Regulator
VREG
FG
SWGND
VCC
V3P3
3.3-V LDO
V1P8
1.8-V LDO
Charge
Pump
VCP
CPP
CPN
VCC
GND
VCP
Oscillator
Bandgap
U
V
W
SPEED
V/I
sensor
U
Pre Driver
PGND
ADC
Logic
Core
VCC
VCP
V
Pre Driver
PWM and Analog
Speed Control
DIR
PGND
VCC
Lock
VCP
Over Current
Pre Driver
Thermal
GND
W
PGND
UVLO
12
版权 © 2014–2018, Texas Instruments Incorporated
DRV10983, DRV10983Z
www.ti.com.cn
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
8.3 Feature Description
8.3.1 Regulators
8.3.1.1 Step-Down Regulator
The DRV10983 includes a hysteretic step-down voltage regulator that can be operated as either a switching buck
regulator using an external inductor or as a linear regulator using an external resistor (see 图 4). The best
efficiency is achieved when the step-down regulator is in buck mode. However, the DRV10983Z device (sleep
mode version) only operates with the step-down regulator in linear mode and with a Zener diode as described in
the Typical Application section. The regulator output voltage can be configured by register bit VregSel. When
VregSel = 0, the regulator output voltage is 5 V, and when VregSel = 1, the regulator output voltage is 3.3 V.
When the regulated voltage drops by the hysteresis level, the high-side FET turns on to increase the regulated
voltage back to the target of 3.3 V or 5 V. The switching frequency of the hysteretic regulator is not constant and
changes with the load.
If the step-down regulator is configured in buck mode, see IREG_MAX in the Electrical Characteristics to determine
the amount of current provided for external load. If the step-down regulator is configured as linear mode, it is
used for the device internal circuit only.
注
The DRV10983Z step-down regulator only operates in linear mode (using an external
resistor) and with a Zener diode as described in the Typical Application section. The
DRV10983Z device does not support buck mode (using an external inductor) as shown in
图 4.
VREG
VREG
VCC
IC
VCC
IC
SW
47 µH
3.3 V/5 V
SW
39 Ω
10 µF
Load
3.3 V/5 V
SWGND
Step-Down Regulator With External Inductor (Buck
Mode)
10 µF
SWGND
Step-Down Regulator With External Resistor (Linear
Mode)
图 4. Step-Down Regulator Configurations
8.3.1.2 3.3-V and 1.8-V LDO
The DRV10983 includes a 3.3-V LDO and an 1.8-V LDO. The 1.8-V LDO is for internal circuit only. The 3.3-V
LDO is mainly for internal circuits, but can also drive external loads not to exceed IV3P3_MAX listed in the Electrical
Characteristics. For example, it can work as a pullup voltage for the FG, DIR, SDA, and SCL interface.
Both V1P8 and V3P3 capacitor must be connected to GND.
8.3.2 Protection Circuits
8.3.2.1 Thermal Shutdown
The DRV10983 has a built-in thermal shutdown function, which shuts down the device when junction
temperature is more than TSDN ˚C and recovers operating conditions when junction temperature falls to TSDN –
TSDN_HYS˚C.
The OverTemp status bit (address 0x10 bit 7) is set during thermal shutdown.
版权 © 2014–2018, Texas Instruments Incorporated
13
DRV10983, DRV10983Z
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
www.ti.com.cn
Feature Description (接
接下页)
8.3.2.2 Undervoltage Lockout (UVLO)
The DRV10983 has a built-in UVLO function block. The hysteresis of UVLO threshold is VUVLO-HYS. The device is
locked out when VCC is down to VUVLO_F and woke up at VUVLO_R.
8.3.2.3 Overcurrent Protection (OCP)
The overcurrent protection function acts to protect the device if the current, as measured from the FETs, exceeds
the IOC-limit threshold. It protects the device from phase-to-phase short-circuit conditions; the DRV10983 places
the output drivers into a high-impedance state and maintains this condition until the overcurrent is no longer
present. The OverCurr status bit (address 0x10 bit 5) is set.
The DRV10983 also provides acceleration current limit and lock detection current limit functions to protect the
device and motor (see Current Limit and Lock Detect and Fault Handling).
8.3.2.4 Lock
When the motor is blocked or stopped by an external force, the lock protection is triggered, and the device stops
driving the motor immediately. After the lock release time tLOCK_OFF, the DRV10983 resumes driving the motor
again. If the lock condition is still present, it enters the next lock protection cycle until the lock condition is
removed. With this lock protection, the motor and device does not get overheated or damaged due to the motor
being locked (see Lock Detect and Fault Handling).
During lock condition, the MtrLck Status bit (address 0x10, bit 4) is set. To further diagnose, check the register
FaultCode.
8.3.3 Motor Speed Control
The DRV10983 offers four methods for indirectly controlling the speed of the motor by adjusting the output
voltage amplitude. This can be accomplished by varying the supply voltage (VCC) or by controlling the Speed
Command. The Speed Command can be controlled in one of three ways. The user can set the Speed Command
on the SPEED pin by adjusting either the PWM input (SPEED pin configured for PWM mode) or the analog input
(SPEED pin configured for analog mode), or by writing the Speed Command directly through the I2C serial port
to SpdCtrl[8:0]. The Speed Command is used to determine the PWM duty cycle output (PWM_DCO) (see 图 5).
The Speed Command may not always be equal to the PWM_DCO because DRV10983 has implemented the
AVS function (see AVS Function), the acceleration current limit function (see Acceleration Current Limit), and the
closed loop accelerate function (see Closed Loop Accelerate) to optimize the control performance. These
functions can limit the PWM_DCO, which affects the output amplitude.
PWM In
PWM Duty
Analog
ADC
SPEED Pin
AVS,
Acceleration Current Limit
Closed Loop Accelerate
Speed
Command
2
IC
PWM_
DCO
VCC
X
Output
Amplitude
Motor
Copyright © 2017, Texas Instruments Incorporated
图 5. Multiplexing the Speed Command to the Output Amplitude Applied to the Motor
The output voltage amplitude applied to the motor is accomplished through sine wave modulation so that the
phase-to-phase voltage is sinusoidal.
14
版权 © 2014–2018, Texas Instruments Incorporated
DRV10983, DRV10983Z
www.ti.com.cn
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
Feature Description (接
接下页)
When any phase is measured with respect to ground, the waveform is sinusoidally coupled with third-order
harmonics. This encoding technique permits one phase to be held at ground while the other two phases are
pulse-width modulated. 图 6 and 图 7 show the sinusoidal encoding technique used in the DRV10983.
PWM Output
Average Value
图 6. PWM Output and the Average Value
U-V
U
V-W
V
W-U
W
Sinusoidal voltage from phase to phase
Sinusoidal voltage with third order harmonics
from phase to GND
图 7. Representing Sinusoidal Voltages With Third-Order Harmonic Output
The output amplitude is determined by the magnitude of VCC and the PWM duty cycle output (PWM_DCO). The
PWM_DCO represents the peak duty cycle that is applied in one electrical cycle. The maximum amplitude is
reached when PWM_DCO is at 100%. The peak output amplitude is VCC. When the PWM_DCO is at 50%, the
peak amplitude is VCC / 2 (see 图 8).
VCC
100% PWM DCO
VCC / 2
50% PWM DC0
图 8. Output Voltage Amplitude Adjustment
8.3.4 Sleep or Standby Condition
The DRV10983 is available in either a sleep mode or standby mode version. The DRV10983 enters either sleep
or standby to conserve energy. When the device enters either sleep or standby, the motor stops driving. The
step-down regulator is disabled in the sleep mode version to conserve more energy. The I2C interface is disabled
and any register data not stored in EEPROM will be reset. The step-down regulator remains active in the standby
mode version. The register data is maintained, and the I2C interface remains active.
Setting sleepDis = 1 prevents the device from entering into the sleep or standby condition. If the device has
already entered into sleep or standby condition, setting sleepDis = 1 will not take it out of the sleep or standby
condition. During a sleep or standby condition, the Slp_Stdby status bit (address 0x10, bit 6) will be set.
版权 © 2014–2018, Texas Instruments Incorporated
15
DRV10983, DRV10983Z
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
www.ti.com.cn
Feature Description (接
接下页)
For different speed command modes, 表 1 shows the timing and command to enter the sleep or standby
condition.
表 1. Conditions to Enter or Exit Sleep or Standby Condition
SPEED COMMAND
MODE
ENTER STANDBY
CONDITION
ENTER SLEEP
CONDITION
EXIT FROM STANDBY
CONDITION
EXIT FROM SLEEP
CONDITION
Analog
SPEED pin voltage < VEN_SB
for tEN_SB_ANA
SPEED pin voltage <
VEN_SL for tEN_SL_ANA
SPEED pin voltage > VEX_SB
for tEX_ SB_ANA
SPEED pin voltage > VEX_SL
for tEX_ SL_ANA
PWM
SPEED pin low (V < VDIG_IL)
for tEN_SB_PWM
SPEED pin low (V <
VDIG_IL) for
tEN_SL_PWM
SPEED pin high (V >
VDIG_IH) for tEX_SB_PWM
SPEED pin high (V >
VDIG_IH) for tEX_SL_PWM
I2C
SpdCtrl[8:0] is programmed
as 0 for tEN_SB_PWM
SpdCtrl[8:0] is
programmed as 0 for
tEN_SL_PWM
SpdCtrl[8:0] is programmed
as non-zero for tEX_SB_PWM
SPEED pin high (V >
VDIG_IH) for tEX_SL_PWM(PWM
mode) or SPEED pin voltage
> VEX_SL for tEX_ SL_ANA
(Analog mode)
Note that using the analog speed command, a higher voltage is required to exit from the sleep condition than the
standby condition. The I2C speed command cannot take the device out of the sleep condition because I2C
communication is disabled during the sleep condition.
8.3.5 Non-Volatile Memory
The DRV10983 has 96-bits of EEPROM data, which are used to program the motor parameters as described in
the I2C Serial Interface.
The procedure for programming the EEPROM is as follows. TI recommends to perform the EEPROM
programming without the motor spinning, power cycle after the EEPROM write, and read back the EEPROM to
verify the programming is successful.
1. Set SIdata = 1.
2. Write the desired motor parameters into the corresponding registers (address 0x20:0x2B) (see I2C Serial
Interface).
3. Write 1011 0110 (0xB6) to enProgKey in the DevCtrl register.
4. Ensure that VCC is at or above 22 V.
5. Write eeWrite = 1 in EECtrl register to start the EEPROM programming.
The programming time is about 24 ms, and eeWrite bit is reset to 0 when programming is done.
8.4 Device Functional Modes
This section includes the logic required to be able to reliably start and drive the motor. It describes the processes
used in the logic core and provides the information needed to effectively configure the parameters to work over a
wide range of applications.
8.4.1 Motor Parameters
For the motor parameter measurement, see the DRV10983 and DRV10975 Tuning Guide.
The motor phase resistance and the BEMF constant (Kt) are two important parameters used to characterize a
BLDC motor. The DRV10983 requires these parameters to be configured in the register. The motor phase
resistance is programmed by writing the values for Rm[6:0] in the MotorParam1 register. The BEMF constant is
programmed by writing the values for Kt[6:0] in the MotorParam2 register.
8.4.1.1 Motor Phase Resistance
For a wye-connected motor, the motor phase resistance refers to the resistance from the phase output to the
center tap, RPH_CT (see 图 9).
16
版权 © 2014–2018, Texas Instruments Incorporated
DRV10983, DRV10983Z
www.ti.com.cn
ZHCSDA7G – JULY 2014 – REVISED FEBRUARY 2018
Device Functional Modes (接
接下页)
Phase U
RPH_CT
RPH_CT
RPH_CT
Center
Tap
Phase V
Phase W
图 9. Wye-Connected Motor Phase Resistance
For a delta-connected motor, the motor phase resistance refers to the equivalent phase to center tap in the wye
configuration, which is represented as RY. RPH_CT = RY (see 图 10).
For both the delta-connected motor and the wye-connected motor, calculating the equivalent RPH_CT is easy by
measuring the resistance between two phase terminals (RPH_PH), and then dividing this value by two as shown in
公式 1.
RPH_CT = ½RPH_PH
(1)
Phase U
RY
RPH_PH
RY
Phase V
RPH_PH
Center
Tap
RPH_PH
RY
Phase W
图 10. Delta-Connected Motor and the Equivalent Wye Connections
The motor phase resistance (RPH_CT) must be converted to a 7-bit digital register value Rm[6:0] to program the
motor phase resistance value. The digital register value can be determined as follows:
1. Convert the motor phase resistance (RPH_CT) to a digital value where the LSB is weighted to represent 9.67
mΩ: Rmdig = RPH_CT / 0.00967.
2. Encode the digital value such that Rmdig = Rm[3:0] 5 W, Leakage Current
5 W, Leakage Current
