DRV8800, DRV8801
DRV8801
SLVS855K – JULY 2008 DRV8800,
– REVISED MARCH
2021
SLVS855K – JULY 2008 – REVISED MARCH 2021
www.ti.com
DRV880x DMOS Full-Bridge Motor Drivers
1 Features
3 Description
•
•
•
•
•
•
•
The DRV880x provides a versatile motor driver
solution with a variety of capabilities. The device
contains a full H-bridge which can be used to drive
a brushed DC motor, one winding of a stepper motor,
or other devices such as solenoids. A simple PHASEENABLE interface allows easy interfacing to controller
circuits.
H-Bridge Motor Driver
Low RDS(on) MOSFETs (0.4-Ω Typical)
Low-Power Sleep Mode
100% PWM Duty Cycle Supported
8-V to 36-V Operating Supply Voltage Range
Thermally Enhanced Surface-Mount Package
Protection Features:
– VBB Undervoltage Lockout (UVLO)
– Charge Pump Undervoltage (CPUV)
– Overcurrent Protection (OCP)
– Short-to-Supply Protection
– Short-to-Ground Protection
– Overtemperature Warning (OTW)
– Overtemperature Shutdown (OTS)
– Fault Condition Indication Pin (nFAULT)
2 Applications
•
•
•
Printers
Industrial Automation
Robotics
The output stages use N-channel power MOSFETs
configured as an H-bridge. The DRV880x is capable
of peak output currents up to ±2.8 A and operating
voltages up to 36 V. An internal charge pump
generates the needed gate drive voltages.
A low-power sleep mode is provided which shuts
down internal circuitry to achieve a very low quiescent
current draw. This sleep mode can be set using a
dedicated nSLEEP pin.
Internal protection functions are provided for
undervoltage, charge pump fault, overcurrent, shortto-supply, short-to-ground, and overtemperature. Fault
conditions are indicated through the nFAULT pin.
The DRV880x is packaged in a 16-pin WQFN
package with PowerPAD™ (Eco-friendly: RoHS & no
Sb/Br).
Device Information(1)
PART NUMBER
DRV8800
DRV8801
(1)
PACKAGE
BODY SIZE (NOM)

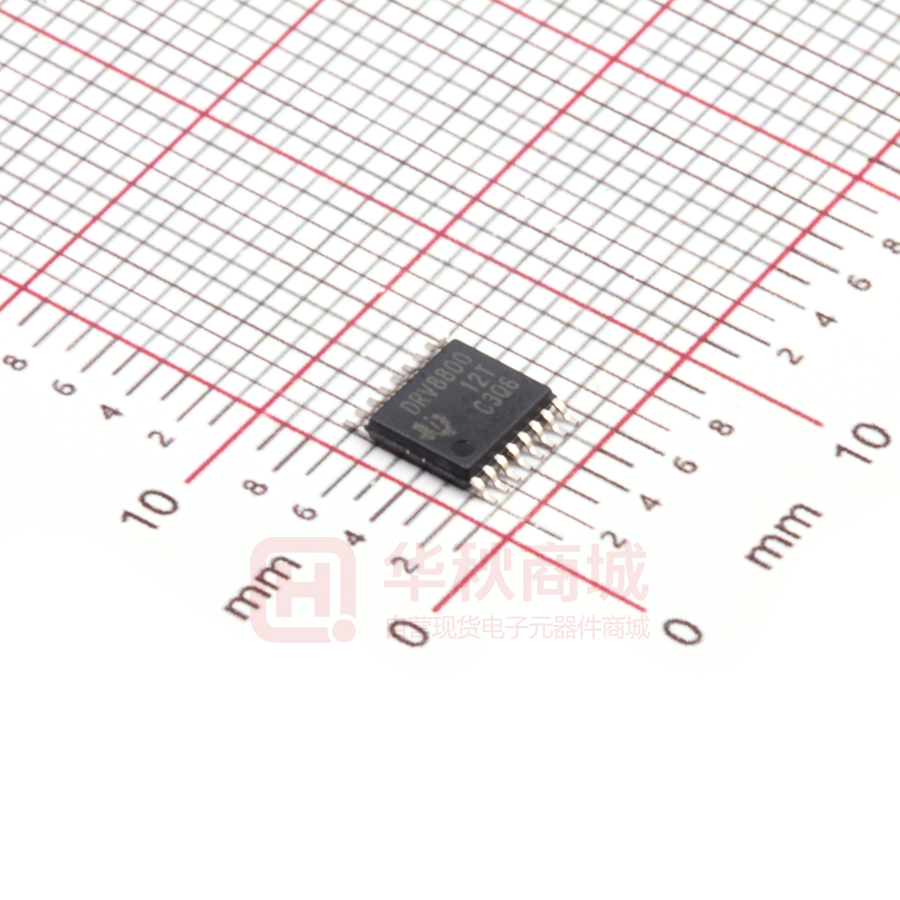

HTSSOP (16)
5.00 mm × 4.40 mm
WQFN (16)
4.00 mm × 4.00 mm
HTSSOP (16)
5.00 mm × 4.40 mm
WQFN (16)
4.00 mm × 4.00 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
8 V to 36 V
Controller
PHASE
DRV8800/
DRV8801
ENABLE
nSLEEP
Brushed DC
Motor Driver
M
nFAULT
Protection
Simplified Schematic
An©IMPORTANT
NOTICEIncorporated
at the end of this data sheet addresses availability, warranty, changes, use in
safety-critical
applications,
Copyright
2021 Texas Instruments
Submit
Document
Feedback
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Product Folder Links: DRV8800 DRV8801
1
DRV8800, DRV8801
www.ti.com
SLVS855K – JULY 2008 – REVISED MARCH 2021
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 5
6.1 Absolute Maximum Ratings........................................ 5
6.2 ESD Ratings............................................................... 5
6.3 Recommended Operating Conditions.........................5
6.4 Thermal Information....................................................5
6.5 Electrical Characteristics.............................................6
6.6 Typical Characteristics................................................ 7
7 Parameter Measurement Information............................ 8
8 Detailed Description......................................................10
8.1 Overview................................................................... 10
8.2 Functional Block Diagrams....................................... 10
8.3 Feature Description...................................................11
8.4 Device Functional Modes..........................................13
9 Application and Implementation.................................. 16
9.1 Application Information............................................. 16
9.2 Typical Application.................................................... 16
9.3 Parallel Configuration ...............................................19
10 Power Supply Recommendations..............................23
10.1 Bulk Capacitance.................................................... 23
11 Layout........................................................................... 24
11.1 Layout Guidelines................................................... 24
11.2 Layout Example...................................................... 24
12 Device and Documentation Support..........................26
12.1 Related Links.......................................................... 26
12.2 Trademarks............................................................. 26
12.3 Electrostatic Discharge Caution..............................26
12.4 Glossary..................................................................26
13 Mechanical, Packaging, and Orderable
Information.................................................................... 26
4 Revision History
Changes from Revision J (July 2014) to Revision K (March 2021)
Page
• Added missing GND pin reference to Pin Functions Table ................................................................................3
• Added SENSE pin to Pin Functions Table ......................................................................................................... 3
• Improved description for pins nFAULT, nSLEEP, VBB and VCP in Pin Functions Table ................................... 3
• Added entries for VCP and CP2 pins in Absolute Maximum Ratings table........................................................ 5
• Added VDD pin voltage limits and device’s PWM frequency limits to Recommended Operation Conditions
table.................................................................................................................................................................... 5
• Changed SLEEP to nSLEEP in PWM Control Timing Figure............................................................................. 8
• Added equation for VPROPI to help when connecting pin’s output to ADC in Feature Description ................12
• Provide additional information on SENSE pin behavior....................................................................................13
• Added device specific details to Control Logic Table .......................................................................................13
• Added die temperature estimation equation utilizing junction to ambient thermal impedance in Application and
Implementation section.....................................................................................................................................18
• Added information on using motor driver’s pulse width modulating modes in Application and Implementation
section.............................................................................................................................................................. 18
Changes from Revision I (January 2014) to Revision J (July 2014)
Page
• Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and
Implementation section, Power Supply Recommendations section, Layout section, Device and
Documentation Support section, and Mechanical, Packaging, and Orderable Information section .................. 5
Changes from Revision H (November 2013) to Revision I (January 2014)
Page
• Added IOCP to ELECTRICAL CHARACTERISTICS........................................................................................... 6
• Changed Parameter Measurement Information ................................................................................................ 8
Changes from Revision G (October 2013) to Revision H (November 2013)
Page
• Changed maximum junction temperature from 190°C to 150°C.........................................................................5
• Changed VTRP description/test conditions........................................................................................................ 6
• Changed Protection Circuitry section................................................................................................................. 6
• Changed Note in SENSE section..................................................................................................................... 13
2
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8800 DRV8801
DRV8800, DRV8801
www.ti.com
SLVS855K – JULY 2008 – REVISED MARCH 2021
nFAULT
VPROPI
VCP
14
13
VCP
13
15
VREG
14
MODE 1
nFAULT
15
16
MODE
16
5 Pin Configuration and Functions
PHASE
1
12
GND
PHASE
1
12
GND
GND
2
11
CP2
GND
2
11
CP2
nSLEEP
3
10
CP1
nSLEEP
3
10
CP1
ENABLE
4
9
OUT-
ENABLE
4
9
OUT-
PowerPAD
6
7
8
SENSE
VBB
8
VBB
OUT+
7
SENSE
5
6
OUT+
Figure 5-1. DRV8800 RTY Package 16-Pin WQFN
Top View
MODE 2
5
NC
PowerPAD
Figure 5-2. DRV8801 RTY Package 16-Pin WQFN
Top View
nFAULT
1
16
NC
nFAULT
1
16
MODE 2
MODE
2
15
VREG
MODE 1
2
15
VPROPI
PHASE
3
14
VCP
PHASE
3
14
VCP
GND
4
13
GND
GND
4
13
GND
PowerPAD
PowerPAD
nSLEEP
5
12
CP2
nSLEEP
5
12
CP2
ENABLE
6
11
CP1
ENABLE
6
11
CP1
OUT+
7
10
OUT-
OUT+
7
10
OUT-
SENSE
8
9
VBB
SENSE
8
9
VBB
Figure 5-3. DRV8800 PWP Package 16-Pin HTSSOP Figure 5-4. DRV8801 PWP Package 16-Pin HTSSOP
Top View
Top View
Table 5-1. Pin Functions
PIN
NAME
DRV8800
DRV8801
I/O
DESCRIPTION
WQFN
HTSSOP
WQFN
HTSSOP
CP1
10
11
10
11
P
Charge pump switching node. Connect a 0.1-μF
X7R ceramic capacitor rated for VBB between
CP1 and CP2.
CP2
11
12
11
12
P
Charge pump switching node. Connect a 0.1-μF
X7R ceramic capacitor rated for VBB between
CP1 and CP2.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8800 DRV8801
3
DRV8800, DRV8801
www.ti.com
SLVS855K – JULY 2008 – REVISED MARCH 2021
Table 5-1. Pin Functions (continued)
PIN
NAME
ENABLE
GND
4
DRV8800
I/O
DRV8801
DESCRIPTION
WQFN
HTSSOP
WQFN
HTSSOP
4
6
4
6
I
Enable logic input. Set high to enable the Hbridge.
2,12
4, 13
2, 12
4, 13
P
Device ground
MODE
16
2
—
—
I
Mode logic input
MODE 1
—
—
16
2
I
Mode logic input
Mode 2 logic input
MODE 2
—
—
5
16
I
NC
5
16
—
—
NC
No connect
nFAULT
15
1
15
1
OD
Fault indication. Pulled logic low with fault
condition; open-drain output requires an external
pullup resistor.
nSLEEP
3
5
3
5
I
Sleep mode input. Logic high to enable device;
logic low to enter low-power sleep mode; internal
pulldown resistor.
OUT+
6
7
6
7
O
DMOS H-bridge output. Connect to motor
terminal.
OUT-
9
10
9
10
O
DMOS H-bridge output. Connect to motor
terminal.
WQFN Package: Phase logic input for direction
control.
HTSSOP Package: Phase logic input. Controls
the direction of the H-bridge.
PHASE
1
3
1
3
I
SENSE
7
8
7
8
O (DRV8800)
IO (DRV8801)
VBB
8
9
8
9
P
Driver supply voltage. Bypass to GND with 0.1-μF
ceramic capacitors plus a bulk capacitor rated for
VBB.
VCP
13
14
13
14
P
Charge pump reservoir capacitor pin. Connect a
X7R, 0.1-μF, 16-V ceramic capacitor to VBB.
VREG
14
15
—
—
P
Regulated voltage.
VPROPI
—
—
14
15
O
Voltage output proportional to winding current.
PowerPAD
—
—
—
—
—
Exposed pad for thermal dissipation. Connect to
ground.
Sense Power Return
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8800 DRV8801
DRV8800, DRV8801
www.ti.com
SLVS855K – JULY 2008 – REVISED MARCH 2021
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
VBB
VCP and CP2
VSense
MIN
MAX
UNIT
Load supply voltage(2)
–0.3
40
V
Charge Pump Voltage
–0.3
VBB+17V
V
Output current
–2.8
2.8
A
Sense voltage
–500
500
mV
36
V
VBB to OUTx
OUTx to SENSE
PHASE, ENABLE, MODE, MODE1, MODE2, nSLEEP and nFAULT(2)
VDD
Continuous total power dissipation
TA
Operating free-air temperature
TJ
Maximum junction temperature
Tstg
Storage temperature
(1)
(2)
36
V
7
V
–0.3
See Section 6.4
–40
–40
85
°C
150
°C
125
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values are with respect to network ground terminal.
6.2 ESD Ratings
VALUE
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all
V(ESD)
(1)
(2)
Electrostatic discharge
pins(1)
UNIT
±2000
Charged device model (CDM), per JEDEC specification JESD22-C101, all
pins(2)
V
±500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
MIN
NOM
32
MAX
UNIT
VIN
Input voltage, VBB
8
38
V
VDD
Logic Supply Voltage
0
5.5
V
f(PWM)
Applied PMW signal (PHASE and ENABLE)
0
100
kHz
TA
Operating free-air temperature
–40
85
°C
6.4 Thermal Information
DRV880x
THERMAL METRIC(1)
RTY (WQFN)
PWP (HTSSOP)
16 PINS
16 PINS
RθJA
Junction-to-ambient thermal resistance
38.1
43.9
RθJC(top)
Junction-to-case (top) thermal resistance
36.7
30.8
RθJB
Junction-to-board thermal resistance
16.1
25.3
ψJT
Junction-to-top characterization parameter
0.3
1.1
ψJB
Junction-to-board characterization parameter
16.2
25
RθJC(bot)
Junction-to-case (bottom) thermal resistance
4.1
5.6
(1)
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8800 DRV8801
5
DRV8800, DRV8801
www.ti.com
SLVS855K – JULY 2008 – REVISED MARCH 2021
6.5 Electrical Characteristics
over recommended operating conditions (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
fPWM < 50 kHz
IBB
Motor supply current
TYP
6
Charge pump on, Outputs disabled
VIH
0.8
2.7
nSLEEP input voltage
VIL
IIH
PHASE, MODE input current
IIL
IIH
ENABLE input current
IIL
IIH
nSLEEP input current
IIL
0.8
VIN = 2 V
