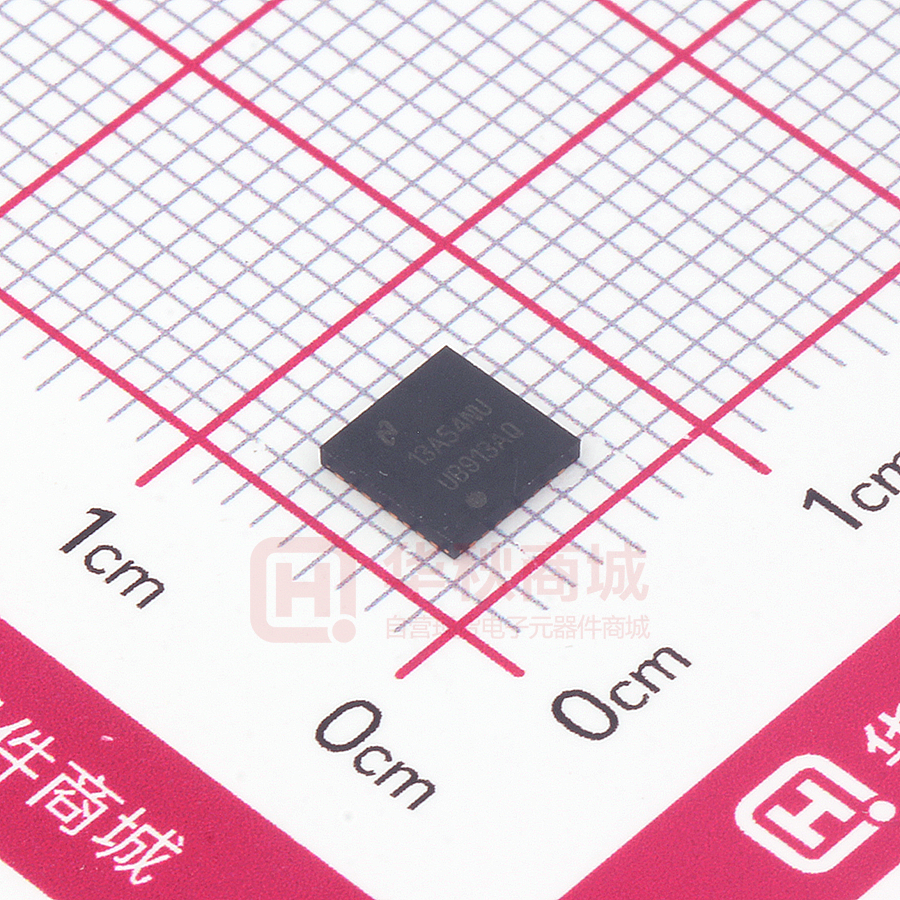

DS90UB913ATRTVRQ1

DS90UB913ATRTVRQ1

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    WQFN-32_5X5MM-EP

  • 描述:

    DS90UB913A-Q1 25MHz 至 100MHz 10/12 位 FPD-Link III 串行器

  • 数据手册
  • 价格&库存
DS90UB913ATRTVRQ1 数据手册
Product Folder Order Now Support & Community Tools & Software Technical Documents DS90UB913A-Q1 ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 DS90UB913A-Q1 25MHz 至 100MHz 10/12 位 FPD-Link III 串行器 1 特性 • 1 • • • • • • • • • • • 3 说明 符合AEC-Q100 车规认证 – 器件温度等级 2:环境工作温度范围为 -40℃ 至 +105℃ 25MHz 至 100MHz 输入像素时钟支持 可编程数据有效载荷: – 10 位有效载荷,高达 100MHz – 12 位有效载荷,高达 75MHz 连续低延迟双向控制接口通道,带有 I2C 接口,支 持 400kHz 传输速率 嵌入式时钟具有 DC 均衡编码,用于支持 AC 耦合 互连 可驱动长达 15m 的同轴电缆或 20m 的屏蔽双绞线 电缆 稳健的同轴电缆供电 (PoC) 运行 4 个专用通用输入/输出 串行器上提供 1.8V、2.8V 或 3.3V 兼容并行输入 1.8V 单电源 符合 ISO 10605 和 IEC 61000-4-2 ESD 标准 小尺寸串行器 (5mm × 5mm) • • 凭借德州仪器 (TI) 的嵌入式时钟技术,可在单一差分 对上进行透明的全双工通信,从而运载不对称的双向控 制通道信息。这个单个串行数据流通过消除并行数据与 时钟路径间的偏差,简化了印刷电路板 (PCB) 走线和 电缆上的宽数据总线传输。这样,通过限制数据路径的 宽度,大大节省了系统成本,相应地减少了 PCB 层 数、电缆宽度以及连接器尺寸和引脚数量。内部 DC 均衡编码/解码用于支持 AC 耦合互连。 器件信息(1) 器件型号 DS90UB913A-Q1 2 应用 • DS90UB913A-Q1 器件提供一个具有高速正向通道和 双向控制通道的 FPD-Link III 接口,用来实现单一同轴 电缆或差分对上的数据传输。DS90UB913A-Q1 器件 的高速正向通道和双向控制通道数据路径上均包含差分 信令。串行器/解串器对主要用于电子控制单元 (ECU) 中成像器与视频处理器的连接。该器件非常适用于驱动 需要高达 12 位像素深度、2 个同步信号以及双向控制 通道总线的视频数据。 汽车 – 环视系统 (SVS) – 前置摄像头 (FC) – 后视摄像头 (RVC) – 传感器融合 – 驾驶员监视摄像头 (DMS) – 远距卫星雷达、ToF 和激光雷达传感器 安防和监控 机器视觉 应用 封装 WQFN (32) 封装尺寸(标称值) 5.00mm × 5.00mm (1) 如需了解所有可用封装,请参阅数据表末尾的可订购产品附 录。 简化原理图 Parallel Data In 10 or 12 Parallel Data Out 10 or 12 FPD-Link III 2 Megapixel Imager/Sensor HSYNC, VSYNC 2 DS90UB913AQ1 4 GPO 2 Bidirectional Control Bus Serializer Bidirectional Control Channel DS90UB914AQ1 HSYNC, VSYNC 4 DSP, FPGA/ µ-Processor/ ECU GPIO 2 Deserializer Bidirectional Control Bus Copyright © 2016, Texas Instruments Incorporated 1 本文档旨在为方便起见,提供有关 TI 产品中文版本的信息,以确认产品的概要。 有关适用的官方英文版本的最新信息,请访问 www.ti.com,其内容始终优先。 TI 不保证翻译的准确 性和有效性。 在实际设计之前,请务必参考最新版本的英文版本。 English Data Sheet: SNLS443 DS90UB913A-Q1 ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 www.ti.com.cn 目录 1 2 3 4 5 6 7 特性 .......................................................................... 应用 .......................................................................... 说明 .......................................................................... 修订历史记录 ........................................................... Device Comparison Table..................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 5 5 7 7.1 7.2 7.3 7.4 7.5 7.6 7.7 Absolute Maximum Ratings ...................................... 7 ESD Ratings.............................................................. 7 Recommended Operating Conditions....................... 7 Thermal Information .................................................. 8 Electrical Characteristics........................................... 8 Recommended Serializer Timing For PCLK .......... 11 AC Timing Specifications (SCL, SDA) - I2CCompatible ............................................................... 12 7.8 Bidirectional Control Bus DC Timing Specifications (SCL, SDA) - I2C-Compatible ................................. 12 7.9 Timing Diagrams ..................................................... 13 7.10 Serializer Switching Characteristics...................... 15 7.11 Typical Characteristics .......................................... 16 8 Detailed Description ............................................ 17 8.1 8.2 8.3 8.4 8.5 8.6 9 Overview ................................................................. Functional Block Diagram ....................................... Feature Description................................................. Device Functional Modes........................................ Programming .......................................................... Register Maps ......................................................... 17 17 18 21 26 30 Application and Implementation ........................ 37 9.1 Application Information............................................ 37 9.2 Typical Applications ................................................ 39 10 Power Supply Recommendations ..................... 43 11 Layout................................................................... 44 11.1 Layout Guidelines ................................................. 44 11.2 Layout Example .................................................... 45 12 器件和文档支持 ..................................................... 47 12.1 12.2 12.3 12.4 12.5 12.6 文档支持................................................................ 接收文档更新通知 ................................................. 支持资源................................................................ 商标 ....................................................................... 静电放电警告......................................................... Glossary ................................................................ 47 47 47 47 47 47 13 机械、封装和可订购信息 ....................................... 47 4 修订历史记录 Changes from Revision E (September 2018) to Revision F Page • Clarified GPO2 description by removing statement about leaving pin open if unused ......................................................... 6 • Added register 0x27[5] to register map ............................................................................................................................... 35 • Fixed missing register 0x29 typo ......................................................................................................................................... 36 • Added maximum power up timing constraint between VDD_n and PDB ........................................................................... 37 • Added recommended software programming steps if VDD_n to PDB maximum power up timing constraint can not be met .................................................................................................................................................................................. 38 Changes from Revision D (October 2016) to Revision E Page • Added recommendation to ensure GPO2 is low when PDB goes high ................................................................................ 6 • Added Power Over Coax supply noise to the recommended operating conditions table ...................................................... 8 • Clarified PCLK clock frequency range and added external clock input frequency range ...................................................... 8 • Added strap pin input current specification for MODE and IDX pins .................................................................................... 9 • Updated TJIT1 PCLK input jitter in the external oscillator mode ........................................................................................... 11 • Added clarification on MODE pin description in PCLK from imager mode ......................................................................... 22 • Updated pullup and pulldown resistor to R1 and R2 in MODE pin configuration diagram ................................................... 22 • Updated the MODE setting values to ratio ........................................................................................................................... 23 • Updated pullup and pulldown resistor for IDX to R3 and R4 in the diagram......................................................................... 28 • Updated IDX setting values to ratio ..................................................................................................................................... 28 • Updated register "TYPE" column per legend ...................................................................................................................... 30 • Added type and default value to the reserved register bits that were missing this information .......................................... 30 • Added that register 0x00[7:1] does not auto update IDX strapped address ....................................................................... 30 • Added description for 0x05 bits 1 and 0 (TX_MODE_12b and TX_MODE_10b) ............................................................... 32 • Clarified description on PDB pin usage during power up .................................................................................................... 37 2 版权 © 2013–2020, Texas Instruments Incorporated DS90UB913A-Q1 www.ti.com.cn ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 • Added paragraph to explain setting registers if GPO2 state is not determined when PDB goes high ............................... 37 • Added GPO2 to suggested power-up sequencing diagram ................................................................................................ 37 • Added timing constraint for PDB to GPO2 delay ................................................................................................................ 38 • Revised coax connection diagram to include pulldown resistor for GPO2 ......................................................................... 40 • Revised STP connection diagram to include pulldown resistor for GPO2 .......................................................................... 42 Changes from Revision C (April 2016) to Revision D Page • Added back channel line rate = 5.5 MHz as test condition; also added footnote for clarification between MHz and Mbps distinction. ................................................................................................................................................................... 10 • Removed 'ns' unit from specifications referencing period in units of T. ............................................................................... 11 • Updated test condition specs for jitter bandwidth regarding tJIT0, tJIT1, and tJIT2. .................................................................. 11 • Added input external oscillator frequency range for pin/freq. .............................................................................................. 11 • Added parameter for typical external oscillator frequency stability. ..................................................................................... 11 • Added test conditions to tJIND, tJINR, and tJINT. ....................................................................................................................... 15 • Added DOUT± as measured output pins for jitter parameters. ............................................................................................ 15 • Added note (6) for "Serializer output peak-to-peak total jitter includes deterministic jitter, random jitter, and jitter transfer from serializer input". .............................................................................................................................................. 15 • Added jitter tolerance curve for typical system IJT configuration with DS90UB913A linked to DS90UB914A. .................. 16 • Added device functional mode table for external oscillator operation with example XCLKIN = 48MHz. ............................ 21 Changes from Revision B (December 2014) to Revision C Page • 将文档拆分为有关器件 DS90UB913A-Q1 和 DS90UB914A-Q1 的两个独立文档 .................................................................. 1 • 已修改汽车 特性 .................................................................................................................................................................... 1 • Updated pin description for DIN to include active/inactive outputs corresponding to MODE setting..................................... 5 • Added pin description to GPO pins to leave open if unused. ................................................................................................ 6 • Changed Air Discharge ESD Rating (IEC61000-4-2: RD = 330 Ω, CS = 150 pF) to minimum ±25000 V. .......................... 7 • Added RTV text to Thermal Information table ........................................................................................................................ 8 • Added GPO[3:0] typical pin capacitances. ............................................................................................................................ 9 • Changed Differential Output Voltage minimum specification. ............................................................................................... 9 • Changed Single-Ended Output Voltage minimum specification............................................................................................. 9 • Added Back Channel Differential Input Voltage minimum specification............................................................................... 10 • Added Back Channel Single-Ended Input Voltage minimum specification. ......................................................................... 10 • Updated IDDT for VDD_n=1.89V, VDDIO=3.6V, RL=100Ω, Random Pattern with f=100 MHz, 10-bit mode to typical value of 65 mA; value is currently 54 mA............................................................................................................................. 10 • Updated IDDT for VDD_n=1.89V, VDDIO=3.6V, RL=100Ω, Random Pattern with f=75 MHz, 12-bit high freq mode to typical value of 64 mA; value is currently 54 mA.................................................................................................................. 10 • Updated IDDT for VDD_n=1.89V, VDDIO=3.6V, RL=100Ω, Random Pattern with f=50 MHz, 12-bit low freq mode to typical value of 63 mA; value is currently 54 mA. ............................................................................................................... 10 • Updated frequency ranges for MODE settings and also revised with correct maximum clock periods. Added footnote and nominal clock period to be in terms of 'T'. (5) .................................................................................................................. 11 • Deleted Revised jitter freq. test conditions to be > f/20 and also updated typical values for tjit0and tjit2. ............................. 11 • Updated VOL Output Low Level row with revised IOL currents and max VOL voltages, dependent upon VDDIO voltage. ...... 12 • Updated Figure 2 title to state ‘“Worst-Case” Test Pattern for Power Consumption’. ......................................................... 13 • Added footnote that states the following: “UI – Unit Interval is equivalent to one serialized data bit width. The UI scales with PCLK frequency.” Add below calculations to footnote. 12-bit LF mode 1 UI = 1 / ( PCLK_Freq. x 28 ) 12bit HF mode 1 UI = 1 / ( PCLK_Freq. x 2/3 x 28 ) 10-bit mode 1 UI = 1 / ( PCLK_Freq. /2 x 28 ) ..................................... 15 • Updated frequency requirements for 10-bit and 12-bit HF modes. 10-bit mode – 50 MHz to 100 MHz; 12-bit HF 版权 © 2013–2020, Texas Instruments Incorporated 3 DS90UB913A-Q1 ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 www.ti.com.cn mode – 37.5 MHz to 75 MHz; 12-bit LF mode (no change) – 25 MHz to 50 MHz. ............................................................ 17 • Updated register 0x01[1] default value to be “0”. ................................................................................................................. 30 • Changed GPO0 Enable for 0x0D[4] to GPO1 Enable.......................................................................................................... 33 • Added Inject Forward Channel Error Register 0x2D. ........................................................................................................... 36 • Updated power up sequencing information and timing diagram. ........................................................................................ 37 • Added description specifying that the voltage applied on VDDIO (1.8 V, 3.3 V) or VDD_n (1.8 V) should be at the input pin – any board level DC drop should be compensated. .................................................................................................... 43 • Added 913A EVM layout example image. ........................................................................................................................... 46 Changes from Revision A (June 2013) to Revision B Page • 已添加 数据表流程和版面布局,以符合全新 TI 标准。已添加以下部分:器件比较表;处理额定值;应用和实施;电 源相关建议;布局;器件和文档支持;机械、封装和订购信息............................................................................................... 1 • Added additional thermal characteristics................................................................................................................................ 8 • Changed typo in Vout test condition from RL=500Ω to RL=50Ω. .......................................................................................... 9 • Changed Figure 6 to use VODp-p and to clarify difference between STP and Coax .............................................................. 14 • Added Internal Oscillator section to Device Functional Modes ............................................................................................ 23 • Added reference to Power over Coax Application report ..................................................................................................... 37 • Added power up sequencing information and timing diagram. ............................................................................................ 37 4 Copyright © 2013–2020, Texas Instruments Incorporated DS90UB913A-Q1 www.ti.com.cn ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 5 Device Comparison Table PART NUMBER FPD-III FUNCTION PACKAGE TRANSMISSION MEDIA PCLK FREQUENCY DS90UB913Q-Q1 Serializer WQFN RTV (32) STP 10 to 100 MHz DS90UB913A-Q1 Serializer WQFN RTV (32) Coax or STP 25 to 100 MHz 6 Pin Configuration and Functions DIN[1] 16 15 14 13 12 11 10 VDDPLL PDB DIN[8] DAP = GND DS90UB913A-Q1 Serializer 2 3 4 5 6 7 VSYNC PCLK SCL SDA ID[x] RES 8 MODE 1 HSYNC 32 26 VDDT 27 DOUT- 28 DOUT+ 9 GPO[2]/ CLKOUT DIN[2] 17 29 18 30 19 GPO[3]/ CLKIN DIN[3] DIN[0] DIN[4] 20 25 21 VDDCML VDDD DIN[11] 22 GPO[0] DIN[7] DIN[10] 23 GPO[1] DIN[6] DIN[9] 24 31 VDDIO DIN[5] 32-Pin WQFN Package RTV Top View Pin Functions: DS90UB913A-Q1 Serializer PIN NAME I/O NO. DESCRIPTION LVCMOS PARALLEL INTERFACE 19,20,21,22, 23,24,26,27, 29,30,31,32 Inputs, LVCMOS w/ pulldown Parallel Data Inputs. For 10-bit MODE, parallel inputs DIN[0:9] are active. DIN[10:11] are inactive and should not be used. Any unused inputs (including DIN[10:11]) should be No Connect. For 12-bit MODE (HF or LF), parallel inputs DIN[0:11] are active. Any unused inputs should be No Connect. 1 Input, LVCMOS w/ pulldown Horizontal SYNC Input. Note: HS transition restrictions: 1. 12-bit Low-Frequency mode: No HS restrictions (raw) 2. 12-bit High-Frequency mode: No HS restrictions (raw) 3. 10-bit mode: HS restricted to no more than one transition per 10 PCLK cycles. Leave open if unused. VSYNC 2 Input, LVCMOS w/ pulldown Vertical SYNC Input. Note: VS transition restrictions: 1. 12-bit Low-Frequency mode: No VS restrictions (raw) 2. 12-bit High-Frequency mode: No VS restrictions (raw) 3. 10-bit HighFrequency mode: VS restricted to no more than one transition per 10 PCLK cycles. Leave open if unused. PCLK 3 Input, LVCMOS w/ pulldown Pixel Clock Input Pin. Strobe edge set by TRFB control register 0x03[0]. DIN[0:11] HSYNC Copyright © 2013–2020, Texas Instruments Incorporated 5 DS90UB913A-Q1 ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 www.ti.com.cn Pin Functions: DS90UB913A-Q1 Serializer (continued) PIN NAME I/O NO. DESCRIPTION GENERAL PURPOSE OUTPUT (GPO) GPO[1:0] GPO[2]/ CLKOUT GPO[3]/ CLKIN 16,15 17 18 Output, LVCMOS General-purpose output pins can be configured as outputs; used to control and respond to various commands. GPO[1:0] can be configured to be the outputs for input signals coming from GPIO[1:0] pins on the Deserializer or can be configured to be outputs of the local register on the Serializer. Leave open if unused. Output, LVCMOS GPO[2] pin can be configured to be the output for input signal coming from the GPIO[2] pin on the Deserializer or can be configured to be the output of the local register on the Serializer. It can also be configured to be the output clock pin when the DS90UB913A-Q1 device is used in the External Oscillator mode. See Device Functional Modes section for a detailed description of External Oscillator Mode. It is recommended to pull GPO2 to GND with a minimum 40-kΩ resistor to ensure GPO2=LOW when PDB transitions from LOW to HIGH. GPO[3] can be configured to be the output for input signals coming from the GPIO[3] pin on the Deserializer or can be configured to be the output of the local register setting on the Input/Output, Serializer. It can also be configured to be the input clock pin when the DS90UB913A-Q1 LVCMOS Serializer is working with an external oscillator. See Device Functional Modes section for a detailed description of External Oscillator Mode. Leave open if unused. BIDIRECTIONAL CONTROL BUS - I2C-COMPATIBLE SCL 4 Input/Output, Clock line for the bidirectional control bus communication Open Drain SCL requires an external pullup resistor to VDDIO. SDA 5 Input/Output, Data line for the bidirectional control bus communication Open Drain SDA requires an external pullup resistor to VDDIO. MODE 8 Input, analog ID[x] 6 Device ID Address Select Input, analog The ID[x] pin on the Serializer is used to assign the I2C device address. Resistor (RID) to Ground and 10-kΩ pullup to 1.8 V rail. See Table 6. Device Mode Select Resistor (Rmode) to Ground and 10-kΩ pullup to 1.8 V rail. MODE pin on the Serializer can be used to select whether the system is running off the PCLK from the imager or an external oscillator. See details in Table 2. CONTROL AND CONFIGURATION PDB 9 Input, LVCMOS w/ pulldown RES 7 Input, LVCMOS w/ pulldown Power Down Mode Input Pin PDB = H, Serializer is enabled and is ON. PDB = L, Serializer is in Power Down mode. When the Serializer is in Power Down, the PLL is shutdown, and IDD is minimized. Programmed control register data is NOT retained and reset to default values. Reserved This pin MUST be tied LOW. FPD–Link III INTERFACE DOUT+ 13 Input/Output, Non-inverting differential output, bidirectional control channel input. The interconnect must be CML AC Coupled with a 0.1-µF capacitor. DOUT- 12 Inverting differential output, bidirectional control channel input. The interconnect must be AC Input/Output, Coupled with a 0.1-µF capacitor. For applications using single-ended coaxial interconnect, a CML 0.047-µF AC coupling capacitor should be placed in series with a 50Ω resistor before terminating to GND. POWER AND GROUND (1) VDDPLL 10 Power, Analog PLL Power, 1.8 V ±5%. VDDT 11 Power, Analog Tx Analog Power, 1.8 V ±5%. VDDCML 14 Power, Analog CML & Bidirectional Channel Driver Power, 1.8 V ±5%. VDDD 28 Power, Digital Digital Power, 1.8 V ±5%. VDDIO 25 Power, Digital Power for I/O stage. The single-ended inputs and SDA, SCL are powered from VDDIO. VDDIO can be connected to a 1.8 V ±5% or 2.8 V ±10% or 3.3 V ±10%. (1) 6 See Power-Up Requirements and PDB Pin. Copyright © 2013–2020, Texas Instruments Incorporated DS90UB913A-Q1 www.ti.com.cn ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 Pin Functions: DS90UB913A-Q1 Serializer (continued) PIN NAME NO. VSS DAP I/O Ground, DAP DESCRIPTION DAP must be grounded. DAP is the large metal contact at the bottom side, located at the center of the WQFN package. Connected to the ground plane (GND) with at least 9 vias. 7 Specifications 7.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) MIN MAX UNIT Supply Voltage – VDD_n (VDDPLL, VDDT, VDDCML, VDDD) −0.3 2.5 V Supply Voltage – VDDIO −0.3 4.0 V LVCMOS Input Voltage −0.3 VDDIO + 0.3 V CML Driver I/O Voltage – (VDD_n) -0.3 VDD_n + 0.3 V 150 °C 150 °C Junction Temperature −65 Storage temperature range, Tstg (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 7.2 ESD Ratings VALUE Human body model (HBM), per AEC Q100-002 (1) HBM ESD Classification Level 3B Charged device model (CDM), per AEC Q100-011 CDM ESD Classification Level C6 V(ESD) Electrostatic discharge (IEC 61000-4-2) RD = 330 Ω, Cs = 150pF (ISO10605) RD = 330 Ω, Cs = 150/330 pF RD = 2 KΩ, Cs = 150/330 pF (1) UNIT ±8000 Corner pins (1, 8, 9, 16, 17, 24, 25, 32) ±1000 Other pins Air Discharge (DOUT+, DOUT-, RIN+, RIN-) ±25000 Contact Discharge (DOUT+, DOUT-, RIN+, RIN-) ±7000 Air Discharge (DOUT+, DOUT-, RIN+, RIN-) ±15000 Contact Discharge (DOUT+, DOUT-, RIN+, RIN-) ±8000 V AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS-001 specification. 7.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) MIN NOM MAX UNIT 1.71 1.8 1.89 V 1.71 1.8 1.89 VDDIO= 3.3 V 3 3.3 3.6 VDDIO= 2.8 V 2.52 2.8 3.08 Supply Voltage (VDD_n) VDDIO= 1.8 V LVCMOS Supply Voltage Supply Noise (1) (1) VDD_n = 1.8 V 25 VDDIO = 1.8 V 25 VDDIO = 3.3 V 50 V mVp-p Supply noise testing was done with minimum capacitors (as shown on Figure 36, Figure 32 on the PCB. A sinusoidal signal is AC coupled to the VDD_n (1.8 V) supply with amplitude = 25 mVp-p measured at the device VDD_n pins. Bit error rate testing of input to the Ser and output of the Des with 10-meter cable shows no error when the noise frequency on the Ser is less than 1 MHz. The Des on the other hand shows no error when the noise frequency is less than 750 kHz. Copyright © 2013–2020, Texas Instruments Incorporated 7 DS90UB913A-Q1 ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 www.ti.com.cn Recommended Operating Conditions (continued) over operating free-air temperature range (unless otherwise noted) MIN Power-Over-Coax Supply Noise UNIT 10 mVp-p ƒ = 1 KHz - 50 MHz Measured differentially between DOUT+ and DOUT(coax mode only) 10 mVp-p –40 10-bit mode External Clock Input Frequency to GPO3 MAX ƒ = 30 Hz - 1 KHz, trise > 100 µs Measured differentially between DOUT+ and DOUT– (coax mode only) Operating Free Air Temperature (TA) PCLK Clock Frequency NOM 25 105 °C 50 100 MHz 12-bit HF mode 37.5 75 MHz 12-bit LF mode 25 50 MHz 10-bit mode 25 50 MHz 12-bit HF mode 25 50 MHz 12-bit LF mode 25 50 MHz 7.4 Thermal Information DS90UB913A-Q1 THERMAL METRIC (1) RTV (WQFN) UNIT 32 PINS RθJA Junction-to-ambient thermal resistance 34.9 °C/W RθJC(top) Junction-to-case (top) thermal resistance 8.8 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance 3.4 °C/W RθJB Junction-to-board thermal resistance 23.4 °C/W ψJT Junction-to-top characterization parameter 0.3 °C/W ψJB Junction-to-board characterization parameter 8.8 °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report (SPRA953). 7.5 Electrical Characteristics (1) (2) (3) Over recommended operating supply and temperature ranges unless otherwise specified. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT LVCMOS DC SPECIFICATIONS 3.3 V I/O (SER INPUTS, GPIO, CONTROL INPUTS AND OUTPUTS) VIH High Level Input Voltage VIN = 3 V to 3.6 V 2 VIN V VIL Low Level Input Voltage VIN = 3 V to 3.6 V GND 0.8 V IIN Input Current VIN = 0 V or 3.6 V, VIN = 3 V to 3.6 V –20 20 µA VOH High Level Output Voltage VDDIO = 3 V to 3.6 V, IOH = −4 mA 2.4 VDDIO V VOL Low Level Output Voltage VDDIO = 3 V to 3.6 V, IOL = 4 mA GND 0.4 V IOS Output Short Circuit Current VOUT = 0 V Serializer GPO Outputs IOZ TRI-STATE Output Current PDB = 0 V, VOUT = 0 V or VDDIO Serializer GPO Outputs (1) (2) (3) 8 ±1 –15 –20 mA 20 µA The Electrical Characteristics tables list verified specifications under the listed Recommended Operating Conditions except as otherwise modified or specified by the Electrical Characteristics Conditions and/or Notes. Typical specifications are estimations only and are not verified. Current into device pins is defined as positive. Current out of a device pin is defined as negative. Voltages are referenced to ground except VOD and ΔVOD which are differential voltages. Typical values represent most likely parametric norms at 1.8 V or 3.3 V, TA = 25°C, and at the Recommended Operation Conditions at the time of product characterization and are not verified. Copyright © 2013–2020, Texas Instruments Incorporated DS90UB913A-Q1 www.ti.com.cn ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 Electrical Characteristics(1)(2)(3) (continued) Over recommended operating supply and temperature ranges unless otherwise specified. PARAMETER CGPO Pin Capacitance TEST CONDITIONS MIN GPO [3:0] TYP MAX 1.5 UNIT pF LVCMOS DC SPECIFICATIONS 1.8 V I/O (SER INPUTS, GPIO, CONTROL INPUTS AND OUTPUTS) VIH High Level Input Voltage VIN = 1.71 V to 1.89 V 0.65 VIN VIN VIL Low Level Input Voltage VIN = 1.71 V to 1.89 V GND 0.35 VIN IIN Input Current VIN = 0 V or 1.89 V, VIN = 1.71 V to 1.89 V VOH High Level Output Voltage VDDIO = 1.71 V to 1.89 V, IOH = −4 mA VOL Low Level Output Voltage VDDIO = 1.71 V to 1.89 V IOL = 4 mA IOS Output Short Circuit Current VOUT = 0 V Serializer GPO Outputs IOZ TRI-STATE Output Current PDB = 0 V, VOUT = 0 V or VDDIO Serializer GPO Outputs CGPO Pin Capacitance GPO [3:0] IIN-STRAP Strap pin input current VIN = 0 V to VDD_n V –20 ±1 20 µA VDDIO - 0.45 VDDIO V GND 0.45 V –11 -20 mA 20 µA 1 µA 1.5 -1 pF LVCMOS DC SPECIFICATIONS 2.8 V I/O (SER INPUTS, GPIO, CONTROL INPUTS AND OUTPUTS) VIH High Level Input Voltage VIN = 2.52 V to 3.08 V 0.7 VIN VIN VIL Low Level Input Voltage VIN = 2.52 V to 3.08 V GND 0.3 VIN IIN Input Current VIN = 0 V or 3.08 V, VIN = 2.52 V to 3.08 V VOH High Level Output Voltage VDDIO = 2.52 V to 3.08 V, IOH = −4 mA VOL Low Level Output Voltage VDDIO =2.52 V to 3.08V IOL = 4 mA IOS Output Short Circuit Current VOUT = 0 V Serializer GPO Outputs IOZ TRI-STATE Output Current PDB = 0 V, VOUT = 0 V or VDDIO Serializer GPO Outputs CGPO Pin Capacitance GPO [3:0] V –20 ±1 20 µA VDDIO - 0.4 VDDIO V GND 0.4 V –11 –20 mA 20 1.5 µA pF CML DRIVER DC SPECIFICATIONS (DOUT+, DOUT-) VOD Differential Output Voltage RL = 100 Ω (Figure 6), Back Channel Disabled 640 824 VOUT Single-Ended Output Voltage RL = 50 Ω (Figure 6), Back Channel Disabled 320 412 ΔVOD Differential Output Voltage Unbalance RL = 100 Ω VOS Output Offset Voltage RL = 100 Ω (Figure 6) ΔVOS Offset Voltage Unbalance RL = 100 Ω IOS Output Short Circuit Current DOUT+ = 0 V or DOUT– = 0 V Differential Internal Termination Resistance Differential across DOUT+ and DOUT– Single-ended Termination Resistance DOUT+ or DOUT– RT mV 1 50 VDD_n VOD/2 1 V 50 –26 80 100 mV mV mA 120 Ω Copyright © 2013–2020, Texas Instruments Incorporated 40 50 60 9 DS90UB913A-Q1 ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 www.ti.com.cn Electrical Characteristics(1)(2)(3) (continued) Over recommended operating supply and temperature ranges unless otherwise specified. PARAMETER VID-BC VIN-BC Back Channel Differential Input Voltage TEST CONDITIONS MIN TYP MAX UNIT 260 mV 130 mV Back Channel Frequency = 5.5 MHz (4) Back Channel SingleEnded Input Voltage SERIALIZER SUPPLY CURRENT Serializer (Tx) RL = 100 Ω VDD_n Supply Current WORST CASE pattern (includes load current) (Figure 2) IDDT Serializer (Tx) RL = 100 Ω VDD_n Supply Current RANDOM PRBS-7 (includes load current) pattern IDDT IDDIOT IDDTZ IDDIOTZ (4) 10 Serializer (Tx) RL = 100 Ω VDDIO Supply Current WORST CASE pattern (includes load current) (Figure 2) Serializer (Tx) Supply Current Power Down PDB = 0V; All other LVCMOS Inputs = 0 V Serializer (Tx) VDDIO PDB = 0V; All other Supply Current Power LVCMOS Inputs = 0 V Down VDD_n = 1.89 V VDDIO = 3.6 V f = 100 MHz, 10-bit mode Default Registers 61 80 VDD_n = 1.89 V VDDIO = 3.6 V f = 75 MHz, 12-bit high frequency mode Default Registers 61 80 VDD_n = 1.89 V VDDIO = 3.6 V f = 50 MHz, 12-bit low frequency mode Default Registers 61 VDD_n = 1.89 V VDDIO = 3.6 V f = 100 MHz, 10-bit mode Default Registers 65 VDD_n = 1.89 V VDDIO = 3.6 V f = 75 MHz, 12-bit high frequency mode Default Registers 64 VDD_n = 1.89 V VDDIO = 3.6 V f = 50 MHz, 12-bit low frequency mode Default Registers 63 VDDIO = 1.89 V f = 75 MHz, 12-bit high frequency mode Default Registers 1.5 VDDIO = 3.6 V f = 75 MHz, 12-bit high frequency mode Default Registers mA mA 80 mA 3 mA 5 8 VDDIO=1.89 V Default Registers 300 1000 µA VDDIO = 3.6 V Default Registers 300 1000 µA VDDIO = 1.89 V Default Registers 15 100 µA VDDIO = 3.6 V Default Registers 15 100 µA The back channel frequency (MHz) listed is the frequency of the internal clock used to generate the encoded back channel data stream. The data rate (Mbps) of the encoded back channel stream is the back channel frequency divided by 2. Copyright © 2013–2020, Texas Instruments Incorporated DS90UB913A-Q1 www.ti.com.cn ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 7.6 Recommended Serializer Timing For PCLK (1) (2) Over recommended operating supply and temperature ranges unless otherwise specified. PARAMETER TEST CONDITIONS PIN / FREQ 10-bit mode 50 MHz – 100 MHz tTCP Transmit Clock Period 12-bit high frequency mode 37.5 MHz - 75MHz 12-bit low frequency mode 25 MHz - 50MHz MIN NOM MAX 10 T 20 ns 13.33 T 26.67 ns 20 T 40 ns tTCIH Transmit Clock Input High Time 0.4T 0.5T 0.6T tTCIL Transmit Clock Input Low Time 0.4T 0.5T 0.6T 0.05T 0.25T 0.3T 0.05T 0.25T 0.3T 0.05T 0.25T 0.3T 10-bit mode 50 MHz – 100 MHz tCLKT PCLK Input Transition Time 12-bit high frequency mode (Figure 7) 37.5 MHz - 75MHz 12-bit low frequency mode 25 MHz - 50MHz tJIT0 PCLK Input Jitter (PCLK from imager mode) (3) LPF = ƒ/20, CDR PLL Loop BW = ƒ/15, BER = 1E-10 tJIT1 PCLK Input Jitter (External Oscillator mode) (3) LPF = ƒ/20, CDR PLL Loop BW = ƒ/15, BER = 1E-10 tJIT2 External Oscillator Jitter (3) LPF = ƒ/20, CDR PLL Loop BW = ƒ/15, BER = 1E-10 ΔOSC External Oscillator Frequency Stability (1) (2) (3) (4) (5) ƒPCLK = 25 – 100 MHz (4) ƒPCLK = 25 – 100 MHz (4) 0.3 UI 0.3 UI 1T ƒOSC = 25 – 50 MHz (5) ƒOSC = 25 – 50 MHz (5) UNIT ±50 ppm Recommended Input Timing Requirements are input specifications and not tested in production. T is the period of the PCLK. Typical values represent most likely parametric norms at 1.8 V or 3.3 V, TA = 25°C, and at the Recommended Operation Conditions at the time of product characterization and are not verified. ƒPCLK denotes input PCLK frequency to the device. ƒOSC denotes input external oscillator frequency to the device (GPO3/CLKIN). Copyright © 2013–2020, Texas Instruments Incorporated 11 DS90UB913A-Q1 ZHCSEW6F – MAY 2013 – REVISED JANUARY 2020 www.ti.com.cn 7.7 AC Timing Specifications (SCL, SDA) - I2C-Compatible Over recommended supply and temperature ranges unless otherwise specified. (Figure 1) PARAMETER TEST CONDITIONS MIN NOM MAX UNIT Standard Mode 100 kHz Fast Mode 400 kHz RECOMMENDED INPUT TIMING REQUIREMENTS fSCL SCL Clock Frequency tLOW SCL Low Period Standard Mode 4.7 µs Fast Mode 1.3 µs Standard Mode 4.0 µs Fast Mode 0.6 µs tHIGH SCL High Period tHD:STA Hold time for a start or a repeated start condition Standard Mode 4.0 µs Fast Mode 0.6 µs Set Up time for a start or a repeated start condition Standard Mode 4.7 µs Fast Mode 0.6 tSU:STA tHD:DAT tSU:DAT Data Hold Time Data Set Up Time tSU:STO Set Up Time for STOP Condition tBUF Bus Free time between Stop and Start tr tf SCL & SDA Rise Time SCL & SDA Fall Time µs Standard Mode 0 3.45 µs Fast Mode 0 900 ns Standard Mode 250 ns Fast Mode 100 ns Standard Mode 4.0 µs Fast Mode 0.6 µs Standard Mode 4.7 µs Fast Mode 1.3 µs Standard Mode 1000 ns Fast Mode 300 ns Standard Mode 300 ns Fast Mode 300 ns 7.8 Bidirectional Control Bus DC Timing Specifications (SCL, SDA) - I2C-Compatible (1) Over recommended supply and temperature ranges unless otherwise specified PARAMETER TEST CONDITIONS MIN NOM MAX UNIT VDDIO V RECOMMENDED INPUT TIMING REQUIREMENTS VIH Input High Level SDA and SCL 0.7*VDDIO VIL Input Low Level SDA and SCL GND VHY Input Hysteresis VOL Output Low Level (2) IIN Input Current tR SDA Rise Time-READ tF SDA Fall Time-READ CIN (1) (2) 12 0.3*VDDIO >50 SDA, VDDIO = 1.8 V, IOL= 0.9 mA 0 0.36 SDA, VDDIO = 3.3 V, IOL= 1.6 mA 0 0.4 SDA or SCL, VIN= VDDIO OR GND SDA, RPU = 10 kΩ, Cb ≤ 400 pF (Figure 1) SDA or SCL −10 V mV 10 V µA 430 ns 20 ns
DS90UB913ATRTVRQ1 价格&库存

很抱歉,暂时无法提供与“DS90UB913ATRTVRQ1”相匹配的价格&库存,您可以联系我们找货

免费人工找货
DS90UB913ATRTVRQ1
  •  国内价格 香港价格
  • 1+79.108011+9.81332
  • 10+61.5750110+7.63836
  • 25+57.1925925+7.09472
  • 100+52.37849100+6.49753
  • 250+50.08372250+6.21287
  • 500+48.70058500+6.04129

库存:1465
