DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
DS90UB954-Q1 双路 4.16Gbps FPD-Link III解
解串器集线器
：适用于 2MP/60fps 摄像头和雷达
1 特性
•
1
•
•
•
•
•
•
•
•
•
•
•
符合面向汽车应用的 AEC-Q100 标准
– 器件温度 2 级：-40℃ 至 +105℃ 的环境工作温
度范围
双路解串器集线器可以通过 FPD-Link III 接口聚合
一个或两个有源传感器
同轴电缆供电 (PoC) 兼容收发器
符合 MIPI DPHY 版本 1.2/CSI-2 版本 1.3 标准
– CSI-2 输出端口
– 支持 1、2、3、4 个数据通道
– CSI-2 数据速率可扩展：每个数据通道支持
400Mbps/800Mbps/1.5Gbps/1.6Gbps
– 可编程数据类型
– 四个虚拟通道
– ECC 和 CRC 生成
超低数据和控制路径延迟
支持单端同轴或屏蔽双绞线 (STP) 电缆
自适应接收均衡
具有快速模式增强版（高达 1Mbps）的 I2C
用于摄像头同步和诊断的灵活 GPIO
与 DS90UB935-Q1、DS90UB953-Q1、
DS90UB933-Q1 和 DS90UB913A-Q1 串行器兼容
线路故障检测和高级诊断
符合 ISO 10605 和 IEC 61000-4-2 ESD 标准
2 应用
•
•
•
汽车 ADAS
– 后视摄像头 (RVC)
– 环视系统 (SVS)
– 摄像头监控系统 (CMS)
– 前视摄像头 (FC)
– 驾驶员监控系统 (DMS)
– 卫星雷达、飞行时间 (ToF) 和激光雷达传感器
模块
安全和监控
工业和医疗成像
3 说明
DS90UB954-Q1 是一款多功能双路解串器集线器，可
通过 FPD-Link III 接口从一个或两个独立源接收串行传
感器数据。与 DS90UB953-Q1 串行器配合使用
时，DS90UB954-Q1 从成像仪接收数据，支持
2MP/60fps 和 4MP/30fps 摄像头以及卫星雷达和其他
传感器（如 ToF 和激光雷达）。接收的数据将聚合至
符合 MIPI CSI-2 标准并与下游处理器互连的输出端。
对于配备了 DS90UB933-Q1 和 DS90UB913A-Q1 串
行器的传感器，DS90UB954-Q1 从一个或两个传感器
（包括全高清 1080p 2MP 60/fps 成像仪传感器）接收
并聚合数据。 为 2 通道运行配置 CSI-2 接口时，会提
供一个完全相同的 MIPI CSI-2 时钟通道，以提供复制
输出。复制模式可创建两个聚合视频流副本，用于数据
记录和并行处理。
DS90UB954-Q1 和配套的 DS90UB953-Q1 芯片组符
合 AEC-Q100 标准，旨在通过 50Ω 单端同轴电缆或
100Ω 差分 STP 电缆接收数据。解串器集线器非常适
合同轴电缆供电 应用 ，接收均衡器会自动适应以补偿
电缆损耗特性（无需额外的编程），包括随时间推移而
出现的电缆老化。
每个 FPD-Link III 接口包括一个单独的低延迟双向控制
通道 (BCC)，该通道可连续传送 I2C、GPIO 和其他控
制信息。用于传感器同步和诊断 特性 的 GPIO 信号也
使用 BCC。

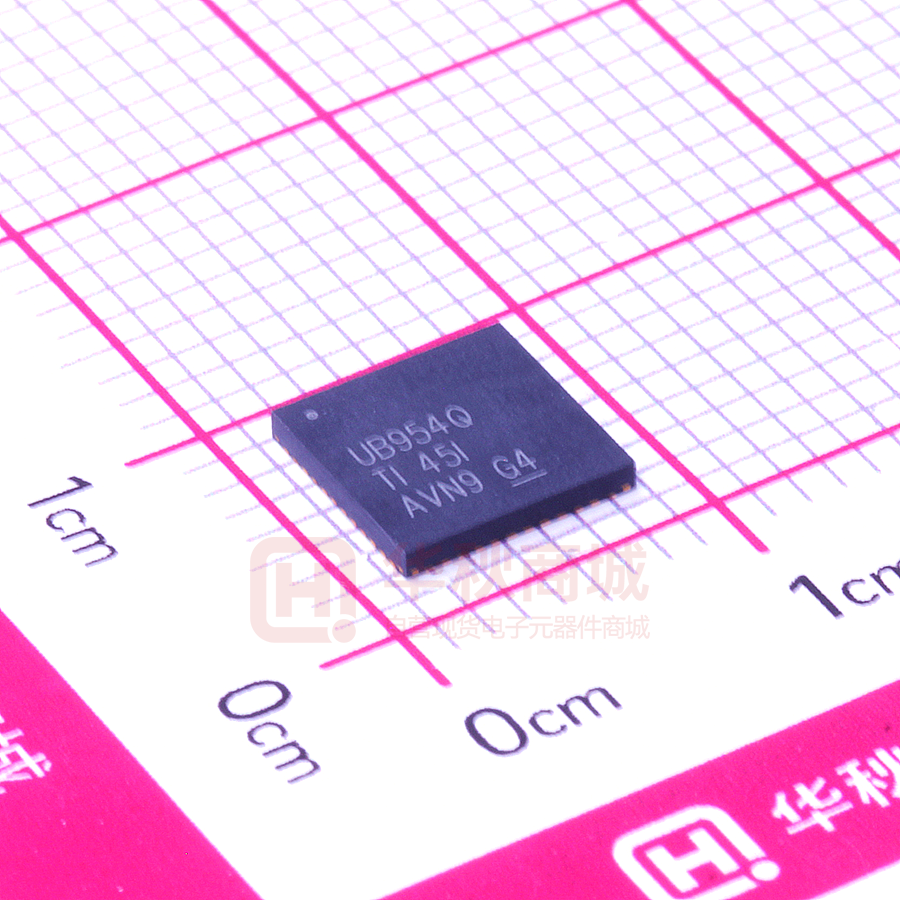

器件信息(1)
器件型号
DS90UB954-Q1
封装
VQFN (48)
封装尺寸（标称值）
7.00mm × 7.00mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附
录。
典型应用原理图
FPD-Link III
Coax or STP
MIPI CSI-2
DS90UB953
FPD-Link III
Serializer
DS90UB954-Q1
FPD-Link III
Deserializer
D3P/N
D2P/N
D1P/N
D0P/N
CLKP/N
Processor
SoC
I2C
DS90UB953
FPD-Link III
Serializer
GPIO
Copyright © 2017, Texas Instruments Incorporated
1
本文档旨在为方便起见，提供有关 TI 产品中文版本的信息，以确认产品的概要。 有关适用的官方英文版本的最新信息，请访问 www.ti.com，其内容始终优先。 TI 不保证翻译的准确
性和有效性。 在实际设计之前，请务必参考最新版本的英文版本。
English Data Sheet: SNLS570
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
目录
1
2
3
4
5
6
特性 ..........................................................................
应用 ..........................................................................
说明 ..........................................................................
修订历史记录 ...........................................................
Pin Configuration and Functions .........................
Specifications.........................................................
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
6.10
7
1
1
1
2
5
9
Absolute Maximum Ratings ...................................... 9
ESD Ratings.............................................................. 9
Recommended Operating Conditions....................... 9
Thermal Information ................................................ 10
DC Electrical Characteristics ................................. 10
AC Electrical Characteristics................................... 14
AC Electrical Characteristics CSI-2 ........................ 15
Recommended Timing for the Serial Control Bus .. 19
Timing Diagrams ..................................................... 21
Typical Characteristics .......................................... 26
Detailed Description ............................................ 27
7.1
7.2
7.3
7.4
Overview ................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
27
28
28
28
7.5 Programming .......................................................... 57
7.6 Register Maps ......................................................... 73
8
Application and Implementation ...................... 140
8.1 Application Information.......................................... 140
8.2 Typical Application ............................................... 144
8.3 System Examples ................................................. 147
9
Power Supply Recommendations.................... 149
9.1 VDD and VDDIO Power Supply............................ 149
9.2 Power-Up Sequencing .......................................... 149
10 Layout................................................................. 152
10.1 PCB Layout Guidelines....................................... 152
10.2 Layout Examples................................................. 155
11 器件和文档支持 ................................................... 158
11.1
11.2
11.3
11.4
11.5
11.6
11.7
器件支持..............................................................
文档支持 .............................................................
接收文档更新通知 ...............................................
社区资源..............................................................
商标 .....................................................................
静电放电警告.......................................................
术语表 .................................................................
158
158
158
158
158
158
158
12 机械、封装和可订购信息 ..................................... 159
4 修订历史记录
Changes from Revision A (September 2018) to Revision B
•
Page
已更改 the intended content bandwidth limit from 2.528 Gbps to 3.328 Gbps ................................................................... 46
Changes from Original (August 2017) to Revision A
Page
•
Changed supply voltage test condition from V(VDD11)(VDD_SEL = LOW ONLY to V(VDD11)(VDD_SEL = HIGH
ONLY) .................................................................................................................................................................................... 9
•
Added spread-spectrum reference clock modulation percentage parameter to the ROC tables......................................... 10
•
Added V(VDDIO) VDD18 ±50mV test condition to the high level output voltage parameter ............................................... 12
•
Added V(VDDIO) = VDD18 ±50mV test to the low level output voltage parameter............................................................. 12
•
Added PDB pin/frequency test condition and values to the high level input voltage parameter.......................................... 13
•
Added PDB pin/frequency test condition and values to the low level input voltage parameter .......................................... 13
•
Changed output short circuit current symbol from Isc to Ios ................................................................................................ 13
•
Added AEQ rating ±3ms RAW mode to the deserializer data lock time parameter............................................................. 14
•
Added data bit rate minimum and typical values to the REFCLK = 23 MHz and REFCLK = 26 MHz test conditions ........ 15
•
Added DDR clock frequency minmum and typical values to the REFCLK = 23 MHz and REFCLK = 26 MHz test
conditions.............................................................................................................................................................................. 15
•
Added the text '1.5 Gbps' after the 'Data rate ' text in slew rate test conditions for falling and
rising edge ............................................................................................................................................................................ 17
•
Changed the UI instantaneous maximum value from 12.5 ns to 2.7 ns .............................................................................. 17
•
Added discrete synch signals requirement when using DVP format ................................................................................... 29
•
Changed FPD3_PCLK to fPCLK in the RAW mode line rate calculations ............................................................................. 29
•
Added information about YUV support ................................................................................................................................ 29
•
Removed Coax/STP column and reorganized rows. .......................................................................................................... 30
•
Relaxed REFCLK Oscillator jitter specification to 200 ps maximum ................................................................................... 30
2
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
•
Relaxed REFCLK Oscillator rise and fall time to 6 ns maximum ........................................................................................ 30
•
Added REFCLK spread-spectrum modulation percentage and frequency ......................................................................... 30
•
Changed Text from: AEQ_FLOOR value to: ADAPTIVE_EQ_FLOOR_VALUE ................................................................. 33
•
Updated Forward Channel GPIO typical latency value ........................................................................................................ 40
•
Updated Back Channel GPIO typical latency and jitter for 50 Mbps rate ............................................................................ 40
•
Added need for discrete synch signals in DVP mode and included RAW/YUV support...................................................... 43
•
Changed from GPIO7 pin to GPIO6 pin ............................................................................................................................... 48
•
Changed Text from: The total period of the FrameSync is (1 s / 60 hz) / 600 ns to: The total period of the
FrameSync is (1 / 60 hz) / 600 ns ........................................................................................................................................ 49
•
Deleted Sentence "It is recommended to forward the relevant RX port data streams prior to enabling the CSI-2 TX
output"................................................................................................................................................................................... 50
•
Added Enabling and Disabling the CSI-2 Transmitter section ............................................................................................ 50
•
Changed Sensor A and B to Sensor X in definition list........................................................................................................ 52
•
已更改 Node VDDIO to VI2C for SCL and SDA signal lines ............................................................................................... 58
•
Changed Register 0x7C to register 0x7D............................................................................................................................. 68
•
Changed BIST_CTL to BIST Control to match register map ............................................................................................... 72
•
Changed Parity Error Threshold High to PAR_ERR_THOLD_HI ........................................................................................ 75
•
Changed Parity Error Threshold Low to PAR_ERR_THOLD_LO ........................................................................................ 75
•
Added Cross-reference to GPIO4_OUT_SRC bit description .............................................................................................. 81
•
Changed GPIO5_OUT_VAL bit description text from: GPIO5_OUT_SEL[2:0] = 00 to: GPIO5_OUT_SEL[2:0] = 000....... 81
•
Changed GPIO6_OUT_VAL bit description text from: GPIO6_OUT_SEL[2:0] = 00 to: GPIO6_OUT_SEL[2:0] = 000....... 81
•
Changed FS_GEN_MODE bit description text from: 'FS_HIGH_TIME and FS_LOW_TIME register values' to:
'FS_HIGH_TIME [15:0] and FS_LOW_TIME [15:0] register values' for clarity .................................................................... 82
•
Changed INT bit to INTERRUPT_STS bit in INTERRUPT_STS bit description .................................................................. 86
•
Changed RESERVED bit numbers from: 6:4 to: 6:5 ............................................................................................................ 86
•
Changed RESERVED bit description text from: CSI_PLL to: CSI_PLL_CTL ..................................................................... 89
•
Added sentence about RX port specific register for registers 0x4A, 0x4B, 0x4D - 0x7F, 0xD0 - 0xDF ............................. 95
•
Updated RX_PORT_STS2 register bit 1 field and description ............................................................................................ 98
•
Changed VOLT1_SENSE_LEVEL to VOLT0_SENSE_LEVEL ........................................................................................... 99
•
Changed PAR_ERROR line _BYTE_1 to PAR_ERROR _BYTE_1 and RX PARITY CHECKER ENABLE to
RX_PARITY_CHECKER_ENABLE .................................................................................................................................... 100
•
Changed RX PARITY CHECKER ENABLE to RX_PARITY_CHECKER_ENABLE .......................................................... 100
•
Changed BCC_Config Register 0x58[2:0] binary setting value from 0b100 to 0b010 to select 10 Mbps nonsynchronous back channel rate.......................................................................................................................................... 101
•
Removed Text 'This field is normally loaded from the remote serializer. It can be overwritten if the
OVERRIDE_FC_CONFIG bit in the DATAPATH_CTL0 register is 1.' from the RESERVED bit description .................... 102
•
Changed PASSPARITY-ERR to PASS_PARITY_ERR ..................................................................................................... 115
•
Removed Broken link in the IND_ACC_CTL register table ................................................................................................ 117
•
Changed IA_SEL bit enumerations from: 0001-0100 and 1000-0111 to: 00011–0100 and 1000–1111 ........................... 117
•
Changed RESERVED Register to FPD3_ENC_CTL ........................................................................................................ 119
•
Changed RESERVED bit numbers from: 5:3 to: 4:2 ......................................................................................................... 120
•
Changed ADAPTIVE_EQ_FLOOR_VALUE bit description from: register {reg_35[5:4]} to: register 0xD2[2] .................... 123
•
Changed IE_FC_SENS_STS bit description from: Camera and CAM to: Sensor and SEN ............................................. 125
•
Fixed Broken link in Power Over Coax section .................................................................................................................. 140
•
Redraw the PoC Network diagram .................................................................................................................................... 141
•
Updated Return Loss S11 values ...................................................................................................................................... 143
•
Redraw RINx STP setting for figure "Typical Connection Diagram STP With External 1.1-V supply"............................... 145
•
Fixed Broken links in the Detailed Design Procedure section............................................................................................ 146
Copyright © 2017–2018, Texas Instruments Incorporated
3
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
•
Removed Second paragraph in System Examples............................................................................................................ 147
4
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
5 Pin Configuration and Functions
MODE
37
CMLOUTP
38
CMLOUTN
VDD18_P1
IDX
VDD11_FPD1
RIN1-
RIN1+
VDD18_FPD1
PDB
VDDIO
GPIO0
GPIO1
GPIO2
GPIO3/INTB
36
35
34
33
32
31
30
29
28
27
26
25
RGZ Package
48-Pin VQFN
Top View
24
CSI_D3P
23
CSI_D3N
39
22
CSI_D2P
VDD18_FPD0
40
21
CSI_D2N
RIN0+
41
20
VDD11_CSI
RIN0-
42
19
CSI_CLK1P
VDD11_FPD0
43
18
CSI_CLK1N
RES
44
17
VDD18_CSI
VDD18_P0
45
16
CSI_D1P
VDD_SEL
46
15
CSI_D1N
PASS
47
14
CSI_D0P
LOCK
48
13
CSI_D0N
DAP = GND
1
2
3
4
5
6
7
8
9
10
11
12
I2C_SDA
I2C_SCL
VDD11_D
XOUT
XIN/REFCLK
BISTEN
VDDIO
GPIO6
GPIO5
GPIO4
CSI_CLK0N
CSI_CLK0P
DS90UB954-Q1
48L QFN
(Top View)
Copyright © 2017–2018, Texas Instruments Incorporated
5
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Pin Functions
PIN
NAME
NO.
I/O
TYPE
DESCRIPTION
O
RECEIVE DATA OUTPUT: This signal carries data from the FPD-LINK III
Deserializer to the processor over CSI-2 interface. Receive data is CSI-2 configured
with DPHY outputs as one differential clock lane (CSI_CLK0P/N) and up to four
differential data lanes (CSI_D0P/N: CSI_D3P/N) or two clock lanes (CSI_CLK0P/N,
CSI_CLK1P/N) and two differential data lanes for each clock. When in replicate
mode data lanes CSI_D2P/N and CSI_D3P/N are associated with clock lane
CSI_CLK1P/N to provide the replicated output. For unused outputs leave as No
Connect.
RECEIVE DATA CSI-2 OUTPUT
CSI_D3P
24
CSI_D3N
23
CSI_D2P
22
CSI_D2N
21
CSI_CLK1P
19
CSI_CLK1N
18
CSI_D1P
16
CSI_D1N
15
CSI_D0P
14
CSI_D0N
13
CSI_CLK0P
12
CSI_CLK0N
11
CLOCK INTERFACE
XOUT
4
O
Crystal oscillator output: Output Pin for providing crystal oscillator reference. Leave
this pin NC when reference clock input is driving XIN/REFCLK.
XIN/REFCLK
5
S, I
Reference clock input or crystal oscillator input. Pin is shared with XIN and
REFCLK. Typically REFCLK connected to 23- to 26-MHz reference oscillator output
(100 ppm) or XIN configured with external 23- to 26-MHz crystal to XOUT. See
REFCLK.
I/O, PD
General-Purpose Input/Output: Pins can be used to control and respond to various
commands. They may be configured to be the input signals for the corresponding
GPIOs on the serializer or they may be configured to be outputs to follow local
register settings. At power up, the GPIO are disabled and by default include a 35-k
(typical) pulldown resistor. See GPIO Support for programmability. Unused GPIO
can be left open or no connect.
I/O, OD
General-Purpose Input/Output: Pin GPIO3 can be configured to be input signals for
GPOs on the Serializer. Pin 25 is shared with INTB. Pullup with 4.7 kΩ to V(VDDIO).
The programmable input and output pin is an active-low open drain and controlled
by the status registers. See GPIO Support for programmability. Unused GPIO can
be left open or no connect.
I/O
Receive Input Channel 0: Differential FPD-Link receiver and bidirectional control
back channel output. The IO must be AC coupled. For applications using singleended coaxial channel connect RIN0+ with 33-nF, AC-coupling capacitor and
terminate RIN0- to GND with a 15-nF capacitor and 50-Ω resistor. For STP
applications, connect both RIN0+ and RIN0– with 33-nF, AC-coupling capacitors. If
port is unused, leave NC and set RX_PORT_CTL register bit 0 = 0 to disable (see
Receiver Port Control).
I/O
Receive Input Channel 1: Differential FPD-Link receiver and bidirectional control
back channel output. The IO must be AC coupled. For applications using singleended coaxial channel connect RIN0+ with 33-nF, AC-coupling capacitor and
terminate RIN1- to Ground with a 15-nF capacitor and 50-Ω resistor. For STP
applications, connect both RIN1+ and RIN1– with 33-nF, AC-coupling capacitor. If
port is unused, leave NC and set RX_PORT_CTL register bit 1 = 0 to disable (see
Receiver Port Control).
I/O, OD
I2C Serial Clock: Clock line for the bidirectional control bus communication.
External 2-kΩ to 4.7-kΩ pullup resistor to 1.8-V or 3.3-V supply rail recommended
per I2C interface standards. I2C_SCL and I2C_SDA inputs are 3.3-V tolerant. See
Serial Control Bus and Bidirectional Control Channel for more information.
SYNCHRONIZATION AND GPIO
GPIO0
28
GPIO1
27
GPIO2
26
GPIO4
10
GPIO5
9
GPIO6
8
GPIO3/INTB
25
FPD-LINK III INTERFACE
RIN0+
41
RIN0–
42
RIN1+
32
RIN1–
33
I2C PINS
I2C_SCL
6
2
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
Pin Functions (continued)
PIN
NAME
I2C_SDA
NO.
1
I/O
TYPE
DESCRIPTION
I/O, OD
I2C Serial Data: Data line for bidirectional control bus communication.
External 2-kΩ to 4.7-kΩ pullup resistor to 1.8-V or 3.3-V supply rail recommended
per I2C interface standards. I2C_SCL and I2C_SDA inputs are 3.3-V tolerant. See
Serial Control Bus and Bidirectional Control Channel for more information.
S, PD
VDD Select: Configuration pin to select internal LDO regulator supply. When
VDD_SEL = LOW, internal 1.1-V supply mode is selected. Feed 1.8 V to VDD18
inputs = 1.8 V ±5%. An internal 1.1-V regulator will supply the VDD11. VDD11
inputs should be terminated with bypass capacitors. When VDD_SEL = HIGH,
external 1.1-V supply mode is selected. After 1.8-V supply is applied to VDD18
inputs, then apply 1.1 V to VDD11 inputs = 1.1 V ±5%. Voltage at VDD11 supply
pins must always be less than main voltage applied to VDD18 when using
external 1.1-V supply.
CONFIGURATION AND CONTROL PINS
VDD_SEL
46
IDX
35
S, PD
Input. I2C Serial Control Bus Primary Device ID Address Select.
Once enabled the voltage at this pin will be sampled to configure the default I2C
device address. Typically connected with external pullup resistor to VDD18 and
pulldown resistor to GND to create a voltage divider. See 表 15.
MODE
37
S, PD
Mode select configuration input to set operating mode based on input voltage level.
Typically connected to voltage divider through external pullup to VDD18 and
pulldown to GND. See 表 2.
I, PD
Power-down inverted Input Pin. Typically connected to processor GPIO with pull
down. When PDB input is brought HIGH, the device is enabled and internal register
and state machines are reset to default values. Asserting PDB signal low will power
down the device and consume minimum power with CSI-2 Tx outputs in tri-state.
The default function of this pin is PDB = LOW; POWER DOWN with internal 50 kΩ
pull down enabled. PDB should remain low until after power supplies are applied
and reach minimum required levels. PDB INPUT IS 3.3-V TOLERANT. See section
Power-Up Sequencing.
PDB > 1.5 V, device is enabled (normal operation)
PDB = 0, device is powered down.
PDB
30
DIAGNOSTIC PINS
CMLOUTP
38
CMLOUTN
39
BISTEN
6
PASS
47
O
Monitor Loop-Through Driver differential output. Typically routed to test points and
not connected. For monitoring, CMLOUT should be terminated with 100-Ω
differential load. See Channel Monitor Loop-Through Output Driver (CMLOUT).
S, PD
BIST Enable: BISTEN = H, BIST Mode is enabled BISTEN = L, BIST Mode is
disabled. If unused connect BISTEN directly to GND. See BIST section FPD-Link
BIST Mode for more information.
O
PASS Output: PASS = H indicates pass conditions are met and PASS = L signals or
more pass condition is not met. Typically route to processor input pin or test point
for monitoring. May also be configured to indicate logical AND of pass status when
both Rx ports are enabled. See LOCK and PASS Status for more information. For
BIST operation PASS = H, ERROR FREE Transmission in forward channel
operation. PASS = L, one or more errors were detected in the received payload.
See BIST section for more information. Leave No Connect if unused.
LOCK Status: Output Pin for monitoring lock status of FPD-Link III channel, may be
used as Link Status. LOCK = H, the FPD-Link III receiver is Locked and Rx Ports
are active. LOCK = L, receiver is unlocked. May also be configured to indicate
logical AND of lock status when both Rx ports are enabled. See LOCK and PASS
Status for more information. Leave No Connect if unused.
LOCK
48
O
RES
44
PD
RES must be tied to GND for normal operation.
POWER AND GROUND
7,29
P
VDDIO voltage supply input: The single-ended outputs and control input are
powered from VDDIO. VDDIO can be connected to either a 1.8-V or 3.3-V supply
rail. When VDDIO is connected to 1.8-V supply, VDDIO must be within ±100 mV of
VDD18 to ensure output timing requirements are met. Each VDDIO pin requires a
minimum 1-µF and 0.01-µF capacitor to GND.
VDD18_CSI
17
P
1.8-V (±5%) Power Supply.
Requires 1-µF and 0.01-µF capacitors to GND.
VDD18_P0
VDD18_P1
45
36
P
1.8-V(±5%) Power Supplies.
Requires 0.01-µF capacitors to GND at each VDD pin along with 10-µF bulk
decoupling
VDDIO
Copyright © 2017–2018, Texas Instruments Incorporated
7
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Pin Functions (continued)
PIN
NAME
VDD18_FPD0
VDD18_FPD1
VDD11_FPD0
VDD11_FPD1
VDD11_CSI
VDD11_D
GND
NO.
40
31
I/O
TYPE
P
DESCRIPTION
1.8-V(±5%) Analog Power Supplies.
Requires 10-µF, and 0.1-µF capacitors to GND at each VDD pin.
D, P
When VDD_SEL = LOW, connection for internal analog regulator Decoupling
capacitor. Requires a minimum 4.7-µF capacitor to GND and should not be
connected to other 1.1-V supply rails. When VDD_SEL = HIGH, connection for
external 1.1-V supply rail input. External 1.1-V supply requires shared 10 µF with
VDD11_FPD1 and 0.01-µF capacitors to GND at each VDD11_FPD pin..
D, P
When VDD_SEL = LOW, connection for internal analog regulator Decoupling
capacitor. Requires a minimum 4.7-µF capacitor to GND and should not be
connected to other 1.1-V supply rails. When VDD_SEL = HIGH, connection for
external 1.1-V supply rail input. External 1.1-V supply must be sequenced after 1.8
V is applied and requires shared 10 μF with VDD11_FPD0 and 0.01-μF capacitors
to GND at each VDD11_FPD pin.
D, P
When VDD_SEL = LOW, connection for internal analog regulator Decoupling
capacitor. Requires a minimum 4.7-μF capacitor to GND and should not be
connected to other 1.1-V supply rails. When VDD_SEL = HIGH, connection for
external 1.1-V supply rail input. External 1.1-V supply must be sequenced after 1.8
V is applied and requires 10-μF and 0.01-μF capacitors to GND at each VDD11_CSI
pin.
3
D, P
When VDD_SEL = LOW, connection for internal analog regulator Decoupling
capacitor. Requires a minimum 4.7-μF capacitor to GND and should not be
connected to other 1.1-V supply rails. When VDD_SEL = HIGH, connection for
external 1.1-V supply rail input. External 1.1-V supply must be sequenced after 1.8
V is applied and requires 1-μF and 0.01-μF capacitors to GND at VDD11_D pin.
DAP
G
DAP is the large metal contact at the bottom side, located at the center of the QFN
package. Connect to the ground plane (GND).
43
34
20
The definitions below define the functionality of the I/O cells for each pin.
TYPE:
•
I = Input
•
O = Output
•
I/O = Input/Output
•
S = Configuration pin (All strap pins have internal pulldowns. If the default strap value is needed to be changed then use an external
resistor.)
•
PD = Internal pulldown
•
OD = Open Drain
•
P, G = Power supply, ground
•
D = Decoupling pin for internal voltage rail
8
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
6 Specifications
6.1 Absolute Maximum Ratings
Over operating free-air temperature range (unless otherwise noted) (1)
Supply voltage
(2)
MIN
MAX
UNIT
VDD18 (VDD18_CSI, VDD18_P1 , VDD18_P0 , VDD18_FPD0,
VDD18_FPD1)
–0.3
2.16
V
VDD11 (VDD11_CSI, VDD11_D , VDD11_FPD0, VDD11_FPD1)
–0.3
1.32
and <
V
V(VDD18)
VDDIO
FPD-Link III input voltage
LVCMOS IO voltage
–0.3
3.96
V
Device powered up (VDD18, VDD11 and VDDIO within
recommended operating conditions)
–0.3
2.75
V
Device powered down (VDD18, VDD11 and VDDIO below
recommended operating conditions) Transient Voltage
–0.3
1.45
V
Device powered down (VDD18, VDD11 and VDDIO below
recommended operating conditions) DC Voltage
–0.3
1.35
V
GPIO0, GPIO1, GPIO2, GPIOI4, GPIO5, GPIO6, XIN/REFCLK,
VDD_SEL, XOUT, BISTEN, LOCK, PASS, CSI_D3P/N, CSI_D2P/N,
CSI_D1P/N, CSI_D0P/N, CSI_CLK1P/N, CSI_CLK0P/N
–0.3
V(VDDIO)+
0.3
V
PDB
–0.3
3.96
V
V
RIN0+,
RIN0–,
RIN1+,
RIN1–
Configuration input voltage
MODE, IDX
–0.3
V(VDD18)+
0.3
Open-drain voltage
GPIO3/INTB, I2C_SDA, I2C_SCL
–0.3
3.96
V
150
°C
150
°C
Junction temperature
Storage temperature, Tstg
(1)
(2)
–65
If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office or Distributors for availability and
specifications.
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
VALUE
Human body model (HBM), per
AEC Q100-002 (1)
All pins except 32, 33, 41 and
42
±4500
Pins 32, 33, 41 and 42
±8000
Charged device model (CDM), per AEC Q100-011
V(ESD)
Electrostatic discharge
IEC 61000-4-2, powered-up only
RD = 330 Ω , CS = 150 pF
ISO 10605
RD= 330 Ω, CS= 150 pF and 330
pF
RD= 2 kΩ, CS= 150 pF and 330
pF
(1)
UNIT
±1250
Contact Discharge
(RIN0+, RIN0-, RIN1+, RIN1-)
±8000
Air Discharge
(RIN0+, RIN0-, RIN1+, RIN1-
±18000
Contact Discharge
(RIN0+, RIN0-, RIN1+, RIN1-)
±8000
Air Discharge
(RIN0+, RIN0-, RIN1+, RIN1-)
±18000
V
AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
6.3 Recommended Operating Conditions
Over operating free-air temperature range (unless otherwise noted)
Supply voltage
Supply voltage offset
Copyright © 2017–2018, Texas Instruments Incorporated
V(VDD18)
V(VDD11) (VDD_SEL = HIGH ONLY)
V(VDD11) - V(VDDIO), V(VDDIO) = 1.8V
MIN
NOM
MAX
UNIT
1.71
1.8
1.89
V
1.045
1.1
1.155
-50
50
V
mV
9
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Recommended Operating Conditions (continued)
Over operating free-air temperature range (unless otherwise noted)
LVCMOS supply voltage
V(VDDIO) = 1.8 V
OR V(VDDIO) = 3.3 V
Open-drain voltage
GPIO3/INTB = V(INTB), I2C_SDA, I2C_SCL =
V(I2C)
MIN
NOM
MAX
UNIT
1.71
1.8
1.89
V
3
3.3
3.6
V
3.6
V
1.71
Operating free-air temperature, TA
–40
105
°C
MIPI data rate (per CSI-2 lane)
368
1664
Mbps
MIPI CSI-2 HS clock frequency
184
832
MHz
Reference clock oscillator frequency
REFCLK or XIN/XOUT
Spread-spectrum reference clock modulation
percentage
Center Spread
Down Spread
25
23
26
MHz
-0.5
0.5
%
-1
0
%
1
MHz
2
Local I C frequency, fI2C
Supply noise (1)
V(VDD11)
25 mVP-P
V(VDD18)
50 mVP-P
V(VDDIO) = 1.8 V
50
V(VDDIO) = 3.3 V
100
RIN0+, RIN1+
(1)
10
mVP-P
mVP-P
DC-50 MHz
6.4 Thermal Information
DS90UB954-Q1
THERMAL METRIC
(1)
RGC (VQFN)
UNIT
48 PINS
RθJA
Junction-to-ambient thermal resistance
30.2
°C/W
RθJC(TOP)
Junction-to-case (top) thermal resistance
15.7
°C/W
RθJC(BOT)
Junction-to-case (bottom) thermal resistance
1.1
°C/W
RθJB
Junction-to-board thermal resistance
6.7
°C/W
ψJT
Junction-to-top characterization parameter
0.2
°C/W
ψJB
Junction-to-board characterization parameter
6.7
°C/W
(1)
Thermal data in accordance with JESD51. For more information about traditional and new thermal metrics, see the Semiconductor and
IC Package Thermal Metrics application report, SPRA953.
6.5 DC Electrical Characteristics
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
TEST CONDITIONS
PIN OR
FREQUENCY
MIN
TYP
MAX
UNIT
473
564
mW
450
mW
TOTAL POWER CONSUMPTION
PT
2 x FPD-Link III Input, FPD-Link III linerate = 4.0 Gbps
CSI-2 line-rate = 1.6 Gbps, CSI-2 = 4
DATA lanes + 1 CLK lane
Total power consumption VDD_SEL = LOW, default registers
for MIPI CSI-2 output
mode, normal operation 2 x FPD-Link III Input, FPD-Link III linerate = 4.0 Gbps
CSI-2 line-rate = 1.6 Gbps, CS-I2 = 4
DATA lanes + 1 CLK lane
VDD_SEL = HIGH, default registers
V(VDD18)= 1.89
V, V(VDDIO) = 3.6
V
V(VDD18)= 1.89
V, V(VDD11) =
1.155 V V(VDDIO)
= 3.6 V
DESERIALIZER SUPPLY CURRENT
- FPD-Link III Rx Port0 AND Rx Port1 PAIRED WITH 2x DS90UB953
10
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
DC Electrical Characteristics (continued)
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
IDD-R2T4
IDD-R2T22
Deserializer supply
current 2 Rx 4 Tx
Deserializer supply
current 2 Rx 2x2 Tx
TEST CONDITIONS
PIN OR
FREQUENCY
MIN
TYP
MAX
2 x FPD-Link III Input, FPD-Link III linerate = 4.0 Gbps per Rx port
CSI-2 line-rate = 1.6 Gbps per lane,
CSI-2 = 4 DATA lanes + 1 CLK lane
VDD_SEL=LOW, default registers,
includes CSI-2 load current
VDD18
240
279
VDDIO
5
10
2 x FPD-Link III Input, FPD-Link III linerate = 4.0 Gbps per Rx port
CSI-2 line-rate = 1.6 Gbps per lane,
CSI-2 = 4 DATA lanes + 1 CLK lane
VDD_SEL=HIGH, default registers,
includes CSI-2 load current
VDD18
110
140
VDD11
100
130
VDDIO
5
10
2 x FPD-Link III Input, FPD-Link III linerate = 4.0 Gbps per Rx port
CSI-2 line-rate = 1.6 Gbps, Replicate
mode, CSI-2 = 2x 2 DATA lanes and 2x
1 CLK lanes
VDD_SEL=LOW, includes CSI-2 load
current
VDD18
240
279
VDDIO
5
10
2 x FPD-Link III Input, FPD-Link III linerate = 4.0 Gbps per Rx port
CSI-2 line-rate = 1.6 Gbps, Replicate
mode, CSI-2 = 2x 2 DATA lanes and 2x
1 CLK lanes
VDD_SEL=HIGH , includes CSI-2 load
current
VDD18
110
140
VDD11
100
130
UNIT
mA
mA
mA
mA
VDDIO
5
10
1 x FPD-Link III Input, FPD-Link III linerate = 4.0 Gbps
CSI-2 line-rate = 800 Mbps per lane,
CSI-2 = 4 DATA lanes + 1 CLK lane
VDD_SEL=LOW, default registers,
includes CSI-2 load current
VDD18
170
188
VDDIO
5
10
1 x FPD-Link III Input, FPD-Link III linerate = 4.0 Gbps
CSI-2 line-rate = 800 Mbps per lane,
CSI2 = 4 DATA lanes + 1 CLK lane
VDD_SEL=HIGH, default registers,
includes CSI-2 load current
VDD18
65
80
VDD11
80
100
VDDIO
5
10
2 x FPD-Link III Input, FPD-Link III linerate = 1.867 Gbps per Rx port
CSI-2 line-rate = 800 Mbps, CSI-2 = 4
DATA lanes + 1 CLK lanes
VDD_SEL=LOW, includes CSI-2 load
current
VDD18
220
265
VDDIO
5
10
2 x FPD-Link III Input, FPD-Link III linerate = 1.867 Gbps per Rx port
CSI-2 line-rate = 800 Mbps, CSI-2 = 4
DATA lanes + 1 CLK lanes
VDD_SEL=HIGH, includes CSI-2 load
current
VDD18
110
148
VDD11
85
100
VDDIO
5
10
DESERIALIZER SUPPLY CURRENT
- FPD-Link III Rx Port0 OR Rx Port1 PAIRED WITH 1x DS90UB953
IDD-R1T4
Deserializer supply
current 1 Rx 4 Tx
mA
mA
DESERIALIZER SUPPLY CURRENT
- FPD-Link III Rx Port0 AND Rx Port1 PAIRED WITH 2x DS90UB933
IDD2-R2T4
Deserializer supply
current 2G 2 Rx 4 Tx
mA
mA
DESERIALIZER SUPPLY CURRENT
- FPD-Link III Rx Port0 OR Rx Port1 PAIRED WITH 1x DS90UB933
Copyright © 2017–2018, Texas Instruments Incorporated
11
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
DC Electrical Characteristics (continued)
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
IDD2-R1T4
Deserializer supply
current 2G 1 Rx 4 Tx
TEST CONDITIONS
PIN OR
FREQUENCY
MIN
TYP
MAX
1 x FPD-Link III Input, FPD-Link III linerate = 1.867 Gbps
CSI-2 line-rate = 800 Mbps, CSI-2 = 4
DATA lanes + 1 CLK lane
VDD_SEL=LOW, includes CSI-2 load
current
VDD18
150
205
VDDIO
5
10
1 x FPD-Link III Input, FPD-Link III linerate = 1.867 Gbps
CSI-2 line-rate = 800 Mbps, CSI-2 = 4
DATA lanes + 1 CLK lane
VDD_SEL=HIGH, includes CSI-2 load
current
VDD18
65
86
VDD11
75
110
VDDIO
5
10
VDD18
82
115
VDIO
2.5
5
VDD18
10
15
VDD11
30
110
VDDIO
2.5
5
UNIT
mA
mA
DESERIALIZER SUPPLY CURRENT
- Power Down
PDB = HIGH to LOW, VDD_SEL = LOW
IDDZ
Deserializer shutdown
current
PDB = HIGH to LOW, VDD_SEL =
HIGH
mA
1.8-V LVCMOS I/O
VOH
High level output voltage
IOH = –2 mA, V(VDDIO) = 1.71 to 1.89 V;
V(VDDIO) = VDD18 ±50 mV
GPIO[6:4],
GPIO[2:0],
LOCK, PASS
V(VDDIO)
– 0.45
V(VDDIO)
V
VOL
Low level output voltage
IOL = 2 mA, V(VDDIO) = 1.71 to 1.89 V;
V(VDDIO) = VDD18 ±50 mV
GPIO[6:0],
LOCK, PASS
GND
0.45
V
VIH
High level input voltage
V(VDDIO) = 1.71 to 1.89 V; V(VDDIO) =
VDD18 ±50 mV
GPIO[6:0], PDB,
0.65 ×
XIN/REFCLK,
VDD_SEL,
V(VDDIO)
BISTEN
V(VDDIO)
V
VIL
Low level input voltage
V(VDDIO) = 1.71 to 1.89V; V(VDDIO) =
VDD18 ±50 mV
GPIO[6:0], PDB,
XIN/REFCLK,
VDD_SEL,
BISTEN
GND
0.35 ×
V(VDDIO)
V
IIH
Input high current
VIN = V(VDDIO) = 1.71
to 1.89 V,
Internal
pulldown
enabled
GPIO[6:0], PDB,
BISTEN
–100
100
μA
IIH
Input high current
VIN = V(VDDIO) = 1.71
to 1.89 V,
Internal
pulldown
disabled
GPIO[6:0],
XIN/REFCLK,
VDD_SEL
–20
30
μA
IIL
Input low current
VIN = 0V
GPIO[6:0], PDB,
XIN/REFCLK,
VDD_SEL,
BISTEN
–20
30
μA
IOS
Output short circuit
current
VOUT = 0 V
VOUT = 0 V
IOZ
TRI-STATE Output
Current
VOUT = 0 V or VDDIO,
PDB = L
VOUT = 0 V or
VDDIO, PDB = L
–25
mA
–25
25
μA
3.3-V LVCMOS I/O
VOH
High level output voltage IOH = –4 mA, V(VDDIO) = 3.0 to 3.6 V
GPIO[6:4],
GPIO[2:0],
LOCK, PASS
2.4
V(VDDIO)
V
VOL
Low level output voltage
GPIO[6:0],
LOCK, PASS
GND
0.4
V
12
IOL = 4 mA, V(VDDIO) = 3.0 to 3.6 V
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
DC Electrical Characteristics (continued)
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
VIH
High level input voltage
VIL
Low level input voltage
IIH
Input high current
TEST CONDITIONS
V(VDDIO) = 3 to 3.6 V
PIN OR
FREQUENCY
MIN
GPIO[6:0],
XIN/REFCLK,
VDD_SEL,
BISTEN
2
V(VDDIO)
V
MAX
UNIT
V(VDDIO) = 3 to 3.6 V
PDB
1.17
V(VDDIO)
V
V(VDDIO) = 3 to 3.6 V
GPIO[6:0],
XIN/REFCLK,
VDD_SEL,
BISTEN
GND
0.8
V
V(VDDIO) = 3 to 3.6 V
PDB
GND
0.63
V
VIN = 3 to 3.6 V, internal pulldown
enabled
GPIO[6:0], PDB,
BISTEN
–190
190
μA
VIN = 3 to 3.6 V, internal pulldown
disabled
GPIO[6:0],
XIN/REFCLK,
VDD_SEL
–20
30
μA
GPIO[6:0], PDB,
XIN/REFCLK,
VDD_SEL,
BISTEN
–20
30
μA
IIL
Input low current
VIN = 0 V
IOS
Output short circuit
current
VOUT = 0 V
GPIO[7:0],
LOCK, PASS
IOZ
TRI-STATE output
current
VOUT = 0 V or V(VDDIO), PDB = L
GPIO[7:0],
LOCK, PASS
SERIAL CONTROL BUS
TYP
–40
mA
–25
35
μA
(1)
VIH
Input high level
0.7 ×
V(I2C)
V(I2C)
V
VIL
Input low level
GND
0.3 ×
V(I2C)
V
VHY
Input hysteresis
VOL
Output low level
IIH
Input high current
IIL
Input low current
CIN
Input capacitance
Standard-mode/Fast-mode IOL = 3 mA
I2C_SDA,
I2C_SCL
50
mV
0
0.4
0
0.4
V
VIN = V(I2C)
–10
10
µA
VIN = 0V
–10
10
µA
Fast-mode Plus IOL = 20 mA
V
5
pF
1.2
V
FPD-LINK III
INPUT
VCM
Common mode voltage
RT
Internal termination
resistor
RIN0+, RIN0RIN1+, RIN1Single-ended
RIN0+, RIN1+
40
50
60
Ω
Differential
RIN0+, RIN0RIN1+, RIN1-
80
100
120
Ω
190
225
260
mV
380
450
520
mV
FPD-LINK III BIDIRECTIONAL CONTROL CHANNEL
VOUT-BC
Back Channel Output
Single-ended voltage
RL = 50 Ω, coaxial configuration,
forward channel disabled
VOD-BC
Back channel output
differential
RL = 100 Ω, STP configuration, forward
channel disabled
RIN0+, RIN0RIN1+, RIN1-
HSTX DRIVER
(1)
V(VDDIO) = 1.8 V ± 5% OR 3.3 V ± 10%
Copyright © 2017–2018, Texas Instruments Incorporated
13
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
DC Electrical Characteristics (continued)
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
VCMTX
HS transmit static
common-mode voltage
|ΔVCMTX(1,0)|
VCMTX mismatch when
output is 1 or 0
|VOD|
HS transmit differential
voltage
|ΔVOD|
VOD mismatch when
output is 1 or 0
VOHHS
HS output high voltage
ZOS
Single-ended output
impedance
ΔZOS
Mismatch in singleended output impedance
PIN OR
FREQUENCY
TEST CONDITIONS
MIN
TYP
MAX
UNIT
150
200
250
mV
5
CSI_D3P/N,
CSI_D2P/N,
CSI_D1P/N,
CSI_D0P/N,
CSI_CLK1P/N,
CSI_CLK0P/N
140
270
mV
14
mV
360
mV
62.5
Ω
10
%
1.3
V
0.95
1.3
V
-50
50
mV
40
200
mVP-P
50
LPTX DRIVER
VOH
High level output voltage
VOL
Low level output voltage
ZOLP
Output impedance
Applicable when the supported data rate
is ≤ 1.5 Gbps
Applicable when the supported data rate
is > 1.5 Gbps
CSI_D3P/N,
CSI_D2P/N,
CSI_D1P/N,
CSI_D0P/N,
CSI_CLK1P/N,
CSI_CLK0P/N
1.1
1.2
110
Ω
6.6 AC Electrical Characteristics
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
TEST CONDITIONS
PIN OR
FREQUENCY
V(VDDIO) = 1.71 to 1.89 V =
VDD18 ±50 mV OR V(VDDIO) =
3V to 3.6 V, CL = 8pF
GPIO[6:0]
MIN
TYP
MAX
UNIT
LVCMOS I/O
tCLH
LVCMOS low-to-high
transition time
tCHL
LVCMOS high-to-low
transition time
tPDB
PDB reset pulse width
Voltage supplies applied and
stable
2.5
ns
2.5
ns
PDB
2
ms
FPD-LINK III RECEIVER INPUT
VIN
Single ended input voltage
Coaxial configuration,
attenuation = 20dB @ 2.1 GHz
RIN0+, RIN1+
40
mV
VID
Differential input voltage
STP configuration, attenuation
= 25dB @ 2.1 GHz
RIN0+, RIN0-,
RIN1+, RIN1-
80
mV
tDDLT
CSI mode paired with
DS90UB953-Q1, coaxial cable,
attenuation = 20 dB @ 2.1GHz
AEQ full range
0x00to
0x3F,SFILTER_CF
G =0xA9
20
300
ms
tDDLT
CSI mode paired with
DS90UB953-Q1, coaxial cable,
attenuation = 20 dB @ 2.1GHz
AEQ range +/- 3,
SFILTER_CFG =
0xA9
15
30
ms
tDDLT
RAW mode paired with
DS90UB933-Q1, coaxial cable,
attenuation = 14 dB @ 1.2 GHz
AEQ full range 0x00
to 0x3F,
SFILTER_CFG =
0xA9
15
200
ms
tDDLT
RAW mode paired with
DS90UB933-Q1, coaxial cable,
attenuation = 14 dB @ 1.2 GHz
AEQ range +/- 3,
SFILTER_CFG =
0xA9
15
30
ms
Deserializer data lock time
14
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
AC Electrical Characteristics (continued)
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
tIJIT
Input Jitter
TEST CONDITIONS
PIN OR
FREQUENCY
CSI-2 mode paired with
DS90UB953-Q1, coaxial
configuration (attenuation = 20
dB) or STP configuration
(attenuation = 25 dB) @ 2.1
GHz
Jitter Frequency >
FPD3_PLCK/15
MIN
TYP
MAX
0.4
UNIT
UI
FPD-LINK III BI-DIRECTIONAL CONTROL CHANNEL
EH-BC
EW-BC
fBC
(1)
Back channel output eye
height
Back channel output eye
width
Back channel datarate
(1)
Coaxial configuration, fBC = 52
MHz
RIN0+, RIN1+
130
160
mV
STP configuration, fBC = 52
MHz
RIN0+, RIN0-,
RIN1+, RIN1-
260
320
mV
Coaxial or STP
configuration, fBC = 52 MHz
RIN0+, RIN0-,
RIN1+, RIN1-
0.7
0.8
UI
Synchronous CSI-2 input
mode, default register settings
Signal applied to
REFCLK input
No signal present at
REFCLK input
2×
REFCLK
46
Mbps
56
Mbps
The backchannel data rate (Mbps) listed is for the encoded back channel data stream. The internal reference frequency used to
generate the encoded back channel data stream is two times the back channel datarate.
6.7 AC Electrical Characteristics CSI-2
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
TEST CONDITIONS
PIN OR
FREQUEN
CY
MIN
TYP
MAX
UNIT
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
368
736
1472
Mbps
400
800
1600
Mbps
416
832
1664
Mbps
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
184
368
736
MHz
200
400
800
MHz
208
416
832
MHz
HSTX DRIVER
AC SPECIFICATIONS
REFCLK = 23 MHz
REFCLK = 25 MHz
HSTXDBR
Data bit rate
REFCLK = 26 MHz
REFCLK = 23 MHz
REFCLK = 25 MHz
fCLK
DDR clock frequency
REFCLK = 26 MHz
ΔVCMTX(HF)
Common mode voltage variations Common-level variations above
HF
450MHz
ΔVCMTX(LF)
Common mode voltage variations Common-level variations
LF
between 50 and 450MHz
Copyright © 2017–2018, Texas Instruments Incorporated
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
15 mVRMS
25 mVRMS
15
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
AC Electrical Characteristics CSI-2 (continued)
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
TEST CONDITIONS
PIN OR
FREQUEN
CY
MIN
TYP
HS bit rates ≤ 1 Gbps (UI ≥ 1 ns)
HS bit rates > 1 Gbps (UI
tRHS tFHS
20% to 80% rise and fall HS
Applicable for all HS bit rates.
However, to avoid excessive
radiation, bit rates ≤ 1 Gbps (UI ≥ CSI_D0P/N,
1 ns), should not use values
CSI_D1P/N,
below 150 ps
CSI_D2P/N,
CSI_D3P/N,
Applicable for all HS bit rates
CSI_CLK0P
when supporting > 1.5 Gbps
/N,
Applicable for all HS bit rates
CSI_CLK1P
when supporting > 1.5 Gbps.
/N
However, to avoid excessive
radiation, bit rates ≤ 1.5 Gbps
should not use values below 100
ps and bit rates ≤ 1 Gbps should
not use values below 150 ps.
fH
SDDTX
TX differential return loss
fMAX
HSData
rates > 1.5
Gbps
HSData
rates < 1.5
Gbps
fH
SCCTX
TX common mode return loss
fMAX
UI
UI
ps
50
HSData rates
> 1.5 Gbps
fLPMAX
0.3
0.4
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
UNIT
0.35
100
fLPMAX
HSData
rates < 1.5
Gbps
MAX
UI
ps
–18
dB
–9
dB
-4.5
dB
–-3
dB
–-2.5
dB
–20
dB
–15
dB
–9
dB
LPTX DRIVER
AC SPECIFICATIONS
tRLP
Rise time LP
15% to 85% rise time
tFLP
Fall time LP
15% to 85% fall time
tREOT
Rise time post-EoT
30%-85% rise time
tLP-PULSE-TX
Pulse width of the LP exclusiveOR clock
tLP-PER-TX
16
Pulse width of the LP exclusiveOR clock
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
First LP exclusive-OR clock pulse CSI_D0P/N,
after Stop state or last pulse
CSI_D1P/N,
before Stop state
CSI_D2P/N,
CSI_D3P/N,
All other pulses
CSI_CLK0P
/N,
CSI_CLK1P
/N
25
ns
25
ns
35
ns
40
ns
20
ns
90
ns
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
AC Electrical Characteristics CSI-2 (continued)
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
TEST CONDITIONS
PIN OR
FREQUEN
CY
MAX
UNIT
CLoad = 0pF
500
mV/ns
CLoad = 5pF
300
mV/ns
CLoad = 20pF
250
mV/ns
CLoad = 70pF
150
mV/ns
CLoad = 0 to 70pF (Falling Edge
Only) Data rate < 1.5 Gbps
CLoad = 0 to 70pF (Rising Edge
Only) Data rate < 1.5 Gbps
DV/DtSR
Slew rate
CLoad = 0 to 70pF (Falling Edge
Only) Data rate > 1.5 Gbps
CLoad = 0 to 70pF (Rising Edge
Only) Data rate > 1.5 Gbps
CLoad = 0 to 70pF (Rising Edge
Only) Applicable when the
supported Data rate is < 1.5
Gbps
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
CLoad = 0 to 70pF (Rising Edge
Only) Applicable when the
supported Data rate is > 1.5
Gbps
CLOAD
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
Load capacitance
MIN
TYP
30
mV/ns
30
mV/ns
25
mV/ns
25
mV/ns
0 - 0.075
×
(VO,INST 700)
mV/ns
25 0.0625 ×
(VO,INST 550)
mV/ns
0
50
pF
0.6
2.7
ns
-10%
10%
UI
-5%
5%
UI
-0.15
0.15
UIINST
-0.2
0.2
UIINST
-0.2
0.2
UIINST
-0.15
0.15
UIINST
0.2
UIINST
DATA-CLOCK
TIMING SPECIFICATIONS
UIINST
UI instantaneous
In 1, 2, 3, or 4 Lane
Configuration
UI ≥ 1ns
ΔUI
UI variation
0.667ns ≤ UI
Data rate ≤ 1 Gbps
tSKEW(TX)
Data to Clock Skew (measured
at transmitter) Skew between
clock and data from ideal center
tSKEW(TX)STA
Static Data to Clock Skew (TX)
Data rate: 1 Gbps to 1.5 Gbps
TIC
tSKEW(TX)DYN Dynamic Data to Clock Skew
(TX)
AMIC
ISI
Channel ISI
Data rate > 1.5 Gbps
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
CSI-2 TIMING
SPECIFICATIONS
Copyright © 2017–2018, Texas Instruments Incorporated
17
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
AC Electrical Characteristics CSI-2 (continued)
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
tCLK-MISS
Timeout for receiver to detect
absence of clock transitions and
disable the clock lane HS-RX
tCLK-POST
HS exit
tCLK-PRE
Time HS clock shall be driver
prior to any associated data lane
beginning the transition from LP
to HS mode
tCLK-
Clock lane HS entry
PREPARE
TEST CONDITIONS
PIN OR
FREQUEN
CY
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
MIN
TYP
MAX
UNIT
60
ns
60 +
52×UI
ns
8
UI
38
95
ns
95
300
ns
Time for
Dn to
reach
VTERMEN
38
ns
tCLK-SETTLE
Time interval during which the
HS receiver shall ignore any
clock lane HS transitions
tCLK-TERM-EN
Time-out at clock lane display
module to enable HS termination
tCLK-TRAIL
Time that the transmitter drives
the HS-0 state after the last
payload clock bit of a HS
transmission burst
60
ns
300
ns
tCLK-ZERO
TCLK-PREPARE + time that the
transmitter drives the HS-0 state
prior to starting the clock
tD-TERM-EN
Time for the data lane receiver to
enable the HS line termination
tEOT
Transmitted time interval from the
start of tHS-TRAIL to the start of
the LP-11 state following a HS
burst
tHS-EXIT
Time that the transmitter drives
LP-11 following a HS burst
tHS-PREPARE
Data lane HS entry
tHS-PREPARE
+ tHS-ZERO
tHS-PREPARE + time that the
transmitter drives the HS-0 state
prior to transmitting the Sync
sequence
145 +
10×UI
tHS-SETTLE
Time interval during which the
HS receiver shall ignore any data
lane HS transitions, starting from
the beginning of tHS-SETTLE
85 +
6×UI
145 +
10×UI
ns
tHS-SKIP
Time interval during which the
HS-RX should ignore any
transitions on the data lane,
following a HS burst. The end
point of the interval is defined as
the beginning of the LP-11 state
following the HS burst.
40
55 +
4×UI
ns
tHS-TRAIL
Data lane HS exit
tLPX
Transmitted length of LP state
tCLKPREPARE
18
+
Time for
Dn to
reach
VTERM-EN
CSI_D0P/N,
CSI_D1P/N,
CSI_D2P/N,
CSI_D3P/N,
CSI_CLK0P
/N,
CSI_CLK1P
/N
35 +
4×UI
ns
105 +
12×UI
ns
100
40 +
4×UI
ns
85 +
6×UI
ns
ns
60 +
4×UI
ns
50
ns
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
AC Electrical Characteristics CSI-2 (continued)
Over recommended operating supply and temperature ranges unless otherwise specified.
PARAMETER
tWAKEUP
Recovery Time from Ultra Low
Power State (ULPS)
tINIT
Initialization period
TEST CONDITIONS
PIN OR
FREQUEN
CY
MIN
TYP
MAX
UNIT
1
ms
100
µs
6.8 Recommended Timing for the Serial Control Bus
Over I2C supply and temperature ranges unless otherwise specified.
MIN
fSCL
tLOW
tHIGH
tHD;STA
tSU;STA
tHD;DAT
tSU;DAT
tSU;STO
tBUF
SCL Clock Frequency
SCL Low Period
SCL High Period
Hold time for a start or a repeated
start condition
Set up time for a start or a repeated
start condition
Data hold time
Data set up time
Set up time for STOP condition
Bus free time between STOP and
START
tf
Cb
SCL & SDA rise time
SCL & SDA fall time
Capacitive load for each bus line
Copyright © 2017–2018, Texas Instruments Incorporated
MAX
UNIT
kHz
Standard-mode
>0
100
Fast-mode
>0
400
kHz
Fast-mode Plus
>0
1
MHz
Standard-mode
4.7
µs
Fast-mode
1.3
µs
Fast-mode Plus
0.5
µs
Standard-mode
4.0
µs
Fast-mode
0.6
µs
Fast-mode Plus
0.26
µs
Standard-mode
4.0
µs
Fast-mode
0.6
µs
Fast-mode Plus
0.26
µs
Standard-mode
4.7
µs
Fast-mode
0.6
µs
Fast-mode Plus
0.26
µs
Standard-mode
0
µs
Fast-mode
0
µs
Fast-mode Plus
0
µs
Standard-mode
250
ns
Fast -mode
100
ns
Fast-mode Plus
50
ns
Standard-mode
4.0
µs
Fast-mode
0.6
µs
Fast-mode Plus
0.26
µs
Standard-mode
4.7
µs
Fast-mode
1.3
µs
Fast-mode Plus
0.5
µs
Standard-mode
tr
TYP
1000
ns
Fast-mode
300
ns
Fast-mode Plus
120
ns
Standard-mode
300
ns
Fast-mode
300
ns
Fast-mode Plus
120
ns
Standard-mode
400
pF
Fast-mode
400
pF
Fast-mode Plus
550
pF
19
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Recommended Timing for the Serial Control Bus (continued)
Over I2C supply and temperature ranges unless otherwise specified.
MIN
MAX
UNIT
3.45
µs
0.9
µs
Fast-mode Plus
0.45
µs
Standard-mode
3.45
µs
0.9
µs
0.45
µs
Fast-mode
50
ns
Fast-mode Plus
50
ns
Standard-mode
tVD:DAT
tVD;ACK
Data valid time
Data vallid acknowledge time
Fast-mode
Fast-mode
Fast-mode Plus
tSP
20
Input filter
TYP
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
6.9 Timing Diagrams
V(VDDIO)
80%
20%
GND
tCLH
tCHL
图 1. LVCMOS Transition Times
RIN+
Single Ended
VIN
VIN
or RIN-
| VCM
0V
Differential
VID
(RIN+) - (RIN-)
0V
图 2. FPD-Link III Receiver VID, VIN, VCM
PDB=H
tDDLT
RIN±
GPIOx
(LOCK)
VDDIO/2
图 3. Deserializer Data Lock Time
SDA
tf
tHD;STA
tLOW
tr
tr
tBUF
tf
SCL
tSU;STA
tHD;STA
tHIGH
tHD;DAT
START
tSU;STO
tSU;DAT
REPEATED
START
STOP
START
图 4. I2C Serial Control Bus Timing
版权 © 2017–2018, Texas Instruments Incorporated
21
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Timing Diagrams (接
接下页)
CSI_D[3:0]P
CSI_D[3:0]N
0.5UI +
tSKEW
CSI_CLK0/1P
CSI_CLK0/1N
1 UI
图 5. Clock and Data Timing in HS Transmission
Clock
Lane
Data Lane
Dp/Dn
VOH
TLPX
THS-ZERO
THS-SYNC
Disconnect
Terminator
THS-PREPARE
VIH(min)
VIL(max)
VOL
TREOT
TD-TERM-EN
LP-11
LP-01
Capture
1 Data Bit
THS-SKIP
st
LP-00
THS-SETTLE
LP-11
TEOT
THS-TRAIL
START OF
LOW-POWER TO
HS-ZERO TRANSMISSION
HIGH-SPEED
SEQUENCE
TRANSITION
HIGH-SPEED DATA
TRANSMISSION
THS-EXIT
HIGH-SPEED TO
HS-TRAIL LOW-POWER
TRANSITION
图 6. High-Speed Data Transmission Burst
22
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
Timing Diagrams (接
接下页)
Disconnect
Terminator
Clock Lane
Dp/Dn
TCLK-POST
TCLK-SETTLE
TEOT
TCLK-TERM-EN
TCLK-MISS
VIH(min)
VIL(max)
TCLK-TRAIL
THS-EXIT
TLPX
TCLK-ZERO
TCLK-PRE
TCLK-PREPARE
Data Lane
Dp/Dn
THS-PREPARE
Disconnect
Terminator
TLPX
VIH(min)
VIL(max)
THS-SKIP
TD-TERM-EN
THS-SETTLE
图 7. Switching the Clock Lane Between Clock Transmission and Low-Power Mode
VVALID
(internal Node)
Vertical Blanking
HVALID
(internal Node)
FS
2nd
Line
Line
Packet
Line
Packet
Last
Line
Line
Packet
Line
Packet
LPS
1 to 216 tLPX
FE
LPS
Line
Packet
LPS
LPS
PH
EoT
LPS
PF
EoT
PH
SoT
Line
Pixel
Data
LPS
LPS
FS
LPS
SoT
CSI0_D[3:0]±
or
CSI1_D[3:0]±
1st
Line
Frame
Sync
Packet
图 8. Long Line Packets and Short Frame Sync Packets
版权 © 2017–2018, Texas Instruments Incorporated
23
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Timing Diagrams (接
接下页)
Frame Blanking
Line Blanking
Packet Header, PH
Packet Footer, PF
FS
Line Data
FE
Frame Blanking
Line Blanking
Packet Header, PH
Packet Footer, PF
FS
Line Data
FE
Frame Blanking
图 9. CSI-2 General Frame Format
24
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
Timing Diagrams (接
接下页)
HS BYTES TRANSMITTED (n) IS INTEGER MULTIPLE OF 3
HS BYTES TRANSMITTED (n) IS INTEGER MULTIPLE OF 4
LANE 0
SOT
BYTE 0
BYTE 4
BYTE 8
BYTE n-4
EOT
LANE 0
SOT
BYTE 0
BYTE 3
BYTE 6
BYTE n-3
EOT
LANE 1
SOT
BYTE 1
BYTE 5
BYTE 9
BYTE n-3
EOT
LANE 1
SOT
BYTE 1
BYTE 4
BYTE 7
BYTE n-2
EOT
LANE 2
SOT
BYTE 2
BYTE 6
BYTE 10
BYTE n-2
EOT
LANE 2
SOT
BYTE 2
BYTE 5
BYTE 8
BYTE n-1
EOT
LANE 3
SOT
BYTE 3
BYTE 7
BYTE 11
BYTE n-1
EOT
HS BYTES TRANSMITTED (n) IS 1 LESS THAN INTEGER MULTIPLE OF 3
HS BYTES TRANSMITTED (n) IS 1 LESS THAN INTEGER MULTIPLE OF 4
LANE 0
SOT
BYTE 0
BYTE 4
BYTE 8
BYTE n-3
EOT
LANE 1
SOT
BYTE 1
BYTE 5
BYTE 9
BYTE n-2
EOT
LANE 2
SOT
BYTE 2
BYTE 6
BYTE 10
BYTE n-1
EOT
LANE 3
SOT
BYTE 3
BYTE 7
BYTE 11
EOT
LANE 0
SOT
BYTE 0
BYTE 3
BYTE 6
BYTE n-2
EOT
LANE 1
SOT
BYTE 1
BYTE 4
BYTE 7
BYTE n-1
EOT
LANE 2
SOT
BYTE 2
BYTE 5
BYTE 8
EOT
HS BYTES TRANSMITTED (n) IS 2 LESS THAN INTEGER MULTIPLE OF 3
HS BYTES TRANSMITTED (n) IS 2 LESS THAN INTEGER MULTIPLE OF 4
LANE 0
SOT
BYTE 0
BYTE 4
BYTE 8
BYTE n-2
EOT
LANE 1
SOT
BYTE 1
BYTE 5
BYTE 9
BYTE n-1
EOT
LANE 2
SOT
BYTE 2
BYTE 6
BYTE 10
EOT
LANE 3
SOT
BYTE 3
BYTE 7
BYTE 11
EOT
LANE 0
SOT
BYTE 0
BYTE 3
BYTE 6
BYTE n-1
LANE 1
SOT
BYTE 1
BYTE 4
BYTE 7
EOT
LANE 2
SOT
BYTE 2
BYTE 5
BYTE 8
EOT
EOT
3 CSI-2 Data Lane Configuration
HS BYTES TRANSMITTED (n) IS INTEGER MULTIPLE OF 2
HS BYTES TRANSMITTED (n) IS 3 LESS THAN INTEGER MULTIPLE OF 4
LANE 0
SOT
BYTE 0
BYTE 4
BYTE 8
BYTE n-1
LANE 1
SOT
BYTE 1
BYTE 5
BYTE 9
EOT
LANE 2
SOT
BYTE 2
BYTE 6
BYTE 10
EOT
LANE 3
SOT
BYTE 3
BYTE 7
BYTE 11
EOT
4 CSI-2 Data Lane Configuration (default)
EOT
LANE 0
SOT
BYTE 0
BYTE 2
BYTE 4
BYTE n-2
EOT
LANE 1
SOT
BYTE 1
BYTE 3
BYTE 5
BYTE n-1
EOT
HS BYTES TRANSMITTED (n) IS 1 LESS THAN INTEGER MULTIPLE OF 2
LANE 0
SOT
BYTE 0
BYTE 2
BYTE 4
BYTE n-1
LANE 1
SOT
BYTE 1
BYTE 3
BYTE 5
EOT
EOT
2 CSI-2 Data Lane Configuration
图 10. MIPI CSI-2 Data Lane Configuration
版权 © 2017–2018, Texas Instruments Incorporated
25
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
6.10 Typical Characteristics
图 11. Forward Channel Monitor Loop Through Typical Rx
Waveform (CMLOUT)
26
图 12. Back Channel Output Typical Waveform
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7 Detailed Description
7.1 Overview
The DS90UB954-Q1 is a versatile deserializer that aggregates up to two inputs acquired from a FPD-Link III
stream and transmits the received data over a MIPI camera serial interface (CSI-2). When coupled with an ADAS
FPD-Link III serializer (DS90UB953-Q1, DS90UB935-Q1, DS90UB933-Q1 or DS90UB913A-Q1), the
DS90UB954-Q1 receives data streams from multiple sensors to be multiplexed on the same CSI-2 links. When
paired with the DS90UB953-Q1 or the DS90UB935-Q1, the DS90UB954-Q1 operates at full features, and in
backwards compatible mode with DS90UB933-Q1 serializer or DS90UB913A-Q1, operates with basic
functionality.
表 1. Serializer Compatibility
Serializer
DS90UB935-Q1
DS90UB953-Q1
DS90UB933-Q1
DS90UB913A-Q1
Compatibility
Yes
Yes
Yes
Yes
7.1.1 Functional Description
The DS90UB954-Q1 FPD-Link III Deserializer, in conjunction with an ADAS FPD-Link III serializer supports the
video transport needs with an ultra-high speed forward channel and an embedded bidirectional control channel.
The DS90UB954-Q1 received data is output from a configurable MIPI CSI-2 port. The CSI-2 port may be
configured as either a single CSI-2 output with four lanes up to 1.662 Gbps per lane or as two 2 lane CSI-2
outputs for sending replicated data on both ports. A second differential clock is available for the second
replicated output when configured for dual CSI-2 outputs supporting one clock lane and one or two data lanes
each. The DS90UB954-Q1 can support multiple data formats and different resolutions as provided by the sensor.
Conversion between different data formats is not supported. The CSI-2 Tx module accommodates both image
data and non-image data (including synchronization or embedded data packets).
The DS90UB954-Q1 CSI-2 interface combines each of the sensor data streams into packets designated for each
virtual channel. The output generated is composed of virtual channels to separate different streams to be
interleaved. Each virtual channel is identified by a unique channel identification number in the packet header.
When the DS90UB954-Q1 is paired with a DS90UB953-Q1 or DS90UB935-Q1 serializer, the received FPD-Link
III forward channel is constructed in 40-bit long frames. Each encoded frame contains video payload data, I2C
forward channel data, and additional information on framing, data integrity and link diagnostics. The high-speed,
serial bit stream from the DS90UB953-Q1 or DS90UB935-Q1 contains an embedded clock and DC-balancing
ensuring sufficient data line transitions for enhanced signal quality. When paired with ADAS serializers in RAW
input mode, the received FPD-Link III forward channel is similarly constructed at a lower line rate in 28-bit long
frames. The DS90UB954-Q1 device recovers a high-speed, FPD-Link III forward channel signal and generates a
bidirectional control channel control signal in the reverse channel direction. The DS90UB954-Q1 converts the
FPD-Link III stream into a MIPI CSI-2 output interface designed to support automotive sensors, including
2MP/60fps and 4MP/30fps image sensors.
The DS90UB954-Q1 device has two receive input ports to accept up to two sensor streams simultaneously. The
control channel function of the DS90UB95x-Q1 chipset provides bidirectional communication between the image
sensors and ECU. The integrated bidirectional control channel transfers data bidirectionally over the same
differential pair used for video data interface. This interface offers advantages over other chipsets by eliminating
the need for additional wires for programming and control. The bidirectional control channel bus is controlled
through an I2C port. The bidirectional control channel offers continuous low latency communication and is not
dependent on video blanking intervals. The DS90UB95x-Q1 chipset can operate entirely off of the back channel
frequency clock generated by the DS90UB954-Q1 and recovered by the DS90UB953-Q1 or DS90UB935-Q1.
The DS90UB953-Q1 or DS90UB935-Q1 provides the reference clock source for the sensor based on the
recovered back channel clock. Synchronous clocking mode provides distinct advantages in a multi-sensor
system by locking all of the sensors and the receiver to a common reference in the same clock domain, which
reduces or eliminates the need for data buffering and re-synchronization. This mode also eliminates the cost,
space, and potential failure point of a reference oscillator within the sensor. The DS90UB95x-Q1 chipset offer
customers the choice to work with different clocking schemes. The DS90UB95x-Q1 chipset can also use an
external oscillator as the reference clock source for the PLL or CSI CLK from the sensor as the primary reference
clock to the serializer (see the DS90UB953-Q1 data sheet).
版权 © 2017–2018, Texas Instruments Incorporated
27
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.2 Functional Block Diagram
CDR
VDD_SEL
Encoder
LDO
CMLOUTP
CMLOUTN
LOCK
PASS
BISTEN
Data Output
CSI_CLK[0,1]
CSI_DATA[3:0]
GPIO[6:0]
XIN/REFCLK
XOUT
PDB
MODE
IDX
I2C
Controller
Encoder
LDO
7
Timing and
Control
LDO
LDO
4
8
Clock
Gen
RIN1+
RIN1-
CSI Encoder
Deser
ializer
AEQ
RIN0-
FIFO
RIN0+
Decoder
RT
Deser
ializer
RT
AEQ
CDR
SDA
SCL
Diagnostics
Copyright © 2017, Texas Instruments Incorporated
图 13. Functional Block Diagram
7.3 Feature Description
The DS90UB954-Q1 provides a flexible deserializer for automotive sensor applications. The device includes two
FPD-Link III inputs for sensor data streams from one or two DS90UB953-Q1 or DS90UB935-Q1 serializers. The
FPD-Link III interface is also backward compatible with DS90UB933-Q1 and DS90UB913A-Q1 ADAS serializers.
Data received from the two input ports is aggregated onto a CSI-2 TX output with up to 4 data lanes.
7.4 Device Functional Modes
The DS90UB954-Q1 supports two main FPD-Link III operating modes:
• CSI-2 Mode (DS90UB953-Q1 and DS90UB935-Q1 compatible)
• RAW Mode (DS90UB913A-Q1 and DS90UB933-Q1 compatible)
The two modes mainly control the FPD-Link III receiver operation of the device. In both cases, the output format
for the device is CSI-2 through the CSI-2 transmit port.
Each input port can be individually configured for CSI-2 or RAW modes of operation.
The input mode of operation is controlled by the FPD3_MODE (Register 0x6D[1:0]) setting in the Port
Configuration register. The input mode may also be controlled by the MODE strap pin.
7.4.1 CSI-2 Mode
When operating in CSI-2 FPD-Link III input mode (with DS90UB953-Q1 or DS90UB935-Q1), the DS90UB954-Q1
receives CSI-2 formatted data on one or two FPD-Link III input ports and forwards the data to the CSI-2 transmit
port. The deserializer can operate in CSI-2 mode with synchronous back channel reference or non-synchronous
mode. The forward channel line rate is independent of the CSI-2 rate in synchronous or non-synchronous with
external clock mode. Each CSI-2 mode supports remapping of Virtual Channel IDs at the input of each receive
port. This allows handling of conflicting VC-IDs for input streams from dual sensors and sending those streams to
the same CSI-2 transmit port.
28
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
Device Functional Modes (接
接下页)
In CSI-2 mode each deserializer Rx Port can support an FPD-Link line rate up to 4.16 Gbps, where the forward
channel and back channel rates are based on the reference frequency used for the serializer:
• In Synchronous mode based on REFCLK input frequency reference, the FPD-Link line rate is a fixed value of
160 × REFCLK. FPD3_PCLK = 4 × REFCLK and Back channel rate = 2 × REFCLK. For example with
REFCLK = 25 MHz, line rate = 4.0 Gbps, FPD3_PCLK = 100 MHz, back channel data rate = 50 Mbps. The
sensor CSI-2 rate is independent of the line rate and Tx CSI-2 rate in synchronous clocking mode and can be
up to 3.328 Gbps.
• In Non-synchronous clocking mode when the DS90UB953-Q1 or DS90UB935-Q1 uses external reference
clock (fCLKIN) the FPD-Link line rate is typically fCLKIN × 80, FPD3_PCLK = 2 × fCLKIN or 1 x fCLKIN and back
channel data rate is set to 10 Mbps. For example, with fCLKIN = 50 MHz, line rate = 4Gbps, FPD3_PCLK =
100 MHz, and the back channel rate is 10 Mbps. The sensor CSI-2 rate is independent of the fCLKIN.
• In CSI-2 non-synchronous clocking mode the DS90UB953-Q1 uses the CSI-2 clock for a reference. The
(CSI_CLK) the FPD-Link line rate is typically CSI_CLK × 10, FPD3_PCLK = 1/4 × CSI_CLK and back
channel rate is set to 10 Mbps. For example with CSI_CLK = 400 MHz, line rate = 4.0 Gbps, FPD3_PCLK =
100 MHz, the back channel data rate is 10 Mbps. When using the non-synchronous CSI-2 clocking mode, the
user must be certain the CSI-2 source meets the stringent jitter requirements for the serializer reference and
the CLK lane is always active.
7.4.2 RAW Mode
When operating in Raw FPD-Link III input mode, the DS90UB954-Q1 receives RAW10 or RAW12 data from a
DS90UB9x3x-Q1 serializer. The data is translated into a RAW10 or RAW12 CSI-2 video stream for forwarding to
the CSI-2 transmit port. For each input port, the CSI-2 packet header VC-ID and Data Type are programmable.
DVP RAW8 data format is also supported in serializer RAW10 transmit mode with 8/10 data input bits (MSB or
LSB) connected to the serializer DVP source. DVP format serializer inputs must have discrete synch signals.
When paired with DS90UB913A-Q1 or DS90UB933-Q1 serializers, the DS90UB954-Q1 utilizes the HSYNC and
VSYNC inputs to construct the MIPI CSI-2 Tx data packets. Ensure the Frame Valid to Line Valid setup time is
configured appropriately for DVP input system use cases as a minimum setup timing is required as per 表 11.
In RAW mode the DS90UB954-Q1 deserializer each Rx Port can support up to:
• 12 bits of DATA + 2 SYNC bits for an input PCLK range of 37.5 MHz to 100 MHz (75 MHz for 913A-Q1) in
the 12-bit, high frequency mode. Line rate = fPCLK × (2/3) × 28; for example, fPCLK = 100 MHz, line rate = (100
MHz) × (2/3) × 28 = 1.87 Gbps. Note: No HS/VS restrictions (raw).
• 10 bits of DATA + 2 SYNC bits for an input PCLK range of 50 MHz to 100 MHz in the 10-bit mode. Line rate
= fPCLK/2 × 28; for example, fPCLK = 100 MHz, line rate = (100 MHz/2) × 28 = 1.40 Gbps. Note: HS/VS is
restricted to no more than one transition per 10 PCLK cycles.
• 12 bits of DATA + 2 bits SYNC for an input PCLK range of 25 MHz to 50 MHz in the 12-bit low frequency
mode. Note: No HS/VS restrictions (raw).
When operating with DVP serializer, the DS90UB954-Q1 deserializer also supports DVP formats such as YUV422 which have the same pixel packing as RAW8, RAW10 or RAW12. For example; there are 3 YUV CSI-2 data
types that have the same pixel packing as RAW10: YUV420 10 bit, YUV420 10 bit Chroma shifted or YUV422
10bit. These formats can be used as well as 8 bit and 12 bit YUV formats which adhere to the same structure as
RAW8 and RAW12 respectively.
7.4.3 RX MODE Pin
Configuration of the FPD-Link III operating input mode may be done through the MODE input strap pin, or
through the configuration register bits. A pullup resistor and a pull-down resistor of suggested values may be
used to set the voltage ratio of the MODE input (VTARGET) and V(VDD18) to select one of the 8 possible selected
modes. The DS90UB954-Q1 waits 1 ms after PDB goes high to allow time for power supply transients before
sampling the MODE pin strap value and configuring the device to set the I2C address. Possible configurations
are:
• CSI-2 input Rx REFCLK mode
• 12-bit HF / 12-bit LF / 10-bit DVP Rx modes
版权 © 2017–2018, Texas Instruments Incorporated
29
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Device Functional Modes (接
接下页)
VDD18
RHIGH
MODE
or IDX
VTARGET
RLOW
Deserializer
GND
图 14. Strap Pin Connection Diagram
表 2. Strap Configuration Mode Select
VTARGET STRAP
VOLTAGE
VTARGET VOLTAGE RANGE
MODE
NO.
SUGGESTED STRAP RESISTORS (1%
TOL)
RX MODE
VMIN
VTYP
VMAX
VDD18 = 1.8 V
RHIGH (kΩ)
RLOW (kΩ)
0
0
0
0.131 × V(VDD18)
0
OPEN
10.0
CSI-2 nonsynchronous Back
Channel
1
0.179 × V(VDD18)
0.213 × V(VDD18)
0.247 × V(VDD18)
0.374
88.7
23.2
RAW12 LF
0.642 × V(VDD18)
0.673 × V(VDD18)
0.704 × V(VDD18)
1.202
39.2
78.7
0.296 × V(VDD18)
0.330 × V(VDD18)
0.362 × V(VDD18)
0.582
75.0
35.7
0.761 × V(VDD18)
0.792 × V(VDD18)
0.823 × V(VDD18)
1.420
25.5
95.3
0.412 × V(VDD18)
0.443 × V(VDD18)
0.474 × V(VDD18)
0.792
71.5
56.2
0.876 × V(VDD18)
V(VDD18)
V(VDD18)
1.8
10.0
OPEN
0.525 × V(VDD18)
0.559 × V(VDD18)
0.592 × V(VDD18)
0.995
78.7
97.6
2
3
4
RAW12 HF
RAW10
CSI-2 Synchronous
Back Channel
The strapped values can be viewed and modified in the following locations:
• RX Mode – Port Configuration FPD3_MODE (Register 0x6D[1:0])
• Clock Mode – Device Status and CSI_PLL_CTL (Register bits 0x04[4] and 0x1F[3])
7.4.4 REFCLK
A valid 23-MHz to 26-MHz reference clock is required on the REFCLK pin 5 for precise frequency operation. The
REFCLK frequency defines all internal clock timers, including the back channel rate, I2C timers, CSI-2 datarate,
FrameSync signal parameters, and other timing critical internal circuitry. REFCLK input must be continuous. If
the REFCLK input does not detect a transition more than 20 µS, this may cause a disruption in the CSI-2 output.
REFCLK should be applied to the DS90UB954-Q1 only when the supply rails are above minimum levels (see
Power-Up Sequencing). At start-up, the DS90UB954-Q1 defaults to an internal oscillator to generate an backup
internal reference clock at nominal frequency of 25 MHz ±10%.
The REFCLK LVCMOS input oscillator specifications are listed in 表 3.
表 3. REFCLK Oscillator Specifications
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
±50
ppm
REFERENCE CLOCK
Frequency tolerance
–40ºC ≤ TA ≤ 105ºC
Frequency stability
Aging
Amplitude
Symmetry
Duty Cycle
Rise and fall time
10% – 90%
Jitter
200 kHz – 10 MHz
Frequency
30
±50
ppm
800
1200
V(VDDIO)
40%
50%
60%
50
200
ps p-p
25
26
MHz
6
23
mVp-p
ns
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
表 3. REFCLK Oscillator Specifications (接
接下页)
PARAMETER
Spread-spectrum clock modulation percentage
TEST CONDITIONS
MIN
Center Spread
TYP
-0.5
Down Spread
-1
Spread-spectrum clock modulation frequency
MAX
UNIT
+0.5
%
0
%
33
KHz
7.4.5 Crystal Recommendations
A 25-MHz, parallel, 18-pF load crystal resonator should be used if a crystal source is desired. 图 15 shows a
typical connection for a crystal resonator circuit. The load capacitor values will vary with the crystal vendors;
check with the vendor for the recommended loads.
XIN
XOUT
R1
CL1
CL2
图 15. Crystal Oscillator Circuit
As a starting point for evaluating an oscillator circuit, if the requirements for the crystal are not known, CL1 and
CL2 should be set at 27 pF and R1 should be set at 0 Ω. Specification for 25-MHz crystal are listed in 表 4.
表 4. 25 MHz Crystal Specifications
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
REFERENCE CLOCK
Frequency
Frequency Tolerance and Stability
25
Across operational temperature and
aging
MHz
±100
ppm
7.4.6 Receiver Port Control
The DS90UB954-Q1 can support single or dual simultaneous inputs to Rx port 0 and Rx port 1. The Receiver
port control register RX_PORT_CTL 0x0C (Table 31) allows for disabling one or both of the Rx inputs when not
in use. These bits can only be written by a local I2C master at the deserializer side of the FPD-Link.
Each FPD-Link III Receive port has a unique set of registers that provides control and status corresponding to Rx
port 0 or Rx port 1. Control of the FPD-Link III port registers is assigned by the FPD3_PORT_SEL register, which
sets the page controls for reading or writing individual ports unique registers. For each of the FPD-Link III
Receive Ports, the FPD3_PORT_SEL 0x4C register defaults to selecting that port’s registers as detailed in
register description (Table 86).
As an alternative to paging to access FPD-Link III Receive unique port registers, separate I2C addresses may be
enabled to allow direct access to the port-specific registers. The Port I2C address registers allow programming a
separate 7-bit I2C address to allow access to unique, port-specific registers without paging. I2C commands to
these assigned I2C addresses are also allowed access to all shared registers (see Table 179).
7.4.6.1 Video Stream Forwarding
Video stream forwarding is handled by the Rx Port forwarding control in register 0x20 (see FWD_CTL1 Register).
Forwarding from input ports are disabled by default and must be enabled using per-port controls. Different
options for forwarding CSI-2 packets can also be selected as described starting in CSI-2 Forwarding.
版权 © 2017–2018, Texas Instruments Incorporated
31
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.4.7 LOCK and PASS Status
The DS90UB954-Q1 provides dedicated PASS and LOCK outputs for monitoring status as well as through the
DEVICE_STS register (address 0x04).The source of the deserializer LOCK and PASS signals for pin monitoring
and interrupt operation is also controlled by the LOCK_SEL and PASS_SEL fields in the RX_PORT_CTL
register. The source of the LOCK and PASS can be allocated to either of the following system use cases: 00:
Port 0 Receiver, 01: Port 1 Receiver, 10: Any Enabled Receiver Port (Logical OR), and 11: All Enabled Receiver
Ports (logical AND). At start-up, the deserializer will synchronize with the input signal provided by the serializer
and assert the LOCK indication once stable. The lock detect circuit includes an option to check for link bit errors
as part of the lock detection and determine if LOCK is lost. The Receive Port Lock status is available for each
port through the RX_PORT_STS1 register 0x4D. The LOCK status may also be used to enable video forwarding
and other options. I2C communication across the FPD-Link should be attempted only during LOCK condition.
In RAW12 HF mode, the LOCK pin is only high if there is a link with a serializer that has an active PCLK input.
LOCK is low if there is a serializer connected and there is a link established using the internal oscillator of the
serializer. Therefore, when using this mode, it is preferred to use the port-specific LOCK_STS register (0x4D[0]),
which is high when linked to a serializer with internal oscillator. This LOCK_STS signal can also be an output to
a GPIO pin for monitoring in real time. Once LOCK_STS is high for a specific port, remote I2C is available to that
serializer. In RAW 10-bit mode, the LOCK pin is high when there is a link with a serializer regardless of whether
there is an active PCLK input. The port-specific LOCK_STS register is also valid in either of these modes.
If the deserializer loses LOCK, the receiver will reset and perform the LOCK algorithm again to reacquire the
serial data stream sent by the serializer. The receive port will truncate video frames containing errors and resume
forwarding the video when LOCK is re-established.
The Receive port will indicate Pass status once specific conditions are met, including a number of valid frames
received. Valid frames may include requiring no link bit errors and consistent frame size including video line
length or number of video lines. The receive port may be programmed to truncate video frames containing errors
and prevent the forwarding of video until the Pass conditions are met.
7.4.8 Input Jitter Tolerance
Input jitter tolerance is the ability of the Clock and Data Recovery (CDR) Phase-Lock Loop ( PLL) of the receiver
to track and recover the incoming serial data stream. Jitter tolerance at a specific frequency is the maximum jitter
permissible before data errors occur. The following shows the allowable total jitter of the receiver inputs and must
be less than the values in the chart.
Amplitude
(UI p-p)
A1
A2
g1
g2
g (MHz)
图 16. Input Jitter Tolerance Plot
32
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
表 5. Input Jitter Tolerance Limit
INTERFACE
FPD-Link III
(1)
JITTER AMPLITUDE (UI p-p)
FREQUENCY (MHz)
(1)
A1
A2
ƒ1
ƒ2
1
0.4
FPD3_PCLK / 80
FPD3_PCLK / 15
FPD3_PCLK is proportional to REFCLK, CSI-2 or PCLK frequency based on the operating MODE (Device Functional Modes):
CSI-2 mode: 4×REFCLK or CSI-2 CLK/4 (typ)
RAW 10-bit mode: PCLK_Freq. / 2
RAW 12-bit HF mode: PCLK_Freq. x 2/3
7.4.9 Adaptive Equalizer
The FPD-Link III receiver inputs incorporates an adaptive equalizer (AEQ), to compensate for signal degradation
from the communications channel and interconnect components. Each RX port signal path continuously monitors
cable characteristics for long-term cable aging and temperature changes. The AEQ is primarily intended to adapt
and compensate for channel losses over the lifetime of a cable installed in an automobile. The AEQ attempts to
optimize the equalization setting of the RX receiver. This adaption includes compensating insertion loss from
temperature effects and aging degradation due to bending and flexion. To determine the maximum cable reach,
factors that affect signal integrity such as jitter, skew, inter-symbol interference (ISI), crosstalk, and so forth, must
also be considered. The equalization configuration and status are programmed in registers 0xD2–0xD3 (see
Table 159).
7.4.9.1 Adaptive Equalizer Algorithm
The AEQ process steps through allowed values of the equalizer controls find a value that allows the Clock Data
Recovery (CDR) circuit to maintain valid lock condition. For each EQ setting, the circuit waits for a programmed
re-lock time period, then checks results for valid lock. If valid lock is detected, the circuit will stop at the current
EQ setting and maintain constant value as long as lock state persists. If the deserializer loses LOCK, the
adaptive equalizer will resume the LOCK algorithm and the EQ setting is incremented to the next valid state.
Once lock is lost, the circuit will continue searching EQ settings to find a valid setting to reacquire the serial data
stream sent by the serializer that remains locked.
7.4.9.2 AEQ Settings
7.4.9.2.1 AEQ Start-Up and Initialization
The AEQ circuit can be restarted at any time by setting the AEQ_RESTART bit in the AEQ_CTL2 register 0xD2
(see Table 159). Once the deserializer is powered on, the AEQ is continually searching through EQ settings and
could be at any setting when signal is supplied from the serializer. If the Rx Port CDR locks to the signal, it may
be good enough for low bit errors, but could be not optimized or overequalized. The DS90UB954-Q1 when
connected to a ADAS serializer (DS90UB953-Q1, DS90UB935-Q1, DS90UB933-Q1, or DS90UB913A-Q1) will
by default restart the AEQ adaption upon achieving first positive lock indication in order to provide more
consistent start-up from known conditions. With this feature disabled, the AEQ may lock at a relatively random
EQ setting based on when the FPD-Link III input signal is initially present. Alternatively, AEQ_RESTART or
DIGITAL_RESET0 could be applied once the ADAS serializer input signal frequency is stable to restart adaption
from the minimum EQ gain value. These techniques allow for a more consistent initial EQ setting following
adaption.
7.4.9.2.2 AEQ Range
AEQ Min/Max settings: The AEQ circuit can be programmed with minimum and maximum settings used during
the EQ adaption. Using the full AEQ range will provide the most flexible solution, however if the channel
conditions are known an improved deserializer lock time can be achieved by narrowing the search window for
allowable EQ gain settings. For example in a system use case with a longer cable and multiple interconnects
creating higher channel attenuation, the AEQ would not adapt to the minimum EQ gain settings. Likewise in a
system use case with short cable and low channel attenuation AEQ would not generally adapt to the highest EQ
gain settings. The AEQ range is determined by the AEQ_MIN_MAX register 0xD5 (see AEQ_MIN_MAX
Register) where AEQ_MAX sets the maximum value of EQ gain. The ADAPTIVE_EQ_FLOOR_VALUE
版权 © 2017–2018, Texas Instruments Incorporated
33
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
determines the starting value for EQ gain adaption. To enable the minimum AEQ limit, SET_AEQ_FLOOR bit in
the AEQ_CTL2 register 0xD2[2] must also be set. An AEQ range (AEQ_MAX - AEQ_FLOOR) to allow a variation
around the nominal setting of –2/+4 or ±3 around the nominal AEQ value specific to Rx port channel
characteristics provides a good trade off in lock time and adaptability. The setting for the AEQ after adaption can
be readback from the AEQ_STATUS register 0xD3 (see AEQ_STATUS Register).
7.4.9.2.3 AEQ Timing
The dwell time for AEQ to wait for lock or error free status is also programmable. When checking each EQ
setting the AEQ will wait for a time interval, controlled by the ADAPTIVE_EQ_RELOCK_TIME field in the
AEQ_CTL2 register (see Table 159) before incrementing to the next allowable EQ gain setting. The default wait
time is set to 2.62 ms based on REFCLK = 25 MHz. Once the maximum setting is reached, if there is no lock
acquired during the programmed relock time, the AEQ will restart adaption at the minimum setting or
AEQ_FLOOR value.
7.4.9.2.4 AEQ Threshold
The DS90UB954-Q1 receiver will by default adapt based on FPD-Link error checking during the Adaptive
Equalization process. The specific errors linked to equalizer adaption, FPD-Link III clock recovery error, packet
encoding error, and parity error can be individually selected in AEQ_CTL1 register 0x42 (see AEQ_CTL1
Register). Errors are accumulated over 1/2 of the period of the timer set by the ADAPTIVE_EQ_RELOCK_TIME.
If the number of errors is greater than the programmed threshold (AEQ_ERR_THOLD), the AEQ will attempt to
increase the EQ setting.
7.4.10 Channel Monitor Loop-Through Output Driver (CMLOUT)
The DS90UB954-Q1 includes an internal Channel Monitor Loop-through output on the CMLOUTP and
CMLOUTN pins. A buffered loop-through output driver is provided on the CMLOUTP and CMLOUTN for
observing jitter after equalization for each of the two RX receive channels. The CMLOUT monitors the post EQ
stage thus providing the recovered input of the deserializer signal. The measured serial data width on the
CMLOUT loop-through is the total jitter including the internal driver, AEQ, back channel echo, and so forth. Each
channel also has its own CMLOUT monitor and can be used for debug purposes. This CMLOUT is useful in
identifying gross signal conditioning issues.
表 7 includes details on selecting the corresponding RX receiver of CMLOUTP and CMLOUTN configuration. To
disable the CMLOUT, either follow the instructions in table to reload register default values, or reset the
DS90UB954-Q1.
表 6. CML Monitor Output Driver
PARAMETER
EW
(1)
34
Differential Output Eye
Opening
TEST CONDITIONS
RL = 100 Ω
(图 17)
PIN
MIN
CMLOUTP,
CMLOUTN
0.45
TYP
MAX
UNIT
UI (1)
UI – Unit Interval is equivalent to one ideal serialized FPD-Link III data bit width. The UI scales with serializer input PCLK frequency.
Refer to the serializer datasheets for more PCLK information
CSI-2 mode: 1 UI = 1 / (PCLK_Freq x 40) (typical)
10-bit mode: 1 UI = 1 / ( PCLK_Freq. / 2 × 28)
12-bit HF mode: 1 UI = 1 / ( PCLK_Freq. × 2 / 3 × 28)
12-bit LF mode: 1 UI = 1 / ( PCLK_Freq. × 28)
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
VOD (+)
Ew
0V
VOD (-)
tBIT (1 UI)
图 17. CMLOUT Output Driver
版权 © 2017–2018, Texas Instruments Incorporated
35
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
表 7. Channel Monitor Loop-Through Output Configuration
FPD-Link III RX Port 0
FPD-Link III RX Port 1
0xB0 = 0x14; 0xB1 = 0x00; 0xB2 = 0x80
0xB1 = 0x03; 0xB2 = 0x28
0xB1 = 0x04; 0xB2 = 0x28
ENABLE MAIN LOOP-THROUGH DRIVER
SELECT CHANNEL MUX
0xB1 = 0x02; 0xB2 = 0x20
0xB1 = 0x02; 0xB2 = 0xA0
SELECT RX PORT
0xB0 = 0x04; 0xB1 = 0x0F; 0xB2
= 0x01
0xB1 = 0x10; 0xB2 = 0x02
0xB0 = 0x08; 0xB1 = 0x0F; 0xB2
= 0x01
0xB1 = 0x10; 0xB2 = 0x02
0xB0 = 0x14; 0xB1 = 0x00; 0xB2 = 0x00
0xB1 = 0x03 ; 0xB2 = 0x08
0xB1 = 0x04; 0xB2 = 0x08
DISABLE MAIN LOOP-THROUGH DRIVER
DESELECT CHANNEL MUX
0xB1 = 0x02; 0xB2 = 0x20
0xB1 = 0x02; 0xB2 = 0x20
DESELECT RX PORT
0xB0 = 0x04; 0xB1 = 0x0F; 0xB2
= 0x00
0xB1 = 0x10; 0xB2 = 0x00
0xB0 = 0x08; 0xB1 = 0x0F; 0xB2
= 0x00
0xB1 = 0x10; 0xB2 = 0x00
7.4.10.1 Code Example for CMLOUT FPD-Link III RX Port 0:
WriteI2C(0xB0,0x14)
WriteI2C(0xB1,0x00)
WriteI2C(0xB2,0x80)
WriteI2C(0xB1,0x03)
WriteI2C(0xB2,0x28)
WriteI2C(0xB1,0x04)
WriteI2C(0xB2,0x28)
#
WriteI2C(0xB1,0x02)
WriteI2C(0xB2,0x20)
#
WriteI2C(0xB0,0x04)
WriteI2C(0xB1,0x0F)
WriteI2C(0xB2,0x01)
WriteI2C(0xB1,0x10)
WriteI2C(0xB2,0x02)
# FPD-Link III RX Shared, page 0
# Offset 0
# Enable loop through driver
#
#
#
#
#
#
# Offset 4
#
#
#
# Enable CML data output
7.4.11 RX Port Status
In addition to the Lock and PASS indications, the deserializer is able to monitor and detect several other RX portspecific conditions and interrupt states. This information is latched into the RX port status registers
RX_PORT_STS1 (0x4D) and RX_PORT_STS2 (0x4E). There are bits to flag any change in LOCK status
(LOCK_STS_CHG) or detect any errors in the control channel over the forward link (BCC_CRC_ERROR,
BCC_SEQ_ERROR) which are cleared upon read. The Rx Port status registers also allow the user to monitor
the presence of the stable input signal, along with parity and CRC errors, line length, and lines per video frame.
7.4.11.1 RX Parity Status
The FPD-Link III receiver checks the decoded data parity to detect any errors in the received FPD-Link III frame.
Parity errors are counted up and accessible through the RX_PAR_ERR_HI and RX_PAR_ERR_LO registers
0x55 and 0x56 to provide combined 16-bit error counter. In addition, a parity error flag can be set once a
programmed number of parity errors have been detected. This condition is indicated by the PARITY_ERROR
flag in the RX_PORT_STS1 register. Reading the counter value will clear the counter value and
PARITY_ERROR flag. An interrupt may also be generated based on assertion of the parity error flag. By default,
the parity error counter will be cleared and the flag will be cleared on loss of Receiver lock. To ensure an exact
read of the parity error counter, parity checking should be disabled in the GENERAL_CFG register 0x02 before
reading the counter.
36
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.4.11.2 FPD-Link Decoder Status
The FPD-Link III receiver also checks the decoded data for encoding or sequence errors in the received FPDLink III frame. If either of these error conditions are detected the FPD3_ENC_ERROR bit will be latched in the
RX_PORT_STS2 register 0x4E[5]. An interrupt may also be generated based on assertion of the encoded error
flag. To detect FPD-Link III Encoder errors, the LINK_ERROR_COUNT must be enabled with a
LINK_ERR_THRESH value greater than 1. Otherwise, the loss of Receiver Lock will prevent detection of the
Encoder error. The FPD3_ENC_ERROR flag is cleared on read.
When partnered with a DS90UB953-Q1 or DS90UB935-Q1, the FPD3 Encoder may be configured to include a
CRC check of the FPD3 encoder sequence. The CRC check provides an extra layer of error checking on the
encoder sequence. This CRC checking adds protection to the encoder sequence used to send link information
comprised of Datapath Control (registers 0x59 and 0x5A), Sensor Status (registers 0x51-0x54), and Serializer ID
(register 0x5B). TI recommends enabling the CRC error checking on the FPD3 Encoder sequence to prevent any
updates of link information values from encoded packets that do not pass CRC check. The FPD3 Encoder CRC
is enabled by setting the FPD3_ENC_CRC_DIS (register 0xBA[7] Table 151) to 0. In addition, the
FPD3_ENC_CRC_CAP flag should be set in register 0x4A[4] (see FPD3_CAP Register).
7.4.11.3 RX Port Input Signal Detection
The DS90UB954-Q1 can detect and measure the approximate input frequency and frequency stability of each
RX input port and indicate status in bits [2:1] of RX_PORT_STS2. Frequency measurement stable
FREQ_STABLE indicates the FPD-Link III input clock frequency is stable. When no FPD-Link III input clock is
detected at the RX input port the CABLE_FAULT bit indicates that condition has occurred. Setting of these error
flags is dependent on the stability control settings in the FREQ_DET_CTL register 0x77. The CABLE_FAULT bit
will be set if the input frequency is below the setting programmed in the FREQ_LO_THR setting in the
FREQ_DET_CTL register. A change in frequency FREQ_STABLE = 0, is defined as any change in MHz greater
than the value programmed in the FREQ_HYST value. The frequency is continually monitored and provided for
readback through the I2C interface less than every 1 ms. A 16-bit value is used to provide the frequency in units
of 2 to 8 MHz. An interrupt can also be generated for any of the ports to indicate if a change in frequency is
detected on any port.
7.4.11.4 Line Counter
For each video frame received, the deserializer will count the number of video lines in the frame. In CSI-2 input
mode, any long packet will be counted as a video line. In RAW mode, any assertion of the Line Valid (LV) signal
will be interpreted as a video line. The LINE_COUNT_1 and LINE_COUNT_0 registers in 0x73 and 0x74 can be
used to read the line count for the most recent video frame. Line Length may not be consistent when receiving
multiple CSI-2 video streams differentiated by VC-ID. An interrupt may be enabled based on a change in the
LINE_COUNT value. If interrupts are enabled, the LINE_COUNT registers will be latched at the interrupt and
held until read back by the processor through I2C.
7.4.11.5 Line Length
For each video line, the length (in bytes) will be determined. The LINE_LEN_1 and LINE_LEN_0 registers 0x75
and 0x76 can be used to read the line count for the most recent video frame. If the line length is not stable
throughout the frame, the length of the last line of the frame will be reported. Line Count may not be consistent
when receiving multiple CSI-2 video streams differentiated by VC-ID. An interrupt may be enabled based on a
change in the LINE_LEN value. If interrupts are enabled, the LINE_LEN registers will be latched at the interrupt
and held until read by the processor through I2C.
7.4.12 Sensor Status
When paired with the DS90UB935-Q1 or DS90UB953-Q1 serializer, the DS90UB954-Q1 is capable of receiving
diagnostic indicators from the serializer. The sensor alarm and status diagnostic information are reported in the
SENSOR_STS_X registers (0x51 to 0x54 in Table 92). The interrupt capability from detected status changes in
sensor are described in Interrupts on Change in Sensor Status. Sensor Status This interrupt condition will be
cleared by reading the CAM_INT_RISE_STS and CAM_INT_FALL_STS registers.
版权 © 2017–2018, Texas Instruments Incorporated
37
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.4.13 GPIO Support
In addition to the dedicated LOCK and PASS output pins, the DS90UB954-Q1 supports seven pins, GPIO0
through GPIO6, which can be monitored, configured, and controlled through I2C in registers 0x0E - 0x16. GPIO3
programmable I/O pin is an active-low open drain and is shared with INTB. The current status of all GPIO can be
readback from register 0x0E. Each GPIO is programmable for multiple uses options through the
GPIOx_PIN_CTL registers 0x10 - 0x16.
7.4.13.1 GPIO Input Control and Status
Upon initialization GPIO0 through GPIO6 are enabled as inputs by default. Each GPIO pin has an input disable
and a pulldown disable control bit, with the exception of GPIO3 which is open drain. By default, the GPIO pin
input paths are enabled and the internal pulldown circuit for the GPIO is enabled. The GPIO_INPUT_CTL (0x0F)
and GPIO_PD_CTL (0xBE) registers allow control of the input enable and the pulldown, respectively. For
example, to disable GPIO1 and GPIO2 as inputs the user would program in register 0x0F[2:1] = 11. For most
applications, there is no need to modify the default register settings for the pulldown resistors. The status HIGH
or LOW of each GPIO pin 0 through 6 may be read through the GPIO_PIN_STS register 0x0E. This register read
operation provides the status of the GPIO pin independent of whether the GPIO pin is configured as an input or
output.
7.4.13.2 GPIO Output Pin Control
Individual GPIO output pin control is programmable through the GPIOx_PIN_CTL registers 0x10 to 0x16
(Table 35). To enable any of the GPIO as output, set bit 0 = 1 in the respective register 0x10 to 0x16 after
clearing the corresponding input enable bit in register 0x0F (Table 34). The configuration register for each GPIO
is listed in 表 8.
图 18. GPIOx Register Content (0x10 - 0x16)
7
6
GPIOX_OUTPUT_SEL[2:0]
5
4
3
GPIOX_OUT_SRC[2:0]
2
1
0
GPIOX_OUT_V GPIOX_OUT_E
AL
N
表 8. GPIOx Output Function Programming
GPIOX OUTPUT
SOURCE SELECT
GPIOX_OUT_SRC[2:0
]
GPIOX OUTPUT
FUNCTION SELECT
GPIOX_OUTPUT_SE
L[2:0]
GPIOX OUTPUT
VALUE
(GPIOX_OUT_VAL)
GPIO OUTPUT
ENABLE
(GPIOX_OUT EN)
X
X
0
GPIOX linked to Forward channel received
GPIO0 from RX Port 0 Serializer
000
X
1
GPIOX linked to Forward channel received
GPIO1 from RX Port 0 Serializer
001
X
1
GPIOX linked to Forward channel received
GPIO2 from RX Port 0 Serializer
010
X
1
011
X
1
RX Port 0 Lock indication
100
X
1
RX Port 0 Pass indication
101
X
1
RX Port 0 Frame Valid signal
110
X
1
RX Port 0 Line Valid signal
111
X
1
GPIO OUTPUT FUNCTION
OUTPUT
VALUE SIGNAL
SOURCE
GPIOX output disabled
GPIOX linked to Forward channel received
GPIO3 from RX Port 0 Serializer
38
X
000
No output.
GPIO is
Disabled or
set to input
mode
RX Port 0
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
表 8. GPIOx Output Function Programming (接
接下页)
GPIOX OUTPUT
SOURCE SELECT
GPIOX_OUT_SRC[2:0
]
GPIOX OUTPUT
FUNCTION SELECT
GPIOX_OUTPUT_SE
L[2:0]
GPIOX OUTPUT
VALUE
(GPIOX_OUT_VAL)
GPIO OUTPUT
ENABLE
(GPIOX_OUT EN)
GPIOX linked to Forward channel received
GPIO0 from RX Port 1 Serializer
000
X
1
GPIOX linked to Forward channel received
GPIO1 from RX Port 1 Serializer
001
X
1
GPIOX linked to Forward channel received
GPIO2 from RX Port 1 Serializer
010
X
1
011
X
1
RX Port 1 Lock indication
100
X
1
RX Port 1 Pass indication
101
X
1
RX Port 1 Frame Valid signal
110
X
1
RX Port 1 Line Valid signal
111
X
1
X
X
X
Set GPI0X = LOW value programmed by
register
000
0
1
Set GPIOX = HIGH value programmed by
register
000
1
1
Logical OR of Lock indication from enabled
RX ports
001
X
1
010
X
1
Logical AND of Pass indication from
enabled RX ports
011
X
1
FrameSync signal (internal or external)
100
X
1
Device interrupt active high
101
X
1
Device interrupt active low
110
X
1
111
X
X
Pass (AND of selected RX port status)
000
X
1
Pass (OR of selected RX port status)
001
X
1
Frame Valid signal corresponding to video
frame recovered at deserializer (Note)
Insert cross reference
010
X
1
011
X
1
RX Ports synchronized, RX Port 0
synchronized with RX Port 1
100
X
1
:CSI-2 TX Port Interrupt active high
101
X
1
GPIO OUTPUT FUNCTION
OUTPUT
VALUE SIGNAL
SOURCE
GPIOX linked to Forward channel received
GPIO3 from RX Port 1 Serializer
Reserved
Logical AND of Lock indication from
enabled RX ports
Reserved
Line Valid signal corresponding to video
frame recovered at deserializer (Note)
Insert cross reference
001
010
100
100
101
RX Port 1
Reserved
Device
Status
Reserved
CSI-2 Tx Port
Reserved
101
Reserved
110
X
X
Reserved
101
Reserved
111
X
X
Reserved
110
Reserved
X
X
X
Reserved
111
Reserved
X
X
X
版权 © 2017–2018, Texas Instruments Incorporated
39
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.4.13.3 Forward Channel GPIO
The DS90UB954-Q1 has seven GPIO pins that can output data received from the forward channel when paired
with the DS90UB935-Q1 or DS90UB953-Q1 serializer. The remote Serializer GPIO are mapped to GPIO. Each
GPIO pin can be programmed for output mode and mapped. Up to four GPIOs are supported in the forward
direction on each FPD-Link III Receive port (see Table 99). Each forward channel GPIO (from any port) can be
mapped to any GPIO output pin. The DS90UB933-Q1 and DS90UB913A-Q1 GPIOs cannot be configured as
inputs for remote communication over the forward channel to the DS90UB954-Q1.
The timing for the forward channel GPIO is dependant on the number of GPIOs assigned at the serializer. When
a single GPIO input from the DS90UB953-Q1 or DS90UB935-Q1 serializer is linked to a DS90UB954-Q1
deserializer, the GPIO output value is sampled every forward channel transmit frame. Two linked GPIO are
sampled every two forward channel frames and three or four linked GPIO are sampled every five frames. The
typical minimum latency for the GPIO remains consistent (approximately 225 ns), but as the information gets
spread over multiple frames, the jitter is typically increased on the order of the sampling period (number of
forward channel frames). TI recommends maintaining a 4x oversampling ratio for linked GPIO throughput. For
example, when operating in 4-Gbps synchronous mode with REFCLK = 25 MHz, the maximum recommended
GPIO input frequency based on the number of GPIO linked over the forward channel is shown in 表 9.
表 9. Forward Channel GPIO Typical Timing
NUMBER OF LINKED
FORWARD CHANNEL GPIOs
(FC_GPIO_EN Table 99)
SAMPLING FREQUENCY (MHz)
AT FPD-Link III LINE RATE = 4
Gbps
MAXIMUM RECOMMENDED
FORWARD CHANNEL GPIO
FREQUENCY (MHz)
TYPICAL JITTER (ns)
1
100
25
12
2
50
12.5
24
4
20
5
60
In addition to mapping remote serializer GPI, an internally generated FrameSync (see FrameSync Operation) or
other control signals may be output from any of the deserializer GPIOs for synchronization with a local processor
or another deserializer.
7.4.13.4 Back Channel GPIO
Each DS90UB954-Q1 GPIO pin defaults to input mode at start-up. The deserializer can link GPIO pin input data
on up to four available slots to send on the back channel per each remote serializer connection. Any of the seven
GPIO pin data can be mapped to send over the available back channel slots for each FPD-Link III Rx port. The
same GPIO on the deserializer pin can be mapped to multiple back channel GPIO signals. For each 50-Mbps
back channel operation, the frame period is 600 ns (30 bits × 20 ns/bit). For 2.5-Mbps back channel operation,
the frame period is 12 µs (30 bits × 400 ns/bit). As the back channel GPIOs are sampled and sent each back
channel frame by the DS90UB954-Q1 deserializer, the latency and jitter timing are each on the order of one back
channel frame. The back channel GPIO is effectively sampled at a rate of 1/30 of the back channel rate or 1.67
MHz at fBC = 50 Mbps. TI recommends that the input to back channel GPIO switching frequency is < 1/4 of the
sampling rate or 416 kHz at fBC = 50 Mbps. For example, when operating in 4-Gbps synchronous mode with
REFCLK = 25 MHz, the maximum recommended GPIO input frequency based on the data rate when linked over
the back channel is shown in 表 10.
表 10. Back Channel GPIO Typical Timing
MAXIMUM
RECOMMENDED BACK
CHANNEL GPIO
FREQUENCY (kHz)
TYPICAL LATENCY (us)
TYPICAL JITTER (us)
1670
416
1.5
0.7
334
83.5
3.2
3
83.5
20
12.2
12
BACK CHANNEL RATE
(Mbps)
SAMPLING
FREQUENCY (kHz)
50
10
2.5
In addition to sending GPIO from pins, an internally generated FrameSync or external FrameSync input signal
may be mapped to any of the back channel GPIOs for synchronization of multiple sensors with extremely low
skew. (see FrameSync Operation).
For each port, GPIO control is available through the BC_GPIO_CTL0 register 0x6E (see Table 120) and
BC_GPIO_CTL1 register 0x6F (see Table 121).
40
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.4.13.5 Other GPIO Pin Controls
Each GPIO pin can has a input disable and a pulldown disable. By default, the GPIO pin input paths are enabled
and the internal pulldown circuit in the GPIO is enabled. The GPIO_INPUT_CTL register 0x0F and
GPIO_PD_CTL register 0xBE allow control of the input enable and the pulldown respectively. For most
applications, there is no need to modify the default register settings.
7.4.14 Line Valid and Frame Valid Indicators
The FrameValid (FV) and LineValid (LV) indications from the Receive Port indicate approximate frame and line
boundaries at the FPD-Link III Receiver input. These signals may not be accurate if the receiver is in CSI-2 input
mode and multiple video streams are present at the Receive Port input. A common example of this scenario
would be multiple Virtual Channel IDs received on a single port.
When the receiver is in one of the Raw modes the LV and FV provides controls for the video framing. The FV is
equivalent to a Vertical Sync (VSYNC) while the LineValid is equivalent to a Horizontal Sync (HSYNC) input to
the DS90UB933A-Q1 and DS90UB913A-Q1 device (see FrameSync Operation).
The DS90UB954-Q1 allows setting the polarity of these signals by register programming. The FV and LV polarity
are controlled on a per-port basis and can be independently set in the PORT_CONFIG2 register 0x7C.
To prevent false detection of FrameValid, FV must be asserted for a minimum number of clocks prior to first
video line to be considered valid. The minimum FrameValid time is programmable in the FV_MIN_TIME register
0xBC. Because the measurement is in FPD-Link III clocks, the minimum FrameValid setup to LineValid timing at
the Serializer will vary based on the RAW input operating mode.
A minimum FV to LV timing is required when processing RAW video frames at the serializer input. If the FV to LV
minimum setup is not met (by default), the first video line is discarded. Optionally, a register control
(PORT_CONFIG:DISCARD_1ST_ON_ERR) forwards the first video line missing some number of pixels at the
start of the line.
FV
TFV_LV
§
LV
图 19. Minimum FV to LV
版权 © 2017–2018, Texas Instruments Incorporated
41
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
表 11. Minimum FV to LV Setup Requirement (in RAW Mode Serializer FPD-Link III PCLKs)
MODE
FV_MIN_TIME
CONVERSION FACTOR
ABSOLUTE MIN
(FV_MIN_TIME = 0)
DEFAULT
(FV_MIN_TIME = 128)
RAW12 HF
1.5
3
195
RAW10
2
5
261
For other settings of FV_MIN_TIME, the required FV to LV setup in Serializer PCLKs can be determined by:
Absolute Min + (FV_MIN_TIME × Conversion factor)
7.4.15 CSI-2 Protocol Layer
The DS90UB954-Q1 implements High-Speed mode to forward CSI-2 Low Level Protocol data. This includes
features as described in the Low Level Protocol section of the MIPI CSI-2 Specification. It supports short and
long packet formats.
The feature set of the protocol layer implemented by the CSI-2 TX is:
• Transport of arbitrary data (payload-independent)
• 8-bit word size
• Support for up to four interleaved virtual channels on the same link
• Special packets for frame start, frame end, line start and line end information
• Descriptor for the type, pixel depth and format of the Application Specific Payload data
• 16-bit Checksum Code for error detection
图 20 shows the CSI-2 protocol layer with short and long packets.
DATA:
Short
Packet
ST SP ET
Long
Packet
LPS
ST PH
DATA
Long
Packet
PF ET
LPS
KEY:
ST ± Start of Transmission
ET ± End of Transmission
LPS ± Low Power State
ST PH
DATA
Short
Packet
PF ET
LPS
ST SP ET
PH ± Packet Header
PF ± Packet Footer
图 20. CSI-2 Protocol Layer With Short and Long Packets
7.4.16 CSI-2 Short Packet
VCX + ECC
16-Bit
Short Packet
Data Field
Data ID
The short packet provides frame or line synchronization. 图 21 shows the structure of a short packet. A short
packet is identified by data types 0x00 to 0x0F.
32-bit SHORT PACKET (SH)
Data Type (DT) = 0x00 ± 0x0F
图 21. CSI-2 Short Packet Structure
42
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.4.17 CSI-2 Long Packet
32-bit
PACKET
HEADER
(PH)
PACKET DATA:
Length = Word Count (WC) * Data Word
Width (8-bits). There are NO restrictions
on the values of the data words
16-bit
Checksum
Data WC-1
Data WC-2
Data WC-3
Data WC-4
Data 3
Data 2
Data 1
Data 0
ECC
16-Bit
Word Count
Data ID
A long packet consists of three elements: a 32-bit packet header (PH), an application-specific data payload with
a variable number of 8-bit data words, and a 16-bit packet footer (PF). The packet header is further composed of
three elements: an 8-bit data identifier, a 16-bit word count field, and an 8-bit ECC. The packet footer has one
element, a 16-bit checksum. 图 22 shows the structure of a long packet.
16-bit
PACKET
FOOTER
(PF)
图 22. CSI-2 Long Packet Structure
表 12. CSI-2 Long Packet Structure Description
PACKET
PART
FIELD NAME
SIZE (BIT)
DESCRIPTION
VC / Data ID
8
Contains the virtual channel identifier and the data-type information.
Word Count
16
Number of data words in the packet data. A word is 8 bits.
ECC
8
ECC for data ID and WC field. Allows 1-bit error recovery and 2-bit
error detection.
Data
Data
WC × 8
Footer
Checksum
16
Header
Application-specific payload (WC words of 8 bits).
16-bit cyclic redundancy check (CRC) for packet data.
7.4.18 CSI-2 Data Type Identifier
The DS90UB954-Q1 MIPI CSI-2 protocol interface transmits the data identifier byte containing the values for the
virtual channel ID (VC) and data type (DT) for the application specific payload data, as shown in 图 23. The
virtual channel ID is contained in the 2 MSBs of the data identifier byte and identify the data as directed to one of
four virtual channels. The value of the data type is contained in the six LSBs of the data identifier byte. When
partnered with a DS90UB953-Q1 or DS90UB935-Q1 serializer, the Data Type is passed through from the
received CSI-2 packets. When partnered with DS90UB933-Q1 or DS90UB913A-Q1 the received RAW mode
data is converted to CSI-2 Tx packets with assigned data type and virtual channel ID and matches what is sent
by the video source.
DVP format serializer inputs must have discrete synch signals. When interfacing with DS90UB913A-Q1 or
DS90UB933-Q1 serializers, the DS90UB954-Q1 utilizes the HSYNC and VSYNC inputs to construct the MIPI
CSI-2 Tx data packets. When paired with a DVP serializer, the DS90UB954-Q1deserializer supports RAW8,
RAW10 or RAW12 as well as formats which have the same pixel packing as RAW8, RAW10 or RAW12 such as
YUV-422.
For each RX Port, registers define with which virtual channel and data type the RAW data context is associated:
•
•
•
For FPD Receiver port operating in RAW input mode connected to a DS90UB933-Q1 or DS90UB913A-Q1
serializer, register 0x70 (see Table 122) describes RAW10 Mode and 0x71 (see Table 123) RAW12 Mode.
RAW1x_VC[7:6] field defines the associated virtual ID transported by the CSI-2 protocol from the sensor.
RAW1x_ID[5:0] field defines the associated data type. The data type is a combination of the data type
transported by the CSI-2 protocol.
版权 © 2017–2018, Texas Instruments Incorporated
43
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Data Identifier (DI) Byte
DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
VC
DT
Virtual Channel
Indentifier
(VC)
Data Type
(DT)
图 23. CSI-2 Data Identifier Structure
7.4.19 Virtual Channel and Context
The CSI-2 protocol layer transports virtual channels. The purpose of virtual channels is to separate different data
flows interleaved in the same data stream. Each virtual channel is identified by a unique channel identification
number in the packet header. Therefore, a CSI-2 TX context can be associated with a virtual channel and a data
type. Virtual channels are defined by a 2-bit field. This channel identification number is encoded in the 2-bit code.
The CSI-2 TX transmits the channel identifier number and multiplexes the interleaved data streams. The CSI-2
TX supports up to four concurrent virtual channels.
7.4.20 CSI-2 Input Mode Virtual Channel Mapping
The CSI-2 Input mode (see CSI-2 Mode) provides per-port Virtual Channel ID mapping. For each FPD-Link III
input port, separate mapping may be done for each input VC-ID to any of four VC-ID values. The mapping is
controlled by the VC_ID_MAP register 0x72 (see Table 124). This function sends the output as a timemultiplexed CSI-2 stream, where the video sources are differentiated by the virtual channel. The equivalent
registers 0x70-0x71 can be used for mapping VC-IDs when operating in RAW FPD-Link III mode connected to
DS90UB9x3x-Q1.
7.4.20.1 Example 1
The DS90UB954-Q1 is capable of receiving data from sensors attached to each port. Each port is sending a
video stream using VC-ID of 0. The DS90UB954-Q1 can be configured to re-map the incoming VC-IDs to ensure
each video stream has a unique ID. The direct implementation would map incoming VC-ID of 0 for RX Port 0,
and VC-ID of 1 for RX Port 1.
DS90UB954
Sensor A
VC-ID = 0
Port 0
CSI2 RX
Sensor B
VC-ID = 0
Port 1
CSI2 RX
VC-ID = 0
VC-ID = 1
CSI TX
图 24. VC-ID Mapping Example 1
7.4.20.2 Example 2:
The DS90UB954-Q1 is receiving two video streams from sensors on each input port. Each sensor is sending
video streams using VC-IDs 0 and 1. Receive Port 0 maps the VC-IDs directly without change. Receive Port 1
maps the VC-IDs 0 and 1 to VC-IDs 2 and 3. This is required because each CSI-2 transmitter is limited to 4 VCIDs per MIPI specification.
44
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
DS90UB954
Sensor A
VC-ID = 0,1
Port 0
CSI2 RX
Sensor B
VC-ID = 0,1
Port 1
CSI2 RX
VC-ID = 0,1
CSI TX
VC-ID = 2,3
图 25. VC-ID Mapping Example 2
B1
A2
B2
A3
B3
A4
LP11
A1
LP11
FPD-Link III
Serializer
LP11
A4
LP11
A3
LP11
A2
LP11
A1
LP11
Sensor A
CSI-2
Port0
CSI-2 port0, 1 CK lane,
up to 4 data lanes
B4
954
Deserializer
Color of the packet
represents the VC-ID
B1
B2
B3
B4
FPD-Link III
Serializer
CSI-2
Port1
Sensor B
图 26. Two Sensor Data onto CSI-2 With Virtual Channels (VC-ID)
图 27. Two Sensor Data onto CSI-2 With Virtual Channels (VC-ID)
FPD-Link III
Serializer
A1
B1
A2
B2
A3
LP11
A4
LP11
A3
LP11
A2
LP11
A1
LP11
Sensor A
CSI-2
Port0
CSI-2 port0, 1 CK lane,
up to 2 data lanes
A4
954
Deserializer
B1
A2
B2
A3
LP11
A1
LP11
FPD-Link III
Serializer
LP11
B2
LP11
B1
LP11
Sensor B
CSI-2
Port1
Sensor B has fewer
A4
CSI-2 port0, 1 CK lane,
up to 2 data lanes
Port1 can be the
Replica of Port0
图 28. Two Sensor Data With Different Frame Size Replicated onto CSI-2 With Virtual Channels
(VC-ID)
版权 © 2017–2018, Texas Instruments Incorporated
45
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.4.21 CSI-2 Transmitter Frequency
The CSI-2 Transmitters may operate nominally at 400 or 800 Mbps, 1.5 Gbps, or 1.6 Gbps. This operation is
controlled through the CSI_PLL_CTL 0x1F register (see Table 50). The actual CSI-2 rate is proportional to the
REFCLK frequency.
表 13. Net CSI-2 Bandwidth Options
CSI-2 TX DATA RATE PER
LANE (Mbps)
REFCLK FREQUENCY (MHz)
NET CSI-2 VIDEO BANDWIDTH
PER RX PORT (Gbps)
1664
26
3.328
1600
25
3.328
1472
23
3.328
01
Reserved
Reserved
Reserved
10
800
25
1.6 (RX Port 0 and RX Port 1)
11
400
25
0.8 (RX Port 0 and RX Port 1)
CSI_PLL_CTL[1:0]
00
When configuring to 800 Mbps or 1.6 Gbps, the CSI-2 timing parameters are automatically set based on the
CSI_PLL_CTL 0x1F register. In the case of alternate settings, the respective CSI-2 timing parameters registers
must be programmed, and the appropriate override bit must be set. For the 1.664-Gbps and 1.472-Gbps options,
these settings will also affect internal device timing for back channel operation, I2C, Bidirectional Control
Channel, and FrameSync operation which scale with the REFCLK frequency. Net CSI-2 video bandwidth shown
for CSI-2 TX frequency of 400 Mbps and 800 Mbps in 表 13 are for both RX ports enabled. When operating with
a single RX port, the net CSI-2 video bandwidth can be up to 3.328 Gbps.
To operate CSI-2 at speed of 400-Mbps mode, set CSI_PLL_CTL to 11b (0x1F[1:0] =11) to enable 400-Mbps
operation for the CSI-2 Transmitters. Internal PLL and Timers are then automatically adjusted for the reduced
reference clock frequency. The REF_CLK_MODE bit should be set to 0 for this mode of operation. Software
control of CSI-2 Transmitter timing registers is required to provide proper interface timing on the CSI-2 Output.
The following are the recommended timer settings for 400-Mbps operation.
# Set CSI-2 Timing parameters
WriteI2C(0xB0,0x2)
# set auto-increment, page 0
WriteI2C(0xB1,0x40)
# CSI-2 Port 0
WriteI2C(0xB2,0x83)
# TCK Prep
WriteI2C(0xB2,0x8D)
# TCK Zero
WriteI2C(0xB2,0x87)
# TCK Trail
WriteI2C(0xB2,0x87)
# TCK Post
WriteI2C(0xB2,0x83)
# THS Prep
WriteI2C(0xB2,0x86)
# THS Zero
WriteI2C(0xB2,0x84)
# THS Trail
WriteI2C(0xB2,0x86)
# THS Exit
WriteI2C(0xB2,0x84)
# TLPX
7.4.22
CSI-2 Replicate Mode
In CSI-2 Replicate mode, both ports can be programmed to output the same data. The output from CSI-2 port 0
is also presented on CSI-2 port 1.
To configure this mode of operation, set the CSI_REPLICATE bit in the FWD_CTL2 register (Address 0x21 in
Table 52). Enabling replicate mode will automatically enable the second CSI-2 Clock output signal. The CSI-2
transmitter must be programmed for one or two lanes only through the CSI_LANE_COUNT field in the CSI_CTL
register as only one or two lanes are supported.
7.4.23
CSI-2 Transmitter Output Control
Two register bits allow controlling the CSI-2 Transmitter output state. If the OUTPUT_SLEEP_STATE_SELECT
(OSS_SEL) control is set to 0 in the GENERAL_CFG 0x02 register (see Table 21), the CSI-2 Transmitter outputs
are forced to the HS-0 state. If the OUTPUT_ENABLE (OEN) register bit is set to 0 in the GENERAL_CFG
register, the CSI-2 pins are set to the high-impedance state.
46
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
For normal operation (OSS_SEL and OEN both set to 1), activity on either of the Rx Port determines the state of
the CSI-2 outputs. The CSI-2 Pin State during FPD-Link III inactive includes two options, controlled by the
OUTPUT_EN_MODE bit in the GENERAL_CFG register and FWD_PORTx_DIS in the FWD_CTL1 register
0x20. If OUTPUT_EN_MODE is set to 0, a lack of activity will force the outputs to Hi-Z condition. If
OUTPUT_EN_MODE is set to 1, or if the forwarding for the Rx Port is disabled (FWD_PORTx_DIS = 1), the
output enters LP-11 state as there is no data available to the CSI-2 Transmitter input. The FPD-Link III inputs are
considered active if the Receiver indicates valid lock to the incoming signal. For a CSI-2 TX port, lock is
considered valid if any Received port mapped to the TX port is indicating Lock. See section Receiver Port
Control for description of Rx port forwarding.
表 14. CSI-2 Output Control Options
PDB pin
OSS_SEL
OEN
OUTPUT_O
EN_MODE
FWD_PORTx_DIS
FPD-Link III INPUT
0
X
X
X
X
X
Hi-Z
1
0
X
X
X
X
HS-0
1
1
0
X
X
X
Hi-Z
1
1
1
0
X
All inactive
Hi-Z
1
1
1
1
X
All inactive
LP-11
1
1
1
X
1
Any active
LP-11
1
1
1
X
0
Any active
Valid
CSI-2 PIN STATE
7.4.24 CSI-2 Transmitter Status
The status of the CSI-2 Transmitter may be monitored by readback of the CSI_STS register 0x35, or brought to
one of the configurable GPIO pins as an output. The TX_PORT_PASS 0x35[0] indicates valid CSI-2 data being
presented on CSI-2 port. If no data is being forwarded or if error conditions have been detected on the video
data, the CSI-2 Pass signal will be cleared. The TX_PORT_SYNC 0x35[0] indicates the CSI-2 Tx port is able to
properly synchronize input data streams from multiple sources. TX_PORT_SYNC will always return 0 if
Synchronized Forwarding is disabled. Interrupts may also be generated based on changes in the CSI-2 port
status.
7.4.25 Video Buffers
The DS90UB954-Q1 implements two video line buffer and FIFO, one for each RX channel. The video buffers
provide storage of data payload and forward requirements for sending multiple video streams on the CSI-2
transmit ports. The total line buffer memory size is a 16-kB block for each RX port.
The CSI-2 transmitter waits for an entire packet to be available before pulling data from the video buffers.
7.4.26 CSI-2 Line Count and Line Length
The DS90UB954-Q1 counts the number of received lines (long packets) to determine line count on
LINE_COUNT_1 and LINE_COUNT_0 registers 0x73–74. For received line length, DS90UB954-Q1 reads the
number of bytes per line in LINE_LEN_1 and LINE_LEN_0 registers 0x75–0x76. Line Count and Line Length
values are valid when receiving a single video stream. If multiple virtual channels are received on a FPD-Link III
Receive port in CSI-2 input mode, the values in registers 0x73-74 may not be accurate
7.4.27 FrameSync Operation
A frame synchronization signal (FrameSync) can be sent through the back channel using any of the back
channel GPIOs. The signal can be generated in two different methods. The first option offers sending the
external FrameSync using one of the available GPIO pins on the DS90UB954-Q1 and mapping that GPIO to a
back channel GPIO on one or two of the FPD-Link III ports.
The second option is to have the DS90UB954-Q1 internally generate a FrameSync signal to send through the
back channel GPIO to one or two of the attached Serializers.
FrameSync signaling is synchronous on each of the two back channels. Thus, the FrameSync signal arrives at
both of the serializers with limited skew.
版权 © 2017–2018, Texas Instruments Incorporated
47
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.4.27.1 External FrameSync Control
In External FrameSync mode, an external signal is input to the DS90UB954-Q1 through one of the GPIO pins on
the device. The external FrameSync signal may be propagated to one or more of the attached FPD-Link III
Serializers through a GPIO signal in the back channel. The expected skew timing for external FrameSynch mode
is on the order of one back channel frame period or 600 ns when operating at 50 Mbps.
954 Deserializer
GPIOx
GPIOx
Serializer
Serializer
FPD-Link III
FPD-Link III
BC_GPIOx
BC_GPIOx
GPIOy
External
Frame Synch
图 29. External FrameSync
Enabling the external FrameSync mode is done by setting the FS_MODE control in the FS_CTL register to a
value between 0x8 (GPIO0 pin) to 0xE (GPIO6 pin). Set FS_GEN_ENABLE to 0 for this mode.
To send the FrameSync signal on a port’s BC_GPIOx signal, the BC_GPIO_CTL0 or BC_GPIO_CTL1 register
should be programmed for that port to select the FrameSync signal.
954 Deserializer
GPIOx
Serializer
FPD-Link III
BC_GPIOx
GPIOy
External
Frame Synch
REFCLK
25 MHz
REFCLK
954 Deserializer
GPIOx
Serializer
FPD-Link III
BC_GPIOx
GPIOy
External
Frame Synch
图 30. External FrameSync With Two DS90UB954 Deserializers
48
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.4.27.2 Internally Generated FrameSync
In Internal FrameSync mode, an internally generated FrameSync signal is sent to one or more of the attached
FPD-Link III Serializers through a GPIO signal in the back channel.
FrameSync operation is controlled by the FS_CTL 0x18, FS_HIGH_TIME_x, and FS_LOW_TIME_x 0x19–0x1A
registers. The resolution of the FrameSync generator clock (FS_CLK_PD) is derived from the back channel
frame period (see BC_FREQ_SELECT[2:0] in Table 98). For example, each 50-Mbps back channel operation,
the frame period is 600 ns (30 bits × 20 ns/bit), and for 2.5-Mbps back channel operation, the frame period is 12
µs (30 bits × 400 ns/bit).
Once enabled, the FrameSync signal is sent continuously based on the programmed conditions.
Enabling the internal FrameSync mode is done by setting the FS_GEN_ENABLE control in the FS_CTL register
to a value of 1. The FS_MODE field controls the clock source used for the FrameSync generation. The
FS_GEN_MODE field configures whether the duty cycle of the FrameSync is 50/50 or whether the high and low
periods are controlled separately. The FrameSync high and low periods are controlled by the FS_HIGH_TIME
and FS_LOW_TIME registers.
The accuracy of the internally generated FrameSync is directly dependent on the accuracy of the 25-MHz
oscillator used as the reference clock and timing values should be scaled if reference other than 25 MHz is used.
954 Deserializer
GPIOx
GPIOx
Serializer
Serializer
FPD-Link III
FPD-Link III
BC_GPIOx
BC_GPIOx
FrameSync
Generator
图 31. Internal FrameSync
FS_HIGH
FS_LOW
FS_LOW = FS_LOW_TIME * FS_CLK_PD
FS_HIGH = FS_HIGH_TIME * FS_CLK_PD
where FS_CLK_PD is the resolution of the FrameSync generator clock
图 32. Internal FrameSync Signal
The following example shows generation of a FrameSync signal at 60 pulses per second. Mode settings:
• Programmable High/Low periods: FS_GEN_MODE 0x18[1]=0
• Use port 0 back channel frame period: FS_MODE 0x18[7:4]=0x0
• Back channel rate of 50 Mbps: BC_FREQ_SELECT for port 0 0x58[2:0]=110b
• Initial FS state of 0: FS_INIT_STATE 0x18[2]=0
Based on mode settings, the FrameSync is generated based upon FS_CLK_PD of 12 µs.
The total period of the FrameSync is (1 / 60 hz) / 600 ns or approximately 27778 counts. The high time and low
time are programmed to the desired value – 1.
版权 © 2017–2018, Texas Instruments Incorporated
49
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
For a 10% duty cycle, set the high time to 2776 (0x0AD7) cycles, and the low time to 24992 (0x61A0) cycles:
• FS_HIGH_TIME_1: 0x19=0x0A
• FS_HIGH_TIME_0: 0x1A=0xD7
• FS_LOW_TIME_1: 0x1B=0x61
• FS_LOW_TIME_0: 0x1C=0xA0
7.4.27.2.1 Code Example for Internally Generated FrameSync
WriteI2C(0x4C,0x01) # RX0
WriteI2C(0x6E,0xAA) # BC_GPIO_CTL0: FrameSync signal to GPIO0/1
WriteI2C(0x4C,0x12) # RX1
WriteI2C(0x6E,0xAA) # BC_GPIO_CTL0: FrameSync signal to GPIO0/1
WriteI2C(0x10,0x91A) # FrameSync signal; Device Status; Enabled
WriteI2C(0x19,0x0A) # FS_HIGH_TIME_1
WriteI2C(0x1A,0xD7) # FS_HIGH_TIME_0
WriteI2C(0x1B,0x61) # FS_LOW_TIME_1
WriteI2C(0x1C,0xA0) # FS_LOW_TIME_0
WriteI2C(0x18,0x01) # Enable FrameSync
7.4.28 CSI-2 Forwarding
Video stream forwarding is handled by the forwarding control in the DS90UB954-Q1 on FWD_CTL1 register
0x20. The forwarding control pulls data from the video buffers for each FPD-Link III RX port and forwards the
data to the CSI-2 output interfaces. It also handles generation of transitions between LP and HS modes as well
as sending of Synchronization frames. The forwarding control monitors each of the video buffers for packet and
data availability.
Forwarding from input ports may be disabled using per-port controls. Each of the forwarding engines may be
configured to pull data from either of the two video buffers, although both buffer may only be assigned to one
CSI-2 Transmitter at a time unless in replicate mode. The two forwarding engines operate independently.
7.4.28.1 Enabling and Disabling the CSI-2 Transmitter
When CSI-2 Transmitter is enabled in CSI_CTL register bit 0x33[0], by default the output will transition to LP11
state. Once enabled, it is typically best to leave the CSI-2 Transmitter enable, and only change the forwarding
controls if changes are required to the system. When enabling and disabling the CSI-2 Transmitter, forwarding
should be disabled to ensure proper start and stop of the CSI Transmitter.
When enabling and disabling the CSI-2 Transmitter, use the following sequence:
To
1.
2.
3.
4.
Disable:
Disable forwarding for assigned ports in the FWD_CTL1 register.
Disable CSI periodic calibration (if enabled) in the CSI_ CTL2 register.
Disable continuous clock operation (if enabled) in the CSI_ CTL register.
Clear CSI Transmit enable in CSI_ CTL register.
To
1.
2.
3.
Enable:
Set CSI Transmit enable (and continuous clock if desired) in CSI_ CTL register.
Enable CSI periodic calibration (if desired) in the CSI_CTL2 register.
Enable forwarding for assigned ports in the FWD_CTL1 register.
7.4.28.2 Best-Effort Round Robin CSI-2 Forwarding
Best-Effort Round Robin (RR) CSI-2 Forwarding allows for combining sensor sources with different resolutions
and timing to the same CSI-2 Tx output. By default, the RR forwarding of packets use standard CSI-2 method of
video stream determination. No special ordering of CSI-2 packets are specified, effectively relying on the Virtual
Channel Identifier (VC) and Data Type (DT) fields to distinguish video streams. Each image sensor is assigned a
VC-ID to identify the source. Different data types within a virtual channel are also supported in this mode.
When receiving FPD-Link RAW packets from DS90UB9x3x-Q1, each image sensor is assigned a VC-ID to
identify the source. Different data types within a virtual channel is also supported in this mode.
50
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
The forwarding engine forwards packets as they become available to the forwarding engine. In the case where
multiple packets may be available to transmit, the forwarding engine typically operates in an RR fashion based
on the input port from which the packets are received.
Best-effort CSI-2 RR forwarding has the following characteristics and capabilities:
• Uses Virtual Channel ID to differentiate each video stream
• Separate Frame Synchronization packets for each VC
• No synchronization requirements
This mode of operation allows input RX ports to have different video characteristics and there is no requirement
that the video be synchronized between ports. The attached video processor would be required to properly
decode the various video streams based on the VC and DT fields.
Best-effort forwarding is enabled by setting the CSIx_RR_FWD bits in the FWD_CTL2 register 0x21.
7.4.28.3 Synchronized Forwarding
In cases with multiple input sources, synchronized forwarding offers synchronization of all incoming data stored
within the buffer. If packets arrive within a certain window, the forwarding control may be programmed to attempt
to synchronize the video buffer data. In this mode, it attempts to send each channel synchronization packets in
order (VC0, VC1) as well as sending packet data in the same order. In the following sections, Sensor A (SA) and
Sensor B (SB) refer to the sensors connected at FPD-Link III RX port 0, and RX port 1, respectively. The
following describe only the 2-port operation, but single port configuration also can be applied.
The forwarding engine for the CSI-2 Transmitter can be configured to synchronize both video sources.
Requirements:
• Video arriving at input ports should be synchronized within approximately one video line period
• All enabled ports should have valid, synchronized video
• Each port must have identical video parameters, including number and size of video lines, presence of
synchronization packets, and so forth.
The forwarding engine attempts to send the video synchronized. If synchronization fails, the CSI-2 transmitter
stops forwarding packets and attempt to restart sending synchronized video at the next FrameStart indication.
Packets are discarded as long as the forwarding engine is unable to send the synchronized video.
Status is provided to indicate when the forwarding engine is synchronized. In addition, a flag is used to indicate
that synchronization has been lost (status is cleared on a read).
Three options are available for Synchronized forwarding:
• Basic Synchronized forwarding
• Line-Interleave forwarding
• Line-Concatenated forwarding
Synchronized forwarding modes are selected by setting the CSIx_SYNC_FWD controls in the FWD_CTL2
register. To enable synchronized forwarding the following order of operations is recommended:
1. Disable Best-effort forwarding by clearing the CSIx_RR_FWD bits in the FWD_CTL2 register
2. Enable forwarding per Receive port by clearing the FWD_PORTx_DIS bits in the FWD_CTL1 register
3. Enable Synchronized forwarding in the FWD_CTL2 register
7.4.28.4 Basic Synchronized Forwarding
During Basic Synchronized Forwarding, each forwarded frame is an independent CSI-2 video frame including
FrameStart (FS), video lines, and FrameEnd (FE) packets. Each forwarded stream may have a unique VC ID. If
the forwarded streams do not have a unique VC-ID, the receiving process may use the frame order to
differentiate the video stream packets.
The forwarding engine attempts to send the video synchronized. If synchronization fails, the CSI-2 transmitter
stops forwarding packets and attempts to restart sending synchronized video at the next FS indication. Packets
are discarded as long as the forwarding engine is unable to send the synchronized video.
Example Synchronized traffic to CSI-2 Transmit port at start of frame:
FS_A – FS_B – SA_L1 – SB_L1 SA_L2 – SB_L2 – SA_L3 …
版权 © 2017–2018, Texas Instruments Incorporated
51
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Example Synchronized traffic to CSI-2 Transmit port at end of frame:
... SA_LN – SB_LN – FE_A – FE_B
Notes:
FS_x
FrameStart for Sensor X
FE_x
FrameEnd for Sensor X
Sx_Ly
Line Y for Sensor X video frame
Sx_LN
Last line for Sensor X video frame
Each packet includes the virtual channel ID assigned to receive port for each sensor.
52
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.4.28.4.1 Code Example for Basic Synchronized Forwarding
# "*** RX0 VC=0 ***"
WriteI2C(0x4C,0x01) # RX0
WriteI2C(0x72,0xE8) # Map Sensor A VC0 to CSI-Tx VC0
# "*** RX1 VC=1 ***"
WriteI2C(0x4C,0x12) # RX1
WriteI2C(0x70,0xED) # Map Sensor B VC0 to CSI-Tx VC1
# "CSI_EN"
WriteI2C(0x33,0x1) # CSI_EN & CSI0 4L
# "***Basic_FWD"
WriteI2C(0x21,0x14) # Synchronized Basic_FWD
# "***FWD_PORT all RX to CSI0"
WriteI2C(0x20,0x00) # forwarding of all RX to CSI0
Frame Blanking
SA_L1
SB_L1
.
.
.
Line Blanking
Packet Header, PH
Packet Footer, PF
FS_A FS_B
Frame 1
Image Data
{Sensor A}
{Sensor B}
.
.
.
SA_LN
SB_LN
FE_A FE_B
Frame Blanking
KEY:
PH ± Packet Header
FS ± Frame Start
LS ± Line Start
Sensor A
VC-ID = 0
PF ± Packet Footer + Filler (if applicable)
FE ± Frame End
LE ± Line End
Sensor B
VC-ID = 1
*Blanking intervals do not provide accurate synchronization timing
图 33. Basic Synchronized Format
版权 © 2017–2018, Texas Instruments Incorporated
53
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.4.28.5 Line-Interleave Forwarding
In synchronized forwarding, the forwarding engine may be programmed to send only one of each synchronization
packet. For example, if forwarding from both input ports, only one FS and FE packet is sent for each video
frame. The synchronization packets for the other port is dropped. The video line packets for each video stream
are sent as individual packets. This effectively merges the frames from N video sources into a single frame that
has N times the number of video lines.
In this mode, all video streams must also have the same VC, although this is not checked by the forwarding
engine. This is useful when connected to a controller that does not support multiple VCs. The receiving
processor must process the image based on order of video line reception.
Example Synchronized traffic to CSI-2 Transmit port at start of frame:
FS_A – SA_L1 – SB_L1 – SA_L2 – SB_L2 – SA_L3 …
Example Synchronized traffic to CSI-2 Transmit port at end of frame:
... SA_LN – SB_LN – FE_A
Notes:
FS_x
FrameStart for Sensor X
FE_x
FrameEnd for Sensor X
Sx_Ly
Line Y for Sensor X video frame
Sx_LN
Last line for Sensor X video frame
All packets would have the same VC ID.
7.4.28.5.1 Code Example for Line-Interleave Forwarding
# "*** RX0 VC=0 ***"
WriteI2C(0x4C,0x01) # RX0
WriteI2C(0x72,0xE8) # Map Sensor A VC0 to CSI-Tx VC0
# "*** RX1 VC=1 ***"
WriteI2C(0x4C,0x12) # RX1
WriteI2C(0x70,0xE8) # Map Sensor B VC0 to CSI-Tx VC0
# "CSI_EN"
WriteI2C(0x33,0x1) # CSI_EN & CSI0 4L
# "*** CSI0_SYNC_FWD synchronous forwarding with line interleaving ***"
WriteI2C(0x21,0x28) # synchronous forwarding with line interleaving
# "*** FWD_PORT all RX to CSI0"
WriteI2C(0x20,0x00) # forwarding of all RX to CSI0
54
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
Frame Blanking
SA_L1
SB_L1
.
.
.
Line Blanking
Packet Header, PH
Packet Footer, PF
FS_A
Frame 1
Image Data
{Sensor A}
{Sensor B}
.
.
.
SA_LN
SB_LN
FE_A
Frame Blanking
KEY:
PH ± Packet Header
FS ± Frame Start
LS ± Line Start
Sensor A
VC-ID = 0
PF ± Packet Footer + Filler (if applicable)
FE ± Frame End
LE ± Line End
Sensor B
VC-ID = 0
*Blanking intervals do not provide accurate synchronization timing
图 34. Line-Interleave Format
7.4.28.6 Line-Concatenated Forwarding
In synchronized forwarding, the forwarding engine may be programmed to merge video frames from multiple
sources into a single video frame by concatenating video lines. Each of the sensors attached to each RX Port
carry different data streams that get concatenated into one CSI-2 stream. For example, if forwarding from both
input ports, only one FS an FE packet is sent for each video frame. The synchronization packets for the other
port is dropped. In addition, the video lines from each sensor are combined into a single line. The controller must
separate the single video line into the separate components based on position within the concatenated video
line.
Example Synchronized traffic to CSI-2 Transmit port at start of frame:
FS_A – SA_L1,SB_L1 – SA_L2,SB_L2 – SA_L3,SB_L3 …
Example Synchronized traffic to CSI-2 Transmit port at end of frame:
... SA_LN,SB_LN – FE_A
版权 © 2017–2018, Texas Instruments Incorporated
55
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Notes:
FS_x
FrameStart for Sensor X
FE_x
FrameEnd for Sensor X
Sx_Ly
Line Y for Sensor X video frame
Sx_LN
Last line for Sensor X video frame
SA_L1,SB_L1 indicate concatenation of the first video line from each Sensor into a single video line. This packet
has a modified header and footer that matches the concatenated line data.
Packets would have the same VC ID, based on the VC ID for the lowest number Sensor port being forwarded.
Lines are concatenated on a byte basis without padding between video line data.
7.4.28.6.1 Code Example for Line-Concatenate Forwarding
# "*** RX0 VC=0 ***"
WriteI2C(0x4C,0x01) # RX0
WriteI2C(0x72,0xE8) # Map Sensor A VC0 to CSI-Tx VC0
# "*** RX1 VC=1 ***"
WriteI2C(0x4C,0x12) # RX1
WriteI2C(0x70,0xED) # Map Sensor B VC0 to CSI-Tx VC1
# "CSI_EN"
WriteI2C(0x33,0x1) # CSI_EN & CSI0 4L
# "*** CSI0_SYNC_FWD synchronous forwarding with line concatenation ***"
WriteI2C(0x21,0x3c) # synchronous forwarding with line concatenation
# "***FWD_PORT all RX to CSI0"
WriteI2C(0x20,0x00) # forwarding of all RX to CSI0
Frame Blanking
Line Blanking
Packet Header, PH
Packet Footer, PF
FS_A
SA_L1
SA_L2
.
.
.
.
.
.
.
.
.
.
SA_LN
SB_L1
SB_L2
.
.
.
.
.
.
.
.
.
.
SB_LN
Frame 1
Image Data
{Sensor A}
Frame 1
Image Data
{Sensor B}
FE_A
Frame Blanking
Sensor A
VC-ID = 0
Sensor B
VC-ID = 0
KEY:
PH ± Packet Header
FS ± Frame Start
LS ± Line Start
PF ± Packet Footer + Filler (if applicable)
FE ± Frame End
LE ± Line End
*Blanking intervals do not provide accurate synchronization timing
图 35. Line-Concatenated Format
56
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.5 Programming
7.5.1 Serial Control Bus and Bidirectional Control Channel
The DS90UB954-Q1 implements an I2C-compatible serial control bus. The I2C is for local device configuration
and incorporates a Bidirectional Control Channel (BCC) that allows communication across the FPD-Link cable
with remote serializers as well as remote I2C slave devices. The DS90UB954-Q1 implements an I2C compatible
slave capable of operation compliant to the Standard, Fast, and Fast-plus modes of operation. This allows I2C
operation at up to 1-MHz clock frequencies. When paired with a DS90UB935-Q1 or DS90UB953-Q1 serializer
the DS90UB954-Q1 supports combined format I2C read and write access. When paired with the DS90UB933-Q1
or DS90UB913A-Q1 serializers, all I2C remote writes must be terminated with a STOP rather than repeated
START. The timing for the I2C interface is detailed in 图 4.
For accesses to local registers, the I2C Slave operates without stretching the clock. Accesses to remote devices
over the Bidirectional Control Channel results in clock stretching to allow for response time across the link. The
DS90UB954-Q1 can also act as I2C Master for regenerating Bidirectional Control Channel accesses originating
from the remote devices across FPD-Link. Set I2C_MASTER_EN in register 0x02[5] = 1 to enable the proxy
master functionality of the deserializer.
7.5.1.1 Bidirectional Control
The Bidirectional Control Channel (BCC) supports higher frequency operation when attached to the DS90UB935Q1 or DS90UB953-Q1 and is also backward compatible with the DS90UB933-Q1 or DS90UB913A-Q1
serializers. The Bidirectional Control Channel is compatible with I2C devices, allowing local I2C slave access to
device registers as well as bidirectional I2C operation across the link to the Serializer and attached devices. I2C
access should not be attempted across the link when Rx Port Lock status is Low. In addition to providing BCC
operation, the back channel signaling also supports GPIO operations and advertising device capabilities to the
attached Serializer device. The default back channel frequency is selected by the strap setting of the MODE pin.
Additional speeds are also available, controlled separately for each Rx Port through the BC_FREQ_SELECT
register field in the BCC_CONFIG register 0x58. Back channel frequency operates in 50-Mbps and 2.5-Mbps
modes to support DS90UB935-Q1, DS90UB953-Q1 and DS90UB933-Q1 or DS90UB913A-Q1 Serializers.
7.5.1.2 Device Address
The primary device address is set through a resistor divider (RHIGH and RLOW — see 图 36 below) connected to
the IDX pin. The DS90UB954-Q1 waits 1 ms after PDB goes high to allow time for power supply transients
before sampling the IDX value and configuring the device to set the I2C address. The primary I2C slave address
is stored in the I2C Device ID register at address 0x0. In addition to the primary I2C slave address, the
DS90UB954-Q1 may be programmed to respond to up to 2 other I2C addresses. The two RX Port ID addresses
provide direct access to the Receive Port 0 and Por1 registers without needing to set the paging controls
normally required to access the port registers. In addition, these Rx port assigned I2C IDs also allow access to
the shared registers in the same manner as the primary I2C slave address. The I2C_RX0_ID and I2C_RX1_ID,
registers are located in register address 0xF8 and 0xF9, respectively.
版权 © 2017–2018, Texas Instruments Incorporated
57
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Programming (接
接下页)
VDD18
VI2C VI2C
RHIGH
IDX
RPU
RPU
RLOW
HOST
Deserializer
SCL
SCL
SDA
SDA
To other Devices
图 36. Serial Control Bus Connection
The IDX pin configures the control interface to one of eight possible device addresses. A pullup resistor and a
pulldown resistor may be used to set the appropriate voltage ratio between the IDX input pin (VIDX) and V(VDD18),
each ratio corresponding to a specific device address. See 表 15, Serial Control Bus Addresses for IDX.
表 15. Serial Control Bus Addresses for IDX
VIDX VOLTAGE RANGE
NO
.
VMIN
VIDX TARGET
VOLTAGE
VTYP
VMAX
SUGGESTED STRAP
RESISTORS (1% TOL)
PRIMARY ASSIGNED I2C
ADDRESS
(V); VDD1P8 =
1.80V
RHIGH ( kΩ )
RLOW ( kΩ )
7-BIT
8-BIT
0
0
0
0.131 × V(VDD18)
0
OPEN
10.0
0x30
0x60
1
0.179 ×
V(VDD18)
0.213 ×
V(VDD18)
0.247 × V(VDD18)
0.374
88.7
23.2
0x32
0x64
2
0.296 ×
V(VDD18)
0.330 ×
V(VDD18)
0.362 × V(VDD18)
0.582
75.0
35.7
0x34
0x68
3
0.412 ×
V(VDD18)
0.443 ×
V(VDD18)
0.474 × V(VDD18)
0.792
71.5
56.2
0x36
0x6C
4
0.525 ×
V(VDD18)
0.559 ×
V(VDD18)
0.592 × V(VDD18)
0.995
78.7
97.6
0x38
0x70
5
0.642 ×
V(VDD18)
0.673 ×
V(VDD18)
0.704 × V(VDD18)
1.202
39.2
78.7
0x3A
0x74
6
0.761 ×
V(VDD18)
0.792 ×
V(VDD18)
0.823 × V(VDD18)
1.420
25.5
95.3
0x3C
0x78
7
0.876 ×
V(VDD18)
V(VDD18)
V(VDD18)
1.8
10.0
OPEN
0x3D
0x7A
7.5.1.3 Basic I2C Serial Bus Operation
The serial control bus consists of two signals, SCL and SDA. SCL is a Serial Bus Clock Input. SDA is the Serial
Bus Data Input / Output signal. Both SCL and SDA signals require an external pullup resistor to 1.8-V or 3.3-V
nominal VI2C. For most applications, TI recommends a 4.7-kΩ pullup resistor to VI2C. However, the pullup resistor
value may be adjusted for capacitive loading and data rate requirements. The signals are either pulled High or
driven Low.
58
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
The Serial Bus protocol is controlled by START, START-Repeated, and STOP phases. A START occurs when
SCL transitions Low while SDA is High. A STOP occurs when SDA transitions High while SCL is also HIGH. See
图 37.
SDA
SCL
S
P
START condition, or
START repeat condition
STOP condition
图 37. START and STOP Conditions
S
Register
Address
Slave
Address
7-bit Address
S
0
A
C
K
Bus Activity:
Slave
N
A
C
K
Slave
Address
7-bit Address
P
1
A
C
K
Stop
SDA Line
Start
Bus Activity:
Master
Start
To communicate with a slave device, the host controller (master) sends the slave address and listens for a
response from the slave. This response is referred to as an acknowledge bit (ACK). If a slave on the bus is
addressed correctly, it acknowledges (ACKs) the master by driving the SDA bus low. If the address does not
match the slave address of the device, it not-acknowledges (NACKs) the master by letting SDA be pulled High.
ACKs also occur on the bus when data is being transmitted. When the master is writing data, the slave ACKs
after every data byte is successfully received. When the master is reading data, the master ACKs after every
data byte is received to let the slave know it wants to receive another data byte. When the master wants to stop
reading, it NACKs after the last data byte and creates a stop condition on the bus. All communication on the bus
begins with either a Start condition or a Repeated Start condition. All communication on the bus ends with a Stop
condition. A READ is shown in 图 38 and a WRITE is shown in 图 39.
A
C
K
Data
SDA Line
S
Bus Activity:
Slave
Register
Address
Slave
Address
7-bit Address
Stop
Bus Activity:
Master
Start
图 38. Serial Control Bus — READ
Data
P
0
A
C
K
A
C
K
A
C
K
图 39. Serial Control Bus — WRITE
For more information on I2C interface requirements and throughput considerations, refer to I2C Communication
Over FPD-Link III With Bidirectional Control Channel (SNLA131) and I2C Over DS90UB913/4 FPD-Link III With
Bidirectional Control Channel (SNLA222).
版权 © 2017–2018, Texas Instruments Incorporated
59
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.5.2 I2C Slave Operation
The DS90UB954-Q1 implements an I2C-compatible slave capable of operation compliant to the Standard, Fast,
and Fast-plus modes of operation allowing I2C operation at up to 1-MHz clock frequencies. Local I2C
transactions to access DS90UB954-Q1 registers can be conducted 2 ms after power supplies are stable and
PDB is brought high. For accesses to local registers, the I2C Slave operates without stretching the clock. The
primary I2C slave address is set through the IDx pin. The primary I2C slave address is stored in the I2C Device
ID register at address 0x0. In addition to the primary I2C slave address, the DS90UB954-Q1 may be
programmed to respond to up to two other I2C addresses. The two RX Port ID addresses provide direct access
to the Receive Port registers without needing to set the paging controls normally required to access the port
registers.
7.5.3 Remote Slave Operation
The Bidirectional control channel provides a mechanism to read or write I2C registers in remote devices over the
FPD-Link III interface. The I2C Master located at the Deserializer must support I2C clock stretching. Accesses to
serializer or remote slave devices over the Bidirectional Control Channel will result in clock stretching to allow for
response time across the link. The DS90UB954-Q1 acts as an I2C slave on the local bus, forwards read and
write requests to the remote device, and returns the response from the remote device to the local I2C bus. To
allow for the propagation and regeneration of the I2C transaction at the remote device, the DS90UB954-Q1 will
stretch the I2C clock while waiting for the remote response. To communicate with a remote slave device, the Rx
Port which is intended for messaging also must be selected in register 0x4C. The I2C address of the currently
selected RX Port serializer will be populated in register 0x5B of the DS90UB954-Q1. The BCC_CONFIG register
0x58 also must have bit 6, I2C_PASS_THROUGH set to one. If enabled, local I2C transactions with valid
address decode will then be forwarded through the Bidirectional Control Channel to the remote I2C bus. When
I2C PASS THROUGH is set, the deserializer will only propagate messages that it recognizes, such as the
registered serializer alias address (SER ALIAS), or any registered remote slave alias attached to the serializer
I2C bus (SLAVE ALIAS) assigned to the specific Rx Port0 or Port 1. Setting PASS THROUGH ALL and AUTO
ACK are less common use cases and primarily used for debugging I2C messaging as they will respectively pass
all addresses regardless of valid I2C address (PASS_THROUGH_ALL) and acknowledge all I2C commands
without waiting for a response from serializer (AUTO_ACK).
7.5.3.1 Remote I2C Slaves Data Throughput
Since the BCC buffers each I2C data byte and regenerates the I2C protocol on the remote side of the link, the
overall I2C throughput will be reduced. The reduction is dependent on the operating frequencies of the local and
remote interfaces. The local I2C rate is based on the host controller clock rate, while the remote rate depends on
the settings for the proxy I2C master (SCL frequency).
For purposes of understanding the effects of the BCC on data throughput from a host controller to a remote I2C
master, the approximate bit rate including latency timings across the control channel can be calculated by the
following:
9 bits / ((Host_bit * 9) + (Remote_bit * 9) + FCdelay + BCCdelay)
Example of DS90UB953/954 chipset:
For the 100 kbit/s (100 kHz) :
Host_bit = 10us (100 kHz)
Remote_bit = 13.5us (default 74 kHz)
FCdelay = 225ns (typical value)
BCCdelay = 1.5us (typical value for 50 Mbps back channel rate)
Effective rate = 9bits / (90us + 121us + 0.225us + 1.5us) = 42.3 kbit/s
表 16. Typical Achievable Bit Rates
60
Host I2C rate
Remote I2C rate
Net bit rate
100 kbit/s
74 kbit/s (default settings)
42.3 kbit/s
400 kbit/s
100 kbit/s
78.8 kbit/s
1 Mbit/s
100 kbit/s
89.4 kbit/s
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
表 16. Typical Achievable Bit Rates (接
接下页)
Host I2C rate
Remote I2C rate
Net bit rate
1 Mbit/s
400 kbit/s
270.88 kbit/s
1 Mbit/s
1 Mbit/s
456.27 kbit/s
Since the I2C protocol includes overhead for sending address information as well as START and STOP bits, the
actual data throughput depends on the size and type of transactions used. Use of large bursts to read and write
data will result in higher data transfer rates.
7.5.4 Remote Slave Addressing
Various system use cases require multiple sensor devices with the same fixed I2C slave address to be remotely
accessible from the same I2C bus at the deserialilzer. The DS90UB954-Q1 provides slave ID virtual addressing
to differentiate target slave addresses when connecting two or more remote devices. Eight pairs of SlaveAlias
and SlaveID registers are allocated for each FPD-Link III Receive port in registers 0x5C through 0x6C. The
SlaveAlias register allows programming a virtual address which the host controller uses to access the remote
device. The SlaveID register provides the actual slave address for the device on the remote I2C bus. Since eight
pairs of registers are available for each port (total of 16 pairs), multiple devices may be directly accessible
remotely without need for reprogramming. Multiple SlaveAlias can be assigned to the same SlaveID as well.
7.5.5 Broadcast Write to Remote Slave Devices
The DS90UB954-Q1 provides a mechanism to broadcast I2C writes to remote devices (either remote slaves or
serializers). For each Receive port, the SlaveID and SlaveAlias register pairs would be programmed with the
same SlaveAlias value so they would each respond to the local I2C access. The SlaveID value would match the
intended remote device address, either remote slave or serializers. For each receive port, on of the SlaveAlias
registers is set with an Alias value. For each port, the SlaveID value is set to the address of the remote device.
These values may be the same. To access the remote serializer registers rather than a remote slave, the
serializer ID (SER_IDX or SER_IDY) would be used as the SlaveID value.
7.5.5.1 Code Example for Broadcast Write
# "FPD3_PORT_SEL Boardcast RX0/1"
WriteI2C(0x4c,0x0f) # RX_PORT0 read; RX0/1 write
# "enable pass through"
WriteI2C(0x58,0x58) # enable pass through
WriteI2C(0x5c,0x18) # "SER_ALIAS_ID"
WriteI2C(0x5d,0x60) # "SlaveID[0]"
WriteI2C(0x65,0x60) # "SlaveAlias[0]"
WriteI2C(0x7c,0x01) # "FV_POLARITY"
WriteI2C(0x70,0x1f) # RAW10_datatype_yuv422b10_VC0
7.5.6 I2C Master Proxy
The DS90UB954-Q1 implements an I2C master that acts as a proxy master to regenerate I2C accesses
originating from a remote serializer (DS90UB935-Q1, DS90UB933-Q1, DS90UB913A-Q1, or the DS90UB953Q1). By default, the I2C Master Enable bit (I2C_MASTER_EN) in register 0x05[2]= 0 to block Master access to
local deserialilzer I2C from remote serializers. Set I2C_MASTER_EN] = 1 if system requires the deserializer to
act as proxy master for remote serializers on the local deserializer I2C bus. The proxy master is an I2C
compatible master, capable of operating with Standard-mode, Fast-mode, or Fast-mode Plus I2C timing. It is
also capable of arbitration with other masters, allowing multiple masters and slaves to exist on the I2C bus. A
separate I2C proxy master is implemented for each Receive port. This allows independent operation for all
sources to the I2C interface. Arbitration between multiple sources is handled automatically using I2C multimaster arbitration.
版权 © 2017–2018, Texas Instruments Incorporated
61
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.5.7 I2C Master Proxy Timing
The proxy master timing parameters are based on the REFCLK timing. Timing accuracy for the I2C proxy master
based on the REFCLK or XTL clock source attached to the DS90UB954-Q1 deserializer. Before REFCLK is
applied the deserializer will default to internal reference clock with accuracy of 25 MHz ±10%.The I2C Master
regenerates the I2C read or write access using timing controls in the registers 0xA and 0xB to regenerate the
clock and data signals to meet the desired I2C timing in standard, fast, or fast-plus modes of operation.
I2C Master SCL High Time is set in register 0x0A[7:0]. This field configures the high pulse width of the SCL
output when the Serializer is the Master on the local deserializer I2C bus. The default value is set to provide a
minimum 5-µs SCL high time with the reference clock at 25 MHz + 100 ppm including four additional oscillator
clock periods or synchronization and response time. Units are 40 ns for the nominal oscillator clock frequency,
giving Min_delay = 40 ns × (SCL_HIGH_TIME + 4).
I2C Master SCL Low Time is set in register 0x0B[7:0]. This field configures the low pulse width of the SCL output
when the Serializer is the Master on the local deserializer I2C bus. This value is also used as the SDA setup time
by the I2C Slave for providing data prior to releasing SCL during accesses over the BiDirectional Control
Channel. The default value is set to provide a minimum 5-µs SCL high time with the reference clock at 25 MHz +
100 ppm including four additional oscillator clock periods or synchronization and response time. Units are 40 ns
for the nominal oscillator clock frequency, giving Min_delay = 40 ns × (SCL_HIGH_TIME + 4). See 表 17
example settings for Standard mode, Fast mode, and Fast Mode Plus timing.
表 17. Typical I2C Timing Register Settings
SCL HIGH TIME
I2C MODE
0x0A[7:0]
SCL LOW TIME
NOMINAL DELAY AT
REFCLK = 25 MHz
0x0B[7:0]
NOMINAL DELAY AT
REFCLK = 25 MHz
Standard
0x7A
5.04 us
0x7A
Fast
0x13
0.920 us
0x25
5.04 us
1.64 us
Fast - Plus
0x06
0.400 us
0x0C
0.640 us
7.5.7.1 Code Example for Configuring Fast Mode Plus I2C Operation
# "RX0 I2C Master Fast Plus Configuration"
WriteI2C(0x02,0x3E) # Enable Proxy
WriteI2C(0x4c,0x01) # Select RX_PORT0
# Set SCL High and Low Time delays
WriteI2C(0x0a,0x06) # SCL High
WriteI2C(0x0b,0x0C) # SCL Low
62
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.5.8 Interrupt Support
Interrupts can be brought out on the INTB pin as controlled by the INTERRUPT_CTL 0x23 and
INTERRUPT_STS 0x24 registers. The main interrupt control registers provide control and status for interrupts
from the individual sources. Sources include each of the two FPD-Link III Receive ports as well as the CSI-2
Transmit port. Clearing interrupt conditions requires reading the associated status register for the source. The
setting of the individual interrupt status bits is not dependent on the related interrupt enable controls. The
interrupt enable controls whether an interrupt is generated based on the condition, but does not prevent the
interrupt status assertion.
The DS90UB954-Q1 devices have built in flexibility such that the main interrupt may be brought to any GPIO pin
through the GPIOx_PIN_CTL register for that pin (see Table 35). Note that the GPIO3 pin is the only GPIO that
is implemented as open-drain, so this is the preferred pin for signaling the interrupt.
For an interrupt to be generated based on one of the interrupt status assertions, both the individual interrupt
enable and the INT_EN control must be set in the INTERRUPT_CTL 0x23 register. For example, to generate an
interrupt if IS_RX0 is set, both the IE_RX0 and INT_EN bits must be set. If IE_RX0 is set but INT_EN is not, the
INT status is indicated in the INTERRUPT_STS register, and the INTB pin does not indicate the interrupt
condition.
See the INTERRUPT_CTL 0x23 and INTERRUPT_STS 0x24 registers for details.
7.5.8.1 Code Example to Enable Interrupts
# "RX0/1 INTERRUPT_CTL enable"
WriteI2C(0x23,0xBF) # RX all & INTB PIN EN
# Individual RX0/1 INTERRUPT_CTL enable
# "RX0 INTERRUPT_CTL enable"
WriteI2C(0x4C,0x01) # RX0
WriteI2C(0x23,0x81) # RX0 & INTB PIN EN
# "RX1 INTERRUPT_CTL enable"
WriteI2C(0x4C,0x12) # RX1
WriteI2C(0x23,0x82) # RX1 & INTB PIN EN
7.5.8.2 FPD-Link III Receive Port Interrupts
For each FPD-Link III Receive port, multiple options are available for generating interrupts. Interrupt generation is
controlled through the PORT_ICR_HI 0xD8 and PORT_ICR_LO 0xD9 registers. In addition, the PORT_ISR_HI
0xDA and PORT_ISR_LO 0xDB registers provide read-only status for the interrupts. Clearing of interrupt
conditions is handled by reading the RX_PORT_STS1, RX_PORT_STS2, and CSI_RX_STS registers. The
status bits in the PORT_ISR_HI/LO registers are copies of the associated bits in the main status registers.
版权 © 2017–2018, Texas Instruments Incorporated
63
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
To enable interrupts from one of the Receive port interrupt sources:
1. Enable the interrupt source by setting the appropriate interrupt enable bit in the PORT_ICR_HI or
PORT_ICR_LO register
2. Set the RX Port X Interrupt control bit (IE_RXx) in the INTERRUPT_CTL register
3. Set the INT_EN bit in the INTERRUPT_CTL register to allow the interrupt to assert the INTB pin low
To
1.
2.
3.
clear interrupts from one of the Receive port interrupt sources:
(optional) Read the INTERRUPT_STS register to determine which RX Port caused the interrupt
(optional) Read the PORT_ISR_HI and PORT_ISR_LO registers to determine source of interrupt
Read the appropriate RX_PORT_STS1, RX_PORT_STS2, or CSI_RX_STS register to clear the interrupt.
The first two steps are optional. The interrupt could be determined and cleared by just reading the status
registers.
7.5.8.2.1 Interrupts on Forward Channel GPIO
When connected to the DS90UB935-Q1 or DS90UB953-Q1 serializer, interrupts can be generated on changes in
any of the four forward channel GPIOs per port. Interrupts are enabled by setting bits in the FC_GPIO_ICR
register. Interrupts may be generated on rising and/or falling transitions on the GPIO signal. The GPIO interrupt
status is cleared by reading the FC_GPIO_STS register.
Interrupts should only be used for GPIO signals operating at less than 10 MHz. High or low pulses that are less
than 100 ns might not be detected at the DS90UB954-Q1. To avoid false interrupt indications, the interrupts
should not be enabled until after the Forward Channel GPIOs are enabled at the serializer.
7.5.8.2.2 Interrupts on Change in Sensor Status
The FPD-Link III Receiver recovers 32-bits of Sensor status from the attached DS90UB935-Q1 or DS90UB953Q1 serializer. Interrupts may be generated based on changes in the Sensor Status values received from the
forward channel. The Sensor Status consists of 4 bytes of data, which may be read from the SENSOR_STS_x
registers for each Receive port. Interrupts may be generated based on a change in any of the bits in the first byte
(SENSOR_STS_0). Each bit can be individually masked for Rising and/or Falling interrupts.
Two registers control
SEN_INT_FALL_CTL.
the
interrupt
masks
for
the
SENSOR_STS
bits:
SEN_INT_RISE_CTL
and
Two registers provide interrupt status: SEN_INT_RISE_STS, SEN_INT_FALL_STS.
If a mask bit is set, a change in the associated SENSOR_STS_0 bit will be detected and latched in the
SEN_INT_RISE_STS or SEN_INT_FALL_STS registers. If the mask bit is not set, the associated interrupt status
bit will always be 0. If any of the SEN_INT_RISE_STS or SEN_INT_FALL_STS bits is set, the IS_FC_SEN_STS
bit will be set in the PORT_ISR_HI register.
64
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.5.8.3 Code Example to Readback Interrupts
INTERRUPT_STS = ReadI2C(0x24) # 0x24 INTERRUPT_STS
if ((INTERRUPT_STS & 0x80) >> 7):
print "# GLOBAL INTERRUPT DETECTED "
if ((INTERRUPT_STS & 0x40) >> 6):
print "# RESERVED "
if ((INTERRUPT_STS & 0x10) >> 4):
print "# IS_CSI_TX DETECTED "
if ((INTERRUPT_STS & 0x02) >> 1):
print "# IS_RX1 DETECTED "
if ((INTERRUPT_STS & 0x01) ):
print "# IS_RX0 DETECTED "
# "################################################"
# "RX0 status"
# "################################################"
WriteReg(0x4C,0x01) # RX0
PORT_ISR_LO = ReadI2C(0xDB)
print "0xDB PORT_ISR_LO : ", hex(PORT_ISR_LO) # readout; cleared by RX_PORT_STS2
if ((PORT_ISR_LO & 0x40) >> 6):
print "# IS_LINE_LEN_CHG INTERRUPT DETECTED "
if ((PORT_ISR_LO & 0x20) >> 5):
print "# IS_LINE_CNT_CHG DETECTED "
if ((PORT_ISR_LO & 0x10) >> 4):
print "# IS_BUFFER_ERR DETECTED "
if ((PORT_ISR_LO & 0x08) >> 3):
print "# IS_CSI_RX_ERR DETECTED "
if ((PORT_ISR_LO & 0x04) >> 2):
print "# IS_FPD3_PAR_ERR DETECTED "
if ((PORT_ISR_LO & 0x02) >> 1):
print "# IS_PORT_PASS DETECTED "
if ((PORT_ISR_LO & 0x01) ) :
print "# IS_LOCK_STS DETECTED "
################################################
PORT_ISR_HI = ReadI2C(0xDA)
print "0xDA PORT_ISR_HI : ", hex(PORT_ISR_HI) # readout; cleared by RX_PORT_STS2
if ((PORT_ISR_HI & 0x04) >> 2):
print "# IS_FPD3_ENC_ERR DETECTED "
if ((PORT_ISR_HI & 0x02) >> 1):
print "# IS_BCC_SEQ_ERR DETECTED "
if ((PORT_ISR_HI & 0x01) ) :
print "# IS_BCC_CRC_ERR DETECTED "
################################################
RX_PORT_STS1 = ReadI2C(0x4D) # R/COR
if ((RX_PORT_STS1 & 0xc0) >> 6) == 1:
print "# RX_PORT_NUM = RX1"
elif ((RX_PORT_STS1 & 0xc0) >> 6) == 0:
print "# RX_PORT_NUM = RX0"
if ((RX_PORT_STS1 & 0x20) >> 5):
print "# BCC_CRC_ERR DETECTED "
if ((RX_PORT_STS1 & 0x10) >> 4):
print "# LOCK_STS_CHG DETECTED "
if ((RX_PORT_STS1 & 0x08) >> 3):
print "# BCC_SEQ_ERROR DETECTED "
if ((RX_PORT_STS1 & 0x04) >> 2):
print "# PARITY_ERROR DETECTED "
if ((RX_PORT_STS1 & 0x02) >> 1):
print "# PORT_PASS=1 "
if ((RX_PORT_STS1 & 0x01) ):
版权 © 2017–2018, Texas Instruments Incorporated
65
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
print "# LOCK_STS=1 "
################################################
RX_PORT_STS2 = ReadI2C(0x4E)
if ((RX_PORT_STS2 & 0x80) >> 7):
print "# LINE_LEN_UNSTABLE DETECTED "
if ((RX_PORT_STS2 & 0x40) >> 6):
print "# LINE_LEN_CHG "
if ((RX_PORT_STS2 & 0x20) >> 5):
print "# FPD3_ENCODE_ERROR DETECTED "
if ((RX_PORT_STS2 & 0x10) >> 4):
print "# BUFFER_ERROR DETECTED "
if ((RX_PORT_STS2 & 0x08) >> 3):
print "# CSI_ERR DETECTED "
if ((RX_PORT_STS2 & 0x04) >> 2):
print "# FREQ_STABLE DETECTED "
if ((RX_PORT_STS2 & 0x02) >> 1):
print "# CABLE_FAULT DETECTED "
if ((RX_PORT_STS2 & 0x01) ):
print "# LINE_CNT_CHG DETECTED "
################################################
# "################################################"
# "RX1 status"
# "################################################"
WriteReg(0x4C,0x12) # RX1
PORT_ISR_LO = ReadI2C(0xDB) # PORT_ISR_LO readout; cleared by RX_PORT_STS2
if ((PORT_ISR_LO & 0x40) >> 6):
print "# IS_LINE_LEN_CHG INTERRUPT DETECTED "
if ((PORT_ISR_LO & 0x20) >> 5):
print "# IS_LINE_CNT_CHG DETECTED "
if ((PORT_ISR_LO & 0x10) >> 4):
print "# IS_BUFFER_ERR DETECTED "
if ((PORT_ISR_LO & 0x08) >> 3):
print "# IS_CSI_RX_ERR DETECTED "
if ((PORT_ISR_LO & 0x04) >> 2):
print "# IS_FPD3_PAR_ERR DETECTED "
if ((PORT_ISR_LO & 0x02) >> 1):
print "# IS_PORT_PASS DETECTED "
if ((PORT_ISR_LO & 0x01) ) :
print "# IS_LOCK_STS DETECTED "
################################################
PORT_ISR_HI = ReadI2C(0xDA) # readout; cleared by RX_PORT_STS2
if ((PORT_ISR_HI & 0x04) >> 2):
print "# IS_FPD3_ENC_ERR DETECTED "
if ((PORT_ISR_HI & 0x02) >> 1):
print "# IS_BCC_SEQ_ERR DETECTED "
if ((PORT_ISR_HI & 0x01) ) :
print "# IS_BCC_CRC_ERR DETECTED "
################################################
RX_PORT_STS1 = ReadI2C(0x4D) # R/COR
if ((RX_PORT_STS1 & 0xc0) >> 6) == 1:
print "# RX_PORT_NUM = RX1"
elif ((RX_PORT_STS1 & 0xc0) >> 6) == 0:
print "# RX_PORT_NUM = RX0"
if ((RX_PORT_STS1 & 0x20) >> 5):
print "# BCC_CRC_ERR DETECTED "
if ((RX_PORT_STS1 & 0x10) >> 4):
print "# LOCK_STS_CHG DETECTED "
if ((RX_PORT_STS1 & 0x08) >> 3):
66
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
print "# BCC_SEQ_ERROR DETECTED "
if ((RX_PORT_STS1 & 0x04) >> 2):
print "# PARITY_ERROR DETECTED "
if ((RX_PORT_STS1 & 0x02) >> 1):
print "# PORT_PASS=1 "
if ((RX_PORT_STS1 & 0x01) ):
print "# LOCK_STS=1 "
################################################
RX_PORT_STS2 = ReadI2C(0x4E)
if ((RX_PORT_STS2 & 0x80) >> 7):
print "# LINE_LEN_UNSTABLE DETECTED "
if ((RX_PORT_STS2 & 0x40) >> 6):
print "# LINE_LEN_CHG "
if ((RX_PORT_STS2 & 0x20) >> 5):
print "# FPD3_ENCODE_ERROR DETECTED "
if ((RX_PORT_STS2 & 0x10) >> 4):
print "# BUFFER_ERROR DETECTED "
if ((RX_PORT_STS2 & 0x08) >> 3):
print "# CSI_ERR DETECTED "
if ((RX_PORT_STS2 & 0x04) >> 2):
print "# FREQ_STABLE DETECTED "
if ((RX_PORT_STS2 & 0x02) >> 1):
print "# CABLE_FAULT DETECTED "
if ((RX_PORT_STS2 & 0x01) ):
print "# LINE_CNT_CHG DETECTED "
################################################
7.5.8.4 CSI-2 Transmit Port Interrupts
The following interrupts are available for each CSI-2 Transmit Port:
• Pass indication
• Synchronized status
• Deassertion of Pass indication for an input port assigned to the CSI-2 TX Port
• Loss of Synchronization between input video streams
• RX Port Interrupt – interrupts from RX Ports mapped to this CSI-2 Transmit port
See the CSI_TX_ICR address 0x36 and CSI_TX_ISR address 0x37 registers for details.
The setting of the individual interrupt status bits is not dependent on the related interrupt enable controls. The
interrupt enable controls whether an interrupt is generated based on the condition, but does not prevent the
interrupt status assertion.
7.5.9 Error Handling
In the DS90UB954-Q1 , the FPD-Link III receiver transfers incoming video frames to internal video buffers for
forwarding to the CSI-2 Transmit ports. When the DS90UB954-Q1 detects an error condition the standard
operation would be to flag this error condition and truncate sending the CSI-2 frame to avoid sending corrupted
data downstream. When the DS90UB954-Q1 recovers from an error condition, it will provide Start of Frame and
resume sending valid data. Consequently, when the downstream CSI-2 input receives a repeated Start of Frame
condition, this will indicate that the data received in between the prior start of frame is suspect and the signal
processor can then discard the suspected data. The settings in registers PORT_CONFIG2 (0x7C) and
PORT_PASS_CTL (0x7D) can be used to change how the 954 handles errors when passing video frames. The
receive ports may be configured to qualify the incoming video, providing a status indication and preventing
forwarding of video frames until certain error free conditions are met. The Pass indication may be used to
prevent forwarding packets to the internal video buffers by setting the PASS_DISCARD_EN bit in the
PORT_PASS_CTL register. When this bit is set, video input will be discarded until the Pass signal indicates valid
receive data. The Receive port will indicate Pass status once specific conditions are met including a number of
valid frames received. Valid frames may include requiring no FPD-Link III Parity errors and consistent frame size
including video line length and/or number of video lines.
版权 © 2017–2018, Texas Instruments Incorporated
67
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
In addition, the Receive port may be programmed to truncate video frames containing errors or prevent the
forwarding of video until the Pass conditions are met. Register settings in PORT_CONFIG2 register 0x7C can be
used to truncate frames on different line/frame sizes or a CSI-2 parity error is detected. When the deserializer
truncates frames in cases of different line/frame sizes different line/frame sizes, the video frame will stop
immediately with no frame end packet. Often the condition will not be cleared until the next valid frame is
received.
The Rx Port PASS indication may be used to prevent forwarding packets to the internal video buffers by setting
the PASS_DISCARD_EN bit in the PORT_PASS_CTL register 0x7D. When this bit is set, video input will be
discarded until the Pass signal indicates valid receive data. The incoming video frames may be truncated based
on error conditions or change in video line size or number of lines. These functions are controlled by bits in the
PORT_CONFIG2 register. When truncating video frames, the video frame may be truncated after sending any
number of video lines. A truncated frame will not send a Frame End packet to the CSI-2 Transmit port.
7.5.9.1 Receive Frame Threshold
The FPD-Link III Receiver may be programmed to require a specified number of valid video frames prior to
indicating a Pass condition and forwarding video frames. The number of required valid video frames is
programmable through the PASS_THRESH field in the PORT_PASS_CTL register 0x7D (Table 135). The
threshold can be programmed from 0 to 3 video frames. If set to 0, Pass will typically be indicated as soon as the
FPD-Link III Receiver reports Lock to the incoming signal. If set greater than 0, the Receiver will require that
number of valid frames before indicating Pass. Determination of valid frames will be dependent on the control
bits in the PORT_PASS_CTL register. In the case of a Parity Error, when PASS_PARITY_ERR is set to 1
forwarding will be enabled one frame early. To ensure at least one good frame occurs following a parity error the
counter should be set to 2 or higher when PASS_PARITY_ERR = 1.
7.5.9.2 Port PASS Control
When the PASS_LINE_SIZE control is set in the PORT_PASS_CTL register, the Receiver will qualify received
frames based on having a consistent video line size. For PASS_LINE_SIZE to be clear, the deserializer checks
that the received line length remains consistent during the frame and between frames. For each video line, the
length (in bytes) will be determined. If it varies then we will flag this condition. Each video line in the packet must
be the same size, and the line size must be consistent across video frames. A change in video line size will
restart the valid frame counter.
When the PASS_LINE_CNT control is set in the PORT_PASS_CTL register, the Receiver will qualify received
frames based on having a consistent frame size in number of lines. A change in number of video lines will restart
the valid frame counter.
When the PASS_PARITY_ERR control is set in the PORT_PASS_CTL register, the Receiver will clear the Pass
indication on receipt of a parity error on the FPD-Link III interface. The valid frame counter will also be cleared on
the parity error event. When PASS_PARITY_ERR is set to 1, TI also recommends setting PASS_THRESHOLD
to 2 or higher to ensure at least one good frame occurs following a parity error.
7.5.10 Timestamp – Video Skew Detection
The DS90UB954-Q1 implements logic to detect skew between video signaling from attached Sensors. For each
input port, the DS90UB954-Q1 provides the ability to capture a timestamp for both a start-of-frame and start-ofline event. Comparison of timestamps can provide information on the relative skew between the ports. Start-offrame timestamps are generated at the active edge of the Vertical Sync signal in Raw mode. Start-of-line
timestamps are generated at the start of reception of the Nth line of video data after the start-of-frame for either
mode of operation. The function does not use the Line Start (LS) packet or Horizontal Sync controls to determine
the start of lines. Timestamp operation is not supported if multiple video streams (Virtual Channels) are present
on a single Rx port.
The skew detection can run in either a FrameSync mode or free-run mode.
Skew detection can be individually enabled for each RX port.
For start-of-line timestamps, a line number must be programmed. The same line number is used for all channels.
Prior to reading timestamps, the TS_FREEZE bit for each port that will be read should be set. This will prevent
overwrite of the timestamps by the detection circuit until all timestamps have been read. The freeze condition will
be released automatically once all frozen timestamps have been read. The freeze bits can also be cleared if it
does not read all the timestamp values.
68
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
The TS_STATUS register includes the following:
• Flags to indicate multiple start-of-frame per FrameSync period
• Flag to indicate Timestamps Ready
• Flags to indicate Timestamps valid (per port) – if ports are not synchronized, all ports may not indicate valid
timestamps
The Timestamp Ready flag will be cleared when the TS_FREEZE bit is cleared.
7.5.11 Pattern Generation
The DS90UB954-Q1 supports an internal pattern generation feature to provide a simple way to generate video
test patterns for the CSI-2 transmitter outputs. Two types of patterns are supported: Reference Color Bar pattern
and Fixed Color patterns and accessed by the Pattern Generator page 0 in the indirect register set.
Prior to enabling the Packet Generator, the following should be done:
1. Disable video forwarding by setting bits [5:4] of the FWD_CTL1 register (that is, set register 0x20 to 0x30).
2. Configure CSI-2 Transmitter operating speed using the CSI_PLL_CTL register.
3. Enable the CSI-2 Transmitter for port 0 using the CSI_CTL register
7.5.11.1 Reference Color Bar Pattern
The Reference Color Bar Patterns are based on the pattern defined in Appendix D of the mipi_CTS_for_DPHY_v1-1_r03 specification. The pattern is an eight color bar pattern designed to provide high, low, and medium
frequency outputs on the CSI-2 transmit data lanes.
The CSI-2 Reference pattern provides eight color bars by default with the following byte data for the color bars: X
bytes of 0xAA (high-frequency pattern, inverted) X bytes of 0x33 (mid-frequency pattern) X bytes of 0xF0 (lowfrequency pattern, inverted) X bytes of 0x7F (lone 0 pattern) X bytes of 0x55 (high-frequency pattern) X bytes of
0xCC (mid-frequency pattern, inverted) X bytes of 0x0F (low-frequency pattern) Y bytes of 0x80 (lone 1 pattern)
In most cases, Y will be the same as X. For certain data types, the last color bar may need to be larger than the
others to properly fill the video line dimensions.
The Pattern Generator is programmable with the following options:
• Number of color bars (1, 2, 4, or 8)
• Number of bytes per line
• Number of bytes per color bar
• CSI-2 DataType field and VC-ID
• Number of active video lines per frame
• Number of total lines per frame (active plus blanking)
• Line period (possibly program in units of 10 ns)
• Vertical front porch – number of blank lines prior to FrameEnd packet
• Vertical back porch – number of blank lines following FrameStart packet
The pattern generator relies on proper programming by software to ensure the color bar widths are set to
multiples of the block (or word) size required for the specified DataType. For example, for RGB888, the block
size is 3 bytes which also matches the pixel size. In this case, the number of bytes per color bar must be a
multiple of 3. The Pattern Generator is implemented in the CSI-2 Transmit clock domain, providing the pattern
directly to the CSI-2 Transmitter. The circuit generates the CSI-2 formatted data.
7.5.11.2 Fixed Color Patterns
When programmed for Fixed Color Pattern mode, Pattern Generator can generate a video image with a
programmable fixed data pattern. The basic programming fields for image dimensions are the same as used with
the Color Bar Patterns. When sending Fixed Color Patterns, the color bar controls allow alternating between the
fixed pattern data and the bit-wise inverse of the fixed pattern data.
版权 © 2017–2018, Texas Instruments Incorporated
69
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
The Fixed Color patterns assume a fixed block size for the byte pattern to be sent. The block size is
programmable through the register and is designed to support most 8-bit, 10-bit, and 12-bit pixel formats. The
block size should be set based on the pixel size converted to blocks that are an integer multiple of bytes. For
example, an RGB888 pattern would consist of 3-byte pixels and therefore require a 3-byte block size. A 2x12-bit
pixel image would also require 3-byte block size, while a 3x12-bit pixel image would require nine bytes (two
pixels) to send an integer number of bytes. Sending a RAW10 pattern typically requires a 5-byte block size for
four pixels, so 1x10-bit and 2x10-bit could both be sent with a 5-byte block size. For 3x10-bit, a 15-byte block
size would be required.
The Fixed Color patterns support block sizes up to 16 bytes in length, allowing additional options for patterns in
some conditions. For example, an RGB888 image could alternate between four different pixels by using a twelvebyte block size. An alternating black and white RGB888 image could be sent with a block size of 6-bytes and
setting first three bytes to 0xFF and next three bytes to 0x00.
To support up to 16-byte block sizes, a set of sixteen registers are implemented to allow programming the value
for each data byte. The line period is calculated in units of 10 ns, unless the CSI-2 mode is set to 400-Mb
operation in which case the unit time dependancy is 20 ns.
7.5.11.3 Packet Generator Programming
The information in this section provides details on how to program the Pattern Generator to provide a specific
color bar pattern, based on datatype, frame size, and line size.
Most basic configuration information is determined directly from the expected video frame parameters. The
requirements should include the datatype, frame rate (frames per second), number of active lines per frame,
number of total lines per frame (active plus blanking), and number of pixels per line.
• PGEN_ACT_LPF – Number of active lines per frame
• PGEN_TOT_LPF – Number of total lines per frame
• PGEN_LSIZE – Video line length size in bytes. Compute based on pixels per line multiplied by pixel size in
bytes
• CSI-2 DataType field and VC-ID
• Optional: PGEN_VBP – Vertical back porch. This is the number of lines of vertical blanking following Frame
Valid
• Optional: PGEN_VFP – Vertical front porch. This is the number of lines of vertical blanking preceding Frame
Valid
• PGEN_LINE_PD – Line period in 10-ns units. Compute based on Frame Rate and total lines per frame
• PGEN_BAR_SIZE – Color bar size in bytes. Compute based on datatype and line length in bytes (see details
below)
7.5.11.3.1 Determining Color Bar Size
The color bar pattern should be programmed in units of a block or word size dependent on the datatype of the
video being sent. The sizes are defined in the Mipi CSI-2 specification. For example, RGB888 requires a 3-byte
block size which is the same as the pixel size. RAW10 requires a 5-byte block size which is equal to 4 pixels.
RAW12 requires a 3-byte block size which is equal to 2 pixels.
When programming the Pattern Generator, software should compute the required bar size in bytes based on the
line size and the number of bars. For the standard eight color bar pattern, that would require the following
algorithm:
• Select the desired datatype, and a valid length for that datatype (in pixels).
• Convert pixels/line to blocks/line (by dividing by the number of pixels/block, as defined in the datatype
specification).
• Divide the blocks/line result by the number of color bars (8), giving blocks/bar
• Round result down to the nearest integer
• Convert blocks/bar to bytes/bar and program that value into the PGEN_BAR_SIZE register
As an alternative, the blocks/line can be computed by converting pixels/line to bytes/line and divide by
bytes/block.
70
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.5.11.4 Code Example for Pattern Generator
#Patgen Fixed Colorbar 1280x720p30
WriteI2C(0x33,0x01) # CSI0 enable
WriteI2C(0xB0,0x00) # Indirect Pattern Gen Registers
WriteI2C(0xB1,0x01) # PGEN_CTL
WriteI2C(0xB2,0x01)
WriteI2C(0xB1,0x02) # PGEN_CFG
WriteI2C(0xB2,0x33)
WriteI2C(0xB1,0x03) # PGEN_CSI_DI
WriteI2C(0xB2,0x24)
WriteI2C(0xB1,0x04) # PGEN_LINE_SIZE1
WriteI2C(0xB2,0x0F)
WriteI2C(0xB1,0x05) # PGEN_LINE_SIZE0
WriteI2C(0xB2,0x00)
WriteI2C(0xB1,0x06) # PGEN_BAR_SIZE1
WriteI2C(0xB2,0x01)
WriteI2C(0xB1,0x07) # PGEN_BAR_SIZE0
WriteI2C(0xB2,0xE0)
WriteI2C(0xB1,0x08) # PGEN_ACT_LPF1
WriteI2C(0xB2,0x02)
WriteI2C(0xB1,0x09) # PGEN_ACT_LPF0
WriteI2C(0xB2,0xD0)
WriteI2C(0xB1,0x0A) # PGEN_TOT_LPF1
WriteI2C(0xB2,0x04)
WriteI2C(0xB1,0x0B) # PGEN_TOT_LPF0
WriteI2C(0xB2,0x1A)
WriteI2C(0xB1,0x0C) # PGEN_LINE_PD1
WriteI2C(0xB2,0x0C)
WriteI2C(0xB1,0x0D) # PGEN_LINE_PD0
WriteI2C(0xB2,0x67)
WriteI2C(0xB1,0x0E) # PGEN_VBP
WriteI2C(0xB2,0x21)
WriteI2C(0xB1,0x0F) # PGEN_VFP
WriteI2C(0xB2,0x0A)
7.5.12 FPD-Link BIST Mode
An optional At-Speed Built-In Self Test (BIST) feature supports testing of the high-speed serial link and the back
channel without external data connections. The BIST mode is enabled by either applying a logic high level to the
BISTEN pin or programming the BIST configuration register 0xB3. This is useful in the prototype stage,
equipment production, in-system test, and system diagnostics.
When BIST is activated, the DS90UB954-Q1 sends register writes to the Serializer through the Back Channel.
The control channel register writes configure the Serializer for BIST mode operation. The serializer outputs a
continuous stream of a pseudo-random sequence and drives the link at speed. The deserializer detects the test
pattern and monitors it for errors. The serializer also tracks errors indicated by the CRC fields in each back
channel frame.
The LOCK, PASS and CMLOUT output functions are all available during BIST mode. While the lock indications
are required to identify the beginning of proper data reception, for any link failures or data corruption, the best
indication is the contents of the error counter in the BIST_ERR_COUNT register 0x57 for each RX port. The test
may select whether the Serializer uses an external or internal clock as reference for the BIST pattern frequency.
版权 © 2017–2018, Texas Instruments Incorporated
71
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.5.12.1 BIST Operation Through BISTEN Pin
One method to enable BIST is by driving a logic high level on the BISTEN pin. During pin control BIST, the
values on GPIO1 and GPIO0 pins will control whether the Serializer uses an external or internal clock for the
BIST pattern. The values on GPIO1 and GPIO0 will be written to the Serializer register 0x14[2:1]. A value of 00
will select an external clock. A non-zero value will enable an internal clock of the frequency defined in the
Serializer register 0x14. Note that when the DS90UB954-Q1 is paired with DS90UB933-Q1 or DS90UB913A-Q1,
a setting of 11 may result in a frequency that is too slow for the DS90UB954-Q1 to recover. The GPIO1 and
GPIO0 values are sampled at the start of BIST (when BISTEN pin transitions to high). Changing this value after
BIST is enabled will not change operation. Link BIST can also be enabled by register control through the BIST
Control register (address 0xB3)
7.5.12.2 BIST Operation Through Register Control
The FPD-Link III BIST is configured and enabled by programming the BIST Control register (address 0xB3).
BIST pass or fail status may be brought to GPIO pins by selecting the Pass indication for each receive port using
the GPIOx_PIN_CTL registers. The Pass/Fail status will be deasserted low for each data error detected on the
selected port input data. In addition, it is advisable to bring the Receiver Lock status for selected ports to the
GPIO pins as well. After completion of BIST, the BIST Error Counter may be read to determine if errors occurred
during the test. If the DS90UB954-Q1 failed to lock to the input signal or lost lock to the input signal, the BIST
Error Counter will indicate 0xFF. The maximum normal count value will be 0xFE. The SER_BIST_ACT register
bit 0xD0[5] can be monitored during testing to ensure BIST is activated in the serializer.
During BIST, DS90UB954-Q1 output activity are gated by BIST_Control[7:6] (BIST_OUT_MODE[1:0]). as
follows:
00 : Outputs disabled during BIST
10 : Outputs enabled during BIST
When enabling the outputs by setting BIST_OUT_MODE = 10, the CSI-2 will be inactive by default (LP11 state).
To exercise the CSI-2 interface during BIST mode, it is possible to Enable Pattern Generator to send a video
data pattern on the CSI-2 outputs.
The BIST clock frequency is controlled by the BIST_CLOCK_SOURCE field in the BIST Control register. This 2bit value will be written to the Serializer register 0x14[2:1]. A value of 00 will select an external clock. A non-zero
value will enable an internal clock of the frequency defined in the Serializer register 0x14. Note that when the
DS90UB954-Q1 is paired with DS90UB933-Q1or DS90UB913A-Q1, a setting of 11 may result in a frequency
that is too slow for the DS90UB954-Q1 to recover. The BIST_CLOCK_SOURCE field is sampled at the start of
BIST. Changing this value after BIST is enabled will not change operation.
72
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6 Register Maps
In the register definitions under the TYPE and DEFAULT heading, the following definitions apply:
• R = Read only access
• R/W = Read / Write access
• R/RC = Read only access, Read to Clear
• (R/W)/SC = Read / Write access, Self-Clearing bit
• (R/W)/S = Read / Write access, Set based on strap pin configuration at startup
• LL = Latched Low and held until read
• LH = Latched High and held until read
• S = Set based on strap pin configuration at startup
The DS90UB954-Q1 implements the following register blocks, accessible via I2C as well as the bi-directional
control channel:
• Main Registers
• FPD-Link III RX Port Registers (separate register block for each of the four RX ports)
• CSI-2 Port Registers (separate register block for each of the CSI-2 ports)
Table 18. Main Register Map Descriptions
ADDRESS
RANGE
DESCRIPTION
ADDRESS MAP
0x00-0x31
Digital Shared Registers
0x32-0x3A
Digital CSI-2 Tx Port Registers
Shared
0x3B - 0x4B
Reserved
0x4C-0x7F
Digital RX Port Registers
(paged, broadcast write allowed)
0x80-0xAF
Reserved
0xB0-0xB2
Indirect Access Registers
0xB0-0xBF
Digital Share Registers
0xC0-0xCF
Reserved
0xD0-0xDF
Digital RX Port Test Mode Registers
0xE0-0xEF
Reserved
0xF0-0xF5
FPD3 RX ID
Shared
0xF8-0xFB
Port I2C Addressing
Shared
0xF6-0xF7
0xFC-0xFF
Reserved
Shared
Reserved
FPD3 RX Port 0
R: 0x4C[5:4]=00
W: 0x4C[0]=1
FPD3 RX Port 1
R: 0x4C[5:4]=01
W: 0x4C[1]=1
Reserved
Shared
Shared
Reserved
FPD3 RX Port 0
FPD3 RX Port 1
Reserved
Reserved
7.6.1 I2C Device ID Register
The I2C Device ID Register field always indicates the current value of the I2C ID. When bit 0 of this register is 0,
this field is read-only and shows the strapped ID from device initialization after power on. When bit 0 of this
register is 1, this field is read/write and can be used to assign any valid I2C ID address to the deserializer.
Table 19. I2C Device ID (Address 0x00)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
DEVICE_ID
R/W
0x3D
7-bit I2C ID of Deserializer.
DES_ID
R/W
0x0
0: Device ID is from strap
1: Register I2C Device ID overrides strapped value
0
Copyright © 2017–2018, Texas Instruments Incorporated
73
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.2 Reset Register
The Reset register allows for soft digital reset of the DS90UB954-Q1 device internal circuitry without using PDB
hardware analog reset. Digital Reset 0 is recommended if desired to reset without overwriting configuration
registers to default values.
Table 20. Reset (Address 0x01)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:3
RESERVED
R/W
0x00
Reserved
2
RESTART
_AUTOLOAD
0x0
Restart Auto-load
Setting this bit to 1 causes a re-load of the default settings including
MODE and IDX. This bit is self-clearing. Software may check for Autoload complete by checking the CFG_INIT_DONE bit in the
DEVICE_STS register.
0x0
Digital Reset 1
Resets the entire digital block including registers. This bit is selfclearing.
1: Reset
0: Normal operation
0x0
Digital Reset 0
Resets the entire digital block except registers. This bit is self-clearing.
1: Reset
0: Normal operation
1
0
(R/W)/SC
DIGITAL_RESET1
(R/W)/SC
DIGITAL_RESET0
(R/W)/SC
7.6.3 General Configuration Register
The general configuration register enables and disables high level block functionality.
Table 21. General Configuration (Address 0x02)
BIT
FIELD
TYPE
DEFAULT DESCRIPTION
7:6
RESERVED
R/W
0x0
Reserved
0x0
I2C Master Enable. This bit must be set if system requires the
deserializer to act as proxy master for remote I2C access to the local
I2C bus from remote serializers.
0: Block proxy Master access to local I2C from remote serializers
1: Enable proxy Master access to local I2C from remote serializers
0x1
Output Enable Mode. If set to 0, the CSI TX output port will be forced
to the high-impedance state if no assigned RX ports have an active
Receiver lock. If set to 1 and no assigned RX ports have an active
Receiver lock the CSI TX output port will continue in normal operation
and enter the LP-11 state. CSI TX operation will remain under register
control via the CSI_CTL register for each port.
5
4
74
I2C_MASTER
_ENABLE
OUTPUT_EN_MODE
R/W
R/W
3
OUTPUT_ENABLE
R/W
0x1
Output Enable Control (usage dependant on Output Sleep State
Select). If OUTPUT_SLEEP_STATE_SEL is set to 1 and
OUTPUT_ENABLE is set to 0, the CSI TX outputs will be forced into a
high impedance state.
2
OUTPUT_SLEEP
_STATE _SELECT
R/W
0x1
OSS Select to control output state when LOCK is low (usage
dependant on Output Enable) When OUTPUT_SLEEP _STATE
_SELECT is set to 0, the CSI TX outputs will be forced into a HS-0
state.
1
RX_PARITY
_CHECKER
_ENABLE
R/W
0x1
FPD-Link III Parity Checker Enable
0: Disable
1: Enable
0
FORCE_REFCLK
_DET
0x0
Force indication of external reference clock
0: Normal operation, reference clock detect circuit indicates the
presence of an external reference clock
1: Force reference clock to be indicated present
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.4 Revision/Mask ID Register
Revision ID field for production silicon version can be read back from this register.
Table 22. Revision/Mask ID (Address 0x03)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:4
REVISION_ID
R
0x2
Revision ID field
3:0
MASK_ID
R
0x0
Mask ID
7.6.5 DEVICE_STS Register
Device status register provides read back access to high level link diagnostics.
Table 23. DEVICE_STS (Address 0x04)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
CFG_CKSUM_STS
R
0x1
Configuration Checksum Passed. CFG_CKSUM_STS bit is set to one
following initialization if the Configuration data had a valid checksum
6
CFG_INIT_DONE
R
0x1
Power-up initialization complete. CFG_INIT_DONE bit is set to one
after Initialization is complete.
5
RESERVED
R
0x0
Reserved
4
REFCLK_VALID
R
0x0
REFCLK valid frequency bit indicates when a valid frequency has
been detected on the REFCLK pin.
0 : Invalid frequency detected
1 : REFCLK frequency between 12MHz and 64MHz.
3
PASS
R
0x0
Device PASS status This bit indicates the PASS status for the device.
The value in this register matches the indication on the PASS pin.
2
LOCK
R
0x0
Device LOCK status This bit indicates the LOCK status for the device.
The value in this register matches the indication on the LOCK pin.
RESERVED
R
0x3
Reserved
1:0
7.6.6 PAR_ERR_THOLD_HI Register
For each port, if the FPD-Link III receiver detects a number of parity errors greater than or equal to total value in
PAR_ERR_THOLD[15:0], the PARITY_ERROR flag is set in the RX_PORT_STS1 register.
PAR_ERR_THOLD_HI contains bits [15:8] of the 16 bit parity error threshold PAR_ERR_THOLD[15:0].
Table 24. PAR_ERR_THOLD_HI (Address 0x05)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PAR_ERR_THOLD
_HI
R/W
0x01
FPD3 Parity Error Threshold High byte
This register provides the 8 most significant bits [15:8] of the Parity
Error Threshold value PAR_ERR_THOLD[15:0].
7.6.7 PAR_ERR_THOLD_LO Register
For each port, if the FPD-Link III receiver detects a number of parity errors greater than or equal to total value in
PAR_ERR_THOLD[15:0], the PARITY_ERROR flag is set in the RX_PORT_STS1 register.
PAR_ERR_THOLD_LO contains bits [7:0] of the 16 bit parity error threshold PAR_ERR_THOLD[15:0].
Table 25. PAR_ERR_THOLD_LO (Address 0x06)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PAR_ERR_THOLD
_LO
R/W
0x0
FPD3 Parity Error Threshold Low byte
This register provides the 8 least significant bits [7:0] of the Parity
Error Threshold value PAR_ERR_THOLD[15:0].
Copyright © 2017–2018, Texas Instruments Incorporated
75
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.8 BCC Watchdog Control Register
The BCC watchdog timer allows termination of a control channel transaction if it fails to complete within a
programmed amount of time.
Table 26. BCC Watchdog Control (Address 0x07)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
BCC_WATCHDOG
_TIMER
R/W
0x7F
Sets the Bidirectional Control Channel Watchdog Timeout value in
units of 2 milliseconds. This field should not be set to 0.
0
BCC_WATCHDOG
_TIMER_DISABLE
R/W
0x0
Disable Bidirectional Control Channel Watchdog Timer
1: Disables BCC Watchdog Timer operation
0: Enables BCC Watchdog Timer operation
7.6.9 I2C Control 1 Register
Table 27. I2C Control 1 (Address 0x08)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
LOCAL_WRITE
_DISABLE
R/W
0x0
Disable Remote Writes to Local Registers
Setting this bit to a 1 will prevent remote writes to local device
registers from across the control channel. This prevents writes to the
Deserializer registers from an I2C master attached to the Serializer.
Setting this bit does not affect remote access to I2C slaves at the
Deserializer.
6:4
I2C_SDA_HOLD
R/W
0x1
Internal SDA Hold Time
This field configures the amount of internal hold time provided for the
SDA input relative to the SCL input. Units are 40 nanoseconds.
3:0
I2C_FILTER_DEPT
H
R/W
0xC
I2C Glitch Filter Depth
This field configures the maximum width of glitch pulses on the SCL
and SDA inputs that will be rejected. Units are 5 nanoseconds.
7.6.10 I2C Control 2 Register
Table 28. I2C Control 2 (Address 0x09)
BIT
7:4
3:2
1
0
76
FIELD
TYPE
DEFAULT
DESCRIPTION
0x1
Remote Ack SDA Output Setup
When a Control Channel (remote) access is active, this field
configures setup time from the SDA output relative to the rising
edge of SCL during ACK cycles. Setting this value will increase
setup time in units of 640ns. The nominal output setup time value
for SDA to SCL are:
00 : 80ns
01: 720ns
10: 1400ns
11: 2080ns
SDA_OUTPUT_DEL
R/W
AY
0x0
SDA Output Delay
This field configures additional delay on the SDA output relative to
the falling edge of SCL. Setting this value increases output delay in
units of 40ns. Nominal output delay values for SCL to SDA are:
00 : 240ns
01: 280ns
10: 320ns
11: 360ns
I2C_BUS_TIMER
_SPEEDUP
0x0
Speed up I2C Bus Watchdog Timer
1: Watchdog Timer expires after approximately 50 microseconds
0: Watchdog Timer expires after approximately 1 second.
0x0
Disable I2C Bus Watchdog Timer
When enabled, the I2C Watchdog Timer may be used to detect
when the I2C bus is free or hung up following an invalid termination
of a transaction. If SDA is high and no signalling occurs for
approximately 1 second, the I2C bus is assumed to be free. If SDA
is low and no signaling occurs, the device will attempt to clear the
bus by driving 9 clocks on SCL
SDA_OUTPUT_SET
R/W
UP
I2C_BUS_TIMER
_DISABLE
R/W
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.11 SCL High Time Register
The SCL High Time register field configures the high pulse width of the I2C SCL output when the Serializer is the
Master on the local I2C bus. Units are 40 ns for the nominal oscillator clock frequency. The default value is set to
approximately 100 kHz with the internal oscillator clock running at nominal 25 MHz. Delay includes 4 additional
oscillator clock periods. The internal oscillator has ±10% variation when REFCLK is not applied, which must be
taken into account when setting the SCL High and Low Time registers.
Table 29. SCL High Time (Address 0x0A)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
SCL_HIGH_TIME
R/W
0x7A
I2C Master SCL high time
Default set to approximately 100 kHz when REFCLK = 25 MHz.
Nominal High Time = 40 ns × (SCL HIGH TIME + 4)
7.6.12 SCL Low Time Register
The SCL Low Time register field configures the low pulse width of the SCL output when the serializer is the
master on the local I2C bus. This value is also used as the SDA setup time by the I2C Slave for providing data
prior to releasing SCL during accesses over the Bidirectional control channel. Units are 40 ns for the nominal
oscillator clock frequency. The default value is set to approximately 100 kHz with the internal oscillator clock
running at nominal 25 MHz. Delay includes 4 additional oscillator clock periods. The internal oscillator has ±10%
variation when REFCLK is not applied, which must be taken into account when setting the SCL High and Low
Time registers.
Table 30. SCL Low Time (Address 0x0B)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
SCL_LOW_TIME
R/W
0x7A
I2C SCL low time
Default set to approximately 100 kHz when REFCLK = 25 MHz.
Nominal low time = 40 ns × (SCL LOW TIME + 4)
7.6.13 RX_PORT_CTL Register
Receiver port control register assigns rules for lock and pass in the general status register and allows for
enabling and disabling each Rx port.
Table 31. RX_PORT_CTL (Address 0x0C)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
RESERVED
R
0x2
Reserved
0x00
Pass Output Select
Both receivers can be active at the same time. This field controls
the source of the PASS output.
00: Port 0 Receiver Pass
01: Port 1 Receiver Pass
10: Any Enabled Receiver Port Pass
11: All Enabled Receiver Ports Pass
This field can only be written via a local I2C master.
5:4
PASS_SEL
R/W
3:2
LOCK_SEL
R/W
0x0
Lock Output Select
Both receivers can be active at the same time. This field controls
the source of the LOCK output.
00: Port 0 Receiver Lock
01: Port 1 Receiver Lock
10: Any Enabled Receiver Port Lock
11: All Enabled Receiver Ports Lock.
This field can only be written via a local I2C master.
1
PORT1_EN
R/W
0x1
Port 1 Receiver Enable
0: Disable Port 1 Receiver
1: Enable Port 1 Receiver
0
PORT0_EN
R/W
0x1
Port 0 Receiver Enable
0: Disable Port 0 Receiver
1: Enable Port 0 Receiver
Copyright © 2017–2018, Texas Instruments Incorporated
77
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.14 IO_CTL Register
Table 32. IO_CTL (Address 0x0D)
BIT
FIELD
7
SEL3P3V
6
IO_SUPPLY
_MODE_OV
TYPE
R/W
R/W
DEFAULT
DESCRIPTION
0x0
3.3V I/O Select on I2C_SCL, I2C_SDA , PDB and INTB pins.
0: 1.8V I/O Supply
1: 3.3V I/O Supply
If IO_SUPPLY_MODE_OV is 0, a read of this register will return
the detected I/O voltage level.
0x0
Override I/O Supply Mode bit
0: Detected I/O voltage level will be used for both SEL3P3V and
IO_SUPPLY_MODE controls.
1: Register values written to the SEL3P3V and
IO_SUPPLY_MODE fields will be used.
5:4
IO_SUPPLY_MODE
R/W
0x0
I/O Supply Mode
00: 1.8V
01: Reserved
10: Reserved
11: 3.3V
If IO_SUPPLY_MODE_OV is 0, a read of this register will return
the detected I/O voltage level.
3:0
RESERVED
R/W
0x9
Reserved
7.6.15 GPIO_PIN_STS Register
This register reads the current values on each of the 7 GPIO pins.
Table 33. GPIO_PIN_STS (Address 0x0E)
BIT
78
FIELD
TYPE
DEFAULT
DESCRIPTION
7
RESERVED
R
0x0
Reserved
6:0
GPIO_STS
R
0x0
GPIO Pin High/ Low Status.
Bit 6 reads GPIO6 and bit 0 reads GPIO0.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.16 GPIO_INPUT_CTL Register
Table 34. GPIO_INPUT_CTL (Address 0x0F)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
RESERVED
R
0x0
Reserved
6
GPIO6_INPUT_EN
R/W
0x1
GPIO6 Input Enable. Must be set to zero if GPIO6 is configured as
an output by setting 0x16[0] = 1
0: Disabled
1: Enabled
5
GPIO5_INPUT_EN
R/W
0x1
GPIO5 Input Enable. Must be set to zero if GPIO5 is configured as
an output by setting 0x15[0] = 1
0: Disabled
1: Enabled
4
GPIO4_INPUT_EN
R/W
0x1
GPIO4 Input Enable. Must be set to zero if GPIO4 is configured as
an output by setting 0x14[0] = 1
0: Disabled
1: Enabled
0x1
GPIO3 Input Enable. Must be set to zero if GPIO3 is configured as
an output by setting 0x13[0] = 1
0: Disabled
1: Enabled
0x1
GPIO2 Input Enable. Must be set to zero if GPIO2 is configured as
an output by setting 0x12[0] = 1
0: Disabled
1: Enabled
0x1
GPIO1 Input Enable. Must be set to zero if GPIO1 is configured as
an output by setting 0x11[0] = 1
0: Disabled
1: Enabled
0x1
GPIO0 Input Enable. Must be set to zero if GPIO0 is configured as
an output by setting 0x10[0] = 1
0: Disabled
1: Enabled
3
2
1
0
GPIO3_INPUT_EN
GPIO2_INPUT_EN
GPIO1_INPUT_EN
GPIO0_INPUT_EN
R/W
R/W
R/W
R/W
7.6.17 GPIO0_PIN_CTL Register
Table 35. GPIO0_PIN_CTL (Address 0x10)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
GPIO0_OUT_SEL
R/W
0x0
GPIO0 Output Select
Determines the output data for the selected source. See GPIO
Output Pin Control.
4:2
GPIO0_OUT_SRC
R/W
0x0
GPIO0 Output Source Select
Selects output source for GPIO0 data: See 表 8.
0x0
GPIO0 Output Value
This register provides the output data value when the GPIO pin is
enabled to output the local register controlled value by setting
GPIO0_OUT_SRC[2:0] = 100 and GPIO0_OUT_SEL[2:0] = 000.
0x0
GPIO0 Output Enable. Must be set to zero when configured as an
input in GPIO Input Control register, 0x0F[0] = 1
0: Disabled
1: Enabled
1
0
GPIO0_OUT_VAL
GPIO0_OUT_EN
R/W
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
79
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.18 GPIO1_PIN_CTL Register
Table 36. GPIO1_PIN_CTL (Address 0x11)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
GPIO1_OUT_SEL
RW
0x0
GPIO1 Output Select
Determines the output data for the selected source. See GPIO
Output Pin Control.
4:2
GPIO1_OUT_SRC
R/W
0x0
GPIO1 Output Source Select
Selects output source for GPIO1 data: See 表 8.
1
GPIO1_OUT_VAL
R/W
0x0
GPIO1 Output Value
This register provides the output data value when the GPIO pin is
enabled to output the local register controlled value by setting
GPIO1_OUT_SRC[2:0] = 100 and GPIO1_OUT_SEL[2:0] = 000
0
GPIO1_OUT_EN
R/W
0x0
GPIO1 Output Enable. Must be set to zero when configured as an
input in GPIO Input Control register, 0x0F[1] = 1.
0: Disabled
1: Enabled
7.6.19 GPIO2_PIN_CTL Register
Table 37. GPIO2_PIN_CTL (Address 0x12)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
GPIO2_OUT_SEL
R/W
0x0
GPIO2 Output Select
Determines the output data for the selected source. See GPIO
Output Pin Control.
4:2
GPIO2_OUT_SRC
R/W
0x0
GPIO2 Output Source Select
Selects output source for GPIO2 data: See 表 8.
0x0
GPIO2 Output Value
This register provides the output data value when the GPIO pin is
enabled to output the local register controlled value by setting
GPIO2_OUT_SRC[2:0] = 100 and GPIO2_OUT_SEL[2:0] = 00
0x0
GPIO2 Output Enable. Must be set to zero when configured as an
input in GPIO Input Control register, 0x0F[2] = 1.
0: Disabled
1: Enabled
1
0
GPIO2_OUT_VAL
GPIO2_OUT_EN
R/W
R/W
7.6.20 GPIO3_PIN_CTL Register
Table 38. GPIO3_PIN_CTL (Address 0x13)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
GPIO3_OUT_SEL
R/W
0x0
GPIO3 Output Select
Determines the output data for the selected source. See GPIO
Output Pin Control.
4:2
GPIO3_OUT_SRC
R/W
0x0
GPIO3 Output Source Select
Selects output source for GPIO3 data. See 表 8.
0x0
GPIO3 Output Value
This register provides the output data value when the GPIO pin is
enabled to output the local register controlled value by setting
GPIO3_OUT_SRC[2:0] = 100 and GPIO3_OUT_SEL[2:0] = 000
0x0
GPIO3 Output Enable. Must be set to zero when configured as an
input in GPIO Input Control register, 0x0F[3] = 1.
0: Disabled
1: Enabled
1
0
80
GPIO3_OUT_VAL
GPIO3_OUT_EN
R/W
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.21 GPIO4_PIN_CTL Register
Table 39. GPIO4_PIN_CTL (Address 0x14)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
GPIO4_OUT_SEL
R/W
0x0
GPIO4 Output Select
Determines the output data for the selected source. See GPIO
Output Pin Control.
4:2
GPIO4_OUT_SRC
R/W
0x0
GPIO4 Output Source Select
Selects output source for GPIO4 data. See GPIO Output Pin Control.
1
GPIO4_OUT_VAL
R/W
0x0
GPIO4 Output Value
This register provides the output data value when the GPIO pin is
enabled to output the local register controlled value by setting
GPIO4_OUT_SRC[2:0] = 100 and GPIO4_OUT_SEL[2:0] = 000
0
GPIO4_OUT_EN
R/W
0x0
GPIO4 Output Enable. Must be set to zero when configured as an
input in GPIO Input Control register, 0x0F[4] = 1.
0: Disabled
1: Enabled
7.6.22 GPIO5_PIN_CTL Register
Table 40. GPIO5_PIN_CTL (Address 0x15)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
GPIO5_OUT_SEL
R/W
0x0
GPIO5 Output Select
Determines the output data for the selected source. See GPIO
Output Pin Control.
4:2
GPIO5_OUT_SRC
R/W
0x0
GPIO5 Output Source Select
Selects output source for GPIO5 data: See 表 8.
0x0
GPIO5 Output Value
This register provides the output data value when the GPIO pin is
enabled to output the local register controlled value by setting
GPIO5_OUT_SRC[2:0] = 100 and GPIO5_OUT_SEL[2:0] = 00
0x0
GPIO5 Output Enable. Must be set to zero when configured as an
input in GPIO Input Control register, 0x0F[5] = 1.
0: Disabled
1: Enabled
1
0
GPIO5_OUT_VAL
GPIO5_OUT_EN
R/W
R/W
7.6.23 GPIO6_PIN_CTL Register
Table 41. GPIO6_PIN_CTL (Address 0x16)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
GPIO6_OUT_SEL
R/W
0x0
GPIO6 Output Select
Determines the output data for the selected source. See GPIO
Output Pin Control.
4:2
GPIO6_OUT_SRC
R/W
0x0
GPIO6 Output Source Select
Selects output source for GPIO6 data: See 表 8
0x0
GPIO6 Output Value
This register provides the output data value when the GPIO pin is
enabled to output the local register controlled value by setting
GPIO6_OUT_SRC[2:0] = 100 and GPIO6_OUT_SEL[2:0] = 00
0x0
GPIO6 Output Enable. Must be set to zero when configured as an
input in GPIO Input Control register, 0x0F[6] = 1.
0: Disabled
1: Enabled
1
0
GPIO6_OUT_VAL
GPIO6_OUT_EN
R/W
R/W
7.6.24 RESERVED Register
Table 42. RESERVED (Address 0x17)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R
0x0
Reserved.
Copyright © 2017–2018, Texas Instruments Incorporated
81
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.25 FS_CTL Register
Table 43. FS_CTL (Address 0x18)
BIT
7:4
3
2
FIELD
FS_MODE
FS_SINGLE
FS_INIT_STATE
TYPE
R/W
(R/W)/SC
R/W
DEFAULT
DESCRIPTION
0x0
FrameSync Mode
0000: Internal Generated FrameSync, use back channel frame clock
from port 0
0001: Internal Generated FrameSync, use back channel frame clock
from port 1
0010: Reserved.
0011: Reserved
01xx: Internal Generated FrameSync, use 25MHz clock
1000: External FrameSync from GPIO0
1001: External FrameSync from GPIO1
1010: External FrameSync from GPIO2
1011: External FrameSync from GPIO3
1100: External FrameSync from GPIO4
1101: External FrameSync from GPIO5
1110: External FrameSync from GPIO6
1111: Reserved
0x0
Generate Single FrameSync pulse
When this bit is set, a single FrameSync pulse will be generated.
The system should wait for the full duration of the desired pulse
before generating another pulse. When using this feature, the
FS_GEN_ENABLE bit should remain set to 0. This bit is selfclearing and will always return 0.
0x0
Initial State. This register controls the initial state of the FrameSync
signal.
0: FrameSync initial state is 0
1: FrameSync initial state is 1
1
FS_GEN_MODE
R/W
0x0
FrameSync Generation Mode
This control selects between Hi/Lo and 50/50 modes. In Hi/Lo
mode, the FrameSync generator uses the FS_HIGH_TIME [15:0]
and FS_LOW_TIME [15:0] register values to separately control the
High and Low periods for the generated FrameSync signal. In 50/50
mode, the FrameSync generator uses the values in the
FS_HIGH_TIME_0, FS_LOW_TIME_1 and FS_LOW_TIME_0
registers as a 24-bit value for both the High and Low periods of the
generated FrameSync signal.
0: Hi/Lo
1: 50/50
0
FS_GEN_ENABLE
R/W
0x0
FrameSync Generation Enable
0: Disabled
1: Enabled
7.6.26 FS_HIGH_TIME_1 Register
Table 44. FS_HIGH_TIME_1 (Address 0x19)
BIT
FIELD
TYPE
7:0
FRAMESYNC_HIGH_
R/W
TIME_1
DEFAULT
DESCRIPTION
0x0
FrameSync High Time bits 15:8
The value programmed to the FS_HIGH_TIME register should be
reduced by 1 from the desired delay. For example, a value of 0 in
the FRAMESYNC_HIGH_TIME field will result in a 1 cycle high
pulse on the FrameSync signal.
7.6.27 FS_HIGH_TIME_0 Register
Table 45. FS_HIGH_TIME_0 (Address 0x1A)
82
BIT
FIELD
7:0
FRAMESYNC
_HIGH_TIME_0
TYPE
R/W
DEFAULT
DESCRIPTION
0x0
FrameSync High Time bits 7:0
The value programmed to the FS_HIGH_TIME register should be
reduced by 1 from the desired delay. For example, a value of 0 in
the FRAMESYNC_HIGH_TIME field will result in a 1 cycle high
pulse on the FrameSync signal.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.28 FS_LOW_TIME_1 Register
Table 46. FS_LOW_TIME_1 (Address 0x1B)
BIT
FIELD
7:0
FRAMESYNC
_LOW_TIME_1
TYPE
R/W
DEFAULT
DESCRIPTION
0x0
FrameSync Low Time bits 15:8
The value programmed to the FS_LO_TIME register should be
reduced by 1 from the desired delay. For example, a value of 0 in
the FRAMESYNC_LO_TIME field will result in a 1 cycle high pulse
on the FrameSync signal.
7.6.29 FS_LOW_TIME_0 Register
Table 47. FS_LOW_TIME_0 (Address 0x1C)
BIT
FIELD
7:0
FRAMESYNC_LOW_
TIME_0
TYPE
R/W
DEFAULT
DESCRIPTION
0x0
FrameSync Low Time bits 7:0
The value programmed to the FS_LO_TIME register should be
reduced by 1 from the desired delay. For example, a value of 0 in
the FRAMESYNC_LO_TIME field will result in a 1 cycle high pulse
on the FrameSync signal.
7.6.30 MAX_FRM_HI Register
Table 48. MAX_FRM_HI (Address 0x1D)
BIT
7:0
FIELD
MAX_FRAME_HI
TYPE
R/W
DEFAULT
DESCRIPTION
0x00
CSI-2 Maximum Frame Count bits 15:8
In RAW mode operation, the FPD3 Receiver will create CSI-2 video
frames. For the Frame Start and Frame End packets of each video
frame, a 16-bit frame number field will be generated. If the
Maximum Frame Count value is set to 0, the frame number is
disabled and will always be 0. If Maximum Frame Count value is
non-zero, the frame number will increment for each from 1 up to
the Maximum Frame Count value before resetting to 1.
7.6.31 MAX_FRM_LO Register
Table 49. MAX_FRM_LO (Address 0x1E)
BIT
7:0
FIELD
MAX_FRAME_LO
TYPE
R/W
DEFAULT
DESCRIPTION
0x04
CSI-2 Maximum Frame Count bits 7:0
In RAW mode operation, the FPD3 Receiver will create CSI-2 video
frames. For the Frame Start and Frame End packets of each video
frame, a 16-bit frame number field will be generated. If the
Maximum Frame Count value is set to 0, the frame number is
disabled and will always be 0. If Maximum Frame Count value is
non-zero, the frame number will increment for each from 1 up to
the Maximum Frame Count value before resetting to 1.
7.6.32 CSI_PLL_CTL Register
Table 50. CSI_PLL_CTL (Address 0x1F)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:4
RESERVED
R
0x0
Reserved
3:2
RESERVED
R/W
0x0
Reserved
0x2
CSI Transmitter Speed select:
Controls the CSI Transmitter frequency.
00 : 1.6 Gbps serial rate
01 : Reserved
10 : 800 Mbps serial rate
11 : 400 Mbps serial rate
1:0
CSI_TX_SPEED
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
83
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.33 FWD_CTL1 Register
Forwarding control enables or disables video stream from each Rx Port.
Table 51. FWD_CTL1 (Address 0x20)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
RESERVED
R/W
0x0
Reserved.
5
FWD_PORT1_DIS
R/W
0x1
Disable forwarding of RX Port 1
0: Forwarding enabled for RX Port 1
1: Forwarding disabled for RX Port 1
4
FWD_PORT0_DIS
R/W
0x1
Disable forwarding of RX Port 0
0: Forwarding enabled for RX Port 0
1: Forwarding disabled for RX Port 0
RESERVED
R
0x0
Reserved.
3:0
7.6.34 FWD_CTL2 Register
Table 52. FWD_CTL2 (Address 0x21)
BIT
7
TYPE
DEFAULT
DESCRIPTION
CSI_REPLICATE
R/W
0x0
CSI Replicate Mode. When set to a 1, the CSI output from port 0 will
also be generated on CSI port 1. In this mode, each CSI port may be
one or two lanes only. The same output data will be presented on both
ports.
6
FWD_SYNC
_AS_AVAIL
R/W
0x0
Synchronized Forwarding. As Available During Synchronized
Forwarding, each forwarding engine will wait for video data to be
available from each enabled port, prior to sending the video line.
Setting this bit to a 1 will allow sending the next video line as it
becomes available. For example if RX Ports 0 and 1 are being
forwarded, port 0 video line is forwarded when it becomes available,
rather than waiting until both ports 0 and ports 1 have video data
available. This operation may reduce the likelihood of buffer overflow
errors in some conditions. This bit will have no effect in video line
concatenation mode and only affects video lines (long packets) rather
than synchronization packets. (See Synchronized Forwarding.)
5:4
RESERVED
R
0x0
Reserved.
3:2
1
0
84
FIELD
CSI0_SYNC_FWD
R/W
0x00
Enable synchronized forwarding for CSI output port 0. (See
Synchronized Forwarding.)
00: Synchronized forwarding disabled
01: Basic Synchronized forwarding enabled
10: Synchronous forwarding with line interleaving
11: Synchronous forwarding with line concatenation
Only one of CSI0_RR_FWD and CSI0_SYNC_FWD must be set at a
time.
RESERVED
R/W
0x0
Reserved.
0x1
Enable round robin forwarding for CSI TX output port. When this mode
is enabled, no attempt is made to synchronize the video traffic. When
multiple sources have data available to forward, the data will tend to be
forwarded in a round-robin fashion.
0: Round robin forwarding disabled
1: Round robin forwarding enabled
Only one of CSI0_RR_FWD and CSI0_SYNC_FWD must be set at a
time.
CSI0_RR_FWD
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.35 FWD_STS Register
Table 53. FWD_STS (Address 0x22)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:3
RESERVED
R
0x0
Reserved
2
FWD_SYNC_FAIL0
R/RC
0x0
Forwarding synchronization failed for CSI TX output port
During Synchronized forwarding, this flag indicates a failure of
synchronized video has been detected. For this bit to be set, the
forwarding process must have previously been successful at sending at
least one synchronized video frame.
0: No failure
1: Synchronization failure
This bit is cleared on read.
1
RESERVED
R
0x0
Reserved
0x0
Forwarding synchronized for CSI TX output port:
During Synchronized forwarding, this bit indicates that the forwarding
engine is currently able to provide synchronized video from enabled
Receive ports. This bit is always 0 if Synchronized forwarding is
disabled.
0: Not synchronized
1: Synchronized
0
FWD_SYNC0
R
7.6.36 INTERRUPT_CTL Register
Table 54. INTERRUPT_CTL (Address 0x23)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
INT_EN
R/W
0x0
Global Interrupt Enable:
Enables interrupt on the interrupt signal to the controller.
6:5
RESERVED
R
0x0
Reserved
4
IE_CSI_TX0
R/W
0x0
CSI Transmit Port Interrupt:
Enable interrupt from CSI Transmitter Port.
3:2
RESERVED
R
0x0
Reserved
1
IE_RX1
R/W
0x0
RX Port 1 Interrupt:
Enable interrupt from Receiver Port 1.
0
IE_RX0
R/W
0x0
RX Port 0 Interrupt:
Enable interrupt from Receiver Port 0.
7
Copyright © 2017–2018, Texas Instruments Incorporated
85
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.37 INTERRUPT_STS Register
Table 55. INTERRUPT_STS (Address 0x24)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
INTERRUPT_STS
R
0x0
Global Interrupt:
Set if any enabled interrupt is indicated in the individual status bits in this
register. The setting of this bit is not dependent on the INT_EN bit in the
INTERRUPT_CTL register but does depend on the IE_xxx bits. For
example, if IE_RX0 and IS_RX0 are both asserted, the
INTERRUPT_STS bit is set to 1.
6:5
RESERVED
R
0x0
Reserved
4
IS_CSI_TX0
R
0x0
CSI Transmit Port Interrupt:
An interrupt has occurred for CSI Transmitter Port 0. This interrupt is
cleared upon reading the CSI_TX_ISR register for CSI Transmit Port.
3:2
RESERVED
R
0x0
Reserved
0x0
RX Port 1 Interrupt:
An interrupt has occurred for Receive Port 1. This interrupt is cleared by
reading the associated status register(s) for the event(s) that caused the
interrupt. The status registers are RX_PORT_STS1, RX_PORT_STS2,
and CSI_RX_STS.
0x0
RX Port 0 Interrupt:
An interrupt has occurred for Receive Port 0. This interrupt is cleared by
reading the associated status register(s) for the event(s) that caused the
interrupt. The status registers are RX_PORT_STS1, RX_PORT_STS2,
and CSI_RX_STS.
7
1
0
IS_RX1
IS_RX0
R
R
7.6.38 TS_CONFIG Register
Table 56. TS_CONFIG (Address 0x25)
BIT
7
6
5:4
86
FIELD
TYPE
DEFAULT
DESCRIPTION
RESERVED
R
0x0
Reserved
0x0
Framesync Polarity
Indicates active edge of FrameSync signal
0: Rising edge
1: Falling edge
0x0
Timestamp Resolution Control. For typical applications of 30-Hz and 60Hz frame rate 1.0-µs setting 11 = 1.0 µs should be selected to give
counter duration of 1.0 µs × 65535 = 65.5 ms
00: 40 ns
01: 80 ns
10: 160 ns
11: 1.0 µs
FS_POLARITY
TS_RES_CTL
R/W
R/W
3
TS_AS_AVAIL
R/W
0x0
Timestamp Ready Control
0: Normal operation
1: Indicate timestamps ready as soon as all port timestamps are
available
2
RESERVED
R
0x0
Reserved
1
TS_FREERUN
R/W
0x0
FreeRun Mode
0: FrameSync mode
1: FreeRun mode
0
TS_MODE
R/W
0x0
Timestamp Mode
0: Line start
1: Frame start
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.39 TS_CONTROL Register
Table 57. TS_CONTROL (Address 0x26)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
RESERVED
R
0x0
Reserved
4
TS_FREEZE
R/W
0x0
Freeze Timestamps
0: Normal operation
1: Freeze timestamps
Setting this bit freezes timestamps and clears the TS_READY flag. The
TS_FREEZE bit should be cleared after reading timestamps to resume
operation.
3:2
RESERVED
R
0x0
Reserved
1
TS_ENABLE1
R/W
0x0
Timestamp Enable RX Port 1
0: Disabled
1: Enabled
0
TS_ENABLE0
R/W
0x0
Timestamp Enable RX Port 0
0: Disabled
1: Enabled
7.6.40 TS_LINE_HI Register
Table 58. TS_LINE_HI (Address 0x27)
BIT
7:0
FIELD
TS_LINE_HI
TYPE
R/W
DEFAULT
DESCRIPTION
0x0
Timestamp Line, upper 8 bits
This field is the line number at which to capture the timestamp when
Line Start mode is enabled. For proper operation, the line number
should be set to a value greater than 1. During Frame Start mode, if
TS_FREERUN is set, the TS_LINE value is used to determine when to
begin checking for Frame Start
7.6.41 TS_LINE_LO Register
Table 59. TS_LINE_LO (Address 0x28)
BIT
7:0
FIELD
TS_LINE_LO
TYPE
R/W
DEFAULT
DESCRIPTION
0x0
Timestamp Line, lower 8 bits
This field is the line number at which to capture the timestamp when
Line Start mode is enabled. For proper operation, the line number
should be set to a value greater than 1. During Frame Start mode, if
TS_FREERUN is set, the TS_LINE value is used to determine when to
begin checking for Frame Start
7.6.42 TS_STATUS Register
Table 60. TS_STATUS (Address 0x29)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
RESERVED
R
0x0
Reserved
4
TS_READY
R
0x0
Timestamp Ready
This flag indicates when timestamps are ready to be read. This flag is
cleared when the TS_FREEZE bit is set.
3:2
RESERVED
R
0x0
Reserved
1
TS_VALID1
R
0x0
Timestamp Valid, RX Port 1
0
TS_VALID0
R
0x0
Timestamp Valid, RX Port 0
Copyright © 2017–2018, Texas Instruments Incorporated
87
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.43 TIMESTAMP_P0_HI Register
Table 61. TIMESTAMP_P0_HI (Address 0x2A)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
TIMESTAMP_P0_HI
R
0x0
Timestamp, upper 8 bits, RX Port 0
7.6.44 TIMESTAMP_P0_LO Register
Table 62. TIMESTAMP_P0_LO (Address 0x2B)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
TIMESTAMP_P0_L
O
R
0x0
Timestamp, lower 8 bits, RX Port 0
7.6.45 TIMESTAMP_P1_HI Register
Table 63. TIMESTAMP_P1_HI (Address 0x2C)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
TIMESTAMP
_P1_HI
R
0x0
Timestamp, upper 8 bits, RX Port 1
7.6.46 TIMESTAMP_P1_LO Register
Table 64. TIMESTAMP_P1_LO (Address 0x2D)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
TIMESTAMP
_P1_LO
R
0x0
Timestamp, lower 8 bits, RX Port 1
7.6.47 RESERVED Register
Table 65. RESERVED (Address 0x2E – 0x32)
88
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R
0x00
Reserved
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.48 CSI_CTL Register
Table 66. CSI_CTL (Address 0x33)
BIT
7
6
5:4
FIELD
TYPE
DEFAULT
DESCRIPTION
RESERVED
R
0x0
Reserved
0x0
Enable initial CSI Skew-Calibration sequence
When the initial skew-calibration sequence is enabled, the CSI
Transmitter will send the sequence at initialization, prior to sending
any HS data. This bit should be set when operating at 1.6 Gbps CSI
speed (as configured in the CSI_PLL_CTL register).
0: Disabled
1: Enabled
0x0
CSI lane count
00: 4 lanes
01: 3 lanes
10: 2 lanes
11: 1 lane
If CSI_REPLICATE is set in the FWD_CTL2 register, the device must
be programmed for 1 or 2 lanes only.
CSI_CAL_EN
CSI_LANE_COUNT
R/W
R/W
CSI_ULP
R/W
0x0
Force LP00 state on data/clock lanes
00: Normal operation
01: LP00 state forced only on data lanes
10: Reserved
11: LP00 state forced on data and clock lanes
1
CSI_CONTS
_CLOCK
R/W
0x0
Enable CSI continuous clock mode. CSI-2 Tx outputs will provide a
continuous clock output signal once first packet is received.
0: Disabled
1: Enabled
0
CSI_ENABLE
R/W
0x0
Enable CSI output
0: Disabled
1: Enabled
3:2
7.6.49 CSI_CTL2 Register
Table 67. CSI_CTL2 (Address 0x34)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:4
RESERVED
R
0x4
Reserved
3
CSI_PASS_MODE
R/W
0x0
CSI PASS indication mode
Determines whether the CSI Pass indication is for a single port or all
enabled ports.
0 : Assert PASS if at least one enabled Receive port is providing valid
video data
1 : Assert PASS only if ALL enabled Receive ports are providing valid
video data
2
CSI_CAL_INV
R/W
0x0
CSI Calibration Inverted Data pattern
During the CSI skew-calibration pattern, the CSI Transmitter will send a
sequence of 01010101 data (first bit 0). Setting this bit to a 1 will invert
the sequence to 10101010 data.
0x0
Enable single periodic CSI Skew-Calibration sequence
Setting this bit will send a single skew-calibration sequence from the CSI
Transmitter. The skew-calibration sequence is the 1010 bit sequence
required for periodic calibration. The calibration sequence is sent at the
next idle period on the CSI interface. This bit is self-clearing and will
reset to 0 after the calibration sequence is sent.
0x0
Enable periodic CSI Skew-Calibration sequence
When the periodic skew-calibration sequence is enabled, the CSI
Transmitter will send the periodic skew-calibration sequence following
the sending of Frame End packets.
0: Disabled
1: Enabled
1
0
CSI_CAL
_SINGLE
CSI_CAL
_PERIODIC
(R/W)/SC
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
89
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.50 CSI_STS Register
Table 68. CSI_STS (Address 0x35)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:2
RESERVED
R
0x0
Reserved
0x0
TX Port Synchronized
This bit indicates the CSI Transmit Port is able to properly synchronize
input data streams from multiple sources. This bit is 0 if synchronization
is disabled via the FWD_CTL2 register.
0 : Input streams are not synchronized
1 : Input streams are synchronized
0x0
TX Port Pass
Indicates valid data is available on at least one port, or on all ports if
configured for all port status via the CSI_PASS_MODE bit in the
CSI_CTL2 register. The function differs based on mode of operation.
In non-synchronous operation, the TX_PORT_PASS indicates the CSI
port is actively delivering valid video data. The status is cleared based
on detection of an error condition that interrupts transmission.
During Synchronized forwarding, the TX_PORT_PASS indicates valid
data is available for delivery on the CSI TX output. Data may not be
delivered if ports are not synchronized. The TX_PORT_SYNC status is
a better indicator that valid data is being delivered to the CSI transmit
port.
1
0
TX_PORT_SYNC
TX_PORT_PASS
R
R
7.6.51 CSI_TX_ICR Register
Table 69. CSI_TX_ICR (Address 0x36)
90
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
RESERVED
R
0x0
Reserved
4
IE_RX_PORT_INT
R/W
0x0
RX Port Interrupt Enable
Enable interrupt based on receiver port interrupt for the RX Ports being
forwarded to the CSI Transmit Port.
3
IE_CSI_SYNC
_ERROR
R/W
0x0
CSI Sync Error interrupt Enable
Enable interrupt on CSI Synchronization enable.
2
IE_CSI_SYNC
R/W
0x0
CSI Synchronized interrupt Enable
Enable interrupts on CSI Transmit Port assertion of CSI Synchronized
Status.
1
IE_CSI_PASS
_ERROR
R/W
0x0
CSI RX Pass Error interrupt Enable
Enable interrupt on CSI Pass Error
0
IE_CSI_PASS
R/W
0x0
CSI Pass interrupt Enable
Enable interrupt on CSI Transmit Port assertion of CSI Pass.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.52 CSI_TX_ISR Register
Table 70. CSI_TX_ISR (Address 0x37)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
RESERVED
R
0x0
Reserved
0x0
RX Port Interrupt
A Receiver port interrupt has been generated for one of the RX Ports
being forwarded to the CSI Transmit Port. A read of the associated port
receive status registers will clear this interrupt. See the PORT_ISR_HI
and PORT_ISR_LO registers for details.
4
IS_RX_PORT_INT
R
3
IS_CSI_SYNC_ERR
R/RC
OR
0x0
CSI Sync Error interrupt
A synchronization error has been detected for multiple video stream
inputs to the CSI Transmitter.
2
IS_CSI_SYNC
R/RC
0x0
CSI Synchronized interrupt
CSI Transmit Port assertion of CSI Synchronized Status. Current status
for CSI Sync can be read from the TX_PORT_SYNC flag in the
CSI_STS register.
1
IS_CSI_PASS_ERR
R/RC
OR
0x0
CSI RX Pass Error interrupt
A deassertion of CSI Pass has been detected on one of the RX Ports
being forwarded to the CSI Transmit Port
0
IS_CSI_PASS
0x0
CSI Pass interrupt
CSI Transmit Port assertion of CSI Pass detected. Current status for the
CSI Pass indication can be read from the TX_PORT_PASS flag in the
CSI_STS register
R/RC
7.6.53 CSI_TEST_CTL Register
Table 71. CSI_TEST_CTL (Address 0x38)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
7.6.54 CSI_TEST_PATT_HI Register
Table 72. CSI_TEST_PATT_HI (Address 0x39)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
CSI_TEST_PATT
R/W
0x00
Bits 15:8 of fixed pattern for characterization test
7.6.55 CSI_TEST_PATT_LO Register
Table 73. CSI_TEST_PATT_LO (Address 0x3A)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
CSI_TEST_PATT
R/W
0x00
Bits 7:0 of fixed pattern for characterization test
7.6.56 RESERVED Register
Table 74. RESERVED (Address 0x3B)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x01
Reserved
7.6.57 RESERVED Register
Table 75. RESERVED (Address 0x3C)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x14
Reserved
Copyright © 2017–2018, Texas Instruments Incorporated
91
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.58 RESERVED Register
Table 76. RESERVED (Address 0x3D)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x6F
Reserved
7.6.59 RESERVED Register
Table 77. RESERVED (Address 0x3E)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
7.6.60 RESERVED Register
Table 78. RESERVED (Address 0x3F)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x40
Reserved
7.6.61 RESERVED Register
Table 79. RESERVED (Address 0x40)
92
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.62 SFILTER_CFG Register
The SFilter configuration register controls the minimum and maximum values allow for the clock to data sample
timing. It is recommended to program this register to 0xA9 during initialization for optimal startup time and ensure
consistent AEQ performance across different channel characteristics.
Table 80. SFILTER_CFG (Address 0x41)
BIT
7:4
3:0
FIELD
SFILTER_MAX
SFILTER_MIN
TYPE
R/W
R/W
DEFAULT
DESCRIPTION
0xA
SFILTER maximum setting This field controls the maximum SFILTER
setting. Allowed values are 0-14 with 7 being the mid point. These values
are used for both AEQ adaption and dynamic SFILTER control. The
maximum setting must be greater than or equal to the minimum setting.
0x7
SFILTER minimum setting. This field controls the maximum SFILTER
setting. Allowed values are 0-14, where 7 is the mid point. These values
are used for both AEQ adaption and dynamic SFILTER control. The
minimum setting must be less than or equal to the SFILTER_MAX.
Recommend to set SFILTER_MIN = 0x9 for normal operation in typical
system use cases.
7.6.63 AEQ_CTL1 Register
Table 81. AEQ_CTL1 (Address 0x42)
BIT
7
6:4
3
2
FIELD
TYPE
DEFAULT
DESCRIPTION
RESERVED
R
0x0
Reserved
AEQ_ERR_CTL
R/W
0x7
AEQ Error Control
Setting any bits in AEQ_ERR_CTL will enable FPD3 error checking
during the Adaptive Equalization process. Errors are accumulated over
1/2 of the period of the timer set by the
ADAPTIVE_EQ_RELOCK_TIME filed in the AEQ_CTL2 register. If the
number of errors is greater than the programmed threshold
(AEQ_ERR_THOLD), the AEQ will attempt to increase the EQ setting.
The errors may also be checked as part of EQ setting validation if
AEQ_2STEP_EN is set. The following errors are checked based on this
three bit field:
[6] FPD-Link III clock errors
[5] Packet encoding errors
[4] Parity errors
RESERVED
R/W
0x0
Reserved
0x0
AEQ 2-step enable
This bit enables a two-step operation as part of the Adaptive EQ
algorithm. If disabled, the state machine will wait for a programmed
period of time, then check status to determine if setting is valid. If
enabled, the state machine will wait for 1/2 the programmed period,
then check for errors over an additional 1/2 the programmed period. If
errors occur during the 2nd step, the state machine will immediately
move to the next setting.
0 : Wait for full programmed delay, then check instantaneous lock value
1 : Wait for 1/2 programmed time, then check for errors over 1/2
programmed time. The programmed time is controlled by the
ADAPTIVE_EQ_RELOCK_TIME field in the AEQ_CTL2 register
AEQ_2STEP_EN
R/W
1
AEQ_OUTER_LOOP
R/W
0x0
AEQ outer loop control
This bit controls whether the Equalizer or SFILTER adaption is the
outer loop when the AEQ adaption includes SFILTER adaption.
0 : AEQ is inner loop, SFILTER is outer loop
1 : AEQ is outer loop, SFILTER is inner loop
0
AEQ_SFILTER_EN
R/W
0x1
Enable SFILTER Adaption with AEQ
Setting this bit allows SFILTER adaption as part of the Adaptive
Equalizer algorithm.
Copyright © 2017–2018, Texas Instruments Incorporated
93
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.64 AEQ_ERR_THOLD Register
Table 82. AEQ_ERR_THOLD (Address 0x43)
94
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
AEQ_ERR
_THRESHOLD
R/W
0x1
AEQ Error Threshold
This register controls the error threshold to determine when to re-adapt
the EQ settings. This register should not be programmed to a value of
0.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.65 RESERVED Register
Table 83. RESERVED (Address 0x44 – 0x49)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R
0x00
Reserved
7.6.66 FPD3_CAP Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
It is recommended to set bit four in the FPD-Link III capabilities register to one in order to flag errors detected
from enhanced CRC on FPD-Link III encoded link control information. The FPD-Link III Encoder CRC must also
be enabled by setting the FPD3_ENC_CRC_DIS (register 0xBA[7]) to 0.
Table 84. FPD3_CAP (Address 0x4A)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
RESERVED
R/W
0x0
Reserved
FPD3_ENC_CRC_C
R/W
AP
0x0
0: Disable CRC error flag from FPD-Link III encoder
1: Enable CRC error flag from FPD-Link III encoder (recommended)
RESERVED
0x0
Reserved
4
3:0
R/W
7.6.67 RAW_EMBED_DTYPE Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
When the receiver is programmed for Raw mode data, this register field allows setting the Data Type field for the
first N lines to indicated embedded non-image data. RAW_EMBED_DTYPE has no effect on CSI-2 receiver
modes.
Table 85. RAW_EMBED_DTYPE (Address 0x4B)
BIT
7:6
5:0
FIELD
EMBED_DTYPE_E
N
TYPE
R/W
EMBED_DTYPE_ID R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DEFAULT
DESCRIPTION
0x00
Embedded Data Type Enable.
00 : All long packets will be forwarded as RAW10 or RAW12 video
data
01, 10, or 11 : Send first N long packets (1, 2, or 3) as Embedded data
using the data type in the EMBED_DTYPE_ID field of this register.
This control has no effect if the Receiver is programmed to receive CSI
formatted data.
0x12
Embedded Data Type. If sending embedded data is enabled via the
EMBED_DTYPE_EN control in this register, the Data Type field for the
first N lines of each frame will use this value rather than the value
programmed in the RAW12_ID or RAW10_ID registers. The default
setting matches the CSI-2 specification for Embedded 8-bit non Image
Data
95
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.68 FPD3_PORT_SEL Register
The FPD-Link III Port Select register configures which port is accessed in I2C commands to unique Rx Port
registers 0x4A, 0x4B, 0x4D - 0x7F and 0xD0 - 0xDF. A 2-bit RX_READ_PORT field provides for reading values
from a single port. The 4-bit RX_WRITE_PORT field provides individual enables for each port, allowing
simultaneous writes broadcast to both of the FPD-Link III Receive port register blocks in unison. The
DS90UB954-Q1 maintains separate page control, preventing conflict between sources.
Table 86. FPD3_PORT_SEL (Address 0x4C)
BIT
7
TYPE
DEFAULT
DESCRIPTION
RESERVED
R
0x0
Reserved
6
PHYS_PORT_NUM
R
0x0
Port#
Physical port number
This field provides the physical port connection when reading from a
remote device via the Bi-directional Control Channel.
When accessed via local I2C interfaces, the value returned is always
0. When accessed via Bi-directional Control Channel, the value
returned is the port number of the Receive port connection.
5
RESERVED
R
0x0
Reserved
4
3:2
1
0
96
FIELD
RX_READ_PORT
R/W
0x0
Port#
Select RX port for register read
This field selects one of the two RX port register blocks for readback.
This applies to all paged FPD-Link III Receiver port registers.
0: Port 0 registers
1: Port 1 registers
When accessed via local I2C interfaces, the default setting is 0.
When accessed via Bi-directional Control Channel, the default value
is the port number of the Receive port connection.
RESERVED
R
0x00
Reserved
0x0
0x1 for RX
Port 1
Write Enable for RX port 1 registers
This bit enables writes to RX port 1 registers. Any combination of RX
port registers can be written simultaneously. This applies to all paged
FPD-Link III Receiver port registers.
0: Writes disabled
1: Writes enabled
When accessed via Bi-directional Control Channel, the default value
is 1 if accessed over RX port 1.
0x0
0x1 for RX
Port 0
Write Enable for RX port 0 registers
This bit enables writes to RX port 0 registers. Any combination of RX
port registers can be written simultaneously. This applies to all paged
FPD-Link III Receiver port registers.
0: Writes disabled
1: Writes enabled
When accessed via Bi-directional Control Channel, the default value
is 1 if accessed over RX port 0.
RX_WRITE_PORT_1
RX_WRITE_PORT_0
R/W
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.69 RX_PORT_STS1 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 87. RX_PORT_STS1 (Address 0x4D)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
RESERVED
R
0x0
Reserved
6
RX_PORT_NUM
R
0x0
RX Port Number. This read-only field indicates the number of the
currently selected RX read port.
5
BCC_CRC_ERROR
R/RC
0x0
Bi-directional Control Channel CRC Error Detected
This bit indicates a CRC error has been detected in the forward
control channel. If this bit is set, an error may have occurred in the
control channel operation. This bit is cleared on read.
4
LOCK_STS_CHG
R/RC
0x0
Lock Status Changed
This bit is set if a change in receiver lock status has been detected
since the last read of this register. Current lock status is available in
the LOCK_STS bit of this register.
This bit is cleared on read.
3
BCC_SEQ_ERROR
R/RC
0x0
Bi-directional Control Channel Sequence Error Detected
This bit indicates a sequence error has been detected in the forward
control channel. If this bit is set, an error may have occurred in the
control channel operation. This bit is cleared on read.
0x0
FPD-Link III parity errors detected
This flag is set when the number of parity errors detected is greater
than the threshold programmed in the PAR_ERR_THOLD registers.
1: Number of FPD-Link III parity errors detected is greater than the
threshold
0: Number of FPD-Link III parity errors is below the threshold
This bit is cleared when the RX_PAR_ERR_HI/LO registers are
cleared.
2
PARITY_ERROR
R
1
PORT_PASS
R
0x0
Receiver PASS indication.
This bit indicates the current status of the Receiver PASS indication.
The requirements for setting the Receiver PASS indication are
controlled by the PORT_PASS_CTL register.
1: Receive input has met PASS criteria
0: Receive input does not meet PASS criteria
0
LOCK_STS
R
0x0
FPD-Link III receiver is locked to incoming data
1: Receiver is locked to incoming data
0: Receiver is not locked
Copyright © 2017–2018, Texas Instruments Incorporated
97
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.70 RX_PORT_STS2 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 88. RX_PORT_STS2 (Address 0x4E)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
LINE_LEN
_UNSTABLE
R/RC
0x0
Line Length Unstable
If set, this bit indicates the line length was detected as unstable during
a previous video frame. The line length is considered to be stable if all
the lines in the video frame have the same length. This flag will remain
set until read.
6
LINE_LEN_CHG
R/RC
0x0
Line Length Changed
1: Change of line length detected
0: Change of line length not detected
This bit is cleared on read.
0x0
FPD-Link III Encoder error detected
If set, this flag indicates an error in the FPD-Link III encoding has been
detected by the FPD-Link III receiver.
This bit is cleared on read.
Note, to detect FP3 Encoder errors, the LINK_ERROR_COUNT must
be enabled with a LINK_ERR_THRESH value greater than 1.
Otherwise, the loss of Receiver Lock will prevent detection of the
Encoder error.
5
FPD3_ENCODE
_ERROR
R/RC
4
BUFFER_ERROR
R/RC
0x0
Packet buffer error detected. If this bit is set, an overflow condition has
occurred on the packet buffer FIFO.
1: Packet Buffer error detected
0: No Packet Buffer errors detected
This bit is cleared on read.
3
CSI_ERROR
R
0x0
CSI Receive error detected. See the CSI_RX_STS register for details.
2
FREQ_STABLE
R
0x0
Frequency measurement stable
1
CABLE_FAULT
R
0x0
When link is expected to be operational, CABLE_FAULT would
indicate open or short on the cable as no FPD-Link clock is detected at
the deserializer Rx input.
0
LINE_CNT_CHG
R/RC
0x0
Line Count Changed
1: Change of line count detected
0: Change of line count not detected
This bit is cleared on read.
7.6.71 RX_FREQ_HIGH Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 89. RX_FREQ_HIGH (Address 0x4F)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
FREQ_CNT_HIGH
R
0x00
Frequency Counter High Byte (MHz)
The Frequency counter reports the measured frequency for the FPDLink III Receiver. This portion of the field is the integer value in MHz.
7.6.72 RX_FREQ_LOW Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 90. RX_FREQ_LOW (Address 0x50)
BIT
7:0
98
FIELD
FREQ_CNT_LOW
TYPE
R
DEFAULT
DESCRIPTION
0x00
Frequency Counter Low Byte (1/256 MHz)
The Frequency counter reports the measured frequency for the FPDLink III Receiver. This portion of the field is the fractional value in
1/256 MHz.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.73 SENSOR_STS_0 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Sensor Status Register 0 field provides additional status information when paired with a DS90UB935-Q1 or
DS90UB953-Q1 Serializer. This field is automatically loaded from the forward channel.
Table 91. SENSOR_STS_0 (Address 0x51)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
RESERVED
R
0x00
Reserved
5
CSI_ALARM
R
0x0
Alarm flag for CSI error from serializer
4
BCC_ALARM
R
0x0
Alarm flag for back channel error from serializer
3
LINK_DETECT_ALA
R
RM
0x0
Alarm flag for link detect from serializer
2
TEMP_SENSE_ALA
R
RM
0x0
Alarm flag for temp sensor from serializer
1
VOLT1_SENSE_AL
ARM
R
0x0
Alarm flag for voltage sensor 1 from serializer
0
VOLT0_SENSE_AL
ARM
R
0x0
Alarm flag for voltage sensor 0 from serializer
7.6.74 SENSOR_STS_1 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Sensor Status Register 1 field provides additional status information when paired with a DS90UB935-Q1 or
DS90UB953-Q1 Serializer. This field is automatically loaded from the forward channel.
Table 92. SENSOR_STS_1 (Address 0x52)
BIT
7
6:4
3
2:0
FIELD
TYPE
DEFAULT
DESCRIPTION
RESERVED
R
0x0
Reserved
VOLT1_SENSE_LEV
EL
R
0x0
Voltage sensor sampled value from serializer
RESERVED
R
0x0
Reserved
VOLT0_SENSE_LEV
EL
R
0x0
Voltage sensor sampled value from serializer
7.6.75 SENSOR_STS_2 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Sensor Status Register 2 field provides additional status information when paired with a DS90UB935-Q1 or
DS90UB953-Q1 Serializer. This field is automatically loaded from the forward channel.
Table 93. SENSOR_STS_2 (Address 0x53)
BIT
FIELD
TYPE
DEFAULT
7:3
RESERVED
R
0x0
2:0
TEMP_SENSE_LEVE
R
L
0x0
Copyright © 2017–2018, Texas Instruments Incorporated
DESCRIPTION
Temperature sensor sampled value from serializer
99
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.76 SENSOR_STS_3 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Sensor Status Register 3 field provides additional status information on the CSI-2 input when paired with a
DS90UB935-Q1 or DS90UB953-Q1 Serializer. This field is automatically loaded from the forward channel.
Table 94. SENSOR_STS_3 (Address 0x54)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
RESERVED
R
0x0
Reserved
4
CSI_ECC_2BIT_ERR
R
0x0
CSI -2 ECC error flag from serializer
3
CSI_CHKSUM_ERR
R
0x0
CSI-2 checksum error from serializer
2
CSI_SOT_ERR
R
0x0
CSI-2 start of transmission error from serializer
1
CSI_SYNC_ERR
R
0x0
CSI-2 synchronization error from serializer
0
CSI_CNTRL_ERR
R
0x0
CSI-2 control error from serializer
7.6.77 RX_PAR_ERR_HI Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 95. RX_PAR_ERR_HI (Address 0x55)
BIT
7:0
FIELD
PAR_ERROR
_ BYTE_1
TYPE
R/RC
DEFAULT
DESCRIPTION
0x0
Number of FPD-Link III parity errors
8 most significant bits. The parity error counter registers return the
number of data parity errors that have been detected on the FPD-Link
III Receiver data since the last detection of valid lock or last read of
the RX_PAR_ERR_LO register. For accurate reading of the parity
error count, disable the RX_PARITY_CHECKER_ENABLE bit in
register 0x02 prior to reading the parity error count registers. This
register is cleared upon reading the RX_PAR_ERR_LO register.
7.6.78 RX_PAR_ERR_LO Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 96. RX_PAR_ERR_LO (Address 0x56)
BIT
7:0
FIELD
PAR_ERROR
_BYTE_0
TYPE
R/RC
DEFAULT
DESCRIPTION
0x0
Number of FPD-Link III parity errors
8 least significant bits. The parity error counter registers return the
number of data parity errors that have been detected on the FPDLink III Receiver data since the last detection of valid lock or last
read of the RX_PAR_ERR_LO register. For accurate reading of the
parity error count, disable the RX_PARITY_CHECKER_ENABLE bit
in register 0x02 prior to reading the parity error count registers. This
register is cleared on read.
7.6.79 BIST_ERR_COUNT Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 97. BIST_ERR_COUNT (Address 0x57)
100
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
BIST_ERROR
_COUNT
R
0x0
Bist Error Count
Returns BIST error count
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.80 BCC_CONFIG Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 98. BCC_CONFIG (Address 0x58)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
I2C_PASS
_THROUGH_ALL
R/W
0x0
I2C Pass-Through All Transactions
0: Disabled
1: Enabled
6
I2C_PASS
_THROUGH
R/W
0x0
I2C Pass-Through to Serializer if decode matches
0: Pass-Through Disabled
1: Pass-Through Enabled
0x0
Automatically Acknowledge all I2C writes independent of the forward
channel lock state or status of the remote Acknowledge
1: Enable
0: Disable
5
AUTO_ACK_ALL
R/W
4
BC_ALWAYS_ON
R/W
0x1
Back channel enable
1: Back channel is always enabled independent of
I2C_PASS_THROUGH and I2C_PASS_THROUGH_ALL
0: Back channel enable requires setting of either
I2C_PASS_THROUGH and I2C_PASS_THROUGH_ALL
This bit may only be written through a local I2C master.
3
BC_CRC
_GENERATOR
_ENABLE
R/W
0x1
Back Channel CRC Generator Enable
0: Disable
1: Enable
S
Back Channel Frequency Select. Default value set by strap condition
upon asserting PDB = HIGH.
000: 2.5 Mbps (select for DS90UB933-Q1 or DS90UB913A-Q1
compatibility)
001- 011: Reserved
010: 10 Mbps (select for non-synchronous back channel
compatibility)
101: 25 Mbps
110: 50 Mbps (default for DS90UB953-Q1 or DS90UB935-Q1 CSI
Synchronous back channel compatibility)
111: 100 Mbps
Note that changing this setting will result in some errors on the back
channel for a short period of time. If set over the control channel, the
Serializer should first be programmed to Auto-Ack operation to avoid
a control channel timeout due to lack of response from the
Deserializer.
2:0
BC_FREQ_SELECT
R/W
7.6.81 DATAPATH_CTL1 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 99. DATAPATH_CTL1 (Address 0x59)
BIT
7
6:2
1:0
FIELD
TYPE
DEFAULT
DESCRIPTION
OVERRIDE_FC
_CONFIG
R/W
0x0
1: Disable loading of the DATAPATH_CTL registers from the forward
channel, keeping locally written values intact
0: Allow forward channel loading of DATAPATH_CTL registers
RESERVED
R/W
0x0
Reserved
0x0
Forward Channel GPIO Enable
Configures the number of enabled forward channel GPIOs
00: GPIOs disabled
01: One GPIO
10: Two GPIOs
11: Four GPIOs
This field is normally loaded from the remote serializer. It can be
overwritten if the OVERRIDE_FC_CONFIG bit in this register is 1.
FC_GPIO_EN
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
101
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.82 DATAPATH_CTL2 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 100. DATAPATH_CTL2 (Address 0x5A)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x0
Reserved
7.6.83 SER_ID Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 101. SER_ID (Address 0x5B)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
SER_ID
R/W
0x00
Remote Serializer ID
This field is normally loaded automatically from the remote
Serializer.
0x0
Freeze Serializer Device ID
Prevent auto-loading of the Serializer Device ID from the Forward
Channel. The ID is frozen at the value written.
0
FREEZE_DEVICE_ID R/W
7.6.84 SER_ALIAS_ID Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 102. SER_ALIAS_ID (Address 0x5C)
BIT
7:1
0
FIELD
SER_ALIAS_ID
SER_AUTO_ACK
TYPE
R/W
R/W
DEFAULT
DESCRIPTION
0x0
7-bit Remote Serializer Alias ID
Configures the decoder for detecting transactions designated for
an I2C Slave device attached to the remote Deserializer. The
transaction is remapped to the address specified in the Slave ID
register. A value of 0 in this field disables access to the remote
I2C Slave.
0x0
Automatically Acknowledge all I2C writes to the remote Serializer
independent of the forward channel lock state or status of the
remote Serializer Acknowledge
1: Enable
0: Disable
7.6.85 SlaveID[0] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 103. SlaveID[0] (Address 0x5D)
BIT
102
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
SLAVE_ID0
R/W
0x0
7-bit Remote Slave Device ID 0
Configures the physical I2C address of the remote I2C Slave
device attached to the remote Serializer. If an I2C transaction is
addressed to the Slave Alias ID0, the transaction is remapped to
this address before passing the transaction across the
Bidirectional Control Channel to the Serializer.
0
RESERVED
R
0x0
Reserved.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.86 SlaveID[1] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 104. SlaveID[1] (Address 0x5E)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
SLAVE_ID1
R/W
0x0
7-bit Remote Slave Device ID 1
Configures the physical I2C address of the remote I2C Slave
device attached to the remote Serializer. If an I2C transaction is
addressed to the Slave Alias ID1, the transaction is remapped to
this address before passing the transaction across the
Bidirectional Control Channel to the Serializer.
0
RESERVED
R
0x0
Reserved.
7.6.87 SlaveID[2] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 105. SlaveID[2] (Address 0x5F)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
SLAVE_ID2
R/W
0x0
7-bit Remote Slave Device ID 2
Configures the physical I2C address of the remote I2C Slave
device attached to the remote Serializer. If an I2C transaction is
addressed to the Slave Alias ID2, the transaction is remapped to
this address before passing the transaction across the
Bidirectional Control Channel to the Serializer.
0
RESERVED
R
0x0
Reserved.
7.6.88 SlaveID[3] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 106. SlaveID[3] (Address 0x60)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
SLAVE_ID3
R/W
0x0
7-bit Remote Slave Device ID 3
Configures the physical I2C address of the remote I2C Slave
device attached to the remote Serializer. If an I2C transaction is
addressed to the Slave Alias ID3, the transaction is remapped
to this address before passing the transaction across the
Bidirectional Control Channel to the Serializer.
0
RESERVED
R
0x0
Reserved.
7.6.89 SlaveID[4] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 107. SlaveID[4] (Address 0x61)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
SLAVE_ID4
R/W
0x0
7-bit Remote Slave Device ID 4
Configures the physical I2C address of the remote I2C Slave
device attached to the remote Serializer. If an I2C transaction is
addressed to the Slave Alias ID4, the transaction is remapped to
this address before passing the transaction across the
Bidirectional Control Channel to the Serializer.
0
RESERVED
R
0x0
Reserved.
Copyright © 2017–2018, Texas Instruments Incorporated
103
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.90 SlaveID[5] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 108. SlaveID[5] (Address 0x62)
BIT
104
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
SLAVE_ID5
R/W
0x0
7-bit Remote Slave Device ID 5
Configures the physical I2C address of the remote I2C Slave
device attached to the remote Serializer. If an I2C transaction
is addressed to the Slave Alias ID5, the transaction is
remapped to this address before passing the transaction
across the Bidirectional Control Channel to the Serializer.
0
RESERVED
R
0x0
Reserved.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.91 SlaveID[6] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 109. SlaveID[6] (Address 0x63)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
SLAVE_ID6
R/W
0x0
7-bit Remote Slave Device ID 6
Configures the physical I2C address of the remote I2C Slave
device attached to the remote Serializer. If an I2C transaction
is addressed to the Slave Alias ID6, the transaction is
remapped to this address before passing the transaction
across the Bidirectional Control Channel to the Serializer.
0
RESERVED
R
0x0
Reserved.
7.6.92 SlaveID[7] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 110. SlaveID[7] (Address 0x64)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
SLAVE_ID7
R/W
0x0
7-bit Remote Slave Device ID 7
Configures the physical I2C address of the remote I2C Slave
device attached to the remote Serializer. If an I2C transaction
is addressed to the Slave Alias ID7, the transaction is
remapped to this address before passing the transaction
across the Bidirectional Control Channel to the Serializer.
0
RESERVED
R
0x0
Reserved.
7.6.93 SlaveAlias[0] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 111. SlaveAlias[0] (Address 0x65)
BIT
7:1
0
FIELD
SLAVE_ALIAS_ID0
TYPE
R/W
SLAVE_AUTO_ACK_
R/W
0
Copyright © 2017–2018, Texas Instruments Incorporated
DEFAULT
DESCRIPTION
0x0
7-bit Remote Slave Device Alias ID 0
Configures the decoder for detecting transactions designated
for an I2C Slave device attached to the remote Serializer. The
transaction is remapped to the address specified in the Slave
ID0 register. A value of 0 in this field disables access to the
remote I2C Slave.
0x0
Automatically Acknowledge all I2C writes to the remote Slave 0
independent of the forward channel lock state or status of the
remote Serializer Acknowledge
1: Enable
0: Disable
105
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.94 SlaveAlias[1] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 112. SlaveAlias[1] (Address 0x66)
BIT
7:1
0
106
FIELD
SLAVE_ALIAS_ID1
TYPE
R/W
SLAVE_AUTO_ACK_
R/W
1
DEFAULT
DESCRIPTION
0x0
7-bit Remote Slave Device Alias ID 1
Configures the decoder for detecting transactions designated
for an I2C Slave device attached to the remote Serializer. The
transaction is remapped to the address specified in the Slave
ID1 register. A value of 0 in this field disables access to the
remote I2C Slave.
0x0
Automatically Acknowledge all I2C writes to the remote Slave
1 independent of the forward channel lock state or status of
the remote Serializer Acknowledge
1: Enable
0: Disable
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.95 SlaveAlias[2] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 113. SlaveAlias[2] (Address 0x67)
BIT
7:1
0
FIELD
SLAVE_ALIAS_ID2
SLAVE_AUTO_ACK
2
TYPE
R/W
R/W
DEFAULT
DESCRIPTION
0x0
7-bit Remote Slave Device Alias ID 2
Configures the decoder for detecting transactions designated
for an I2C Slave device attached to the remote Serializer. The
transaction is remapped to the address specified in the Slave
ID2 register. A value of 0 in this field disables access to the
remote I2C Slave.
0x0
Automatically Acknowledge all I2C writes to the remote Slave
2 independent of the forward channel lock state or status of
the remote Serializer Acknowledge
1: Enable
0: Disable
7.6.96 SlaveAlias[3] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 114. SlaveAlias[3] (Address 0x68)
BIT
7:1
0
FIELD
SLAVE_ALIAS_ID3
TYPE
R/W
SLAVE_AUTO_ACK_
R/W
3
DEFAULT
DESCRIPTION
0x0
7-bit Remote Slave Device Alias ID 3
Configures the decoder for detecting transactions designated
for an I2C Slave device attached to the remote Serializer. The
transaction is remapped to the address specified in the Slave
ID3 register. A value of 0 in this field disables access to the
remote I2C Slave.
0x0
Automatically Acknowledge all I2C writes to the remote Slave
3 independent of the forward channel lock state or status of
the remote Serializer Acknowledge
1: Enable
0: Disable
7.6.97 SlaveAlias[4] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 115. SlaveAlias[4] (Address 0x69)
BIT
7:1
0
FIELD
SLAVE_ALIAS_ID4
SLAVE_AUTO_ACK_
4
TYPE
R/W
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DEFAULT
DESCRIPTION
0x0
7-bit Remote Slave Device Alias ID 4
Configures the decoder for detecting transactions designated
for an I2C Slave device attached to the remote Serializer. The
transaction is remapped to the address specified in the Slave
ID4 register. A value of 0 in this field disables access to the
remote I2C Slave.
0x0
Automatically Acknowledge all I2C writes to the remote Slave
4 independent of the forward channel lock state or status of
the remote Serializer Acknowledge
1: Enable
0: Disable
107
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.98 SlaveAlias[5] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 116. SlaveAlias[5] (Address 0x6A)
BIT
7:1
0
FIELD
SLAVE_ALIAS_ID5
TYPE
R/W
SLAVE_AUTO_ACK_
R/W
5
DEFAULT
DESCRIPTION
0x0
7-bit Remote Slave Device Alias ID 5
Configures the decoder for detecting transactions designated
for an I2C Slave device attached to the remote Serializer. The
transaction is remapped to the address specified in the Slave
ID5 register. A value of 0 in this field disables access to the
remote I2C Slave.
0x0
Automatically Acknowledge all I2C writes to the remote Slave 5
independent of the forward channel lock state or status of the
remote Serializer Acknowledge
1: Enable
0: Disable
7.6.99 SlaveAlias[6] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 117. SlaveAlias[6] (Address 0x6B)
BIT
7:1
0
FIELD
SLAVE_ALIAS_ID6
TYPE
R/W
SLAVE_AUTO_ACK_
R/W
6
DEFAULT
DESCRIPTION
0x0
7-bit Remote Slave Device Alias ID 6
Configures the decoder for detecting transactions designated
for an I2C Slave device attached to the remote Serializer. The
transaction is remapped to the address specified in the Slave
ID6 register. A value of 0 in this field disables access to the
remote I2C Slave.
0x0
Automatically Acknowledge all I2C writes to the remote Slave 6
independent of the forward channel lock state or status of the
remote Serializer Acknowledge
1: Enable
0: Disable
7.6.100 SlaveAlias[7] Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 118. SlaveAlias[7] (Address 0x6C)
BIT
7:1
0
108
FIELD
SLAVE_ALIAS_ID7
SLAVE_AUTO_ACK
7
TYPE
R/W
R/W
DEFAULT
DESCRIPTION
0x0
7-bit Remote Slave Device Alias ID 7
Configures the decoder for detecting transactions designated
for an I2C Slave device attached to the remote Serializer. The
transaction is remapped to the address specified in the Slave
ID7 register. A value of 0 in this field disables access to the
remote I2C Slave.
0x0
Automatically Acknowledge all I2C writes to the remote Slave
7 independent of the forward channel lock state or status of
the remote Serializer Acknowledge
1: Enable
0: Disable
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.101 PORT_CONFIG Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 119. PORT_CONFIG (Address 0x6D)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
CSI_WAIT_FS1
R/W
0x0
CSI Wait for FrameStart packet with count 1
The CSI Receiver will wait for a Frame Start packet with count
of 1 before accepting other packets
6
CSI_WAIT_FS
R/W
0x1
CSI Wait for FrameStart packet
CSI-2 Receiver will wait for a Frame Start packet before
accepting other packets
5
CSI_FWD_CKSUM
R/W
0x1
Forward CSI packets with checksum errors
0: Do not forward packets with errors
1: Forward packets with errors
4
CSI_FWD_ECC
R/W
0x1
Forward CSI packets with ECC errors
0: Do not forward packets with errors
1: Forward packets with errors
0x1
In CSI FPD-Link III Input Mode, Forward CSI packets with
length errors. In RAW Input Mode, forward truncated 1st video
line.
0: CSI: Do not forward packets with errors. RAW: Forward
truncated 1st video line
1: CSI: Forward packets with errors. RAW: Discard truncated
1st video line
S
Enable coax cable mode
Default value set by strap condition of MODE pin upon
asserting PDB = HIGH at start-up.
0: Shielded-twisted pair (STP) mode
1: Coax mode
S
FPD-Link III Input Mode
Default value set by strap condition of MODE pin upon
asserting PDB = HIGH at start-up.
00: CSI Mode (DS90UB953/935 compatible)
01: RAW12 Mode/50 MHz (DS90UB913A/933 compatible)
10: RAW12 Mode/75 MHz (DS90UB913A/933 compatible)
11: RAW10 Mode/100 MHz (DS90UB913A/933 compatible)
3
2
1:0
CSI_FWD_LEN/
DISCARD_1ST
_LINE_ON_ERR
COAX_MODE
FPD3_MODE
R/W
R/W
R/W
7.6.102 BC_GPIO_CTL0 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 120. BC_GPIO_CTL0 (Address 0x6E)
BIT
7:4
3:0
FIELD
BC_GPIO1_SEL
BC_GPIO0_SEL
TYPE
R/W
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DEFAULT
DESCRIPTION
0x8
Back channel GPIO1 Select:
Determines the data sent on GPIO1 for the port back channel.
0xxx : Pin GPIOx where x is BC_GPIO1_SEL[2:0]
0111 : Reserved
1000 : Constant value of 0
1001 : Constant value of 1
1010 : FrameSync signal
1011 - 1111 : Reserved
0x8
Back channel GPIO0 Select:
Determines the data sent on GPIO0 for the port back channel.
0xxx : Pin GPIOx where x is BC_GPIO0_SEL[2:0]
0111 : Reserved
1000 : Constant value of 0
1001 : Constant value of 1
1010 : FrameSync signal
1011 - 1111 : Reserved
109
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.103 BC_GPIO_CTL1 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 121. BC_GPIO_CTL1 (Address 0x6F)
BIT
7:4
3:0
FIELD
BC_GPIO3_SEL
BC_GPIO2_SEL
TYPE
R/W
R/W
DEFAULT
DESCRIPTION
0x8
Back channel GPIO3 Select:
Determines the data sent on GPIO3 for the port back
channel.
0xxx : Pin GPIOx where x is BC_GPIO3_SEL[2:0]
0111 : Reserved
1000 : Constant value of 0
1001 : Constant value of 1
1010 : FrameSync signal
1011 - 1111 : Reserved
0x8
Back channel GPIO2 Select:
Determines the data sent on GPIO2 for the port back
channel.
0xxx : Pin GPIOx where x is BC_GPIO2_SEL[2:0]
0111 : Reserved
1000 : Constant value of 0
1001 : Constant value of 1
1010 : FrameSync signal
1011 - 1111 : Reserved
7.6.104 RAW10_ID Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
RAW10 virtual channel mapping only applies when FPD-Link III operating in RAW10 input mode. See register
0x71 for RAW12 and register 0x72 for CSI-2 mode operation.
Table 122. RAW10_ID (Address 0x70)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
RAW10_VC
R/W
RAW10 Mode Virtual Channel
This field configures the CSI Virtual Channel assigned to the
port when receiving RAW10 data.
The field value defaults to the FPD-Link III receive port
number (0 or 1)
5:0
RAW10_DT
R/W
0x2B
RAW10 DT
This field configures the CSI data type used in RAW10
mode. The default of 0x2B matches the CSI specification.
7.6.105 RAW12_ID Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
RAW12 virtual channel mapping only applies when FPD-Link III operating in RAW12 input mode. See register
0x70 for RAW10 and register 0x72 for CSI-2 mode operation.
Table 123. RAW12_ID (Address 0x71)
BIT
110
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
RAW12_VC
R/W
RAW12 Mode Virtual Channel
This field configures the CSI Virtual Channel assigned to
the port when receiving RAW12 data.
The field value defaults to the FPD-Link III receive port
number (0 or 1)
5:0
RAW12_DT
R/W
0x2C
RAW12 DT
This field configures the CSI data type used in RAW12
mode. The default of 0x2C matches the CSI specification.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.106 CSI_VC_MAP Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
CSI virtual channel mapping only applies when FPD-Link III operating in CSI-2 input mode. See registers 0x70
and 0x71 for RAW mode operation.
Table 124. CSI_VC_MAP (Address 0x72)
BIT
7:0
FIELD
CSI_VC_MAP
TYPE
R/W
DEFAULT
DESCRIPTION
0xE4
CSI-2 Virtual Channel Mapping Register
This register provides a method for replacing the Virtual
Channel Identifier (VC-ID) of incoming CSI packets.
[7:6] : Map value for VC-ID of 3
[5:4] : Map value for VC-ID of 2
[3:2] : Map value for VC-ID of 1
[1:0] : Map value for VC-ID of 0
7.6.107 LINE_COUNT_HI Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 125. LINE_COUNT_HI (Address 0x73)
BIT
7:0
FIELD
TYPE
LINE_COUNT_HI
R
DEFAULT
DESCRIPTION
0x0
High byte of Line Count
The Line Count reports the line count for the most recent
video frame. When interrupts are enabled for the Line Count
(via the IE_LINE_CNT_CHG register bit), the Line Count
value is frozen until read.
7.6.108 LINE_COUNT_LO Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 126. LINE_COUNT_LO (Address 0x74)
BIT
7:0
FIELD
TYPE
LINE_COUNT_LO
R
DEFAULT
DESCRIPTION
0x0
Low byte of Line Count
The Line Count reports the line count for the most recent
video frame. When interrupts are enabled for the Line Count
(via the IE_LINE_CNT_CHG register bit), the Line Count
value is frozen until read. In addition, when reading the
LINE_COUNT registers, the LINE_COUNT_LO is latched
upon reading LINE_COUNT_HI to ensure consistency
between the two portions of the Line Count.
7.6.109 LINE_LEN_1 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 127. LINE_LEN_1 (Address 0x75)
BIT
7:0
FIELD
LINE_LEN_HI
TYPE
R
Copyright © 2017–2018, Texas Instruments Incorporated
DEFAULT
DESCRIPTION
0x0
High byte of Line Length
The Line Length reports the line length recorded during the
most recent video frame. If line length is not stable during
the frame, this register will report the length of the last line
in the video frame. When interrupts are enabled for the Line
Length (via the IE_LINE_LEN_CHG register bit), the Line
Length value is frozen until read.
111
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.110 LINE_LEN_0 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 128. LINE_LEN_0 (Address 0x76)
BIT
7:0
FIELD
LINE_LEN_LO
TYPE
R
DEFAULT
DESCRIPTION
0x0
Low byte of Line Length
The Line Length reports the length of the most recent video
line. When interrupts are enabled for the Line Length (via
the IE_LINE_LEN_CHG register bit), the Line Length value
is frozen until read. In addition, when reading the
LINE_LEN registers, the LINE_LEN_LO is latched upon
reading LINE_LEN_HI to ensure consistency between the
two portions of the Line Length.
7.6.111 FREQ_DET_CTL Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 129. FREQ_DET_CTL (Address 0x77)
BIT
7:6
5:4
3:0
112
FIELD
FREQ_HYST
TYPE
R/W
FREQ_STABLE_THR R/W
FREQ_LO_THR
R/W
DEFAULT
DESCRIPTION
0x3
Frequency Detect Hysteresis
The Frequency detect hysteresis setting allows ignoring minor
fluctuations in frequency. A new frequency measurement will
be captured only if the measured frequency differs from the
current measured frequency by more than the FREQ_HYST
setting. The FREQ_HYST setting is in MHz.
0x0
Frequency Stable Threshold
The Frequency detect circuit can be used to detect a stable
clock frequency. The Stability Threshold determines the
amount of time required for the clock frequency to stay within
the FREQ_HYST range to be considered stable:
00 : 40 µs
01 : 80 µs
10 : 320 µs
11 : 1.28 ms
0x5
Frequency Low Threshold
Sets the low threshold for the Clock frequency detect circuit in
MHz. This value is used to determine if the clock frequency is
too low for proper operation.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.112 MAILBOX_1 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 130. MAILBOX_1 (Address 0x78)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
MAILBOX_0
R/W
0x00
Mailbox Register
This register is an unused read/write register that can be used
for any purpose such as passing messages between I2C
masters on opposite ends of the link.
7.6.113 MAILBOX_2 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 131. MAILBOX_2 (Address 0x79)
BIT
7:0
FIELD
MAILBOX_1
TYPE
R/W
DEFAULT
DESCRIPTION
0x01
Mailbox Register
This register is an unused read/write register that can be used
for any purpose such as passing messages between I2C
masters on opposite ends of the link.
7.6.114 CSI_RX_STS Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 132. CSI_RX_STS (Address 0x7A)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:4
RESERVED
R
0x0
Reserved
0x0
Packet Length Error detected for received CSI packet
If set, this bit indicates a packet length error was detected on at
least one CSI packet received from the sensor. Packet length
errors occur if the data length field in the packet header does
not match the actual data length for the packet.
1: One or more Packet Length errors have been detected
0: No Packet Length errors have been detected
This bit is cleared on read.
0x0
Data Checksum Error detected for received CSI packet
If set, this bit indicates a data checksum error was detected on
at least one CSI packet received from the sensor. Data
checksum errors indicate an error was detected in the packet
data portion of the CSI packet.
1: One or more Data Checksum errors have been detected
0: No Data Checksum errors have been detected
This bit is cleared on read.
0x0
2-bit ECC Error detected for received CSI packet
If set, this bit indicates a multi-bit ECC error was detected on at
least one CSI packet received from the sensor. Multi-bit errors
are not corrected by the device.
1: One or more multi-bit ECC errors have been detected
0: No multi-bit ECC errors have been detected
This bit is cleared on read.
0x0
1-bit ECC Error detected for received CSI packet
If set, this bit indicates a single-bit ECC error was detected on
at least one CSI packet received from the sensor. Single-bit
errors are corrected by the device.
1: One or more 1-bit ECC errors have been detected
0: No 1-bit ECC errors have been detected
This bit is cleared on read.
3
2
1
0
LENGTH_ERR
CKSUM_ERR
ECC2_ERR
ECC1_ERR
R/RC
R/RC
R/RC
R/RC
Copyright © 2017–2018, Texas Instruments Incorporated
113
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.115 CSI_ERR_COUNTER Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 133. CSI_ERR_COUNTER (Address 0x7B)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
CSI_ERR_CNT
R/RC
0x00
CSI Error Counter Register
This register counts the number of CSI packets received with
errors since the last read of the counter.
7.6.116 PORT_CONFIG2 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 134. PORT_CONFIG2 (Address 0x7C)
BIT
TYPE
DEFAULT
DESCRIPTION
RAW10_8BIT_CTL
R/W
0x0
Raw10 8-bit mode
When Raw10 Mode is enabled for the port, the input data is
processed as 8-bit data and packed accordingly for
transmission over CSI.
00 : Normal Raw10 Mode
01 : Reserved
10 : 8-bit processing using upper 8 bits. When selecting this
value, change CSI data type value RAW10_DT in register
0x70[5:0]
11 : 8-bit processing using lower 8 bits. When selecting this
value, change CSI data type value RAW10_DT in register
0x70[5:0]
5
DISCARD_ON
_PAR_ERR
R/W
0x0
Discard frames on Parity Error
0 : Forward packets with parity errors
1 : Truncate Frames if a parity error is detected
4
DISCARD_ON
_LINE_SIZE
R/W
0x0
Discard frames on Line Size
0 : Allow changes in Line Size within packets
1 : Truncate Frames if a change in line size is detected
7:6
3
DISCARD_ON
_FRAME_SIZE
R/W
0x0
Discard frames on change in Frame Size
When enabled, a change in the number of lines in a frame
will result in truncation of the packet. The device will resume
forwarding video frames based on the PASS_THRESHOLD
setting in the PORT_PASS_CTL register.
0 : Allow changes in Frame Size
1 : Truncate Frames if a change in frame size is detected
2
RESERVED
R/W
0x0
Reserved
0x0
LineValid Polarity
This register indicates the expected polarity for the LineValid
indication received in Raw mode.
1 : LineValid is low for the duration of the video line
0 : LineValid is high for the duration of the video line
0x0
FrameValid Polarity
This register indicates the expected polarity for the
FrameValid indication received in Raw mode.
1 : FrameValid is low for the duration of the video frame
0 : FrameValid is high for the duration of the video frame
1
0
114
FIELD
LV_POLARITY
FV_POLARITY
R/W
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.117 PORT_PASS_CTL Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 135. PORT_PASS_CTL (Address 0x7D)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
PASS_DISCARD_EN
R/W
0x0
Pass Discard Enable
Discard packets if PASS is not indicated.
0 : Ignore PASS for forwarding packets
1 : Discard packets when PASS is not true
6
RESERVED
R/W
0x0
Reserved
0x0
Pass Line Count Control
This register controls whether the device will include line count
in qualification of the Pass indication:
0 : Don't check line count
1 : Check line count
When checking line count, Pass is deasserted upon detection
of a change in the number of video lines per frame. Pass will
not be reasserted until the PASS_THRESHOLD setting is met.
0x0
Pass Line Size Control
This register controls whether the device will include line size
in qualification of the Pass indication:
0 : Don't check line size
1 : Check line size
When checking line size, Pass is deasserted upon detection of
a change in video line size. Pass will not be reasserted until
the PASS_THRESHOLD setting is met.
x00
Parity Error Mode
If this bit is set to 0, the port Pass indication is deasserted for
every parity error detected on the FPD-Link III Receive
interface. If this bit is set to a 1, the port Pass indication is
cleared on a parity error and remain clear until the
PASS_THRESHOLD is met. When PASS_PARITY_ERR is
set to 1, TI also recommends setting PASS_THRESHOLD to
2 or higher to ensure at least one good frame occurs following
a parity error
0x0
RX Port Pass Watchdog disable
When enabled, if the FPD Receiver does not detect a valid
frame end condition within two video frame periods, the Pass
indication is deasserted. The watchdog timer will not have any
effect if the PASS_THRESHOLD is set to 0.
0 : Enable watchdog timer for RX Pass
1 : Disable watchdog timer for RX Pass
0x0
Pass Threshold Register
This register controls the number of valid frames before
asserting the port Pass indication. If set to 0, PASS is
asserted after Receiver Lock detect. If non-zero, PASS is
asserted following reception of the programmed number of
valid frames.
5
4
3
2
1:0
PASS_LINE_CNT
PASS_LINE_SIZE
PASS_PARITY_ERR
PASS_WDOG_DIS
PASS_THRESHOLD
R/W
R/W
R/W
R/W
R/W
7.6.118 SEN_INT_RISE_CTL Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 136. SEN_INT_RISE_CTL (Address 0x7E)
BIT
7:0
FIELD
SEN_INT
_RISE_MASK
TYPE
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DEFAULT
DESCRIPTION
0x0
Sensor Interrupt Rise Mask
This register provides the interrupt mask for detecting rising
edge transitions on the bits in SENSOR_STS_0. If a mask bit
is set in this register, a rising edge transition on the
corresponding SENSOR_STS_0 bit will generate an interrupt
that will be latched in the SEN_INT_RISE_STS register.
115
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.119 SEN_INT_FALL_CTL Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 137. SEN_INT_FALL_CTL (Address 0x7F)
BIT
7:0
FIELD
SEN_INT
_FALL_MASK
TYPE
R/W
DEFAULT
DESCRIPTION
0x0
Sensor Interrupt Fall Mask
This register provides the interrupt mask for detecting falling
edge transitions on the bits in SENSOR_STS_0. If a mask bit
is set in this register, a falling edge transition on the
corresponding SENSOR_STS_0 bit will generate an interrupt
that will be latched in the SEN_INT_FALL_STS register.
7.6.120 RESERVED Register
Table 138. RESERVED (Address 0xA0 – 0xA4)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
7.6.121 REFCLK_FREQ Register
Table 139. REFCLK_FREQ (Address 0xA5)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
REFCLK_FREQ
R
0x00
REFCLK frequency measurement in MHz. REFCLK_FREQ
measurement is not synchronized. Value in this register
should read twice and only considered valid if
REFCLK_FREQ is unchanged between reads.
7.6.122 RESERVED Register
Table 140. RESERVED (Address 0xA7 – 0xAF)
116
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R
0x00
Reserved
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.123 IND_ACC_CTL Register
Table 141. IND_ACC_CTL (Address 0xB0)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
RESERVED
R
0x0
Reserved
5:2
1
0
IA_SEL
R/W
0x0
Indirect Access Register Select:
Selects target for register access
0000 : CSI-2 Pattern Generator & Timing Registers
0001 : FPD-Link III RX Port 0 Reserved Registers
0010 : FPD-Link III RX Port 1 Reserved Registers
00011–0100: Reserved
0101 : FPD-Link III RX Shared Reserved Registers
0110 : Simultaneous write to FPD-Link III RX Reserved
Registers
0111 : CSI-2 Reserved Registers
1000–1111 : Reserved
IA_AUTO_INC
R/W
0x0
Indirect Access Auto Increment:
Enables auto-increment mode. Upon completion of a read or
write, the register address will automatically be incremented
by 1
0x0
Indirect Access Read:
Setting this allows generation of a read strobe to the selected
register block upon setting of the IND_ACC_ADDR register.
In auto-increment mode, read strobes will also be asserted
following a read of the IND_ACC_DATA register. This
function is only required for blocks that need to pre-fetch
register data.
IA_READ
R/W
7.6.124 IND_ACC_ADDR Register
Table 142. IND_ACC_ADDR (Address 0xB1)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
IA_ADDR
R/W
0x0
Indirect Access Register Offset:
This register contains the 8-bit register offset for the indirect
access.
7.6.125 IND_ACC_DATA Register
Table 143. IND_ACC_DATA (Address 0xB2)
BIT
7:0
FIELD
IA_DATA
TYPE
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DEFAULT
DESCRIPTION
0x0
Indirect Access Data:
Writing this register will cause an indirect write of the
IND_ACC_DATA value to the selected analog block register.
Reading this register will return the value of the selected block
register
117
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.126 BIST Control Register
Table 144. BIST Control (Address 0xB3)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
BIST_OUT_MODE
R/W
0x0
BIST Output Mode
00 : Outputs disabled during BIST
01 : Reserved
10 : Outputs enabled during BIST
11 : Reserved
5:4
RESERVED
R/W
0x0
Reserved
BIST_PIN_CONFIG
R/W
0x1
Bist Configured through Pin.
1: Bist configured through pin.
0: Bist configured through bits 2:0 in this register
3
2:1
0
BIST_CLOCK
_SOURCE
R/W
0x00
BIST Clock Source
This register field selects the BIST Clock Source at the
Serializer. These register bits are automatically written to the
CLOCK SOURCE bits (register offset 0x14) in the Serializer
after BIST is enabled. See the appropriate Serializer register
descriptions for details. When connected to a
DS90UB913A/933, a setting of 0x3 may result in a clock
frequency that is too slow for proper recovery.
BIST_EN
R/W
0x0
BIST Control
1: Enabled
0: Disabled
7.6.127 RESERVED Register
Table 145. RESERVED (Address 0xB4)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x25
Reserved
7.6.128 RESERVED Register
Table 146. RESERVED (Address 0xB5)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
7.6.129 RESERVED Register
Table 147. RESERVED (Address 0xB6)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x18
Reserved
7.6.130 RESERVED Register
Table 148. RESERVED (Address 0xB7)
118
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.131 MODE_IDX_STS Register
Table 149. MODE_IDX_STS (Address 0xB8)
BIT
7
6:4
3
2:0
FIELD
TYPE
DEFAULT
DESCRIPTION
IDX_DONE
R
0x1
IDX Done
If set, indicates the IDX decode has completed and latched
into the IDX status bits.
IDX
R
S
IDX Decode
3-bit decode from IDX pin
MODE_DONE
R
0x1
MODE Done
If set, indicates the MODE decode has completed and
latched into the MODE status bits.
MODE
R
S
MODE Decode
3-bit decode from MODE pin
7.6.132 LINK_ERROR_COUNT Register
Table 150. LINK_ERROR_COUNT (Address 0xB9)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
RESERVED
R
0x0
Reserved
5
LINK_SFIL_WAIT
R/W
0x1
During SFILTER adaption, setting this bit will cause the
Lock detect circuit to ignore errors during the SFILTER
wait period after the SFILTER control is updated.
1: Errors during SFILTER Wait period will be ignored
0: Errors during SFILTER Wait period will not be ignored
and may cause loss of Lock
4
LINK_ERR
_COUNT_EN
R/W
0x1
Enable serial link data integrity error count
1: Enable error count
0: DISABLE
0x3
Link error count threshold.
The Link Error Counter monitors the forward channel link
and determines when link will be dropped. The link error
counter is pixel clock based. FPD Link parity, clock, and
control are monitored for link errors. If the error counter is
enabled, the deserializer will lose lock once the error
counter reaches the LINK_ERR_THRESH value. If the link
error counter is disabled, the deserilizer will lose lock after
one error.
3:0
LINK_ERR
_THRESH
R/W
7.6.133 FPD3_ENC_CTL Register
It is recommended to enable CRC error checking on the FPD3 Encoder sequence to prevent any updates of link
information values from encoded packets that do not pass CRC check. The FPD3 Encoder CRC is enabled by
setting the FPD3_ENC_CRC_DIS register 0xBA[7] to 0. In addition, the FPD3_ENC_CRC_CAP flag should be
set in register 0x4A[4].
Table 151. FPD3_ENC_CTL (Address 0xBA)
BIT
7
6:0
FIELD
TYPE
DEFAULT
DESCRIPTION
FPD3_ENC_CRC_DI
S
R/W
0x1
0: Enable FPD-Link III encoder CRC (recommended)
1: Disable FPD-Link III encoder CRC
RESERVED
R/W
0x03
Reserved
7.6.134 RESERVED Register
Table 152. RESERVED (Address 0xBB)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x74
Reserved
Copyright © 2017–2018, Texas Instruments Incorporated
119
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.135 FV_MIN_TIME Register
Table 153. FV_MIN_TIME (Address 0xBC)
BIT
7:0
FIELD
FRAME_VALID_MIN
TYPE
R/W
DEFAULT
DESCRIPTION
0x80
Frame Valid Minimum Time in RAW input mode.
This register controls the minimum time the FrameValid
(FV) should be active before the Raw mode FPD-Link III
receiver generates a FrameStart packet. Duration is in
FPD-Link III clock periods.
7.6.136 RESERVED Register
Table 154. RESERVED (Address 0xBD)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
7.6.137 GPIO_PD_CTL Register
Table 155. GPIO_PD_CTL (Address 0xBE)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
RESERVED
R
0x0
Reserved
6
GPIO6_PD_DIS
R/W
0x0
5
GPIO5_PD_DIS
R/W
0x0
4
GPIO4_PD_DIS
R/W
0x0
3
GPIO3_PD_DIS
R/W
0x0
2
GPIO2_PD_DIS
R/W
0x0
1
GPIO1_PD_DIS
R/W
0x0
0
GPIO0_PD_DIS
R/W
0x0
GPIOX Pulldown Resistor Disable:
The GPIO pins by default include a 35-kΩ typical
pulldown resistor that is automatically enabled when the
GPIO is not in an output mode. When this bit is set, the
corresponding pulldown resistor will also be disabled
when the GPIO pin is in an input only mode.
1 : Disable GPIO pulldown resistor
0 : Enable GPIO pulldown resistor
7.6.138 RESERVED Register
Table 156. RESERVED (Address 0xBF)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
7.6.139 PORT_DEBUG Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 157. PORT_DEBUG (Address 0xD0)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
RESERVED
R/W
0x0
Reserved
6
RESERVED
R/W
0x0
Reserved
SER_BIST_ACT
R
0x0
Serializer BIST active
This register indicates the Serializer is in BIST mode.
When in BIST mode this flag can be checked to ensure
BIST is activated in the serializer during the test. If the
Deserializer is not in BIST mode, this could indicate an
error condition.
RESERVED
R/W
0x0
Reserved
1
FORCE
_BC_ERRORS
R/W
0x0
Setting this bit introduces continuous single bit errors
into Back Channel Frames
0
FORCE
_1_BC_ERROR
R/W
0x0
Setting this bit introduces a single bit error into one
Back Channel Frame
5
4:2
120
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.140 RESERVED Register
Table 158. RESERVED Register (Address 0xD1)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
-
0x43
Reserved
7.6.141 AEQ_CTL2 Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 159. AEQ_CTL2 (Address 0xD2)
BIT
7:5
FIELD
TYPE
ADAPTIVE_EQ
_RELOCK_TIME
R/W
DEFAULT
DESCRIPTION
0x4
Time to wait for lock before incrementing the EQ to next
setting
000 : 164 µs
001 : 328 µs
010 : 655 µs
011 : 1.31 ms
100 : 2.62 ms
101 : 5.24 ms
110 : 10.5 ms
111 : 21.0 ms
4
AEQ_1ST_LOCK
_MODE
R/W
0x1
AEQ First Lock Mode.
This register bit controls the Adaptive Equalizer algorithm
operation at initial Receiver Lock.
0 : Initial AEQ lock may occur at any value
1 : Initial Receiver lock will restart AEQ at 0, providing a
more deterministic initial AEQ value
3
AEQ_RESTART
(R/W)/SC
0x0
Set high to restart AEQ adaptation from initial value. This
bit is self clearing. Adaption is restarted.
2
SET_AEQ_FLOOR
R/W
0x1
AEQ adaptation starts from a pre-set floor value rather
than from zero - good in long cable situations
RESERVED
R
0x0
Reserved
1:0
7.6.142 AEQ_STATUS Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 160. AEQ_STATUS (Address 0xD3)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
RESERVED
R
0x0
Reserved
5:0
EQ_STATUS
R
0x00
Adaptive EQ Status
7.6.143 ADAPTIVE EQ BYPASS Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 161. ADAPTIVE EQ BYPASS (Address 0xD4)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
EQ_STAGE_1
_SELECT_VALUE
R/W
0x3
EQ select value [5:3] - Used if adaptive EQ is bypassed.
0x0
Adaptive Equalizer lock mode
When set to a 1, Receiver Lock status requires the
Adaptive Equalizer to complete adaption.
When set to a 0, Receiver Lock is based only on the
Lock circuit itself. AEQ may not have stabilized.
4
AEQ_LOCK_MODE
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
121
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Table 161. ADAPTIVE EQ BYPASS (Address 0xD4) (continued)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
3:1
EQ_STAGE_2
_SELECT_VALUE
R/W
0x0
EQ select value [2:0] - Used if adaptive EQ is bypassed.
ADAPTIVE_EQ
_BYPASS
R/W
0x0
1: Disable adaptive EQ
0: Enable adaptive EQ
0
122
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.144 AEQ_MIN_MAX Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 162. AEQ_MIN_MAX (Address 0xD5)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:4
AEQ_MAX
R/W
0xF
Adaptive Equalizer Maximum value
This register sets the maximum value for the Adaptive
EQ algorithm. Must be higher than
ADAPTIVE_EQ_FLOOR_VALUE when
SET_AEQ_FLOOR is enabled.
3:0
ADAPTIVE_EQ
_FLOOR_VALUE
R/W
0x2
When AEQ floor is enabled by register 0xD2[2] the
starting EQ gain setting for AEQ adaption is given by this
register.
7.6.145 RESERVED Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 163. RESERVED (Address 0xD6)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
7.6.146 RESERVED Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 164. RESERVED (Address 0xD7)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x00
Reserved
7.6.147 PORT_ICR_HI Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 165. PORT_ICR_HI (Address 0xD8)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:3
RESERVED
R
0x0
Reserved
0x0
Interrupt on FPD-Link III Receiver Encoding Error
When enabled, an interrupt is generated on detection of
an encoding error on the FPD-Link III interface for the
receive port as reported in the FPD3_ENC_ERROR bit
in the RX_PORT_STS2 register
0x0
Interrupt on BCC SEQ Sequence Error.
When enabled, an interrupt is generated if a Sequence
Error is detected for the Bi-directional Control Channel
forward channel receiver as reported in the
BCC_SEQ_ERROR bit in the RX_PORT_STS1 register.
0x0
Interrupt on BCC CRC error detect
When enabled, an interrupt is generated if a CRC error
is detected on a Bi-directional Control Channel frame
received over the FPD-Link III forward channel as
reported in the BCC_CRC_ERROR bit in the
RX_PORT_STS1 register.
2
1
0
IE_FPD3_ENC_ERR
IE_BCC_SEQ_ERR
IE_BCC_CRC_ERR
R/W
R/W
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
123
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.148 PORT_ICR_LO Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 166. PORT_ICR_LO (Address 0xD9)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
RESERVED
R/W
0x0
Reserved
6
IE_LINE_LEN_CHG
R/W
0x0
Interrupt on Video Line length
When enabled, an interrupt is generated if the length of
the video line changes. Status is reported in the
LINE_LEN_CHG bit in the RX_PORT_STS2 register.
0x0
Interrupt on Video Line count
When enabled, an interrupt is generated if the number
of video lines per frame changes. Status is reported in
the LINE_CNT_CHG bit in the RX_PORT_STS2
register.
0x0
Interrupt on Receiver Buffer Error
When enabled, an interrupt is generated if the Receive
Buffer overflow is detected as reported in the
BUFFER_ERROR bit in the RX_PORT_STS2 register.
0x0
Interrupt on CSI Receiver Error.
When enabled, an interrupt will be generated on
detection of an error by the CSI Receiver. CSI Receiver
errors are reported in the CSI_RX_STS register
(address 0x7A).
5
4
3
124
IE_LINE_CNT_CHG
IE_BUFFER_ERR
IE_CSI_RX_ERR
R/W
R/W
R/W
2
IE_FPD3_PAR_ERR
R/W
0x0
Interrupt on FPD-Link III Receiver Parity Error
When enabled, an interrupt is generated on detection of
parity errors on the FPD-Link III interface for the receive
port. Parity error status is reported in the
PARITY_ERROR bit in the RX_PORT_STS1 register.
1
IE_PORT_PASS
R/W
0x0
Interrupt on change in Port PASS status
When enabled, an interrupt is generated on a change in
receiver port valid status as reported in the
PORT_PASS bit in the PORT_STS1 register.
0
IE_LOCK_STS
R/W
0x0
Interrupt on change in Lock Status
When enabled, an interrupt is generated on a change in
lock status. Status is reported in the LOCK_STS_CHG
bit in the RX_PORT_STS1 register.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.149 PORT_ISR_HI Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 167. PORT_ISR_HI (Address 0xDA)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:5
Reserved
R
0x0
Reserved
0x0
FC GPIO Interrupt Status
A change in forward channel GPIO signal has been
detected. Forward Channel GPIO status is reported in
the FC_GPIO_STS register. This interrupt condition will
be cleared by reading the FC_GPIO_STS register.
0x0
Interrupt on change in Sensor Status
A change in Sensor Status has been detected. Camera
Status is reported in the SENSOR_STS_X registers.
This interrupt condition will be cleared by reading the
SEN_INT_RISE_STS and SEN_INT_FALL_STS
registers.
0x0
FPD-Link III Receiver Encode Error Interrupt Status
An encoding error on the FPD-Link III interface for the
receive port has been detected. Status is reported in the
FPD3_ENC_ERROR bit in the RX_PORT_STS2
register.
This interrupt condition is cleared by reading the
RX_PORT_STS2 register.
0x0
BCC CRC Sequence Error Interrupt Status
A Sequence Error has been detected for the Bidirectional Control Channel forward channel receiver.
Status is reported in the BCC_SEQ_ERROR bit in the
RX_PORT_STS1 register.
This interrupt condition is cleared by reading the
RX_PORT_STS1 register.
0x0
BCC CRC error detect Interrupt Status
A CRC error has been detected on a Bi-directional
Control Channel frame received over the FPD-Link III
forward channel. Status is reported in the
BCC_CRC_ERROR bit in the RX_PORT_STS1 register.
This interrupt condition is cleared by reading the
RX_PORT_STS1 register.
4
3
2
1
0
IE_FC_GPIO
IE_FC_SENS_STS
IS_FPD3_ENC_ERR
IS_BCC_SEQ_ERR
IS_BCC_CRC_ERR
R
R
R
R
R
Copyright © 2017–2018, Texas Instruments Incorporated
125
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.150 PORT_ISR_LO Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 168. PORT_ISR_LO (Address 0xDB)
BIT
7
6
5
4
3
2
1
0
126
FIELD
TYPE
DEFAULT
DESCRIPTION
RESERVED
R
0x0
Reserved
0x0
Video Line Length Interrupt Status
A change in video line length has been detected. Status is
reported in the LINE_LEN_CHG bit in the RX_PORT_STS2
register.
This interrupt condition is cleared by reading the
RX_PORT_STS2 register.
0x0
Video Line Count Interrupt Status
A change in number of video lines per frame has been
detected. Status is reported in the LINE_CNT_CHG bit in
the RX_PORT_STS2 register.
This interrupt condition is cleared by reading the
RX_PORT_STS2 register.
0x0
Receiver Buffer Error Interrupt Status
A Receive Buffer overflow has been detected as reported in
the BUFFER_ERROR bit in the RX_PORT_STS2 register.
This interrupt condition is cleared by reading the
RX_PORT_STS2 register.
0x0
CSI Receiver Error Interrupt Status
The CSI Receiver has detected an error. CSI Receiver
errors are reported in the CSI_RX_STS register (address
0x7A). This interrupt condition will be cleared by reading the
CSI_RX_STS register.
0x0
FPD-Link III Receiver Parity Error Interrupt Status
A parity error on the FPD-Link III interface for the receive
port has been detected. Parity error status is reported in the
PARITY_ERROR bit in the RX_PORT_STS1 register.
This interrupt condition is cleared by reading the
RX_PORT_STS1 register.
0x0
Port Valid Interrupt Status
A change in receiver port valid status as reported in the
PORT_PASS bit in the PORT_STS1 register. This interrupt
condition is cleared by reading the RX_PORT_STS1
register.
0x0
Lock Interrupt Status
A change in lock status has been detected. Status is
reported in the LOCK_STS_CHG bit in the
RX_PORT_STS1 register.
This interrupt condition is cleared by reading the
RX_PORT_STS1 register.
IS_LINE_LEN_CHG
IS_LINE_CNT_CHG
IS_BUFFER_ERR
IS_CSI_RX_ERR
IS_FPD3_PAR_ERR
IS_PORT_PASS
IS_LOCK_STS
R
R
R
R
R
R
R
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.151 FC_GPIO_STS Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 169. FC_GPIO_STS (Address 0xDC)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
GPIO3_INT_STS
R/RC
0x0
GPIO3 Interrupt Status.
This bit indicates an interrupt condition has been met for
GPIO3. This bit is cleared on read.
6
GPIO2_INT_STS
R/RC
0x0
GPIO2 Interrupt Status.
This bit indicates an interrupt condition has been met for
GPIO2. This bit is cleared on read.
5
GPIO1_INT_STS
R/RC
0x0
GPIO1 Interrupt Status.
This bit indicates an interrupt condition has been met for
GPIO1. This bit is cleared on read.
4
GPIO0_INT_STS
R/RC
0x0
GPIO0 Interrupt Status.
This bit indicates an interrupt condition has been met for
GPIO0. This bit is cleared on read.
3
FC_GPIO3_STS
R
0x0
Forward Channel GPIO3 Status.
This bit indicates the current value for forward channel
GPIO3.
2
FC_GPIO2_STS
R
0x0
Forward Channel GPIO2 Status.
This bit indicates the current value for forward channel
GPIO2.
1
FC_GPIO1_STS
R
0x0
Forward Channel GPIO1 Status.
This bit indicates the current value for forward channel
GPIO1.
0
FC_GPIO0_STS
R
0x0
Forward Channel GPIO0 Status.
This bit indicates the current value for forward channel
GPIO0.
7.6.152 FC_GPIO_ICR Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 170. FC_GPIO_ICR (Address 0xDD)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
GPIO3_FALL_IE
R/W
0x0
GPIO3 Fall Interrupt Enable.
If this bit is set, an interrupt will be generated based on
detection of a falling edge on GPIO3.
6
GPIO3_RISE_IE
R/W
0x0
GPIO3 Rise Interrupt Enable.
If this bit is set, an interrupt will be generated based on
detection of a rising edge on GPIO3.
5
GPIO2_FALL_IE
R/W
0x0
GPIO2 Fall Interrupt Enable.
If this bit is set, an interrupt will be generated based on
detection of a falling edge on GPIO2.
4
GPIO2_RISE_IE
R/W
0x0
GPIO2 Rise Interrupt Enable.
If this bit is set, an interrupt will be generated based on
detection of a rising edge on GPIO2.
3
GPIO1_FALL_IE
R/W
0x0
GPIO1 Fall Interrupt Enable.
If this bit is set, an interrupt will be generated based on
detection of a falling edge on GPIO1.
2
GPIO1_RISE_IE
R/W
0x0
GPIO1 Rise Interrupt Enable.
If this bit is set, an interrupt will be generated based on
detection of a rising edge on GPIO1.
1
GPIO0_FALL_IE
R/W
0x0
GPIO0 Fall Interrupt Enable.
If this bit is set, an interrupt will be generated based on
detection of a falling edge on GPIO0.
Copyright © 2017–2018, Texas Instruments Incorporated
127
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Table 170. FC_GPIO_ICR (Address 0xDD) (continued)
BIT
0
FIELD
TYPE
DEFAULT
DESCRIPTION
GPIO0_RISE_IE
R/W
0x0
GPIO0 Rise Interrupt Enable.
If this bit is set, an interrupt will be generated based on
detection of a rising edge on GPIO0.
7.6.153 SEN_INT_RISE_STS Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 171. SEN_INT_RISE_STS (Address 0xDE)
BIT
7:0
FIELD
SEN_INT_RISE
TYPE
R/RC
DEFAULT
DESCRIPTION
0x00
Sensor Interrupt Rise Status.
This register provides the interrupt status for rising edge
transitions on the bits in SENSOR_STS_0. If a mask bit is
set in the SEN_INT_RISE_MASK register, a rising edge
transition on the corresponding SENSOR_STS_0 bit will
generate an interrupt that will be latched in this register.
7.6.154 SEN_INT_FALL_STS Register
RX port specific register. The FPD-Link III Port Select register 0x4C configures which unique RX port registers
can be accessed by I2C read and write commands.
Table 172. SEN_INT_FALL_STS (Address 0xDF)
BIT
7:0
FIELD
SEN_INT_FALL
TYPE
R/RC
DEFAULT
DESCRIPTION
0x00
Sensor Interrupt Fall Status.
This register provides the interrupt status for falling edge
transitions on the bits in SENSOR_STS_0. If a mask bit is
set in the SEN_INT_RISE_MASK register, a falling edge
transition on the corresponding SENSOR_STS_0 bit will
generate an interrupt that will be latched in this register.
7.6.155 FPD3_RX_ID0 Register
Table 173. FPD3_RX_ID0 (Address 0xF0)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
FPD3_RX_ID0
R
0x5F
FPD3_RX_ID0: First byte ID code: ‘_’
7.6.156 FPD3_RX_ID1 Register
Table 174. FPD3_RX_ID1 (Address 0xF1)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
FPD3_RX_ID1
R
0x55
FPD3_RX_ID1: 2nd byte of ID code: ‘U’
7.6.157 FPD3_RX_ID2 Register
Table 175. FPD3_RX_ID2 (Address 0xF2)
128
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
FPD3_RX_ID2
R
0x42
FPD3_RX_ID2: 3rd byte of ID code: ‘B’
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.158 FPD3_RX_ID3 Register
Table 176. FPD3_RX_ID3 (Address 0xF3)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
FPD3_RX_ID3
R
0x39
FPD3_RX_ID3: 4th byte of ID code: ‘9’
7.6.159 FPD3_RX_ID4 Register
Table 177. FPD3_RX_ID4 (Address 0xF4)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
FPD3_RX_ID4
R
0x35
FPD3_RX_ID4: 5th byte of ID code: '5'
7.6.160 FPD3_RX_ID5 Register
Table 178. FPD3_RX_ID5 (Address 0xF5)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
FPD3_RX_ID5
R
0x34
FPD3_RX_ID5: 6th byte of ID code: '4'
Copyright © 2017–2018, Texas Instruments Incorporated
129
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.161 I2C_RX0_ID Register
As an alternative to paging to access FPD-Link III receive port0 registers, a separate I2C address may be
enabled to allow direct access to the port 0 specific registers. The I2C_RX_0_ID register provides a simpler
method of accessing device registers specifically for port 0 without having to use the paging function to select the
register page. Using this address also allows access to all shared registers.
Table 179. I2C_RX0_ID (Address 0xF8)
BIT
7:1
0
FIELD
TYPE
DEFAULT
DESCRIPTION
RX_PORT0_ID
R/W
0x0
7-bit Receive Port 0 I2C ID
Configures the decoder for detecting transactions
designated for Receiver port 0 registers. A value of 0x00
in this field disables the Port0 decoder.
RESERVED
R
0x0
Reserved
7.6.162 I2C_RX1_ID Register
As an alternative to paging to access FPD-Link III receive port 1 registers, a separate I2C address may be
enabled to allow direct access to the port 1 specific registers. The I2C_RX_1_ID register provides a simpler
method of accessing device registers specifically for port 1 without having to use the paging function to select the
register page. Using this address also allows access to all shared registers.
Table 180. I2C_RX1_ID (Address 0xF9)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
RX_PORT1_ID
R/W
0x0
7-bit Receive Port 1 I2C ID
Configures the decoder for detecting transactions
designated for Receiver port 1 registers. A value of 0x00
in this field disables the Port1 decoder.
RESERVED
R
0x0
Reserved
0
7.6.163 RESERVED Register
Table 181. RESERVED (Address 0xFA)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R
0x00
Reserved
7.6.164 RESERVED Register
Table 182. RESERVED (Address 0xFB)
130
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R
0x00
Reserved
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.165 Indirect Access Registers
Several functional blocks include register sets contained in the Indirect Access map (Table 183); that is, Pattern
Generator, CSI-2 timing, and Analog controls. Register access is provided via an indirect access mechanism
through the Indirect Access registers (IND_ACC_CTL, IND_ACC_ADDR, and IND_ACC_DATA). These registers
are located at offsets 0xB0-0xB2 in the main register space.
The indirect address mechanism involves setting the control register to select the desired block, setting the
register offset address, and reading or writing the data register. In addition, an auto-increment function is
provided in the control register to automatically increment the offset address following each read or write of the
data register.
For writes, the process is as follows:
1. Write to the IND_ACC_CTL register to select the desired register block
2. Write to the IND_ACC_ADDR register to set the register offset
3. Write the data value to the IND_ACC_DATA register
If auto-increment is set in the IND_ACC_CTL register, repeating step 3 will write additional data bytes to
subsequent register offset locations
For reads, the process is as follows:
1. Write to the IND_ACC_CTL register to select the desired register block
2. Write to the IND_ACC_ADDR register to set the register offset
3. Read from the IND_ACC_DATA register
If auto-increment is set in the IND_ACC_CTL register, repeating step 3 will read additional data bytes from
subsequent register offset locations.
Table 183. Indirect Register Map Description
IA SELECT
0xB0[5:2]
PAGE/BLOCK
0000
0
Digital Page 0 Indirect
Registers
0001
1
FPD-Link III Channel 0
Reserved Registers
0010
2
0011
0100
INDIRECT REGISTERS
ADDRESS RANGE
DESCRIPTION
0x01-0x1F
Pattern Gen Registers
0x40-0x48
CSI TX port 0 Timing Registers
0x00-0x14
Test and Debug registers
FPD-Link III Channel 1
Reserved Registers
0x00-0x14
Test and Debug registers
3
Reserved
0x00-0x14
Reserved
4
Reserved
0x00-0x14
Reserved
0101
5
FPD-Link III Share Reserved
Registers
0x00-0x04
Test and Debug registers
0110
6
Write All FPD-Link III Reserved
Registers
0x00-0x14
Test and Debug registers
0111
7
CSI TX Reserved Registers
0x00-0x1D
Test and Debug registers
7.6.166 Reserved Register
Table 184. Reserved (Indirect Address Page 0x00; Register 0x00)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R
0x0
Reserved
Copyright © 2017–2018, Texas Instruments Incorporated
131
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.167 PGEN_CTL Register
Table 185. PGEN_CTL (Indirect Address Page 0x00; Register 0x01)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:1
RESERVED
R/W
0x0
Reserved
PGEN_ENABLE
R/W
0x0
Pattern Generator Enable
1: Enable Pattern Generator
0: Disable Pattern Generator
0
7.6.168 PGEN_CFG Register
Table 186. PGEN_CFG (Indirect Address Page 0x00; Register 0x02)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7
PGEN_FIXED_EN
R/W
0x0
Fixed Pattern Enable
Setting this bit enables Fixed Color Patterns.
0 : Send Color Bar Pattern
1 : Send Fixed Color Pattern
6
RESERVED
R/W
0x0
Reserved
5:4
NUM_CBARS
R/W
0x3
Number of Color Bars
00 : 1 Color Bar
01 : 2 Color Bars
10 : 4 Color Bars
11 : 8 Color Bars
3:0
BLOCK_SIZE
R/W
0x3
Block Size
For Fixed Color Patterns, this field controls the size of the fixed
color field in bytes. Allowed values are 1 to 15.
7.6.169 PGEN_CSI_DI Register
Table 187. PGEN_CSI_DI (Indirect Address Page 0x00; Register 0x03)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:6
PGEN_CSI_VC
R/W
0x0
CSI Virtual Channel Identifier
This field controls the value sent in the CSI packet for the Virtual
Channel Identifier
5:0
PGEN_CSI_DT
R/W
0x24
CSI Data Type
This field controls the value sent in the CSI packet for the Data
Type. The default value (0x24) indicates RGB888.
7.6.170 PGEN_LINE_SIZE1 Register
Table 188. PGEN_LINE_SIZE1 (Indirect Address Page 0x00; Register 0x04)
BIT
FIELD
TYPE
7:0
PGEN_LINE_SIZE[1
R/W
5:8]
DEFAULT
DESCRIPTION
0x07
Most significant byte of the Pattern Generator line size. This is the
active line length in bytes. Default setting is for 1920 bytes for a
640 pixel line width.
7.6.171 PGEN_LINE_SIZE0 Register
Table 189. PGEN_LINE_SIZE0 (Indirect Address Page 0x00; Register 0x05)
132
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PGEN_LINE_SIZE[7:
0]
R/W
0x80
Least significant byte of the Pattern Generator line size. This is
the active line length in bytes. Default setting is for 1920 bytes
for a 640 pixel line width.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.172 PGEN_BAR_SIZE1 Register
Table 190. PGEN_BAR_SIZE1 (Indirect Address Page 0x00; Register 0x06)
BIT
FIELD
7:0
PGEN_BAR_SIZE[15
:8]
TYPE
R/W
DEFAULT
DESCRIPTION
0x0
Most significant byte of the Pattern Generator color bar size.
This is the active length in bytes for the color bars. This value
is used for all except the last color bar. The last color bar is
determined by the remaining bytes as defined by the
PGEN_LINE_SIZE value.
7.6.173 PGEN_BAR_SIZE0 Register
Table 191. PGEN_BAR_SIZE0 (Indirect Address Page 0x00; Register 0x07)
BIT
FIELD
7:0
PGEN_BAR_SIZE[7:
0]
TYPE
R/W
DEFAULT
DESCRIPTION
0xF0
Least significant byte of the Pattern Generator color bar size.
This is the active length in bytes for the color bars. This value
is used for all except the last color bar. The last color bar is
determined by the remaining bytes as defined by the
PGEN_LINE_SIZE value.
7.6.174 PGEN_ACT_LPF1 Register
Table 192. PGEN_ACT_LPF1 (Indirect Address Page 0x00; Register 0x08)
BIT
FIELD
TYPE
7:0
PGEN_ACT_LPF[15:8
R/W
]
DEFAULT
DESCRIPTION
0x01
Active Lines Per Frame
Most significant byte of the number of active lines per frame.
Default setting is for 480 active lines per frame.
7.6.175 PGEN_ACT_LPF0 Register
Table 193. PGEN_ACT_LPF0 (Indirect Address Page 0x00; Register 0x09)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PGEN_ACT_LPF[7:0]
R/W
0xE0
Active Lines Per Frame
Least significant byte of the number of active lines per frame.
Default setting is for 480 active lines per frame.
7.6.176 PGEN_TOT_LPF1 Register
Table 194. PGEN_TOT_LPF1 (Indirect Address Page 0x00; Register 0x0A)
BIT
FIELD
TYPE
7:0
PGEN_TOT_LPF[15:8
R/W
]
DEFAULT
DESCRIPTION
0x02
Total Lines Per Frame
Most significant byte of the number of total lines per frame
including vertical blanking
7.6.177 PGEN_TOT_LPF0 Register
Table 195. PGEN_TOT_LPF0 (Indirect Address Page 0x00; Register 0x0B)
BIT
FIELD
TYPE
7:0
PGEN_TOT_LPF[7:0] R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DEFAULT
DESCRIPTION
0x0D
Total Lines Per Frame
Least significant byte of the number of total lines per frame
including vertical blanking
133
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.178 PGEN_LINE_PD1 Register
Table 196. PGEN_LINE_PD1 (Indirect Address Page 0x00; Register 0x0C)
BIT
FIELD
TYPE
7:0
PGEN_LINE_PD[15:8
R/W
]
DEFAULT
DESCRIPTION
0x0C
Line Period
Most significant byte of the line period in 10ns units. The
default setting for the line period registers sets a line period of
31.75 microseconds.
7.6.179 PGEN_LINE_PD0 Register
Table 197. PGEN_LINE_PD0 (Indirect Address Page 0x00; Register 0x0D)
BIT
7:0
FIELD
TYPE
PGEN_LINE_PD[7:0]
R/W
DEFAULT
DESCRIPTION
0x67
Line Period
Least significant byte of the line period in 10ns units. The
default setting for the line period registers sets a line period of
31.75 microseconds.
7.6.180 PGEN_VBP Register
Table 198. PGEN_VBP (Indirect Address Page 0x00; Register 0x0E)
BIT
7:0
FIELD
TYPE
PGEN_VBP
R/W
DEFAULT
DESCRIPTION
0x21
Vertical Back Porch
This value provides the vertical back porch portion of the
vertical blanking interval. This value provides the number of
blank lines between the FrameStart packet and the first video
data packet.
7.6.181 PGEN_VFP Register
Table 199. PGEN_VFP (Indirect Address Page 0x00; Register 0x0F)
BIT
7:0
FIELD
PGEN_VFP
TYPE
R/W
DEFAULT
DESCRIPTION
0x0A
Vertical Front Porch
This value provides the vertical front porch portion of the
vertical blanking interval. This value provides the number of
blank lines between the last video line and the FrameEnd
packet.
7.6.182 PGEN_COLOR0 Register
Table 200. PGEN_COLOR0 (Indirect Address Page 0x00; Register 0x10)
BIT
7:0
FIELD
PGEN_COLOR0
TYPE
R/W
DEFAULT
DESCRIPTION
0xAA
Pattern Generator Color 0
For Reference Color Bar Patterns, this register controls the
byte data value sent during color bar 0.For Fixed Color
Patterns, this register controls the first byte of the fixed color
pattern.
7.6.183 PGEN_COLOR1 Register
Table 201. PGEN_COLOR1 (Indirect Address Page 0x00; Register 0x11)
BIT
7:0
134
FIELD
PGEN_COLOR1
TYPE
R/W
DEFAULT
DESCRIPTION
0x33
Pattern Generator Color 1
For Reference Color Bar Patterns, this register controls the
byte data value sent during color bar 1. For Fixed Color
Patterns, this register controls the second byte of the fixed
color pattern.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.184 PGEN_COLOR2 Register
Table 202. PGEN_COLOR2 (Indirect Address Page 0x00; Register 0x12)
BIT
7:0
FIELD
PGEN_COLOR2
TYPE
R/W
DEFAULT
DESCRIPTION
0xF0
Pattern Generator Color 2
For Reference Color Bar Patterns, this register controls the
byte data value sent during color bar 2. For Fixed Color
Patterns, this register controls the third byte of the fixed color
pattern.
7.6.185 PGEN_COLOR3 Register
Table 203. PGEN_COLOR3 (Indirect Address Page 0x00; Register 0x13)
BIT
7:0
FIELD
PGEN_COLOR3
TYPE
R/W
DEFAULT
DESCRIPTION
0x7F
Pattern Generator Color 3
For Reference Color Bar Patterns, this register controls the
byte data value sent during color bar 3. For Fixed Color
Patterns, this register controls the fourth byte of the fixed
color pattern.
7.6.186 PGEN_COLOR4 Register
Table 204. PGEN_COLOR4 (Indirect Address Page 0x00; Register 0x14)
BIT
7:0
FIELD
PGEN_COLOR4
TYPE
R/W
DEFAULT
DESCRIPTION
0x55
Pattern Generator Color 4
For Reference Color Bar Patterns, this register controls the
byte data value sent during color bar 4. For Fixed Color
Patterns, this register controls the fifth byte of the fixed color
pattern.
7.6.187 PGEN_COLOR5 Register
Table 205. PGEN_COLOR5 (Indirect Address Page 0x00; Register 0x15)
BIT
7:0
FIELD
PGEN_COLOR5
TYPE
R/W
DEFAULT
DESCRIPTION
0xCC
Pattern Generator Color 5
For Reference Color Bar Patterns, this register controls the
byte data value sent during color bar 5. For Fixed Color
Patterns, this register controls the sixth byte of the fixed color
pattern.
7.6.188 PGEN_COLOR6 Register
Table 206. PGEN_COLOR6 (Indirect Address Page 0x00; Register 0x16)
BIT
7:0
FIELD
PGEN_COLOR6
TYPE
R/W
Copyright © 2017–2018, Texas Instruments Incorporated
DEFAULT
DESCRIPTION
0x0F
Pattern Generator Color 6
For Reference Color Bar Patterns, this register controls the
byte data value sent during color bar 6. For Fixed Color
Patterns, this register controls the seventh byte of the fixed
color pattern.
135
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.189 PGEN_COLOR7 Register
Table 207. PGEN_COLOR7 (Indirect Address Page 0x00; Register 0x17)
BIT
7:0
FIELD
PGEN_COLOR7
TYPE
R/W
DEFAULT
DESCRIPTION
0x80
Pattern Generator Color 7
For Reference Color Bar Patterns, this register controls the
byte data value sent during color bar 7. For Fixed Color
Patterns, this register controls the eighth byte of the fixed
color pattern.
7.6.190 PGEN_COLOR8 Register
Table 208. PGEN_COLOR8 (Indirect Address Page 0x00; Register 0x18)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PGEN_COLOR8
R/W
0x0
Pattern Generator Color 8
For Fixed Color Patterns, this register controls the ninth byte
of the fixed color pattern.
7.6.191 PGEN_COLOR9 Register
Table 209. PGEN_COLOR9 (Indirect Address Page 0x00; Register 0x19)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PGEN_COLOR9
R/W
0x0
Pattern Generator Color 9
For Fixed Color Patterns, this register controls the tenth
byte of the fixed color pattern.
7.6.192 PGEN_COLOR10 Register
Table 210. PGEN_COLOR10 (Indirect Address Page 0x00; Register 0x1A)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PGEN_COLOR10
R/W
0x0
Pattern Generator Color 10
For Fixed Color Patterns, this register controls the eleventh
byte of the fixed color pattern.
7.6.193 PGEN_COLOR11 Register
Table 211. PGEN_COLOR11 (Indirect Address Page 0x00; Register 0x1B)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PGEN_COLOR11
R/W
0x0
Pattern Generator Color 11
For Fixed Color Patterns, this register controls the twelfth
byte of the fixed color pattern.
7.6.194 PGEN_COLOR12 Register
Table 212. PGEN_COLOR12 (Indirect Address Page 0x00; Register 0x1C)
136
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PGEN_COLOR12
R/W
0x0
Pattern Generator Color 12
For Fixed Color Patterns, this register controls the thirteenth
byte of the fixed color pattern.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.195 PGEN_COLOR13 Register
Table 213. PGEN_COLOR13 (Indirect Address Page 0x00; Register 0x1D)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PGEN_COLOR13
R/W
0x0
Pattern Generator Color 13
For Fixed Color Patterns, this register controls the fourteenth
byte of the fixed color pattern.
7.6.196 PGEN_COLOR14 Register
Table 214. PGEN_COLOR14 (Indirect Address Page 0x00; Register 0x1E)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
PGEN_COLOR14
R/W
0x0
Pattern Generator Color 14
For Fixed Color Patterns, this register controls the fifteenth
byte of the fixed color pattern.
7.6.197 RESERVED Register
Table 215. RESERVED (Indirect Address Page 0x00; Register 0x1F)
BIT
FIELD
TYPE
DEFAULT
DESCRIPTION
7:0
RESERVED
R/W
0x0
Reserved
7.6.198 CSI0_TCK_PREP Register
Table 216. CSI0_TCK_PREP (Indirect Address Page 0x00; Register 0x40)
BIT
7
6:0
FIELD
TYPE
DEFAULT
DESCRIPTION
MR_TCK_PREP_OV
R/W
0x0
Override CSI Tck-prep parameter
0: Tck-prep is automatically determined
1: Override Tck-prep with value in bits 6:0 of this register
MR_TCK_PREP
R
R/W
0x0
Tck-prep value
If bit 7 of this register is 0, this field is read-only, indicating
current automatically determined value.
If bit 7 of this register is 1, this field is read/write.
7.6.199 CSI0_TCK_ZERO Register
Table 217. CSI0_TCK_ZERO (Indirect Address Page 0x00; Register 0x41)
BIT
7
6:0
FIELD
TYPE
DEFAULT
DESCRIPTION
MR_TCK_ZERO_OV
RW
0x0
Override CSI Tck-zero parameter
0: Tck-zero is automatically determined
1: Override Tck-zero with value in bits 6:0 of this register
MR_TCK_ZERO
R
RW
0x0
Tck-zero value
If bit 7 of this register is 0, this field is read-only, indicating
current automatically determined value.
If bit 7 of this register is 1, this field is read/write.
7.6.200 CSI0_TCK_TRAIL Register
Table 218. CSI0_TCK_TRAIL (Indirect Address Page 0x00; Register 0x42)
BIT
7
6:0
FIELD
TYPE
DEFAULT
DESCRIPTION
MR_TCK_TRAIL_OV
R/W
0x0
Override CSI Tck-trail parameter
0: Tck-trail is automatically determined
1: Override Tck-trail with value in bits 6:0 of this register
MR_TCK_TRAIL
R
R/W
0x0
Tck-trail value
If bit 7 of this register is 0, this field is read-only, indicating
current automatically determined value.
If bit 7 of this register is 1, this field is read/write.
Copyright © 2017–2018, Texas Instruments Incorporated
137
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
7.6.201 CSI0_TCK_POST Register
Table 219. CSI0_TCK_POST (Indirect Address Page 0x00; Register 0x43)
BIT
7
6:0
FIELD
TYPE
DEFAULT
DESCRIPTION
MR_TCK_POST_OV
R/W
0x0
Override CSI Tck-post parameter
0: Tck-post is automatically determined
1: Override Tck-post with value in bits 6:0 of this register
MR_TCK_POST
R
R/W
0x0
Tck-post value
If bit 7 of this register is 0, this field is read-only, indicating
current automatically determined value.
If bit 7 of this register is 1, this field is read/write.
7.6.202 CSI0_THS_PREP Register
Table 220. CSI0_THS_PREP (Indirect Address Page 0x00; Register 0x44)
BIT
7
6:0
FIELD
DEFAULT
DESCRIPTION
MR_THS_PREP_OV R/W
0x0
Override CSI Ths-prep parameter
0: Ths-prep is automatically determined
1: Override Ths-prep with value in bits 6:0 of this register
R
R/W
0x0
Ths-prep value
If bit 7 of this register is 0, this field is read-only, indicating
current automatically determined value.
If bit 7 of this register is 1, this field is read/write.
MR_THS_PREP
TYPE
7.6.203 CSI0_THS_ZERO Register
Table 221. CSI0_THS_ZERO (Indirect Address Page 0x00; Register 0x45)
BIT
7
6:0
FIELD
TYPE
DEFAULT
DESCRIPTION
MR_THS_ZERO_OV
R/W
0x0
Override CSI Ths-zero parameter
0: Ths-zero is automatically determined
1: Override Ths-zero with value in bits 6:0 of this register
MR_THS_ZERO
R
R/W
0x0
Ths-zero value
If bit 7 of this register is 0, this field is read-only, indicating
current automatically determined value.
If bit 7 of this register is 1, this field is read/write.
7.6.204 CSI0_THS_TRAIL Register
Table 222. CSI0_THS_TRAIL (Indirect Address Page 0x00; Register 0x46)
BIT
7
6:0
138
FIELD
TYPE
DEFAULT
DESCRIPTION
MR_THS_TRAIL_OV
R/W
0x0
Override CSI Ths-trail parameter
0: Ths-trail is automatically determined
1: Override Ths-trail with value in bits 6:0 of this register
MR_THS_TRAIL
R
R/W
0x0
Ths-trail value
If bit 7 of this register is 0, this field is read-only, indicating
current automatically determined value.
If bit 7 of this register is 1, this field is read/write.
Copyright © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
7.6.205 CSI0_THS_EXIT Register
Table 223. CSI0_THS_EXIT (Indirect Address Page 0x00; Register 0x47)
BIT
7
6:0
FIELD
TYPE
DEFAULT
DESCRIPTION
MR_THS_EXIT_OV
R/W
0x0
Override CSI Ths-exit parameter
0: Ths-exit is automatically determined
1: Override Ths-exit with value in bits 6:0 of this register
MR_THS_EXIT
R
R/W
0x0
Ths-exit value
If bit 7 of this register is 0, this field is read-only, indicating current
automatically determined value.
If bit 7 of this register is 1, this field is read/write.
7.6.206 CSI0_TPLX Register
Table 224. CSI0_TPLX (Indirect Address Page 0x00; Register 0x48)
BIT
7
6:0
FIELD
TYPE
DEFAULT
DESCRIPTION
MR_TPLX_OV
R/W
0x0
Override CSI Tplx parameter
0: Tplx is automatically determined
1: Override Tplx with value in bits 6:0 of this register
MR_TPLX
R
R/W
0x0
Tplx value
If bit 7 of this register is 0, this field is read-only, indicating
current automatically determined value.
If bit 7 of this register is 1, this field is read/write.
版权 © 2017–2018, Texas Instruments Incorporated
139
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
8 Application and Implementation
注
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
8.1.1 System
The DS90UB954-Q1 is a highly integrated sensor hub chip which includes two FPD-Link III inputs targeted at
ADAS applications, such as front-, rear-, and surround-view cameras, camera monitoring systems, and sensor
fusion.
8.1.2 Power Over Coax
The DS90UB54-Q1 is designed to support the Power-over-Coax (PoC) method of powering remote sensor
systems. With this method, the power is delivered over the same medium (a coaxial cable) used for high-speed
digital video data and bidirectional control and diagnostics data transmission. The method uses passive networks
or filters that isolate the transmission line from the loading of the DC/DC regulator circuits and their connecting
power traces on both sides of the link as shown in 图 40.
Sensor Module
Automotive ECU
DC-DC
Regulators
Power
Source
PoC
Coaxial Cable
POWER
CAC1
Image Sensor
PoC
FPD-Link III
Serializer
CAC1
FPD-Link III
Deserializer
FPD-Link III
CAC2
RTERM
Braided
Shield
Processor
SoC
CAC2
RTERM
图 40. Power Over Coax (PoC) System Diagram
The PoC networks' impedance of ≥ 2 kΩ over a specific frequency band is typically sufficient to isolate the
transmission line from the loading of the regulator circuits. The lower limit of the frequency band is defined as ½
of the frequency of the bidirectional control channel, fBCC. The upper limit of the frequency band is the frequency
of the forward high-speed channel, fFC.
图 41 shows a PoC network recommended for a 4G FPD-Link III consisting of DS90UB953-Q1 and DS90UB954Q1 pair with the bidirectional channel operating at 50 Mbps (½ fBCC = 25 MHz) and the forward channel operating
at 4.16 Gbps (fFC ≈ 2.1 GHz).
140
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
Application Information (接
接下页)
VPoC
R1
4.02 k:
L1
10 PH
C1
10 nF
FB3
(Optional)
C2
> 10µF
FB2
(R = 0 )
FB1
CAC1
RIN+
33 nF to 100 nF
R2
CAC2
49.9 :
15 nF to 47 nF
RIN图 41. Typical PoC Network for a 4G FPD-Link III
表 225 lists essential components for this particular PoC network.
表 225. Suggested Components for a 4G FPD-Link PoC Network
COUNT
REF DES
DESCRIPTION
PART NUMBER
MFR
LQH3NPN100MJR
Murata
LQH3NPZ100MJR
Murata
NLCV32T-100K-EFD
TDK
Inductor, 10 µH, 0.400 Ω typical, 550 mA minimum (Isat, Itemp)
39-MHz SRF typ, 3 mm × 3 mm, AEC-Q200
TYS3010100M-10
Laird
Inductor, 10 µH, 0.325 Ω maximum, 725 mA minimum (Isat, Itemp)
41-MHz SRF typ, 3 mm × 3 mm, AEC-Q200
TYS3015100M-10
Laird
Ferrite Bead, 1500 kΩ at 1 GHz, 0.5 Ω maximum at DC
500 mA at 85°C, SM0603, General Purpose
BLM18HE152SN1
Murata
Ferrite Bead, 1500 kΩ at 1 GHz, 0.5 Ω maximum at DC
500 mA at 85°C, SM0603, AEC-Q200
BLM18HE152SZ1
Murata
Inductor, 10 µH, 0.288 Ω maximum, 530 mA minimum (Isat, Itemp)
30-MHz SRF min, 3 mm × 3 mm, General-Purpose
Inductor, 10 µH, 0.288 Ω maximum, 530 mA minimum (Isat, Itemp)
30-MHz SRF min, 3 mm × 3 mm, AEC-Q200
1
3
L1
FB1-FB3
Inductor, 10 µH, 0.360 Ω maximum, 450 mA minimum (Isat, Itemp)
30-MHz SRF min, 3.2 mm x 2.5 mm, AEC-Q200
版权 © 2017–2018, Texas Instruments Incorporated
141
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
图 42 shows a PoC network recommended for a 2G FPD-Link III consisting of a DS90UB933-Q1 or
DS90UB913A-Q1 serializer and DS90UB954-Q1 with the bidirectional channel operating at the data rate of 5
Mbps (½ fBCC = 2.5 MHz) and the forward channel operating at the data rate as high as 1.87 Gbps (fFC ≈ 1 GHz).
VPoC
R1
2.0 k:
L1
100 PH
R2
C1
0.1 PF
C2
>10 PF
L2
2.0 k:
4.7 PH ± 22 PH
FB1
CAC1
RIN+
100 nF
R3
CAC2
RIN-
49.9 :
47 nF
图 42. Typical PoC Network for a 2G FPD-Link III
表 226 lists essential components for this particular PoC network.
表 226. Suggested Components for a 2G FPD-Link III PoC Network
COUNT
REF DES
1
L1
1
1
142
L2
FB1
DESCRIPTION
PART NUMBER
MFR
Inductor, 100 µH, 0.310 Ω maximum, 710 mA minimum (Isat, Itemp)
7.2-MHz SRF typical, 6.6 mm × 6.6 mm, AEC-Q200
MSS7341-104ML
Coilcraft
Inductor, 4.7 µH, 0.350 Ω maximum, 700 mA minimum (Isat, Itemp)
160-MHz SRF typical, 3.8 mm x 3.8 mm, AEC-Q200
1008PS-472KL
Coilcraft
CBC3225T4R7MRV
Taiyo
Yuden
Ferrite Bead, 1500 kΩ at 1 GHz, 0.5 Ω maximum at DC
500-mA at 85°C, SM0603, General-Purpose
BLM18HE152SN1
Murata
Ferrite Bead, 1500 kΩ at 1 GHz, 0.5 Ω maximum at DC
500-mA at 85°C, SM0603, AEC-Q200
BLM18HE152SZ1
Murata
Inductor, 4.7 µH, 0.130 Ω maximum, 830 mA minimum (Isat, Itemp),
70-MHz SRF typical, 3.2 mm × 2.5 mm, AEC-Q200
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
Application report Sending Power over Coax in DS90UB913A Designs (SNLA224) discusses defining PoC
networks in more detail.
In addition to the PoC network components selection, their placement and layout play a critical role as well.
• Place the smallest component, typically a ferrite bead or a chip inductor, as close to the connector as
possible. Route the high-speed trace through one of its pads to avoid stubs.
• Use the smallest component pads as allowed by manufacturer's design rules. Add anti-pads in the inner
planes below the component pads to minimize impedance drop.
• Consult with connector manufacturer for optimized connector footprint. If the connector is mounted on the
same side as the IC, minimize the impact of the through-hole connector stubs by routing the high-speed
signal traces on the opposite side of the connector mounting side.
• Use coupled 100-Ω differential signal traces from the device pins to the AC-coupling caps. Use 50-Ω singleended traces from the AC-coupling capacitors to the connector.
• Terminate the inverting signal traces close to the connectors with standard 49.9-Ω resistors.
The suggested characteristics for single-ended PCB traces (microstrips or striplines) for serializer or deserializer
boards are detailed in 表 227. The effects of the PoC networks must be accounted for when testing the traces for
compliance to the suggested limits.
表 227. Suggested Characteristics for Single-Ended PCB Traces With Attached PoC Networks
PARAMETER
MIN
Ltrace
Single-ended PCB trace length from the device pin to the connector pin
Ztrace
Single-ended PCB trace characteristic impedance
45
Zcon
Connector (mounted) characteristic impedance
40
tΔZ_con
Allowable electrical length of the connector impedance discontinuity as measured with a
TDR (100 ps edge)
RL
Return Loss, S11
UNIT
5
cm
50
55
Ω
50
60
Ω
20
ps
–20
dB
0.1 GHz < f < 1 GHz
–12+8*log(f)
dB
–12
dB
f < 0.5 GHz
Insertion Loss, S21
MAX
½ fBCC < f < 0.1 GHz
1 GHz < f < fFC
IL
TYP
-0.35
dB
f = 1GHz
-0.6
dB
f = 2.1GHz
-1.2
dB
The VPOC noise must be kept to 10 mVp-p or lower on the source / deserializer side of the system. The VPOC
fluctuations on the serializer side, caused by the transient current draw of the sensor and the DC resistance of
cables and PoC components,must be kept at minimum as well. Increasing the VPOC voltage and adding extra
decoupling capacitance (> 10 µF) help reduce the amplitude and slew rate of the VPOC fluctuations.
版权 © 2017–2018, Texas Instruments Incorporated
143
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
8.2 Typical Application
4.7µF
0.01µF
t 0.1µF
4.7µF
0.01µF
t 0.1µF
4.7µF
0.01µF
t 0.1µF
4.7µF
0.01µF
t 0.1µF
VDD18_P0
VDD11_FPD0
VDD18_P1
VDD11_FPD1
VDD18_CSI
VDD11_CSI
VDD11_D
VDD18_FPD0
VDD18_FPD1
23-26 MHz
(100ppm)
XIN/REFCLK
XOUT
RTERM
FPD Link III
C1
C2
RIN0+
RIN0-
C3
C4
RIN1+
RIN1-
VDDIO
VDDIO
1.8V
0.01µF
t 0.1µF
0.1µF
FB1
10uF
0.01µF
t 0.1µF
0.01µF
t 0.1µF
0.01µF
t 0.1µF
0.1µF
10µF
FB2 (opt)
0.1µF
10µF
FB3 (opt)
0.01µF
t 0.1µF
V(VDDIO)
0.01µF
t 0.1µF
0.1µF
FB4
1µF
0.01µF
t 0.1µF
VDD_SEL
1.8V
R1
RTERM
R2
CMLOUTP
CMLOUTN
TEST
PAD
IDx
MODE
1.8V
R3
R4
0.1µF
33k
HW control option
SW Control
CSI0_CLKN
CSI0_CLKP
CSI0_D0N
CSI0_D0P
CSI0_D1N
CSI0_D1P
CSI0_D2N
CSI0_D2P
CSI0_D3N
IN_D2N
CSI0_D3P
PDB
>10µF
RES
V(VDDIO)
4.7k
GPIO3/INTB
GPIO0
GPIO1
GPIO2
GPIO4
GPIO5
GPIO6
GPIO
1.8V or
3.3V
DAP
4.7k
CSI-2 Outputs
CSI1_CLKN
CSI1_CLKP
LOCK
PASS
Status
I2C
0.1µF
4.7k
NOTE:
- FB2, FB3 may be required depending on system power supply noise levels
- FB1-FB4: '&5 ” 25mQ; Z = 120Q@100MHz
- C1, C2, C3, C4 (see Design Parameters Values Table)
- R1, R2 (see IDX Resistor Values Table)
- R3, R4 (see MODE Resistor Values Table)
- RTERM = 50Ÿ
I2C_SDA
I2C_SCL
954 Deserializer
图 43. Typical Connection Diagram Coaxial With Internal 1.1-V LDO
144
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
Typical Application (接
接下页)
1.1V
FB7
10uF
0.01µF
t 0.1µF
1.0µF
0.01µF
t 0.1µF
VDD18_P0
VDD11_FPD0
VDD18_P1
VDD11_FPD1
VDD18_CSI
VDD11_CSI
FB6
FB5
1.0µF
0.01µF
t 0.1µF
1.0µF
0.01µF
t 0.1µF
VDD11_D
VDD18_FPD0
VDD18_FPD1
23-26 MHz
(100ppm)
XIN/REFCLK
XOUT
C1
C2
RIN0P
RIN0N
C3
C4
RIN1P
RIN1N
VDDIO
VDDIO
FPDNLink III
1.8V
0.01µF
t 0.1µF
0.1µF
FB1
10uF
0.01µF
t 0.1µF
0.01µF
t 0.1µF
0.01µF
t 0.1µF
0.1µF
10µF
0.1µF
10µF
FB2
FB3
0.01µF
t 0.1µF
V(VDDIO)
0.01µF
t 0.1µF
0.1µF
FB4
1µF
0.01µF
t 0.1µF
VDD_SEL
1.8V
R1
R2
CMLOUTP
CMLOUTN
TEST
PAD
0.1µF
IDx
MODE
1.8V
R3
R4
0.1µF
33k
HW control option
SW Control
CSI0_CLKN
CSI0_CLKP
CSI0_D0N
CSI0_D0P
CSI0_D1N
CSI0_D1P
CSI0_D2N
CSI0_D2P
CSI0_D3N
IN_D2N
CSI0_D3P
PDB
>10µF
RES
V(VDDIO)
4.7k
GPIO3/INTB
GPIO0
GPIO1
GPIO2
GPIO4
GPIO5
GPIO6
GPIO
CSI-2 Outputs
CSI1_CLKN
CSI1_CLKP
LOCK
PASS
Status
1.8V or
3.3V
DAP
4.7k
4.7k
NOTE:
- FB1-FB4: '&5 ” 25mQ; Z = 120Q@100MHz
- C1, C2, C3, C4 (see Design Parameters Values Table)
- R1, R2 (see IDX Resistor Values Table)
- R3, R4 (see MODE Resistor Values Table)
I2C_SDA
I2C_SCL
I2C
954 Deserializer
图 44. Typical Connection Diagram STP With External 1.1-V supply
版权 © 2017–2018, Texas Instruments Incorporated
145
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Typical Application (接
接下页)
8.2.1 Design Requirements
For the typical design application, use the parameters listed in 表 228.
表 228. Design Parameters
DESIGN PARAMETER
EXAMPLE VALUE
V(VDDIO)
1.8 V or 3.3 V
V(VDD18)
1.8 V
V(VDD11)( When VDD_SEL = HIGH)
1.1 V
AC-coupling Capacitor for Synchronous Modes, Coaxial Connection:
RIN0+ ,RIN1+
33 nF - 100nF (50 WV 0402)
AC-coupling Capacitor for Synchronous Modes, Coaxial Connection:
RIN0- ,RIN1-
15 nF - 47nF (50 WV 0402)
AC-coupling Capacitor for Synchronous Modes, STP Connection:
RIN0± ,RIN1±
33 nF - 100nF (50 WV 0402)
AC-coupling Capacitor for Non-Synchronous and DVP Backwards
Compatible Modes, Coaxial Connection: RIN0+, RIN1+
100 nF (50 WV 0402)
AC-coupling Capacitor for Non-Synchronous and DVP Backwards
Compatible Modes, Coaxial Connection: RIN0-, RIN1-
47 nF (50 WV 0402)
AC-coupling Capacitor for Non-Synchronous and DVP Backwards
Compatible Modes, STP Connection: RIN0±, RIN1±
100 nF (50 WV 0402)
The SER/DES supports only AC-coupled interconnects through an integrated DC-balanced decoding scheme.
External AC-coupling capacitors must be placed in series in the FPD-Link III signal path as shown in 图 45 and
图 46. When connected to the DS90UB935-Q1 or DS90UB953-Q1 serializer operating with 10-Mbps back
channel, the higher value AC-coupling capacitors are recommended to reduce low frequency attenuation. For
applications using single-ended 50-Ω coaxial cable, terminate the unused data pins (RIN0–, RIN1–) with an ACcoupling capacitor and a 50-Ω resistor.
DOUT+
RIN+
DOUT-
RIN-
SER
DES
50Q
50Q
图 45. AC-Coupled Connection (Coaxial)
DOUT+
RIN+
DOUT-
RIN-
SER
DES
图 46. AC-Coupled Connection (STP)
For high-speed FPD–Link III transmissions, use the smallest available package for the AC-coupling capacitor to
help minimize degradation of signal quality due to package parasitics.
8.2.2 Detailed Design Procedure
图 43 and 图 44 show typical applications of the DS90UB954-Q1 for multi-camera surround view system. From
图 43, the FPD-Link III is AC coupled an external 33 to 100-nF or 15 to 47-nF capacitors for coaxial
interconnects. For 2G operation or back channel frequency of ≤ 10 Mbps, the higher value AC-coupling
capacitors 100 nF /47 nF are recommended. The same AC-coupling capacitor values should be matched on the
paired serializer boards. The deserializer has an internal termination. Bypass capacitors are placed near the
power supply pins. At a minimum, 0.1-μF or 0.01-μF capacitors should be used for each of the core supply pins
for local device bypassing. Additional bulk decoupling capacitors and ferrite beads are placed on the VDD18
supplies for effective noise suppression.
146
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
CSI-2 Output (500 mV/DIV)
CSI-2 Output (500 mV/DIV)
8.2.3 Application Curves
Time (50 ns/DIV)
Time (50 ns/DIV)
P
LP11
LP01
LP00
HS0
HS Data
N
图 48. CSI-2 DATA and Continuous CLK Output
CSI-2 Output (500 mV/DIV)
CSI-2 Output (500 mV/DIV)
图 47. CSI-2 DATA and CLK Output
P
HS Data
LP11
N
Time (50 ns/DIV)
图 49. CSI-2 Start of Transmission (SoT)
HS0
Time (50 ns/DIV)
图 50. CSI-2 End of Transmission (EoT)
8.3 System Examples
The DS90UB954-Q1 has two input ports that are capable of operating independently. Two sensors can be
connected simultaneously, or a single sensor can be connected to either Rx input port 0 (图 51) or Rx input port
1 (图 53). The DS90UB954-Q1 deserializer is capable of receiving serialized sensor data from one or two
independent video datastreams and aggregating into a single CSI-Tx output. Alternatively, Rx Data can be
replicated onto two 2-Lane CSI-2 outputs for interconnect to two seperate CSI-2 Rx inputs for parallel
downstream processing.
MIPI CSI-2
3.2 Gbps
DS90UB953
Serializer
DS90UB953
Serializer
DS90UB954-Q1
Deserializer
CSI-2
Tx Port
MIPI CSI-2
3.2 Gbps
MIPI CSI-2
1.6 Gbps/lane X 4
Host / ISP
图 51. Two DS90UB953-Q1 Sensor Data Combined to One CSI-2 Output
版权 © 2017–2018, Texas Instruments Incorporated
147
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
System Examples (接
接下页)
DS90UB953
Serializer
DS90UB954-Q1
Deserializer
CSI-2
Tx Port
MIPI CSI-2
3.200 Gbps
MIPI CSI-2
800 Mbps/lane X 4
Host / ISP
图 52. DS90UB953-Q1 Sensor Data to 1 Rx Port
DS90UB953
Serializer
DS90UB954-Q1
Deserializer
CSI-2
Tx Port
MIPI CSI-2
3.200 Gbps
MIPI CSI-2
1.6 Gbps/lane X 2
Host / ISP
MIPI CSI-2
1.6 Gbps/lane X 2
图 53. DS90UB953-Q1 Sensor Data Replicated onto 2x 2-Lane CSI-2
RAW 10/12
DS90UB953
Serializer
DS90UB933
Serializer
DS90UB954-Q1
Deserializer
CSI-2
Tx Port
MIPI CSI-2
3.2 Gbps
MIPI CSI-2
1.6 Gbps/lane X 4
Host / ISP
图 54. One DS90UB953-Q1 and One DS90UB933-Q1 Sensor Data Combined to One CSI-2 output
148
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
9 Power Supply Recommendations
This device provides separate power and ground pins for different portions of the circuit. This is done to isolate
switching noise effects between different sections of the circuit. Separate planes on the PCB are typically not
required. provides guidance on which circuit blocks are connected to which power pin pairs. In some cases, an
external filter many be used to provide clean power to sensitive circuits such as PLLs.
9.1 VDD and VDDIO Power Supply
Each VDD power supply pin must have a 10-nF (or 100-nF) capacitor to ground connected as close as possible
to DS90UB954-Q1 device. When operating VDDIO at 1.8-V nominal supply, the voltage at VDDIO must be within
±100 mV of VDD18 to ensure VIH, VIL specifications. TI recommends having additional decoupling capacitors (1
µF or 10 µF) connected to a common GND plane. Note that although average current for VDDIO is less than 10
mA maximum, the peak current into VDDIO may exceed 100 mA on device start-up.
9.2 Power-Up Sequencing
The power-up sequence for the DS90UB954-Q1 is as follows:
T0
VDD18
T1
T2
VDDIO
T3
T7
T8
T6
Hard
Reset
PDB
REFCLK
DON’T CARE
图 55. Power Supply Sequencing VDD_SEL = LOW, Internal VDD 1.1-V Supply
版权 © 2017–2018, Texas Instruments Incorporated
149
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Power-Up Sequencing (接
接下页)
T0
VDD18
T1
T2
VDDIO
T3
T4
VDD11
T8
T7
T5
T6
Hard
Reset
PDB
REFCLK
图 56. Power Supply Sequencing VDD_SEL = HIGH, External VDD 1.1-V Supply
表 229. Timing Diagram for the Power Supply Start-Up Sequence
PARAMETER
MIN
TYP
MAX
UNIT
0
ms
0.05
ms
0
ms
NOTES
T0
VDD18 to VDDIO
T1
VDD18 rise time
T2
VDDIO to VDD18
T3
VDDIO rise time
T4
VDD18 High to VDD11 applied
T5
VDD11 rise time
ms
at 10/90%
T6
VDD to PDB
0
ms
After all VDD are
stable
T7
PDB high time before PDB hard reset
1
ms
T8
PDB high to low pulse width
2
ms
0.2
1
0
0.2
1
at 10/90%
ms
at 10/90%
ms
N/A when
VDD_SEL = LOW
Hard reset
9.2.1 PDB Pin
The PDB pin is active HIGH and has internal 50 kΩ pull down resistor. PDB input must remain LOW while the
VDD pin power supplies are in transition. Typically PDB will be connected to GPIO from processor also with
internal pulldown. Alternatively, when VDD_SEL = LOW, an external RC network on the PDB pin may be
connected to ensure PDB arrives after all the supply pins have settled to the recommended operating voltage.
When PDB pin is pulled up to VDD18, a 33-kΩ pullup and a > 10-μF capacitor to GND are recommended to
delay the PDB input signal rise. All inputs must not be driven until both power supplies have reached steady
state. When VDD_SEL = HIGH it is not recommended to connect PDB through RC circuit as this may conflict
with the sequencing of the external 1.1-V supply rail.
表 230. PDB Pin Pulse Width
PARAMETER
TEST CONDITIONS
MIN
TYP
2
3
MAX
UNIT
PDB
tLRST
150
PDB Reset Low Pulse
ms
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
9.2.2 System Initialization
When initializing the communications link between the DS90UB954-Q1 deserializer hub and a DS90UB935-Q1
or a DS90UB953-Q1 serializer, the system timing will depend on the mode selected for generating the serializer
reference clock. When synchronous clocking mode is selected, the serializer will re-lock onto the extracted back
channel reference clock once available so there is no need for local crystal oscillator at the sensor module (图
57). When the DS90UB935-Q1 or DS90UB953-Q1 is operating in non-synchronous mode, or if connecting to
DS90UB933-Q1 or DS90UB913A-Q1 serializer the sensor module requires a local reference clock and timing
would follow 图 58.
VDD18
VDDIO
VDD11
(int)
PDB
T1
MODE,
IDX Valid
REFCLK
954 Lock Time
LOCK
954
Config
I2C
Local
I2C
Remote
CSI Tx enable,
RX Port Forward
Sensor
Config
SER Lock Time
RIN+
SER Internal
Reference
954 Backchannel Reference to SER
CSI TX
CLK
图 57. Power-Up Sequencing Synchronous Back Channel Clocking Mode, VDD_SEL = LOW
版权 © 2017–2018, Texas Instruments Incorporated
151
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
VDD18
VDDIO
VDD11
(int)
PDB
T1
MODE,
IDX Valid
REFCLK
954 Lock Time
LOCK
I2C
Local
954
Config
I2C
Remote
CSI Tx enable,
RX Port Forward
Sensor
Config
RIN+
EXTCLK Reference to SER
CSI TX
CLK
图 58. Power-Up Sequencing Non-synchronous Back Channel Clocking Mode, VDD_SEL = LOW
10 Layout
10.1 PCB Layout Guidelines
Circuit board layout and stack-up for the FPD-Link III devices must be designed to provide low-noise power feed
to the device. Good layout practice also separates high-frequency or high-level inputs and outputs to minimize
unwanted noise pickup, feedback, and interference. Power system performance may be greatly improved by
using thin dielectrics (2 to 4 mils) for power or ground sandwiches. This arrangement provides plane capacitance
for the PCB power system with low-inductance parasitics, which has proven especially effective at high
frequencies, and makes the value and placement of external bypass capacitors less critical. External bypassing
should be low-ESR ceramic capacitors with high-quality dielectric. The voltage rating of the ceramic capacitors
must be at least 2× the power supply voltage being used.
TI recommends surface-mount capacitors due to their smaller parasitics. When using multiple capacitors per
supply pin, locate the smaller value closer to the pin. A large bulk capacitor is recommend at the point of power
entry. This is typically in the 47-µF to 100-µF range, which smooths low frequency switching noise. TI
recommends connecting power and ground pins directly to the power and ground planes with bypass capacitors
connected to the plane with via on both ends of the capacitor. Connecting power or ground pins to an external
bypass capacitor increases the inductance of the path.
152
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
PCB Layout Guidelines (接
接下页)
A small body size X7R chip capacitor, such as 0603 or 0402, is recommended for external bypass. Its small body
size reduces the parasitic inductance of the capacitor. The user must pay attention to the resonance frequency of
these external bypass capacitors, usually in the range of 20 to 30 MHz. To provide effective bypassing, multiple
capacitors are often used to achieve low impedance between the supply rails over the frequency of interest. At
high frequency, it is also a common practice to use two vias from power and ground pins to the planes, reducing
the impedance at high frequency.
Some devices provide separate power and ground pins for different portions of the circuit. This is done to isolate
switching noise effects between different sections of the circuit. Separate planes on the PCB are typically not
required. Pin Description tables typically provide guidance on which circuit blocks are connected to which power
pin pairs. In some cases, an external filter may be used to provide clean power to sensitive circuits such as PLLs
Use at least a four-layer board with a power and ground plane. Locate CSI-2 signals away from the single-ended
or differential FPD RX input traces to prevent coupling from the CSI-2 signals to the RX inputs. The following
sections provide important details for routing the FPD-Link III traces, PoC filter, and CSI-2 traces.
10.1.1 Ground
TI recommends that a consistent ground plane reference for the high-speed signals in the PCB design to provide
the best image plane for signal traces running parallel to the plane. Connect the thermal pad of the DS90UB954Q1 to the GND plane with vias.
10.1.2 Routing FPD-Link III Signal Traces and PoC Filter
Routing the FPD-Link III signal traces between the RIN pins and the connector as well as connecting the PoC
filter to these traces are the most critical pieces of a successful DS90UB954-Q1 PCB layout. 图 59 shows an
example PCB layout of the DS90UB954-Q1 configured for interface to remote sensor modules over coaxial
cables. The layout example also uses a footprint of an edge-mount FAKRA connector provided by Rosenberger
(P/N: 59S20X-40ML5-Z). For additional PCB layout details of the example, check the DS90UB954-Q1EVM user's
guide.
The following list provides essential recommendations for routing the FPD-Link III signal traces between the
DS90UB954-Q1EVM receiver input pins (RIN) and the FAKRA connector, and connecting the PoC filter.
• The routing of the FPD-Link III traces may be all on the top layer (as shown in the example) or partially
embedded in middle layers if EMI is a concern
• The AC-coupling capacitors should be on the top layer and very close to the DS90UB954-Q1EVM receiver
input pins to minimize the length of coupled differential trace pair between the pins and the capacitors.
• Route the RIN+ trace between the AC-coupling capacitor and the FAKRA connector as a 50-Ω single-ended
micro-strip with tight impedance control (±10%). Calculate the proper width of the trace for a 50-Ω impedance
based on the PCB stack-up. Ensure that the trace can carry the PoC current for the maximum load presented
by the remote sensor module.
• The PoC filter should be connected to the RIN+ trace through the first ferrite bead (FB1). The FB1 should be
touching the high-speed trace to minimize the stub length seen by the transmission line. Create an anti-pad or
a moat under the FB1 pad that touches the trace. The anti-pad should be a plane cutout of the ground plane
directly underneath the top layer without cutting out the ground reference under the trace. The purpose of the
anti-pad is to maintain the impedance as close to 50 Ω as possible.
• Route the RIN– trace loosely coupled to the RIN+ trace for the length similar to the RIN+ trace length when
possible. This will help the differential nature of the receiver to cancel out any common-mode noise that may
be present in the environment that may couple on to the RIN+ and RIN– signal traces. When routing on inner
layers, length matching for single-ended traces does not provide as significant benefit.
When configured for STP and routing differential signals to the DS90UB954-Q1 receiver inputs, the traces should
maintain 100-Ω differential impedance routed to the connector. When choosing to implement a common mode
choke for common mode noise reduction, take care to minimize the effect of any mismatch. 图 60 shows an
example PCB layout for STP configuration.
版权 © 2017–2018, Texas Instruments Incorporated
153
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
PCB Layout Guidelines (接
接下页)
10.1.3 Routing CSI-2 Signal Traces
Routing the CSI-2 signal traces between the CSI-2 pins and the CSI-2 connector is also important for a
successful DS90UB954-Q1 PCB layout. 图 61 shows essential details for routing the CSI-2 traces. Additional
recommendations are given in the following list:
1. Route CSI_D0N, CSI_D0P, CSI_D1N, and CSI_D1P pairs as differential coupled striplines with controlled
100-Ω differential impedance (±10%)
2. Keep the trace length difference between CSI-2 traces to 5 mils of each other.
3. Length matching should be near the location of mismatch.
4. Each pair should be separated at least by 5 times the signal trace width.
5. Keep away from other high-speed signals.
6. Keep the use of bends in differential traces to a minimum. When bends are used, the number of left and right
bends must be as equal as possible, and the angle of the bend should be ≥ 135 degrees. This arrangement
minimizes any length mismatch caused by the bends and therefore minimizes the impact that bends have on
EMI.
7. Route all differential pairs on one or two inner layers.
8. Keep the number of signal vias to a minimum — TI recommends keeping the via count to the maximum of
two per CSI-2 trace.
9. Keep traces on layers adjacent to ground plane.
10. Do NOT route differential pairs over any plane split.
11. Adding Test points causes impedance discontinuity and therefore negatively impacts signal performance. If
test points are used, place them in series and symmetrically. Test points must not be placed in a manner that
causes a stub on the differential pair.
154
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
10.2 Layout Examples
Follow PCB footprint
recommendations
from the connector
manufacturer to
maintain 50-:
impedance through
the connector
Route RIN+ trace as a
50-: single-ended
trace with tight
impedance control
(±10%)
Ensure RIN+ trace
can carry PoC current
without significant
temperature rise
( 3W)
Moat the GND plane
underneath the FB1
pad touching the RIN+
trace to minimize
parasitic capacitance,
but maintain the GND
plane underneath the
RIN+ trace
FB1
FB2
R1
L1
PoC Voltage
Entry Point
RIN-
RIN+
CAC
CAC
Place AC coupling
caps close to RIN
pins to minimize the
length of the RIN
differential traces
RIN Pins
Thermal vias
under
DS90UB954 PAD
*W is a trace width. S is a
gap between adjacent
traces.
图 59. DS90UB954-Q1 PCB Layout Example: FPD-Link III Signal Traces and PoC Filter
版权 © 2017–2018, Texas Instruments Incorporated
155
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
Layout Examples (接
接下页)
Follow PCB footprint
recommendations from the
connector manufacturer to
maintain 100-: differential
impedance through the
connector
Route RIN traces as 100-:
coupled striplines with
tight impedance control
(±10%)
Route RIN traces on an inner
signal layer close to the
bottom layer or the bottom
layer to minimize the
connector stub length
Optional common mode
choke
Back drill the top side of the
vias to minimize the via stub
length
L1
Place AC coupling caps
close to RIN pins to
minimize the length of
coupled microstrips
CAC
CAC
RIN Pins
Thermal vias under
DS90UB954 PAD
*W is a trace width. S is a
gap between adjacent
traces.
图 60. DS90UB954-Q1 PCB Layout Example: FPD-Link III Differential Signal Traces
156
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
Layout Examples (接
接下页)
Thermal vias under
DS90UB954 PAD
Optional 0-: resistors
Bring CSI traces to
the inner layers close
to the CSI pins
Route CSI traces as
100-: differential
coupled striplines
(S=2W*) with tight
impedance control
(±10%)
Ensure CSI trace
length is matched
within 5 mils for
minimal intra-pair and
pair-pair skew
Avoid acute angles
when routing CSI
traces
Ensure pair-pair gap
is >5W* for minimal
pair-pair coupling
Route CSI traces on 1
or 2 inner signal
layers each
sandwiched with GND
or power planes to
form coupled
striplines
CSI-2 Connector
*W is a trace width. S is a
gap between adjacent
traces.
图 61. DS90UB954-Q1 PCB Layout Example: CSI-2 Traces
版权 © 2017–2018, Texas Instruments Incorporated
157
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
11 器件和文档支持
11.1 器件支持
11.1.1 开发支持
相关开发支持，请参见以下文档：
DS90UB953-Q1
11.2 文档支持
11.2.1 相关文档
请参阅如下相关文档：
• 《如何使用 DS90UB953 和 DS90UB954 设计 FPD-Link III 系统》(SNLA267)
• 《通过具有双向控制通道的 FPD-Link III 进行 I2C 通信》(SNLA131)
• 《I2C 总线上拉电阻器计算》(SLVA689)
• 《通过具有双向控制通道的 DS90UB913/4 FPD-Link III 进行 I2C 通信》(SNLA222)
• 《在 DS90UB913A 设计中进行同轴电缆供电》(SNLA224)
• FPD-Link 学习中心
• 《一种适用于 FPD-Link III SerDes 的 EMC/EMI 系统设计和测试方法》(SLYT719)
• 《按照车用 EMC/EMI 要求进行成功设计的 10 个技巧》(SLYT636)
11.3 接收文档更新通知
要接收文档更新通知，请导航至 TI.com.cn 上的器件产品文件夹。单击右上角的通知我进行注册，即可每周接收产
品信息更改摘要。有关更改的详细信息，请查看任何已修订文档中包含的修订历史记录。
11.4 社区资源
下列链接提供到 TI 社区资源的连接。链接的内容由各个分销商“按照原样”提供。这些内容并不构成 TI 技术规范，
并且不一定反映 TI 的观点；请参阅 TI 的 《使用条款》。
TI E2E™ 在线社区 TI 的工程师对工程师 (E2E) 社区。此社区的创建目的在于促进工程师之间的协作。在
e2e.ti.com 中，您可以咨询问题、分享知识、拓展思路并与同行工程师一道帮助解决问题。
设计支持
TI 参考设计支持 可帮助您快速查找有帮助的 E2E 论坛、设计支持工具以及技术支持的联系信息。
11.5 商标
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
11.6 静电放电警告
ESD 可能会损坏该集成电路。德州仪器 (TI) 建议通过适当的预防措施处理所有集成电路。如果不遵守正确的处理措施和安装程序 , 可
能会损坏集成电路。
ESD 的损坏小至导致微小的性能降级 , 大至整个器件故障。 精密的集成电路可能更容易受到损坏 , 这是因为非常细微的参数更改都可
能会导致器件与其发布的规格不相符。
11.7 术语表
SLYZ022 — TI 术语表。
这份术语表列出并解释术语、缩写和定义。
158
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
12 机械、封装和可订购信息
以下页面包含机械、封装和可订购信息。这些信息是指定器件的最新可用数据。数据如有变更，恕不另行通知，且
不会对此文档进行修订。如需获取此数据表的浏览器版本，请查阅左侧的导航栏。
版权 © 2017–2018, Texas Instruments Incorporated
159
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
PACKAGE OUTLINE
RGZ0048B
VQFN - 1 mm max height
SCALE 2.000
PLASTIC QUAD FLATPACK - NO LEAD
7.15
6.85
B
A
PIN 1 INDEX AREA
7.15
6.85
1 MAX
C
SEATING PLANE
0.05
0.00
0.08 C
2X 5.5
4.1 0.1
(0.2) TYP
44X 0.5
EXPOSED
THERMAL PAD
24
13
12
25
49
2X
5.5
SYMM
36
1
37
48
PIN 1 ID
(OPTIONAL)
SYMM
48X
0.30
0.18
0.1
C B A
0.05
48X
0.5
0.3
4218795/B 02/2017
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. The package thermal pad must be soldered to the printed circuit board for thermal and mechanical performance.
www.ti.com
160
版权 © 2017–2018, Texas Instruments Incorporated
DS90UB954-Q1
www.ti.com.cn
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
EXAMPLE BOARD LAYOUT
RGZ0048B
VQFN - 1 mm max height
PLASTIC QUAD FLATPACK - NO LEAD
( 4.1)
(1.115) TYP
(0.685)
TYP
48
48X (0.6)
37
1
36
48X (0.24)
(1.115)
TYP
44X (0.5)
SYMM
(0.685)
TYP
49
( 0.2) TYP
VIA
(6.8)
(R0.05)
TYP
25
12
13
24
SYMM
(6.8)
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE:12X
0.07 MIN
ALL AROUND
0.07 MAX
ALL AROUND
SOLDER MASK
OPENING
METAL
EXPOSED METAL
EXPOSED METAL
SOLDER MASK
OPENING
METAL UNDER
SOLDER MASK
NON SOLDER MASK
DEFINED
(PREFERRED)
SOLDER MASK
DEFINED
SOLDER MASK DETAILS
4218795/B 02/2017
NOTES: (continued)
4. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature
number SLUA271 (www.ti.com/lit/slua271).
5. Vias are optional depending on application, refer to device data sheet. If any vias are implemented, refer to their locations shown
on this view. It is recommended that vias under paste be filled, plugged or tented.
www.ti.com
版权 © 2017–2018, Texas Instruments Incorporated
161
DS90UB954-Q1
ZHCSGT3B – AUGUST 2017 – REVISED DECEMBER 2018
www.ti.com.cn
EXAMPLE STENCIL DESIGN
RGZ0048B
VQFN - 1 mm max height
PLASTIC QUAD FLATPACK - NO LEAD
(1.37)
TYP
48
37
48X (0.6)
1
36
48X (0.24)
44X (0.5)
(1.37)
TYP
SYMM
49
(R0.05) TYP
(6.8)
9X
( 1.17)
METAL
TYP
25
12
13
24
SYMM
(6.8)
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
EXPOSED PAD 49
73% PRINTED SOLDER COVERAGE BY AREA UNDER PACKAGE
SCALE:12X
4218795/B 02/2017
NOTES: (continued)
6. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
www.ti.com
162
版权 © 2017–2018, Texas Instruments Incorporated
PACKAGE OPTION ADDENDUM
www.ti.com
11-Nov-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
DS90UB954TRGZRQ1
ACTIVE
VQFN
RGZ
48
2500
RoHS & Green
Call TI | NIPDAU
Level-3-260C-168 HR
-40 to 105
UB954Q
DS90UB954TRGZTQ1
ACTIVE
VQFN
RGZ
48
250
RoHS & Green
Call TI | NIPDAU
Level-3-260C-168 HR
-40 to 105
UB954Q
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
