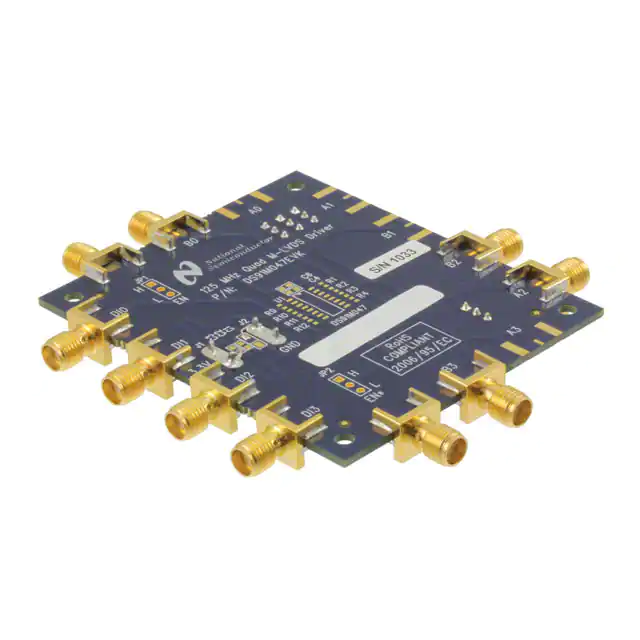

DS91M125 125 MHz 1:4 M-LVDS Repeater with LVDS Input Evaluation Kit USER MANUAL Part Number: DS91M125EVK NOPB For the latest documents concerning these products and evaluation kit, visit lvds.national.com. Schematics and gerber files are also available at lvds.national.com August 11, 2008 Rev. 1.0 1 © 2008, National Semiconductor Corp. Overview The purpose of this document is to familiarize you with the DS91M125 evaluation board, suggest the test setup procedures and instrumentation, and to guide you through some typical measurements that will demonstrate the performance of the device. The board enables the user to examine performance and all functions of the DS91M125 as a standalone device. The DS91M125 is a high-speed 1:4 M-LVDS repeater with an LVDS input designed for multipoint applications with multiple drivers or receivers. The device conforms to TIA/EIA-899 standard. It utilizes M-LVDS technology for low power, high-speed and superior noise immunity. Description Figure 1 below represents the top layer drawing of the board with the silkscreen annotations. It is a 2.5 x 3 inch 4 layer printed circuit board (PCB) that features a single DS91M125 (U2) device. Figure 1 - DS91M125EVK Top View Drawing August 11, 2008 Rev. 1.0 2 © 2008, National Semiconductor Corp. DS91M125 Evaluation in a Point-to-Point Link The following is a recommended procedure for using and evaluating the DS91M125EVK. Figure 2 depicts a typical setup and instrumentation used. 1. Select a single DS91M125 evaluation board. 2. Apply the power to the board (3.3 V typical) between J3 and J4 power tabs, observe the value of ICC, and compare it with the expected value (refer to the datasheet) to ensure that the devices are functional. 3. Enable one of the U2 driver outputs. This is accomplished by setting the DE0-3 pin to VDD (JP3-6). 4. Connect a signal source to the driver input (DI+, DI-). The signal needs to be an LVDS/MLVDS/CML/LVPECL compliant signal. Refer to the DS91M125 datasheet for the receiver input compatibility. 5. Connect one of the U2 outputs (A0-3/B0-3) to an oscilloscope and observe the waveforms. Figure 2 – DS91M125 Test Setup August 11, 2008 Rev. 1.0 3 © 2008, National Semiconductor Corp. Figure 3 shows an eye diagram acquired at the output of the DS91M125 driver loaded with a 100-ohm resistor. The generator connected to the driver input simulated a 100 Mbps PRBS-7 NRZ. Figure 3 – DS91M125 Output August 11, 2008 Rev. 1.0 4 © 2008, National Semiconductor Corp. ENERCON - BILL OF MATERIALS TITLE: Main Product: 1 PCB Rev: Rev By: Rev Date: PL Number: Z3252-01 1 BJ Responsible Eng/Mgr: DS91M125 PCBA, DS91M125EVK, ROHS Item Part Type NATIONAL SEMICONDUCTOR PCBA, DS91M125EVK, ROHS Part Number/Value Mfg NoSub Description Qty PL Status: Released Creator: Creation Date: Arlene Fox 03/14/08 Ref Des SMT 04/30/08 Notes 1 Rev P-06540R0 ENERCON 0 Z3211-04 ENERCON LABEL, MADE IN U.S.A. 1 DS91M125TMA NAT 125MHz 1:4 M-LVDS Repeater, SOIC16 1 X U2 0 ERJ-2RKF1000 PANA 100 Ohm 1/16W ±1% 0402 100ppm, Pb-Free 1 X R13 0 9 CAP 06035C103KAT AVX .01µF, 50V, ±10%, 0603, Ceramic, X7R, Pb-Free 2 X C7,10 0 10 CAP 0603YC104KAT AVX .1µF, 16V, ±10%, 0603, Ceramic, X7R, PbFree 2 X C5,9 0 11 CAP TAJA106K016 AVX 10µF, 16V, ±10%, A-Case, Tantalum, PbFree 1 X C8 0 13 CONN 1287 KEYSTONE Faston, Male, .250", Pb-Free 2 J3,4 0 14 CONN 142-0701-851 EMERSON SMA, Jack Receptacle, 50 OHM, Pb-Free SMA13-22 0 15 CONN 15-29-1024 MOLEX Jumper Shunt, 2p, Gold, Pb-Free 4 16 CONN TSW-103-07-G-S SAMTEC Header, 3p, Male, .100"sp, Gold, Pb-Free 4 T-06544R0 ENERCON STENCIL FABRICATION, BOTTOM, DS91M047EVK/DS91M1... 1 20 REF C-06541R0 ENERCON FAB DWG, DS91M047EVK/DS91M124EVK/DS91M125EVK 0 21 REF C-06542R0 ENERCON PALLET DWG, DS91M047EVK/DS91M124EVK/DS91M125EVK 0 22 REF S-06539R0 ENERCON SCHEMATIC, DS91M047EVK/DS91M124EVK/DS91M125EVK 0 2 3 SUBASY Apply to bottom of PCBA 1 4 5 IC 6 7 RES 8 12 10 Use on JP3,4,5,6 Pins 2&3 JP3,4,5,6 0 0 17 18 STENCL 0 19 23 10:32:55 AM, 06/17/08 Confidential and Proprietary. This document is considered uncontrolled unless stamped otherwise. Page 1 of 2 ENERCON - BILL OF MATERIALS TITLE: Main Product: NATIONAL SEMICONDUCTOR PCBA, DS91M125EVK, ROHS PL Number: Rev: Rev By: Rev Date: Z3252-01 1 Responsible Eng/Mgr: DS91M125 PCBA, DS91M125EVK, ROHS BJ 04/30/08 PL Status: Released Creator: Creation Date: Arlene Fox 03/14/08 Notes: DO NOT STUFF: U1 M1-10 JP1,2 R1-12,14,15 T1-2,7,15,17,19,21,23,3,11,12,16,18,20,22,24 J1,2 C1,2,3,4,6 SMA1-12 10:32:55 AM, 06/17/08 Confidential and Proprietary. This document is considered uncontrolled unless stamped otherwise. Page 2 of 2 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment. TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed. TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards. TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI. Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions. Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in such safety-critical applications. TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use. TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements. Following are URLs where you can obtain information on other Texas Instruments products and application solutions: Products Applications Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps DSP dsp.ti.com Energy and Lighting www.ti.com/energy Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial Interface interface.ti.com Medical www.ti.com/medical Logic logic.ti.com Security www.ti.com/security Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video RFID www.ti-rfid.com OMAP Mobile Processors www.ti.com/omap Wireless Connectivity www.ti.com/wirelessconnectivity TI E2E Community Home Page e2e.ti.com Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2012, Texas Instruments Incorporated
