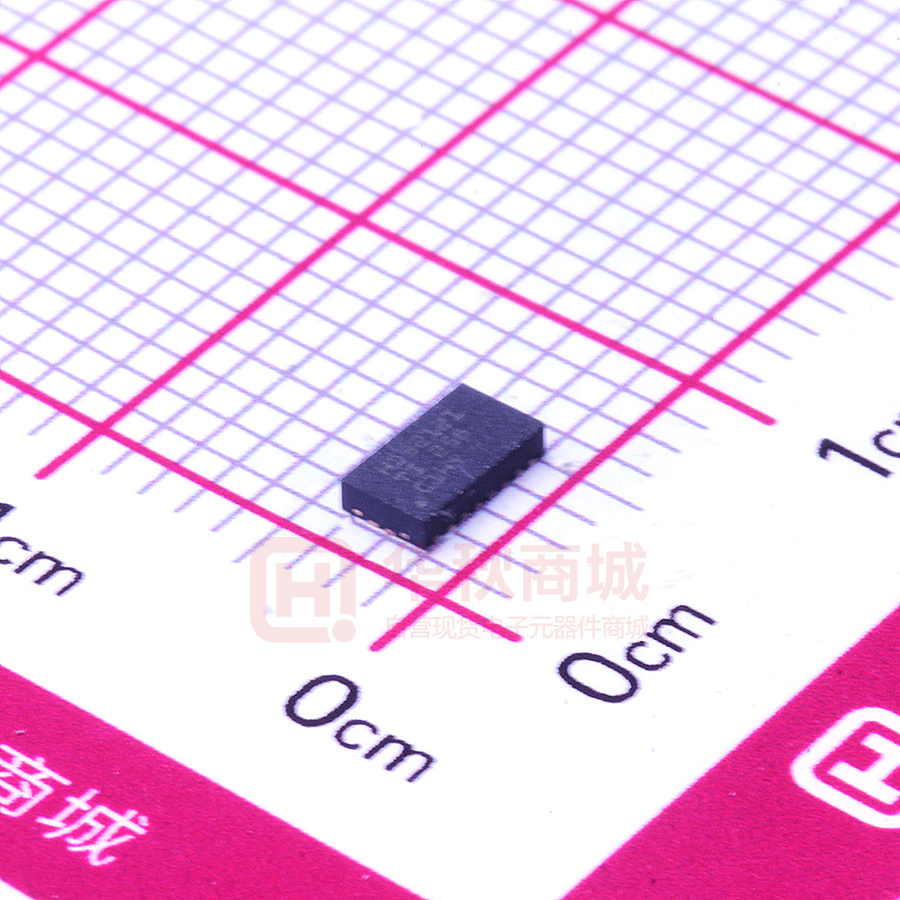

HD3SS3212IRKSR

Sample & Buy Product Folder Technical Documents Support & Community Tools & Software HD3SS3212, HD3SS3212I SLASE74F – MAY 2015 – REVISED SEPTEMBER 2016 HD3SS3212x Two-Channel Differential 2:1/1:2 USB3.1 Mux/Demux 1 Features 3 Description • The HD3SS3212 is a high-speed bidirectional passive switch in mux or demux configurations suited for USB Type-C™ application supporting USB 3.1 Gen 1 and Gen 2 data rates. Based on control pin SEL, the device provides switching on differential channels between Port B or Port C to Port A. 1 • • • • • • • • • Provides MUX/DEMUX Solution for USB TypeC™ Ecosystem for USB 3.1 Gen 1 and Gen 2 Data Rates Compatible With MIPI DSI/CSI, FPDLinkIII, LVDS, and PCIE Gen II, III Operates up to 10 Gbps Wide –3-dB Differential BW of over 8 GHz Excellent Dynamic Characteristics (at 5 GHz) – Crosstalk = –32 dB – Off Isolation = –19 dB – Insertion Loss = –1.6 dB – Return Loss = –12 dB Bidirectional "Mux/De-Mux" Differential Switch Supports Common Mode Voltage 0 to 2 V Single Supply Voltage VCC of 3.3 V Commercial Temperature Range of 0°C to 70°C (HD3SS3212RKS) Industrial Temperature Range of –40°C to 85°C (HD3SS3212IRKS) Excellent dynamic characteristics of the device allow high-speed switching with minimum attenuation to the signal eye diagram with very little added jitter. It consumes
