INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
INAx180 低侧和高侧电压输出电流检测放大器
1 特性
•
•
•
1
•
•
•
•
3 说明
共模范围 (VCM)：–0.2V 至 +26V
高带宽：350kHz（A1 器件）
失调电压：
– ±150µV（最大值），VCM = 0V
– ±500µV（最大值），VCM = 12V
输出压摆率：2V/µs
精度：
– ±1% 增益误差（最大值）
– 1µV/°C 温漂（最大值）
增益选项：
– 20 V/V（A1 器件）
– 50 V/V（A2 器件）
– 100 V/V（A3 器件）
– 200 V/V（A4 器件）
瞬态电流：最大为 260µA (INA180)
INA180、INA2180 和 INA4180 (INAx180) 电流检测放
大器专为经成本优化的 应用而设计。这些器件是一系
列电流检测放大器（也称为电流分流监控器）的一部
分，可在独立于电源电压的 –0.2V 至 +26V 范围内的
共模电压中检测电流检测电阻器上的压降。INAx180
集成有一个匹配的电阻器增益网络，具有四个固定增益
器件选项：20V/V、50V/V、100V/V 或 200V/V。该匹
配增益电阻器网络可最大限度地减小增益误差并降低温
漂。
所有这些器件由 2.7V 至 5.5V 单电源供电。单通道
INA180 消耗的最大电源电流为 260µA；而双通道
INA2180 消耗的最大电源电流为 500µA，四通道消耗
的最大电源电流为 900µA。

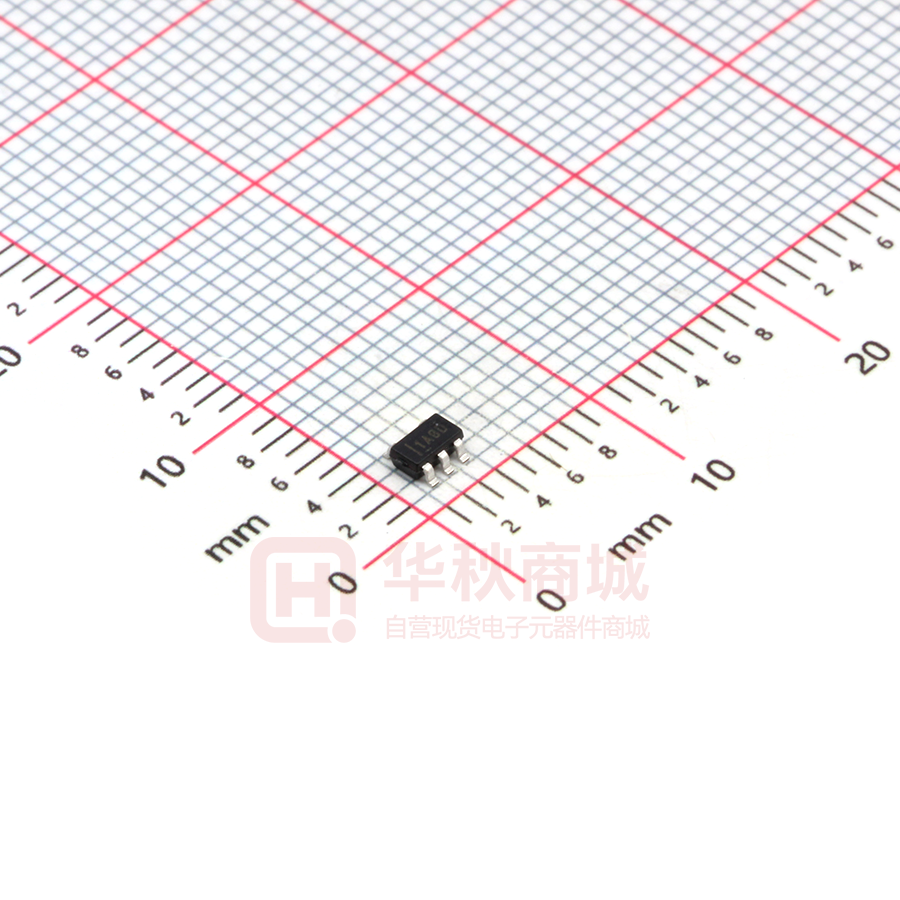

INA180 采用具有两种不同引脚配置的 5 引脚 SOT-23
封装。INA2180 采用 8 引脚 VSSOP 封装。INA4180
采用 14 引脚 TSSOP 封装。所有器件选项的额定扩展
工作温度范围均为 –40°C 至 +125°C。
2 应用
•
•
•
•
•
•
电机控制
电池监控
电源管理
照明控制
过流检测
光伏逆变器
器件信息(1)
器件型号
封装
封装尺寸（标称值）
INA180
SOT-23 (5)
2.90mm × 1.60mm
INA2180
VSSOP (8)
3.00mm × 3.00mm
INA4180
TSSOP (14)
5.00mm × 4.40mm
(1) 如需了解所有可用封装，请参阅数据表末尾的封装选项附录。
典型应用电路
Bus Voltage, VCM
Up To 26 V
Power Supply, VS
2.7 V to 5.5 V
RSENSE
CBYPASS
0.1 µF
Load
INA4180 (quad-channel)
INA2180 (dual-channel)
INA180 (single-channel)
VS
Microcontroller
IN±
±
OUT
ADC
+
IN+
GND
Copyright © 2017, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
English Data Sheet: SBOS741
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
目录
1
2
3
4
5
6
7
8
特性 ..........................................................................
应用 ..........................................................................
说明 ..........................................................................
修订历史记录 ...........................................................
Device Comparison Table.....................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
4
4
6
7.1
7.2
7.3
7.4
7.5
7.6
6
6
6
6
7
8
Absolute Maximum Ratings .....................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Typical Characteristics ..............................................
Detailed Description ............................................ 15
8.1
8.2
8.3
8.4
Overview .................................................................
Functional Block Diagrams .....................................
Feature Description.................................................
Device Functional Modes........................................
15
15
17
18
9
Application and Implementation ........................ 20
9.1 Application Information............................................ 20
9.2 Typical Application .................................................. 24
10 Power Supply Recommendations ..................... 26
10.1 Common-Mode Transients Greater Than 26 V .... 26
11 Layout................................................................... 27
11.1 Layout Guidelines ................................................. 27
11.2 Layout Examples................................................... 27
12 器件和文档支持 ..................................................... 30
12.1
12.2
12.3
12.4
12.5
12.6
12.7
文档支持................................................................
相关链接................................................................
接收文档更新通知 .................................................
社区资源................................................................
商标 .......................................................................
静电放电警告.........................................................
Glossary ................................................................
30
30
30
30
30
30
30
13 机械、封装和可订购信息 ....................................... 30
4 修订历史记录
Changes from Revision C (December 2017) to Revision D
Page
•
已更改 将 INA4180 器件从预览更改成了生产数据（有效） ................................................................................................... 1
•
已添加 new Figure 25 for INA4180 ...................................................................................................................................... 11
•
已添加 new Figure 28 for INA4180 ...................................................................................................................................... 11
Changes from Revision B (November 2017) to Revision C
Page
•
已更改 将 INA2180 器件从预览更改成了生产数据（有效） ................................................................................................... 1
•
已添加 "Both Inputs" to Figure 21 title ................................................................................................................................. 10
•
已添加 new Figure 24 for INA2180....................................................................................................................................... 10
•
已添加 new Figure 25 placeholder for INA4180 ................................................................................................................... 11
•
已添加 new Figure 27 for INA2180....................................................................................................................................... 11
•
已添加 new Figure 28 placeholder for INA4180 ................................................................................................................... 11
•
已更改 Figure 29................................................................................................................................................................... 11
•
已添加 "(A3 Devices)" to end of Figure 29 title .................................................................................................................... 11
•
已添加 new Figure 38 for INA2180....................................................................................................................................... 13
•
已更改 "less than 150 µV" to "within ±150 µV" regarding offset voltage in Precise Low-Side Current Sensing section ..... 17
•
已添加 text regarding RC filter and reference to application report to note at the bottom of Figure 45............................... 20
•
已删除 VS from Equation 2 .................................................................................................................................................. 21
•
已添加 equation and curve for f-3dB to Figure 46................................................................................................................... 22
•
已添加 link to reference design TIDA-00302 to end of Common-Mode Transients Greater Than 26 V section.................. 26
•
已添加 new bullet to Layout Guidelines section ................................................................................................................... 27
2
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
Changes from Revision A (August 2017) to Revision B
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
Page
•
已添加 在数据表中添加了 INA4180 预览器件和相关内容....................................................................................................... 1
•
已更改 design parameter name in Table 3 from "Accuracy" to "Current sensing error" for clarity ..................................... 24
•
已更改 "RMS" to "RSS" in reference to equation 7 .............................................................................................................. 25
Changes from Original (April 2017) to Revision A
•
Page
已添加 在数据表中添加了 INA2180 预览器件和相关内容....................................................................................................... 1
Copyright © 2017–2018, Texas Instruments Incorporated
3
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
5 Device Comparison Table
PRODUCT
NUMBER OF CHANNELS
GAIN (V/V)
INA180A1
1
20
INA180A2
1
50
INA180A3
1
100
INA180A4
1
200
INA2180A1
2
20
INA2180A2
2
50
INA2180A3
2
100
INA2180A4
2
200
INA4180A1
4
20
INA4180A2
4
50
INA4180A3
4
100
INA4180A4
4
200
6 Pin Configuration and Functions
INA180: DBV Package
5-Pin SOT-23 (Pinout A)
Top View
OUT
1
GND
2
IN+
3
5
INA180: DBV Package
5-Pin SOT-23 (Pinout B)
Top View
VS
4
IN±
IN+
1
GND
2
IN±
3
Not to scale
5
VS
4
OUT
Not to scale
Pin Functions: INA180 (Single Channel)
PIN
4
NAME
SOT-23
Pinout A
SOT-23
Pinout B
I/O
DESCRIPTION
GND
2
2
Analog
IN–
4
3
Analog input
Current-sense amplifier negative input. For high-side applications,
connect to load side of sense resistor. For low-side applications, connect
to ground side of sense resistor.
IN+
3
1
Analog input
Current-sense amplifier positive input. For high-side applications, connect
to bus-voltage side of sense resistor. For low-side applications, connect
to load side of sense resistor.
OUT
1
4
Analog output
VS
5
5
Analog
Ground
Output voltage
Power supply, 2.7 V to 5.5 V
Copyright © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
INA2180: DGK Package
8-Pin VSSOP
Top View
INA4180: PW Package
14-Pin TSSOP
Top View
OUT1
1
8
VS
IN±1
2
7
IN+1
3
GND
4
OUT1
1
14
OUT4
OUT2
IN±1
2
13
IN±4
6
IN±2
IN+1
3
12
IN+4
5
IN+2
VS
4
11
GND
IN+2
5
10
IN+3
IN±2
6
9
IN±3
OUT2
7
8
OUT3
Not to scale
Not to scale
Pin Functions: INA2180 (Dual Channel) and INA4180 (Quad Channel)
PIN
NAME
I/O
DESCRIPTION
INA2180
INA4180
GND
4
11
Analog
IN–1
2
2
Analog input
Current-sense amplifier negative input for channel 1. For high-side
applications, connect to load side of channel-1 sense resistor. For lowside applications, connect to ground side of channel-1 sense resistor.
IN+1
3
3
Analog input
Current-sense amplifier positive input for channel 1. For high-side
applications, connect to bus-voltage side of channel-1 sense resistor. For
low-side applications, connect to load side of channel-1 sense resistor.
IN–2
6
6
Analog input
Current-sense amplifier negative input for channel 2. For high-side
applications, connect to load side of channel-2 sense resistor. For lowside applications, connect to ground side of channel-2 sense resistor.
IN+2
5
5
Analog input
Current-sense amplifier positive input for channel 2. For high-side
applications, connect to bus-voltage side of channel-2 sense resistor. For
low-side applications, connect to load side of channel-2 sense resistor.
IN–3
—
9
Analog input
Current-sense amplifier negative input for channel 3. For high-side
applications, connect to load side of channel-3 sense resistor. For lowside applications, connect to ground side of channel-3 sense resistor.
IN+3
—
10
Analog input
Current-sense amplifier positive input for channel 3. For high-side
applications, connect to bus-voltage side of channel-3 sense resistor. For
low-side applications, connect to load side of channel-3 sense resistor.
IN–4
—
13
Analog input
Current-sense amplifier negative input for channel 4. For high-side
applications, connect to load side of channel-4 sense resistor. For lowside applications, connect to ground side of channel-4 sense resistor.
IN+4
—
12
Analog input
Current-sense amplifier positive input for channel 4. For high-side
applications, connect to bus-voltage side of channel-4 sense resistor. For
low-side applications, connect to load side of channel-4 sense resistor.
OUT1
1
1
Analog output
Channel 1 output voltage
OUT2
7
7
Analog output
Channel 2 output voltage
OUT3
—
8
Analog output
Channel 3 output voltage
OUT4
—
14
Analog output
Channel 4 output voltage
VS
8
4
Analog
Copyright © 2017–2018, Texas Instruments Incorporated
Ground
Power supply, 2.7 V to 5.5 V
5
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
6
V
Supply voltage, VS
Analog inputs, IN+, IN– (2)
Differential (VIN+) – (VIN–)
Common-mode (3)
Output voltage
–26
26
GND – 0.3
26
GND – 0.3
VS + 0.3
V
8
mA
150
°C
150
°C
150
°C
Maximum output current, IOUT
Operating free-air temperature, TA
–55
Junction temperature, TJ
Storage temperature, Tstg
(1)
(2)
(3)
–65
V
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
VIN+ and VIN– are the voltages at the IN+ and IN– pins, respectively.
Input voltage at any pin can exceed the voltage shown if the current at that pin is limited to 5 mA.
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
(1)
UNIT
±3000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
V
±1000
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
MIN
NOM
MAX
–0.2
12
26
V
Operating supply voltage
2.7
5
5.5
V
Operating free-air temperature
–40
125
°C
VCM
Common-mode input voltage (IN+ and IN–)
VS
TA
UNIT
7.4 Thermal Information
THERMAL METRIC
(1)
INA180
INA2180
INA4180
DBV (SOT-23)
DGK (VSSOP)
PW (TSSOP)
6 PINS
8 PINS
20 PINS
UNIT
RθJA
Junction-to-ambient thermal resistance
197.1
177.9
115.9
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
95.8
65.6
44.3
°C/W
RθJB
Junction-to-board thermal resistance
53.1
99.3
59.2
°C/W
ψJT
Junction-to-top characterization parameter
23.4
10.5
4.7
°C/W
ψJB
Junction-to-board characterization parameter
52.7
97.9
58.6
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
N/A
N/A
N/A
°C/W
(1)
6
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Copyright © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
7.5 Electrical Characteristics
at TA = 25°C, VS = 5 V, VIN+ = 12 V, and VSENSE = VIN+ – VIN– (unless otherwise noted)
PARAMETER
CONDITIONS
MIN
TYP
84
100
MAX
UNIT
INPUT
CMRR
Common-mode rejection ratio,
RTI (1)
VOS
Offset voltage (2), RTI
dVOS/dT
PSRR
VIN+ = 0 V to 26 V, VSENSE = 10 mV,
TA = –40°C to +125°C
dB
±100
±500
VIN+ = 0 V
±25
±150
Offset drift, RTI
TA = –40°C to +125°C
0.2
1
μV/°C
Power-supply rejection ratio, RTI
VS = 2.7 V to 5.5 V, VSENSE = 10 mV
±8
±40
μV/V
VSENSE = 0 mV, VIN+ = 0 V
0.1
VSENSE = 0 mV
80
VSENSE = 0 mV
±0.05
IIB
Input bias current
IIO
Input offset current
μV
µA
µA
OUTPUT
A1 devices
G
Gain
EG
20
A2 devices
50
A3 devices
100
A4 devices
200
Gain error
VOUT = 0.5 V to VS – 0.5 V,
TA = –40°C to +125°C
Gain error vs temperature
TA = –40°C to +125°C
Nonlinearity error
VOUT = 0.5 V to VS – 0.5 V
Maximum capacitive load
No sustained oscillation
V/V
±0.1%
±1%
1.5
20
ppm/°C
±0.01%
1
nF
VOLTAGE OUTPUT (3)
VSP
Swing to VS power-supply rail (4)
VSN
(4)
Swing to GND
RL = 10 kΩ to GND, TA = –40°C to +125°C
(VS) – 0.02
(VS) – 0.03
V
RL = 10 kΩ to GND, TA = –40°C to +125°C
(VGND) +
0.0005
(VGND) +
0.005
V
FREQUENCY RESPONSE
BW
Bandwidth
SR
Slew rate
A1 devices, CLOAD = 10 pF
350
A2 devices, CLOAD = 10 pF
210
A3 devices, CLOAD = 10 pF
150
A4 devices, CLOAD = 10 pF
105
kHz
2
V/µs
40
nV/√Hz
NOISE, RTI
Voltage noise density
POWER SUPPLY
INA180
IQ
Quiescent current
INA2180
INA4180
(1)
(2)
(3)
(4)
VSENSE = 10 mV
197
VSENSE = 10 mV, TA = –40°C to +125°C
VSENSE = 10 mV
300
355
VSENSE = 10 mV, TA = –40°C to +125°C
VSENSE = 10 mV
260
500
520
690
VSENSE = 10 mV, TA = –40°C to +125°C
µA
900
1000
RTI = referred-to-input.
Offset voltage is obtained by linear extrapolation to VSENSE = 0 V with VSENSE = 10% to 90% of full-scale-range.
See 图 19.
Swing specifications are tested with an overdriven input condition.
版权 © 2017–2018, Texas Instruments Incorporated
7
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
7.6 Typical Characteristics
-165
-150
-135
-120
-105
-90
-75
-60
-45
-30
-15
0
15
30
45
60
75
90
105
120
135
150
-95
-85
-75
-65
-55
-45
-35
-25
-15
-5
5
15
25
35
45
55
65
75
85
95
105
115
Population
Population
at TA = 25°C, VS = 5 V, and VIN+ = 12 V (unless otherwise noted)
D001
Input Offset Voltage (PV)
Input Offset Voltage (PV)
D002
VIN+ = 0 V
VIN+ = 0 V
图 2. Input Offset Voltage Production Distribution A2
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Population
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Population
图 1. Input Offset Voltage Production Distribution A1
D003
Input Offset Voltage (PV)
Input Offset Voltage (PV)
VIN+ = 0 V
D004
VIN+ = 0 V
图 3. Input Offset Voltage Production Distribution A3
图 4. Input Offset Voltage Production Distribution A4
100
A1
A2
A3
A4
Population
Offset Voltage (PV)
50
0
-100
-50
-25
0
25
50
75
Temperature (qC)
100
125
VIN+ = 0 V
150
D005
-55
-50
-45
-40
-35
-30
-25
-20
-15
-10
-5
0
5
10
15
20
25
30
35
40
45
50
-50
Common-Mode Rejection Ratio (PV/V)
D006
图 5. Offset Voltage vs Temperature
图 6. Common-Mode Rejection Production Distribution A1
8
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
Typical Characteristics (接
接下页)
-11
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
6
7
8
9
10
Population
-32
-29
-26
-23
-20
-17
-14
-11
-8
-5
-2
1
4
7
10
13
16
19
22
25
28
31
Population
at TA = 25°C, VS = 5 V, and VIN+ = 12 V (unless otherwise noted)
D007
Common-Mode Rejection Ratio (PV/V)
D008
Common-Mode Rejection Ratio (PV/V)
图 7. Common-Mode Rejection Production Distribution A2
图 8. Common-Mode Rejection Production Distribution A3
A1
A2
A3
A4
8
6
4
2
0
-2
-4
-6
-8
-10
-50
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
6
7
8
9
10
11
Population
Common-Mode Rejection Ratio (PV/V)
10
-25
0
25
50
75
Temperature (qC)
100
125
150
D010
D009
Common-Mode Rejection Ratio (PV/V)
图 10. Common-Mode Rejection Ratio vs Temperature
D011
Gain Error (%)
图 11. Gain Error Production Distribution A1
版权 © 2017–2018, Texas Instruments Incorporated
-0.11
-0.1
-0.09
-0.08
-0.07
-0.06
-0.05
-0.04
-0.03
-0.02
-0.01
0
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.08
0.09
0.1
-0.125
-0.115
-0.105
-0.095
-0.085
-0.075
-0.065
-0.055
-0.045
-0.035
-0.025
-0.015
-0.005
0.005
0.015
0.025
0.035
0.045
0.055
0.065
0.075
0.085
Population
Population
图 9. Common-Mode Rejection Production Distribution A4
Gain Error (%)
D012
图 12. Gain Error Production Distribution A2
9
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
Typical Characteristics (接
接下页)
-0.23
-0.21
-0.19
-0.17
-0.15
-0.13
-0.11
-0.09
-0.07
-0.05
-0.03
-0.01
0.01
0.03
0.05
0.07
0.09
0.11
0.13
0.15
0.17
0.19
Population
-0.12
-0.11
-0.1
-0.09
-0.08
-0.07
-0.06
-0.05
-0.04
-0.03
-0.02
-0.01
0
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.08
0.09
Population
at TA = 25°C, VS = 5 V, and VIN+ = 12 V (unless otherwise noted)
Gain Error (%)
Gain Error (%)
D013
图 13. Gain Error Production Distribution A3
图 14. Gain Error Production Distribution A4
50
0.4
A1
A2
A3
A4
0.3
0.2
A1
A2
A3
A4
40
30
0.1
Gain (dB)
Gain Error (%)
D014
0
-0.1
20
10
-0.2
0
-0.3
-0.4
-50
-25
0
25
50
75
Temperature (qC)
100
125
-10
10
150
100
D015
图 15. Gain Error vs Temperature
1M
10M
D016
140
Common-Mode Rejection Ratio (dB)
Power-Supply Rejection Ratio (dB)
10k
100k
Frequency (Hz)
图 16. Gain vs Frequency
120
100
80
60
40
20
0
10
100
1k
10k
Frequency (Hz)
100k
1M
D017
图 17. Power-Supply Rejection Ratio vs Frequency
10
1k
A1
A2
A3
A4
120
100
80
60
40
20
10
100
1k
10k
Frequency (Hz)
100k
1M
D018
图 18. Common-Mode Rejection Ratio vs Frequency
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
Typical Characteristics (接
接下页)
at TA = 25°C, VS = 5 V, and VIN+ = 12 V (unless otherwise noted)
VS
120
–40°C
25°C
125°C
100
Input Bias Current (PA)
Output Swing (V)
VS – 1
VS – 2
GND + 2
GND + 1
80
60
40
20
0
GND
0
5
10
15
20 25 30 35 40
Output Current (mA)
45
50
55
-20
-5
60
0
5
10
15
20
Common-Mode Voltage (V)
D019
25
30
D020
Supply voltage = 5 V
图 19. Output Voltage Swing vs Output Current
图 20. Input Bias Current vs Common-Mode Voltage
120
85
84
100
Input Bias Current (PA)
Input Bias Current (PA)
83
80
60
40
20
82
81
80
79
78
77
0
76
-20
-5
0
5
10
15
20
Common-Mode Voltage (V)
25
75
-50
30
-25
0
D021
25
50
75
Temperature (qC)
100
125
150
D022
Supply voltage = 0 V
图 21. Input Bias Current vs Common-Mode Voltage (Both
Inputs, Shutdown)
图 22. Input Bias Current vs Temperature
380
210
Quiescent Current (PA)
Quiescent Current (PA)
375
205
200
195
370
365
360
355
350
345
190
-50
-25
0
25
50
75
Temperature (qC)
100
125
150
D023
图 23. Quiescent Current vs Temperature (INA180)
版权 © 2017–2018, Texas Instruments Incorporated
340
-50
-25
0
25
50
75
Temperature (qC)
100
125
150
D023
图 24. Quiescent Current vs Temperature (INA2180)
11
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
Typical Characteristics (接
接下页)
at TA = 25°C, VS = 5 V, and VIN+ = 12 V (unless otherwise noted)
720
400
715
Quiescent Current (PA)
Quiescent Current (PA)
350
710
705
700
695
300
250
200
690
685
-50
-25
0
25
50
75
Temperature (qC)
100
125
150
-5
150
图 25. Quiescent Current vs Temperature (INA4180)
750
1450
700
1350
650
1250
600
550
500
450
400
5
10
15
20
Common-mode Voltage (V)
25
30
D031
图 26. Quiescent Current vs Common-Mode Voltage
(INA180)
Quiescent Current (PA)
Quiescent Current (PA)
0
D038
1150
1050
950
850
750
650
350
300
-5
0
5
10
15
20
Common-Mode Voltage (V)
25
30
550
-5
D031
图 27. Quiescent Current vs Common-Mode Voltage
for All Amplifiers (INA2180)
0
5
10
15
20
Common-Mode Voltage (V)
25
30
D039
图 28. Quiescent Current vs Common-Mode Voltage for All
Amplifiers (INA4180)
80
70
60
Referred-to-Input
Voltage Noise (200 nV/div)
Input-Referred Voltage Noise (nV/—Hz)
100
50
40
30
20
10
10
100
1k
10k
Frequency (Hz)
100k
1M
D024
图 29. Input-Referred Voltage Noise vs Frequency
(A3 Devices)
12
Time (1 s/div)
D025
图 30. 0.1-Hz to 10-Hz Voltage Noise (Referred-to-Input)
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
Typical Characteristics (接
接下页)
VCM
VOUT
VOUT (100 mV/div)
Input Voltage
40 mV/div
Common-Mode Voltage (5 V/div)
Output Voltage
2 V/div
at TA = 25°C, VS = 5 V, and VIN+ = 12 V (unless otherwise noted)
Time (25 Ps/div)
Time (10 Ps/div)
D027
D026
80-mVPP input step
图 31. Step Response
图 32. Common-Mode Voltage Transient Response
Voltage (2 V/div)
Noninverting Input
Output
Voltage (2 V/div)
Inverting Input
Output
0V
0V
Time (250 Ps/div)
Time (250 Ps/div)
D028
D029
图 33. Inverting Differential Input Overload
图 34. Noninverting Differential Input Overload
Supply Voltage
Output Voltage
Voltage (1 V/div)
Voltage (1 V/div)
Supply Voltage
Output Voltage
0V
0V
Time (100 Ps/div)
Time (10 Ps/div)
D032
D030
图 35. Start-Up Response
版权 © 2017–2018, Texas Instruments Incorporated
图 36. Brownout Recovery
13
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
Typical Characteristics (接
接下页)
at TA = 25°C, VS = 5 V, and VIN+ = 12 V (unless otherwise noted)
200
100
50
140
A1
A2
A3
A4
20
10
5
2
1
0.5
0.2
0.1
10
120
110
100
90
80
100
1k
10k
100k
Frequency (Hz)
1M
图 37. Output Impedance vs Frequency
14
Ch1 onto Ch2
Ch2 onto Ch1
130
Channel Separation (dB)
Output Impedance (:)
1000
500
10M
D033
70
100
1k
10k
Frequency (Hz)
100k
1M
D034
图 38. Channel Separation vs Frequency (INA2180)
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
8 Detailed Description
8.1 Overview
The INA180, INA2180, and INA4180 (INAx180) are 26-V, common-mode, current-sensing amplifiers used in both
low-side and high-side configurations. These specially-designed, current-sensing amplifiers accurately measures
voltages developed across current-sensing resistors on common-mode voltages that far exceed the supply
voltage powering the device. Current can be measured on input voltage rails as high as 26 V, and the devices
can be powered from supply voltages as low as 2.7 V.
8.2 Functional Block Diagrams
VS
INA180
IN±
±
OUT
+
IN+
GND
Copyright © 2017, Texas Instruments Incorporated
图 39. INA180 Functional Block Diagram
VS
INA2180
IN±1
±
OUT1
+
IN+1
IN±2
±
OUT2
+
IN+2
GND
Copyright © 201 7, Texas Instrumen ts Incorpor ate d
图 40. INA2180 Functional Block Diagram
版权 © 2017–2018, Texas Instruments Incorporated
15
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
Functional Block Diagrams (接
接下页)
VS
INA4180
IN±1
±
OUT1
+
IN+1
IN±2
±
OUT2
+
IN+2
IN±3
±
OUT3
+
IN+3
IN±4
±
OUT4
+
IN+4
GND
Copyright © 201 7, Texas Instrumen ts Incorpor ate d
图 41. INA4180 Functional Block Diagram
16
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
8.3 Feature Description
8.3.1 High Bandwidth and Slew Rate
The INAx180 support small-signal bandwidths as high as 350 kHz, and large-signal slew rates of 2 V/µs. The
ability to detect rapid changes in the sensed current, as well as the ability to quickly slew the output, make the
INAx180 a good choice for applications that require a quick response to input current changes. One application
that requires high bandwidth and slew rate is low-side motor control, where the ability to follow rapid changing
current in the motor allows for more accurate control over a wider operating range. Another application that
requires higher bandwidth and slew rates is system fault detection, where the INAx180 are used with an external
comparator and a reference to quickly detect when the sensed current is out of range.
8.3.2 Wide Input Common-Mode Voltage Range
The INAx180 support input common-mode voltages from –0.2 V to +26 V. Because of the internal topology, the
common-mode range is not restricted by the power-supply voltage (VS) as long as VS stays within the operational
range of 2.7 V to 5.5 V. The ability to operate with common-mode voltages greater or less than VS allow the
INAx180 to be used in high-side, as well as low-side, current-sensing applications, as shown in 图 42.
Bus Supply
±0.2 V to +26 V
Direction of Positive
Current Flow
IN+
RSENSE
High-Side Sensing
Common-mode voltage (VCM)
is bus-voltage dependent.
IN±
LOAD
Direction of Positive
Current Flow
IN+
RSENSE
Low-Side Sensing
Common-mode voltage (VCM)
is always near ground and is
isolated from bus-voltage spikes.
IN±
图 42. High-Side and Low-Side Sensing Connections
8.3.3 Precise Low-Side Current Sensing
When used in low-side current sensing applications the offset voltage of the INAx180 is within ±150 µV. The low
offset performance of the INAx180 has several benefits. First, the low offset allows the device to be used in
applications that must measure current over a wide dynamic range. In this case, the low offset improves the
accuracy when the sensed currents are on the low end of the measurement range. Another advantage of low
offset is the ability to sense lower voltage drop across the sense resistor accurately, thus allowing a lower-value
shunt resistor. Lower-value shunt resistors reduce power loss in the current sense circuit, and help improve the
power efficiency of the end application.
The gain error of the INAx180 is specified to be within 1% of the actual value. As the sensed voltage becomes
much larger than the offset voltage, this voltage becomes the dominant source of error in the current sense
measurement.
版权 © 2017–2018, Texas Instruments Incorporated
17
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
Feature Description (接
接下页)
8.3.4 Rail-to-Rail Output Swing
The INAx180 allow linear current sensing operation with the output close to the supply rail and GND. The
maximum specified output swing to the positive rail is 30 mV, and the maximum specified output swing to GND is
only 5 mV. In order to compare the output swing of the INAx180 to an equivalent operational amplifier (op amp),
the inputs are overdriven to approximate the open-loop condition specified in op amp data sheets. The currentsense amplifier is a closed-loop system; therefore, the output swing to GND can be limited by the product of the
offset voltage and amplifier gain.
For devices that have positive offset voltages, the swing to GND is limited by the larger of either the offset
voltage multiplied by the gain or the swing to GND specified in the Electrical Characteristics table.
For example, in an application where the INA180A4 (gain = 200 V/V) is used for low-side current sensing and the
device has an offset of 40 µV, the product of the device offset and gain results in a value of 8 mV, greater than
the specified negative swing value. Therefore, the swing to GND for this example is 8 mV. If the same device
has an offset of –40 µV, then the calculated zero differential signal is –8 mV. In this case, the offset helps
overdrive the swing in the negative direction, and swing performance is consistent with the value specified in the
Electrical Characteristics table.
The offset voltage is a function of the common-mode voltage as determined by the CMRR specification;
therefore, the offset voltage increases when higher common-mode voltages are present. The increase in offset
voltage limits how low the output voltage can go during a zero-current condition when operating at higher
common-mode voltages. 图 43 shows the typical limitation of the zero-current output voltage vs common-mode
voltage for each gain option.
0.06
A1
A2
A3
A4
Zero Current Output Voltage (V)
0.054
0.048
0.042
0.036
0.03
0.024
0.018
0.012
0.006
0
0
2
4
6
8 10 12 14 16 18 20 22 24 26
Common Mode Voltage (V)
D033
图 43. Zero-Current Output Voltage vs Common-Mode Voltage
8.4 Device Functional Modes
8.4.1 Normal Mode
The INAx180 is in normal operation when the following conditions are met:
• The power supply voltage (VS) is between 2.7 V and 5.5 V.
• The common-mode voltage (VCM) is within the specified range of –0.2 V to +26 V.
• The maximum differential input signal times gain is less than VS minus the output voltage swing to VS.
• The minimum differential input signal times gain is greater than the swing to GND (see the Rail-to-Rail Output
Swing section).
During normal operation, the device produces an output voltage that is the gained-up representation of the
difference voltage from IN+ to IN–.
18
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
Device Functional Modes (接
接下页)
8.4.2 Input Differential Overload
If the differential input voltage (VIN+ – VIN–) times gain exceeds the voltage swing specification, the INAx180 drive
the output as close as possible to the positive supply, and does not provide accurate measurement of the
differential input voltage. If this input overload occurs during normal circuit operation, then reduce the value of the
shunt resistor or use a lower-gain version with the chosen sense resistor to avoid this mode of operation. If a
differential overload occurs in a fault event, then the output of the INAx180 return to the expected value
approximately 20 µs after the fault condition is removed.
8.4.3 Shutdown Mode
Although the INAx180 do not have a shutdown pin, the low power consumption of the device allows the output of
a logic gate or transistor switch to power the INAx180. This gate or switch turns on and off the INAx180 powersupply quiescent current.
However, in current shunt monitoring applications, there is also a concern for how much current is drained from
the shunt circuit in shutdown conditions. Evaluating this current drain involves considering the simplified
schematic of the INAx180 in shutdown mode, as shown in 图 44.
VS
2.7 V to 5.5 V
RPULL-UP
10 k
Bus Voltage
±0.2 V to +26 V
Shutdown
RSENSE
Load
CBYPASS
0.1 µF
VS
INA180
IN±
OUT
±
Output
+
IN+
GND
Copyright © 2017, Texas Instruments Incorporated
图 44. Basic Circuit to Shut Down the INxA180
There is typically more than 500 kΩ of impedance (from the combination of 500-kΩ feedback and
input gain set resistors) from each input of the INAx180 to the OUT pin and to the GND pin. The amount of
current flowing through these pins depends on the voltage at the connection.
Regarding the 500-kΩ path to the output pin, the output stage of a disabled INAx180 does constitute a good path
to ground. Consequently, this current is directly proportional to a shunt common-mode voltage present across a
500-kΩ resistor.
As a final note, as long as the shunt common-mode voltage is greater than VS when the device is powered up,
there is an additional and well-matched 55-µA typical current that flows in each of the inputs. If less than VS, the
common-mode input currents are negligible, and the only current effects are the result of the 500-kΩ resistors.
版权 © 2017–2018, Texas Instruments Incorporated
19
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
9 Application and Implementation
注
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The INAx180 amplify the voltage developed across a current-sensing resistor as current flows through the
resistor to the load or ground.
9.1.1 Basic Connections
图 45 shows the basic connections of the INA180. Connect the input pins (IN+ and IN–) as closely as possible to
the shunt resistor to minimize any resistance in series with the shunt resistor.
Bus Voltage
±0.2 V to +26 V
Power Supply, VS
2.7 V to 5.5 V
CBYPASS
0.1 µF
RSENSE
Load
VS
INA180
IN±
Microcontroller
OUT
±
ADC
+
IN+
GND
Copyright © 2017, Texas Instruments Incorporated
NOTE: For best measurement accuracy, connect analog-to-digital converter (ADC) reference or microcontroller
ground as closely as possible to the INAx180 GND pin, and add an RC filter between the output of the INAx180 and
the ADC. See Closed-Loop Analysis of Load-Induced Amplifier Stability Issues Using ZOUT for more details.
图 45. Basic Connections for the INA180
A power-supply bypass capacitor of at least 0.1 µF is required for proper operation. Applications with noisy or
high-impedance power supplies may require additional decoupling capacitors to reject power-supply noise.
Connect bypass capacitors close to the device pins.
20
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
Application Information (接
接下页)
9.1.2 RSENSE and Device Gain Selection
The accuracy of the INAx180 is maximized by choosing the current-sense resistor to be as large as possible. A
large sense resistor maximizes the differential input signal for a given amount of current flow and reduces the
error contribution of the offset voltage. However, there are practical limits as to how large the current-sense
resistor can be in a given application. The INAx180 have a typical input bias currents of 80 µA for each input
when operated at a 12-V common-mode voltage input. When large current-sense resistors are used, these bias
currents cause increased offset error and reduced common-mode rejection. Therefore, using current-sense
resistors larger than a few ohms is generally not recommended for applications that require current-monitoring
accuracy. A second common restriction on the value of the current-sense resistor is the maximum allowable
power dissipation that is budgeted for the resistor. 公式 1 gives the maximum value for the current sense resistor
for a given power dissipation budget:
PDMAX
RSENSE
IMAX2
where:
•
•
PDMAX is the maximum allowable power dissipation in RSENSE.
IMAX is the maximum current that will flow through RSENSE.
(1)
An additional limitation on the size of the current-sense resistor and device gain is due to the power-supply
voltage, VS, and device swing to rail limitations. In order to make sure that the current-sense signal is properly
passed to the output, both positive and negative output swing limitations must be examined. 公式 2 provides the
maximum values of RSENSE and GAIN to keep the device from hitting the positive swing limitation.
IMAX u RSENSE u GAIN VSP
where:
•
•
•
IMAX is the maximum current that will flow through RSENSE.
GAIN is the gain of the current sense-amplifier.
VSP is the positive output swing as specified in the data sheet.
(2)
To avoid positive output swing limitations when selecting the value of RSENSE, there is always a trade-off between
the value of the sense resistor and the gain of the device under consideration. If the sense resistor selected for
the maximum power dissipation is too large, then it is possible to select a lower-gain device in order to avoid
positive swing limitations.
The negative swing limitation places a limit on how small of a sense resistor can be used in a given application.
公式 3 provides the limit on the minimum size of the sense resistor.
IMIN u RSENSE u GAIN > VSN
where:
•
•
•
IMIN is the minimum current that will flow through RSENSE.
GAIN is the gain of the current sense amplifier.
VSN is the negative output swing of the device (see Rail-to-Rail Output Swing).
版权 © 2017–2018, Texas Instruments Incorporated
(3)
21
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
Application Information (接
接下页)
9.1.3 Signal Filtering
Provided that the INAx180 output is connected to a high impedance input, the best location to filter is at the
device output using a simple RC network from OUT to GND. Filtering at the output attenuates high-frequency
disturbances in the common-mode voltage, differential input signal, and INAx180 power-supply voltage. If filtering
at the output is not possible, or filtering of only the differential input signal is required, it is possible to apply a
filter at the input pins of the device. 图 46 provides an example of how a filter can be used on the input pins of
the device.
Bus Voltage
±0.2 V to +26 V
RSENSE
Load
f
VS
2.7 V to 5.5 V
1
3dB
2S(RF
RF )CF
VS
INA180
RF < 10
RINT
IN±
f±3dB
CF
±
OUT VOUT
Bias
+
RF < 10
IN+
RINT
GND
Copyright © 2017, Texas Instruments Incorporated
图 46. Filter at Input Pins
The addition of external series resistance creates an additional error in the measurement; therefore, the value of
these series resistors must be kept to 10 Ω (or less, if possible) to reduce impact to accuracy. The internal bias
network shown in 图 46 present at the input pins creates a mismatch in input bias currents when a differential
voltage is applied between the input pins. If additional external series filter resistors are added to the circuit, the
mismatch in bias currents results in a mismatch of voltage drops across the filter resistors. This mismatch
creates a differential error voltage that subtracts from the voltage developed across the shunt resistor. This error
results in a voltage at the device input pins that is different than the voltage developed across the shunt resistor.
Without the additional series resistance, the mismatch in input bias currents has little effect on device operation.
The amount of error these external filter resistors add to the measurement can be calculated using 公式 5, where
the gain error factor is calculated using 公式 4.
The amount of variance in the differential voltage present at the device input relative to the voltage developed at
the shunt resistor is based both on the external series resistance (RF) value as well as internal input resistor RINT,
as shown in 图 46. The reduction of the shunt voltage reaching the device input pins appears as a gain error
when comparing the output voltage relative to the voltage across the shunt resistor. A factor can be calculated to
determine the amount of gain error that is introduced by the addition of external series resistance. Calculate the
expected deviation from the shunt voltage to what is measured at the device input pins is given using 公式 4:
1250 u RINT
Gain Error Factor
(1250 u RF ) (1250 u RINT ) (RF u RINT )
where:
•
•
22
RINT is the internal input resistor.
RF is the external series resistance.
(4)
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
Application Information (接
接下页)
With the adjustment factor from 公式 4, including the device internal input resistance, this factor varies with each
gain version, as shown in 表 1. Each individual device gain error factor is shown in 表 2.
表 1. Input Resistance
PRODUCT
GAIN
RINT (kΩ)
INAx180A1
20
25
INAx180A2
50
10
INAx180A3
100
5
INAx180A4
200
2.5
表 2. Device Gain Error Factor
PRODUCT
SIMPLIFIED GAIN ERROR FACTOR
INAx180A1
25000
(21u RF ) 25000
INAx180A2
10000
(9 u RF ) 10000
INAx180A3
1000
RF 1000
INAx180A4
2500
(3 u RF ) 2500
The gain error that can be expected from the addition of the external series resistors can then be calculated
based on 公式 5:
Gain Error (%) = 100 - (100 ´ Gain Error Factor)
(5)
For example, using an INA180A2 and the corresponding gain error equation from 表 2, a series resistance of
10 Ω results in a gain error factor of 0.991. The corresponding gain error is then calculated using 公式 5,
resulting in an additional gain error of approximately 0.89% solely because of the external 10-Ω series resistors.
版权 © 2017–2018, Texas Instruments Incorporated
23
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
9.2 Typical Application
Power Supply, VS
2.7 V to 5.5 V
CBYPASS
0.1 µF
Load
Supply
RSENSE
Load
VS
INA180
IN±
±
OUT
VOUT
+
IN+
GND
Copyright © 2017, Texas Instruments Incorporated
图 47. Low-Side Sensing
9.2.1 Design Requirements
The design requirements for the circuit shown in 图 47, are listed in 表 3
表 3. Design Parameters
DESIGN PARAMETER
EXAMPLE VALUE
Power-supply voltage, VS
5V
Low-side current sensing
VCM = 0 V
RSENSE power loss
< 900 mW
Maximum sense current, IMAX
40 A
Current sensing error
Less than 1.5% at maximum current, TJ = 25°C
Small-signal bandwidth
> 80 kHz
9.2.2 Detailed Design Procedure
The maximum value of the current sense resistor is calculated based on the maximum power loss requirement.
By applying 公式 1, the maximum value of the current-sense resistor is calculated to be 0.563 mΩ. This is the
maximum value for sense resistor RSENSE; therefore, select RSENSE to be 0.5 mΩ because it is the closest
standard resistor value that meets the power-loss requirement.
The next step is to select the appropriate gain and reduce RSENSE, if needed, to keep the output signal swing
within the VS range. Using 公式 2, and given that IMAX = 40 A and RSENSE = 0.5 mΩ, the maximum current-sense
gain calculated to avoid the positive swing-to-rail limitations on the output is 248.5. To maximize the output signal
range, the INA180A4 (gain = 200) device is selected for this application.
To calculate the accuracy at peak current, the two factors that must be determined are the gain error and the
offset error. The gain error of the INAx180 is specified to be a maximum of 1%. The error due to the offset is
constant, and is specified to be 125 µV (maximum) for the conditions where VCM = 0 V and VS = 5 V. Using 公式
6, the percentage error contribution of the offset voltage is calculated to be 0.75%, with total offset error = 150
µV, RSENSE = 0.5 mΩ, and ISENSE = 40 A.
Total Offset Error (V)
Total Offset Error (%) =
u 100%
ISENSE u RSENSE
(6)
24
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
One method of calculating the total error is to add the gain error to the percentage contribution of the offset error.
However, in this case, the gain error and the offset error do not have an influence or correlation to each other. A
more statistically accurate method of calculating the total error is to use the RSS sum of the errors, as shown in
公式 7:
Total Error (%) = Total Gain Error (%)2 + Total Offset Error (%)2
(7)
After applying 公式 7, the total current sense error at maximum current is calculated to be 1.25%, and that is less
than the design example requirement of 1.5%.
The INA180A4 (gain = 200) also has a bandwidth of 105 kHz that meets the small-signal bandwidth requirement
of 80 kHz. If higher bandwidth is required, lower-gain devices can be used at the expense of either reduced
output voltage range or an increased value of RSENSE.
9.2.3 Application Curve
Output Voltage (1 V/div)
图 48 shows an example output response of a unidirectional configuration. The device output swing is limited by
ground; therefore, the output is biased to this zero output level. The output rises above ground for positive
differential input signals, but cannot fall below ground for negative differential input signals.
0V
Output
Ground
Time (500 µs/div)
图 48. Output Response
版权 © 2017–2018, Texas Instruments Incorporated
25
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
10 Power Supply Recommendations
The input circuitry of the INAx180 accurately measures beyond the power-supply voltage, VS. For example, VS
can be 5 V, whereas the bus supply voltage at IN+ and IN– can be as high as 26 V. However, the output voltage
range of the OUT pin is limited by the voltages on the VS pin. The INAx180 also withstand the full differential
input signal range up to 26 V at the IN+ and IN– input pins, regardless of whether or not the device has power
applied at the VS pin.
10.1 Common-Mode Transients Greater Than 26 V
With a small amount of additional circuitry, the INAx180 can be used in circuits subject to transients higher than
26 V, such as automotive applications. Use only Zener diodes or Zener-type transient absorbers (sometimes
referred to as transzorbs)—any other type of transient absorber has an unacceptable time delay. Start by adding
a pair of resistors as a working impedance for the Zener diode, as shown 图 49. Keep these resistors as small as
possible; most often, around 10 Ω. Larger values can be used with an effect on gain that is discussed in the
Signal Filtering section. This circuit limits only short-term transients; therefore, many applications are satisfied
with a 10-Ω resistor along with conventional Zener diodes of the lowest acceptable power rating. This
combination uses the least amount of board space. These diodes can be found in packages as small as
SOT-523 or SOD-523.
Bus Supply
±0.2 V to +26 V
VS
2.7 V to 5.5 V
CBYPASS
0.1 µF
RSENSE
Load
INA180
VS
IN±
±
RPROTECT
< 10
OUT
Output
+
IN+
GND
Copyright © 2017, Texas Instruments Incorporated
图 49. Transient Protection Using Dual Zener Diodes
In the event that low-power Zener diodes do not have sufficient transient absorption capability, a higher-power
transzorb must be used. The most package-efficient solution involves using a single transzorb and back-to-back
diodes between the device inputs, as shown in 图 50. The most space-efficient solutions are dual, seriesconnected diodes in a single SOT-523 or SOD-523 package. In either of the examples shown in 图 49 and 图 50,
the total board area required by the INAx180 with all protective components is less than that of an SO-8
package, and only slightly greater than that of an MSOP-8 package.
VS
2.7 V to 5.5 V
Bus Supply
±0.2 V to +26 V
CBYPASS
0.1 µF
RSENSE
Load
INA180
< 10
VS
IN±
±
Transorb
OUT
Output
+
< 10
IN+
GND
Copyright © 2017, Texas Instruments Incorporated
图 50. Transient Protection Using a Single Transzorb and Input Clamps
For a reference design example, see Current Shunt Monitor With Transient Robustness Reference Design.
26
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
11 Layout
11.1 Layout Guidelines
•
•
•
Connect the input pins to the sensing resistor using a Kelvin or 4-wire connection. This connection technique
makes sure that only the current-sensing resistor impedance is detected between the input pins. Poor routing
of the current-sensing resistor commonly results in additional resistance present between the input pins.
Given the very low ohmic value of the current resistor, any additional high-current carrying impedance can
cause significant measurement errors.
Place the power-supply bypass capacitor as close as possible to the device power supply and ground pins.
The recommended value of this bypass capacitor is 0.1 µF. Additional decoupling capacitance can be added
to compensate for noisy or high-impedance power supplies.
When routing the connections from the current sense resistor to the device, keep the trace lengths as close
as possible in order to minimize any impedance mismatch.
11.2 Layout Examples
Directio n Curr ent Flow
RSHU NT
IN- 4
3 IN+
2 GND
VS 5
1 OUT
Curren t
Sen se
VIA to Gro und
Plan e
CBYPASS
VS: 2.7 V to 5.5 V
图 51. Single-Channel Recommended Layout
版权 © 2017–2018, Texas Instruments Incorporated
27
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
Layout Examples (接
接下页)
Bus Voltage:
-0.2V to 26V
VIA to Gro und
Plan e
Directio n o f
Curren t Flo w
RSHU NT2
IN+2 5
4 GND
IN-2 6
3 IN+2
OUT2 7
2 IN-1
VS 8
Curren t Sense
Output 2
RSHU NT1
Directio n o f
Curren t Flo w
1 OUT1
CBYPASS
Curren t Sense
Output 1
VS: 2.7 V to 5.5 V
Loa d2
Loa d1
图 52. Dual-Channel Recommended Layout
28
版权 © 2017–2018, Texas Instruments Incorporated
INA180, INA2180, INA4180
www.ti.com.cn
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
Layout Examples (接
接下页)
Loa d2
Loa d3
Curren t Sense
Output 3
OUT3 8
Directio n o f
Curren t Flo w
RSHU NT3
VIA to
Gro und
Plan e
Bus Voltage3:
-0.2 V to 26 V
Curren t Sense
Output 2
7 OUT2
IN-3 9
6 IN-2
IN+3 10
5 IN+2
GND 11
4 VS
IN+4 12
3 IN+1
IN-4 13
2 IN-1
OUT4 14
R SHU NT2
Directio n o f
Curren t Flo w
C BYPASS
Bus Voltage2:
-0.2 V to 26 V
1 OUT1
VIA to
Curren t Sense
Gro und
Output 1
Plan e
Curren t Sense
Output 4
Loa d1
Bus Voltage4:
-0.2 V to 26 V
RSHU NT4
VS: 2.7 V to 5.5 V
Bus Voltage1:
-0.2 V to 26 V
RSHU NT1
Directio n o f
Curren t Flo w
Directio n o f
Curren t Flo w
Loa d4
Loa d1
图 53. Quad-Channel Recommended Layout
版权 © 2017–2018, Texas Instruments Incorporated
29
INA180, INA2180, INA4180
ZHCSG97D – APRIL 2017 – REVISED MARCH 2018
www.ti.com.cn
12 器件和文档支持
12.1 文档支持
12.1.1 相关文档
如需相关文档，请参阅：
• 《INA180-181EVM 用户指南》
• 《INA2180-2181EVM 用户指南》
• 《INA4180-4181EVM 用户指南》
12.2 相关链接
列出了快速访问链接。类别包括技术文档、支持和社区资源、工具和软件，以及立即购买的快速链接。
表 4. 相关链接
器件
产品文件夹
立即订购
技术文档
工具和软件
支持和社区
INA180
请单击此处
请单击此处
请单击此处
请单击此处
请单击此处
INA2180
请单击此处
请单击此处
请单击此处
请单击此处
请单击此处
INA4180
请单击此处
请单击此处
请单击此处
请单击此处
请单击此处
12.3 接收文档更新通知
要接收文档更新通知，请导航至 TI.com.cn 上的器件产品文件夹。请单击右上角的提醒我 进行注册，即可每周接收
产品信息更改摘要。有关更改的详细信息，请查看任何已修订文档中包含的修订历史记录。
12.4 社区资源
下列链接提供到 TI 社区资源的连接。链接的内容由各个分销商“按照原样”提供。这些内容并不构成 TI 技术规范，
并且不一定反映 TI 的观点；请参阅 TI 的 《使用条款》。
TI E2E™ 在线社区 TI 的工程师对工程师 (E2E) 社区。此社区的创建目的在于促进工程师之间的协作。在
e2e.ti.com 中，您可以咨询问题、分享知识、拓展思路并与同行工程师一道帮助解决问题。
设计支持
TI 参考设计支持 可帮助您快速查找有帮助的 E2E 论坛、设计支持工具以及技术支持的联系信息。
12.5 商标
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.6 静电放电警告
ESD 可能会损坏该集成电路。德州仪器 (TI) 建议通过适当的预防措施处理所有集成电路。如果不遵守正确的处理措施和安装程序 , 可
能会损坏集成电路。
ESD 的损坏小至导致微小的性能降级 , 大至整个器件故障。 精密的集成电路可能更容易受到损坏 , 这是因为非常细微的参数更改都可
能会导致器件与其发布的规格不相符。
12.7 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 机械、封装和可订购信息
以下页面包含机械、封装和可订购信息。这些信息是指定器件的最新可用数据。数据如有变更，恕不另行通知，也
不会对此文档进行修订。如欲获取此数据表的浏览器版本，请参阅左侧的导航栏。
30
版权 © 2017–2018, Texas Instruments Incorporated
PACKAGE OPTION ADDENDUM
www.ti.com
11-May-2018
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
INA180A1IDBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
18ID
INA180A1IDBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
18ID
INA180A2IDBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1A8D
INA180A2IDBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1A8D
INA180A3IDBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1A9D
INA180A3IDBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1A9D
INA180A4IDBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1AAD
INA180A4IDBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1AAD
INA180B1IDBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
18RD
INA180B1IDBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
18RD
INA180B2IDBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1ABD
INA180B2IDBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1ABD
INA180B3IDBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1ACD
INA180B3IDBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1ACD
INA180B4IDBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1ADD
INA180B4IDBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
1ADD
INA2180A1IDGKR
ACTIVE
VSSOP
DGK
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
1CX6
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
Orderable Device
11-May-2018
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
INA2180A1IDGKT
ACTIVE
VSSOP
DGK
8
250
Green (RoHS
& no Sb/Br)
CU NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
1CX6
INA2180A2IDGKR
ACTIVE
VSSOP
DGK
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
1CZ6
INA2180A2IDGKT
ACTIVE
VSSOP
DGK
8
250
Green (RoHS
& no Sb/Br)
CU NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
1CZ6
INA2180A3IDGKR
ACTIVE
VSSOP
DGK
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
1D16
INA2180A3IDGKT
ACTIVE
VSSOP
DGK
8
250
Green (RoHS
& no Sb/Br)
CU NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
1D16
INA2180A4IDGKR
ACTIVE
VSSOP
DGK
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
1D26
INA2180A4IDGKT
ACTIVE
VSSOP
DGK
8
250
Green (RoHS
& no Sb/Br)
CU NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
1D26
INA4180A1IPWR
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 125
4180A1
INA4180A2IPWR
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 125
4180A2
INA4180A3IPWR
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 125
4180A3
INA4180A4IPWR
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 125
4180A4
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
